Plan Specification: HHF-3823

Total Square Footage: 1,548

Main Level: 1,548

Bedrooms: 3

Baths: 2        Half: 1

Garages: 2

Width: 71 ft Depth: 36 ft

Foundation: Basement, Crawl Space, Slab Foundation


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-3823

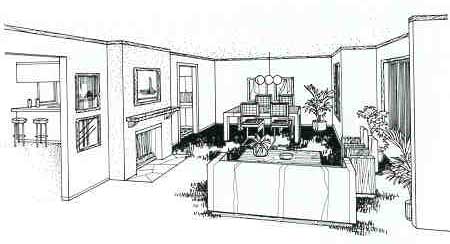

If your looking for an affordable, conventional three bedroom ranch, but prefer a very simple Mediterranean style this could interest you. The interior is open and flowing. The front includes a formal entertaining space facing the front porch, while the entire rear is an open informal space. Note the covered rear porch.

ShareThis
Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET   PDFs Now!   $575.00
 Four Set Package    $675.00
 Eight Set Package    $755.00
 PDF Construction Set - Single Use   PDFs Now!   $845.00
 Reproducible Vellum Set    $870.00
FOUNDATION OPTIONS

 Crawl Space PDFs Now! available   $0.00
 Slab Foundation PDFs Now! available   $0.00
 Basement PDFs Now! available   $100.00
ADDITIONAL PLAN OPTIONS

 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 Multiple Use License (For more than one home)  $250.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Country Kitchen
  • Covered Front Porch

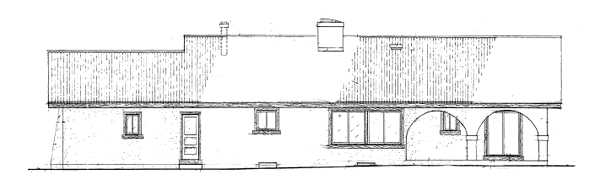

  • Covered Rear Porch
  • Dining Room
  • Family Kitchen
  • Family Room
  • Fireplace
  • Formal Dining Room
  • Formal LR
  • Laundry 1st Fl
  • Master Bdrm Main Floor
  • Mud Room
  • Peninsula / Eating Bar
  • Separate Living / Family Room
  • Storage Space
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
Front Rendering:





© copyright by designer
First Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1
Width:71' 0"
Depth:36' 10"
Dwelling Number:Single

Exterior Style
  • Mediterranean
  • Southwest
  • Spanish

Facade
  • Owner's Choice
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:1548 Sq. Ft.
Total: 1548 Sq. Ft.

Unfinished Square Footage
Garage:465 Sq. Ft.
Porch:170 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawl Space
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8'-1"
Maximum House Height:19' 6"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:6/ 12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
Half Baths:1
