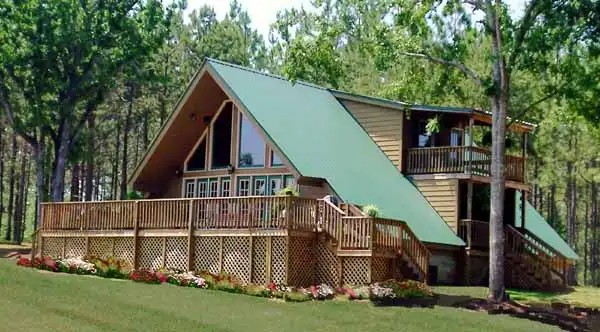

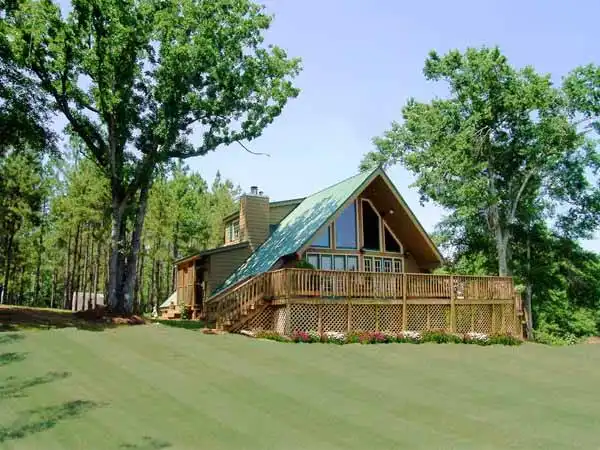

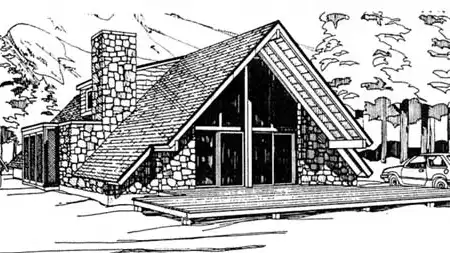

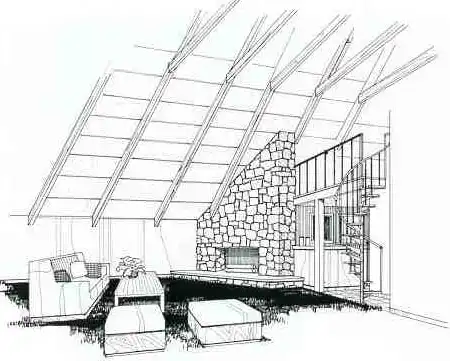

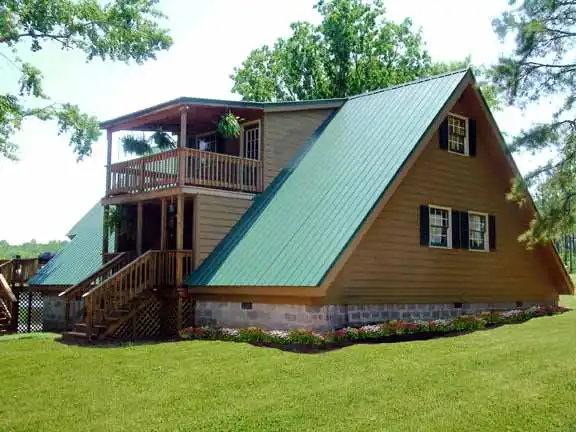

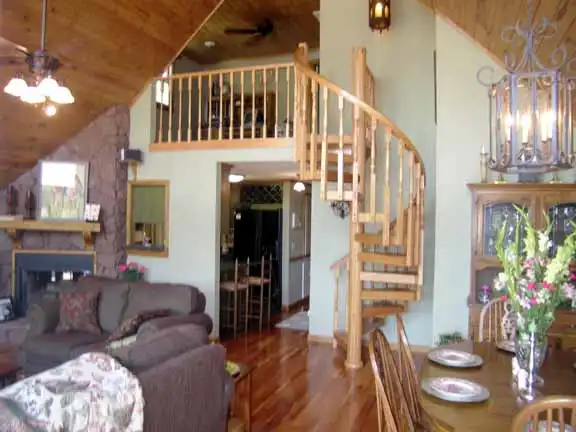

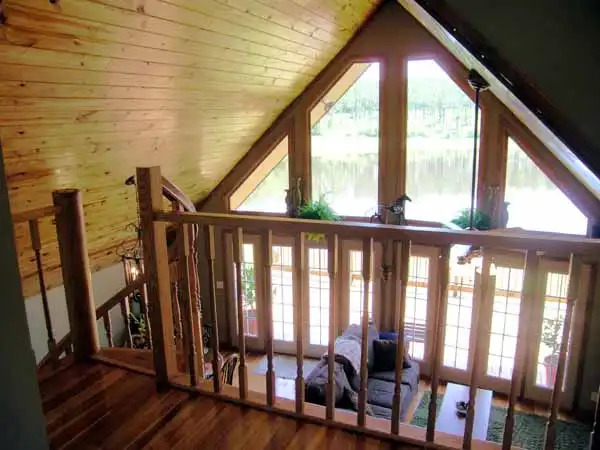

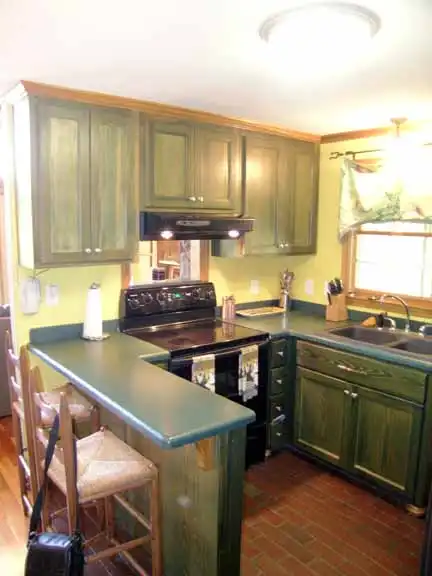

Front Photo Front Rendering Great Room Rear Photo Front Photo #2 Great Room #2 Great Room #3 Kitchen Living Room Dining Room First Floor Plan Second Floor Plan
© copyright by designer

Plan: 3824

Plan Specification
Total Square Footage: 1,396
Main Level: 964
Second Level: 432
Bedrooms: 3
Baths: 2 Half: 0
Garages: 0
Width/Depth: 40 ft / 54 ft
Foundation: Basement, Slab Foundation
Pin It
© copyright by designer
First Floor Plan:
First Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Second Floor Plan:
Second Floor Plan
Similar plans: 3765, 3813, 3869, 4472
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans

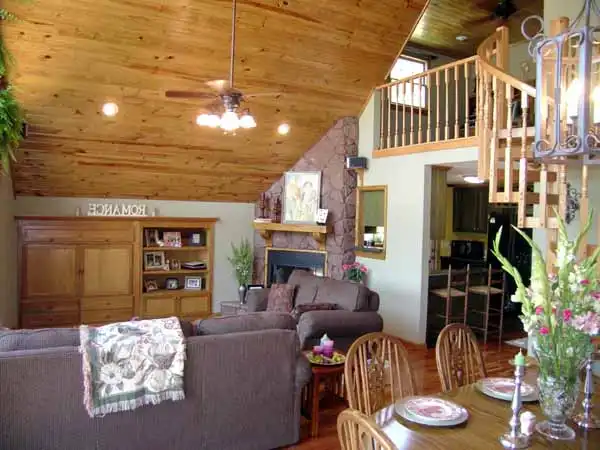

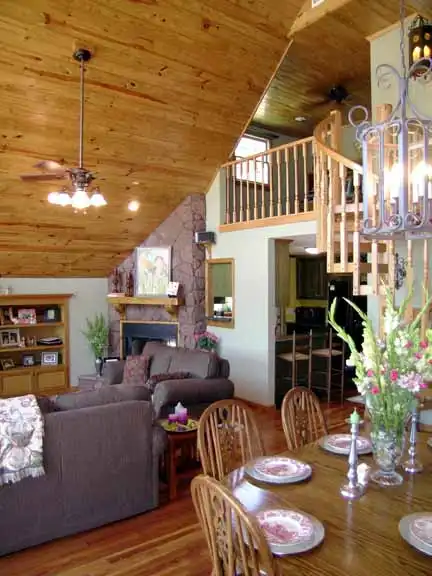

PLAN DESCRIPTION This A-frame includes the dramatic interior common to true A-frames. The great room features a spectacular two story high ceiling ,which extends over the dramatic second floor balcony adjacent the private master suite. Outdoor porches and decks contribute to the great liveability of this plan.
Get Your House Plans In Minutes!
NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs Now! $525.00
$605.00
$685.00
PDFs Now! $785.00
$810.00
More details about our plan packages
Foundation Options
$0.00
$100.00
Additional Plan Options
$250.00
$50.00
$75.00
$50.00
$150.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• Deck
• Fireplace
• Great Room
• Loft / Study
• Master Bedroom Up
• None
• Outdoor Grill Area
• Screened Porch/Sunroom
• Vaulted Ceilings
Plan Details
General House Information
2
Number of Stories:
40' 8"
Width:
54' 0"
Depth:
Single
Dwelling Number:
Exterior Style
Contemporary
Modern
Mountain
Vacation
Beach
Facade
Owner's Choice
OwnersChoice
Number of Rooms
3
Bedrooms:
2
Full Baths:
Finished Square Footage
964 Sq. Ft.
Main Level:
432 Sq. Ft.
Upper Level:
1,396 Sq. Ft.
Total:
GARAGE
0
Garage Size:
Foundation
Basement
Slab Foundation
House And Ceiling Heights
7'-8"
First Floor Ceiling:
7'-8"
Second Floor Ceiling:
20' 6"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/ 12
Primary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
Number of Rooms
3
Bedrooms:
2
Full Baths:
Architect's Preferred Products
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments
