Plan Specification: HHF-3824

Total Square Footage: 1,396

Main Level: 964

Second Level: 432

Bedrooms: 3

Baths: 2

Garages: 0

Width: 40 ft Depth: 54 ft

Foundation: Basement, Slab Foundation


Pricing Options Click here...

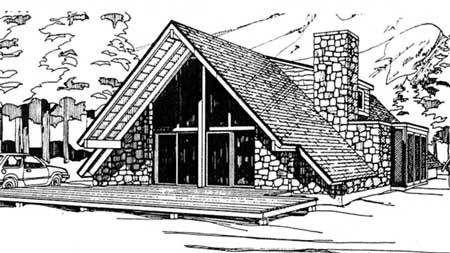

Main Plan Photo
© copyright by designer

Plan: HHF-3824

This A-frame includes the dramatic interior common to true A-frames. The great room features a spectacular two story high ceiling ,which extends over the dramatic second floor balcony adjacent the private master suite. Outdoor porches and decks contribute to the great liveability of this plan.

ShareThis

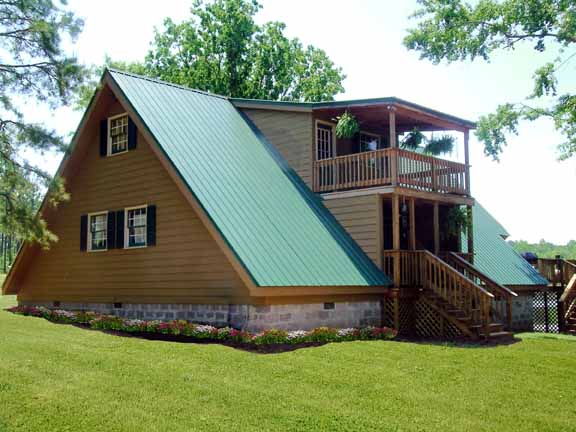

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 PDF BID SET    $525.00
 Four Set Package    $605.00
 Eight Set Package    $685.00
 PDF Construction Set - Single Use    $785.00
 Reproducible Vellum Set    $810.00
FOUNDATION OPTIONS

 Slab Foundation  $0.00
 Basement  $100.00
ADDITIONAL PLAN OPTIONS

 Multiple Use License (For more than one home)  $250.00
 Additional Set  $50.00
 Material List (if available)  $75.00
 Mirror Reverse  $50.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Deck
  • Fireplace
  • Great Room
  • Loft / Study
  • Master Bedroom Up
  • None
  • Outdoor Grill Area
  • Screened Porch/Sunroom
  • Vaulted Ceilings
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1.5
Width:40' 8"
Depth:54' 0"
Dwelling Number:Single

Exterior Style
  • Contemporary
  • Modern
  • Mountain
  • Vacation
  • Beach

Facade
  • Owner's Choice
  • OwnersChoice
  • OwnersChoice

Number of Rooms
Bedrooms:3
Full Baths:2

Finished Square Footage
Main Level:964 Sq. Ft.
Upper Level: 432 Sq. Ft.
Total: 1396 Sq. Ft.

Garage
Garage Type:None
Garage Size:0


Foundation
  • Basement
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:7'-8"
Second Floor Ceiling:7'-8"
Maximum House Height:20' 6"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:12/ 12

Roof Load
Live:30
Dead:10

INSULATION
Exterior Wall:13
Interior Wall:0
Ceiling:30
Floor:19

Number of Rooms
Bedrooms:3
Full Baths:2
