Plan Specification: HHF-4602

Total Square Footage: 2,237

Main Level: 1,252

Second Level: 985

Bedrooms: 4

Baths: 3

Garages: 2

Width: 40 ft Depth: 49 ft

Foundation: Basement, Crawlspace, Slab


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-4602

Craftsman homes were all the rage in the early part of the last century, but their appeal lingers on and becomes the basis for a new breed of classic home with updated floor planning. The design of this home is a perfect example of what can be accomplished when past meets present. Look for formal and informal spaces in the design: a vaulted living room/dining room combination, a great room and a casual nook. The L-shaped kitchen features a raised island counter, large pantry and built-in desk. A den, or bedroom, behind the garage has the use of a full bath and overlooks the rear patio.


ShareThis
Black Friday Pre-Sale, 10% off House Plans! see details

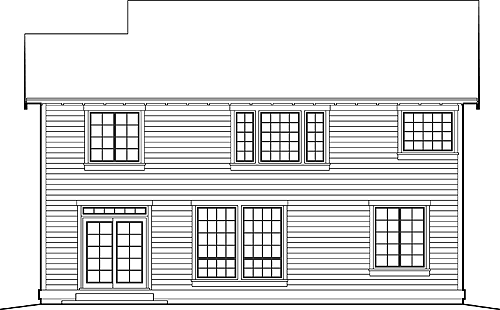

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $800.00
 Construction Package    $900.00
 Modification Package: PDF    $1,065.00
 Modification Package: CAD    $1,810.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Slab  $105.00
 Basement  $250.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • 2 Master Suites
  • 2 Story Volume
  • Attached
  • Basement
  • Bonus on upper floor
  • Bonus Room
  • Covered Front Porch
  • Crawlspace
  • Den/bedroom on main
  • Dining Room
  • Family Room
  • Fireplace
  • Formal LR
  • Foyer
  • Front Porch
  • Great Room
  • Home Office
  • Laundry 1st Fl
  • Master Bdrm Upstairs
  • Nook / Breakfast Area
  • Open Floor Plan
  • Separate Tub and Shower
  • Slab
  • Vaulted Ceilings
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:40' 0"
Depth:49' 0"
Dwelling Number:Single
Bonus Access:2nd Floor

Exterior Style
  • Traditional
  • Country
  • Craftsman
  • PDFs Fast!

Number of Rooms
Bedrooms:4
Full Baths:3

Finished Square Footage
Main Level:1252 Sq. Ft.
Upper Level: 985 Sq. Ft.
Total: 2237 Sq. Ft.

Unfinished Square Footage
Garage:418 Sq. Ft.
Porch:120 Sq. Ft.
Bonus Room:183 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Basement
  • Crawlspace
  • Slab

House And Ceiling Heights
First Floor Ceiling:Varies
Second Floor Ceiling:Varies
Maximum House Height:27' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:6/12
Porch:6/12

Roof Load
Live:25
Dead:15
Wind:0

INSULATION
Exterior Wall:21
Interior Wall:0
Ceiling:38
Floor:30

Number of Rooms
Bedrooms:4
Full Baths:3
