Plan Specification: HHF-5136

Total Square Footage: 563

Main Level: 563

Garages: 2

Width: 21 ft Depth: 26 ft

Foundation: Slab Foundation


Pricing Options Click here...

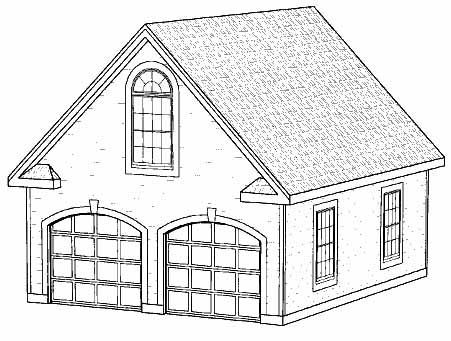

Main Plan Photo
© copyright by designer

Plan: HHF-5136


ShareThis
Additional Images

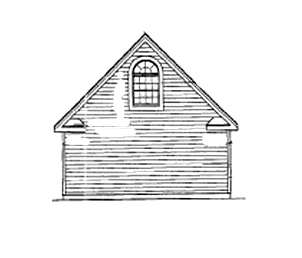

See all 3 photos and rear view
Plan Pricing Packages
HOUSE PLAN SETS
 PDF BID SET  $175.00
 Four Set Package  $225.00
 Eight Set Package  $275.00
 PDF Construction Set - Single Use  $325.00
 Reproducible Vellum Set  $350.00
 CAD FILE - single use  $475.00
FOUNDATION OPTIONS
 Slab Foundation  $0.00
ADDITIONAL PLAN OPTIONS
 Additional Set  $50.00
 Full Reverse Plans (If available)  $350.00
 High Wind Structural Drawings  $150.00
PROMOTIONAL ITEMS
 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Detached
  • No Porch
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
Bonus Room:





© copyright by designer
First Floor Plan:

Top

Plan Details

General House Information
Number of Stories:1.5
Width:21' 8"
Depth:26' 0"
Dwelling Number:Garage
Bonus Access:2nd Floor

Finished Square Footage
Main Level:563 Sq. Ft.
Total: 563 Sq. Ft.

Unfinished Square Footage
Bonus Room:268 Sq. Ft.

Garage
Garage Type:Detached
Garage Size:2


Foundation
  • Slab Foundation

House And Ceiling Heights
First Floor Ceiling:8
Second Floor Ceiling:0
Maximum House Height:21' 6"

Framing Information
Roof Framing:Stick
Exterior Wall Framing:2x4

Roof Pitch
Primary:12

Roof Load
Live:30
Dead:7

INSULATION
  • Per IRC Climate Zones
