Plan Specification: HHF-5149

Total Square Footage: 2,372

Main Level: 1,736

Second Level: 636

Bedrooms: 4

Baths: 2        Half: 1

Garages: 3

Width: 60 ft Depth: 49 ft

Foundation: Crawlspace, Slab


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-5149

Wonderful symmetry comes into play on the exterior of this plan. Twin gables adorn the upper level, echoing a dormer on the three-car garage and a pediment over the entry. The main level is host to living spaces as well as the vaulted master suite. A formal dining room and casual nook flank the kitchen. The great room is also vaulted and boasts a fireplace and double doors opening to the backyard. Choose to develop the den as a fourth bedroom, if that meets your needs better. Note the bench in the laundry room and the half-bath across the hall. The master bath is especially attractive with a spa tub, double sinks and compartmented toilet and shower.


ShareThis
SITE-WIDE SALE! 10% off all modifications or 10% off any plan package over $500 see details

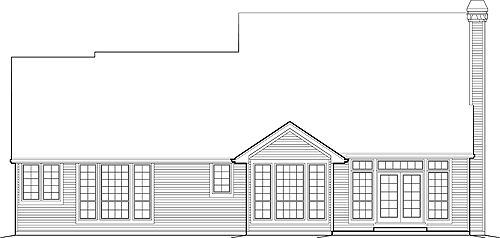

Additional Images

Plan Pricing Packages
HOUSE PLAN SETS

 Basic Package    $800.00
 Construction Package    $900.00
 Modification Package: PDF    $1,065.00
 Modification Package: CAD    $1,810.00
FOUNDATION OPTIONS

 Crawlspace  $0.00
 Slab  $105.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $40.00
 Full Reverse Sets  $100.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Bonus Room
  • Country Kitchen
  • Covered Front Porch
  • Crawlspace
  • Dining Room
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Front Porch
  • Great Room
  • Home Office
  • Kitchen Island
  • Laundry 1st Fl
  • Loft / Balcony
  • Master Bdrm Main Floor
  • Mud Room
  • Open Floor Plan
  • Separate Tub and Shower
  • Slab
  • Split Bedrooms
  • Storage Space
  • Vaulted Ceilings
  • Walk-in Closet
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form

© copyright by designer
First Floor Plan:





© copyright by designer
Second Floor Plan:

Top

Plan Details

General House Information
Number of Stories:2
Width:60' 0"
Depth:49' 0"
Dwelling Number:Single
Bonus Access:1st Floor

Exterior Style
  • Traditional
  • Colonial
  • Country
  • PDFs Fast!

Number of Rooms
Bedrooms:4
Full Baths:2
Half Baths:1

Finished Square Footage
Main Level:1736 Sq. Ft.
Upper Level: 636 Sq. Ft.
Total: 2372 Sq. Ft.

Unfinished Square Footage
Garage:647 Sq. Ft.
Porch:180 Sq. Ft.
Bonus Room:418 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:3


Foundation
  • Crawlspace
  • Slab

House And Ceiling Heights
First Floor Ceiling:Varies
Second Floor Ceiling:8' 1"
Maximum House Height:28' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:8/12
Gable:6/12
Porch:4/12

Roof Load
Live:25
Dead:15
Wind:0

INSULATION
  • Per IRC Climate Zones

Number of Rooms
Bedrooms:4
Full Baths:2
Half Baths:1
