House Plan: DFD-5705

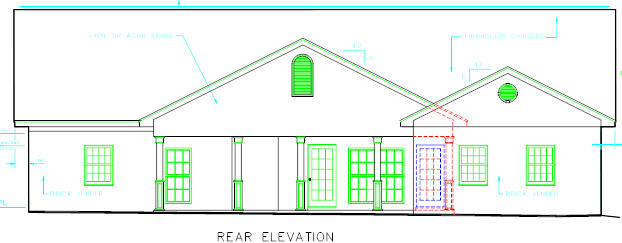

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,172
BEDS
4
BATHS
2
STORIES
1
CARS
2
PLANS FROM $1,050
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 5705
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,050
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,180
Five printed sets of house plans
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1050
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,172 Sq. Ft.
Main Level:
2,172 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
62' 0"
Width:
76' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
480 Sq. Ft.
Garage:
695 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Country
Farmhouse
Southern
Collections
Old House Classics
Rectangular
Split Bedroom
Foundation
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8
Primary:
4
Secondary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
22' 0"
Maximum House Height:
Key Features
Comes with a detached garage plan
Covered Front Porch
Covered Porch
Covered Rear Porch
Crawlspace
Detached
Fireplace
Front Porch
Great Room
Guest Suite
Home Office
Kitchen Island
Master Suite
Nook / Breakfast Area
Office or extra bedroom
Open Floor Plan
Peninsula / Eating Bar
Raised Snack Bar
Rear Porch
Separate Tub and Shower
Slab
Split Floor plan layout
Suited for corner lot
Tray Ceiling
Walk-in Closet
Walk-in Pantry
