Plan Specification: HHF-5746

Total Square Footage: 3,029

Main Level: 3,029

Bedrooms: 4

Baths: 3

Garages: 2

Width: 70 ft Depth: 80 ft

Foundation: Crawl Space, Slab


Pricing Options Click here...

Main Plan Photo
© copyright by designer

Plan: HHF-5746

The Large Great Room has an 11' Tray ceiling, gas fireplace and a French door leading onto the rear porch. The Kitchen is open to the Dining Area and Great Room with an angled snack bar. The highlight of the Kitchen is the 4'X 10' walk-in pantry! The Huge Master Bedroom has a nice sitting room, 8' X 10' walk-in closet and a glamour bath.This split bedroom plan has 3-4 bedrooms and 3 full baths (one is even a Jack and Jill bath!)

ShareThis

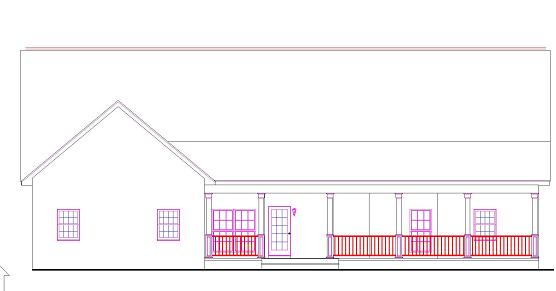

Additional Images


Get Your House Plans In Minutes!

NEW PDFs Now! Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
Plan Pricing Packages
HOUSE PLAN SETS

 PDF Bid Set - NOT for Construction    $840.00
 Five Sets    $840.00
 PDF - File Package - One build only   PDFs Now!   $1,150.00
 Vellums    $1,150.00
FOUNDATION OPTIONS

 Crawl Space PDFs Now! available   $0.00
 Slab PDFs Now! available   $0.00
ADDITIONAL PLAN OPTIONS

 Additional Sets  $50.00
 Mirror Reverse  $50.00
 RRR - Right Reading Reverse  $150.00
PROMOTIONAL ITEMS

 Custom Adult T-shirt  $25.00
Size:
Color:
Best Price Guarantee, learn more
For more details about our plan packages click here



Email Us   Call Us   Live Chat

Key Features
  • Attached
  • Country Kitchen
  • Covered Front Porch
  • Covered Porch
  • Covered Rear Porch
  • Crawlspace
  • Double Vanity Sink
  • Fireplace
  • Foyer
  • Front Porch
  • Great Room
  • Home Office
  • Jack and Jill Bath
  • Kitchen Island
  • Large Bedrooms
  • Master Suite
  • Mud Room
  • Nook / Breakfast Area
  • Office or extra bedroom
  • Open Floor Plan
  • Raised Snack Bar
  • Rear Porch
  • Separate Tub and Shower
  • Side-entry
  • Sitting Area
  • Slab
  • Split Bedrooms
  • Split Floor plan layout
  • Stairs to attic or future space
  • Storage Space
  • Tray Ceiling
  • Unfinished Space
  • Vaulted Ceilings
  • Walk-in Closet
  • Walk-in Pantry
Need to make changes?
Call for a free modification quote
877-895-5299
or use this quote form
Architect's Preferred Products:
ULTREX® Fiberglass Windows & Doors
Decorative Millwork and Columns
Classic-Craft® American Collection™ Fiberglass Entry Door
Prefinished Hardwood Flooring
Decorative Window Treatments

© copyright by designer
Floor Plan:




Top

Plan Details

General House Information
Number of Stories:1
Width:70' 0"
Depth:80' 0"
Dwelling Number:Single
Bonus Access:1st Floor

Exterior Style
  • Southern
  • Country
  • Traditional
  • Mountain
  • PDFs Fast!

Number of Rooms
Bedrooms:4
Full Baths:3

Finished Square Footage
Main Level:3029 Sq. Ft.
Total: 3029 Sq. Ft.

Unfinished Square Footage
Garage:576 Sq. Ft.
Storage:100 Sq. Ft.
Porch:825 Sq. Ft.
Bonus Room:288 Sq. Ft.

Garage
Garage Type:Attached
Garage Size:2


Foundation
  • Crawl Space
  • Slab

House And Ceiling Heights
First Floor Ceiling:9
Second Floor Ceiling:8
Maximum House Height:27' 0"

Framing Information
Roof Framing:Truss
Exterior Wall Framing:2x6

Roof Pitch
Primary:8
Secondary:10
Porch:4

INSULATION
Exterior Wall:0
Interior Wall:0
Ceiling:30
Floor:0

Number of Rooms
Bedrooms:4
Full Baths:3
