House Plan: DFD-10487

Pin It

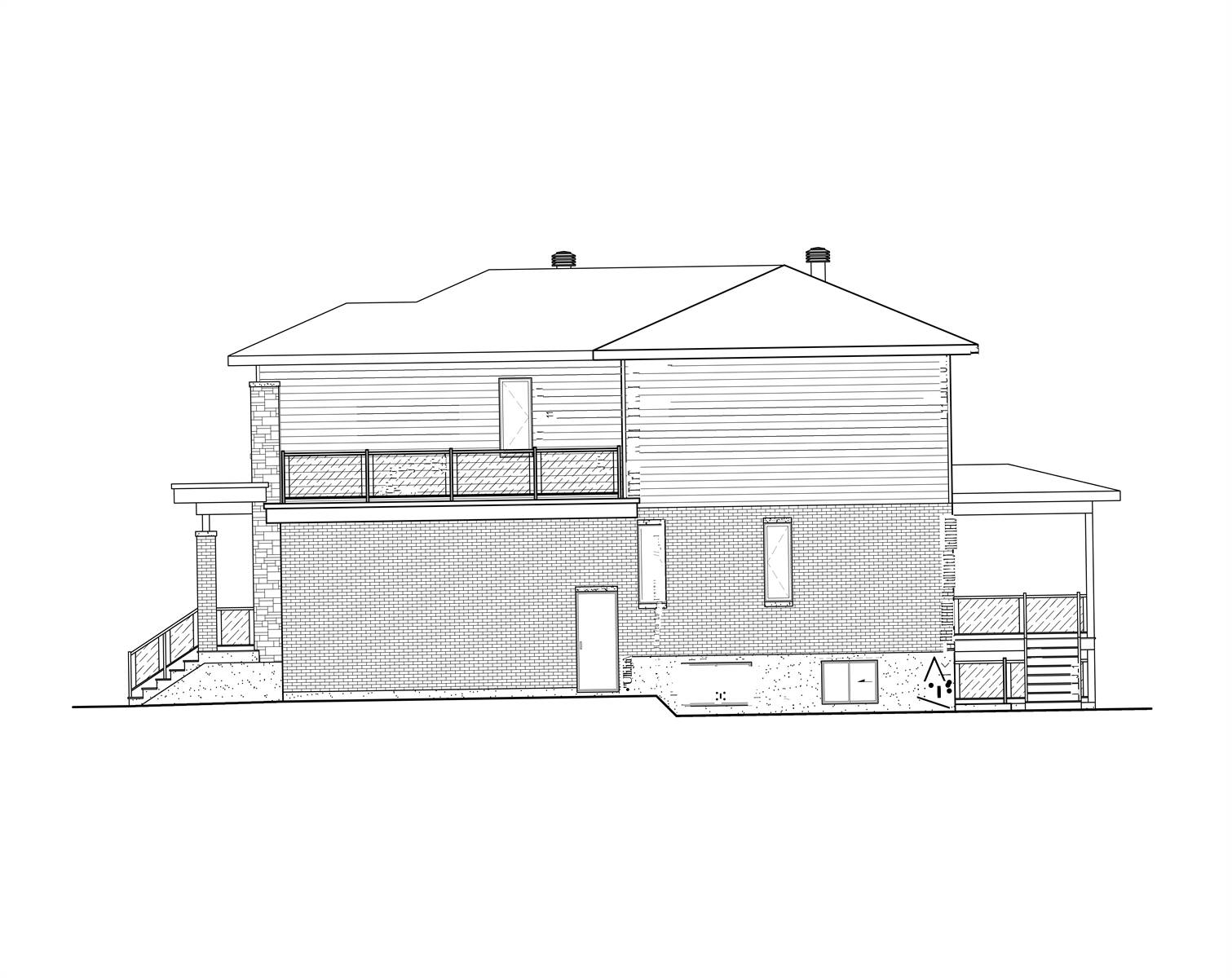

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,384
BEDS
3
BATHS
1
STORIES
3
CARS
0
HOUSE PLANS SALE
START AT  $1,120.50
For questions and help, live chat, email or call us at 877-895-5299
1st Floor
2nd Floor
Lower Level Plan
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 10487:
House Plan 10487 is a stacked triplex offering a 1,193-square-foot (basement) and two 1,384-square-foot units (first and second stories) to minimize the building's footprint. Everybody has their own unique entry in front and back. Inside, each floor has open-concept living with an island kitchen and a large bedroom with a walk-in closet on one side while two bedrooms and a five-piece hall bath are on the other. The laundry is centrally located. The top unit also has an office where the others have foyers!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,350
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,395
Five printed sets of house plans

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,540
Digital plans plus 5 printed sets

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,370
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1350
FREE SHIPPING
Provinces of Québec and Ontario only: Purchasable options are 5 printed sets or 8 printed sets. PDF file and CAD file options are unavailable.

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,384 Sq. Ft.
Main Level:
1,384 Sq. Ft.
Upper Level:
1,193 Sq. Ft.
Lower Level:
1,384 Sq. Ft.
Total:
Room Details
3
Bedrooms:
1
Full Baths:
General House Information
3
Number of Stories:
36' 0"
Width:
57' 0"
Depth:
Multi-Family
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
GARAGE
0
Garage Size:
Exterior Style
Contemporary
Modern Farmhouse
Transitional
Collections
Affordable
Budget
Canada
Open Floor Plan
Split Bedroom
Foundation
Basement
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
12/12
Secondary:
Insulation (R)
House And Ceiling Heights
9
First Floor Ceiling:
9
Second Floor Ceiling:
39' 3"
Maximum House Height:
Key Features
Covered Front Porch
Covered Rear Porch
Double Vanity Sink
Foyer
Great Room
Kitchen Island
Laundry 1st Fl
Laundry 2nd Fl
Primary Bdrm Main Floor
None
Open Floor Plan
Pantry
Separate Tub and Shower
Split Bedrooms
Suited for narrow lot
Walk-in Closet
