House Plan: DFD-10802

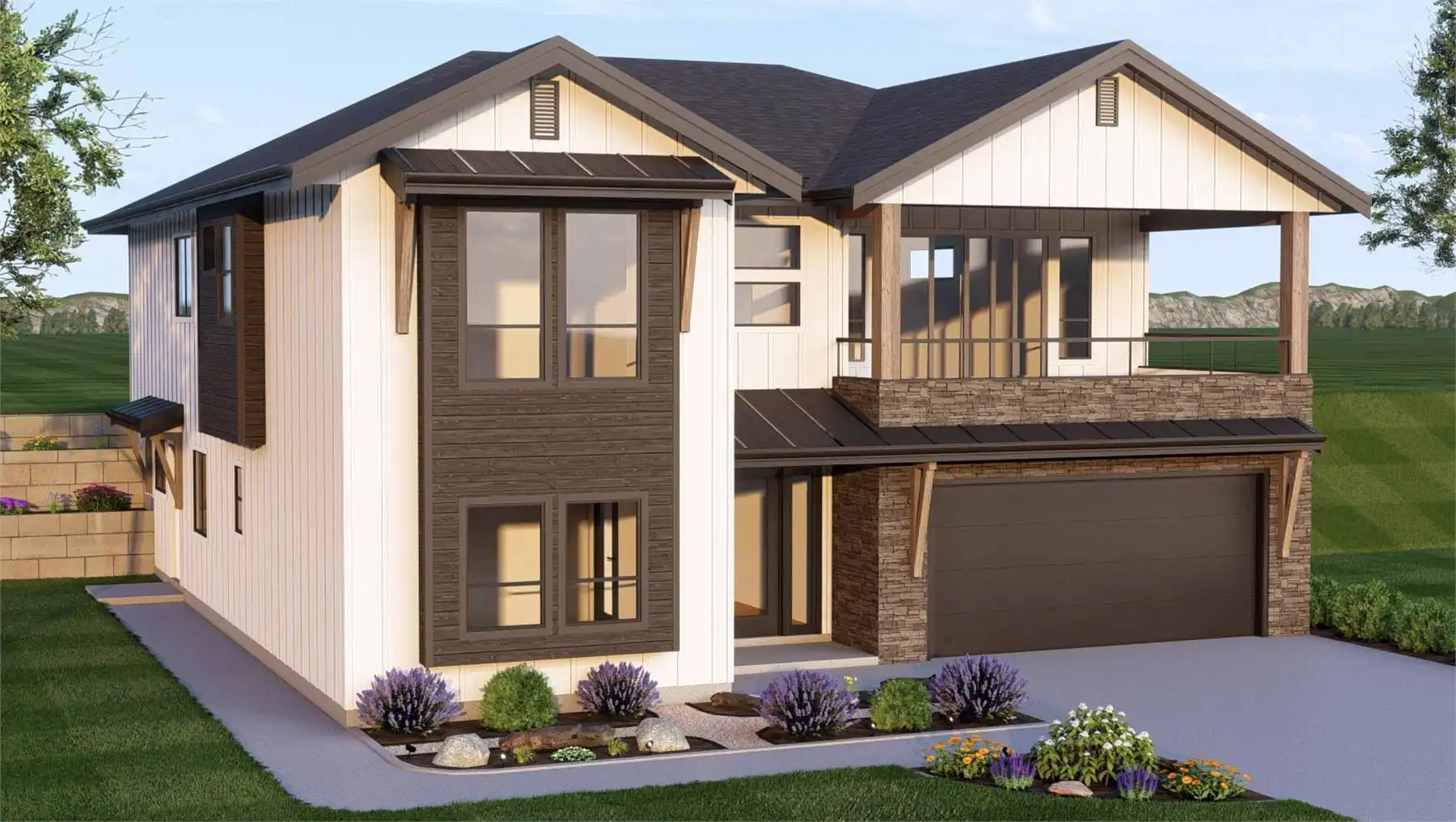

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,768
BEDS
4
BATHS
3
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,379.20
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 10802:
House Plan 10802 provides adaptable living across two thoughtful levels. The ground floor includes a double garage with a tandem space, a private guest bedroom and bath, and an unfinished secondary suite area designed for future rental or extended family use. Upstairs, the main living space features an open great room, dining area, and kitchen with a central island and pantry. The primary suite offers a spa-inspired ensuite with a soaker tub and walk-in shower, while two additional bedrooms share a full bath nearby. A front deck and covered rear patio offer inviting outdoor living areas. Designed for flexibility, comfort, and everyday ease, this plan suits families who value both privacy and shared spaces.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,724
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,881
Digital plans plus 5 printed sets

CAD + PDF Single Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $3,201
2D electronic editable computer files

CAD + PDF Unlimited Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $6,312
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1724
FREE SHIPPING

Note: C

Plan Details
See All Details
Finished Square Footage
1,572 Sq. Ft.
Main Level:
1,195 Sq. Ft.
Lower Level:
2,768 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
General House Information
2
Number of Stories:
43' 0"
Width:
57' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
733 Sq. Ft.
Garage:
227 Sq. Ft.
Deck:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Farmhouse
Modern Farmhouse
Collections
Affordable
Budget
Builders
Canada
Foundation
Basement
Crawl Space
Slab
Walkout Basement
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
4/12
Secondary:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
26' 4"
Maximum House Height:
Key Features
2 Story Volume
Attached
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Family Style
Fireplace
Foyer
Front-entry
Great Room
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Open Floor Plan
Oversized
Separate Tub and Shower
Storage Space
Suited for sloping lot
Suited for view lot
Tandem
Unfinished Space
Walk-in Closet
Walk-in Pantry
