House Plan: DFD-11062

See All 19 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
4,892
BEDS
6
BATHS
5.5
STORIES
2
CARS
0
HOUSE PLANS SALE
START AT  $1,400.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11062:

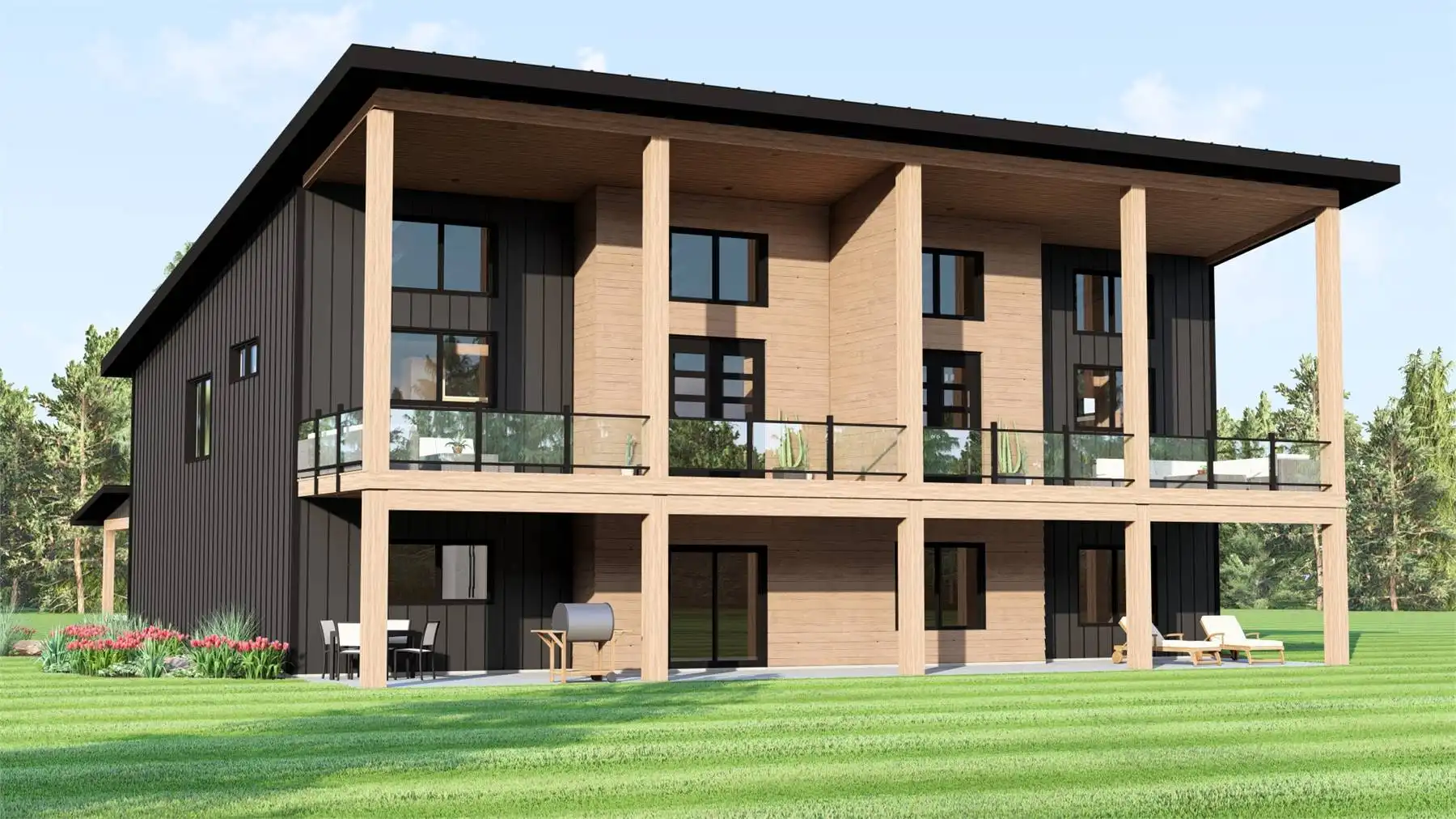

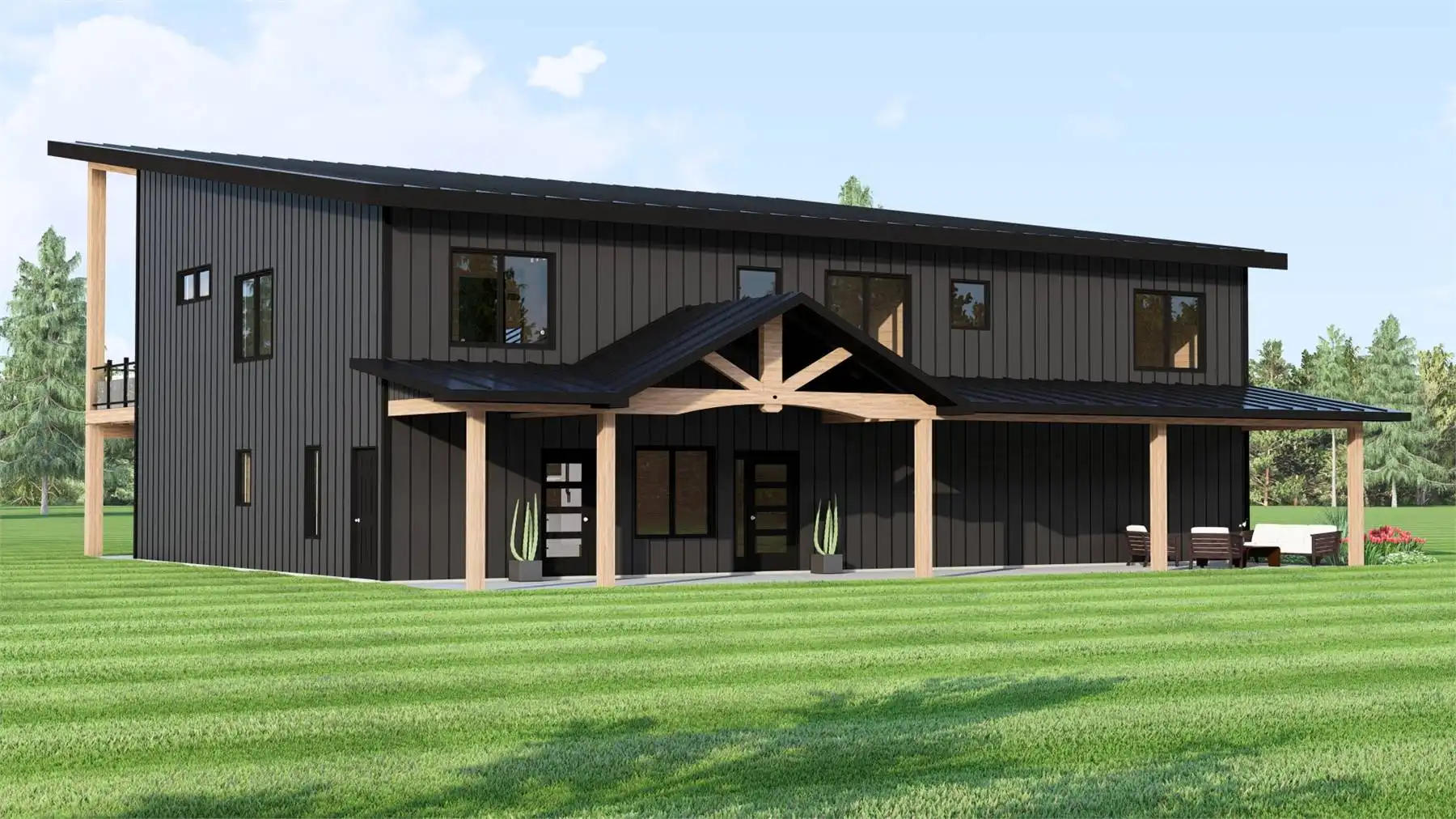

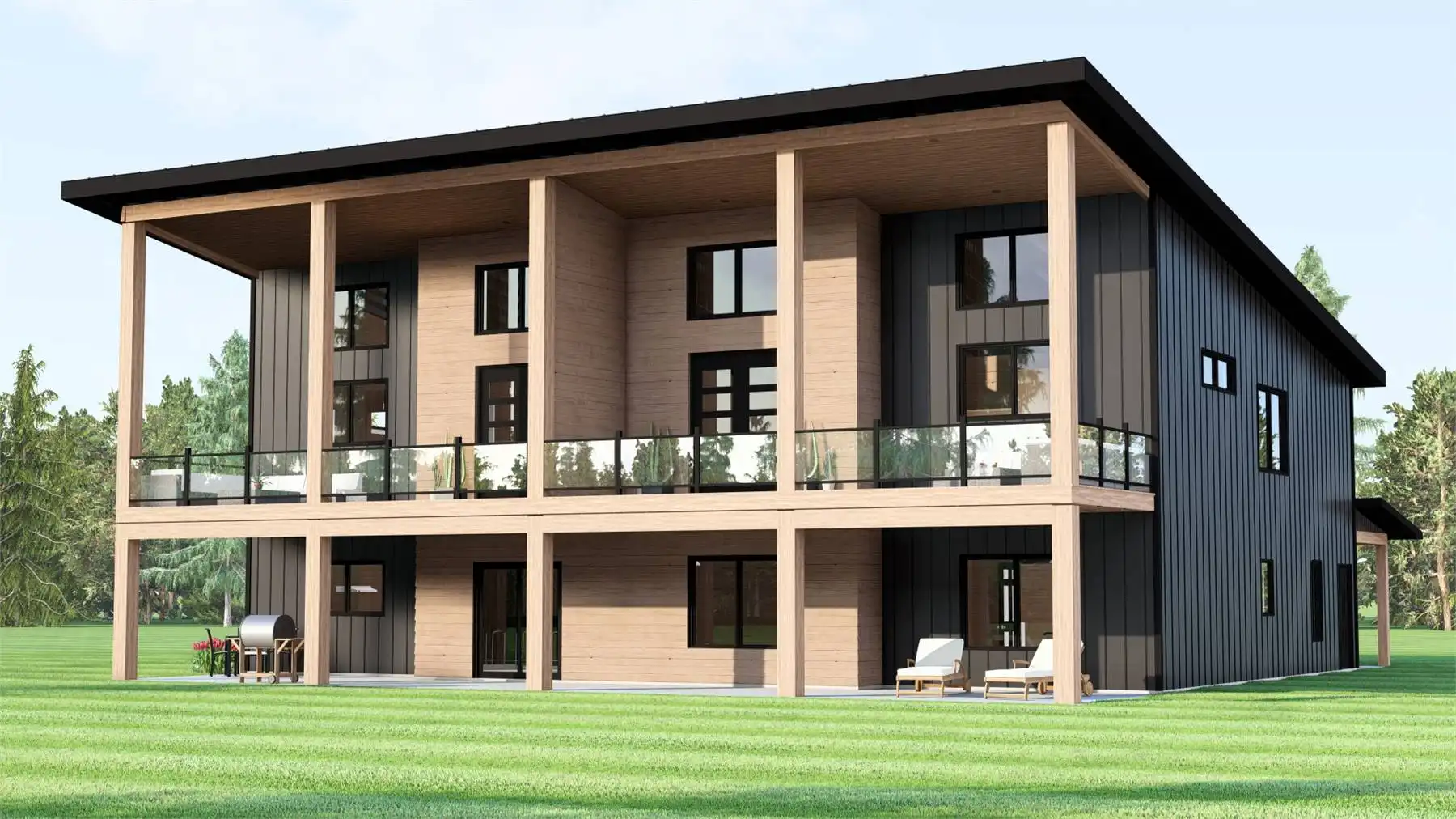

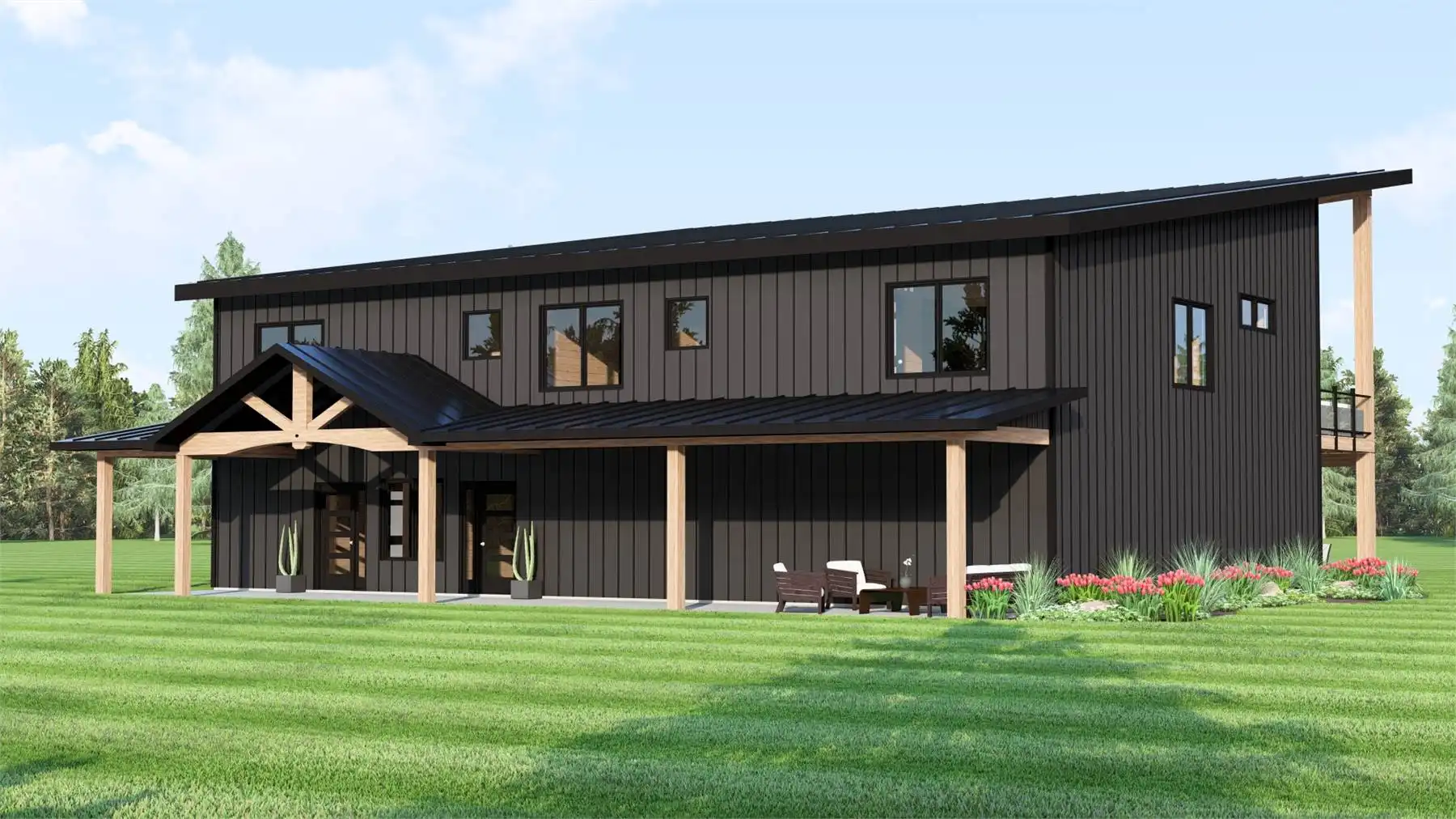

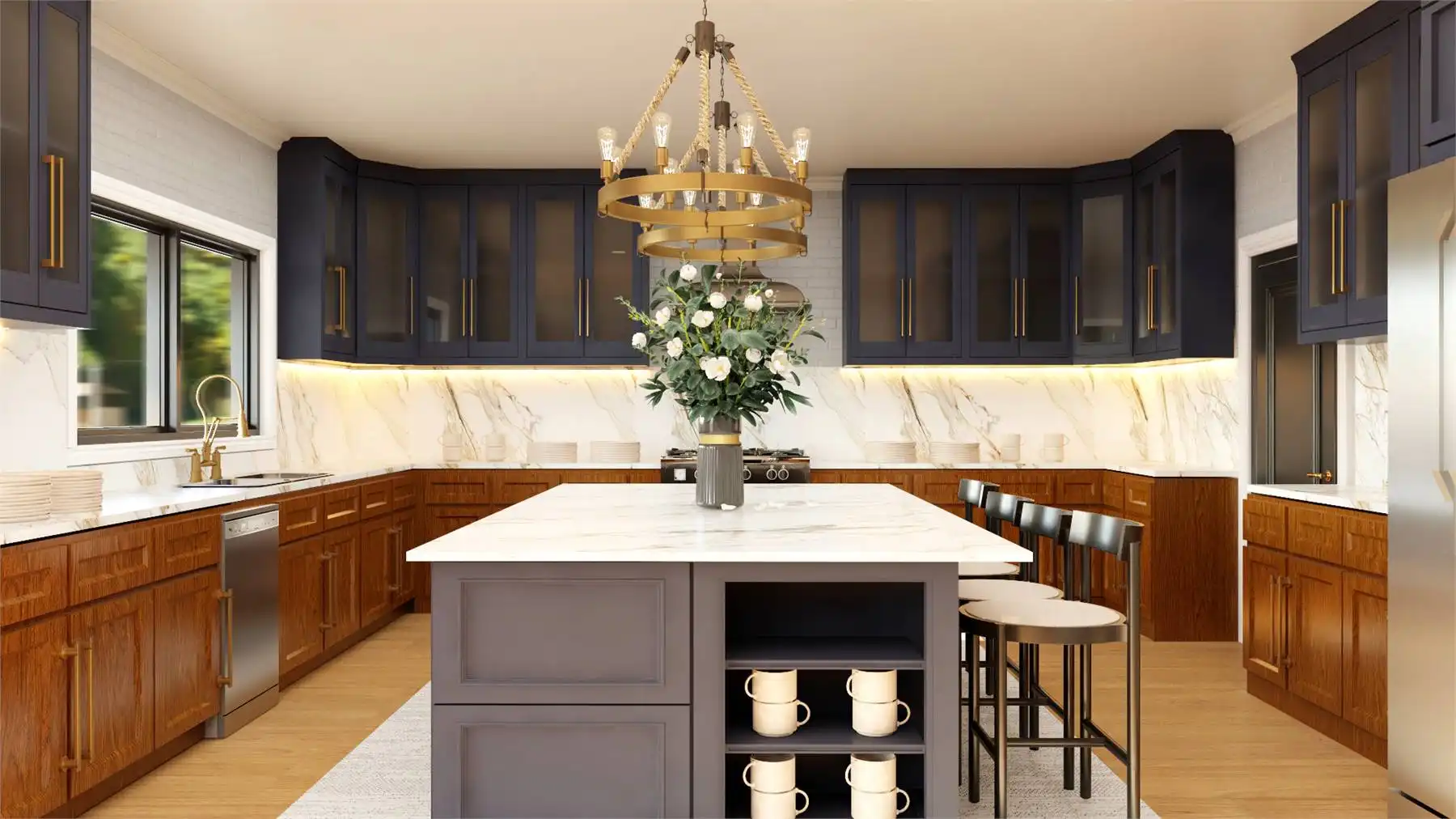

House Plan 11062 is a 4,892 square foot two-story home where modern meets Barndominium charm. Offering 6 bedrooms and 5.5 bathrooms, this design is tailored for multi-generational families. A dramatic cathedral ceiling welcomes you onto the expansive front covered porch, while the interior opens to a layout built for flexibility. On the main floor, the right wing features a complete in-law suite with a private living room, L-shaped kitchen with island seating, and a rear bedroom with ensuite bath. The remainder of the main level includes a theatre room (or optional office), a spacious U-shaped kitchen with walk-in pantry and central island, a flex room, and a great room that extends to a large rear covered patio for outdoor entertaining. Upstairs, the design is split into two mirrored wings—each with its own primary suite featuring a luxury ensuite bath and covered deck access. Two additional bedrooms and a shared bath on each side, along with laundry, complete the upper floor. This home is a perfect solution for families seeking independence and togetherness in one stylish plan.

House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,750
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $2,100
Digital plans plus 5 printed sets

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $2,350
Digital plans including unlimited build license

CAD + PDF Single Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $3,300
2D electronic editable computer files

CAD + PDF Unlimited Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $3,850
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1750
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,487 Sq. Ft.
Main Level:
2,405 Sq. Ft.
Upper Level:
4,892 Sq. Ft.
Total:
Room Details
6
Bedrooms:
5
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
60' 0"
Width:
62' 0"
Depth:
Multi-Family
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
600 Sq. Ft.
Front Porch:
645 Sq. Ft.
Deck:
GARAGE
0
Garage Size:
Exterior Style
Coastal
Contemporary
Modern
Collections
Affordable
In-Law Suite
Kitchens
Primary Suites
Mountain
Open Floor Plan
Foundation
Basement
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
2/12
Primary:
6/12
Secondary:
Roof Load
30 psf
Live:
Insulation (R)
19
Exterior Wall:
30
Ceiling:
House And Ceiling Heights
9
First Floor Ceiling:
9
Second Floor Ceiling:
29' 6"
Maximum House Height:
Key Features
Covered Front Porch
Covered Rear Porch
Deck

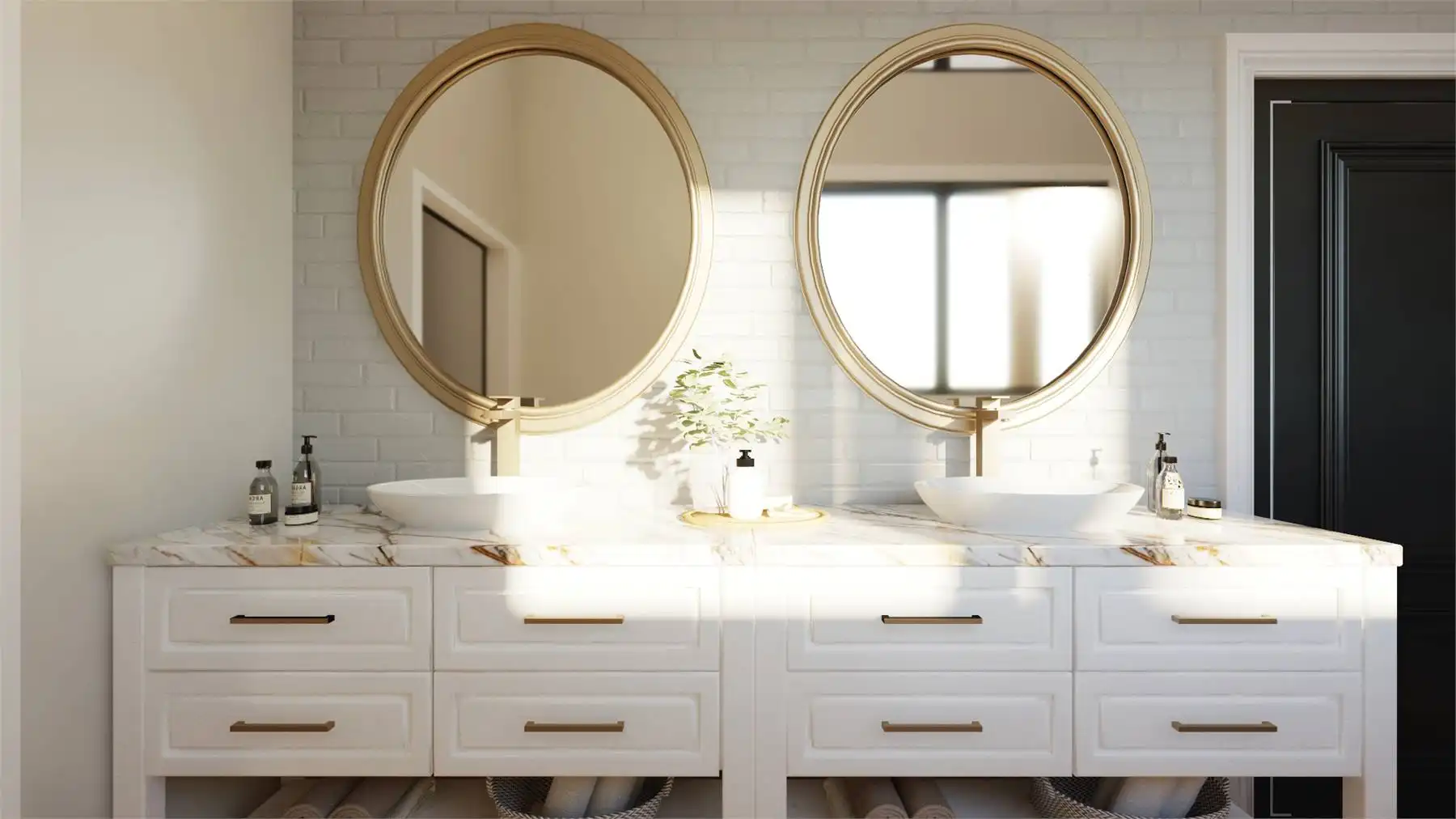

Double Vanity Sink
Family Style
Foyer
Great Room
In-law Suite
Kitchen Island
Laundry 1st Fl
Laundry 2nd Fl
Library/Media Rm
L-Shaped
Primary Bdrm Upstairs
Open Floor Plan
Peninsula / Eating Bar
U-Shaped
Walk-in Closet
Walk-in Pantry

Our Guarantees

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  •  PDFs NOW!™ plans in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
