House Plan: DFD-11146

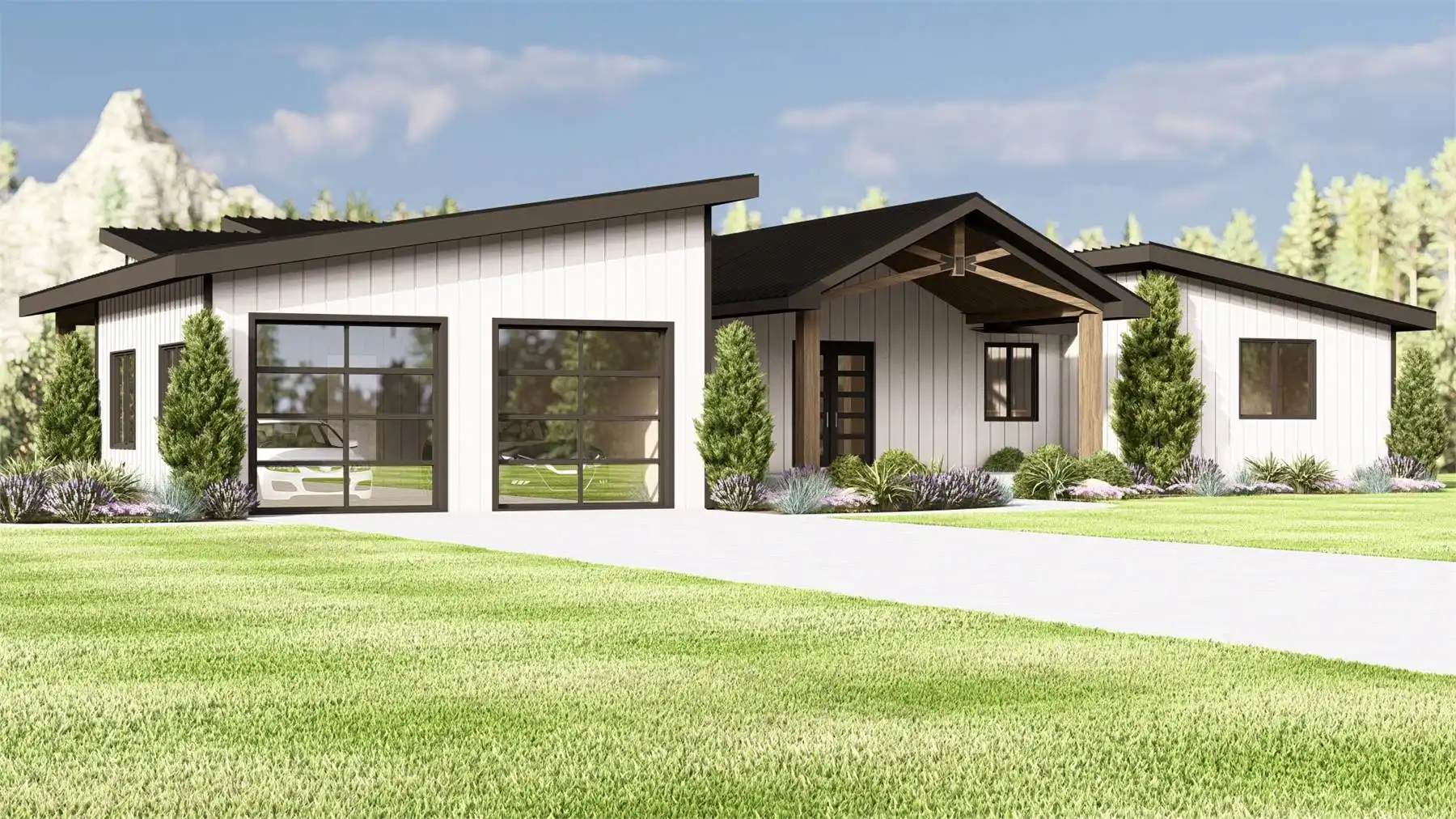

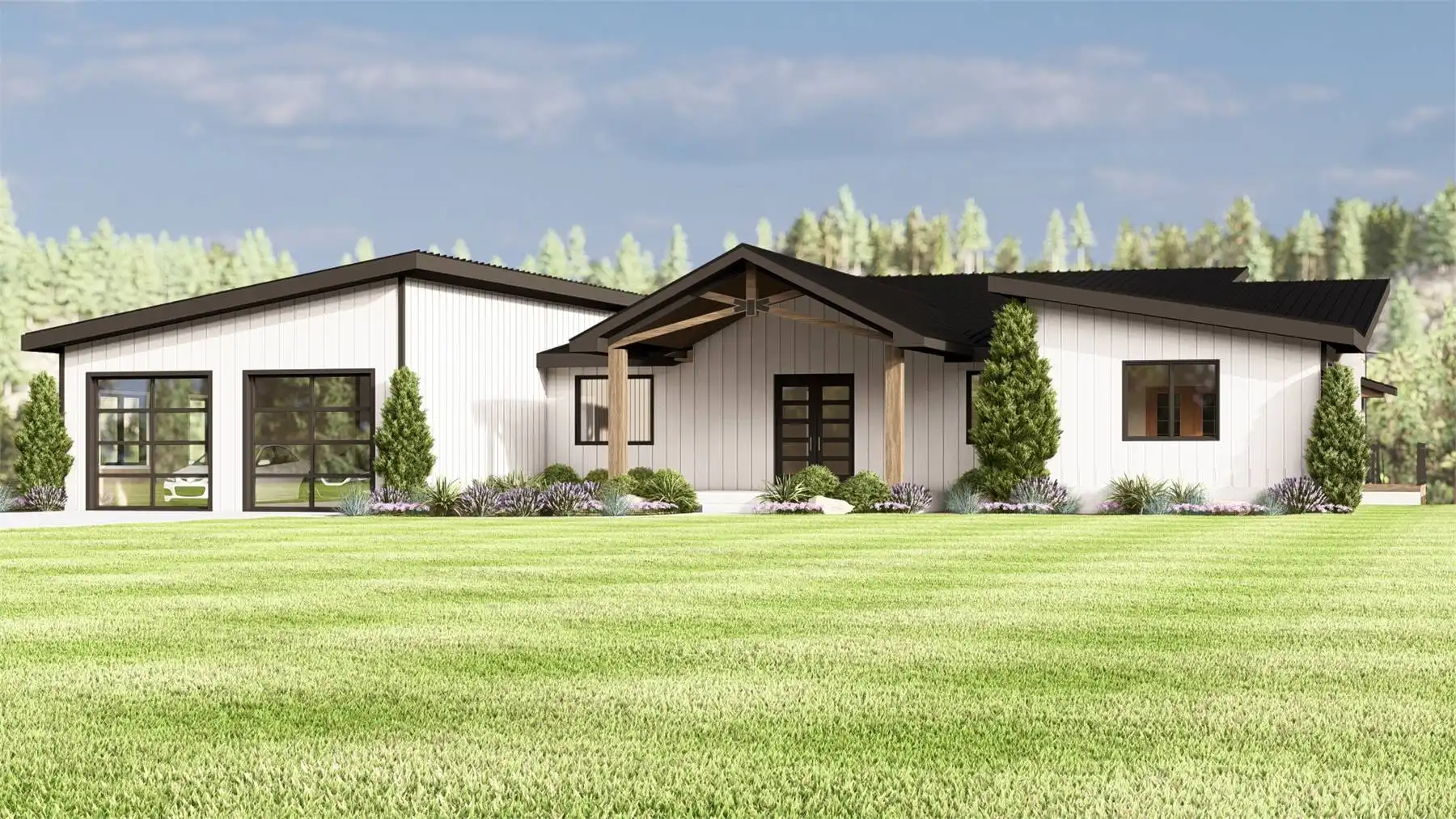

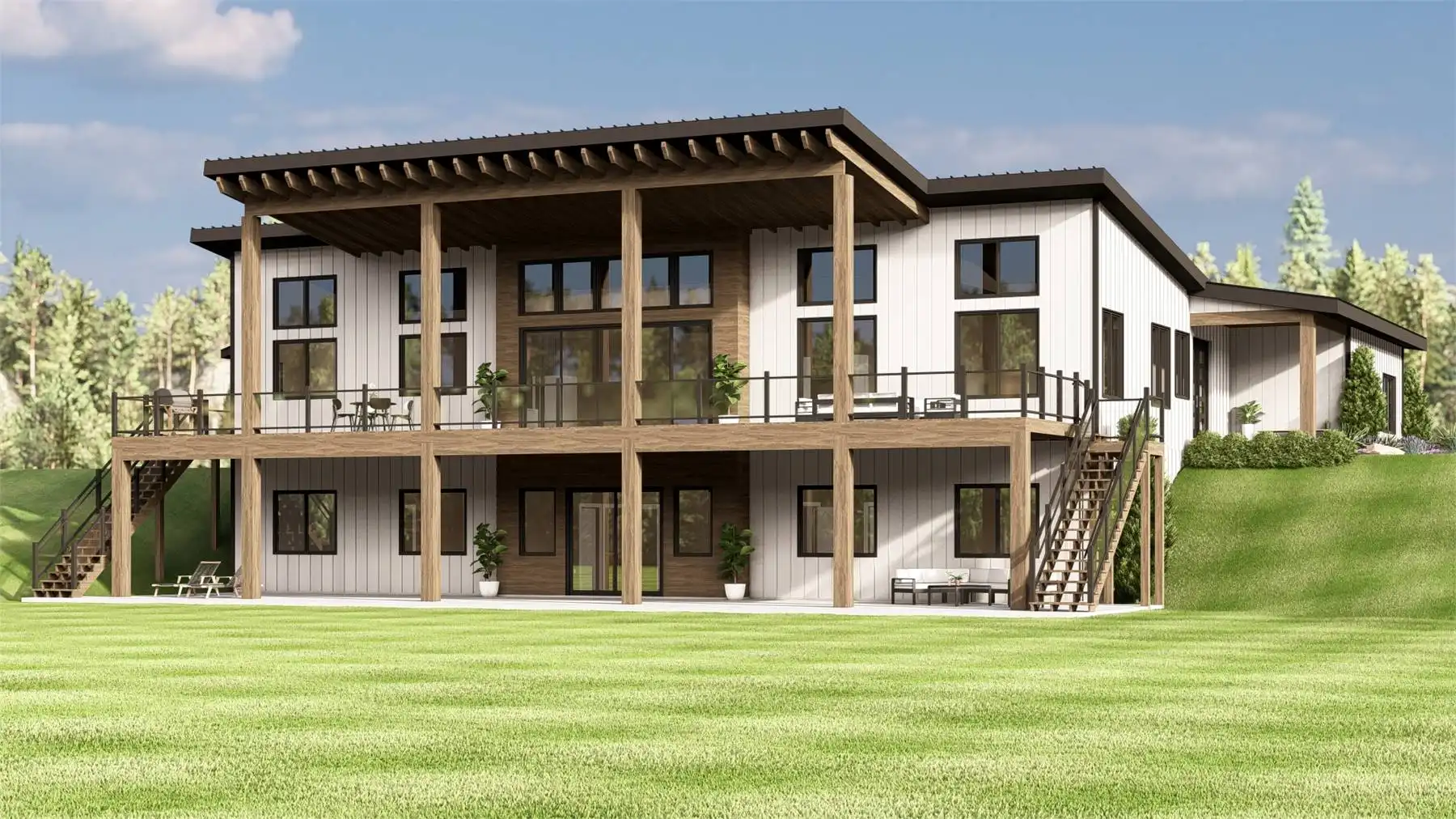

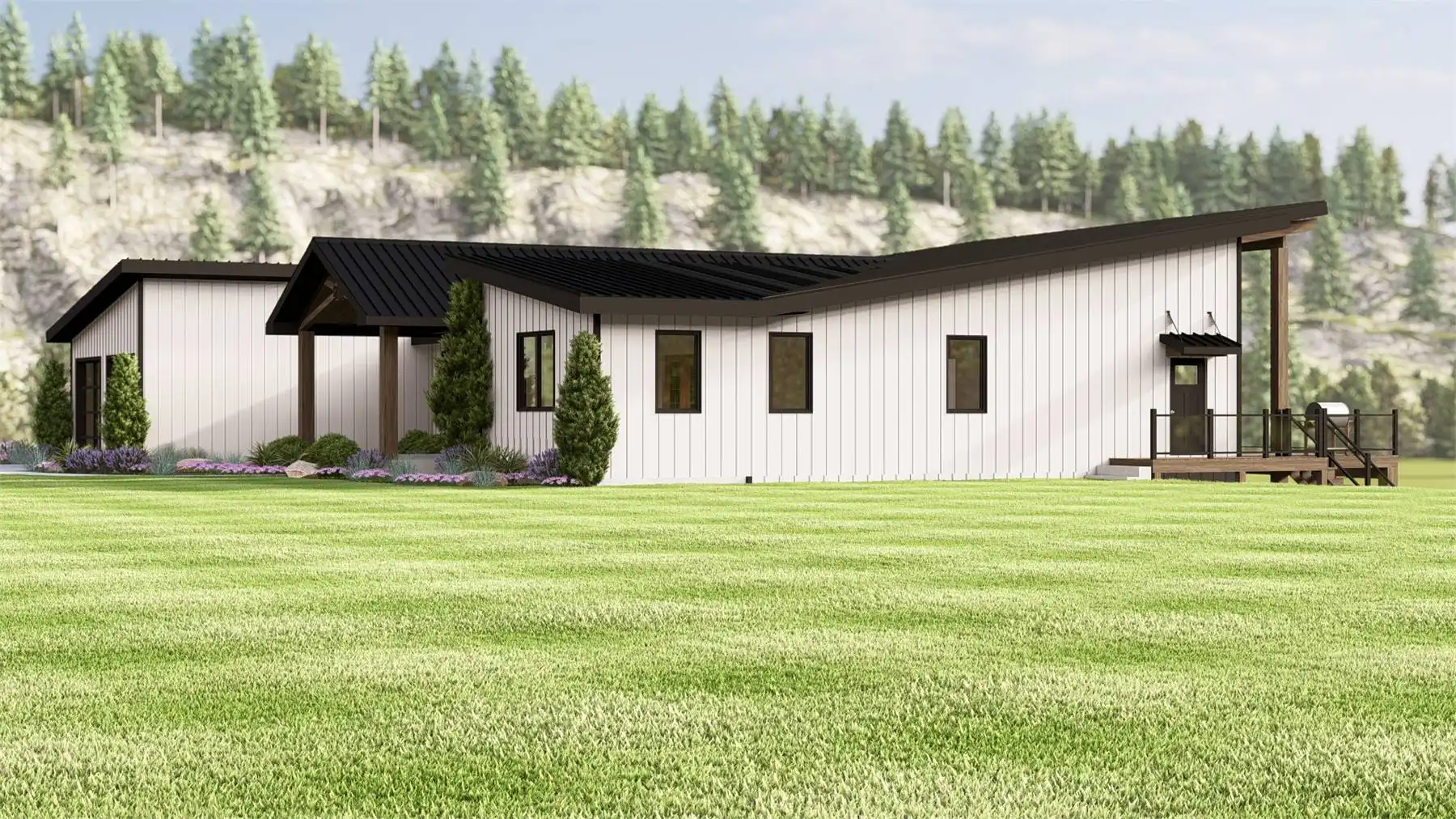

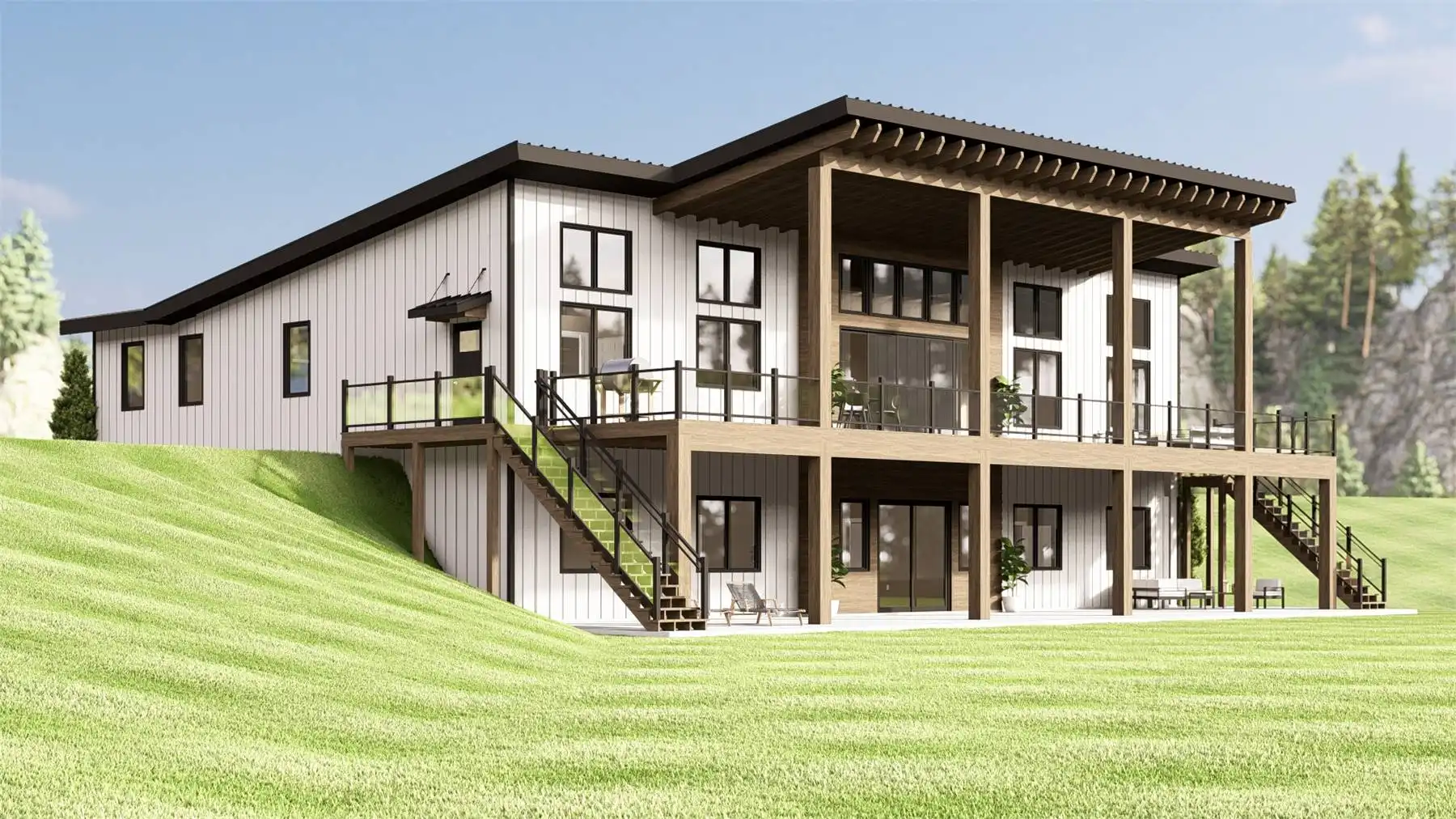

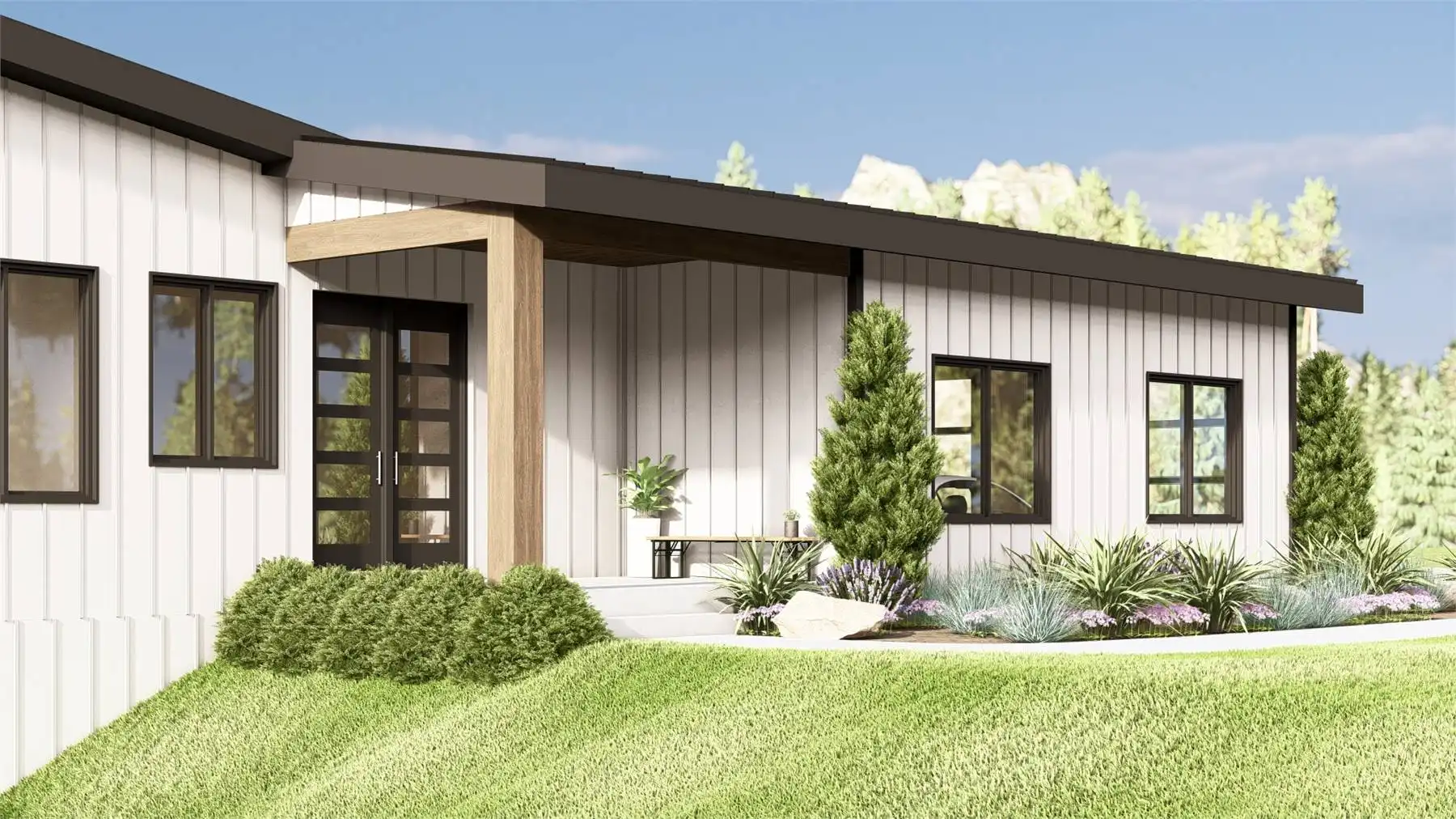

See All 9 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,999
BEDS
2
BATHS
2.5
STORIES
1
CARS
2
PLANS FROM $1,450
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11146:

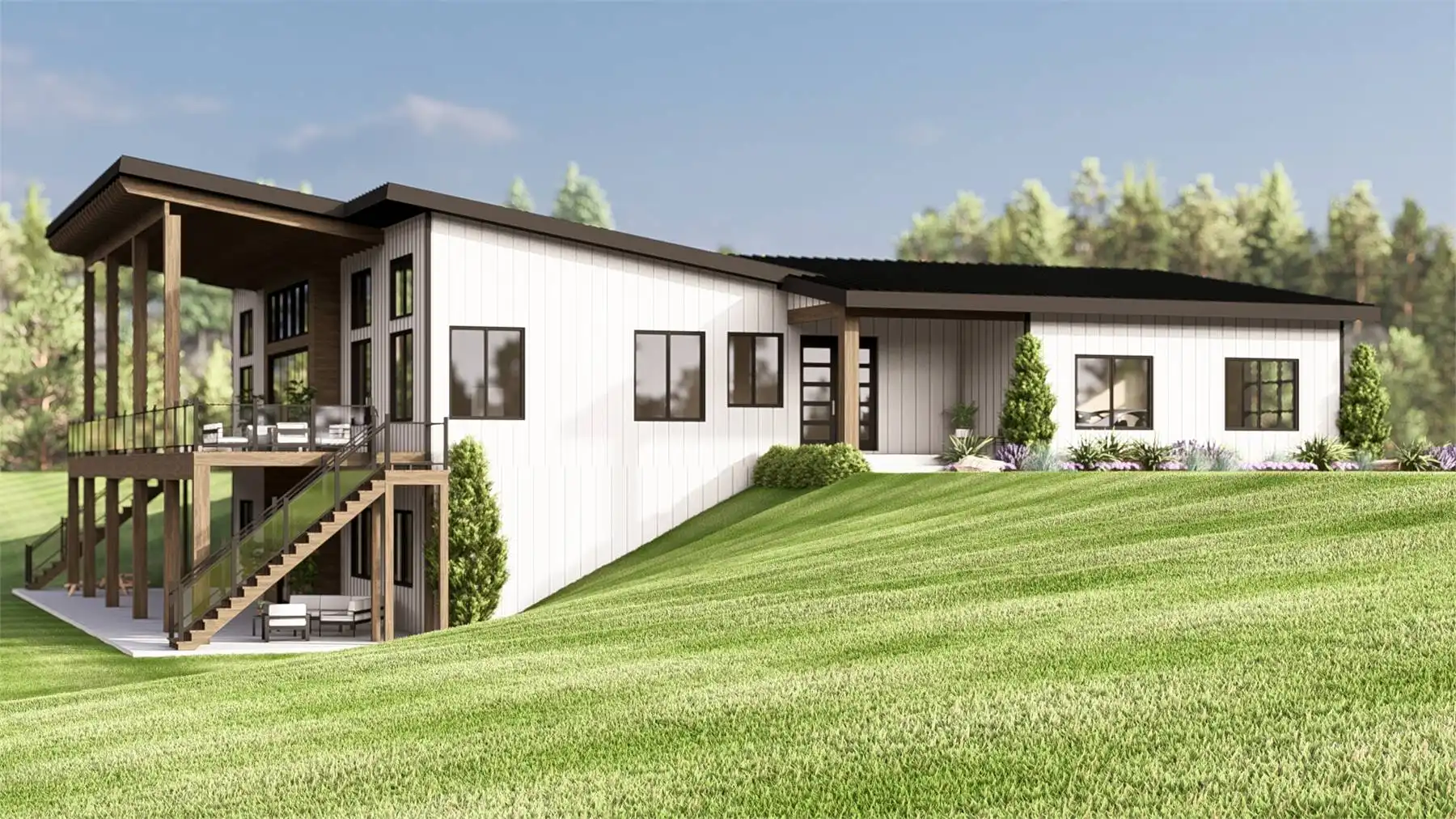

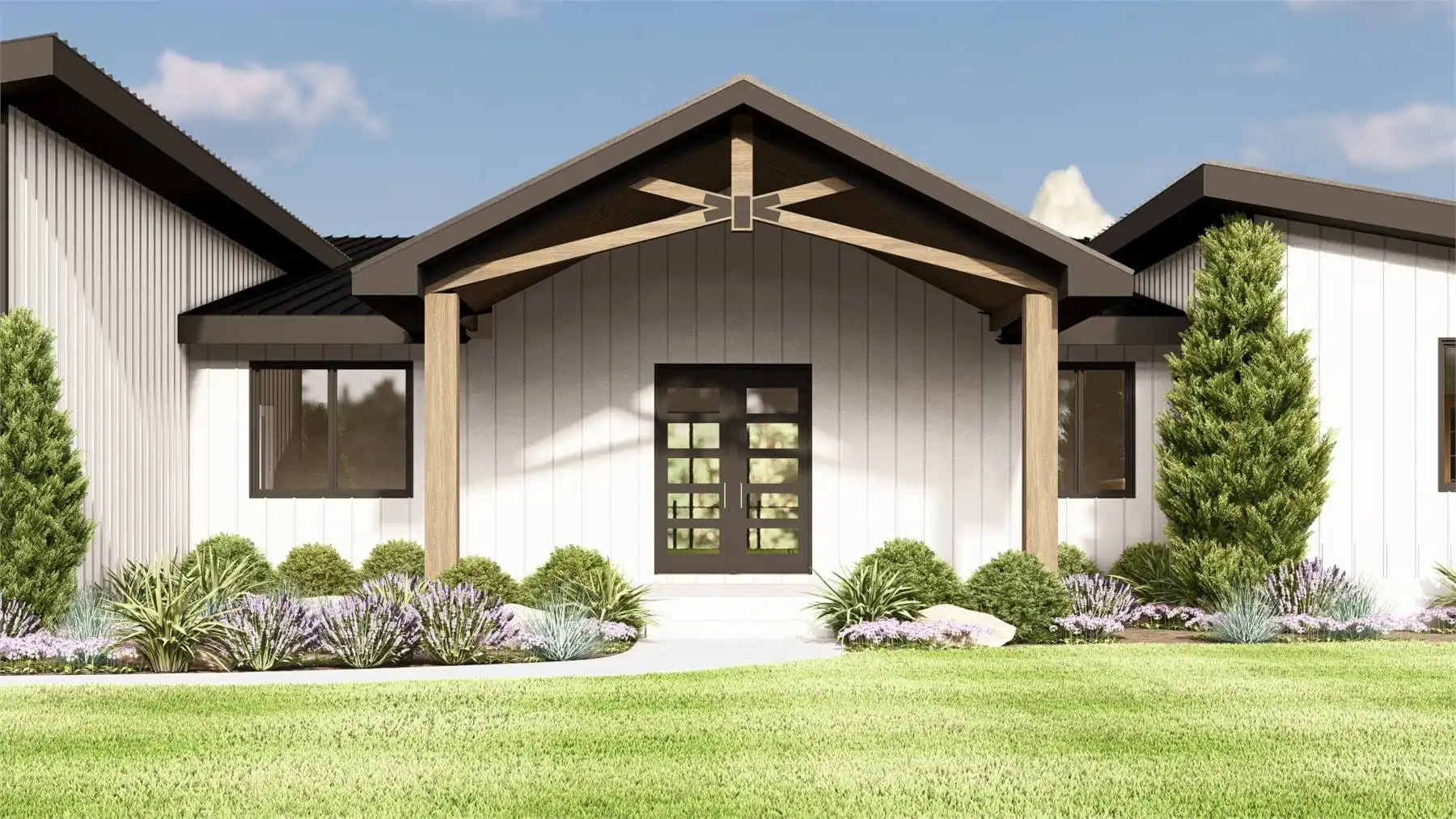

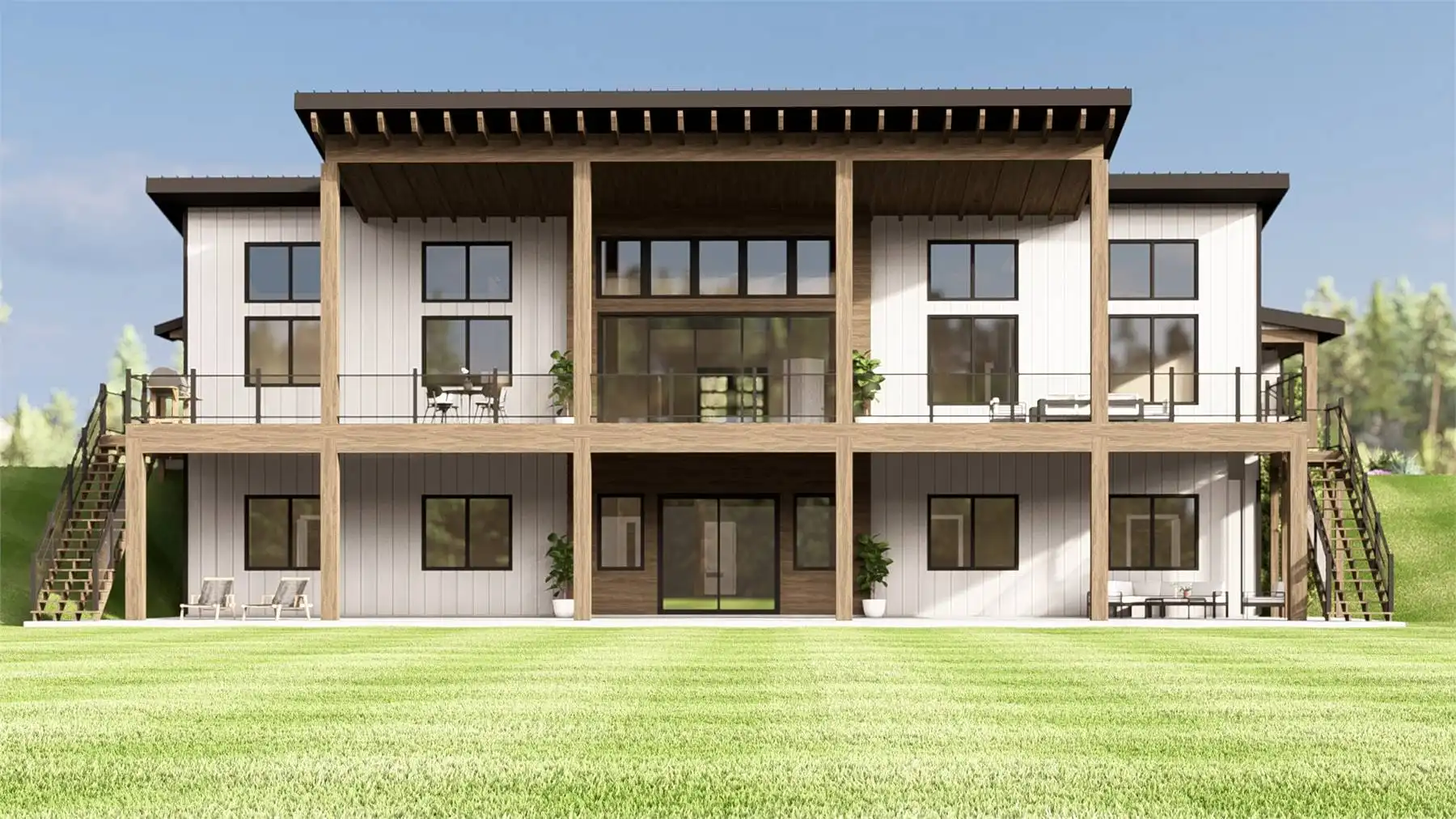

This contemporary barndominium-style design pairs modern massing with expansive glazing to capture the view. An open great room, dining space, and island kitchen create an easy everyday hub, while a walk-in pantry keeps essentials organized. The main-level primary suite offers a spa-style bath and large walk-in closet; a second bedroom across the plan enhances privacy. Work from home in the front office, and keep gear tidy in the mud room by the garage. Outdoor living extends from the great room to a wide deck and covered patio for alfresco meals. The optional lower level adds 2 bedrooms and 2 full baths plus generous recreational space—ideal for guests or multi-gen living. Thoughtful storage and smooth circulation make this plan as practical as it is striking.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,450
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,800
Digital plans plus 5 printed sets

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $2,050
Digital plans including unlimited build license

CAD + PDF Single Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $2,700
2D electronic editable computer files

CAD + PDF Unlimited Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $3,250
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1450
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,999 Sq. Ft.
Main Level:
2,848 Sq. Ft.
Lower Level:
2,999 Sq. Ft.
Total:
Room Details
2
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
86' 4"
Width:
78' 6"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
618 Sq. Ft.
Garage:
413 Sq. Ft.
Front Porch:
1048 Sq. Ft.
Deck:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Coastal
Contemporary
Lake
Modern
Traditional
Collections
Kitchens
Luxury
Primary Suites
Mountain
Open Floor Plan
Outdoor Living
Foundation
Basement
Crawl Space
Slab
Walkout Included
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
2/12
Primary:
6/12
Secondary:
Roof Load
30 psf
Live:
Insulation (R)
19
Exterior Wall:
30
Ceiling:
House And Ceiling Heights
9
First Floor Ceiling:
19' 6"
Maximum House Height:
Key Features
Attached
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Family Style
Fireplace
Foyer
Front-entry
Great Room
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Peninsula / Eating Bar
Suited for view lot
Walk-in Closet
