House Plan: DFD-11540

See All 21 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,550
BEDS
3
BATHS
3
STORIES
2
CARS
6
PLANS FROM $1,450
For questions and help, live chat, email or call us at 877-895-5299

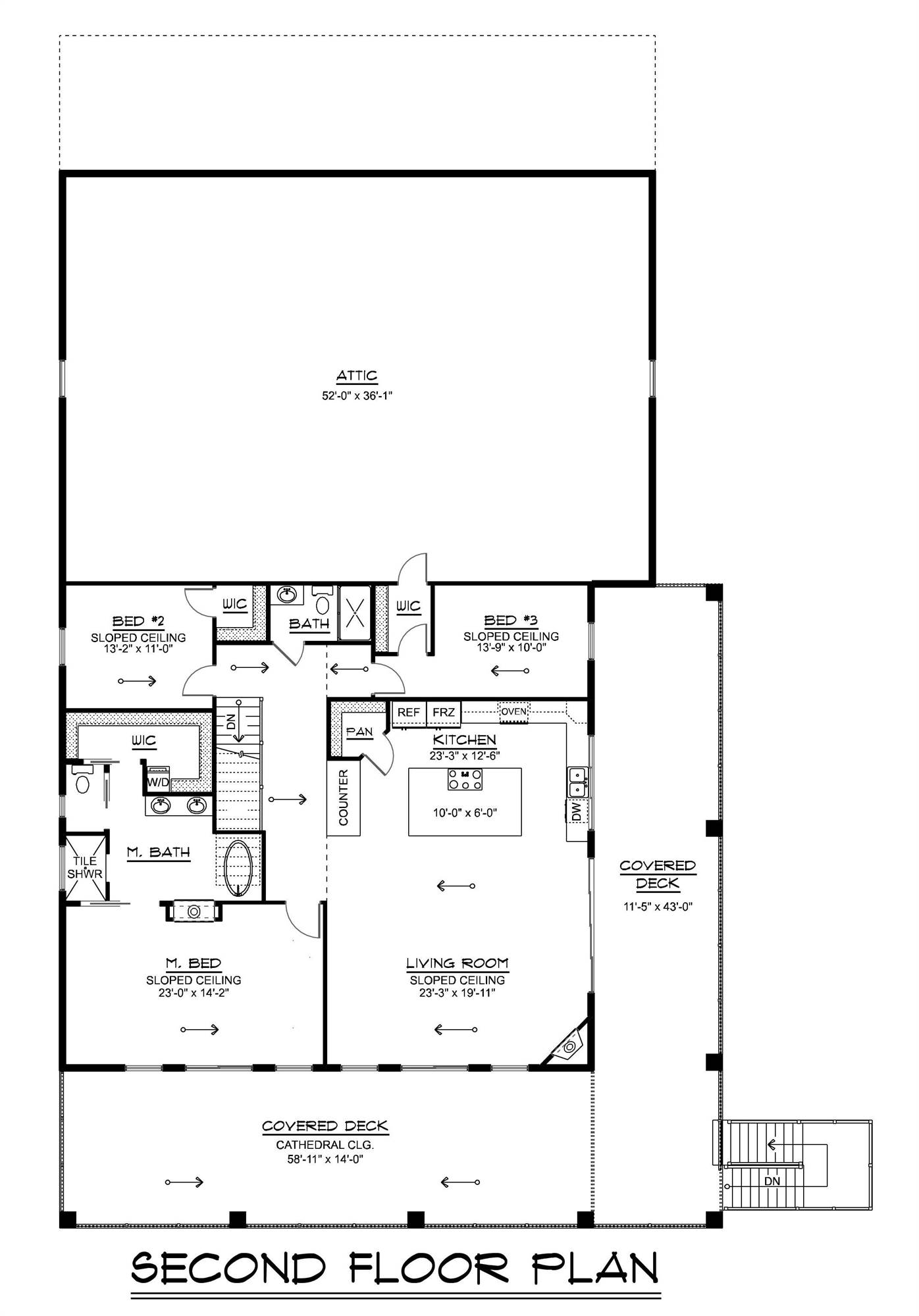

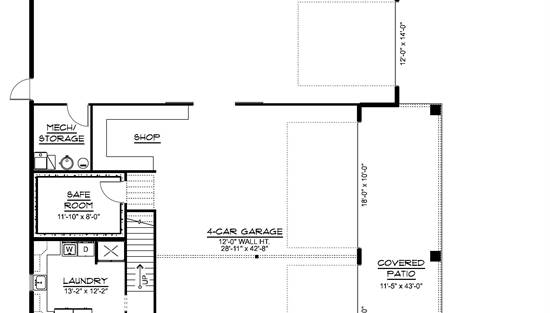

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11540:

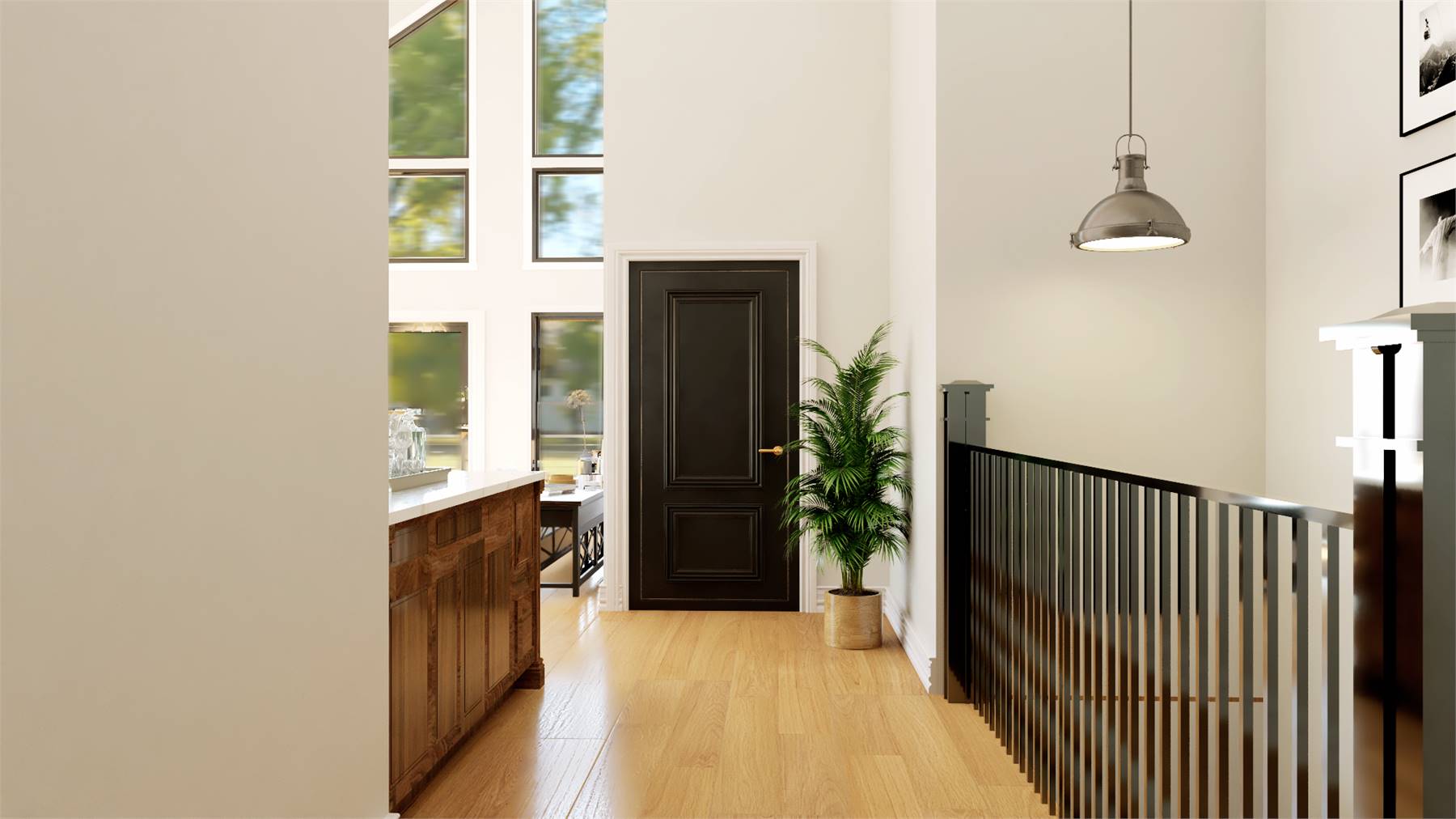

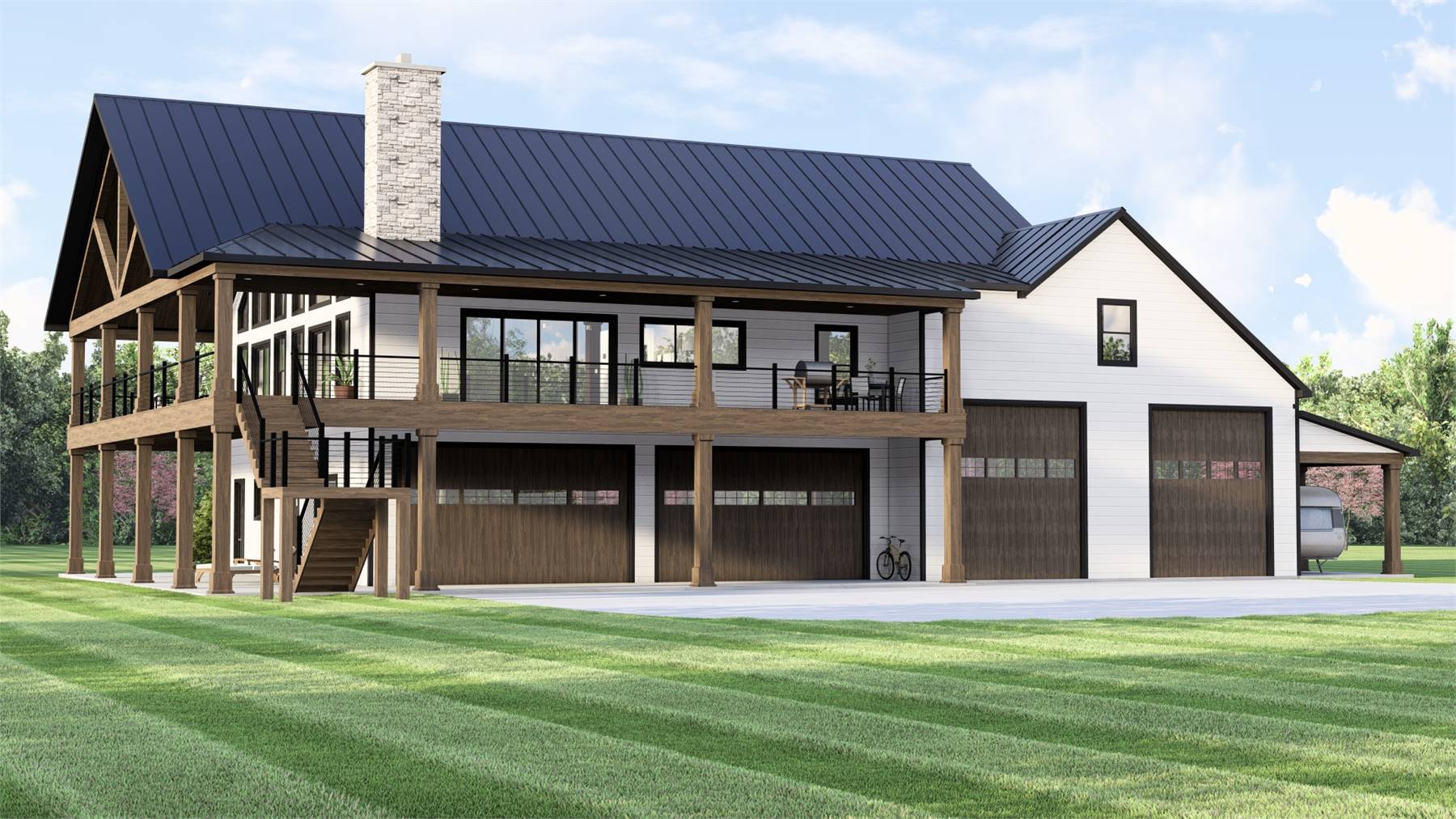

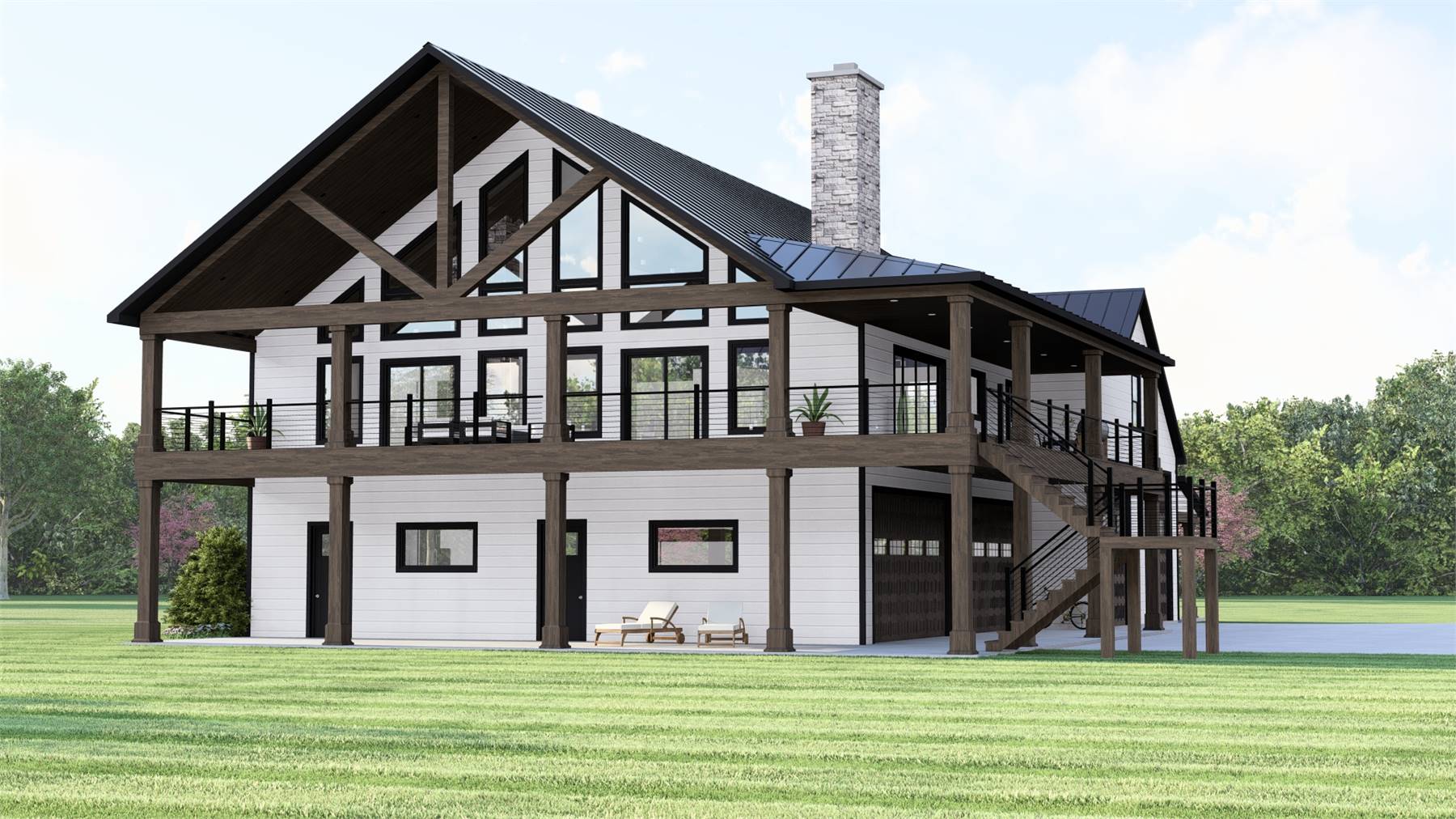

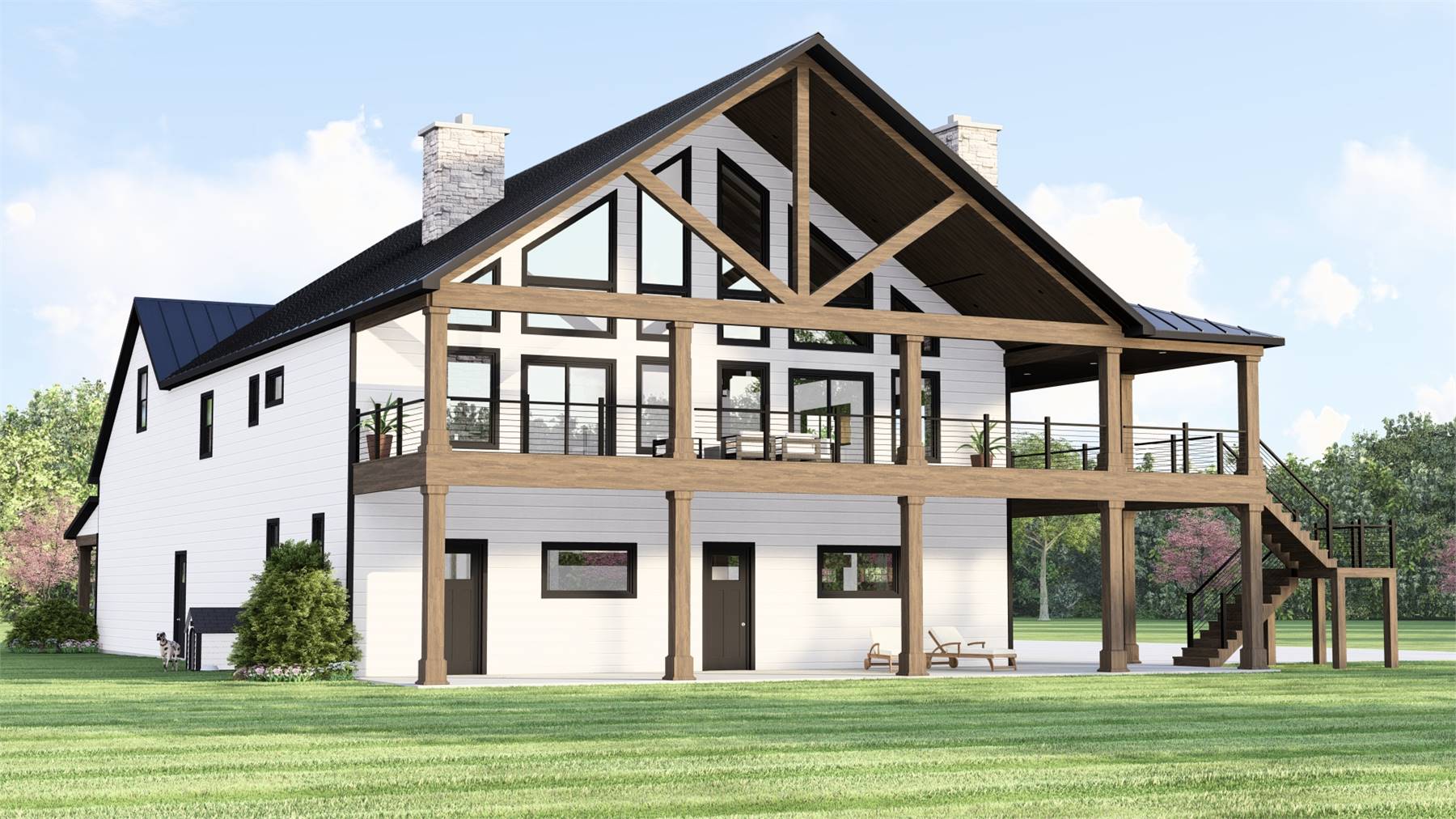

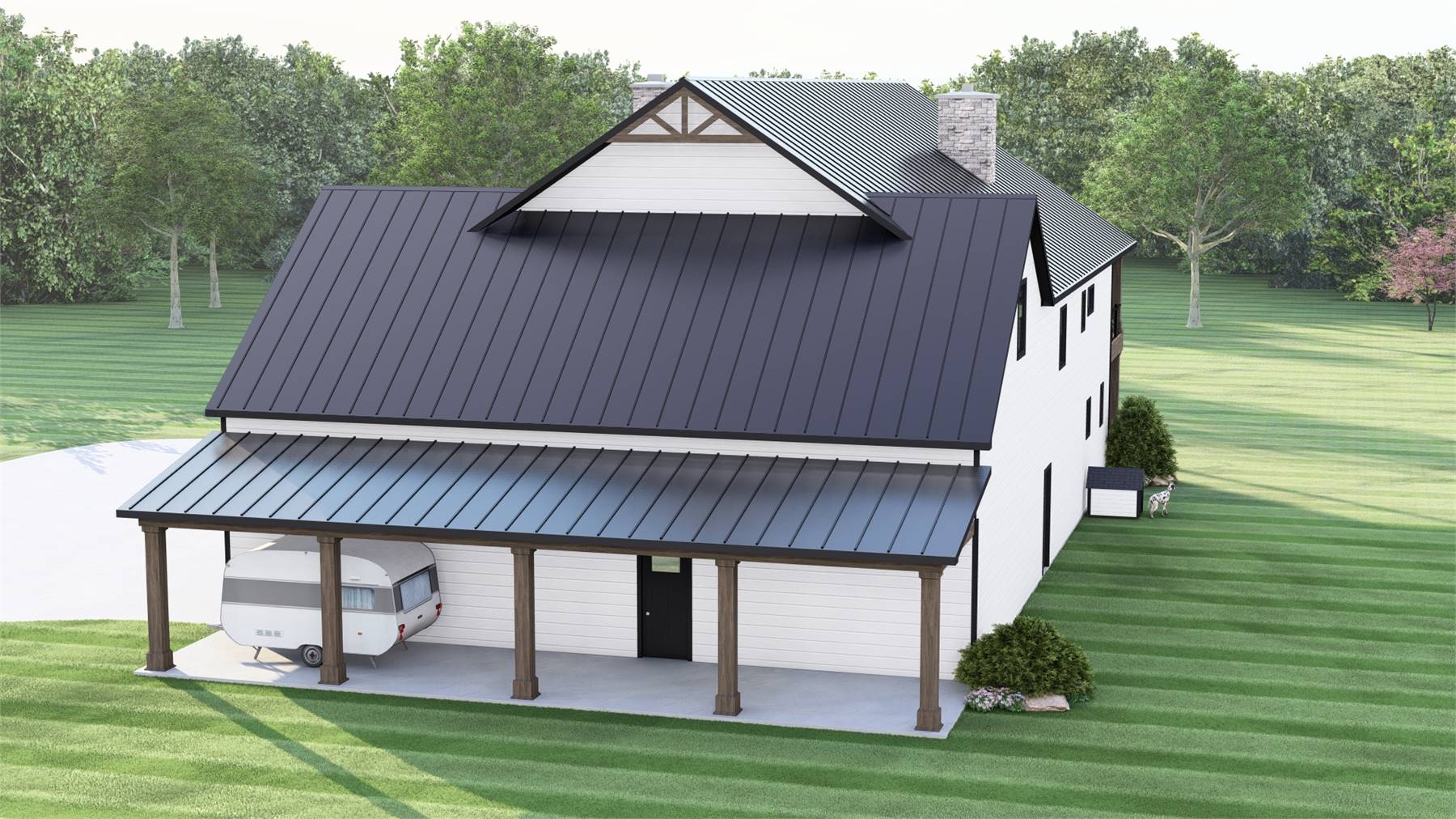

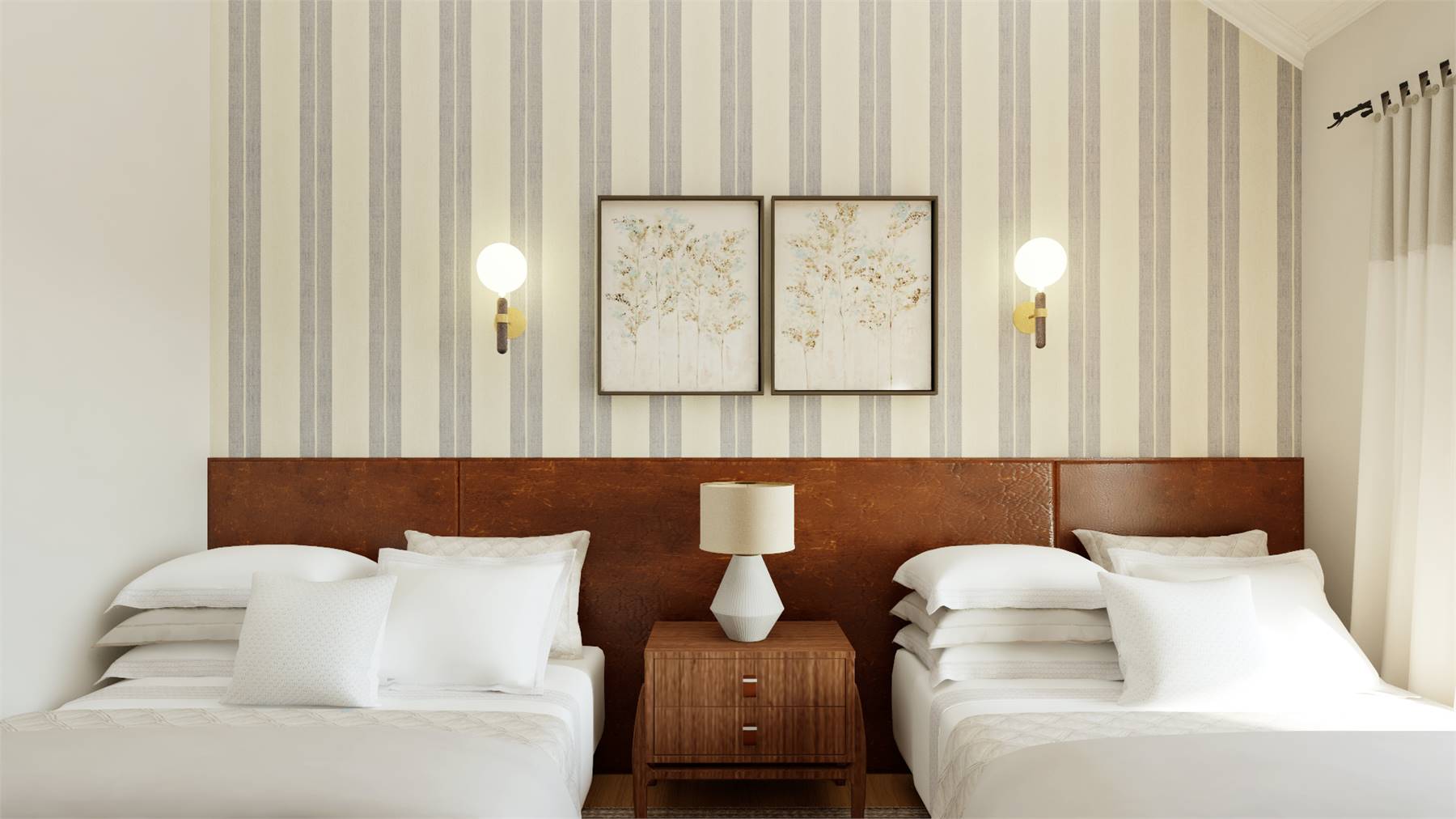

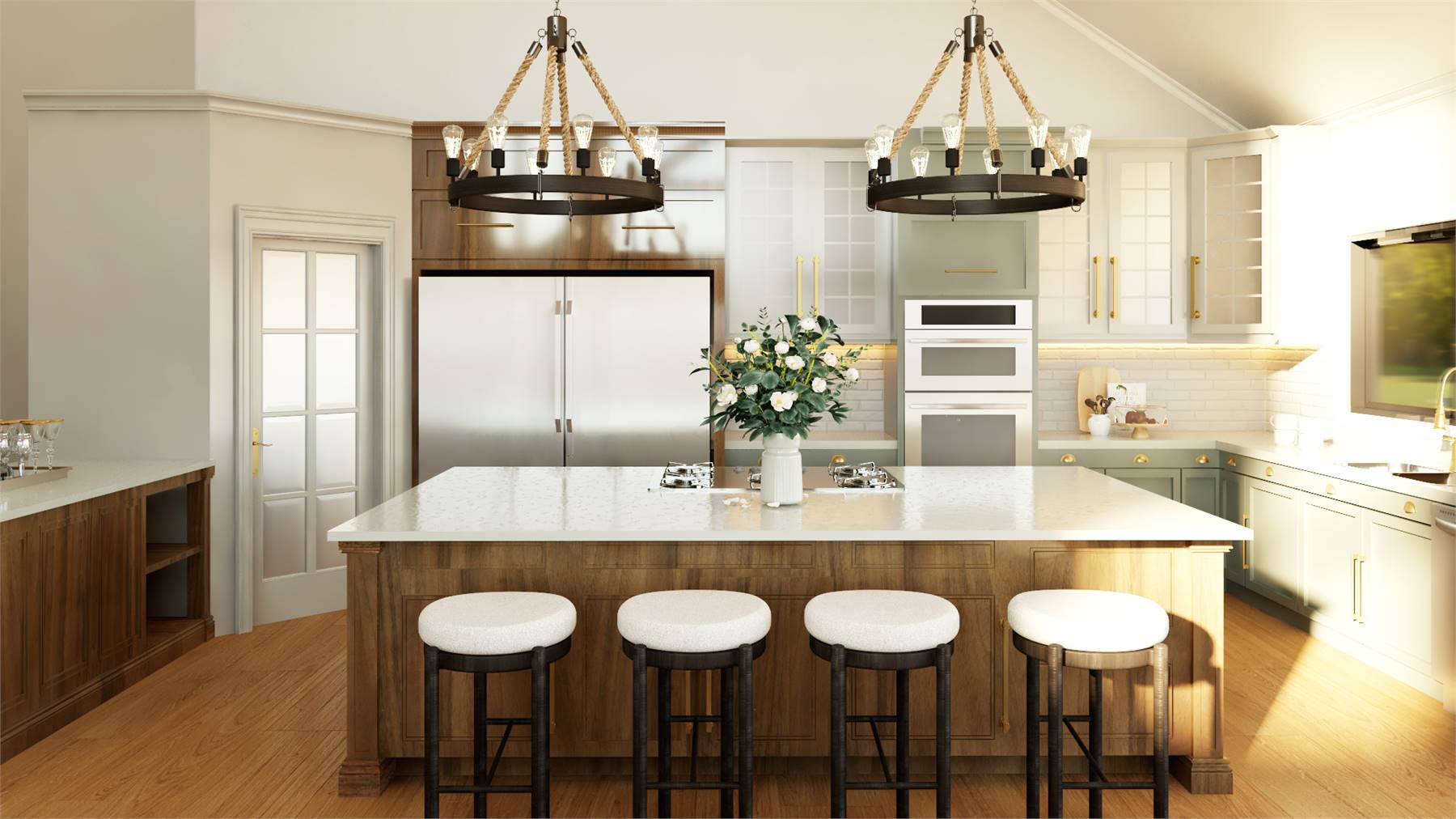

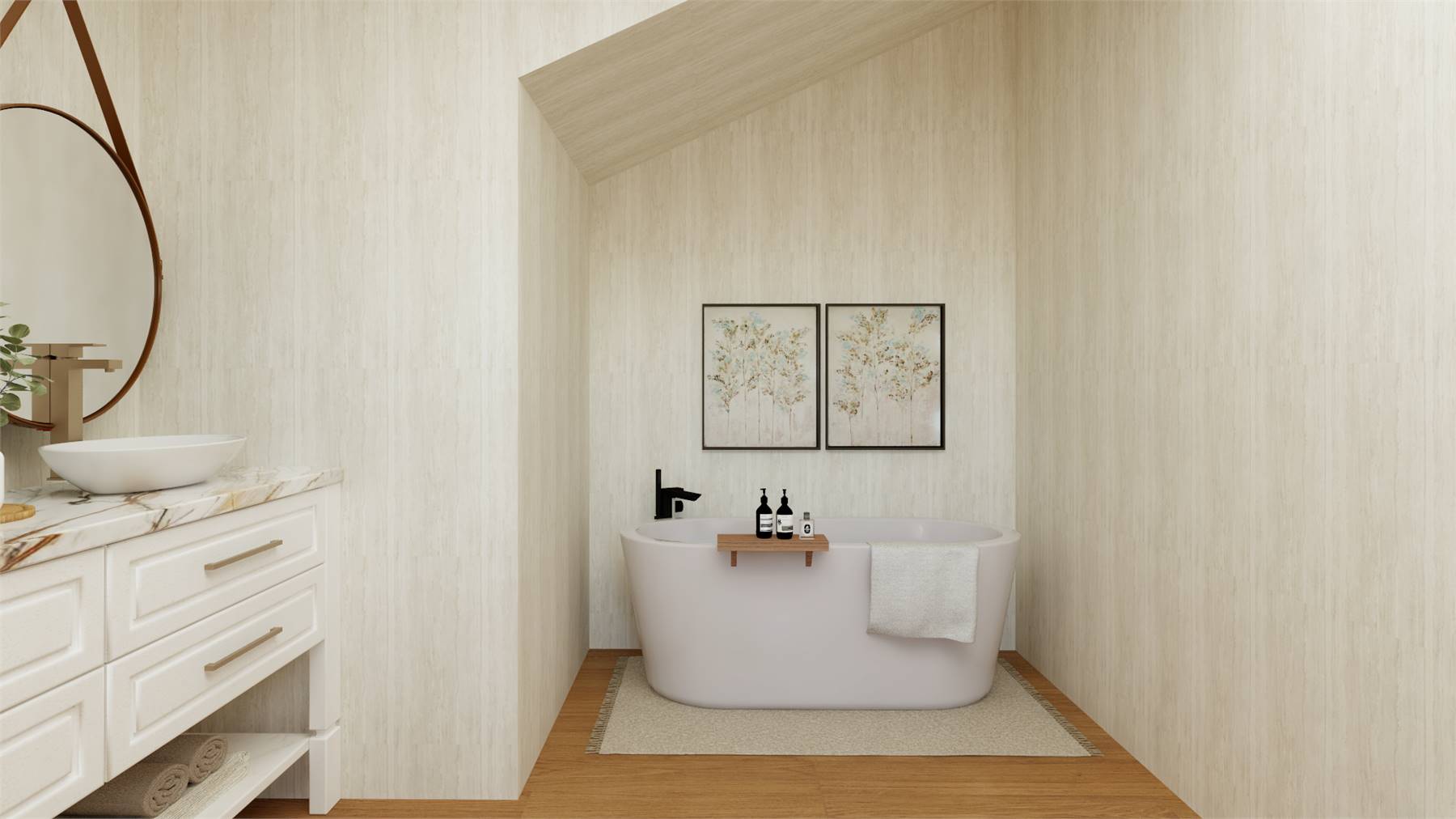

House Plan 11540 is an outstanding home for a view lot! This 2,550-square-foot lake house with three bedrooms and three bathrooms places almost all of the finished space on the second floor, over the six-vehicle garage with room for four cars and two RVs. Talk about a great vacation home or homebase! In the garage level, you'll also find a workshop, a full bathroom, the laundry room with additional fridge and freezer space, and a safe room. Head upstairs to find the living level with vaulted ceilings across the great room and all bedrooms. The great room has an open layout with an island kitchen and a cozy corner fireplace. The primary suite has a two-sided fireplace between the bedroom and five-piece bath. The living area and primary bedroom are placed behind floor-to-ceiling windows to take in the best views! The other bedrooms and a hall bath to share are in back. If you need more storage space, just look at that huge attic over the RV garage!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,450
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,800
Digital plans plus 5 printed sets

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $2,050
Digital plans including unlimited build license

CAD + PDF Single Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $2,700
2D electronic editable computer files

CAD + PDF Unlimited Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $3,250
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1450
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
486 Sq. Ft.
Main Level:
2,064 Sq. Ft.
Upper Level:
2,550 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
General House Information
2
Number of Stories:
58' 11"
Width:
106' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
1571 Sq. Ft.
Garage:
1950 Sq. Ft.
Storage:
1316 Sq. Ft.
Porch:
1316 Sq. Ft.
Deck:
GARAGE
Under
Garage Location:
6
Garage Size:
Exterior Style
Beach
Coastal
Craftsman
Lake
Transitional
Collections
Kitchens
Primary Suites
Mountain
Open Floor Plan
Outdoor Living
Split Bedroom
Vacation
Foundation
Basement
Crawl Space
Slab
Walkout
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
3/12
Secondary:
Insulation (R)
19
Exterior Wall:
36
Ceiling:
House And Ceiling Heights
12
First Floor Ceiling:
9
Second Floor Ceiling:
38' 11"
Maximum House Height:
Key Features
Attached
Carport
Covered Front Porch
Covered Rear Porch
Deck
Double Vanity Sink
Fireplace
Great Room
Kitchen Island
Laundry 1st Fl
Primary Bdrm Upstairs
Open Floor Plan
Outdoor Living Space
Oversized
Pantry
RV Garage
Separate Tub and Shower
Side-entry
Sitting Area
Split Bedrooms
Storage Space
Suited for corner lot
Suited for view lot
U-Shaped
Vaulted Ceilings
Vaulted Great Room/Living
Vaulted Kitchen
Vaulted Primary
Walk-in Closet
Workshop
Wraparound Porch
