House Plan: DFD-11636

See All 15 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,692
BEDS
3
BATHS
2.5
STORIES
2
CARS
4
HOUSE PLANS SALE
START AT  $1,160.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11636:

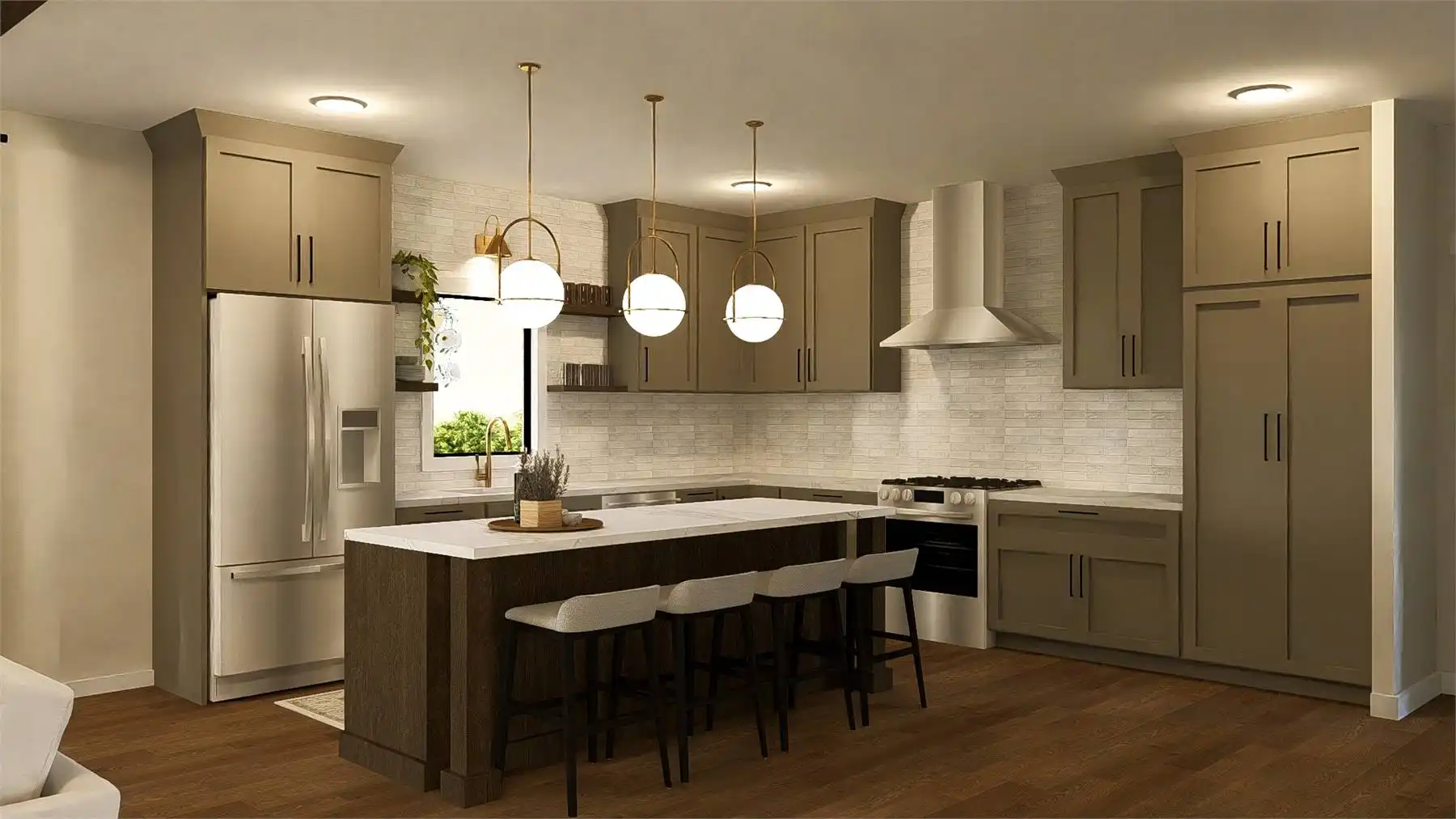

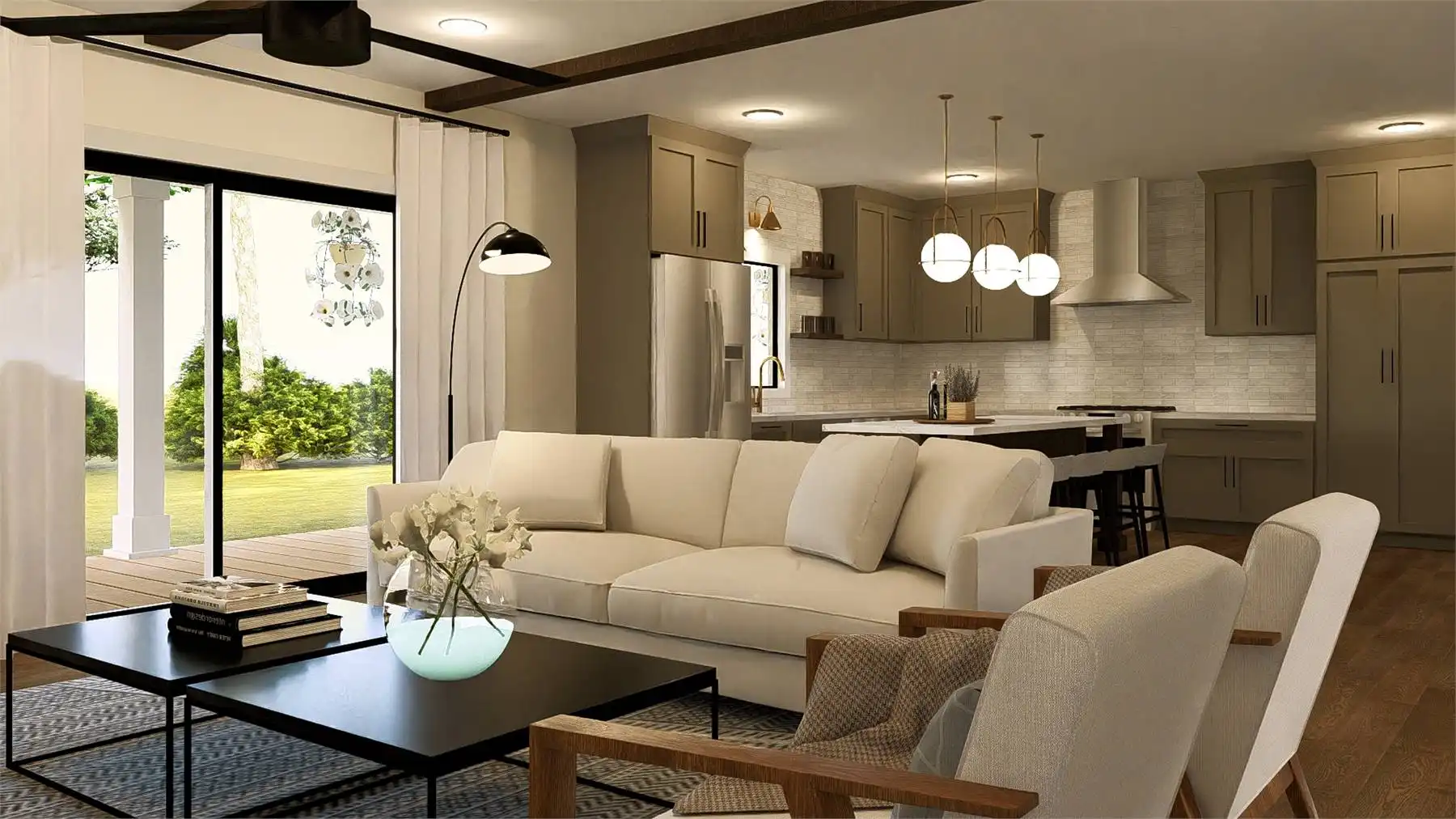

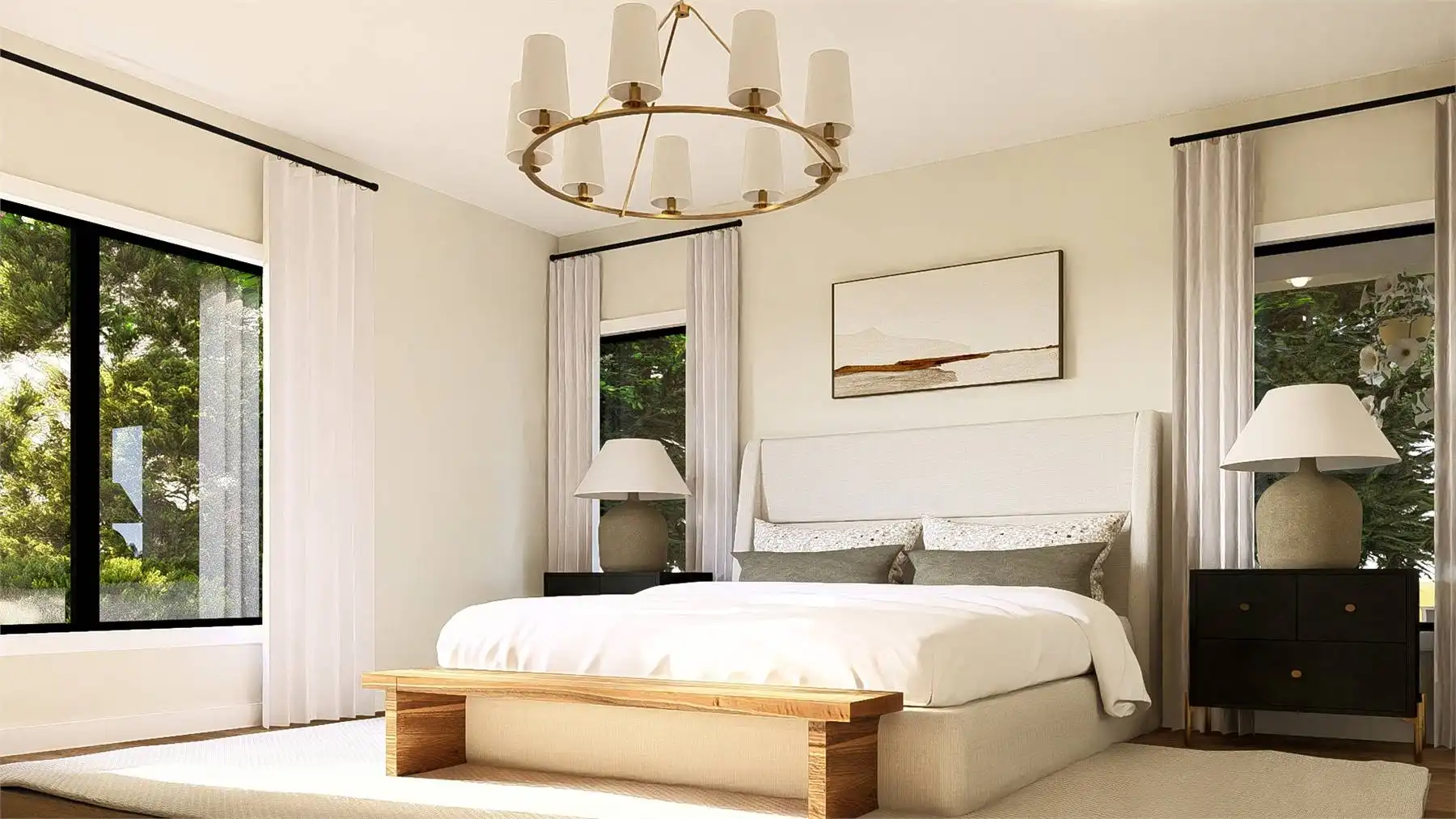

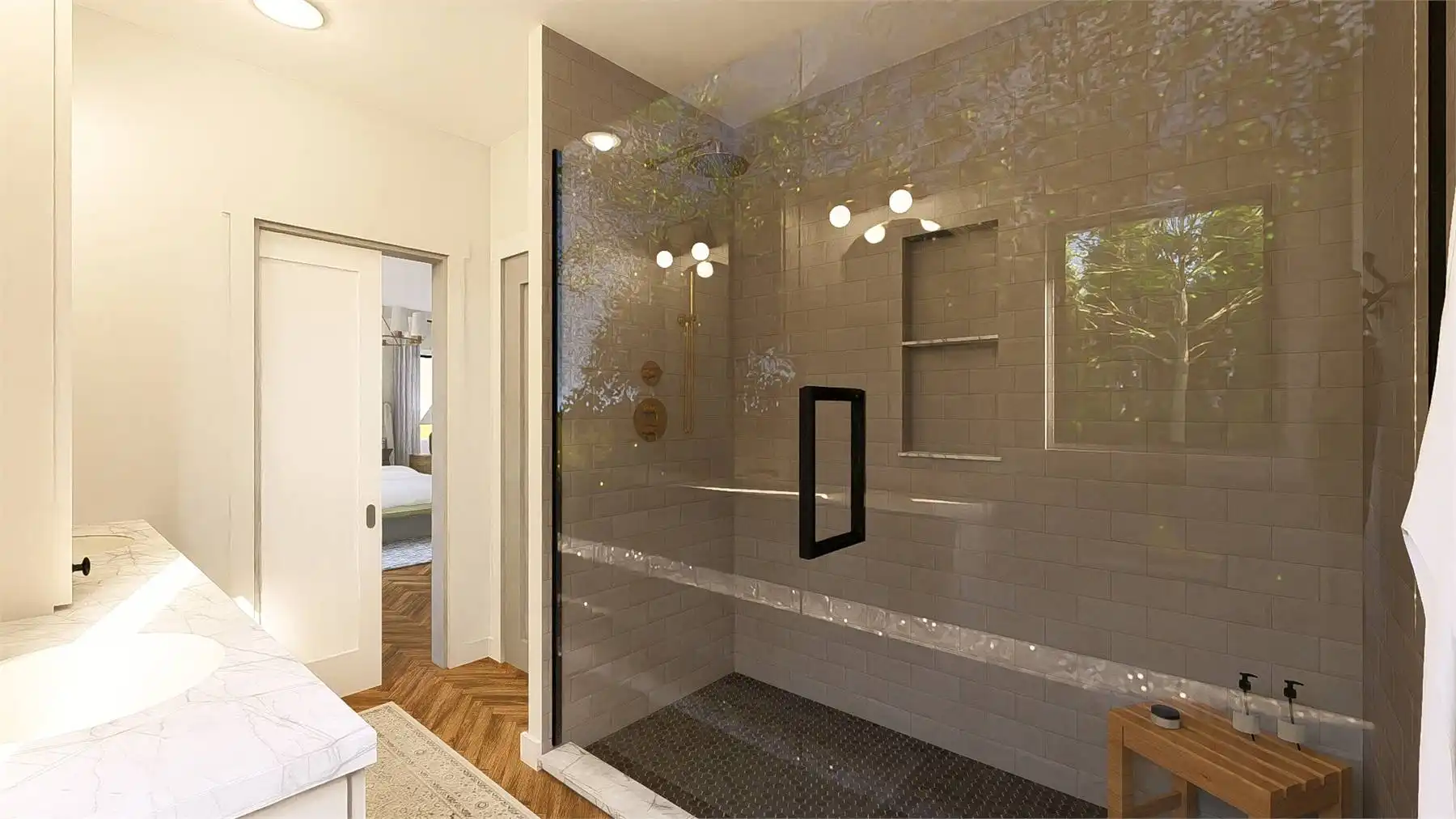

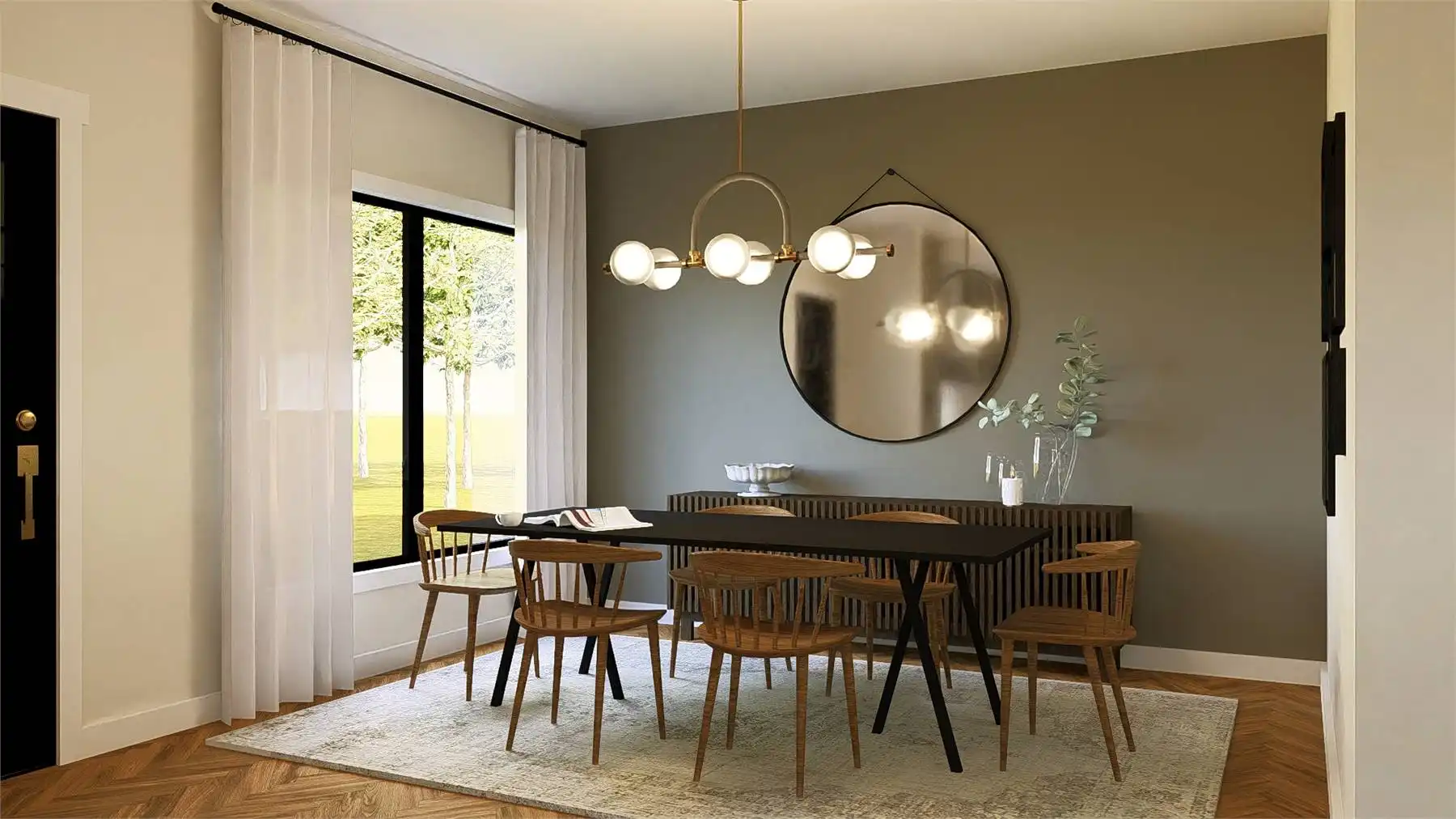

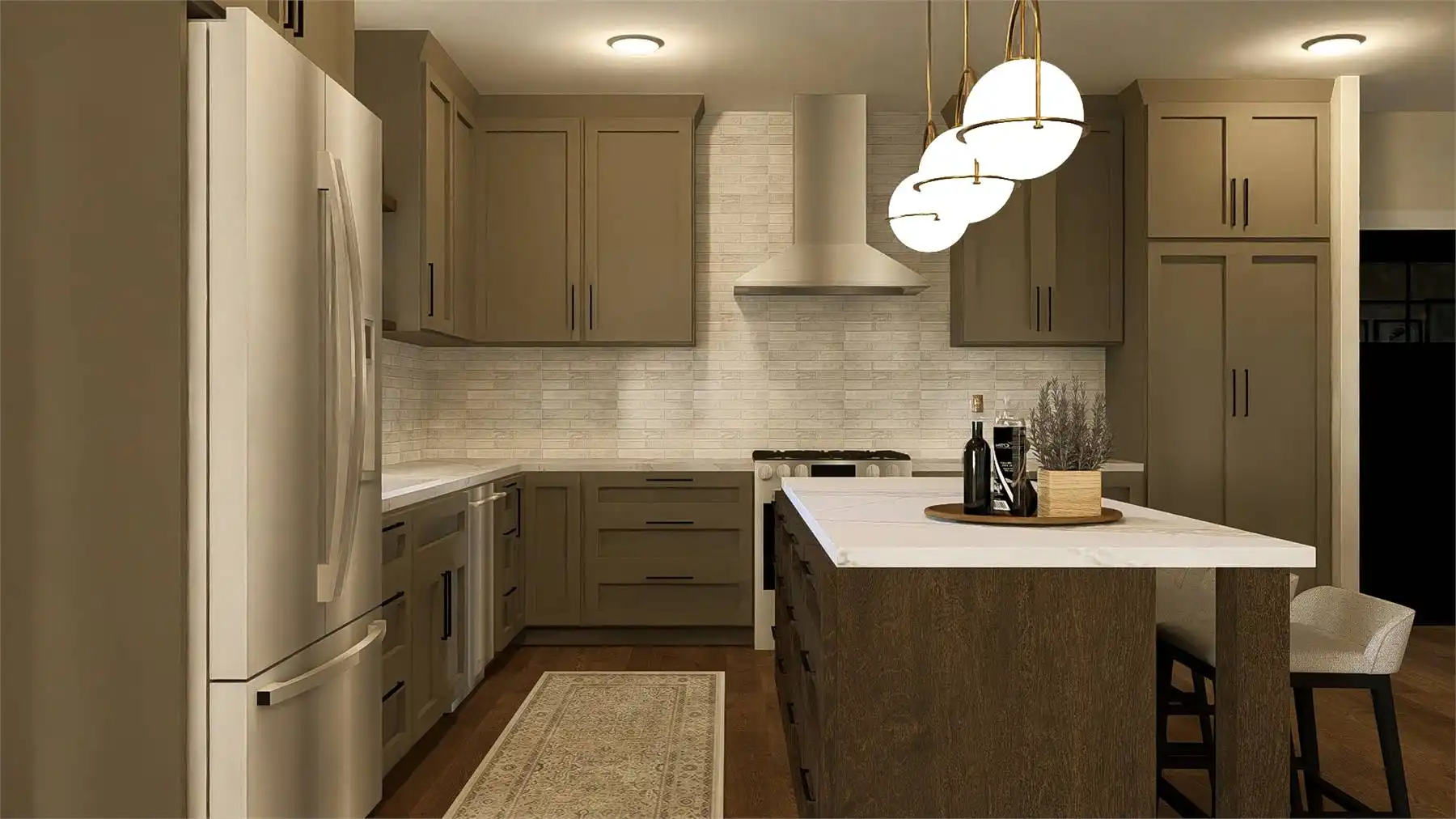

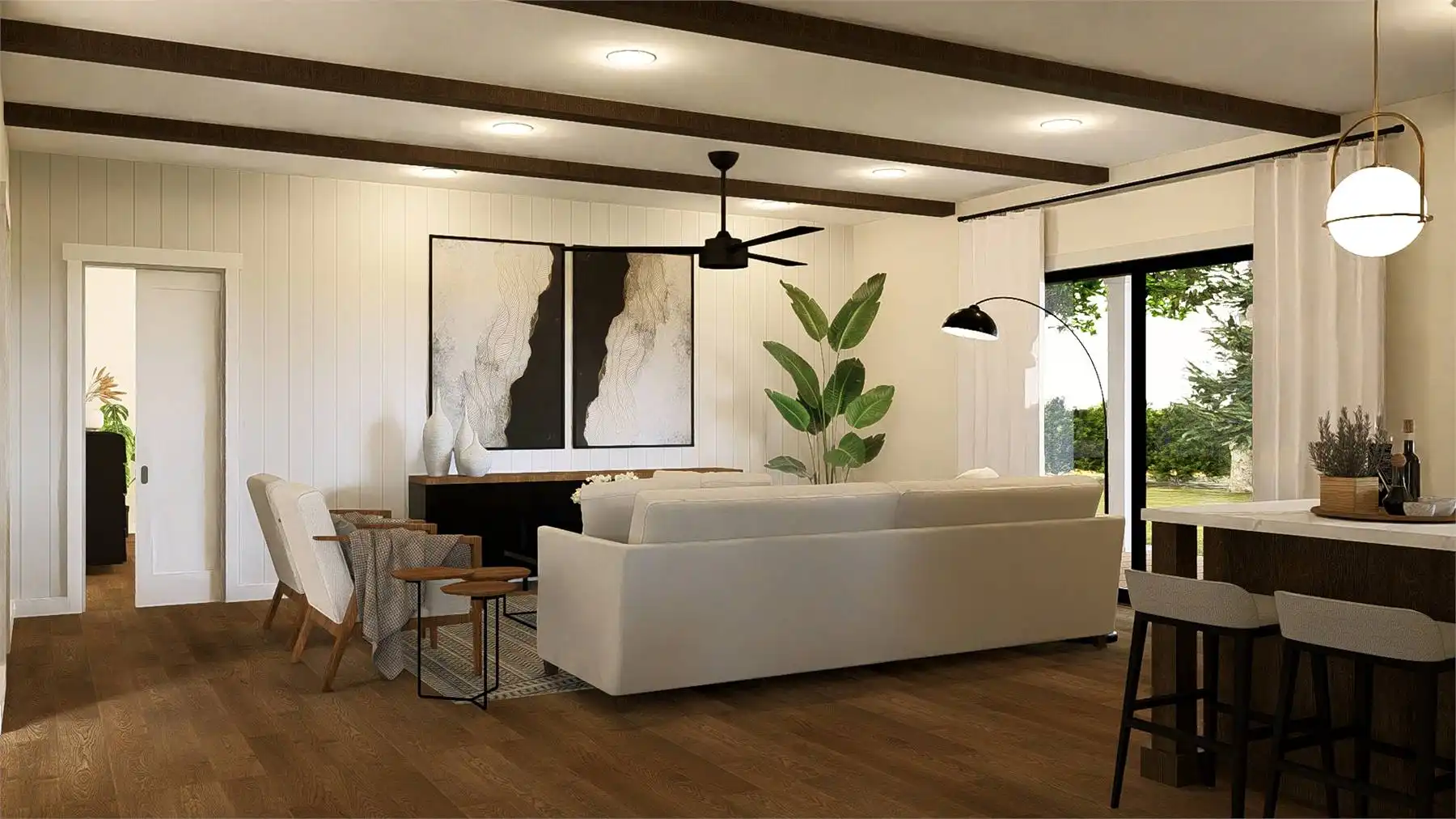

This inviting 3-bedroom barndominium blends comfortable living with incredible room to work, build, or store. Inside, you'll enjoy 3,692 sq. ft. of heated space, starting with a wrap-around porch that leads into an open kitchen, dining area, and living room crafted for effortless everyday living. The primary suite sits at the rear for added privacy and includes its own en-suite bath.


Upstairs features two additional bedrooms, a shared full bath, and a generous loft complete with a second kitchen—perfect for guests, hobbies, or extended family. The expansive 4,215 sq. ft. garage/shop includes four oversized 18' x 14' doors and provides exceptional space for vehicles, equipment, or creative projects.

House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,450
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,800
Digital plans plus 5 printed sets

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $2,050
Digital plans including unlimited build license

CAD + PDF Single Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $2,700
2D electronic editable computer files

CAD + PDF Unlimited Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $3,250
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal:
$1450
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,779 Sq. Ft.
Main Level:
1,913 Sq. Ft.
Upper Level:
3,692 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
2
Half Baths:
General House Information
2
Number of Stories:
120' 0"
Width:
50' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
4215 Sq. Ft.
Garage:
744 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
4
Garage Size:
Exterior Style
Barndominium
Country
Farmhouse
Collections
Open Floor Plan
Split Bedroom
Foundation
Basement
Crawl Space
Slab
Walkout
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
4/12
Primary:
4/12
Porch:
Insulation (R)
19
Exterior Wall:
36
Ceiling:
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
25' 11"
Maximum House Height:
Key Features
Attached
Covered Front Porch
Dining Room
Double Vanity Sink
Front-entry
Kitchen Island
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
Open Floor Plan
Oversized
Pantry
Rec Room
Split Bedrooms
Walk-in Closet
Workshop
Wraparound Porch
