House Plan: DFD-4769

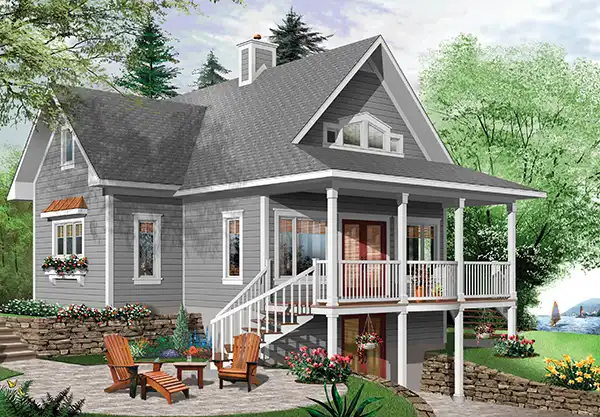

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,105
BEDS
2
BATHS
2.5
STORIES
2
CARS
0
PLANS FROM $1,195
For questions and help, live chat, email or call us at 877-895-5299

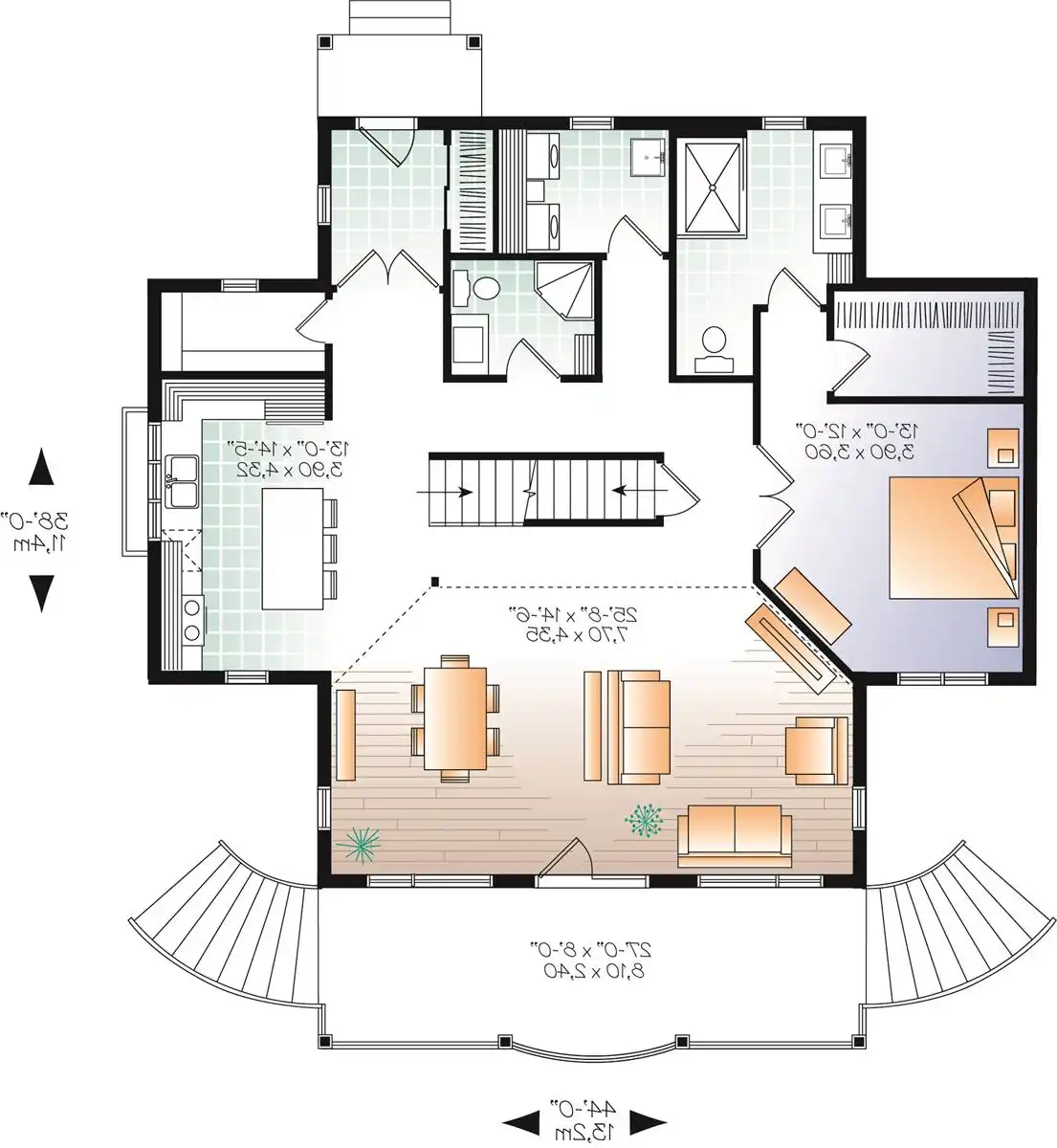

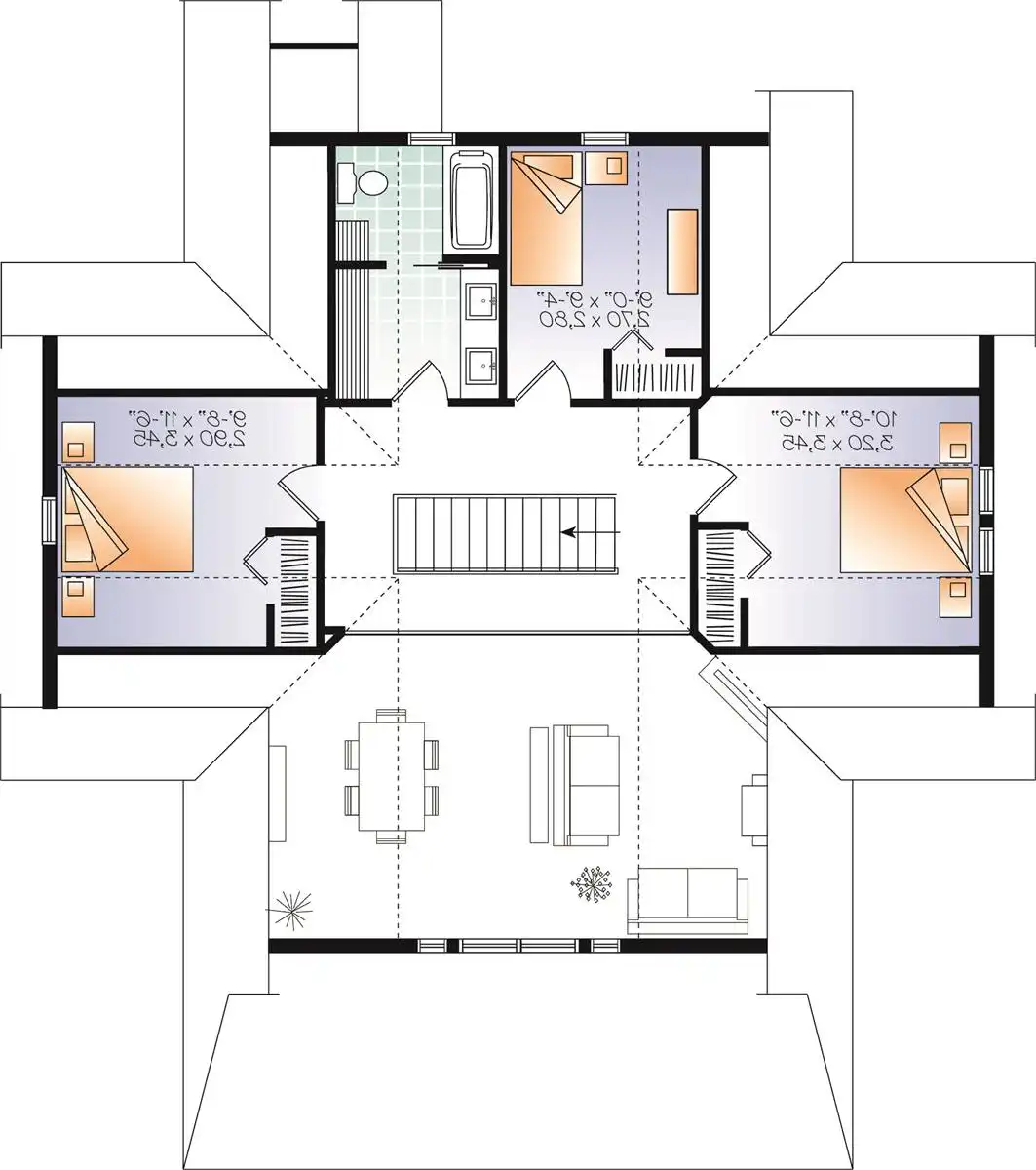

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 4769:
Perfect for a lakeside  property, this plan has been intentionally designed to be as environmentally conscious and energy efficient as possible. Read more >
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,195
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,320
Digital plans plus 5 printed sets

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use $1,795
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$0
FREE SHIPPING
Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

Plan Details
See All Details
Finished Square Footage
1,366 Sq. Ft.
Main Level:
739 Sq. Ft.
Upper Level:
2,105 Sq. Ft.
Total:
Room Details
2
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
44' 0"
Width:
38' 0"
Depth:
Single
Dwelling Number:
GARAGE
None
Garage Location:
0
Garage Size:
Exterior Style
Beach
Cape Cod
Cottage
Country
Craftsman
Lake
Collections
Affordable
Builders
Florida
Mountain
Outdoor Living
Pet Lovers
Vacation
Foundation
Crawlspace
Floating slab
Monolithic slab
Walkout basement (included)
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
3.5/12
Porch:
Roof Load
55
Live:
20
Dead:
Insulation (R)
20
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
24' 3"
Maximum House Height:

Important Facts Before Purchasing House Plans

Direct from the Designers™ House Plans has the highest design standards in the industry. Read more on how our house plan standards and guarantees show our commitment to our customers and vital information you should know before starting your home building project.

Read All Important Facts >
Key Features
Courtyard
Covered Front Porch
Covered Rear Porch
Crawlspace
Daylight Basement
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Front Porch
His and Hers Master Closets
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Mud Room
None
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Sitting Area
Slab
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walkout Basement
