House Plan: DFD-5383

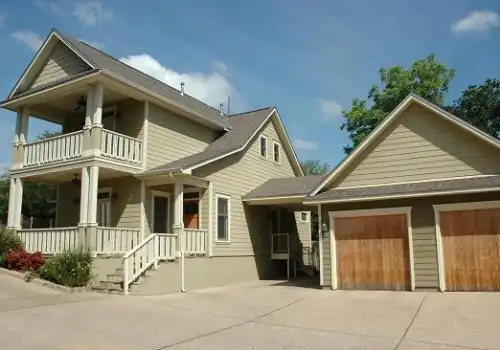

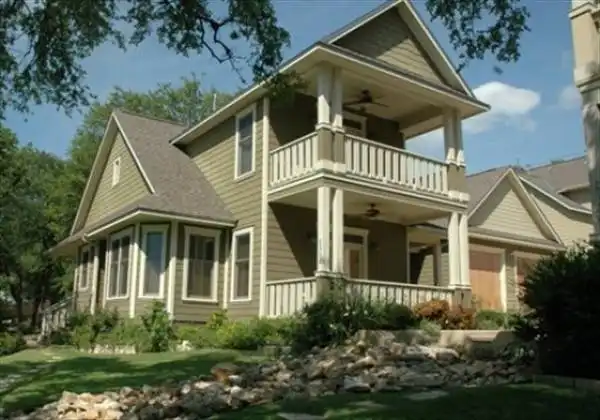

See All 2 Photos > (photographs may reflect modified homes)
© copyright by architect
SQ FT
1,565
BEDS
3
BATHS
3
STORIES
2
CARS
0
PLANS FROM $995
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 5383
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $995
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,995

States N/A: TX,NM,LA
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$995
FREE SHIPPING
IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of AL, TN, TX, NM and LA. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Modifications can be provided by the original architect. Please contact us for more information.

Plan Details
See All Details
Finished Square Footage
960 Sq. Ft.
Main Level:
605 Sq. Ft.
Upper Level:
1,565 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
General House Information
2
Number of Stories:
28' 0"
Width:
46' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
256 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
Exterior Style
Beach
Cottage
Traditional
Collections
Old House Classics
Foundation
Basement
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Roof Load
20
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
26
Ceiling:
0
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
29' 0"
Maximum House Height:
Facade
Siding
Key Features
Covered Front Porch
Covered Rear Porch
Crawlspace
Detached
Dining Room
Fireplace
Foyer
Front Porch
Home Office
Laundry 1st Fl
Loft / Balcony
Primary Bdrm Upstairs
Peninsula / Eating Bar
Slab
Suited for narrow lot
Walk-in Closet
Walk-in Pantry
