House Plan: DFD-5517

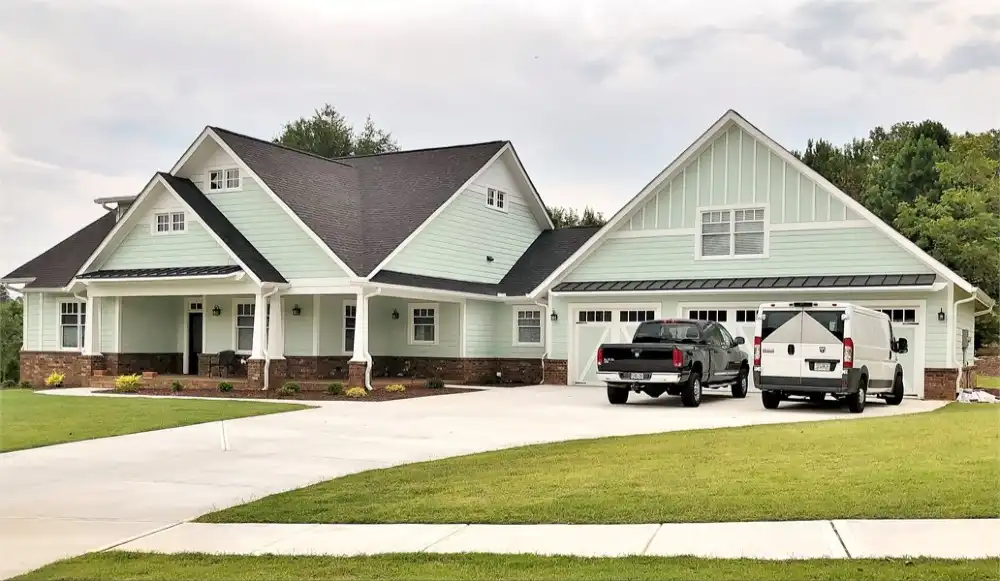

See All 64 Photos > (photographs may reflect modified homes)
© copyright by architect
SQ FT
1,879
BEDS
3
BATHS
2
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $985.50
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5517:

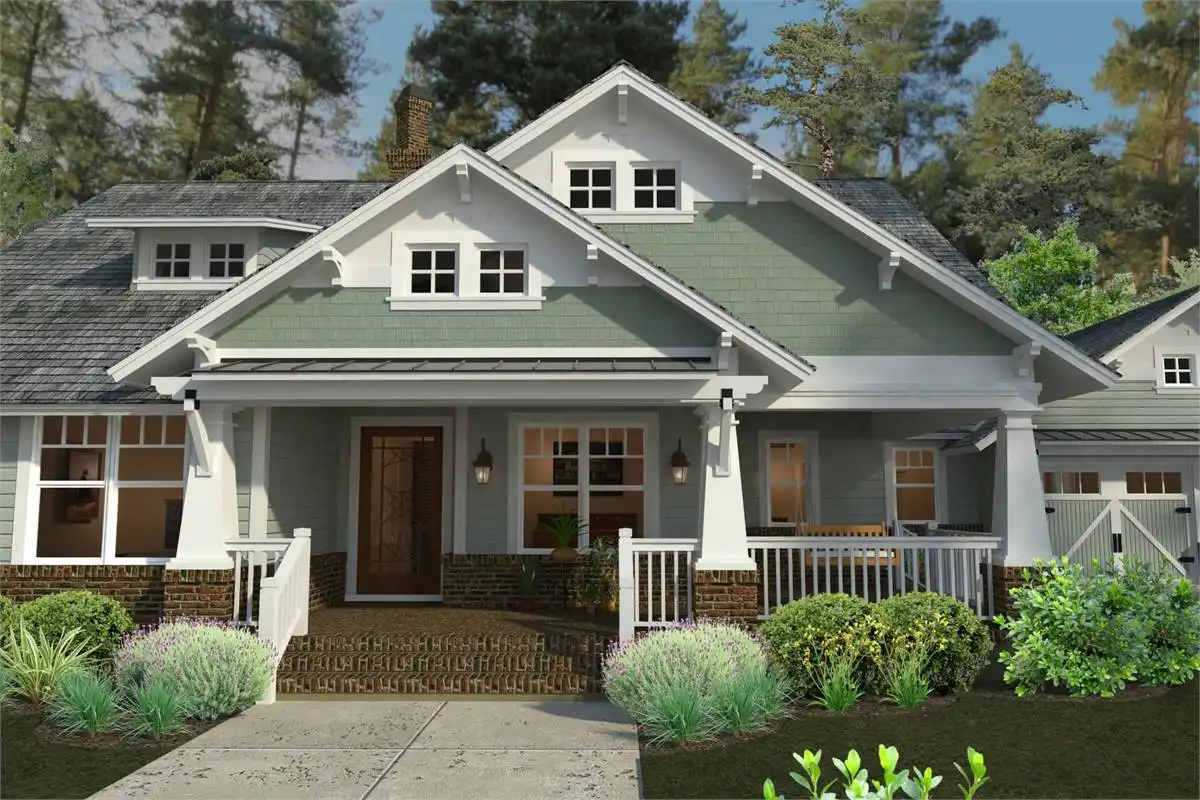

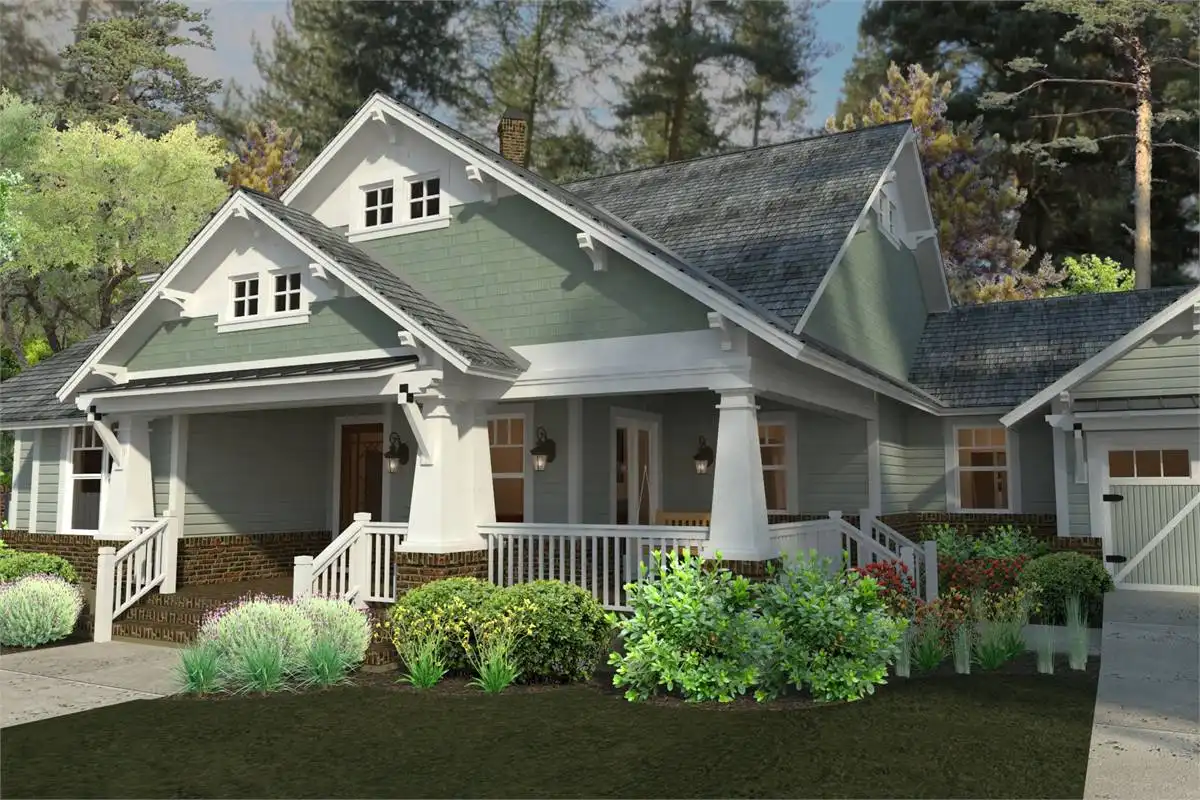

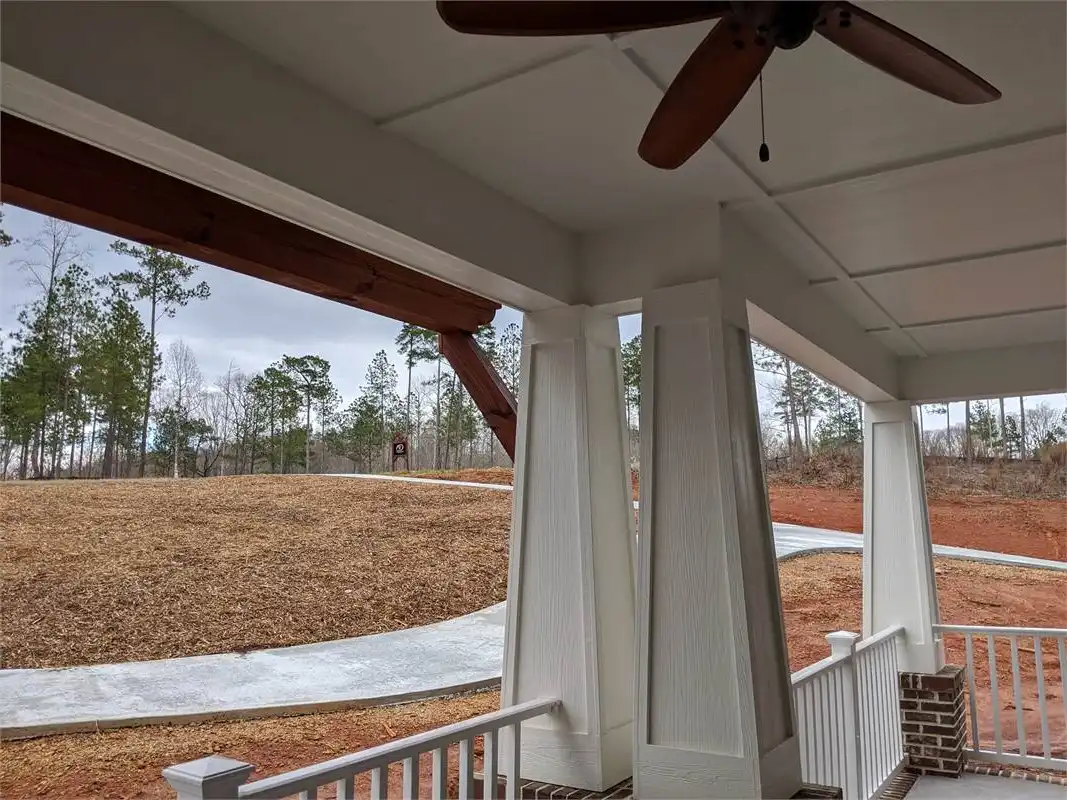

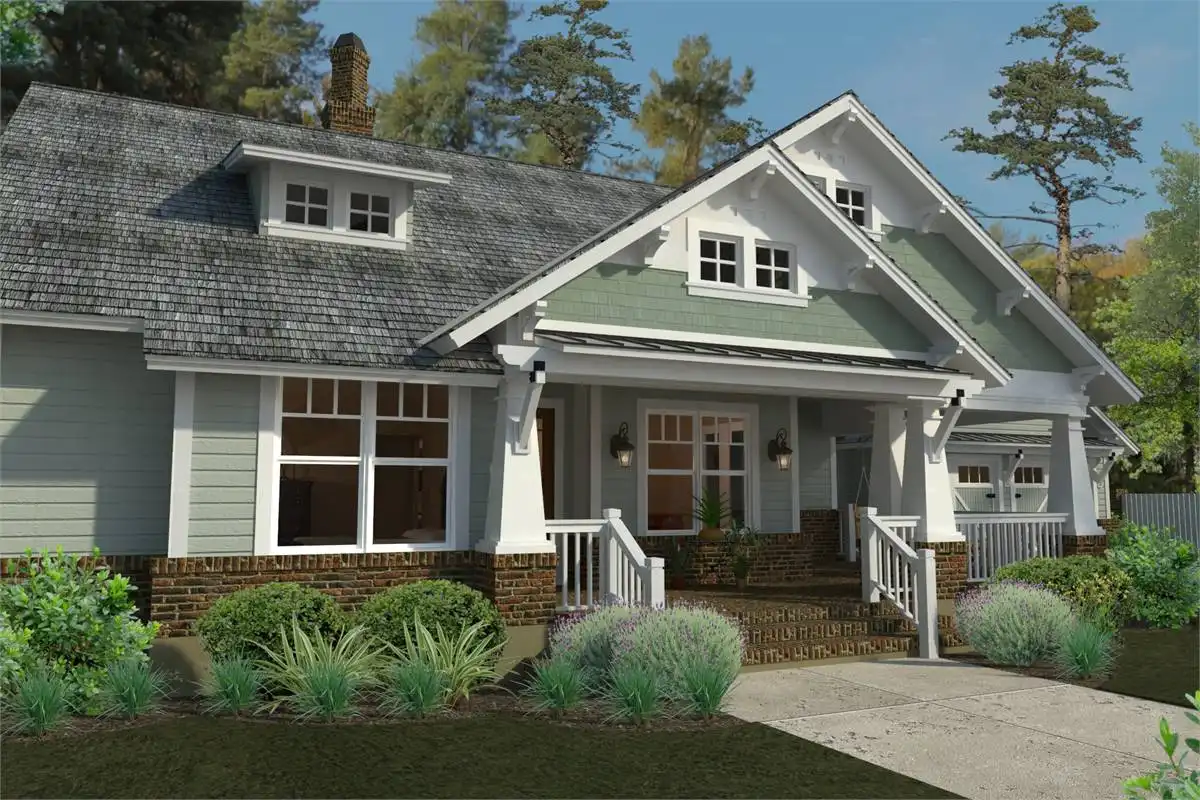

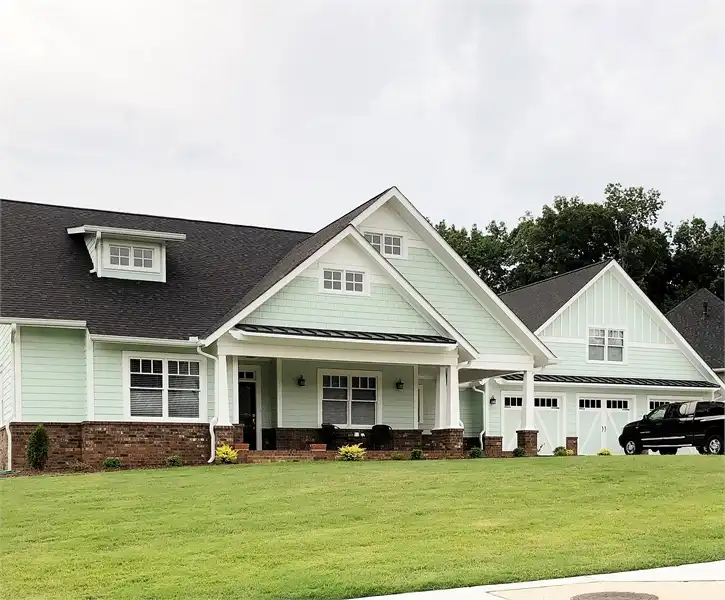

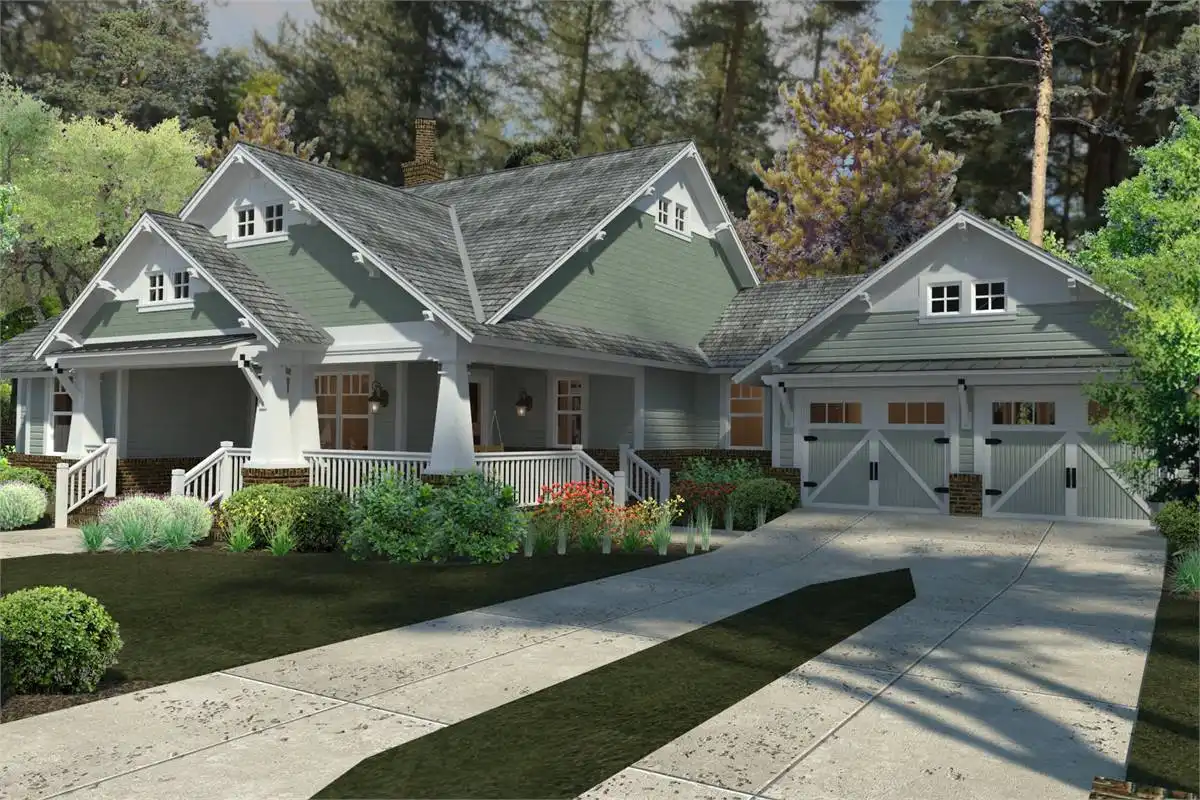

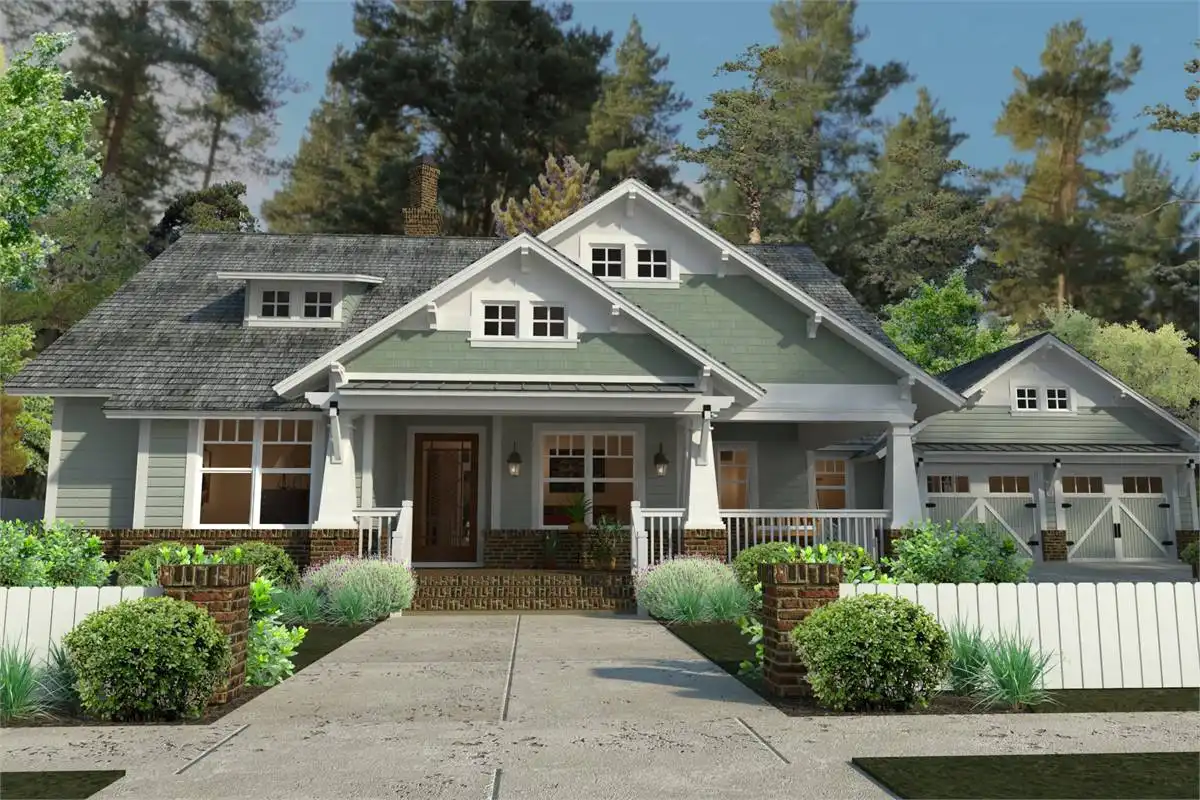

Reminiscent of the Houston Heights, this bungalow has a very inviting feel and wide porches to enjoy.

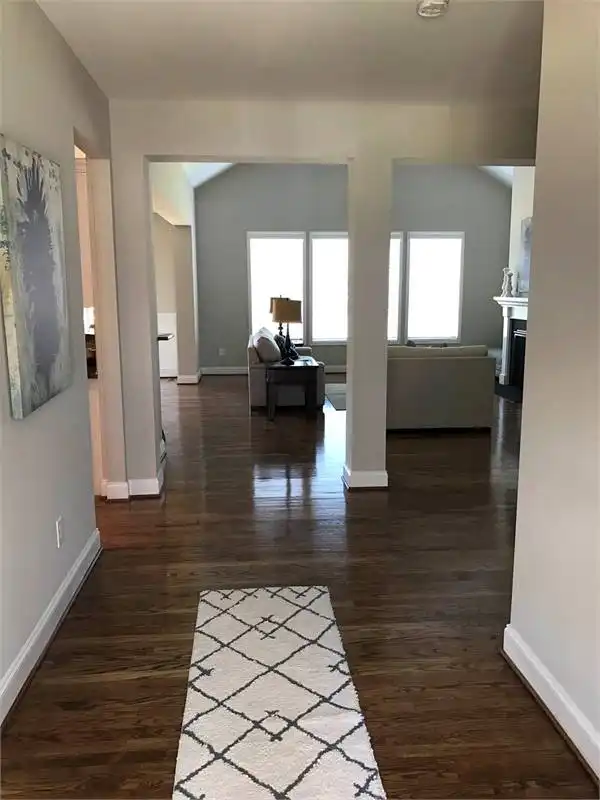

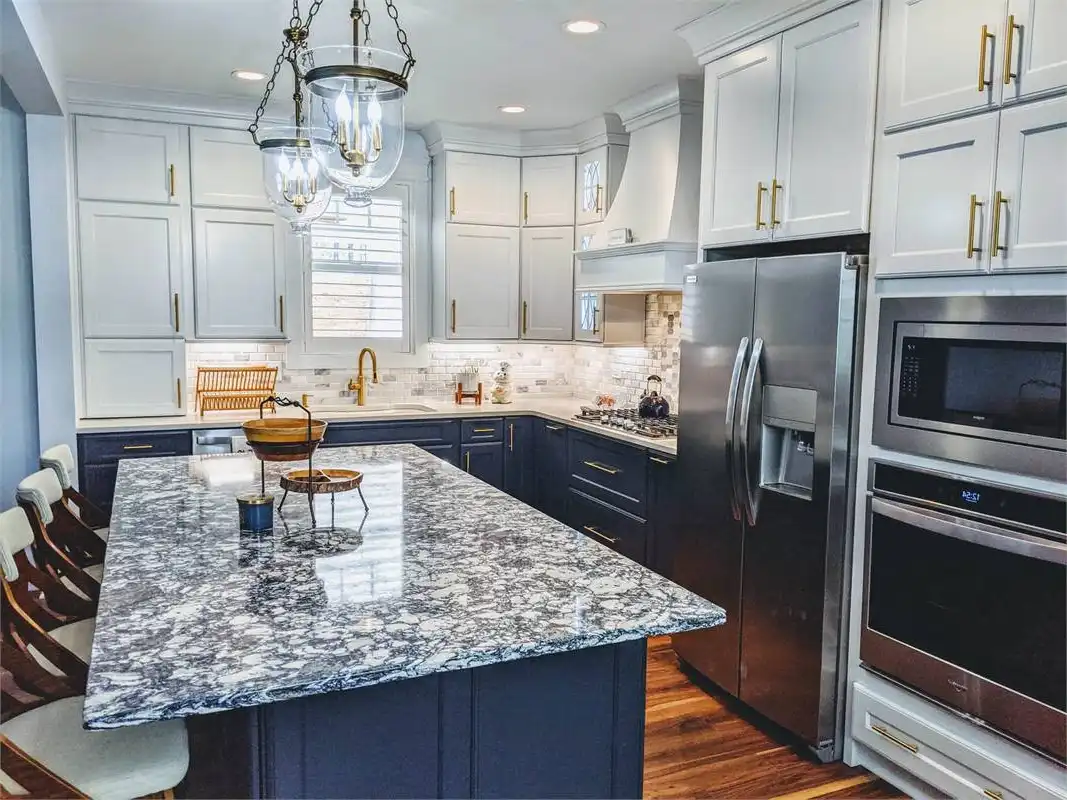

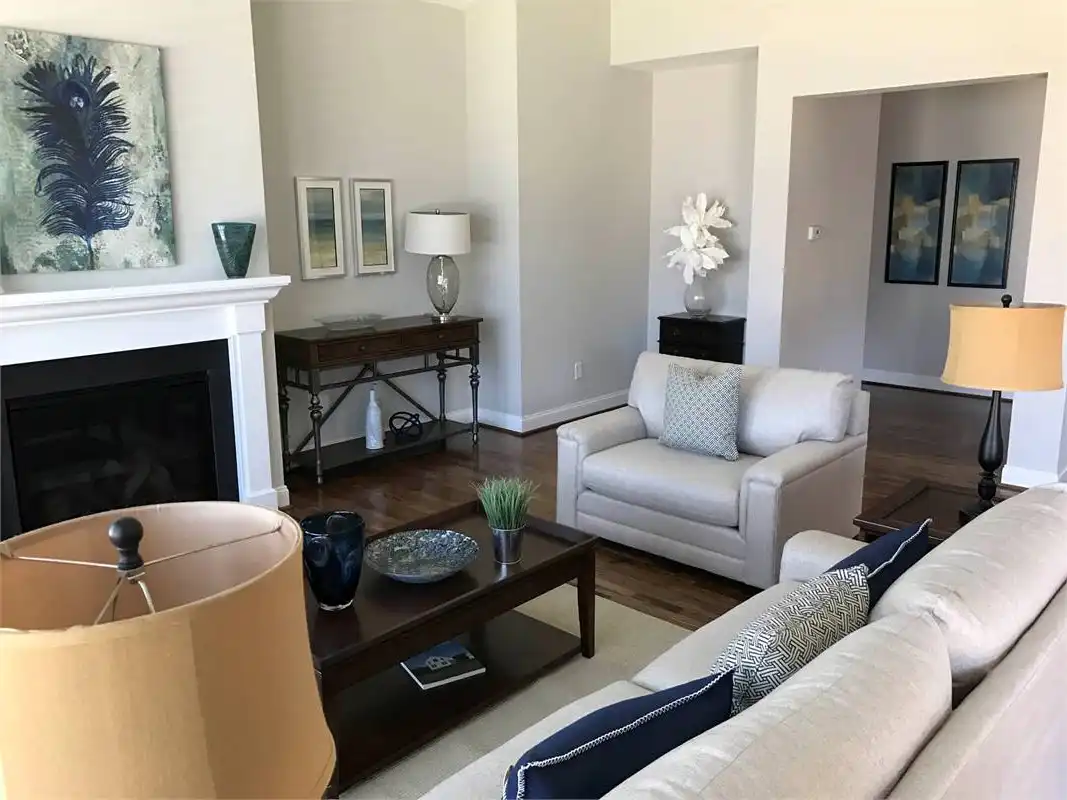

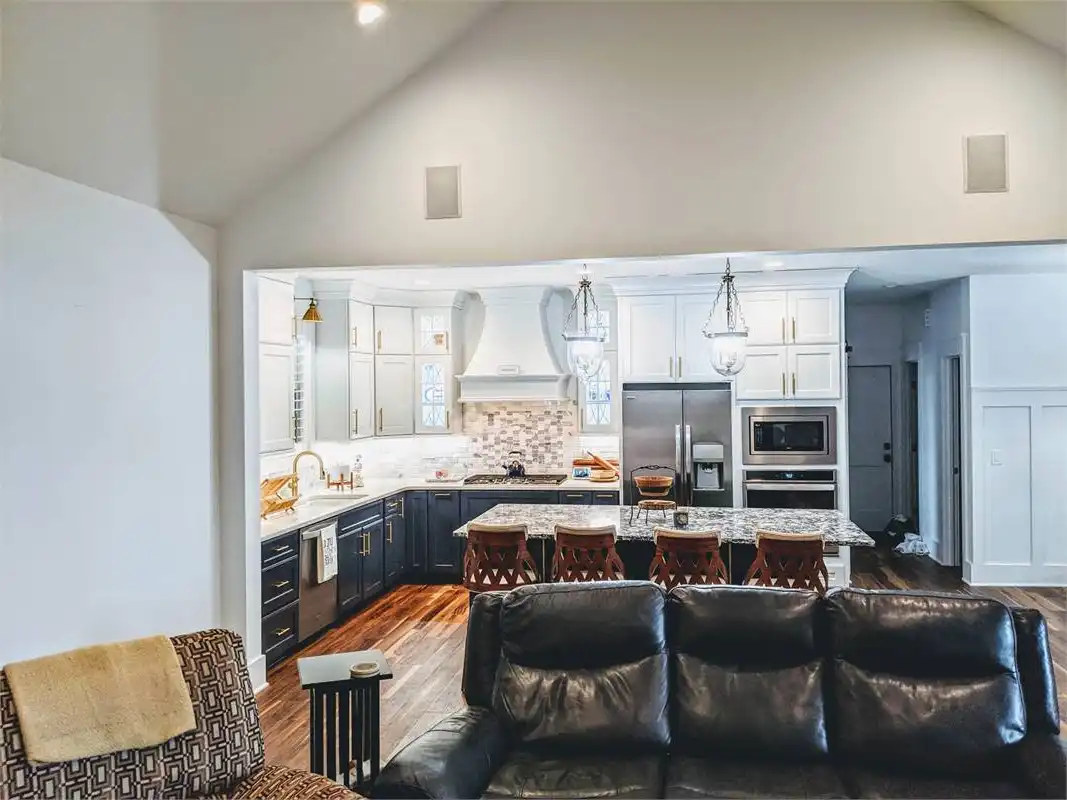

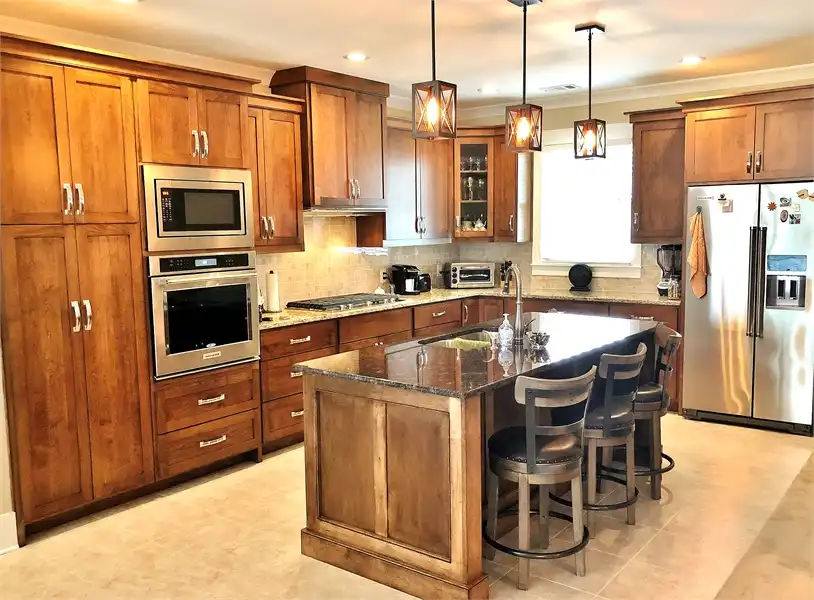

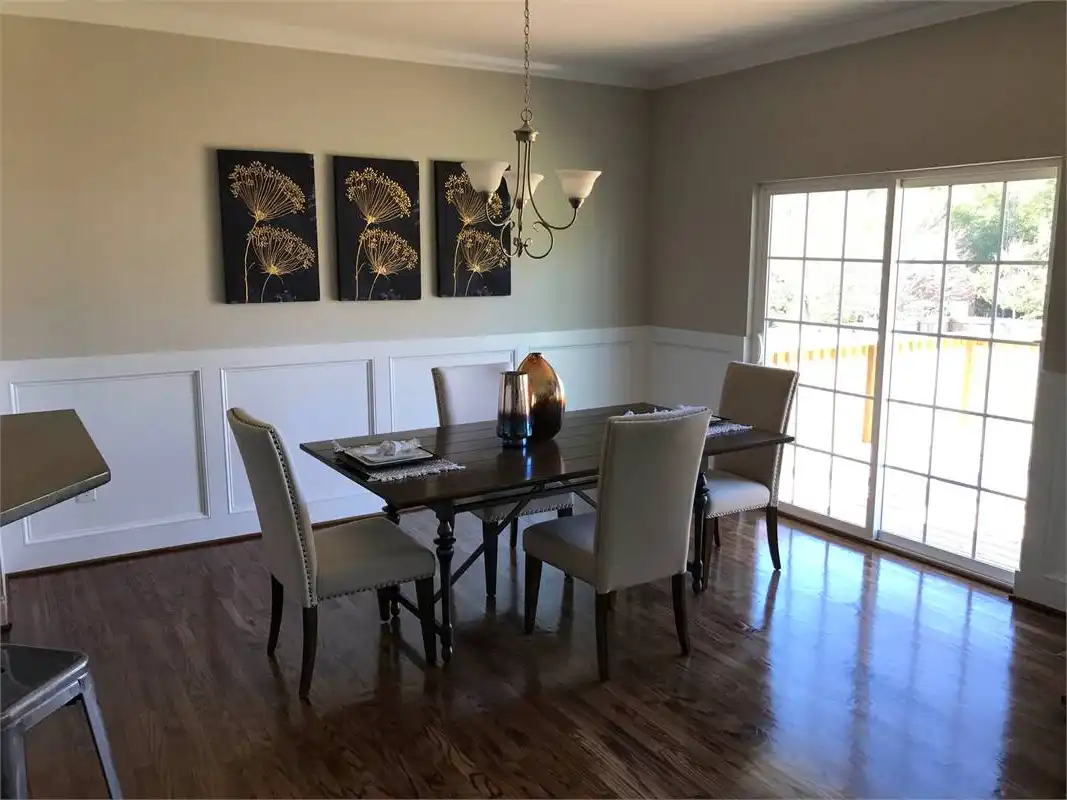

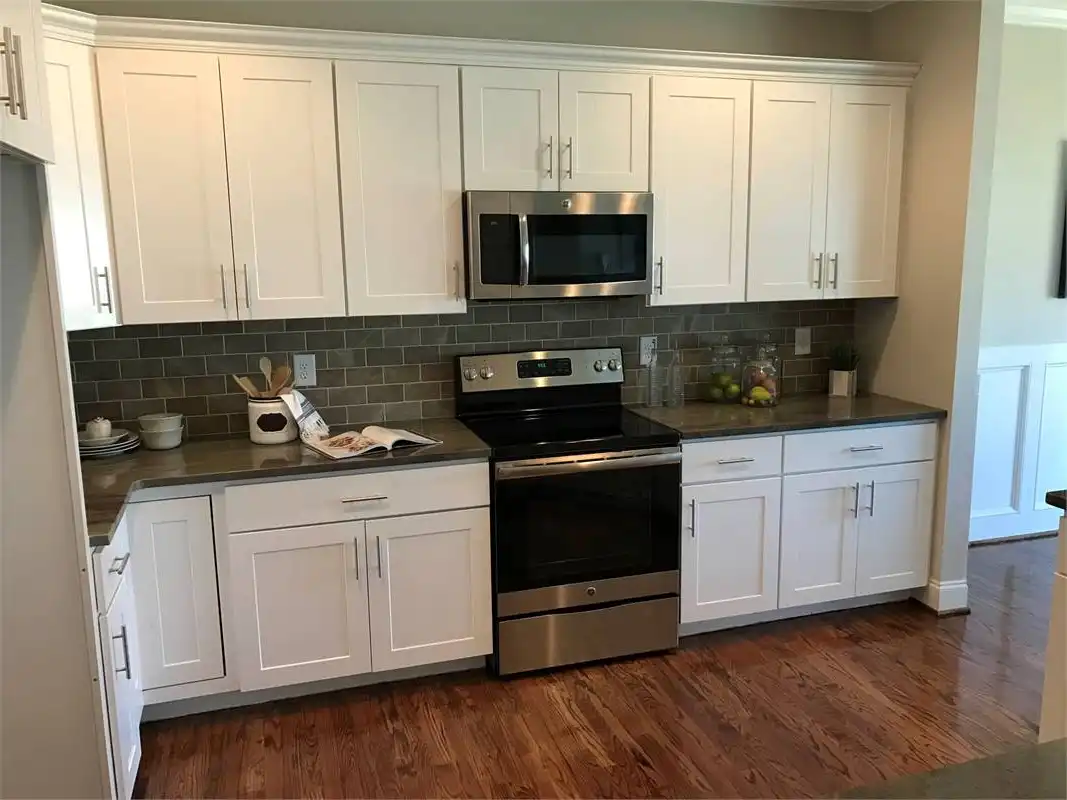

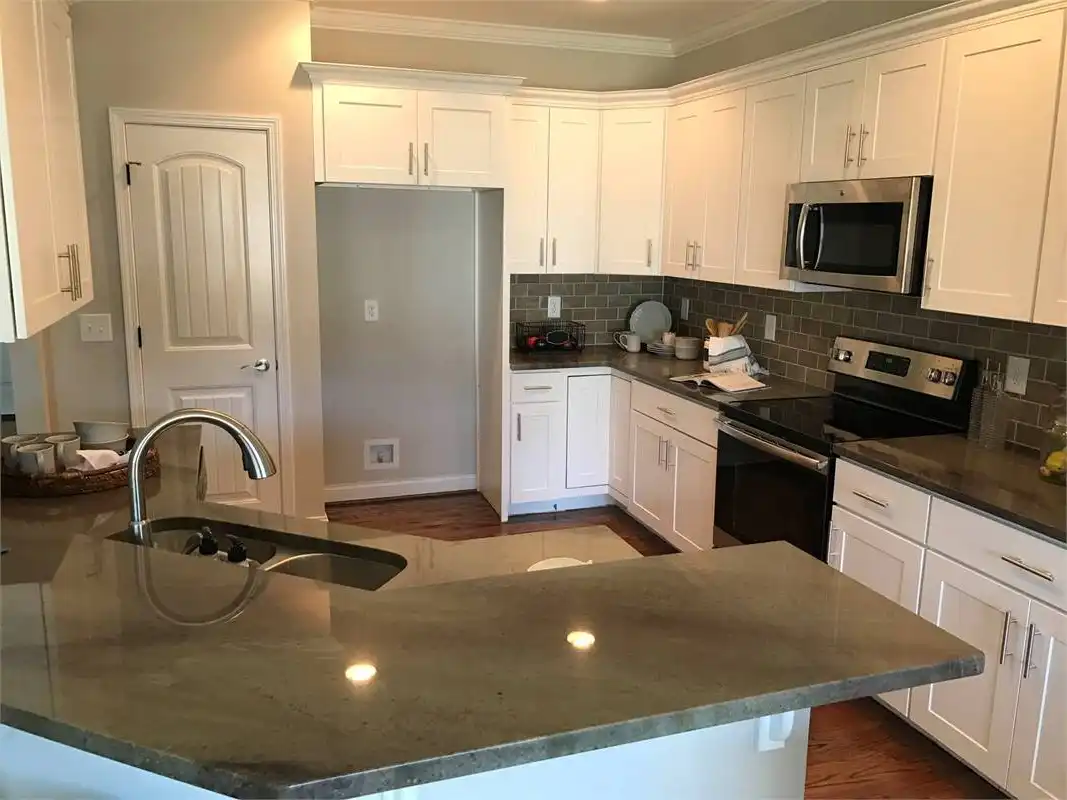

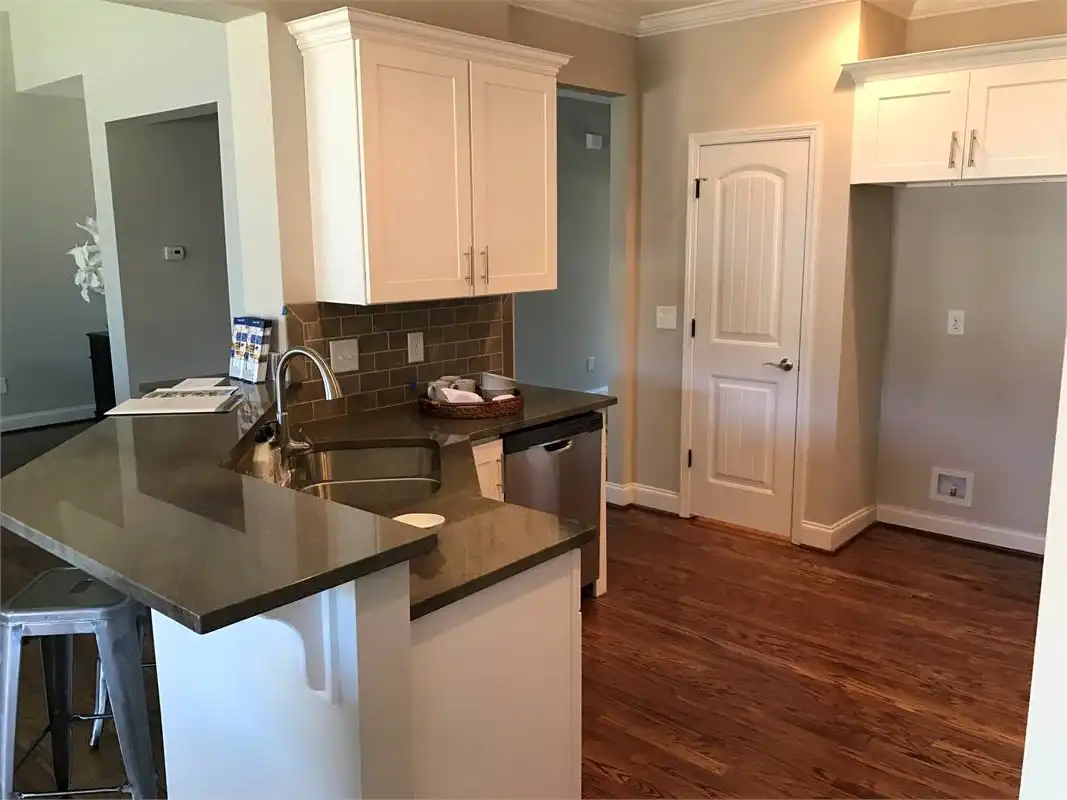

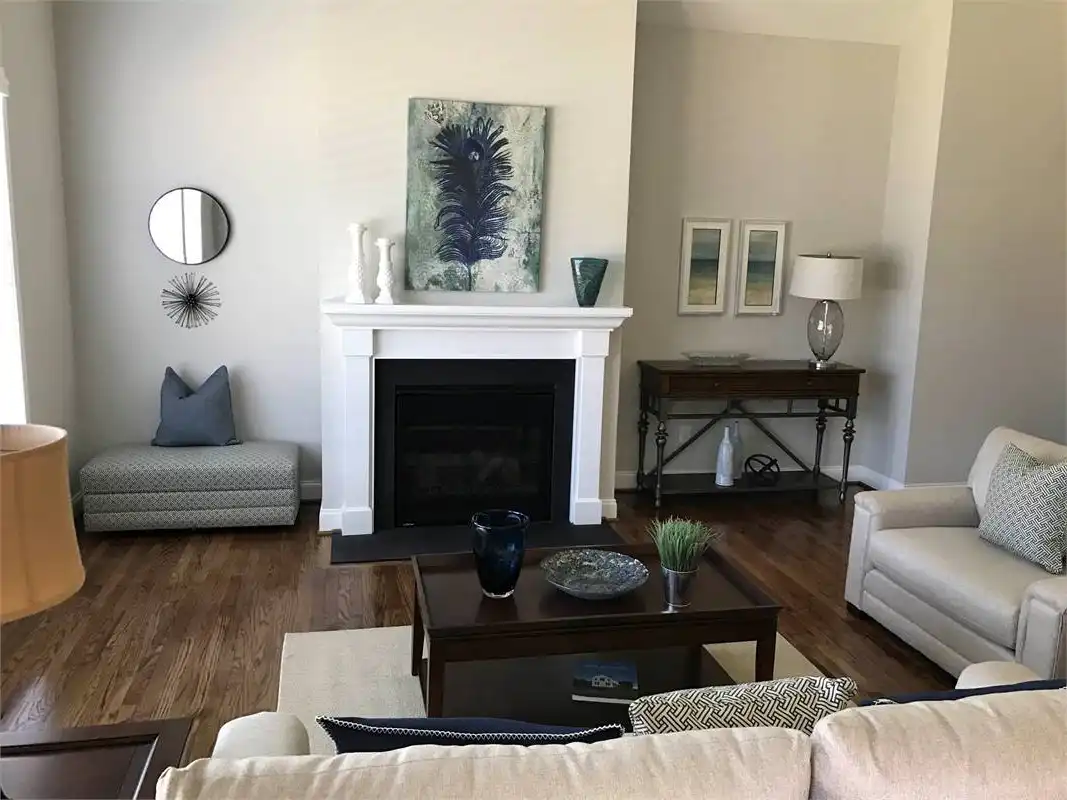

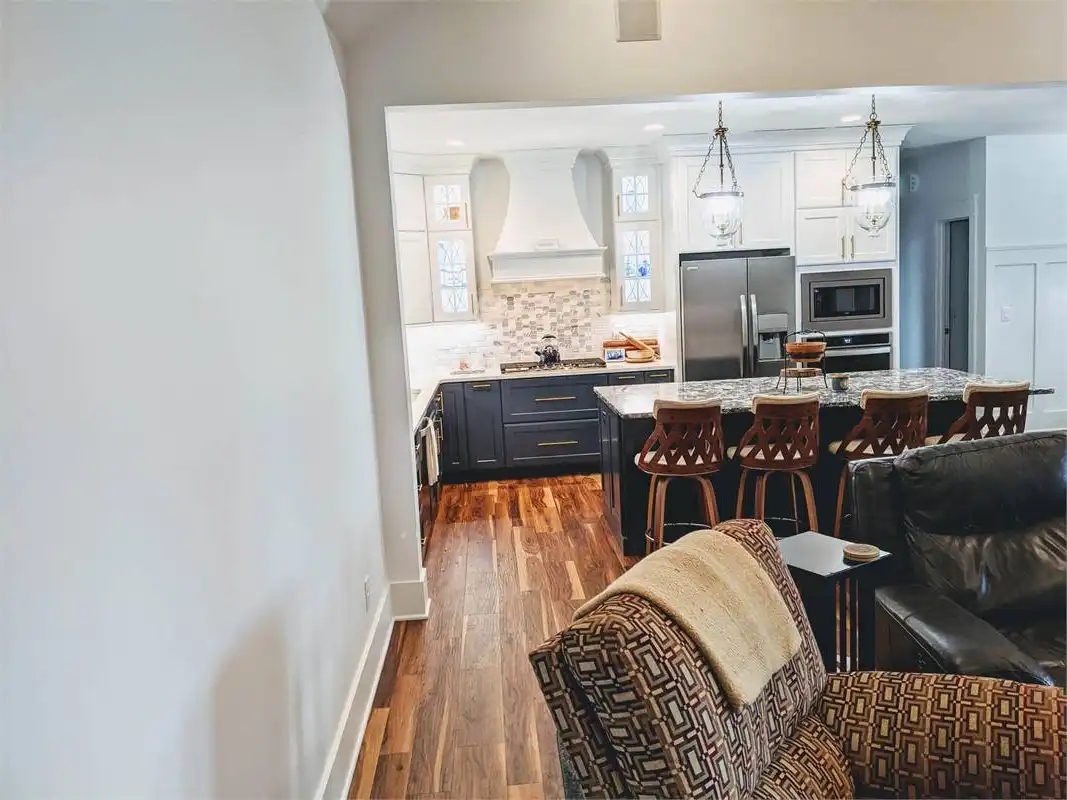

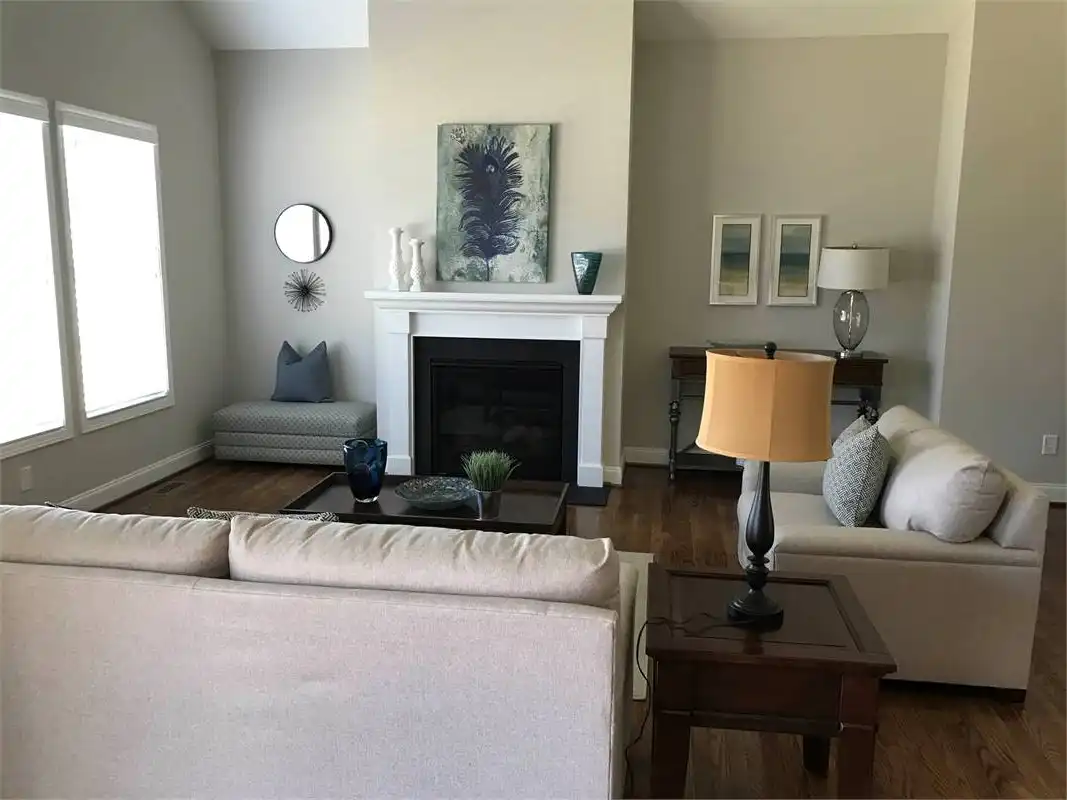

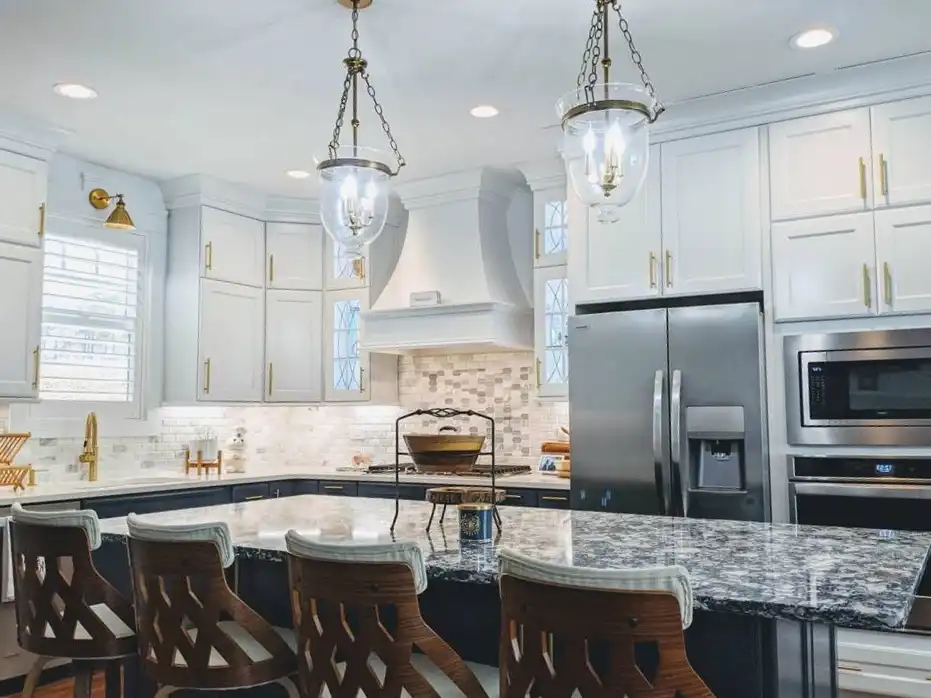

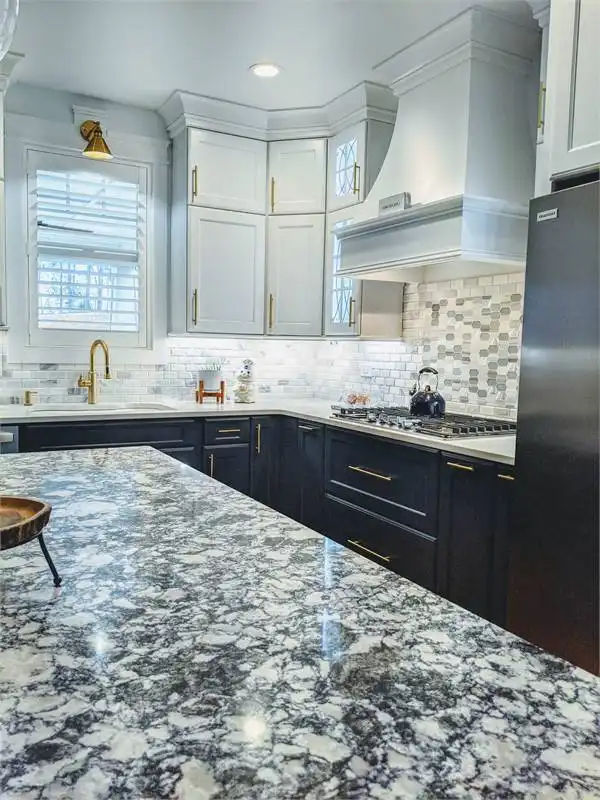

The open plan has a big feel between the kitchen, family and dining area. The family has an 11' flat ceiling and masonry faced fireplace.

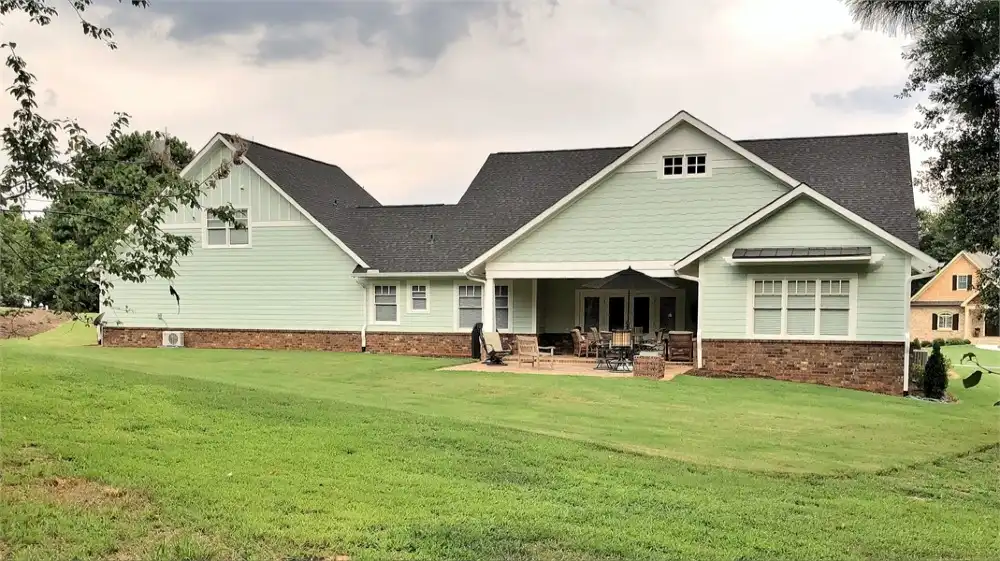

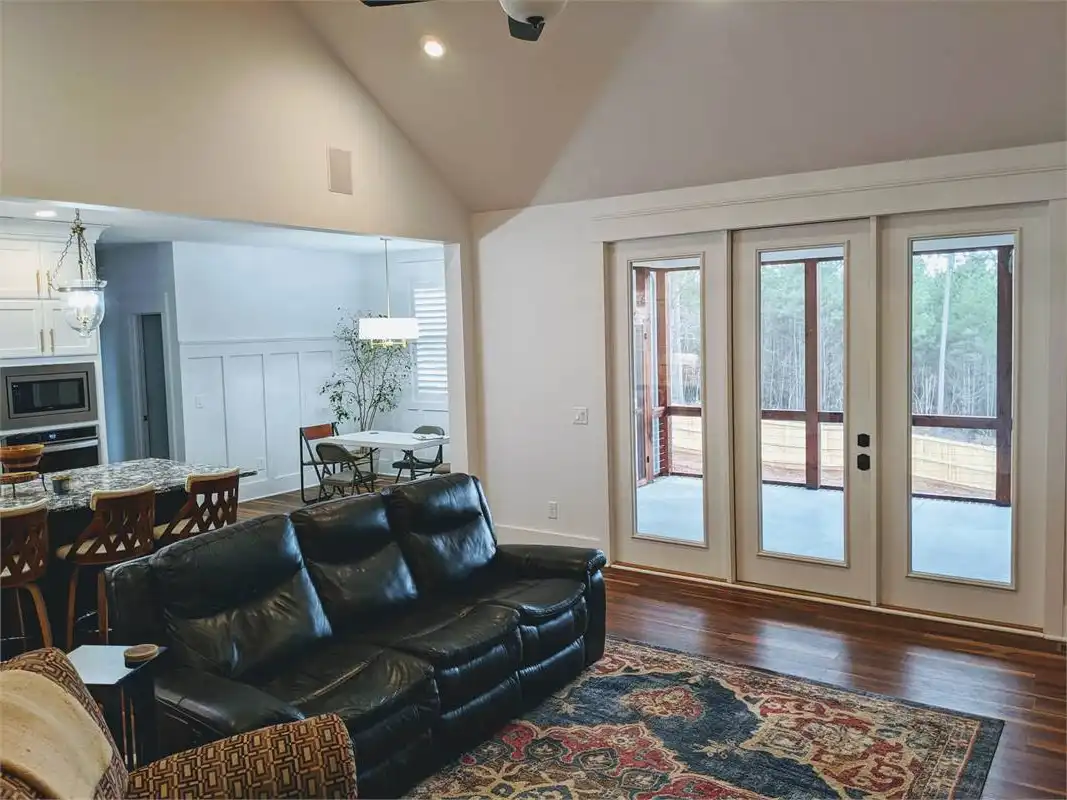

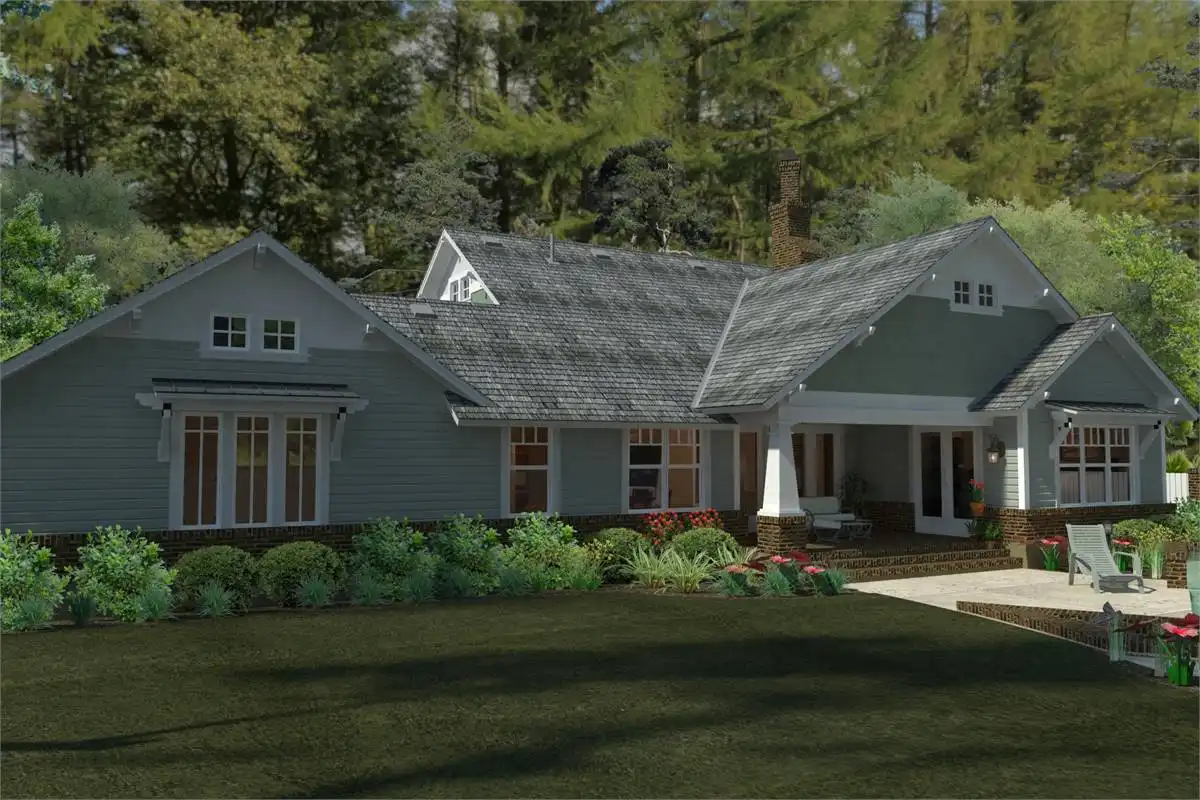

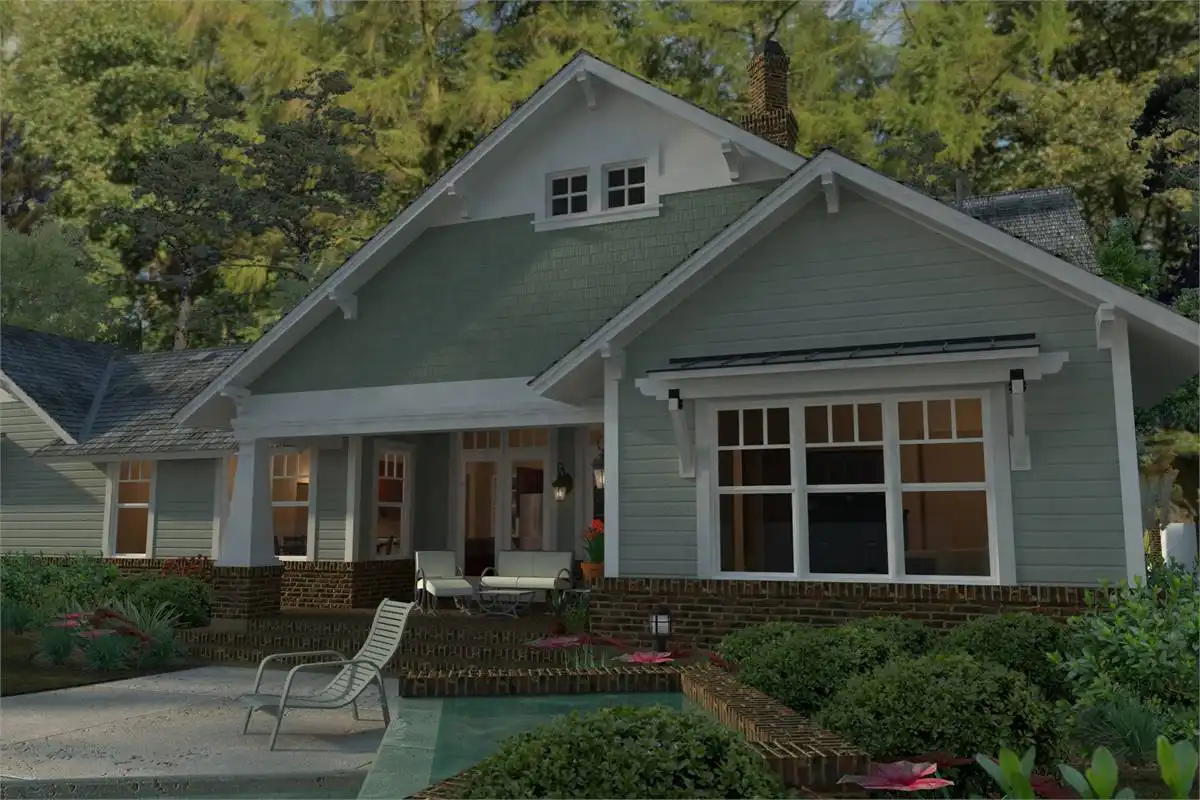

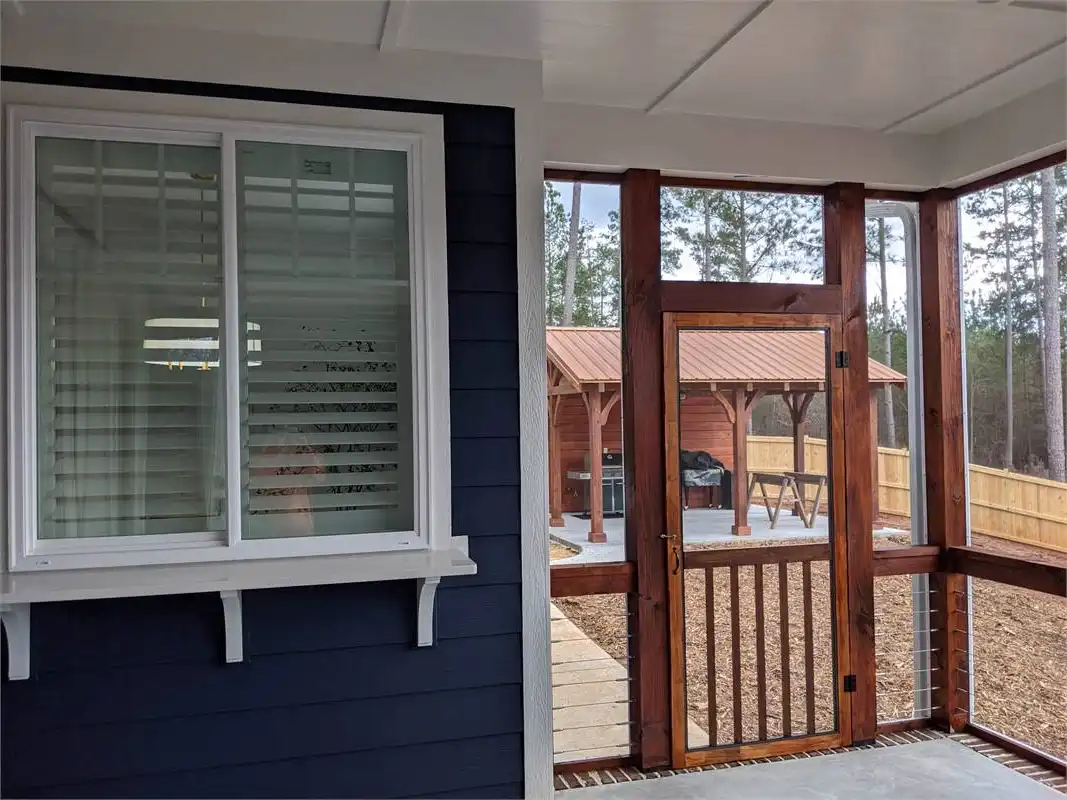

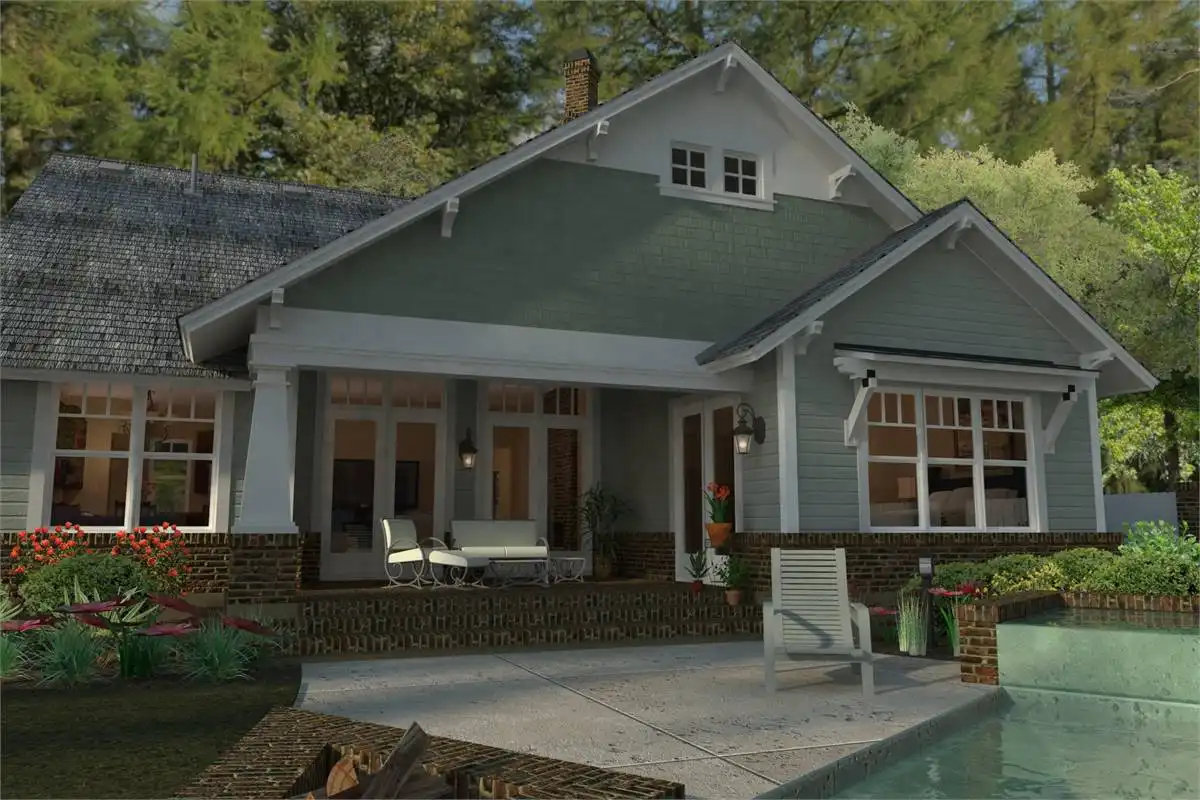

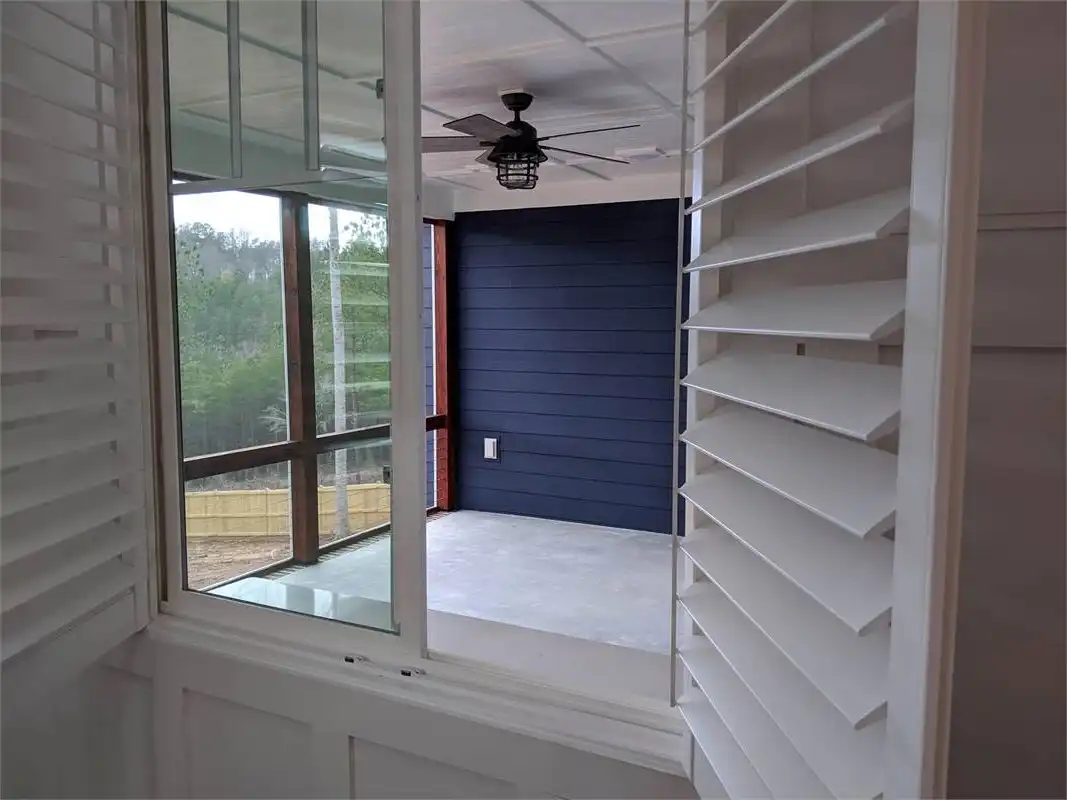

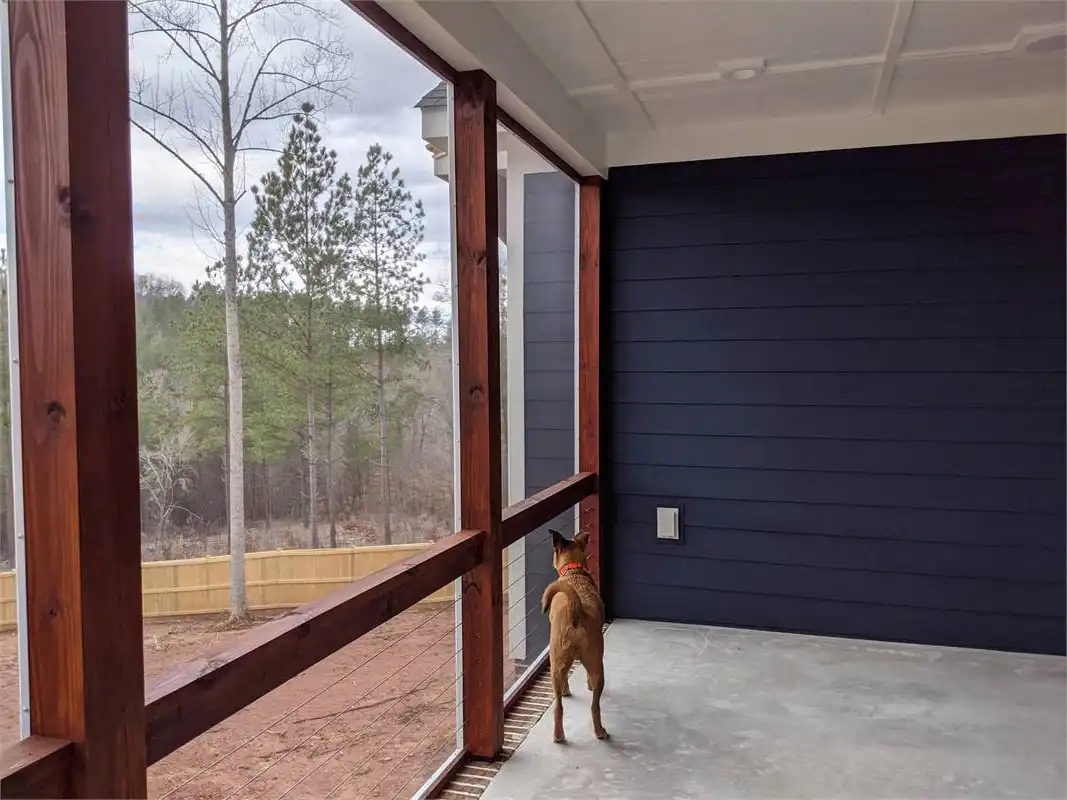

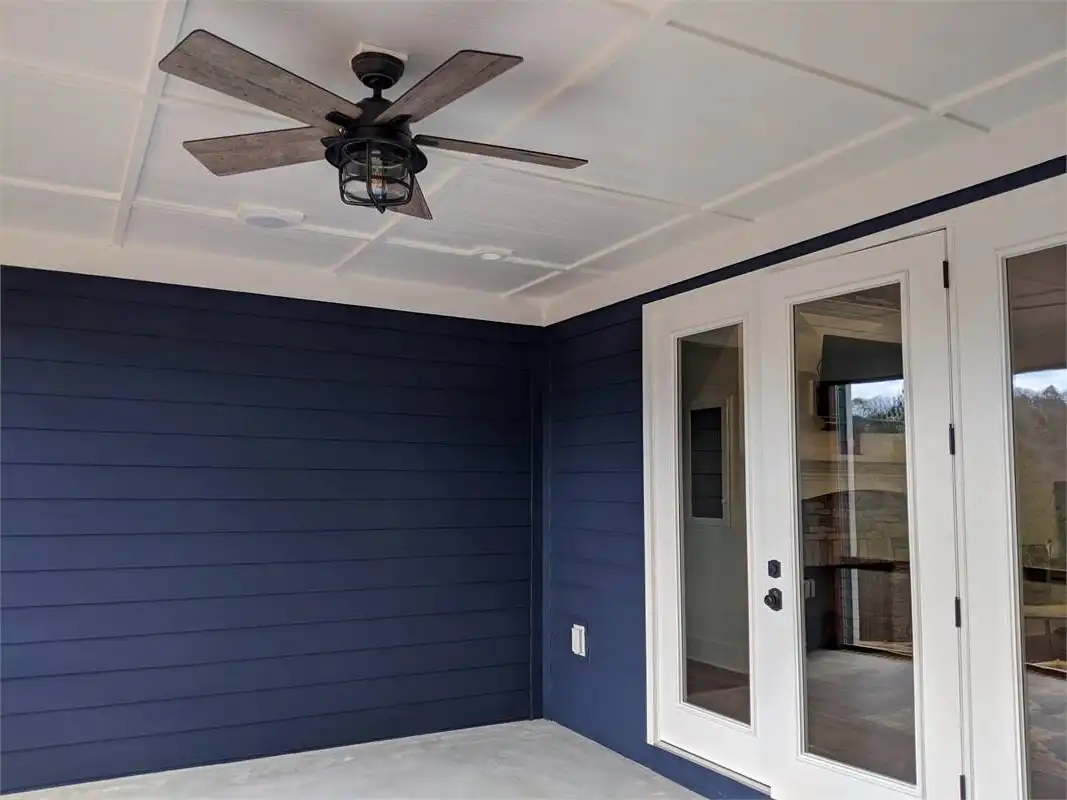

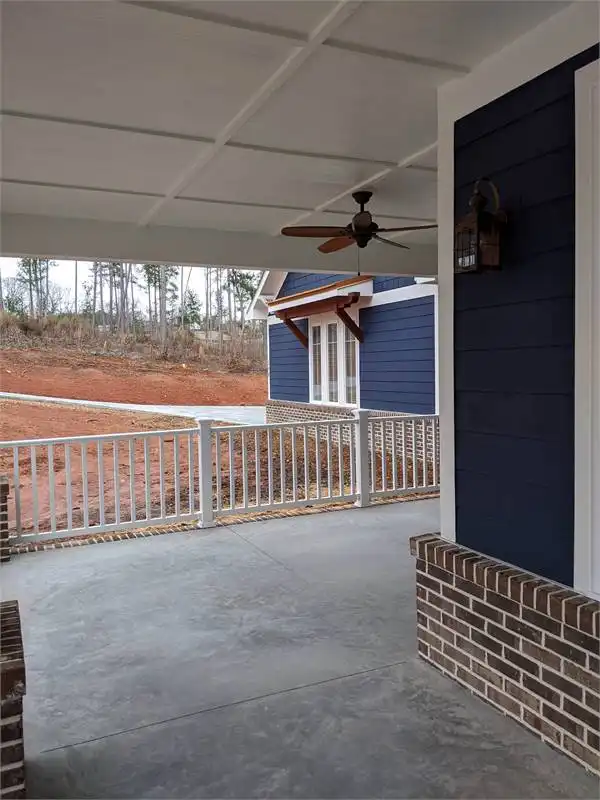

French doors provide access to the large lanai for out door living and barbecuing.

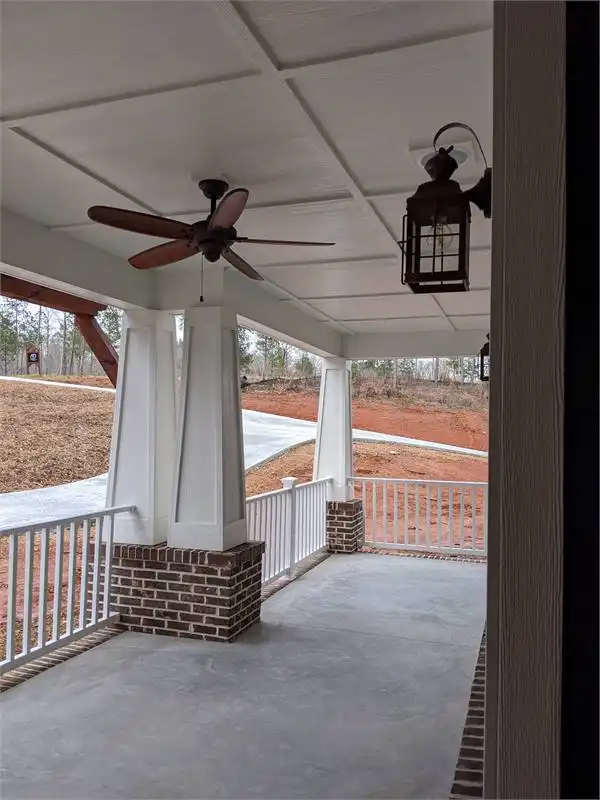

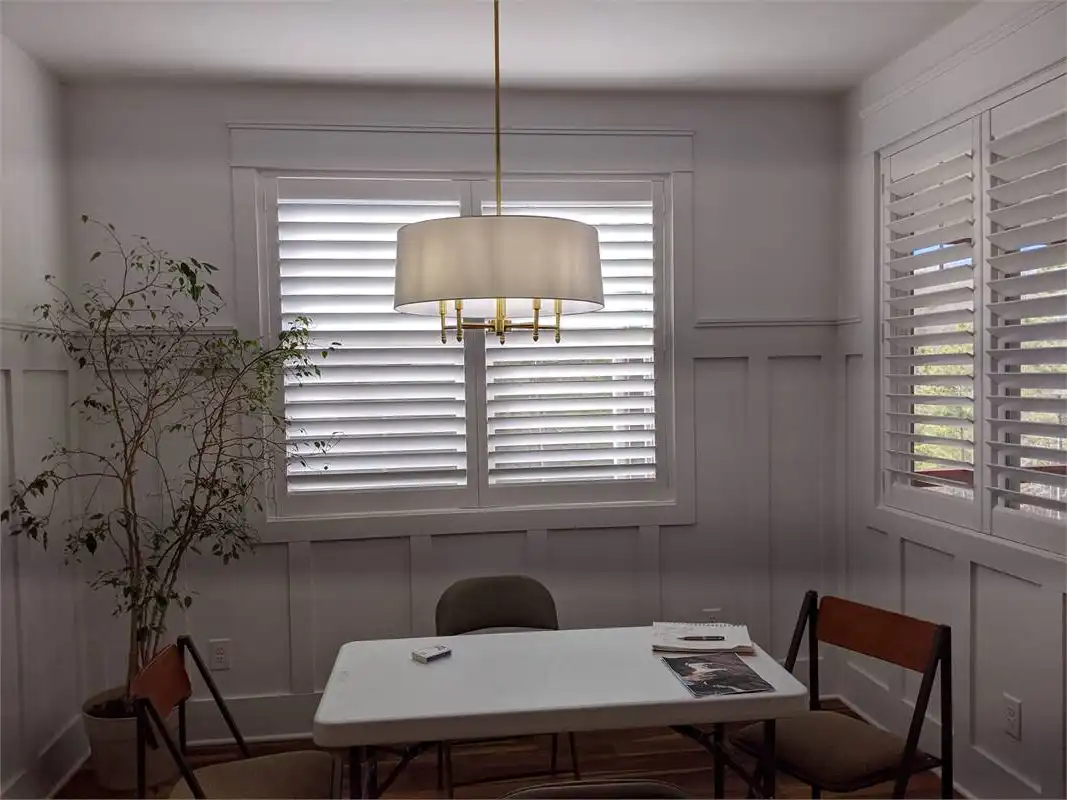

The study can serve as a 4th bedroom/guest rm as needed and enjoys a more than ample porch for entertaining or enjoying a porch swing.

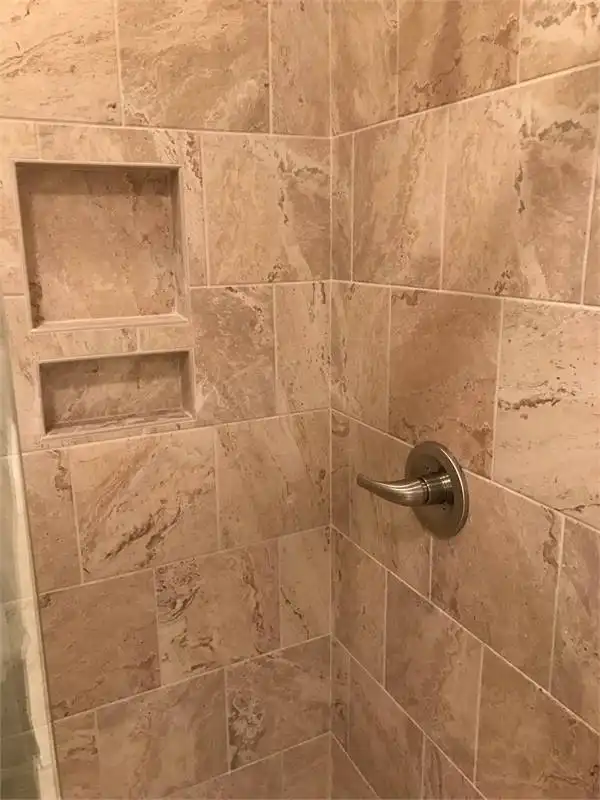

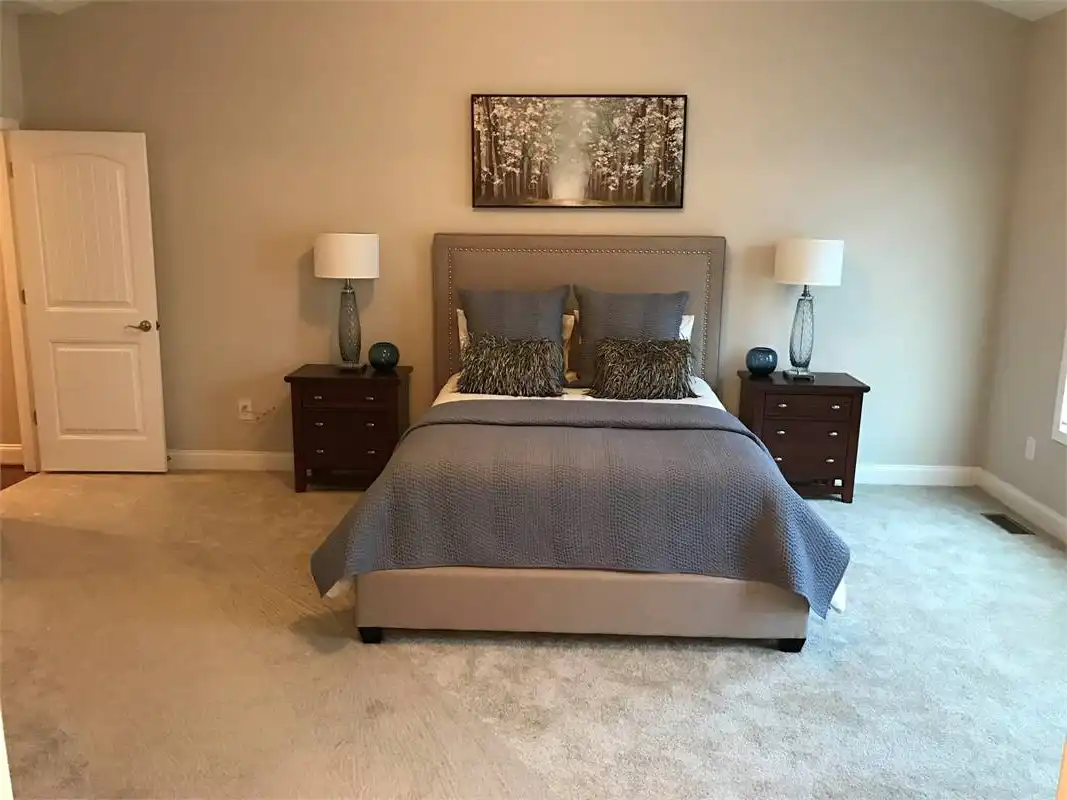

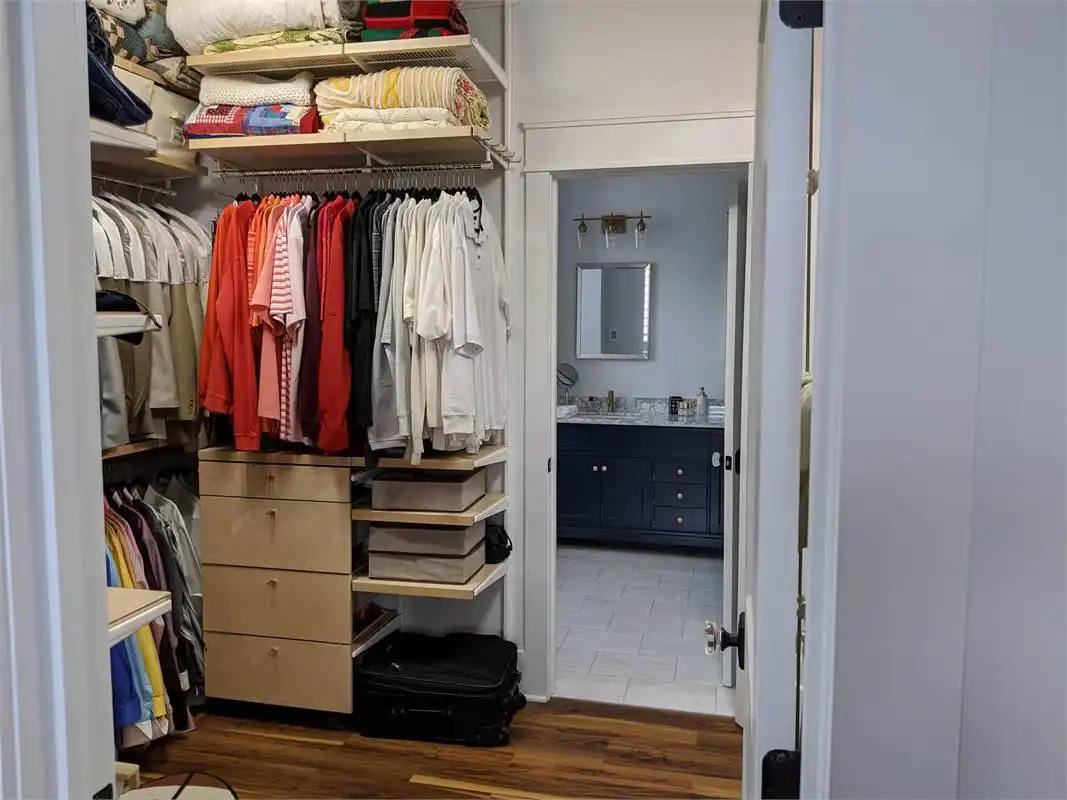

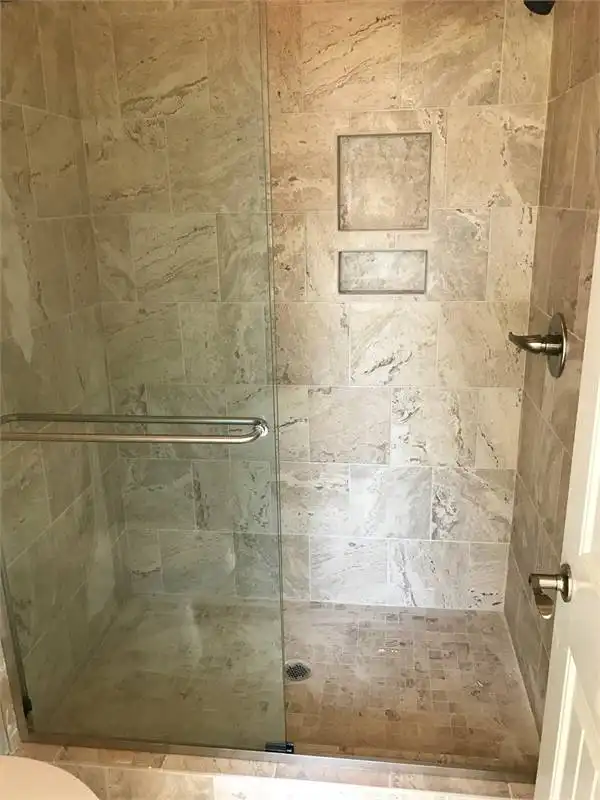

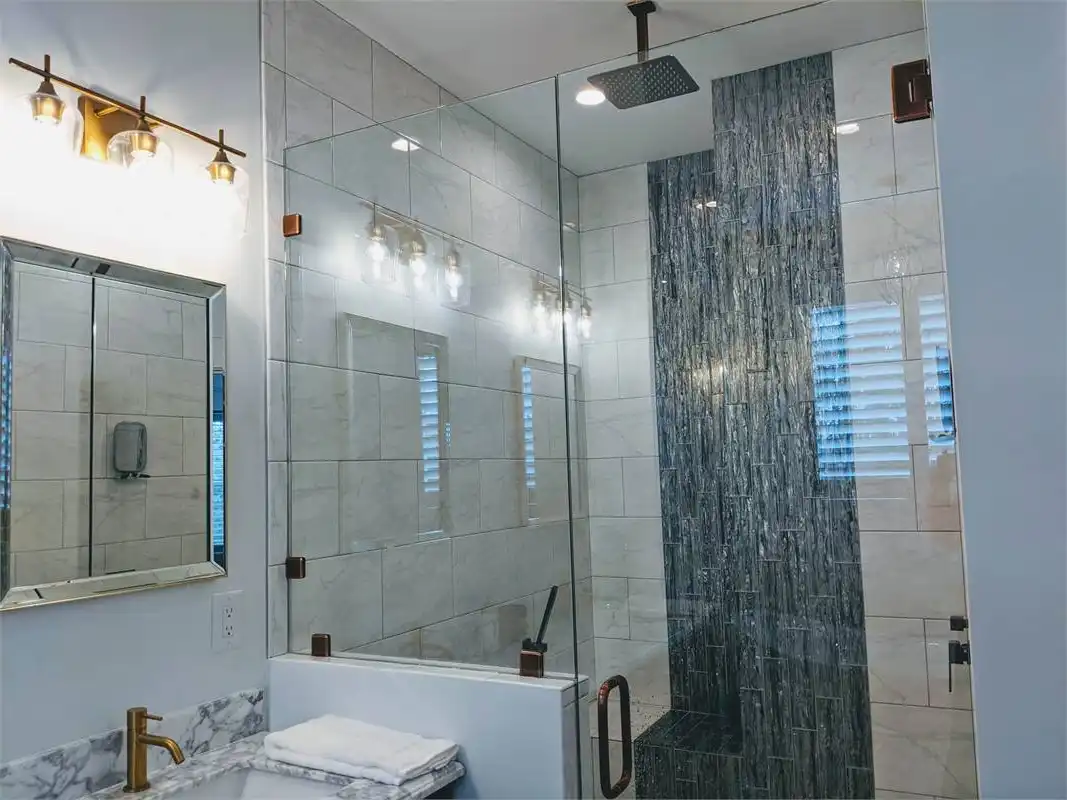

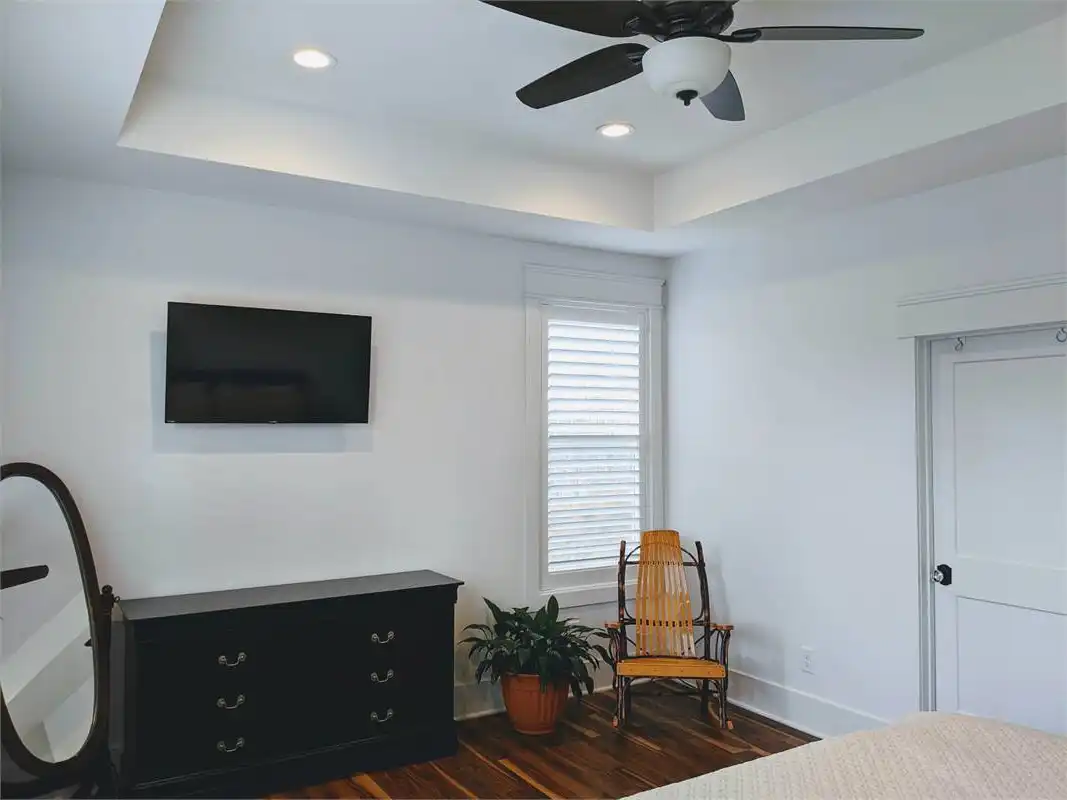

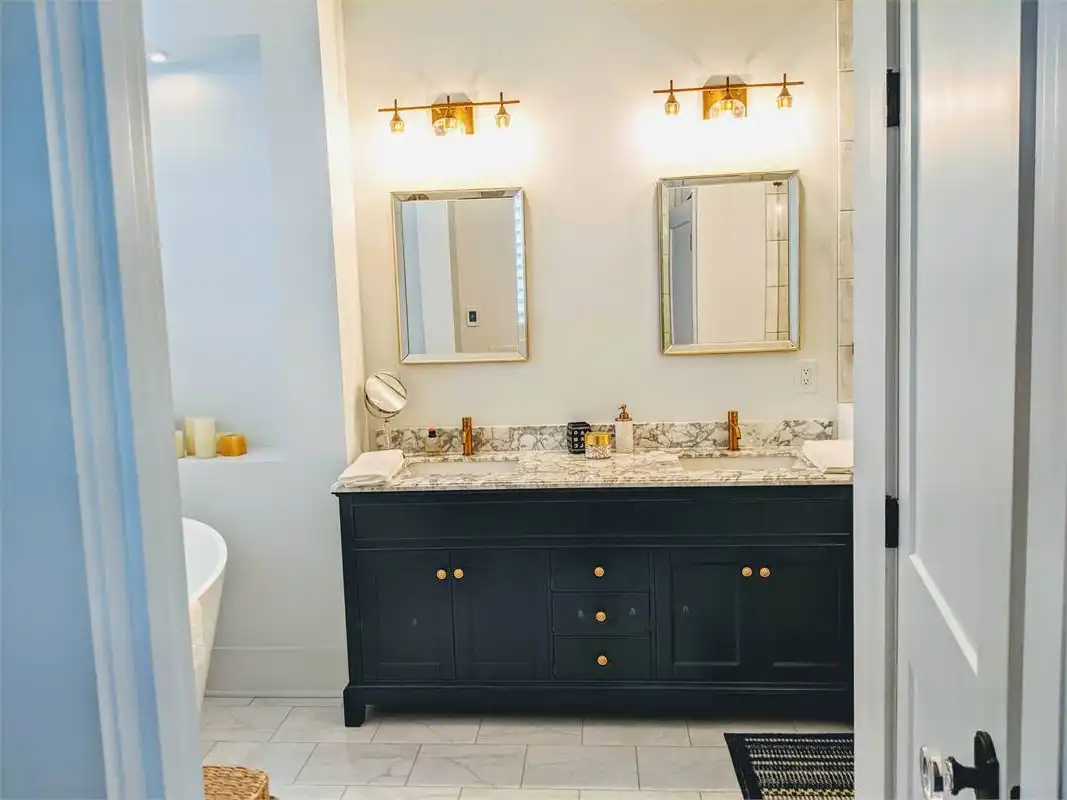

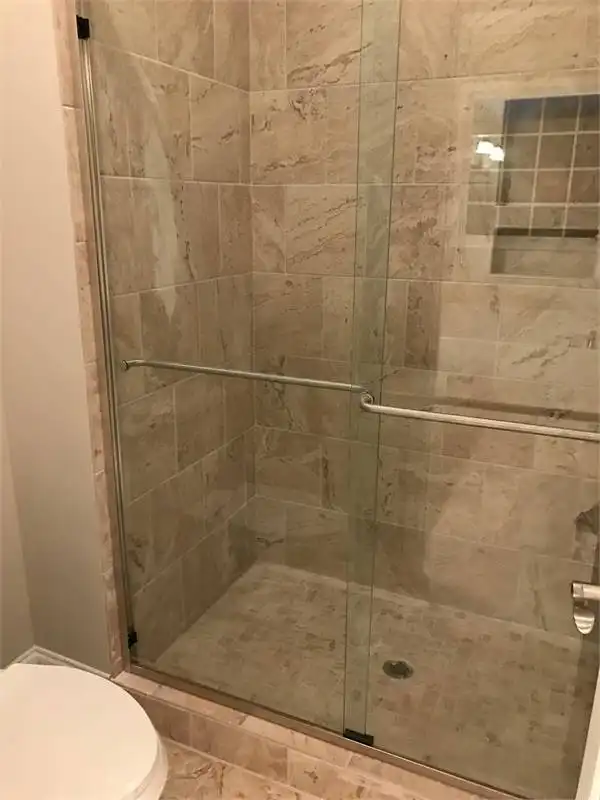

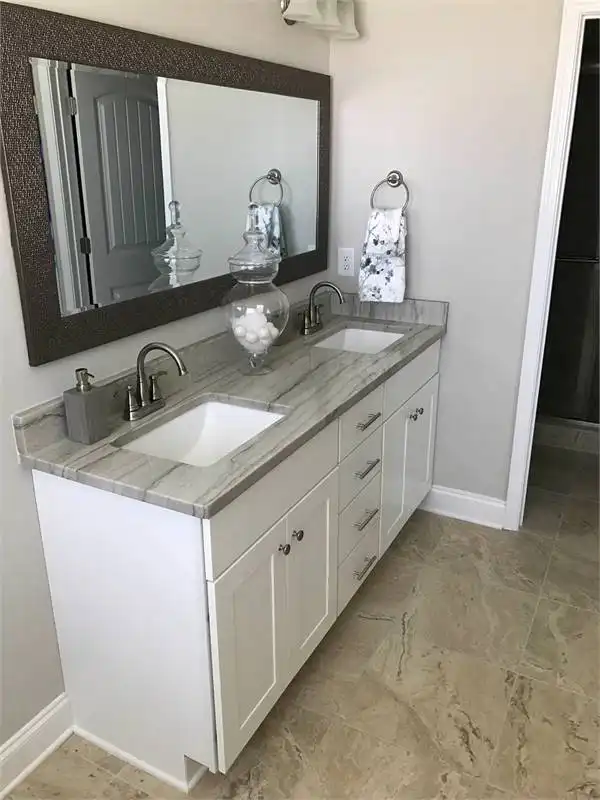

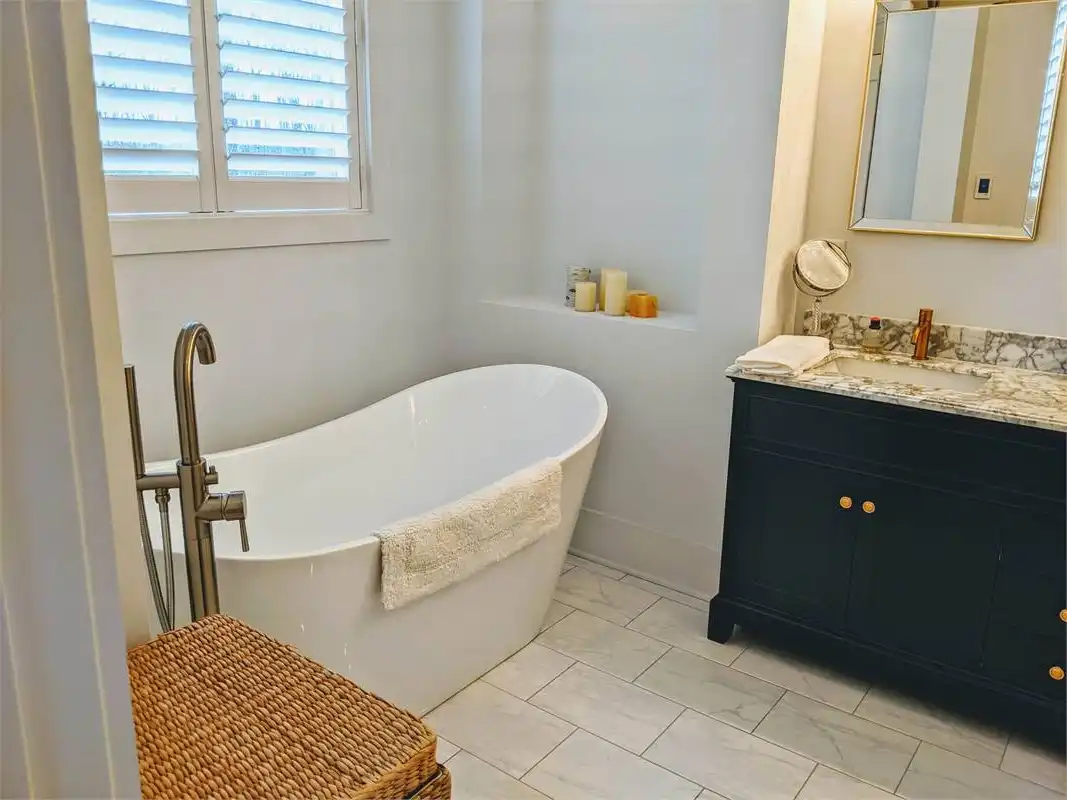

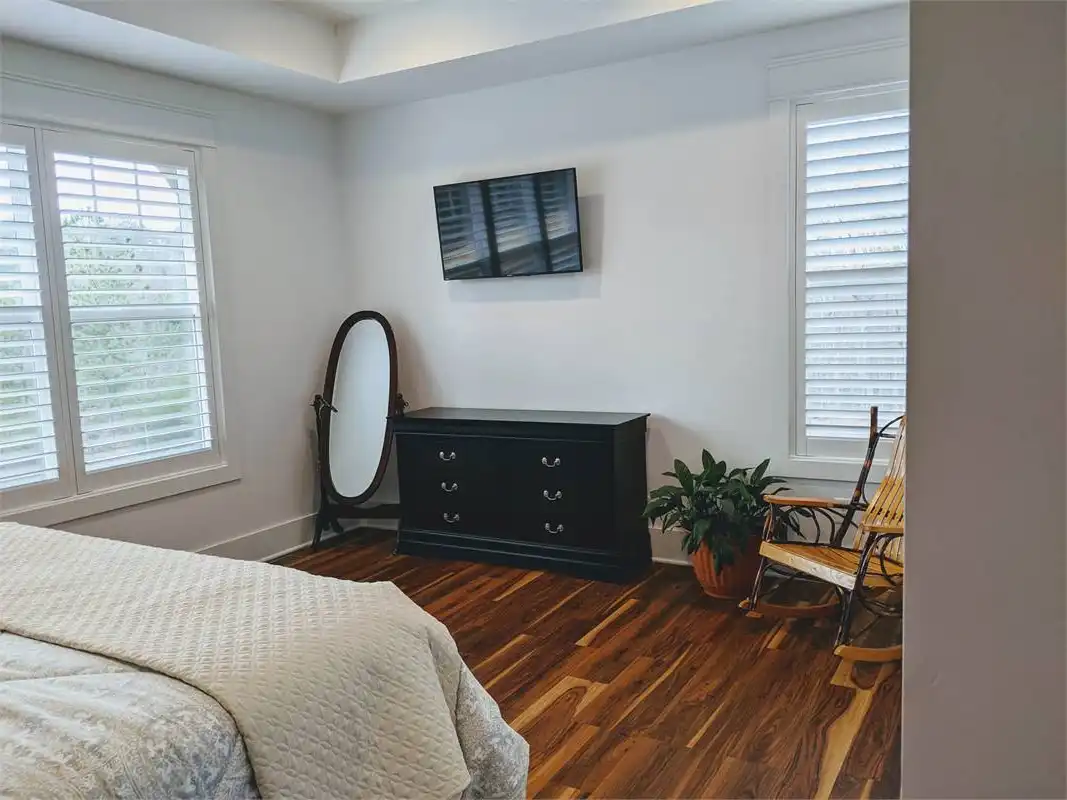

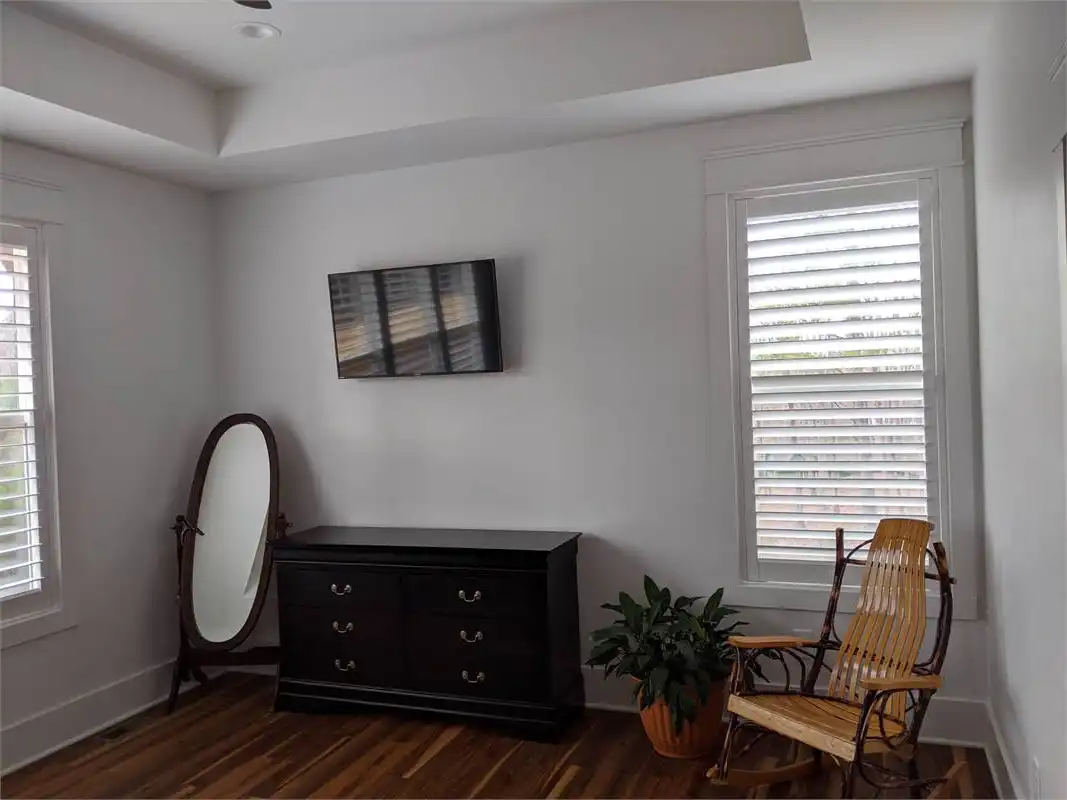

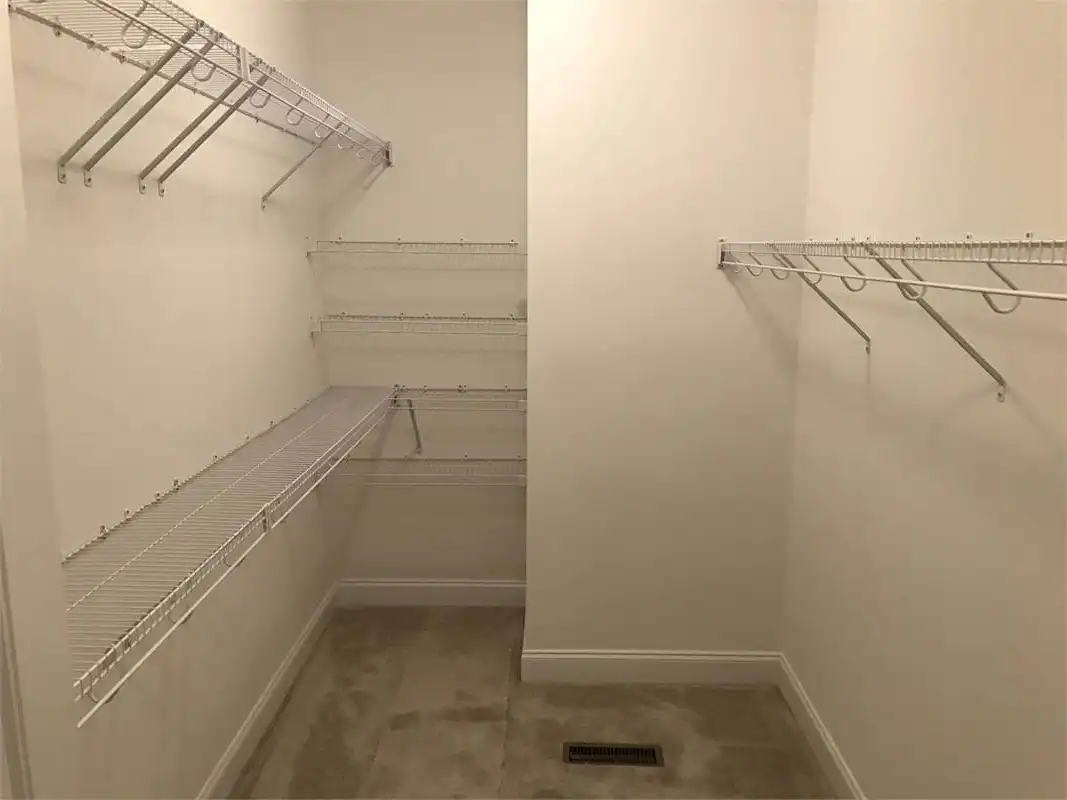

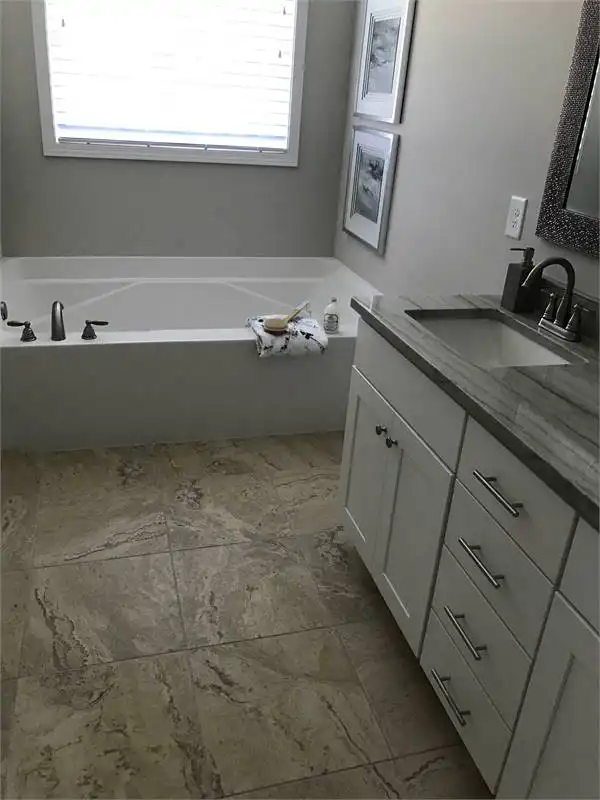

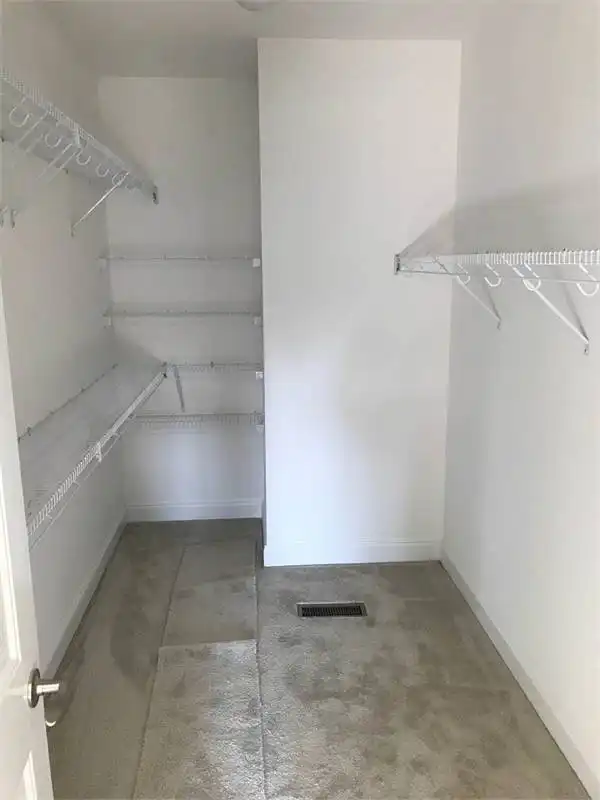

The master suite has lots of natural light and his and hers walk-in closets. The master bath includes dual vanities, large shower with a seat and garden tub.

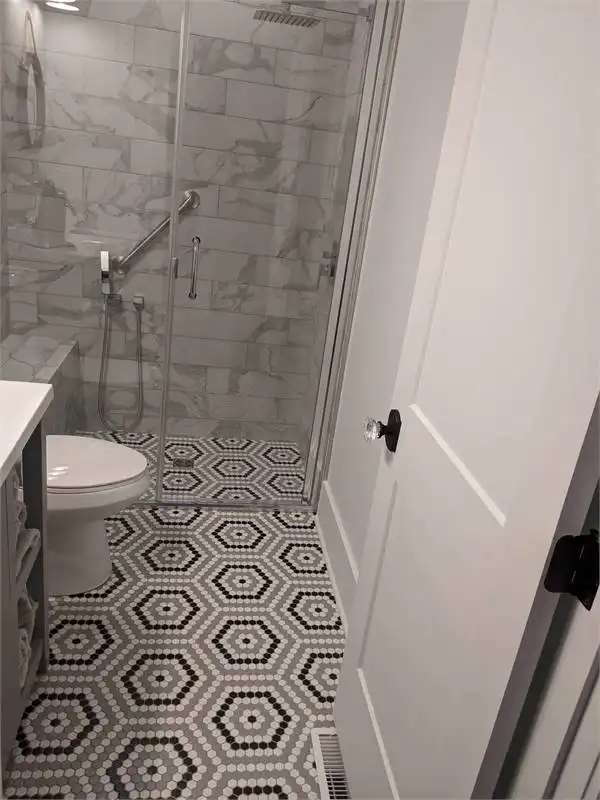

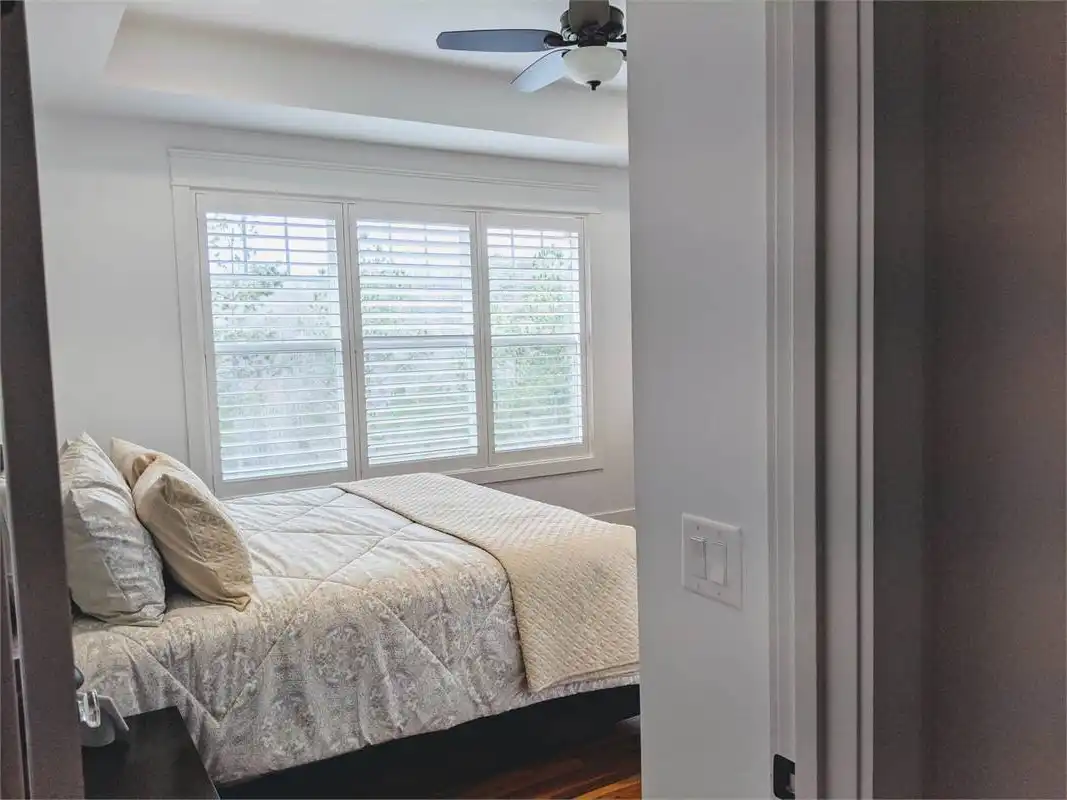

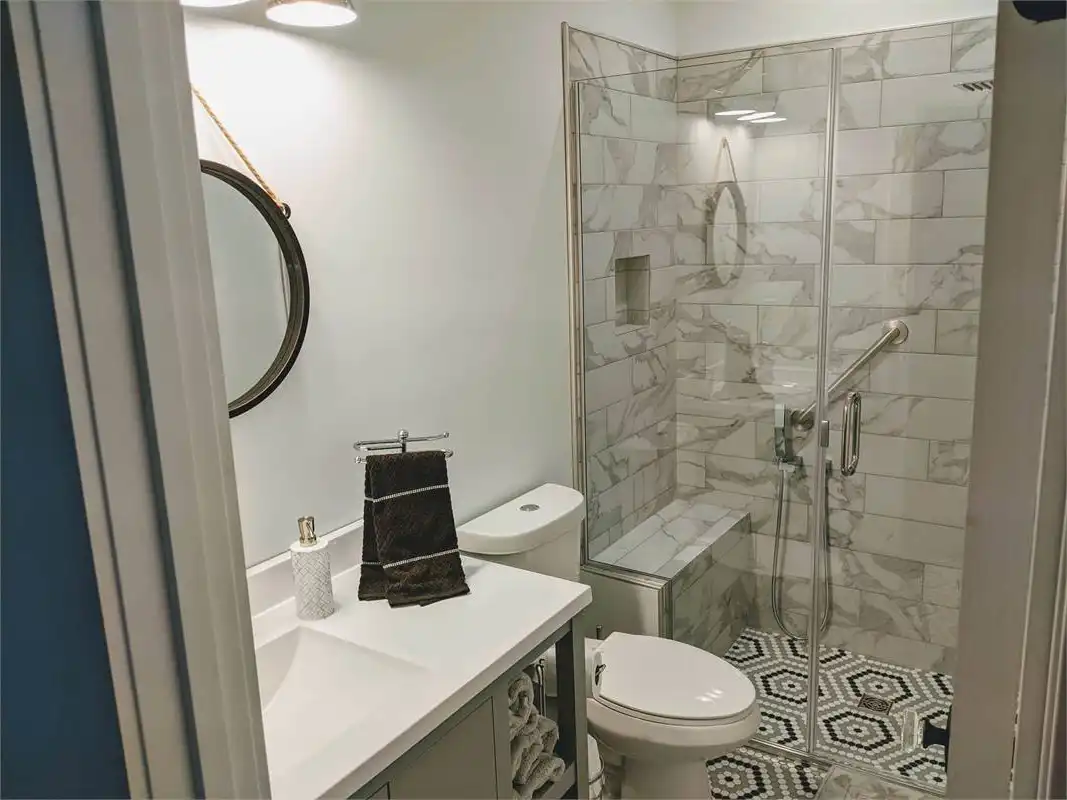

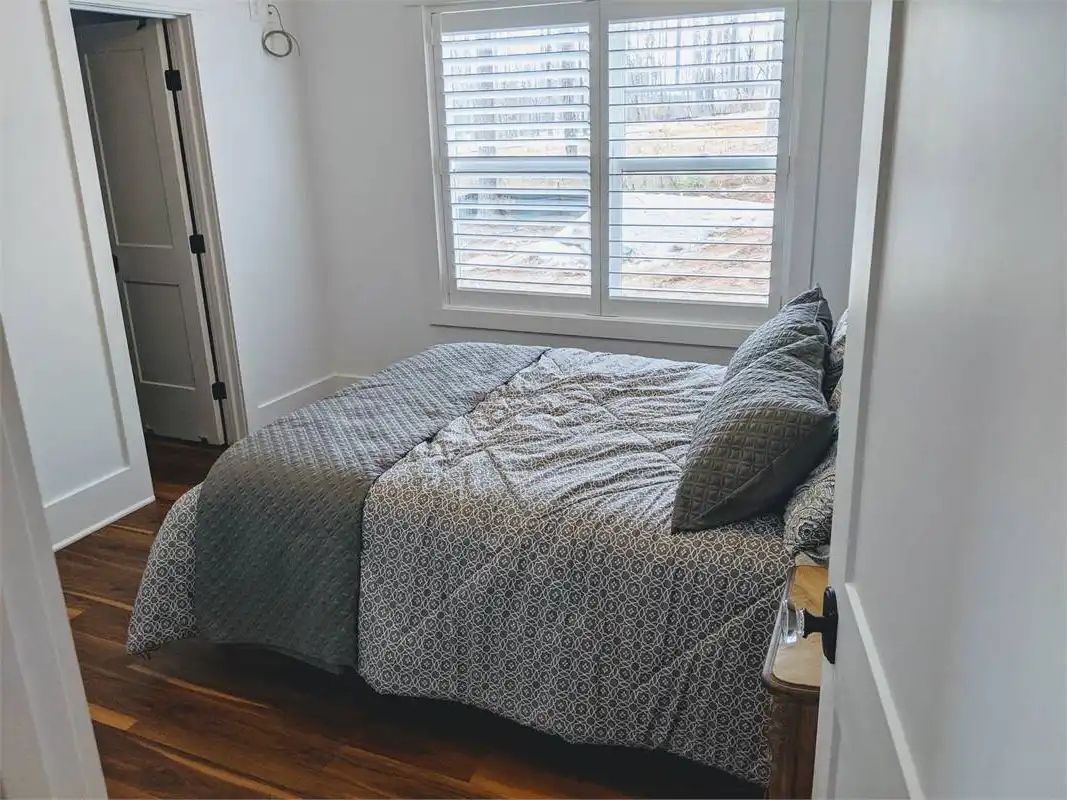

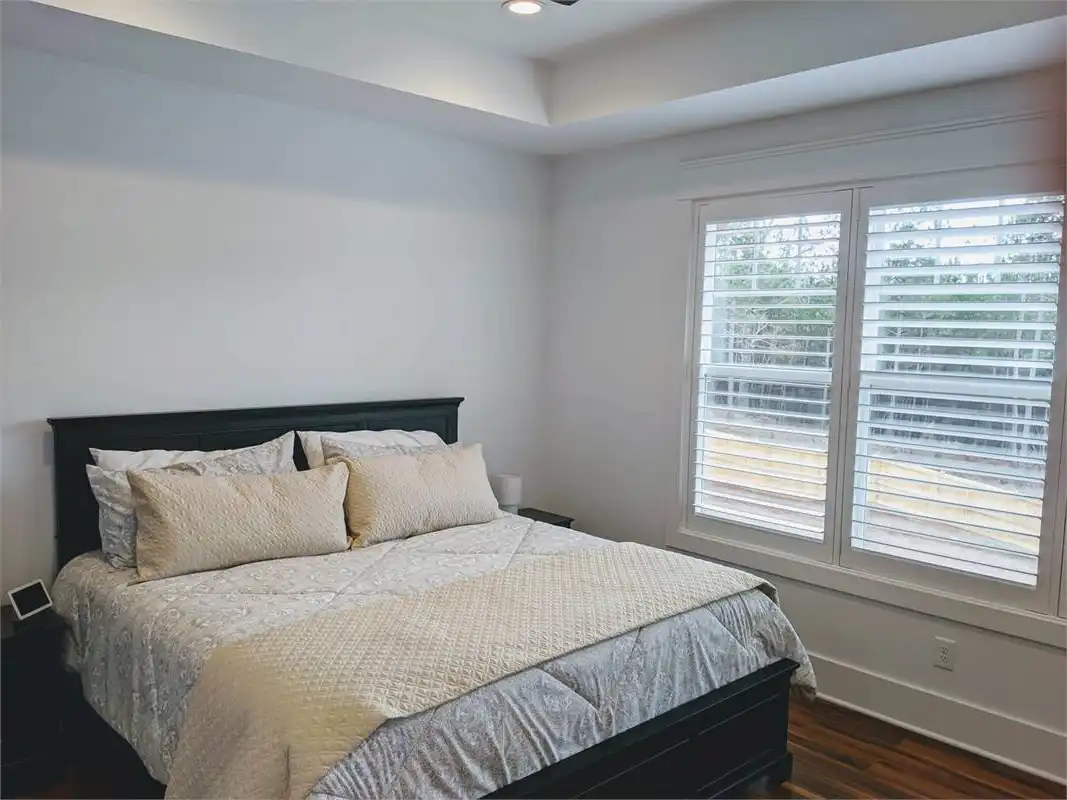

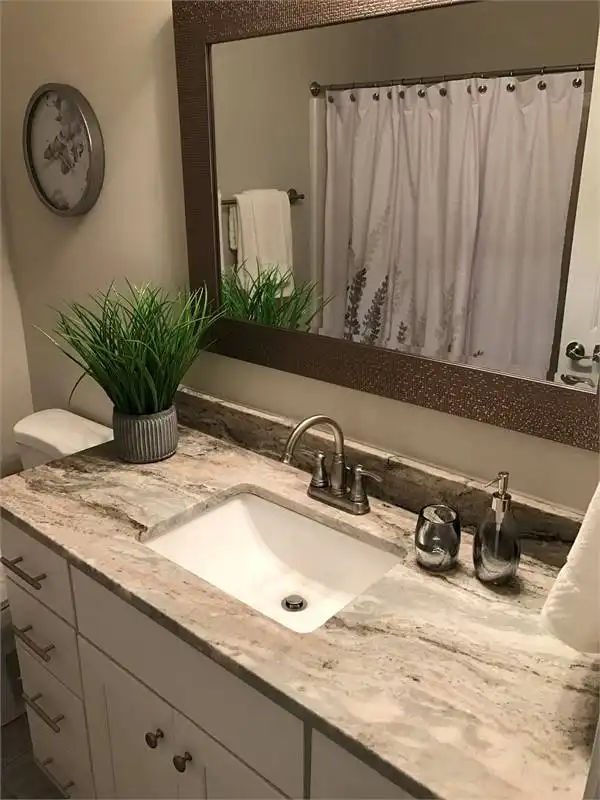

Secondary bedrooms each have walk-in closets and share a hall bath.

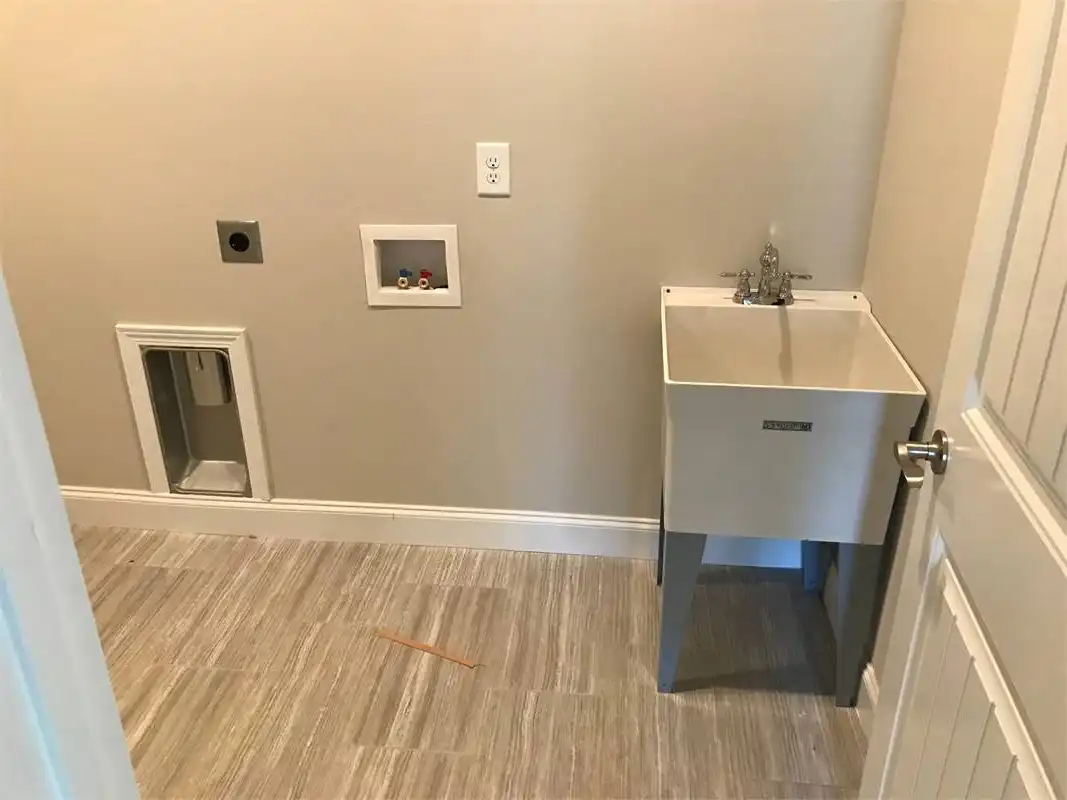

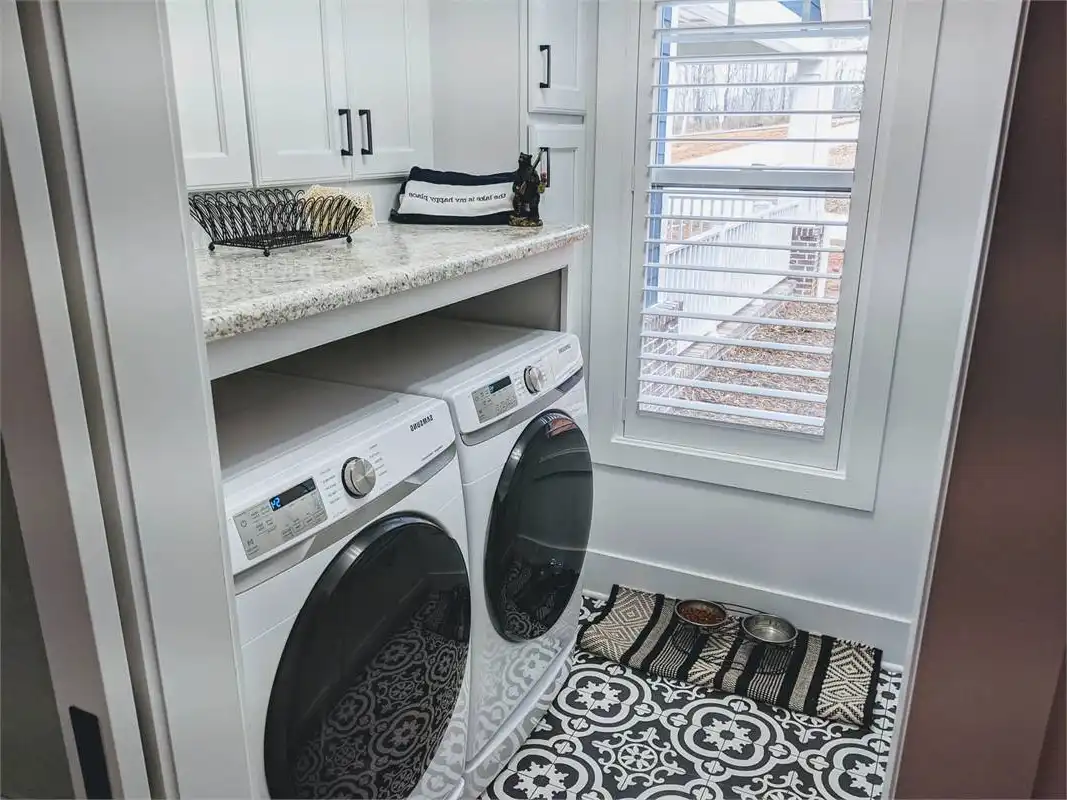

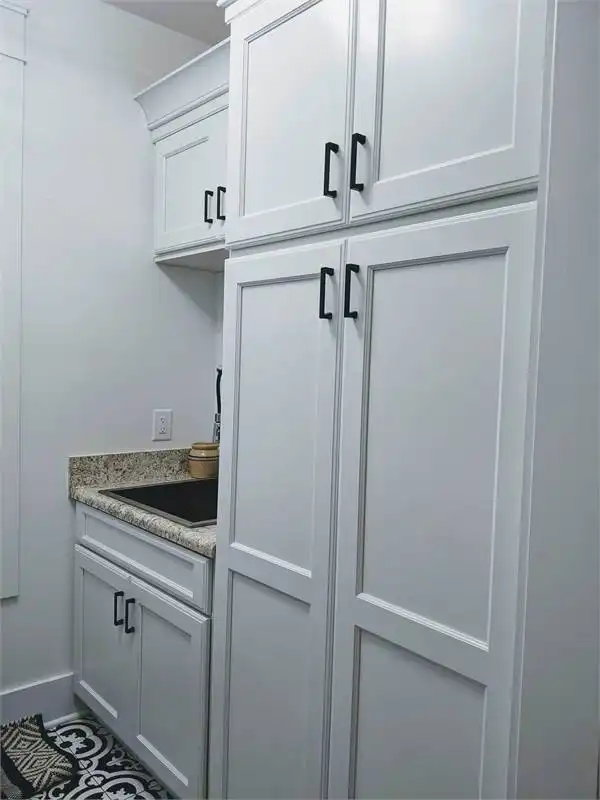

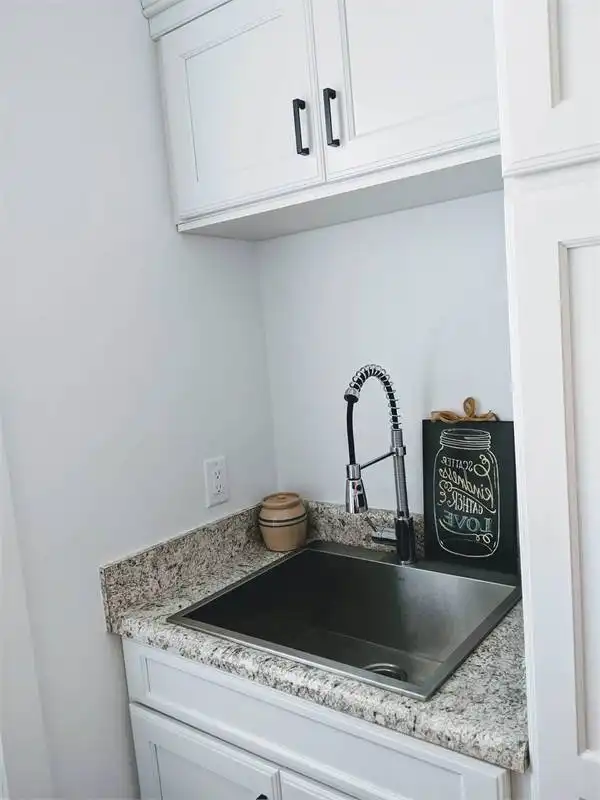

The utility room has room for washer, dryer and counter for folding or freezer space as needed.

A basement stair is adjacent to the utility or can be used for storage.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,095
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,245
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,345
Immediate Delivery!
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,895
2D electronic editable computer files

CAD Unlimited Build


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $2,290
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1095
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,879 Sq. Ft.
Main Level:
1,879 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
78' 11"
Width:
57' 11"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
573 Sq. Ft.
Garage:
58 Sq. Ft.
Storage:
644 Sq. Ft.
Porch:
379 Sq. Ft.
Front Porch:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Cottage
Craftsman
Farmhouse
Modern Farmhouse
Collections
Builders
Empty Nester
First Home
Kitchens
North Carolina
Old House Classics
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
Basement
Crawl Space
Slab
Walk-out Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
3:12
Dormer:
Roof Load
20
Live:
15
Dead:
20
Wind:
Insulation (R)
15
Exterior Wall:
15
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
9-11
First Floor Ceiling:
24' 11"
Maximum House Height:
Key Features
Attached
Basement
Covered Front Porch
Covered Rear Porch
Crawlspace
Double Vanity Sink
Family Room
Family Style
Fireplace
Foyer
Front-entry
His and Hers Master Closets
Home Office
Kitchen Island
Laundry 1st Fl
L-Shaped
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Separate Tub and Shower
Slab
Storage Space
Suited for corner lot
Suited for sloping lot
Suited for view lot
Unfinished Space
Walk-in Pantry
Walkout Basement
Wraparound Porch
