House Plan: DFD-5634

See All 13 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
864
BEDS
2
BATHS
1
STORIES
1
CARS
0
HOUSE PLANS SALE
START AT  $715.50
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5634:

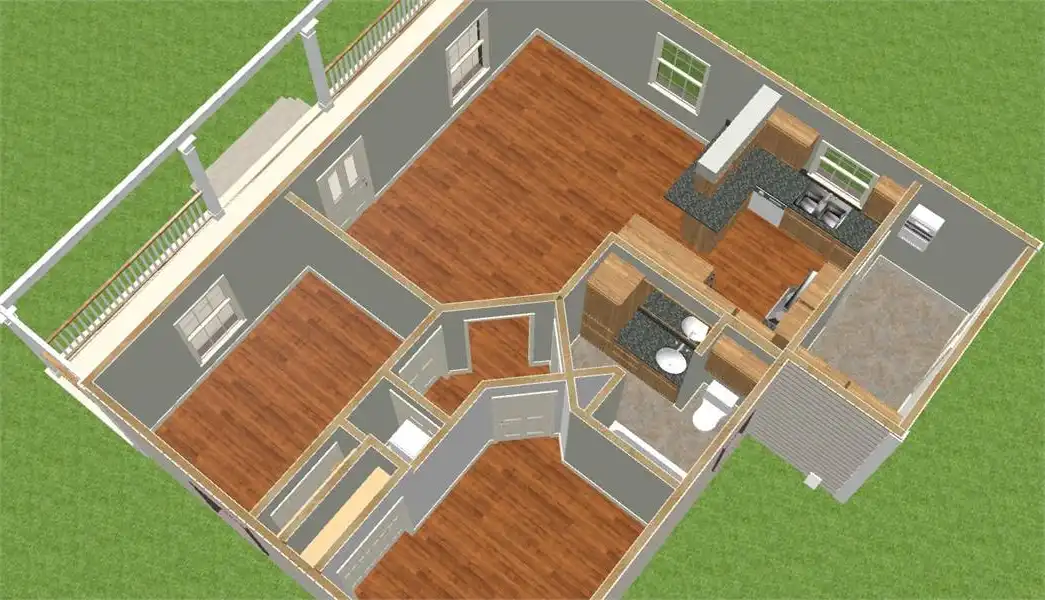

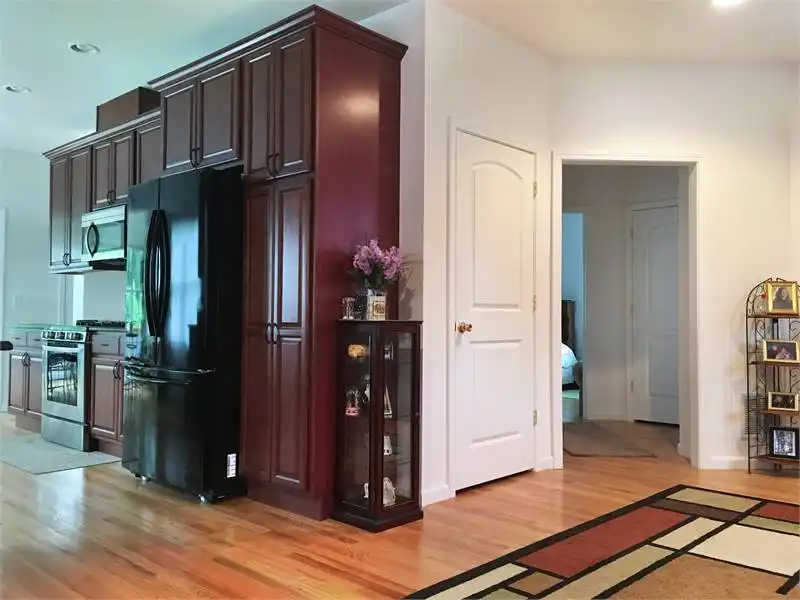

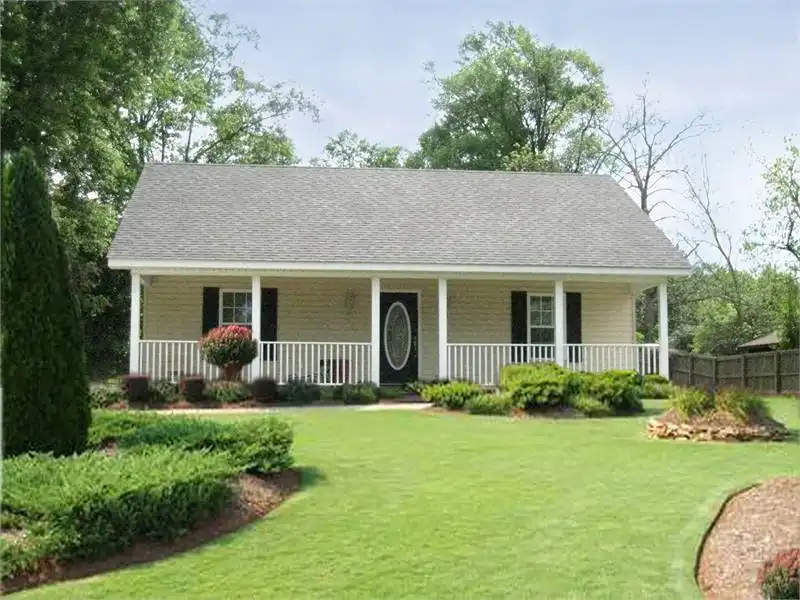

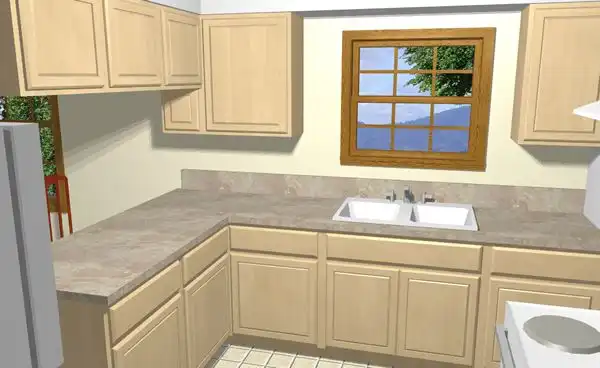

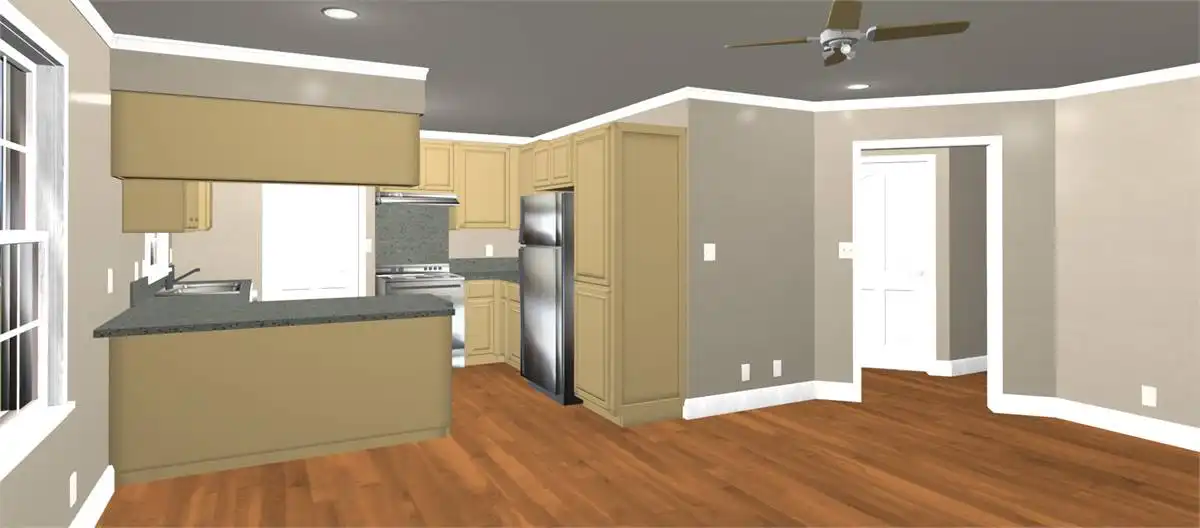

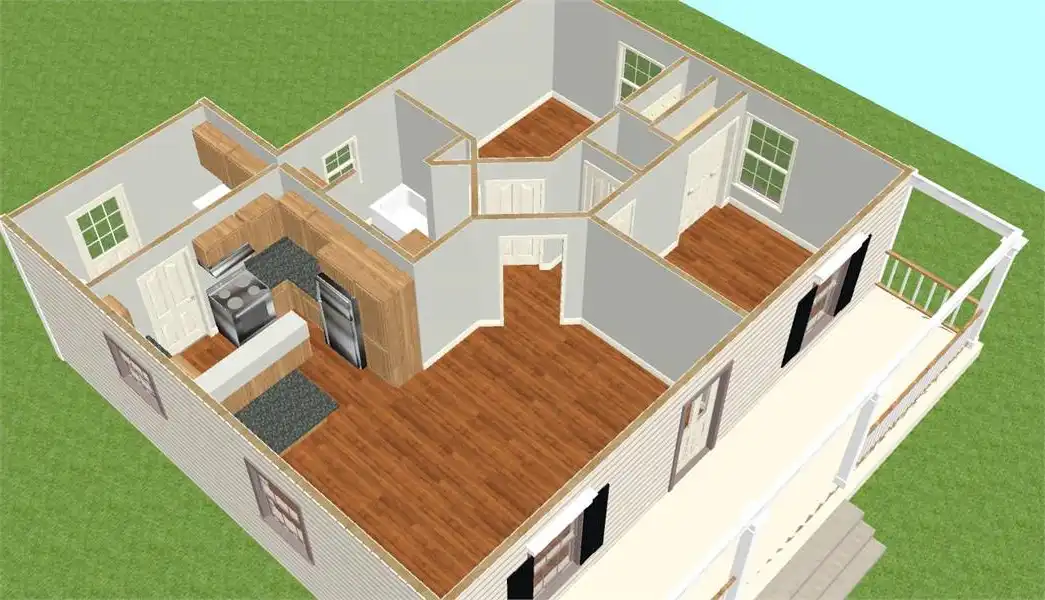

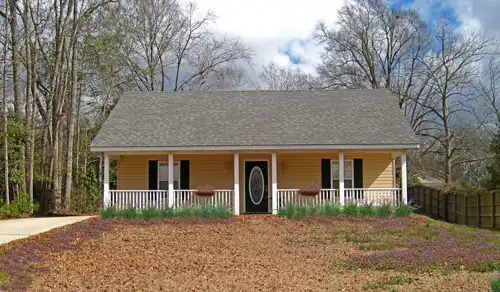

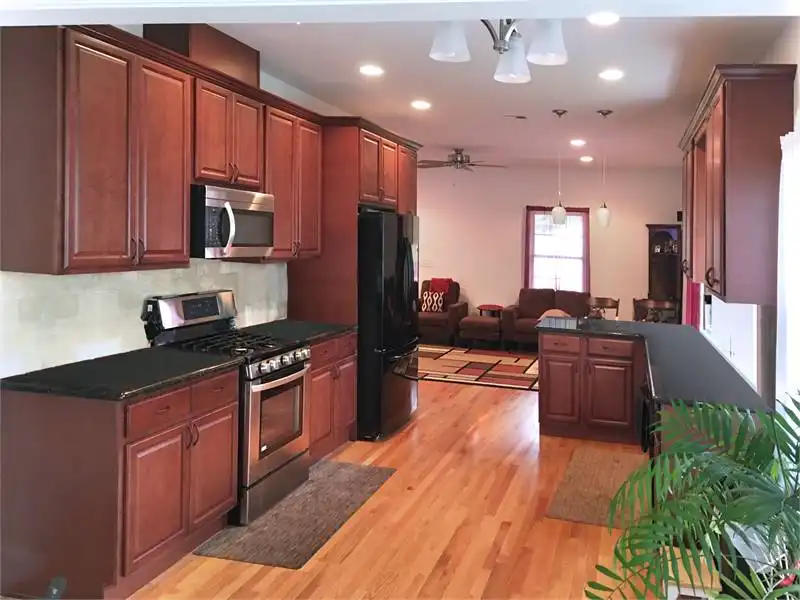

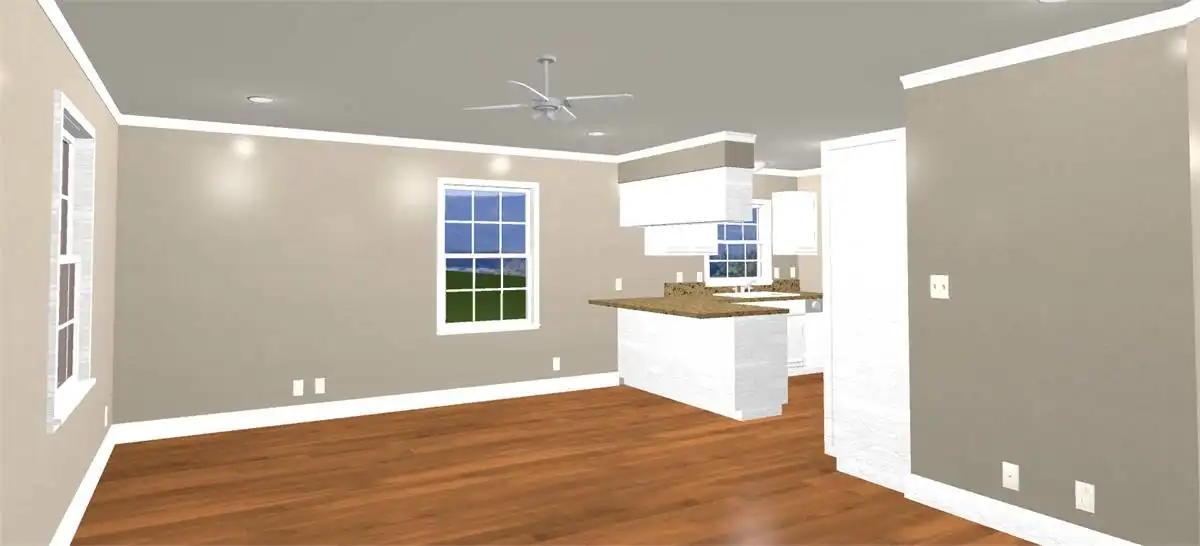

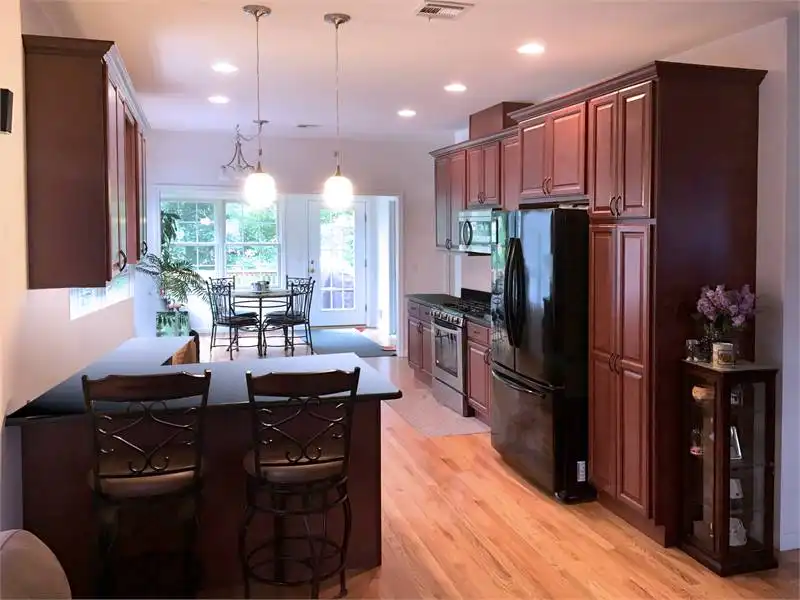

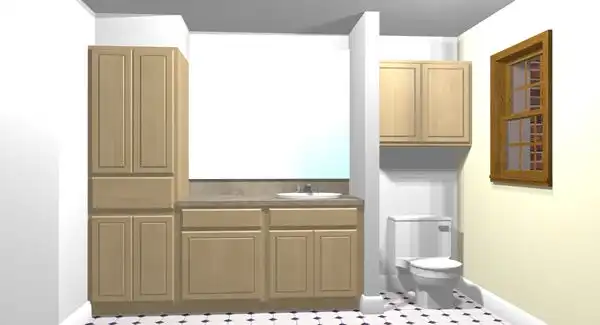

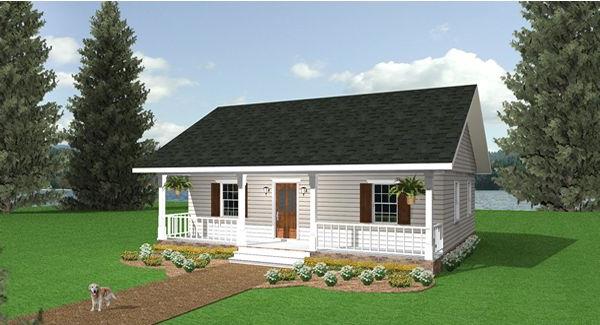

This rustic cottage with generous sized front porch is perfect for a mountain getaway, small family or a retired couple. The great room and large living/dining area shares a snack bar with the kitchen. There's no shortage of storage with ample cabinets and pantry. Bedrooms 1 and 2 conveniently share a large bath.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $795
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $860
Five printed sets of house plans
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$795
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
864 Sq. Ft.
Main Level:
864 Sq. Ft.
Total:
Room Details
2
Bedrooms:
1
Full Baths:
General House Information
1
Number of Stories:
33' 0"
Width:
36' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
198 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
Exterior Style
Cottage
Country
Lake
Collections
Affordable
Architects Choice
Cabin
Empty Nester
Mountain
Old House Classics
Open Floor Plan
Vacation
Foundation
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7
Primary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
20' 0"
Maximum House Height:
Key Features
Combination Kitchen / Family Room
Covered Front Porch
Covered Porch
Crawlspace
Front Porch
Great Room
None
Open Floor Plan
Peninsula / Eating Bar
Raised Snack Bar
Slab
Suited for corner lot
Suited for narrow lot
Walk-in Closet
