House Plan: DFD-5772

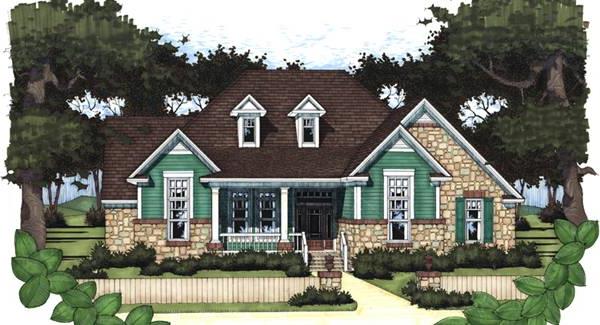

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,715
BEDS
3
BATHS
2
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $760.75
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 5772
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $895
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,045
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,145
Immediate Delivery!
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,695
2D electronic editable computer files

CAD Unlimited Build


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $2,090
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$895
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,715 Sq. Ft.
Main Level:
1,715 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
58' 0"
Width:
59' 6"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
631 Sq. Ft.
Garage:
147 Sq. Ft.
Porch:
164 Sq. Ft.
Deck:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Country
Farmhouse
Traditional
Collections
Affordable
Empty Nester
First Home
Kitchens
Master Suites
North Carolina
Old House Classics
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
Basement
Crawl Space
Slab
Walk-out Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
Roof Load
20
Live:
15
Dead:
20
Wind:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
28' 11"
Maximum House Height:
Key Features
12' Ceilings in Living/Dining/Foyer
Attached
Basement
Crawlspace
Double WIC's in Master Bath
Large Front Sitting Porch
Rear Porch
See-Thru Fireplace
Slab
Walk-in Pantry
Walkout Basement
Wide Open Living Spaces
