House Plan: DFD-5824

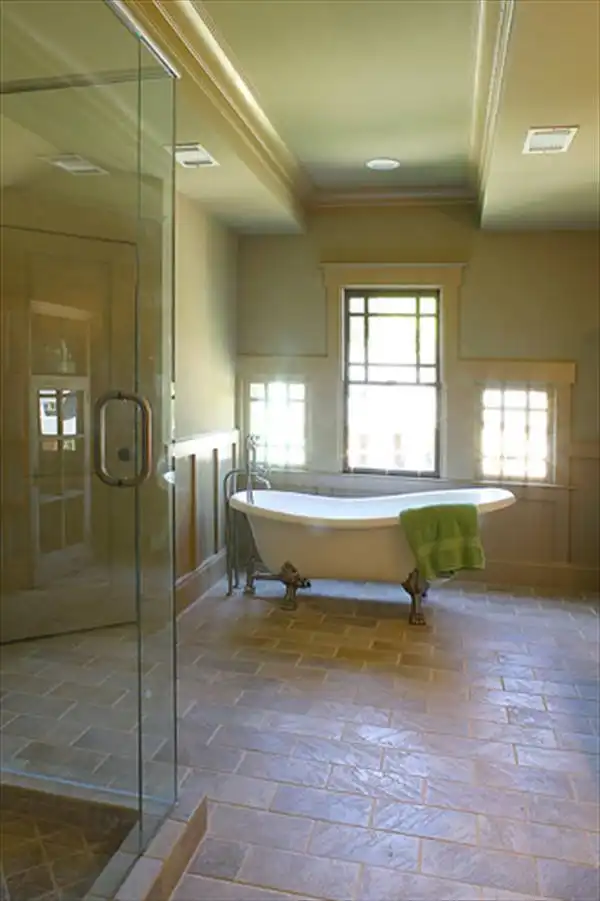

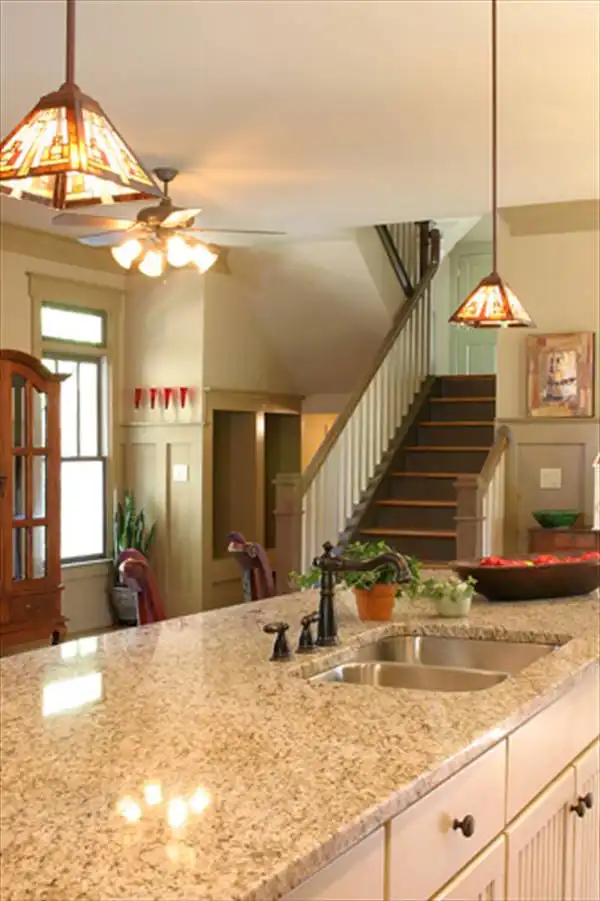

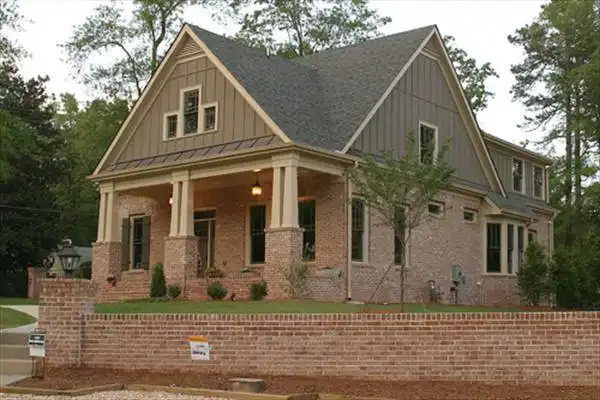

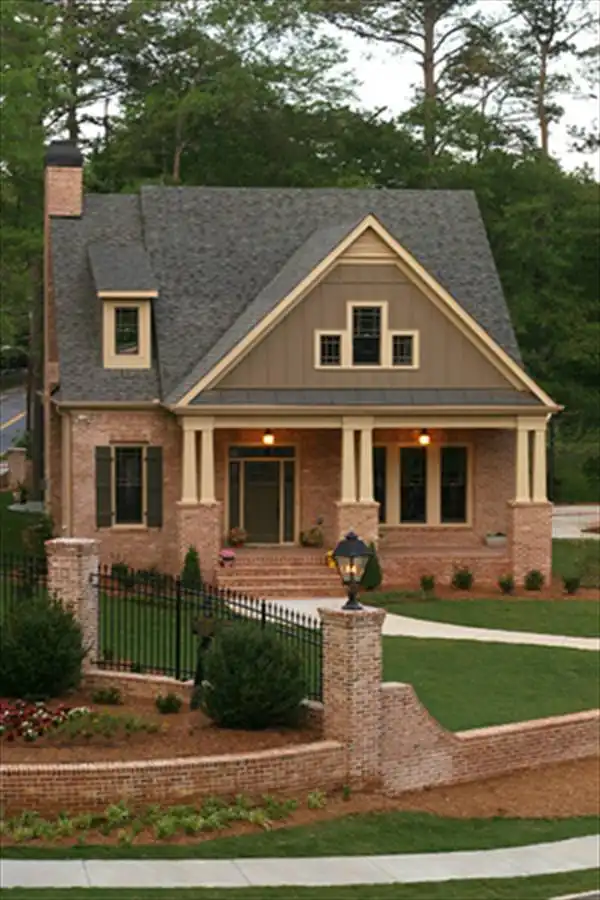

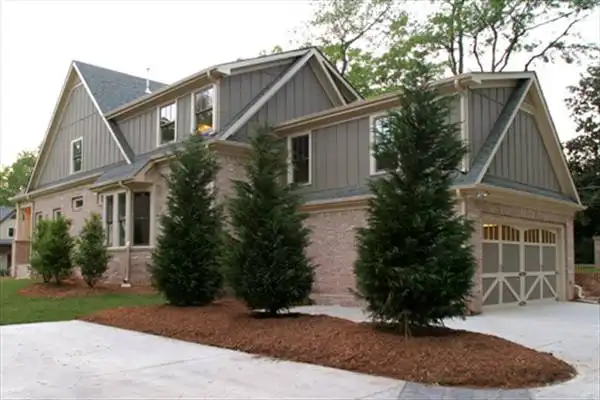

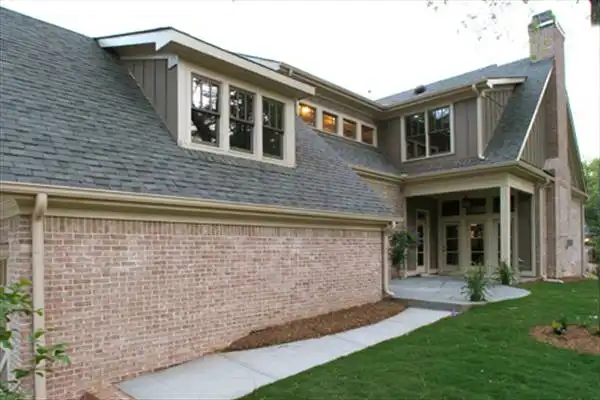

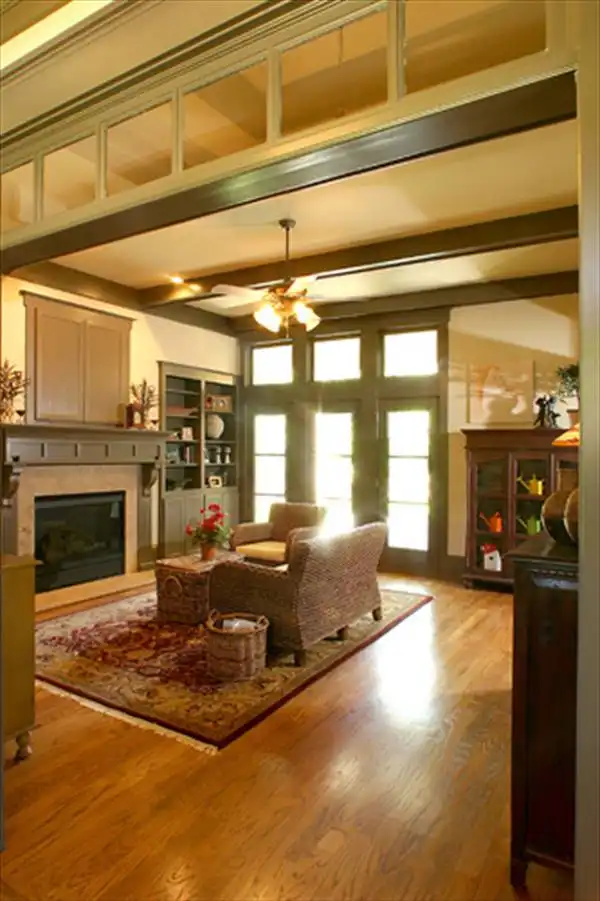

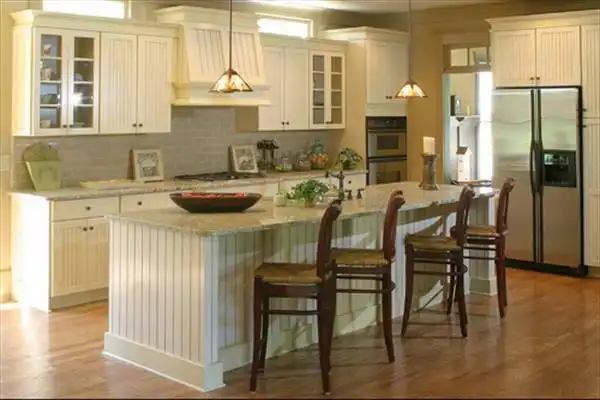

See All 9 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,223
BEDS
4
BATHS
3.5
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,126.25
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 5824
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $850
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,325
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,450
Five printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1325
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,388 Sq. Ft.
Main Level:
1,835 Sq. Ft.
Upper Level:
3,223 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
37' 6"
Width:
78' 5"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
484 Sq. Ft.
Garage:
208 Sq. Ft.
Porch:
144 Sq. Ft.
Patio:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
Bungalow
Craftsman
Collections
Kitchens
Luxury
Master Suites
Old House Classics
Open Floor Plan
Outdoor Living
PDFs Fast!
Foundation
WALK OUT BASEMENT
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
3/12
Secondary:
12/12
Gable:
3/12
Dormer:
12/12
Porch:
Roof Load
20
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
19
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
29' 6"
Maximum House Height:
Key Features
Attached
Basement
Bonus Room
Covered Front Porch
Crawlspace
Dining Room
Double Vanity Sink
Exercise Room
Family Room
Fireplace
Formal LR
Front Porch
Great Room
Guest Suite
Home Office
In-law Suite
Kitchen Island
Laundry 1st Fl
Master Bdrm Upstairs
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rear-entry
Screened Porch/Sunroom
Separate Tub and Shower
Sitting Area
Split Bedrooms
Suited for narrow lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
