House Plan: DFD-5842

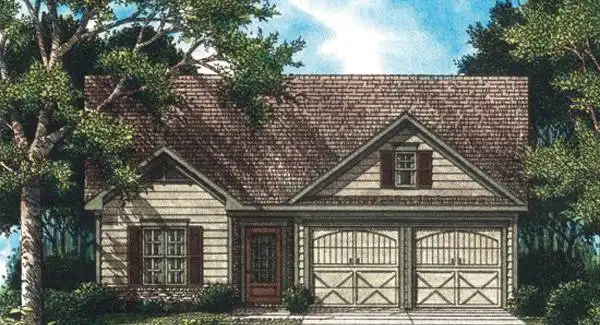

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,365
BEDS
3
BATHS
2
STORIES
1
CARS
2
PLANS FROM $950
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5842:
This simple country cottage opens to a dramatic vaulted ceiling in the main part of the house. Only a plant shelf over 8' columns separates the dining area from the living space creating a sense of separation without closing the space down. Vaulted ceilings in the master suite help make this a special space in this split bedroom design.

House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $600
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $950
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,000
Five printed sets of house plans
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$950
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,365 Sq. Ft.
Main Level:
1,365 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
37' 0"
Width:
53' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
407 Sq. Ft.
Garage:
108 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Bungalow
Cottage
Craftsman
Collections
Affordable
Empty Nester
First Home
Open Floor Plan
PDFs Fast!
Split Bedroom
Foundation
Basement Alternate
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
Roof Load
20
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
8
First Floor Ceiling:
19' 10"
Maximum House Height:
Key Features
Arches
Attached
Basement
Covered Front Porch
Double Vanity Sink
Fireplace
Foyer
Front-entry
Great Room
Laundry 1st Fl
Primary Bdrm Main Floor
Open Floor Plan
Rear Porch
Screened Porch/Sunroom
Separate Tub and Shower
Slab
Split Bedrooms
Suited for narrow lot
Vaulted Ceilings
Walk-in Closet
