House Plan: DFD-7770

See All 28 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,652
BEDS
4
BATHS
3.5
STORIES
2
CARS
2
PLANS FROM $1,800
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 7770:

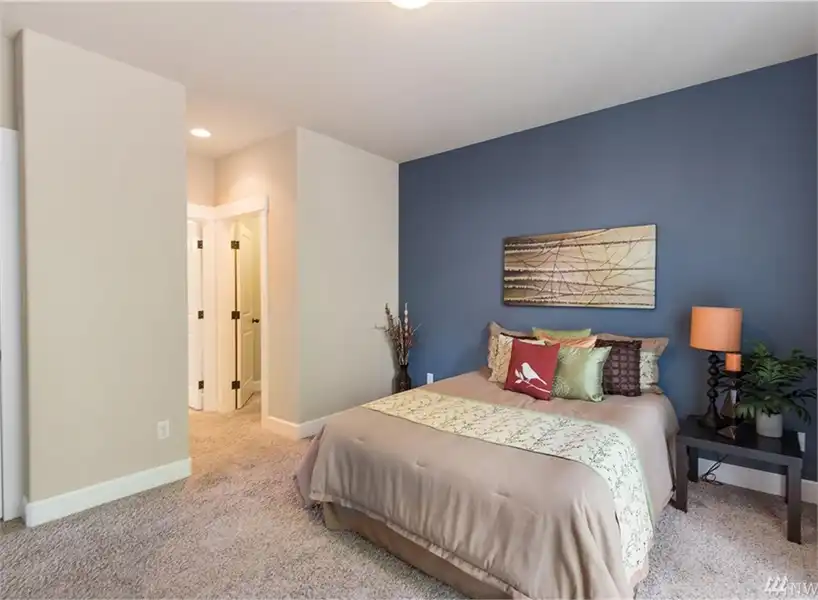

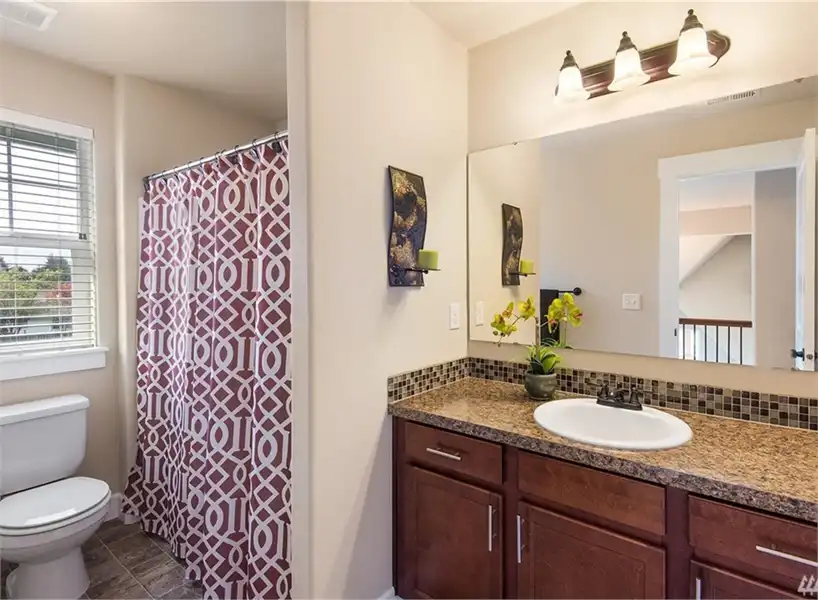

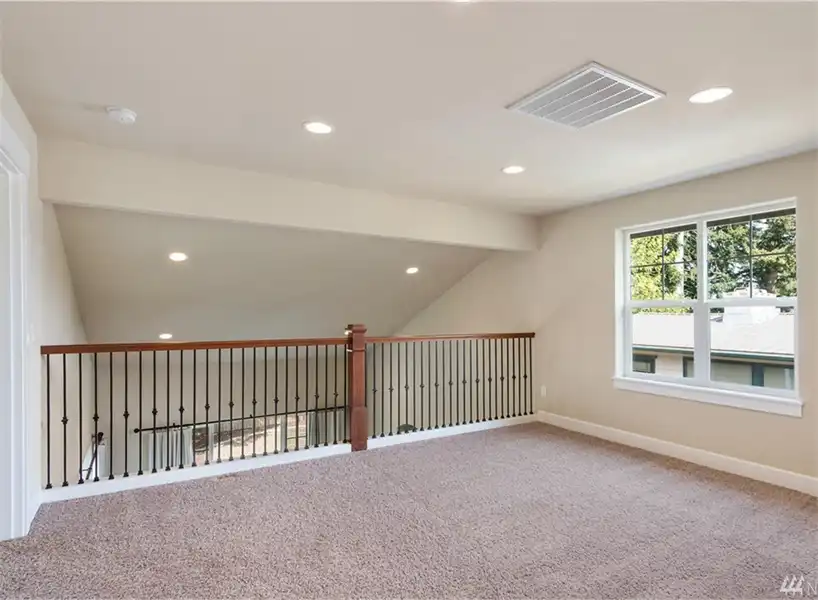

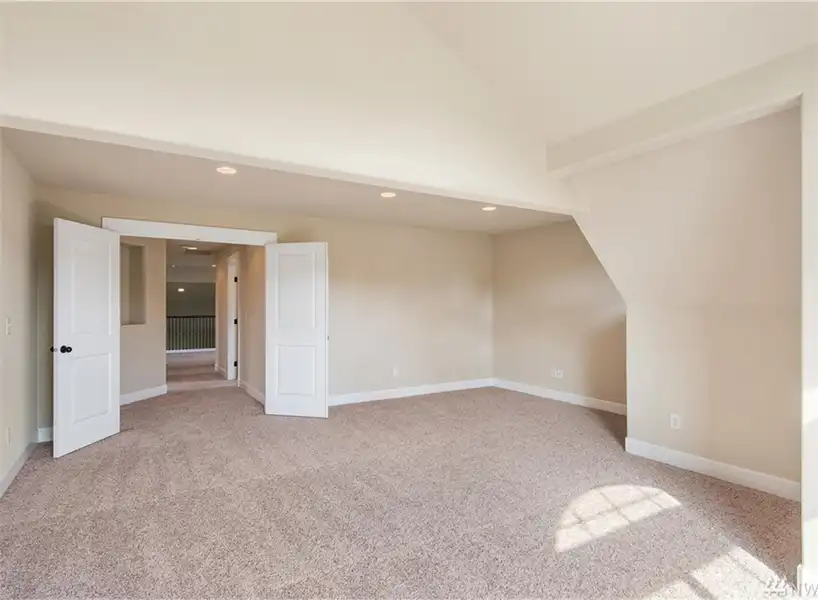

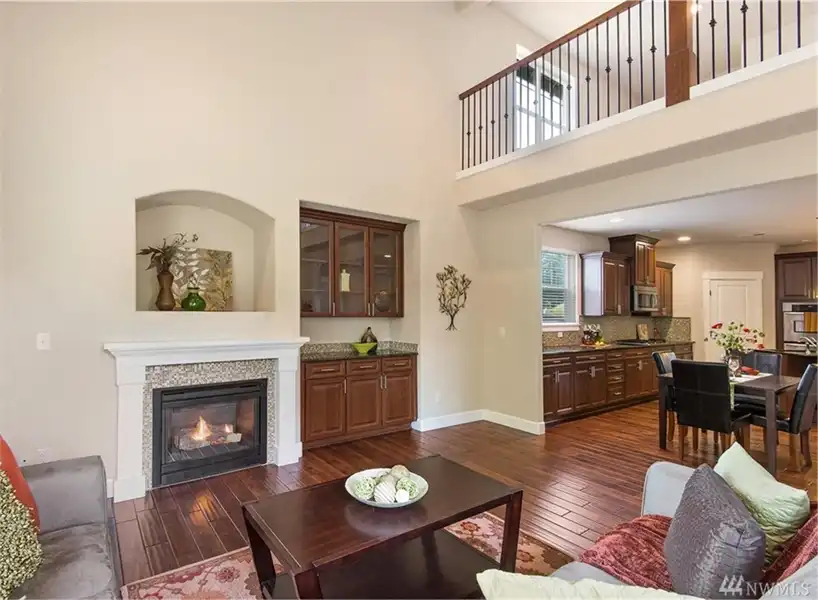

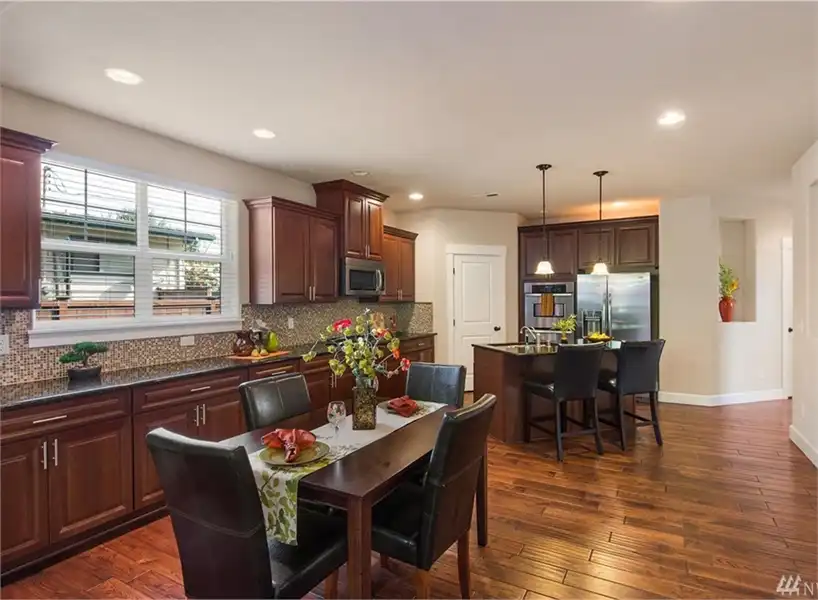

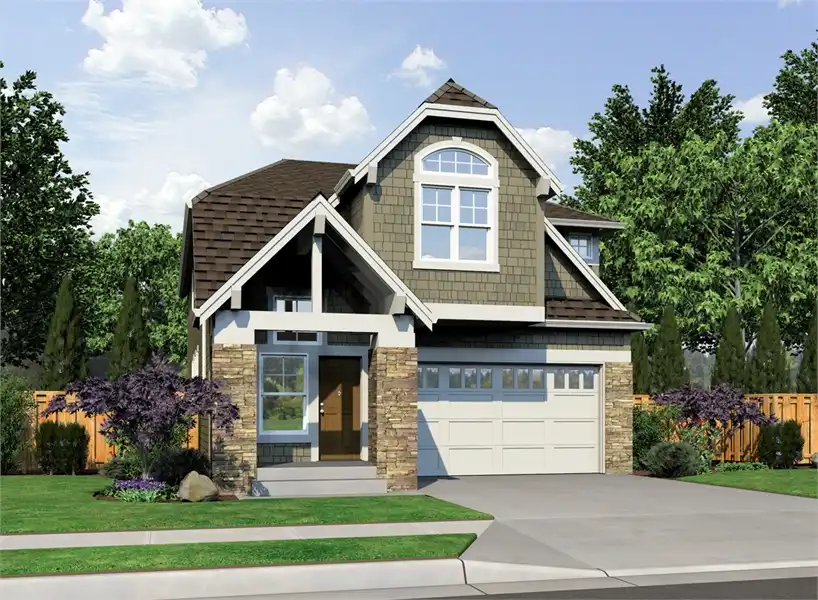

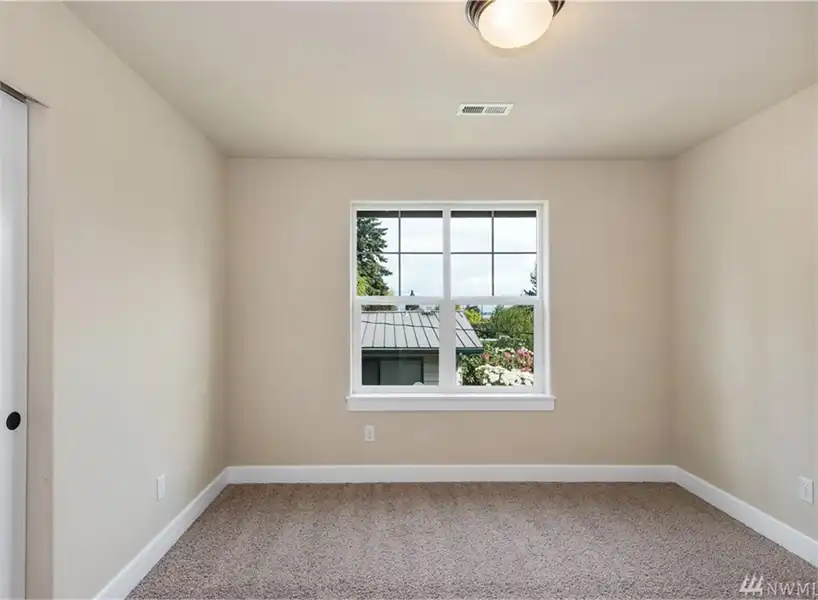

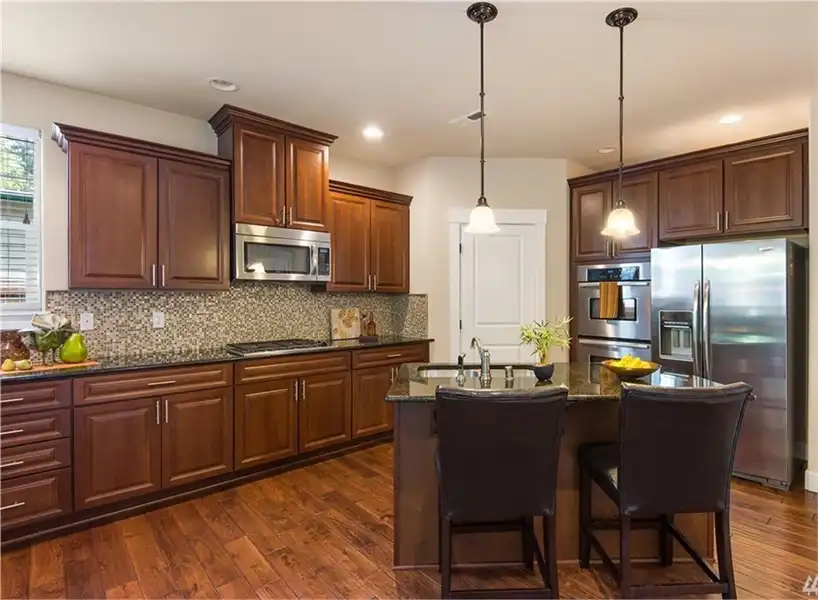

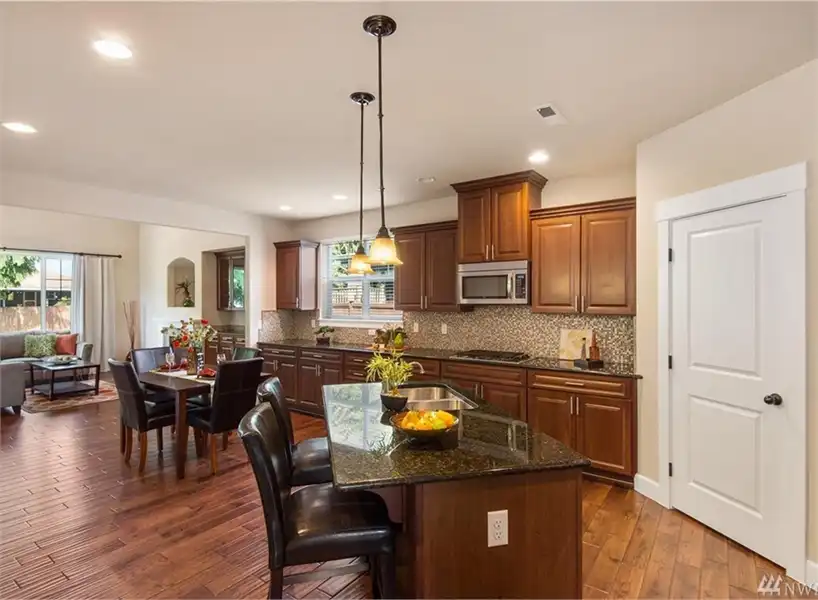

Welcome to this beautiful, 4 Bedroom Craftsman home.  This home is packed full of convenience and comfort.  Reminiscent of a fairytale cottage, you'll love this spacious layout which offers you 2,652 square feet. This plan is perfect for a narrow or limited lot, thanks to its reduced footprint. Inside, the main floor is home to the open family room as well as the dining room and island kitchen. The master is also conveniently on the first floor, along with its ensuite and large bath with dual his and hers closets. Upstairs is a great place for kids and guests alike, finding the additional bedrooms and bathrooms, along with an open-air loft and even a large bonus room that sits above the 2-car garage.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,800
Most recommended package

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,250
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1800
FREE SHIPPING
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

Plan Details
See All Details
Finished Square Footage
1,349 Sq. Ft.
Main Level:
1,303 Sq. Ft.
Upper Level:
2,652 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
32' 0"
Width:
70' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
387 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Cottage
Craftsman
Lake
Collections
Affordable
Budget
Builders
First Home
Kitchens
Primary Suites
Mountain
Foundation
Crawl Space
Framing Information
Combination
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
12
Primary:
5
Secondary:
Roof Load
25
Live:
15
Dead:
85
Wind:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
26' 6"
Maximum House Height:
Key Features
2 Story Volume
Attached

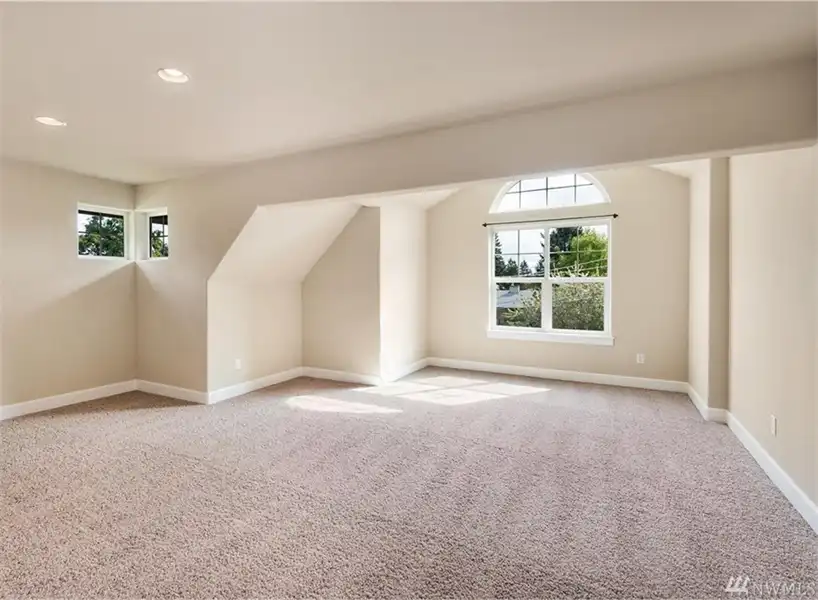

Bonus Room
Covered Front Porch
Crawlspace

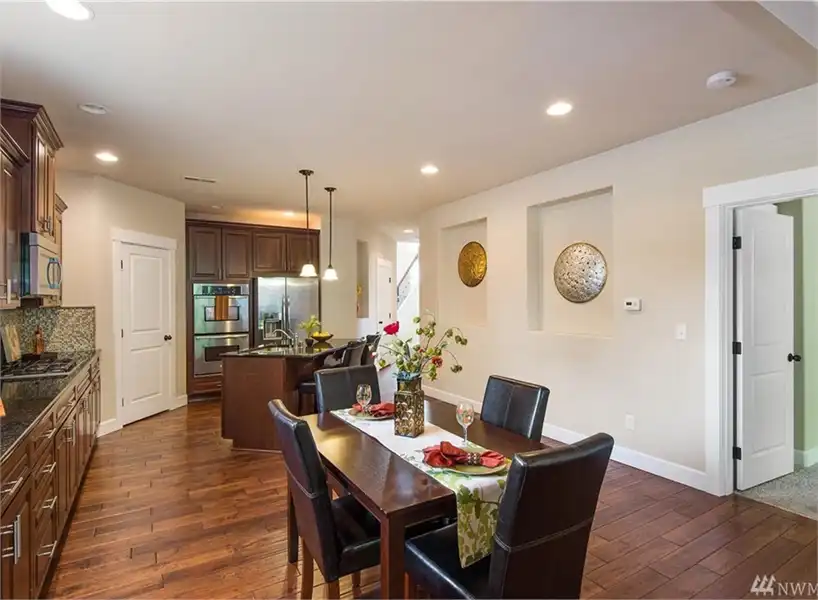

Dining Room

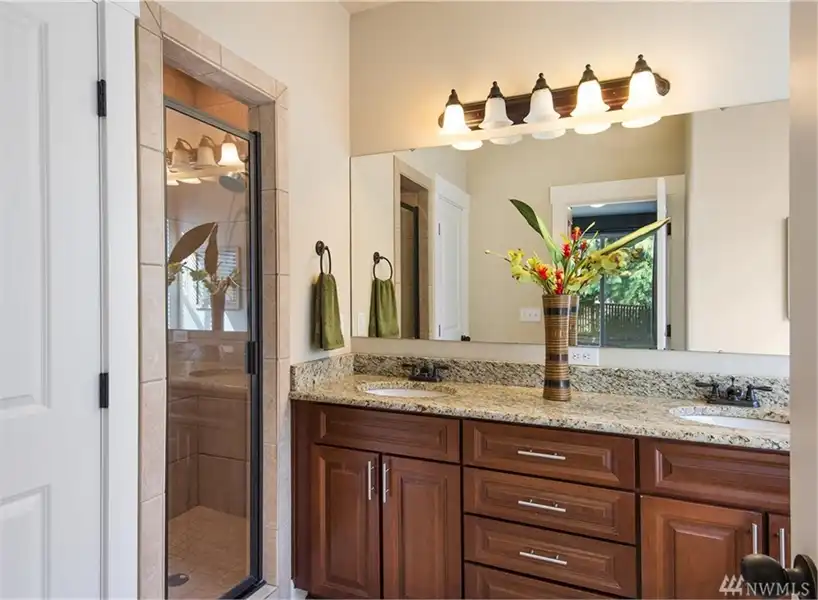

Double Vanity Sink
Fireplace
Foyer
Front-entry

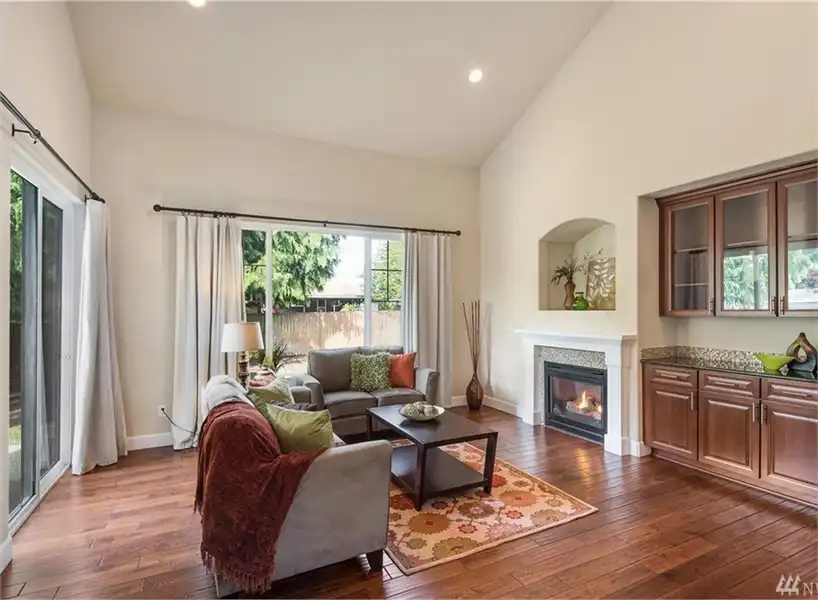

Great Room
Kitchen Island

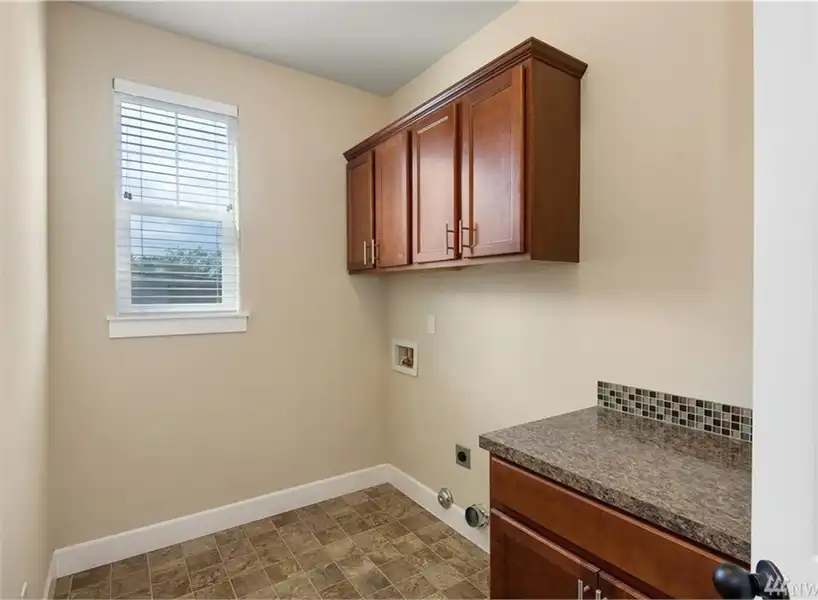

Laundry 1st Fl
Loft / Balcony
L-Shaped
Primary Bdrm Main Floor
Nook / Breakfast Area

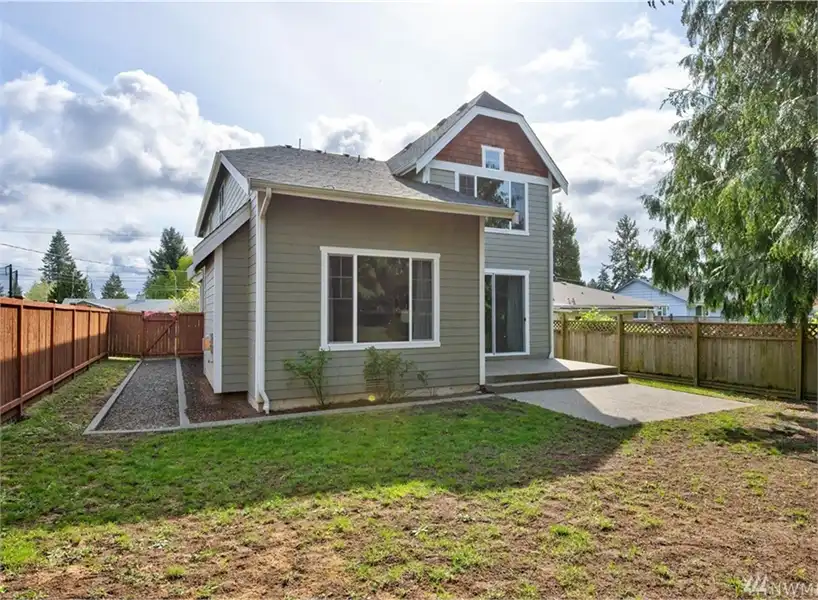

Rear Porch
Separate Tub and Shower
Suited for narrow lot
Walk-in Closet
