House Plan: DFD-8646

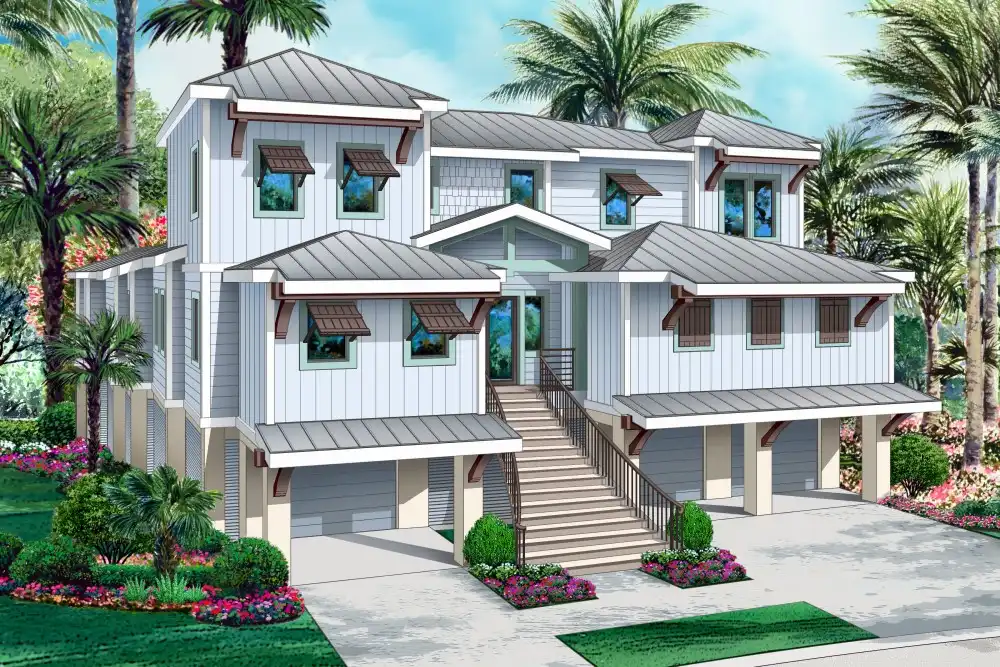

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
5,177
BEDS
5
BATHS
5.5
STORIES
3
CARS
3
HOUSE PLANS SALE
START AT  $2,057.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 8646
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,420
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,620
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,630
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2420
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,166 Sq. Ft.
Main Level:
3,398 Sq. Ft.
Upper Level:
1,779 Sq. Ft.
Third Level:
5,177 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
1
Half Baths:
General House Information
3
Number of Stories:
75' 0"
Width:
80' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Beach
Cape Cod
Lake
Modern
Collections
Luxury
Open Floor Plan
Outdoor Living
Foundation
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
4
Primary:
7
Secondary:
Insulation (R)
House And Ceiling Heights
9
First Floor Ceiling:
10
Second Floor Ceiling:
40' 0"
Maximum House Height:
Key Features
Attached
Carport
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Drive-under
Exercise Room
Family Room
Fireplace
Foyer
Front-entry
Guest Suite
Kitchen Island
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
L-Shaped
Master Bdrm Upstairs
Outdoor Living Space
Pantry
Peninsula / Eating Bar
Separate Tub and Shower
Sitting Area
Walk-in Closet
Walk-in Pantry
