House Plan: DFD-9086

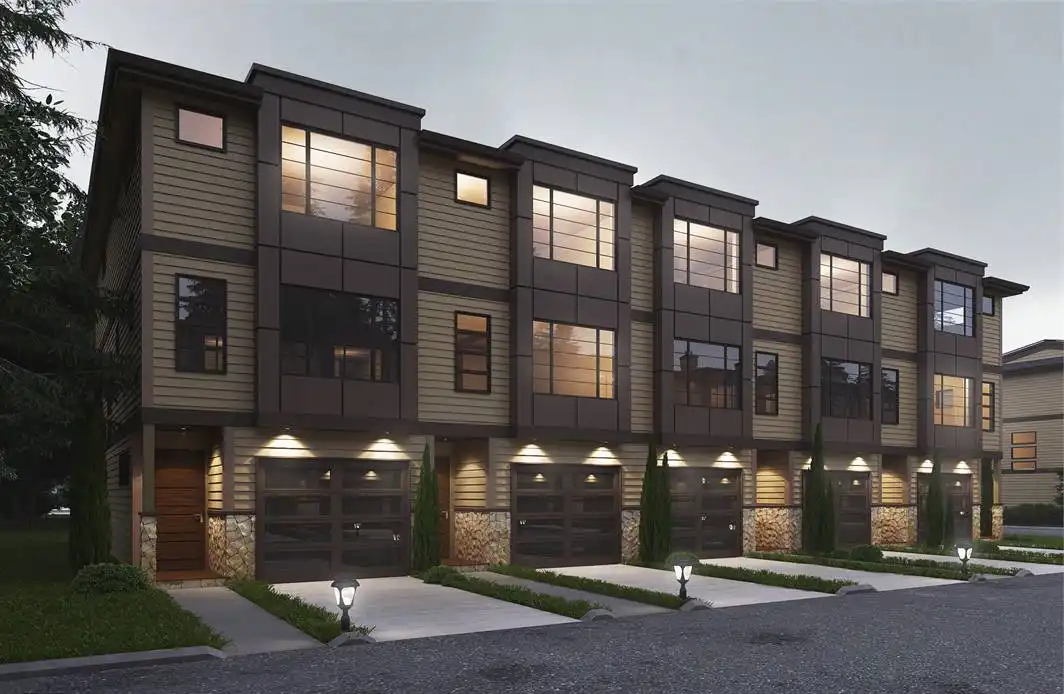

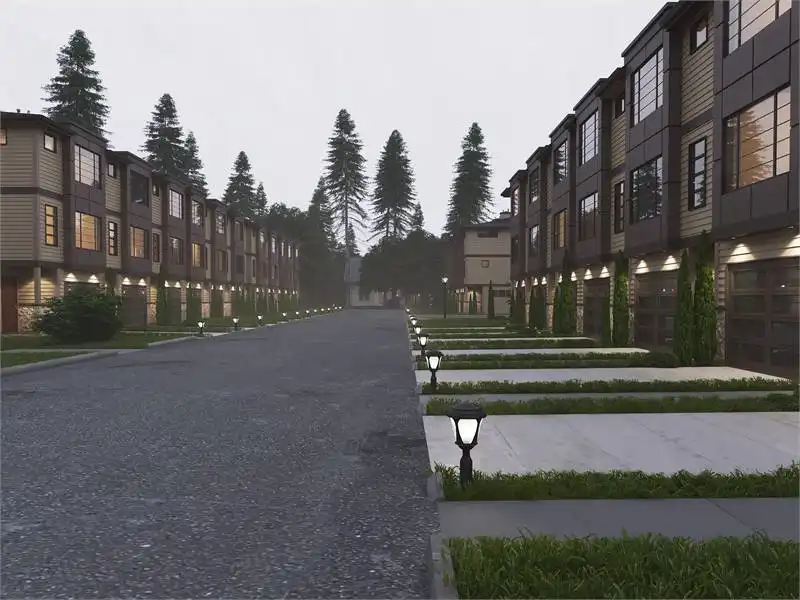

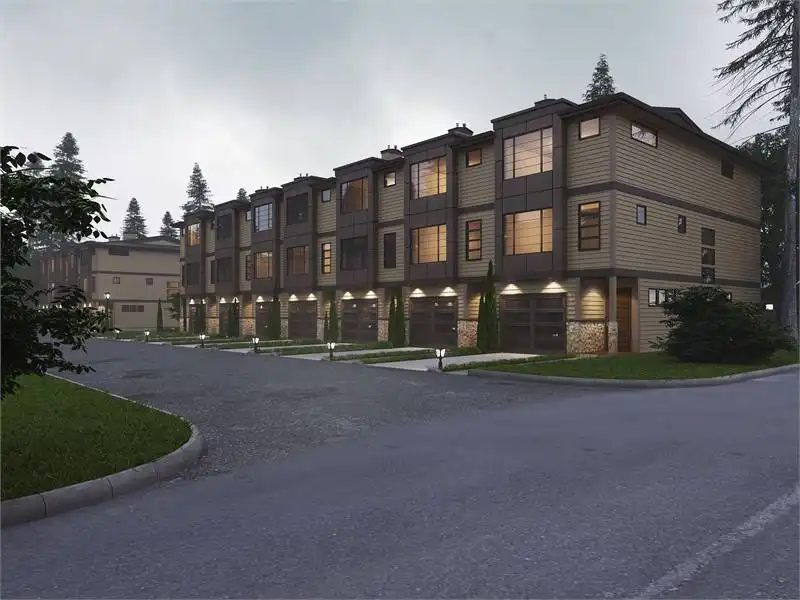

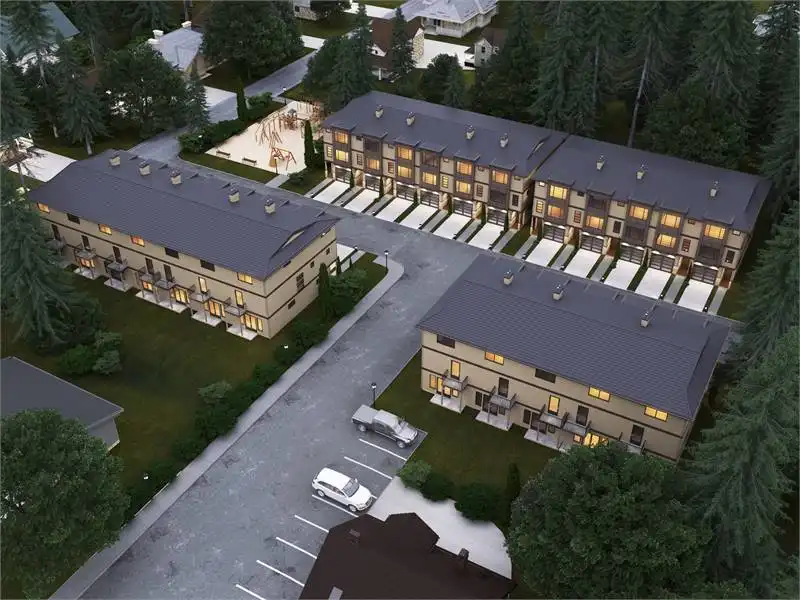

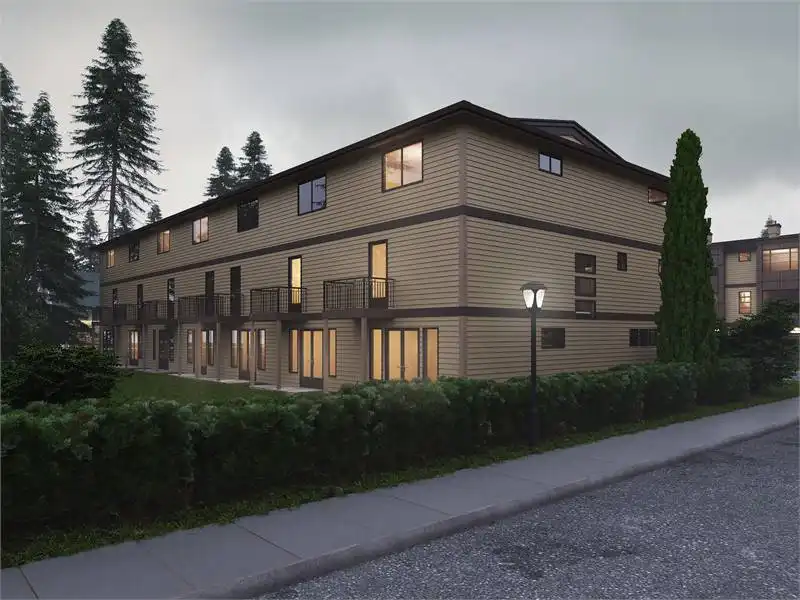

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,809
BEDS
2
BATHS
2.5
STORIES
2
CARS
1
HOUSE PLANS SALE
START AT  $3,075.30
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 9086
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $3,618
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $3,918
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $4,068
Eight printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $6,874
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$3618
FREE SHIPPING

Note: The default plan package includes 4 units. Please call us if you'd like to purchase a 2, 3, 5+ configuration.

Plan Details
See All Details
Finished Square Footage
664 Sq. Ft.
Main Level:
679 Sq. Ft.
Upper Level:
466 Sq. Ft.
Lower Level:
1,809 Sq. Ft.
Total:
Room Details
2
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
17' 0"
Width:
43' 0"
Depth:
Multi-Family
Dwelling Number:
Unfinished Square Footage
243 Sq. Ft.
Garage:
30 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
1
Garage Size:
Exterior Style
Contemporary
Craftsman
Modern
Collections
Builders
Foundation
Crawlspace
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
3/12
Primary:
Insulation (R)
House And Ceiling Heights
8
First Floor Ceiling:
8
Second Floor Ceiling:
31' 9"
Maximum House Height:
Key Features
Attached
Family Style
Front-entry
Master Bdrm Upstairs
Rear Porch
