House Plan: DFD-9816

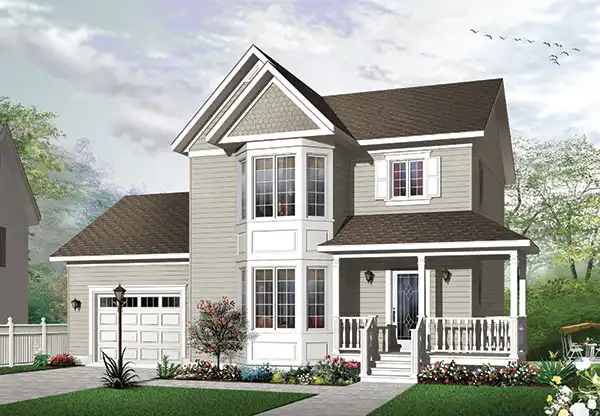

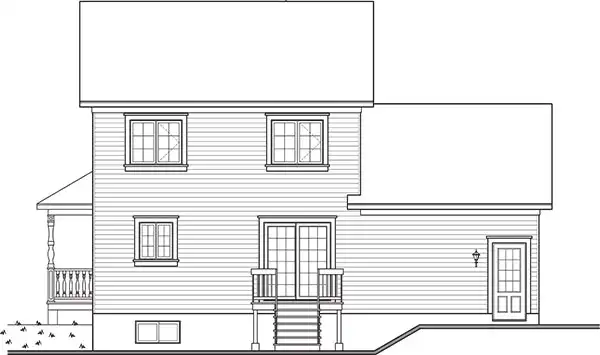

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,478
BEDS
3
BATHS
2.5
STORIES
2
CARS
1
HOUSE PLANS SALE
START AT  $1,185.75
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 9816
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,395
Most recommended package

3 sets + PDF


Please allow 3-5 days for delivery
3 sets + PDF $1,530
3 sets + PDF

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,395
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1395
FREE SHIPPING
Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

Note: Please allow 12 days for delivery

Plan Details
See All Details
Finished Square Footage
739 Sq. Ft.
Main Level:
739 Sq. Ft.
Upper Level:
1,478 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
40' 0"
Width:
34' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
448 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
1
Garage Size:
Exterior Style
Country
Farmhouse
Victorian
Collections
Affordable
First Home
Mountain
Open Floor Plan
Outdoor Living
Vacation
Foundation
Crawlspace
Floating slab
Full Unfinished Basement (included)
Monolithic slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
12/12
Secondary:
Roof Load
55
Live:
20
Dead:
Insulation (R)
25
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
8
Second Floor Ceiling:
28' 0"
Maximum House Height:
Key Features
Attached
Basement
Covered Front Porch
Crawlspace
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Front-entry
Great Room
His and Hers Master Closets
Kitchen Island
Laundry 1st Fl
Master Bdrm Upstairs
Open Floor Plan
Sitting Area
Slab
Walk-in Closet
