House Plan: DFD-10639

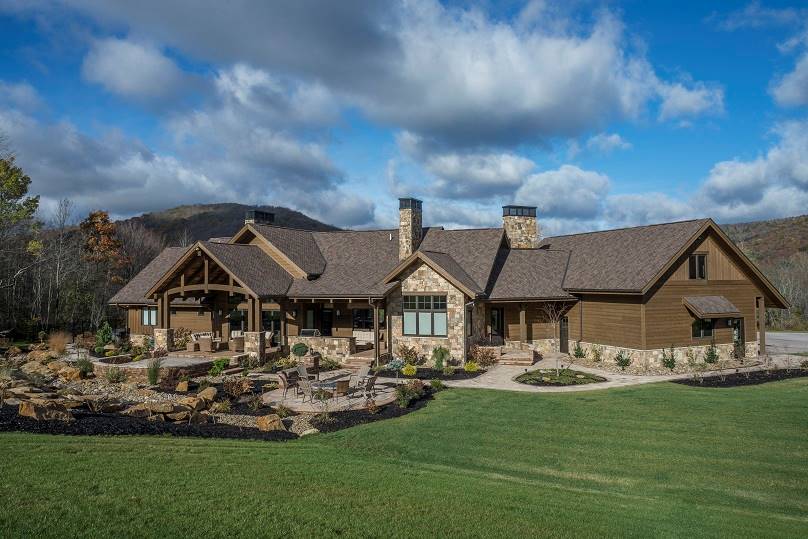

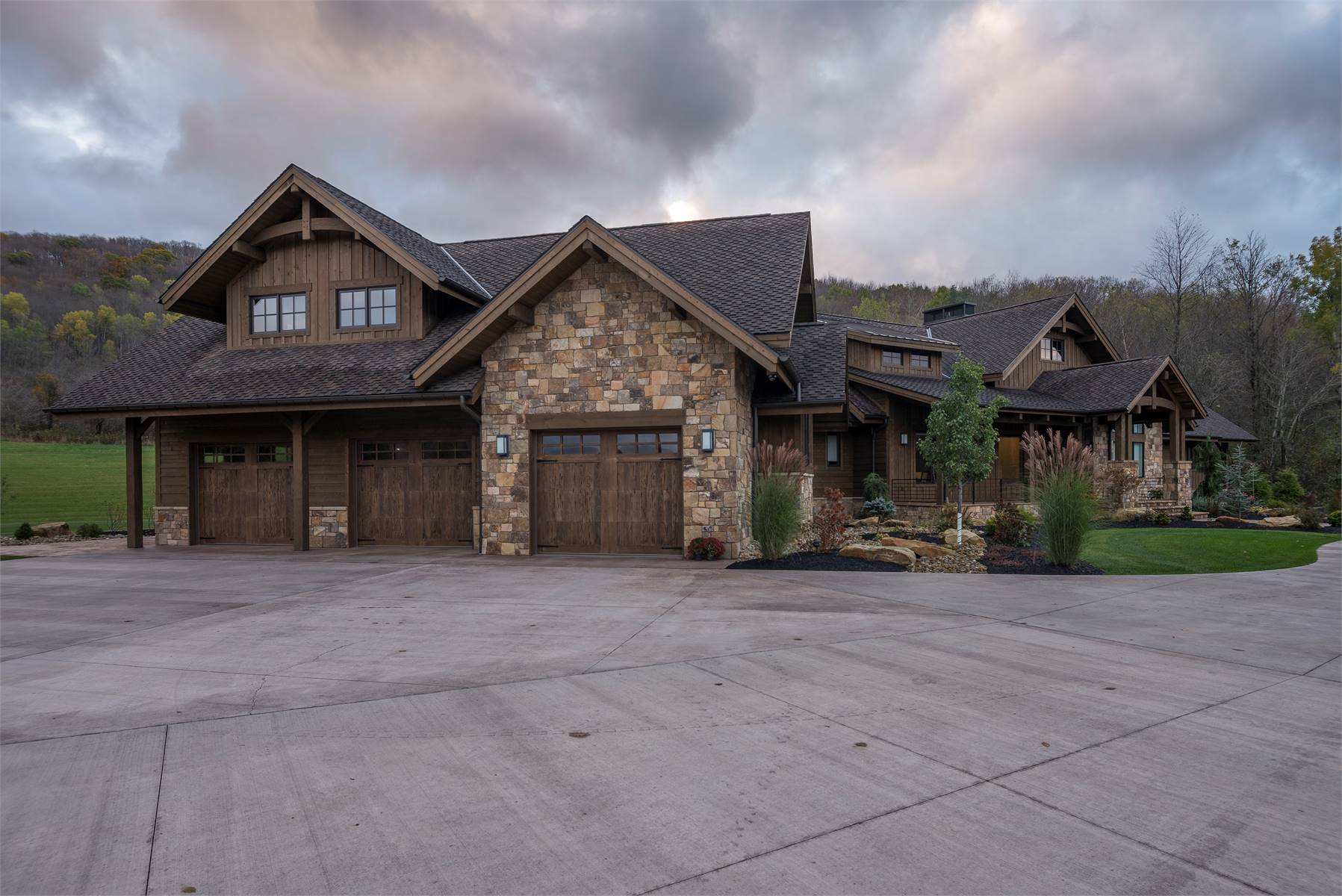

See All 8 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,623
BEDS
2
BATHS
2.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $1,920.00
For questions and help, live chat, email or call us at 877-895-5299

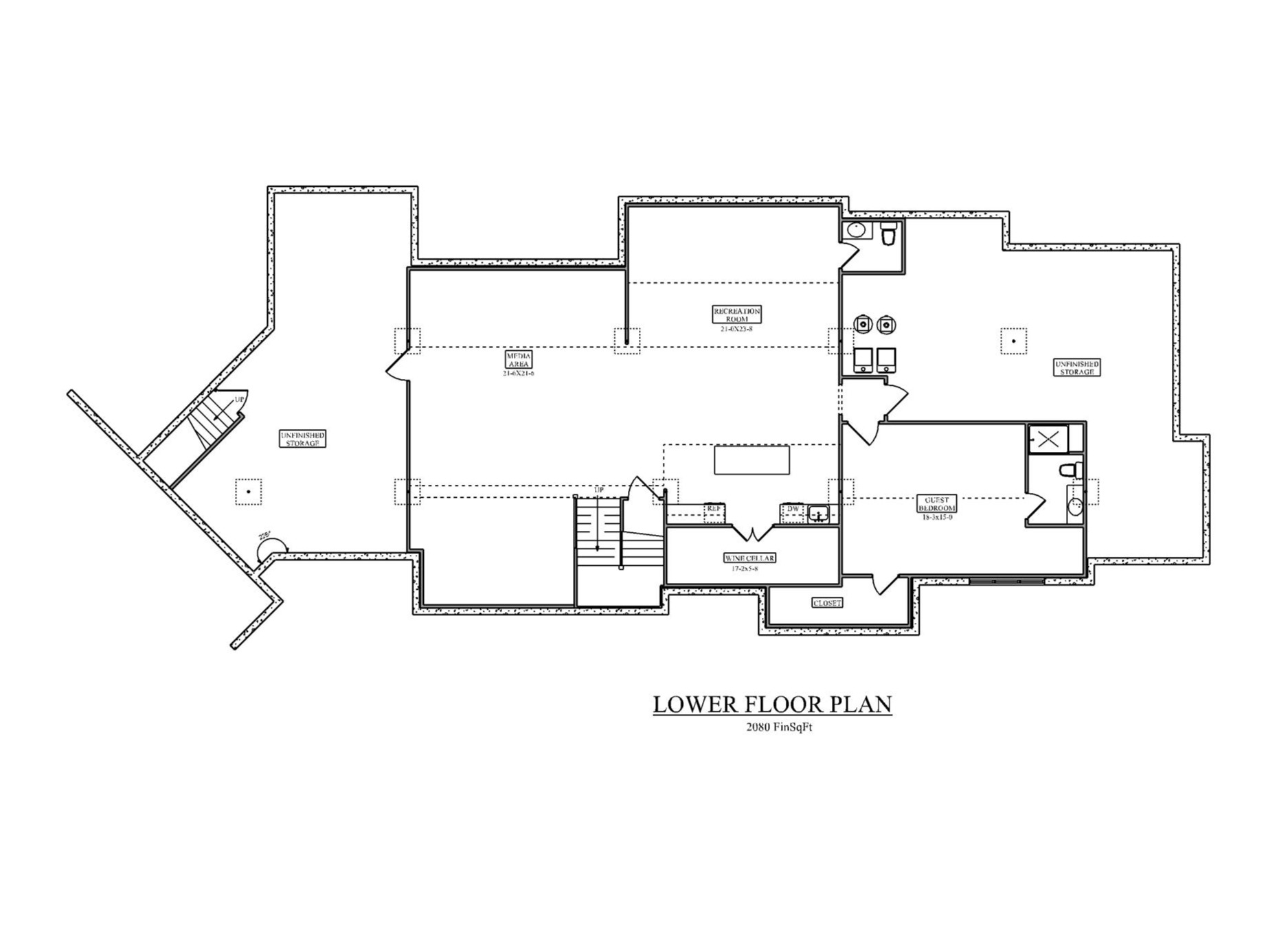

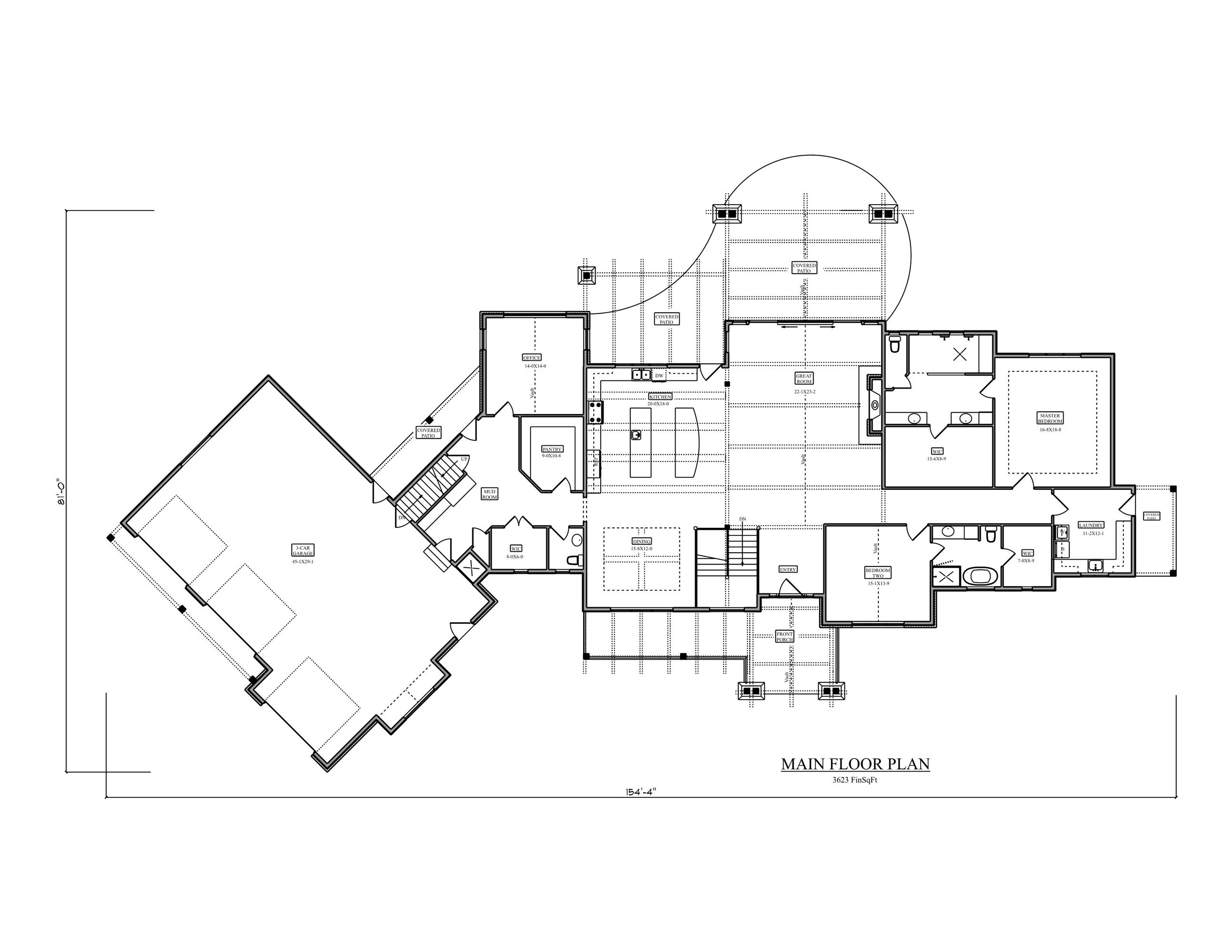

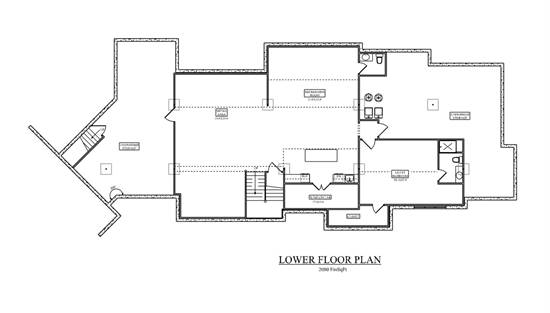

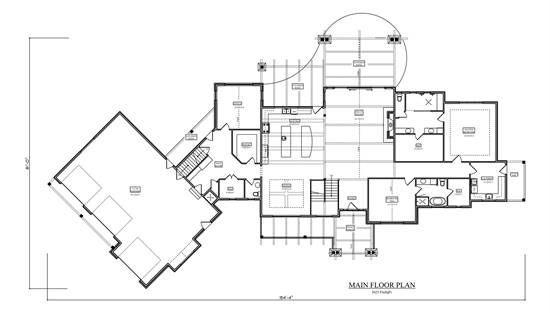

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 10639:

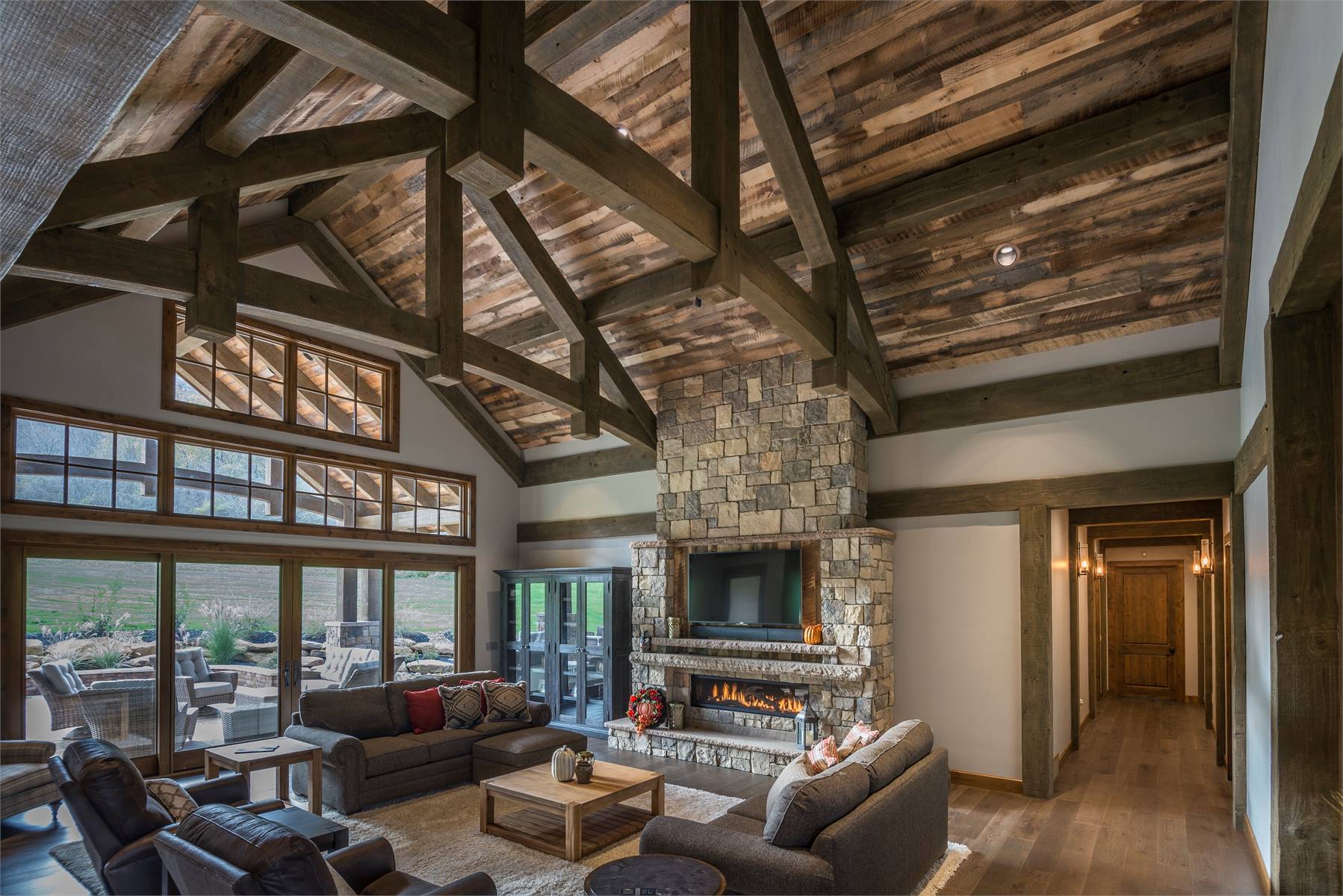

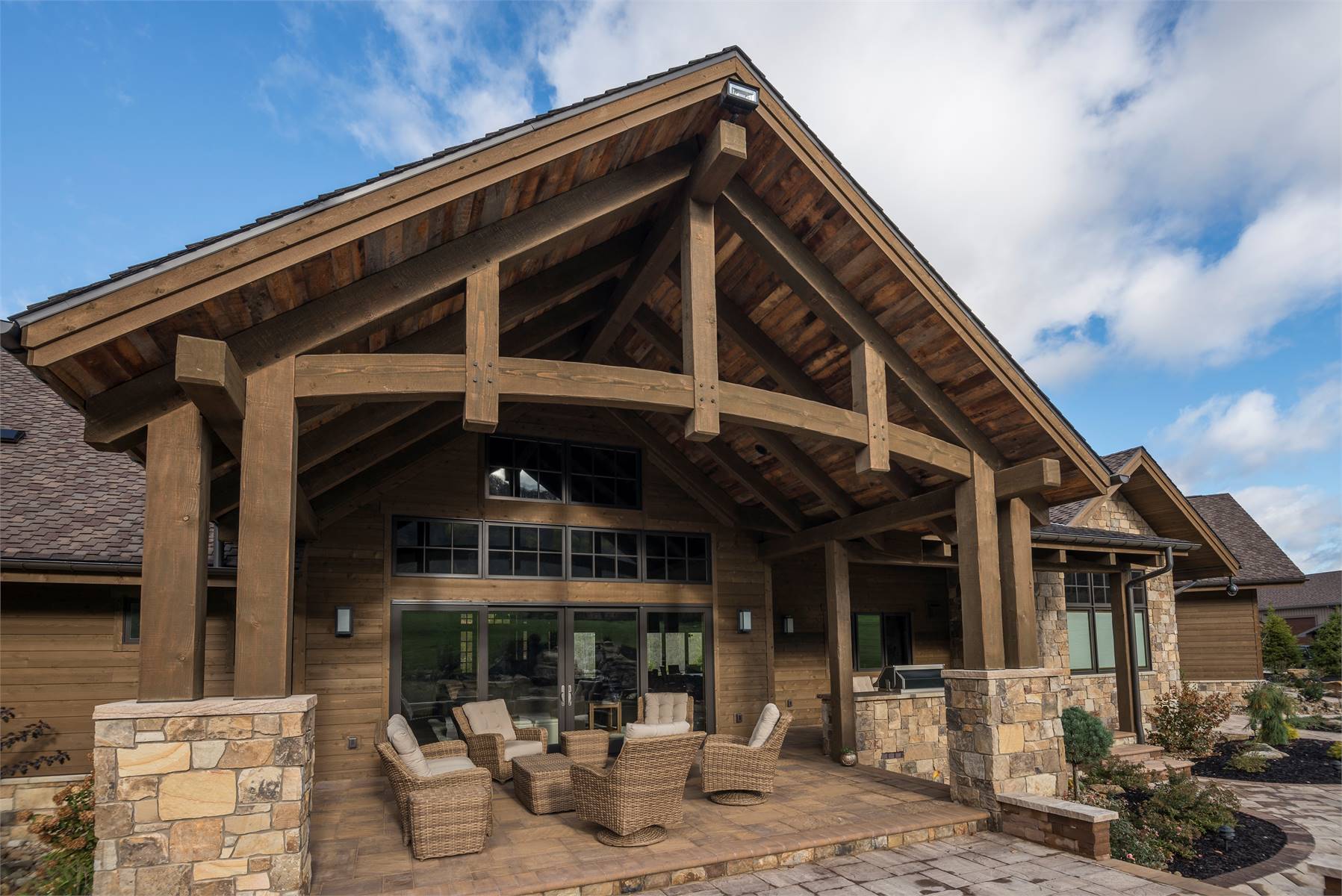

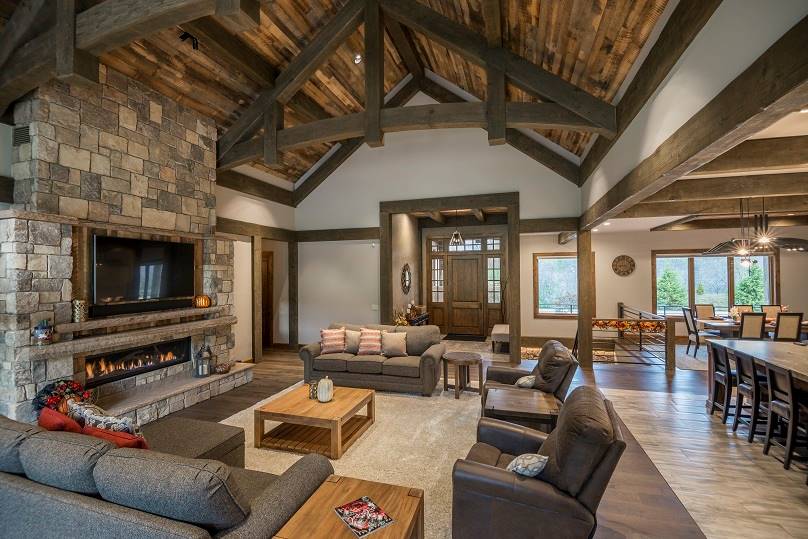

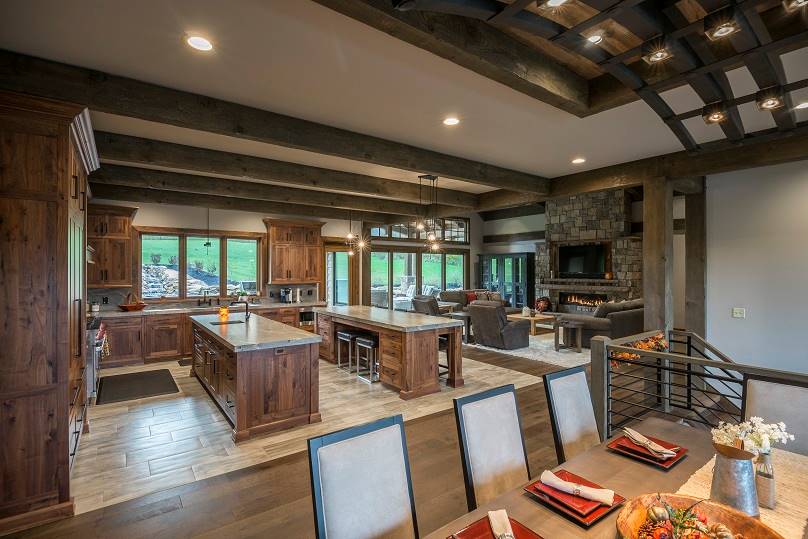

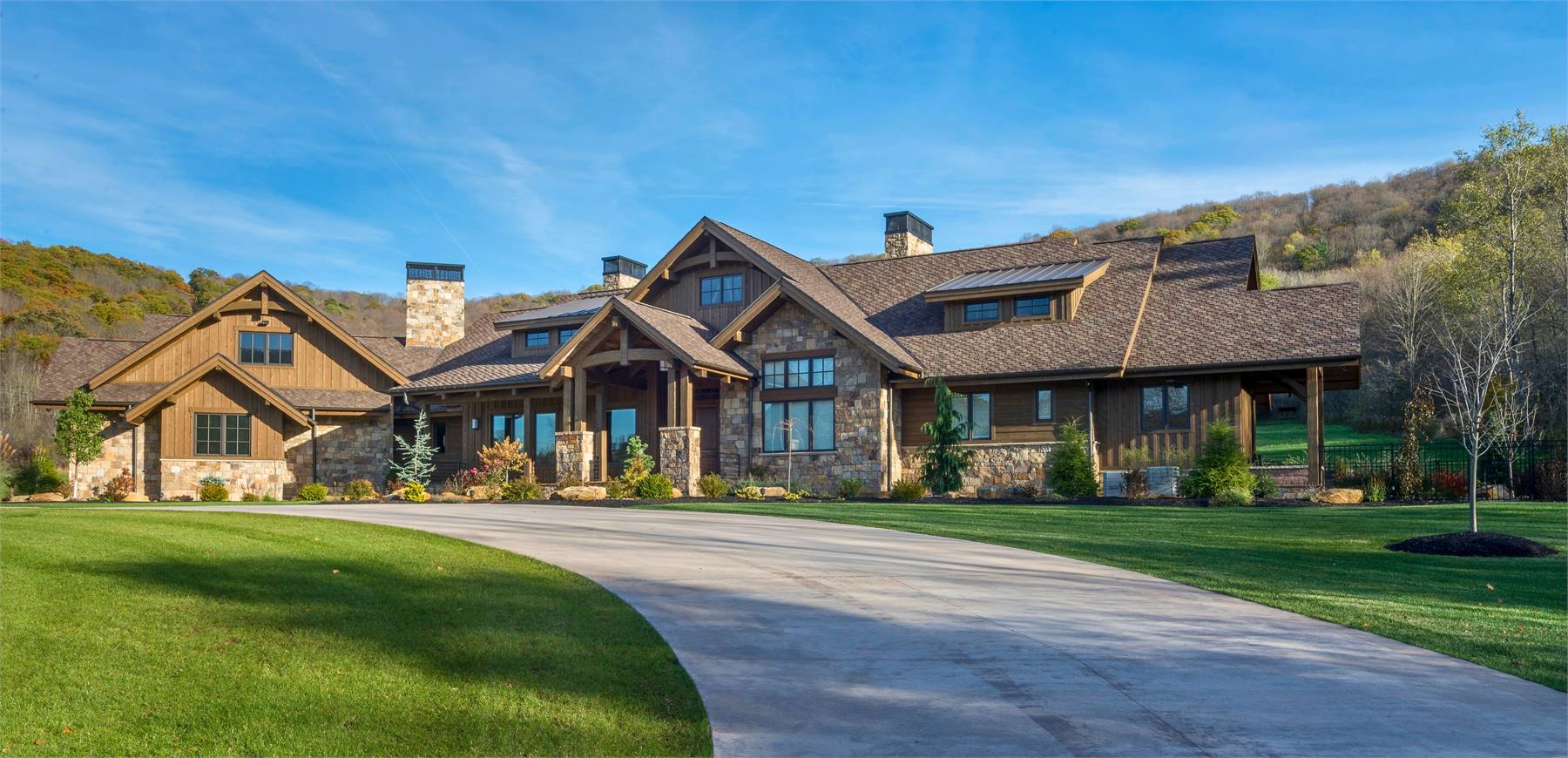

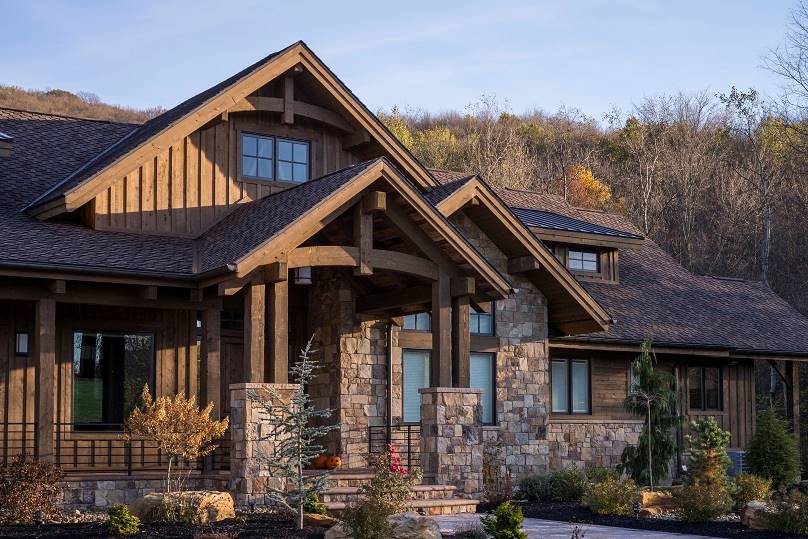

House Plan 10639 is a beautifully designed mountain ranch that balances open-concept living with private, functional spaces. A vaulted great room anchors the main level, connecting to a gourmet kitchen and dining area with access to the rear patio. The primary suite offers a spacious layout with a spa-like bath, while a second bedroom sits on the opposite side of the home. Just off the mudroom, a flex room can easily be used as a home office or converted into a third bedroom. Downstairs, an optional walkout basement adds over 2,000 sq. ft. for future bedrooms, rec space, or storage.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,400
Most recommended package

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $3,450
Digital plans including unlimited build license

CAD + PDF Single Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $3,900
2D electronic editable computer files

CAD + PDF Unlimited Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $5,700
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$2400
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,623 Sq. Ft.
Main Level:
2,080 Sq. Ft.
Lower Level:
3,623 Sq. Ft.
Total:
Room Details
2
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
154' 4"
Width:
81' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
1478 Sq. Ft.
Garage:
1252 Sq. Ft.
Porch:
824 Sq. Ft.
Bonus Room:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Contemporary
Craftsman
Lake
Ranch
Collections
Kitchens
Luxury
Primary Suites
Mountain
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
Basement
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
4/12
Secondary:
Insulation (R)
House And Ceiling Heights
10
First Floor Ceiling:
27' 8"
Maximum House Height:
Key Features
Attached
Covered Front Porch
Covered Rear Porch
Double Vanity Sink
Fireplace
Foyer
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
L-Shaped
Primary Bdrm Main Floor
Mud Room
Nook / Breakfast Area
Open Floor Plan
Rec Room
Separate Tub and Shower
Side-entry
Split Bedrooms
Storage Space
Suited for view lot
Unfinished Space
Walk-in Closet
Walk-in Pantry
Wine Cellar
