House Plan: DFD-11170

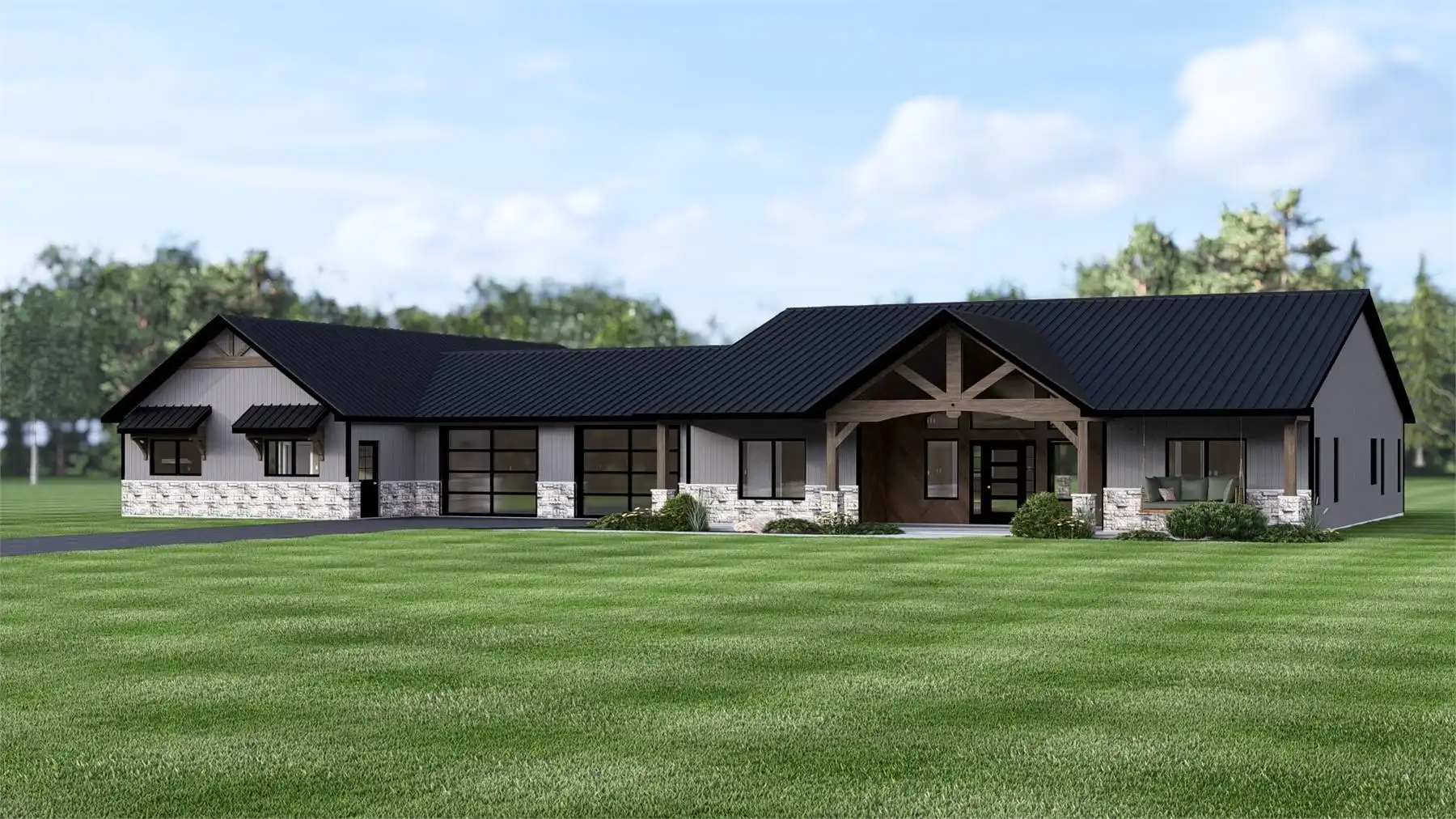

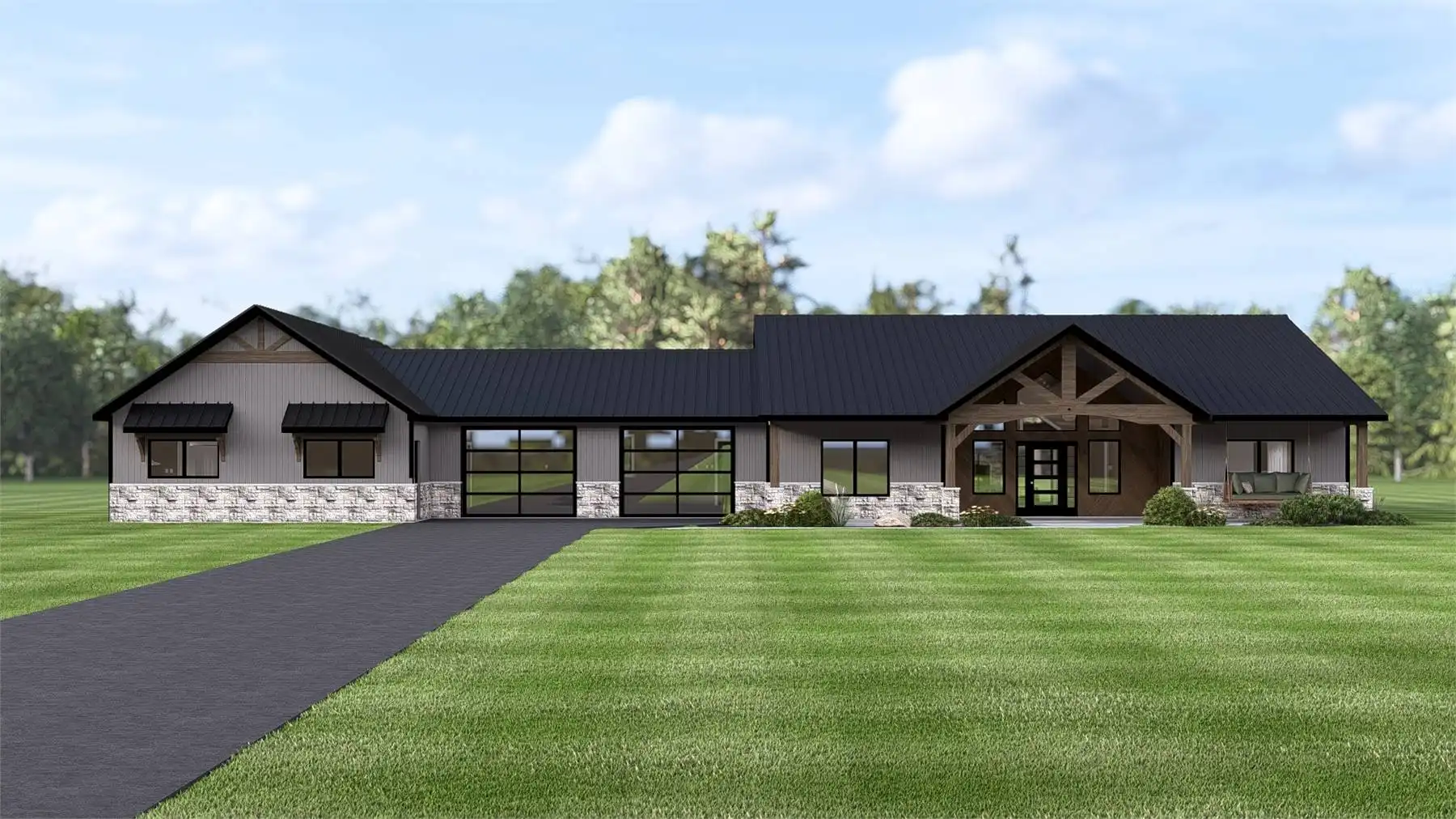

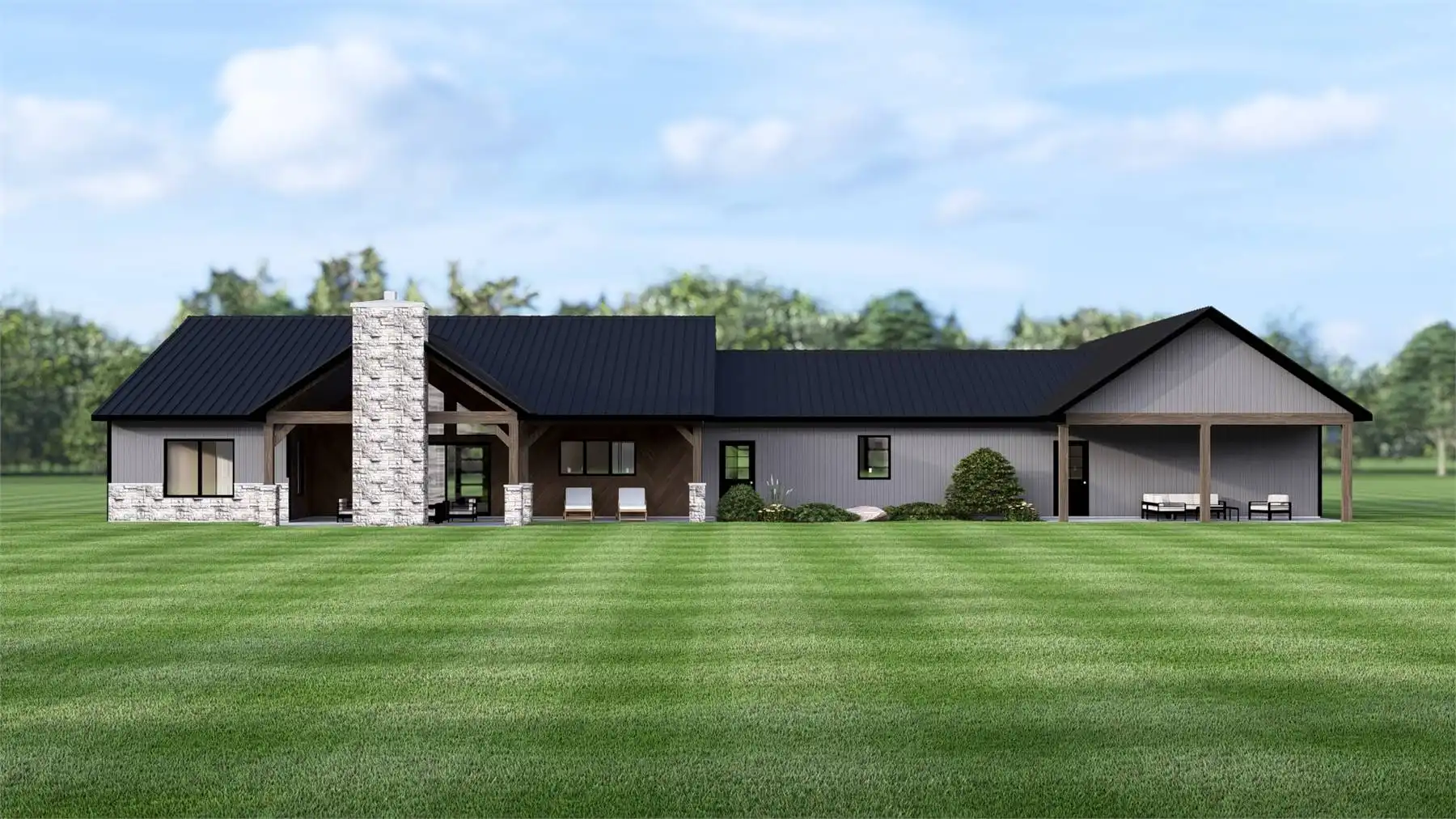

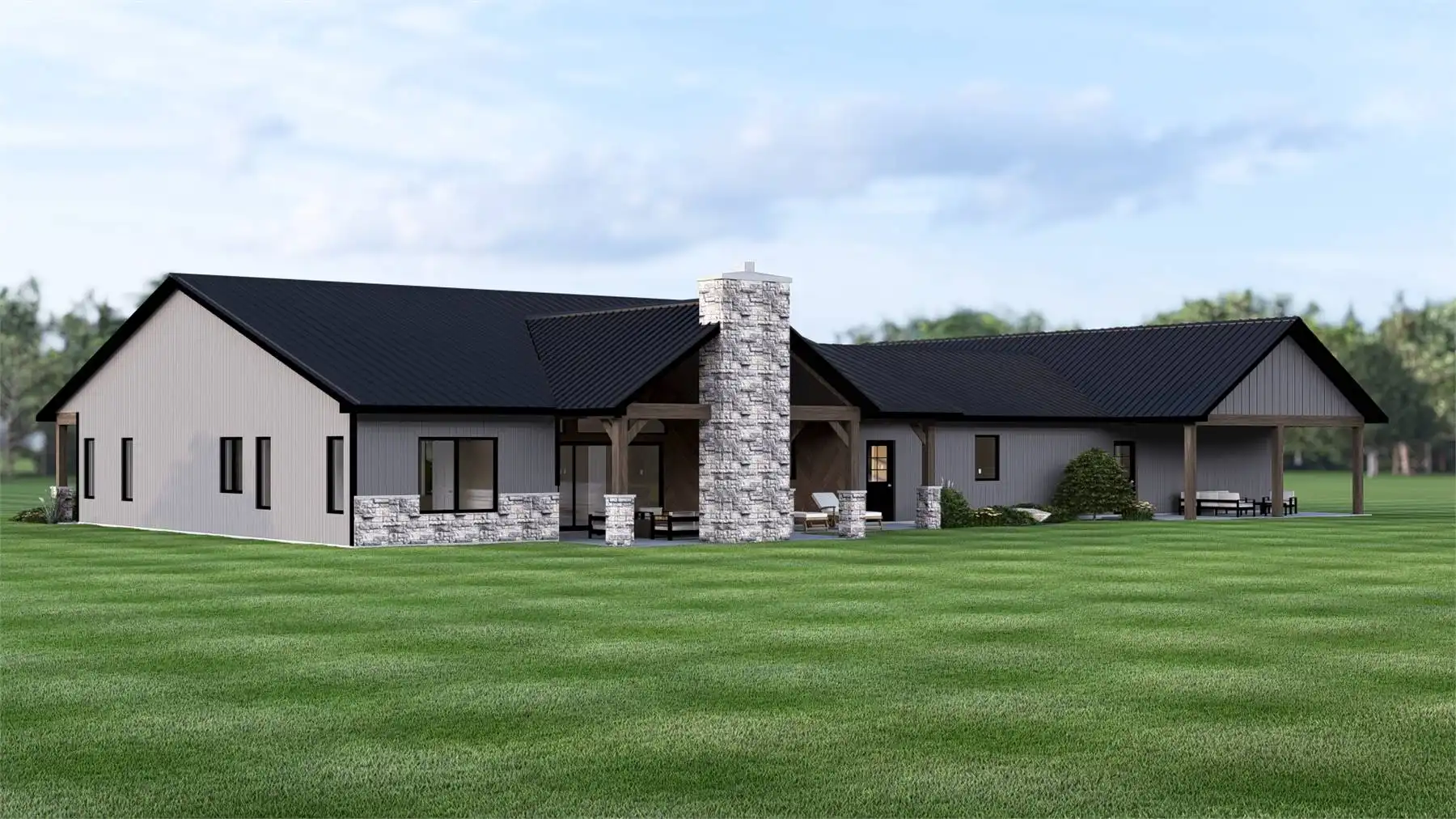

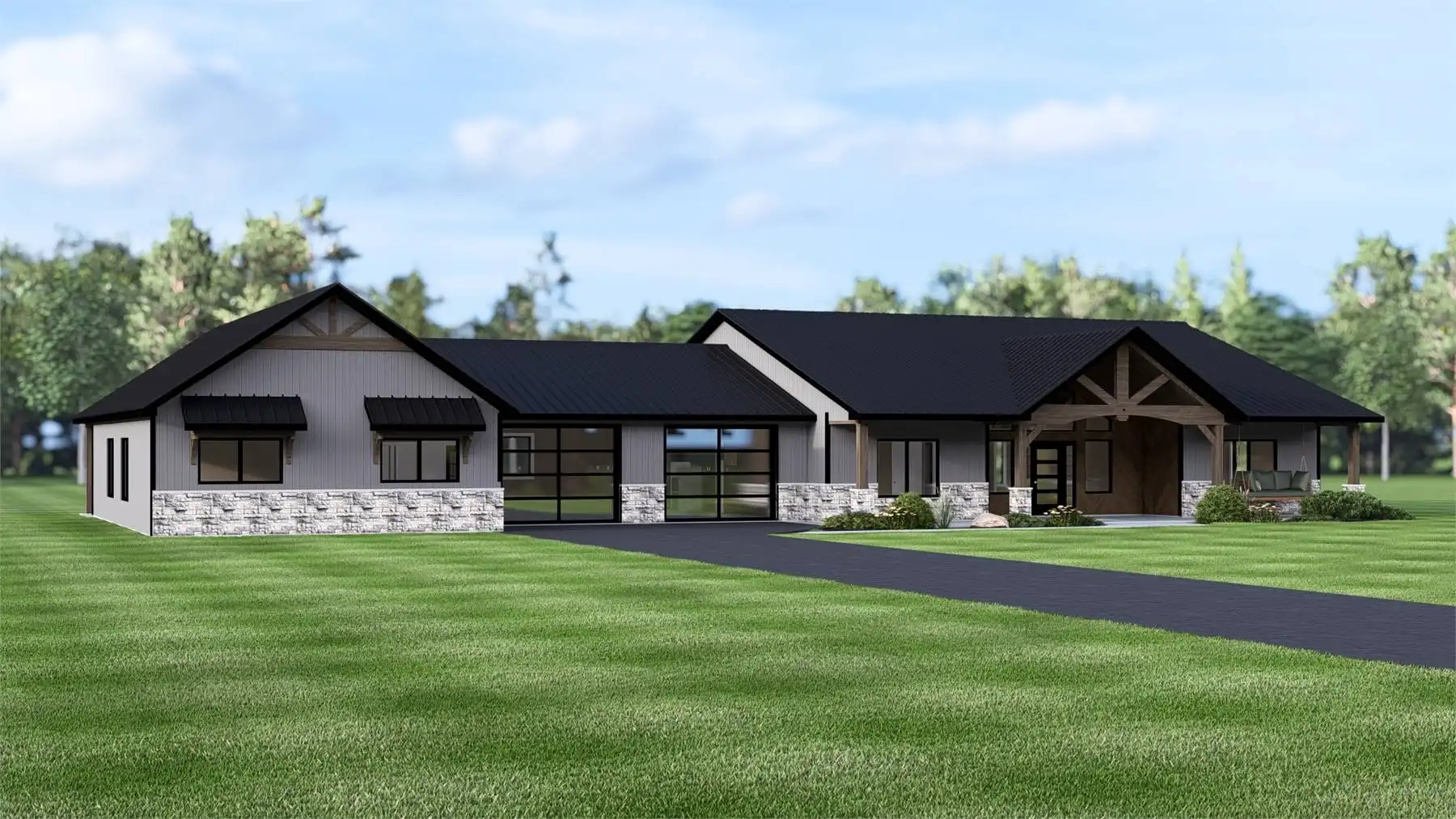

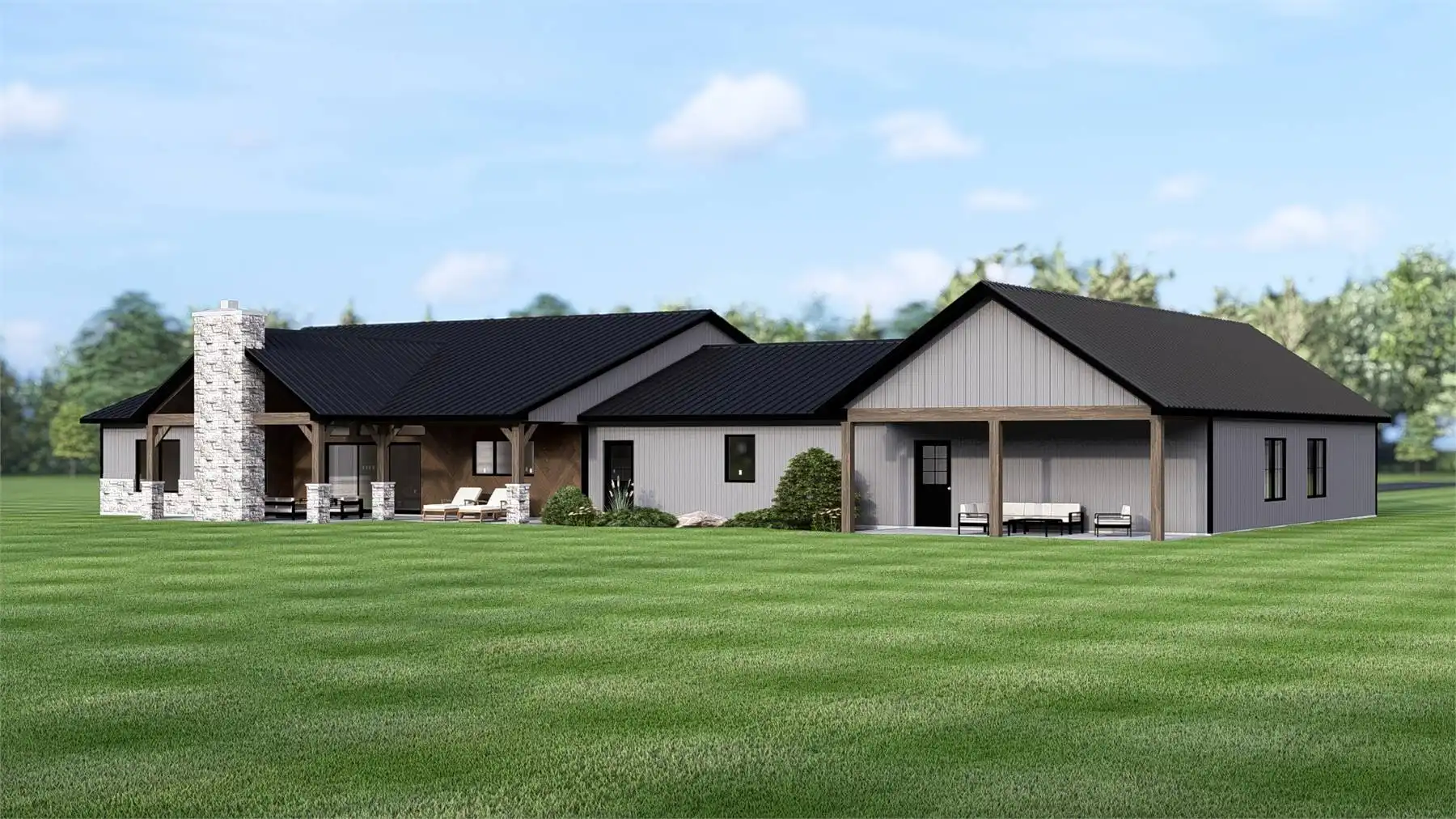

See All 6 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,188
BEDS
4
BATHS
3
STORIES
1
CARS
2
PLANS FROM $1,450
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11170:
House Plan 11170 is a modern barndominium designed for families who value both space and flexibility. The main residence includes three spacious bedrooms, highlighted by a primary suite with a walk-in closet and private bath on the left side of the garage. The open floor plan brings the great room, kitchen, and dining area together under vaulted ceilings, with direct access to a covered porch. On the opposite side of the garage, a fully self-contained 1-bedroom apartment provides independent living space, complete with a kitchen, dining, living area, ensuite bath, laundry, and its own covered porch. This unique layout makes the plan ideal for in-law living, extended family, or generating rental income. The large attached garage offers workshop and storage space, while the covered porches invite outdoor relaxation. Blending barn-inspired architecture with modern features, this design is built for today’s flexible lifestyles.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,450
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,800
Digital plans plus 5 printed sets

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $2,050
Digital plans including unlimited build license

CAD + PDF Single Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $2,700
2D electronic editable computer files

CAD + PDF Unlimited Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $3,250
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1450
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,188 Sq. Ft.
Main Level:
3,188 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
General House Information
1
Number of Stories:
105' 0"
Width:
84' 0"
Depth:
Multi-Family
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
1084 Sq. Ft.
Garage:
1183 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Contemporary
Country
Craftsman
Modern
Ranch
Collections
Affordable
In-Law Suite
Kitchens
Primary Suites
Open Floor Plan
Outdoor Living
Foundation
Basement
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
4/12
Primary:
8/12
Secondary:
Roof Load
30 psf
Live:
Insulation (R)
119
Exterior Wall:
36
Ceiling:
House And Ceiling Heights
9
First Floor Ceiling:
18' 11"
Maximum House Height:
Key Features
Attached
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Style
Front-entry
Great Room
Guest Suite
In-law Suite
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Peninsula / Eating Bar
Suited for view lot
U-Shaped
Vaulted Great Room/Living
Walk-in Closet
