House Plan: DFD-11189

Pin It

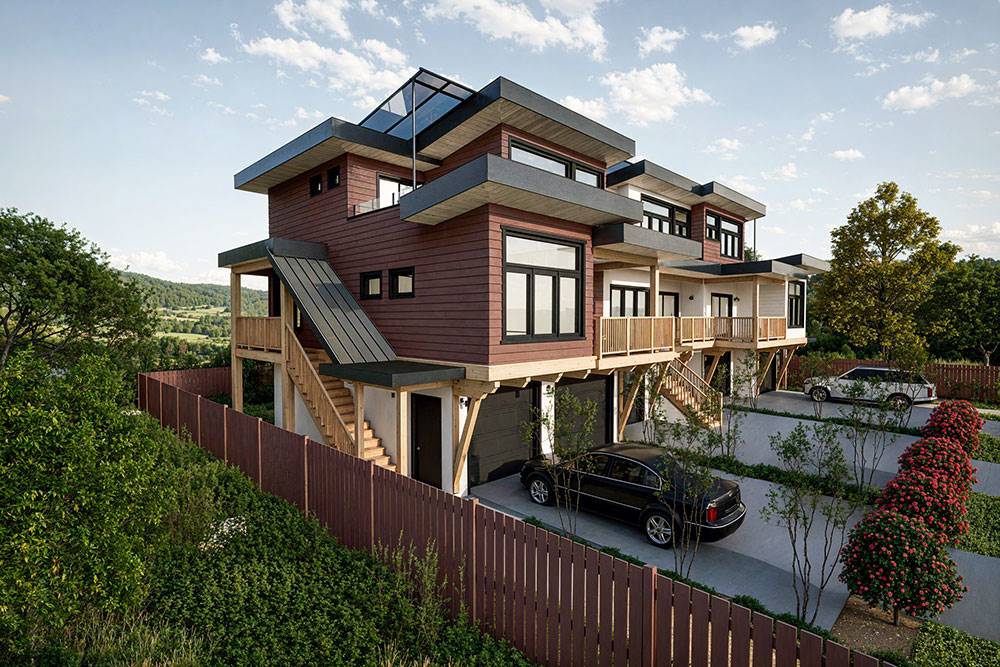

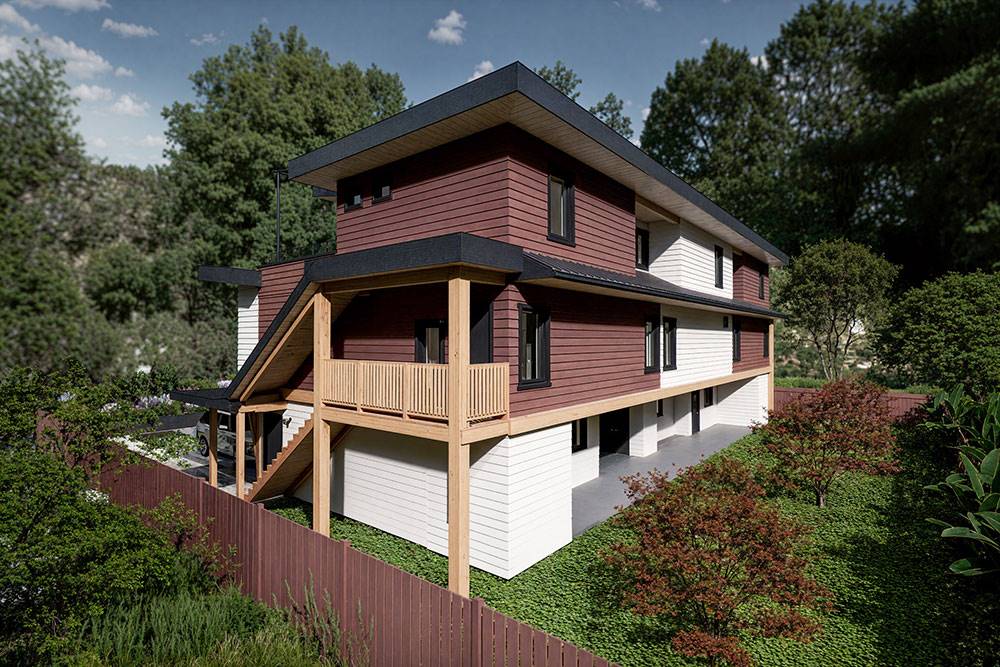

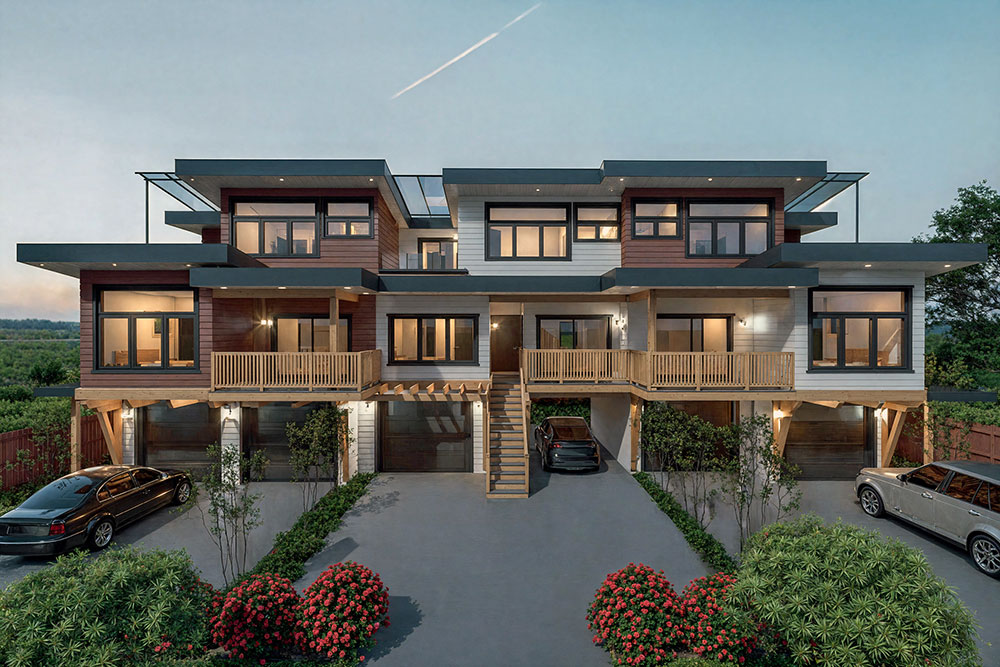

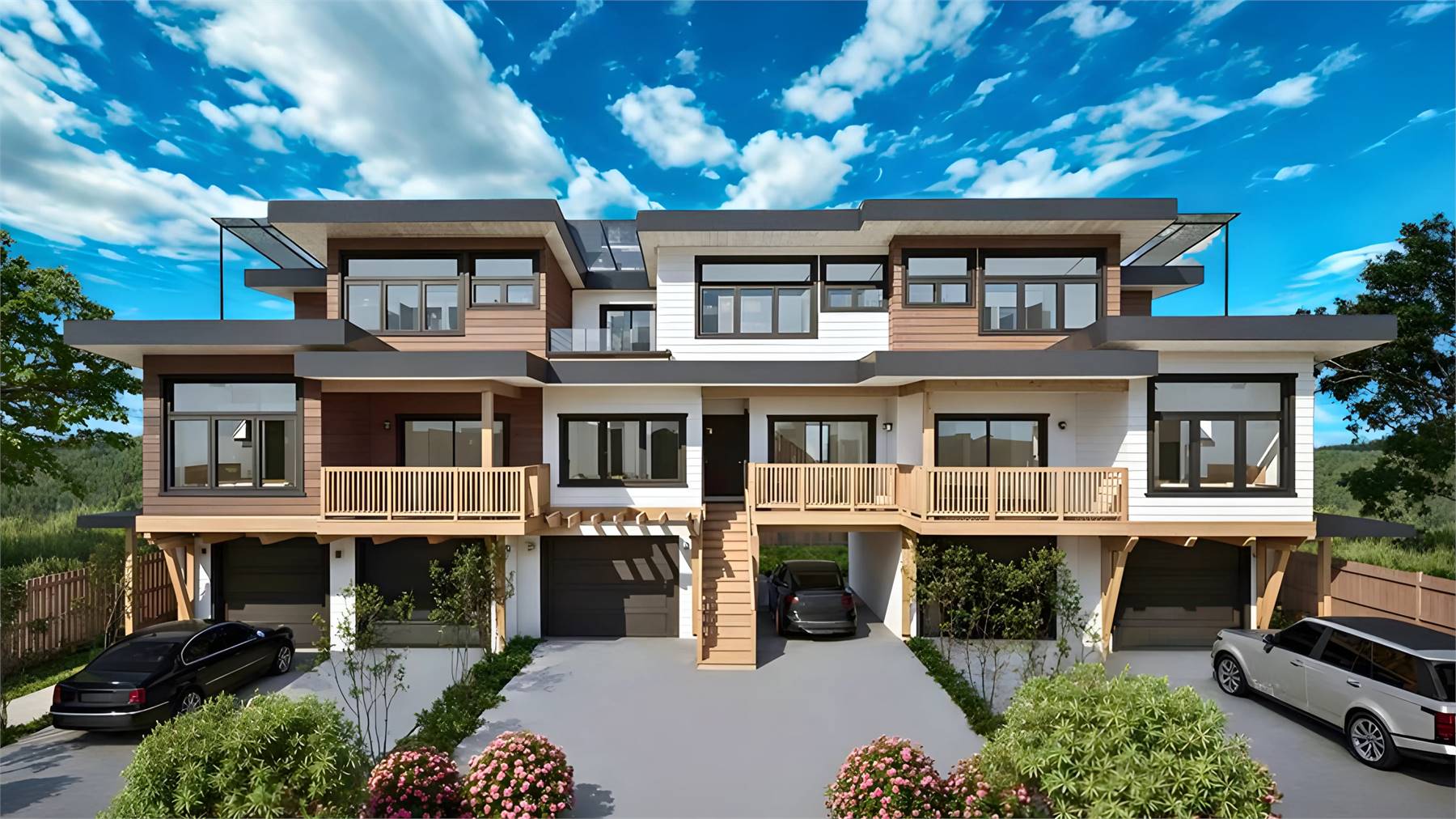

See All 7 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
4,281
BEDS
9
BATHS
6.5
STORIES
2
CARS
6
HOUSE PLANS SALE
START AT  $1,627.75
For questions and help, live chat, email or call us at 877-895-5299

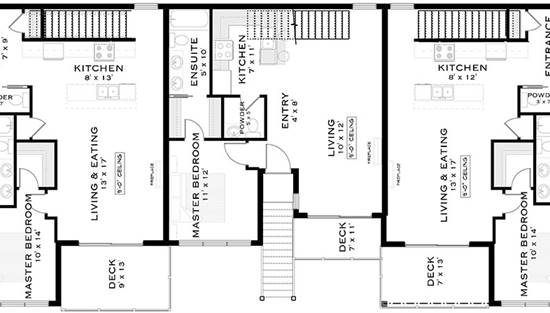

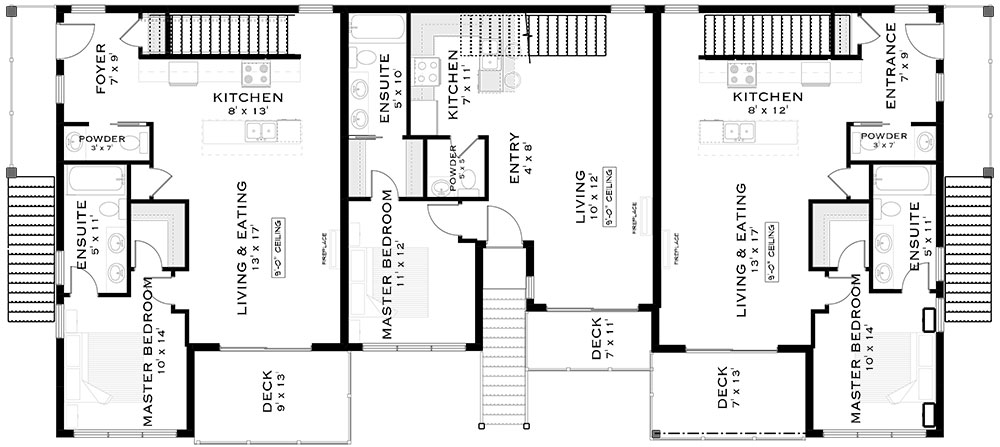

1st Floor

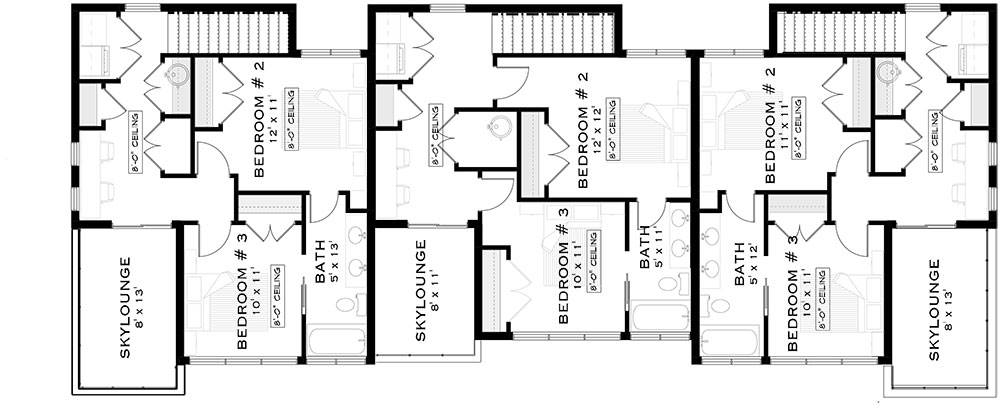

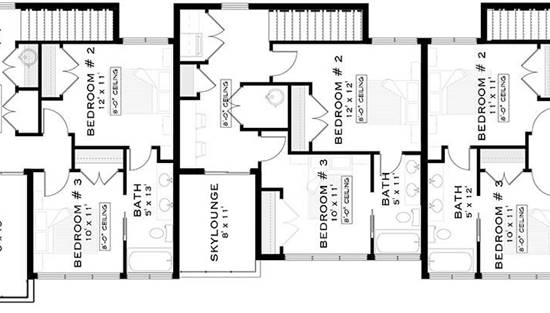

2nd Floor

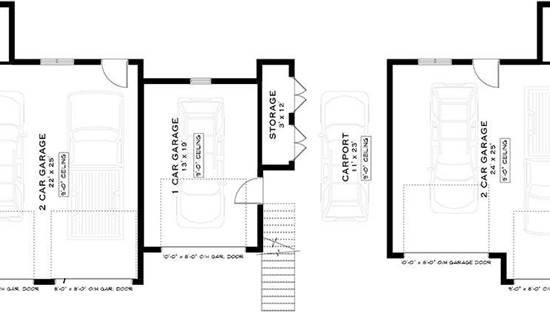

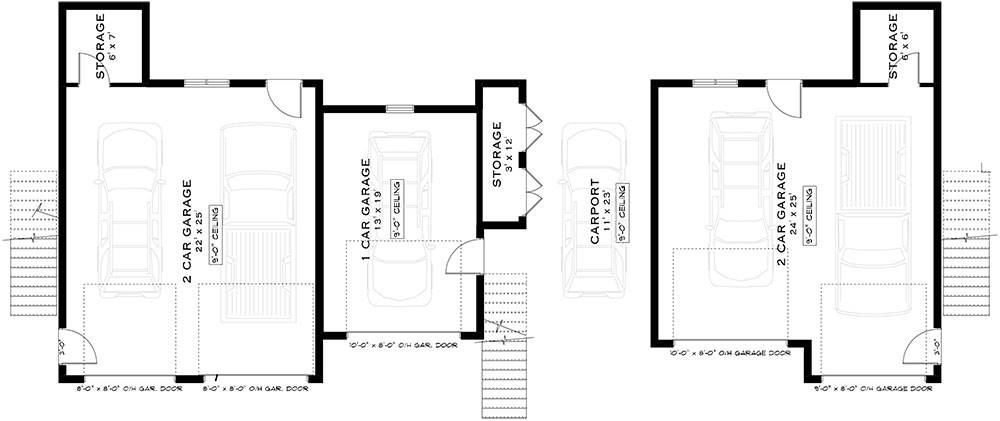

Lower Level Plan

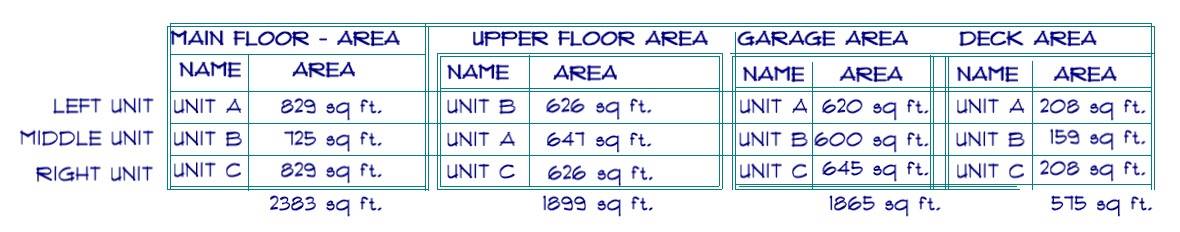

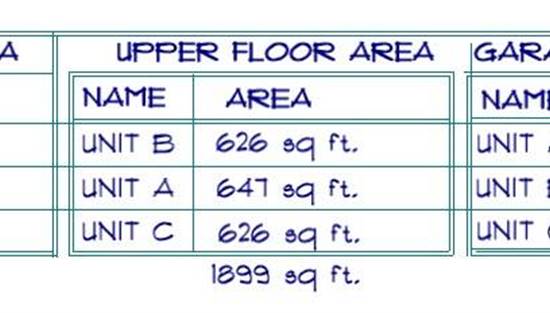

AREAS
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11189:
House Plan 11189 is a gorgeous modern triplex for a view lot! It offers 4,281 square feet, nine bedrooms, six full bathrooms, and three half baths in total, with each unit offering three bedrooms and two-and-a-half baths. The two-story layout also sits atop the drive-under garage level to boost the interior spaces! Each unit places parking for two on the bottom, a main level with open living and the primary suite in the middle, and a pair of Jack-and-Jill bedrooms with a study loft and the laundry on the top floor. Make sure not to miss the deck space on two stories or the handy garage storage!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,915
Most recommended package

CAD + PDF Single Build

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $2,315
2D electronic editable computer files

PDF Unlimited Build

Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $2,615
Digital plans including unlimited build license

CAD + PDF Unlimited Build

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $2,915
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1915
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
2,382 Sq. Ft.
Main Level:
1,899 Sq. Ft.
Upper Level:
4,281 Sq. Ft.
Total:
Room Details
9
Bedrooms:
6
Full Baths:
3
Half Baths:
General House Information
2
Number of Stories:
84' 10"
Width:
37' 3"
Depth:
Multi-Family
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
1865 Sq. Ft.
Garage:
161 Sq. Ft.
Storage:
546 Sq. Ft.
Deck:
GARAGE
Under
Garage Location:
6
Garage Size:
Exterior Style
Contemporary
Modern
Collections
Builders
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
Flat
Primary:
2/12
Secondary:
Insulation (R)
22
Exterior Wall:
40
Ceiling:
32
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
32' 6"
Maximum House Height:
Key Features
Attached
Carport
Deck
Double Vanity Sink
Drive-under
Fireplace
Foyer
Front-entry
Great Room
Kitchen Island
Laundry 2nd Fl
Open Floor Plan
Peninsula / Eating Bar
Split Bedrooms
Storage Space
Suited for view lot
U-Shaped
Walk-in Closet
