House Plan: DFD-11230

Pin It
See All 9 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,260
BEDS
3
BATHS
2
STORIES
1
CARS
0
PLANS FROM $1,045
For questions and help, live chat, email or call us at 877-895-5299

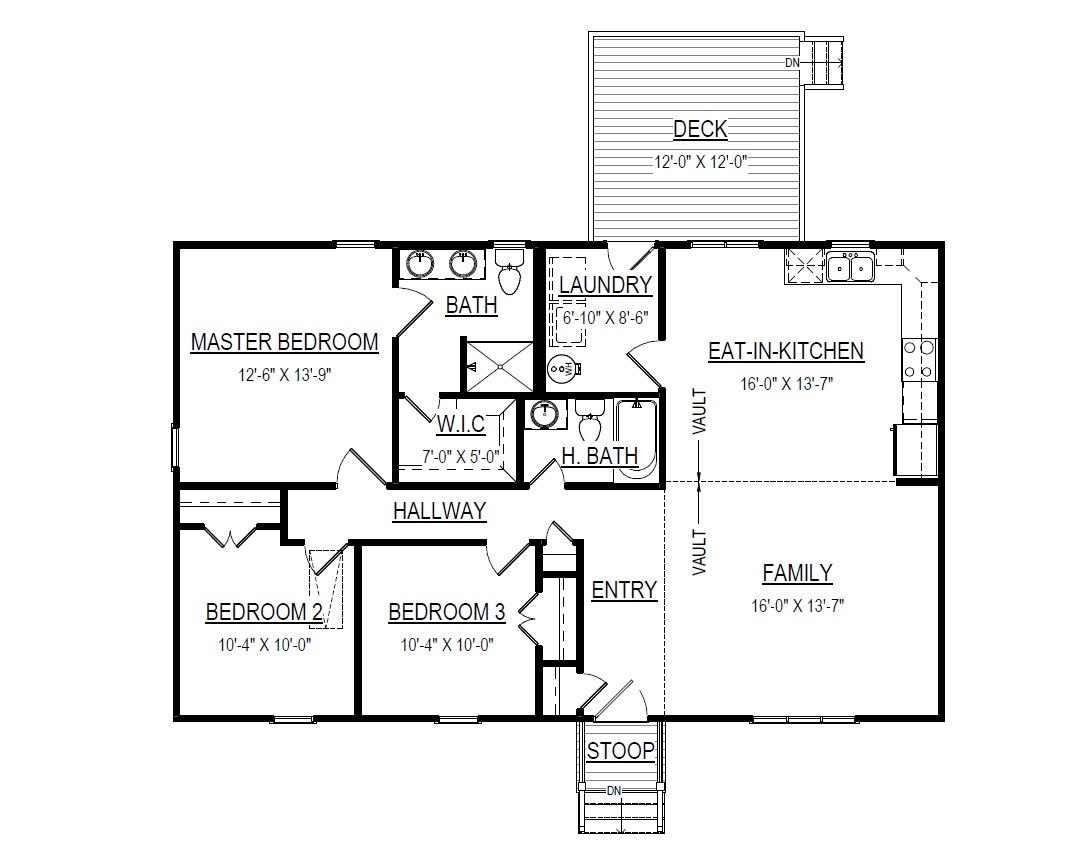

1st Floor

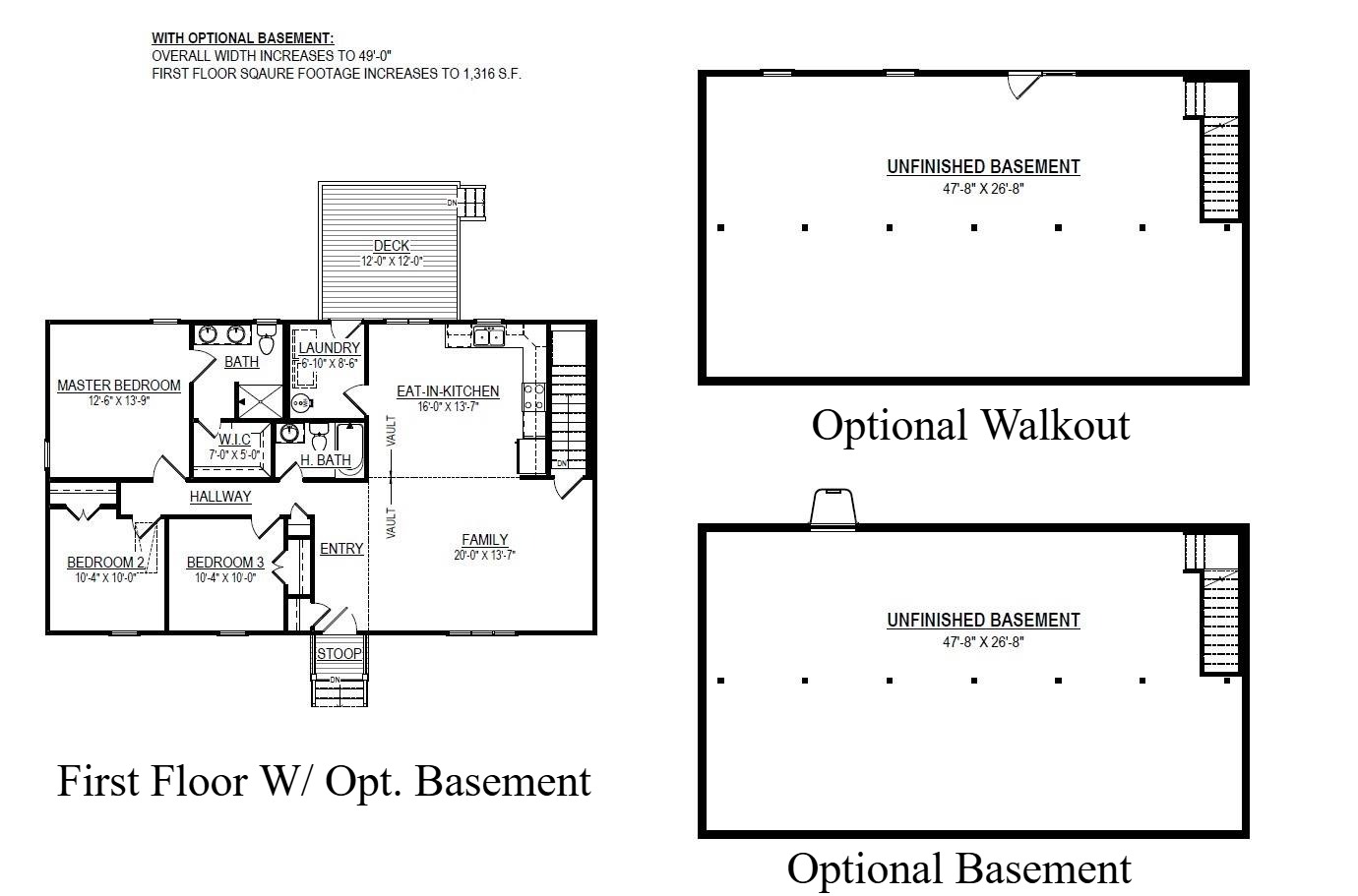

Basement Plan

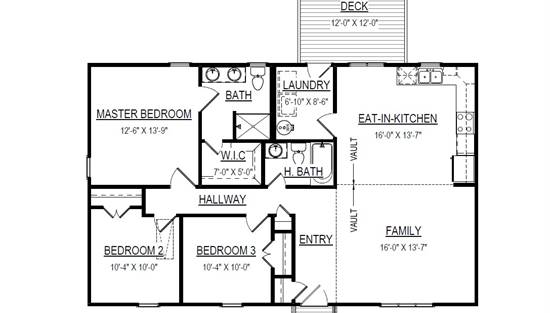

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11230:

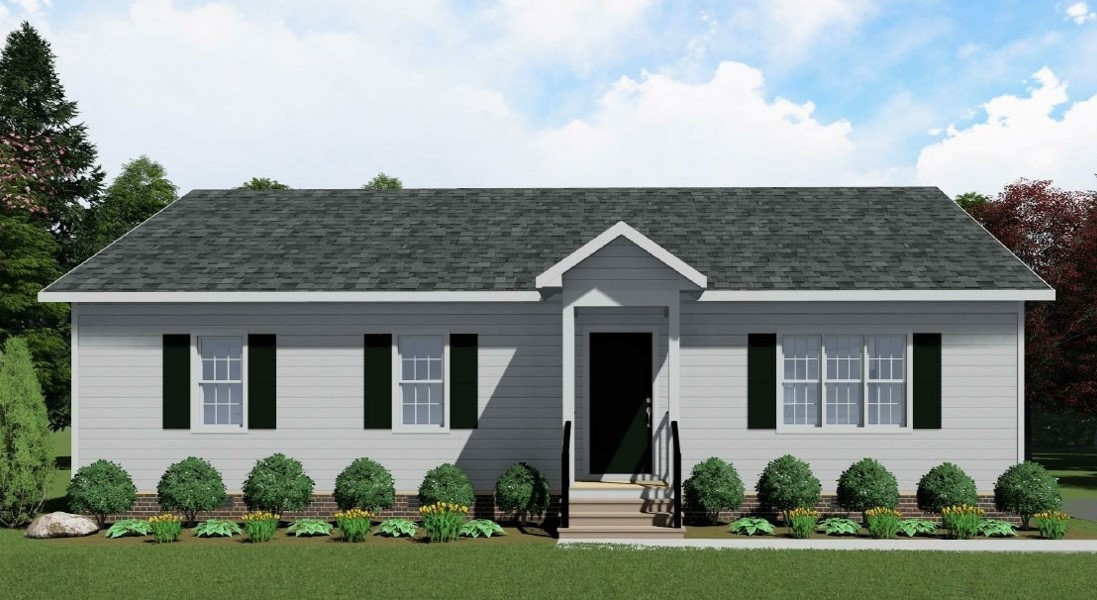

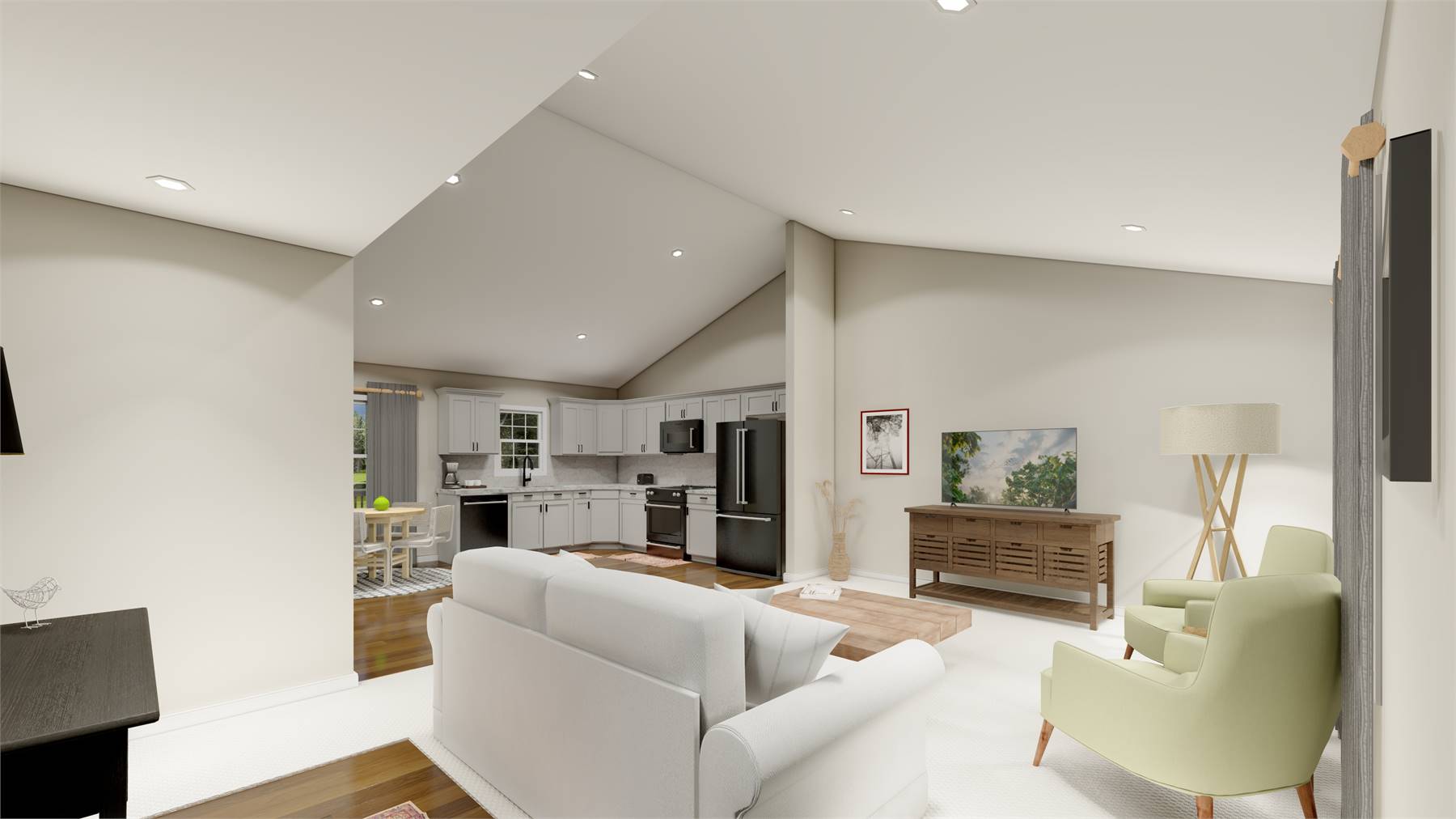

House Plan 11230 delivers a traditional ranch design in 1,260 square feet with a practical family-style layout. A simple front stoop provides a warm welcome, opening into an airy vaulted great room and open kitchen with breakfast nook. The primary suite includes a private bath with double vanity and walk-in closet, while two secondary bedrooms share a full hall bath. Designed for everyday living, the plan also features a mudroom and laundry on the main level. Outdoor entertaining is easy with the rear deck just off the living area. Need more room? An optional unfinished basement offers flexibility for future expansion. Compact, efficient, and comfortable, this home is a perfect fit for many lifestyles.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,045
Most recommended package

CAD + PDF Single Build

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $1,245
2D electronic editable computer files

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,370
Digital plans plus 5 printed sets

PDF Unlimited Build

Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $1,545
Digital plans including unlimited build license

CAD + PDF Unlimited Build

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $1,745
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1045
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,260 Sq. Ft.
Main Level:
1,260 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
45' 0"
Width:
28' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
20 Sq. Ft.
Front Porch:
144 Sq. Ft.
Deck:
GARAGE
0
Garage Size:
Exterior Style
Cottage
Ranch
Traditional
Collections
Open Floor Plan
Foundation
Basement
Crawl Space
Slab
Walkout Basement
Framing Information
Truss
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
8/12
Secondary:
Insulation (R)
House And Ceiling Heights
8
First Floor Ceiling:
19' 6"
Maximum House Height:
Key Features
Deck
Double Vanity Sink
Family Room
Family Style
Front Porch
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
Mud Room
None
Nook / Breakfast Area
Open Floor Plan
Vaulted Ceilings
Vaulted Great Room/Living
Vaulted Kitchen
Walk-in Closet
