House Plan: DFD-11470

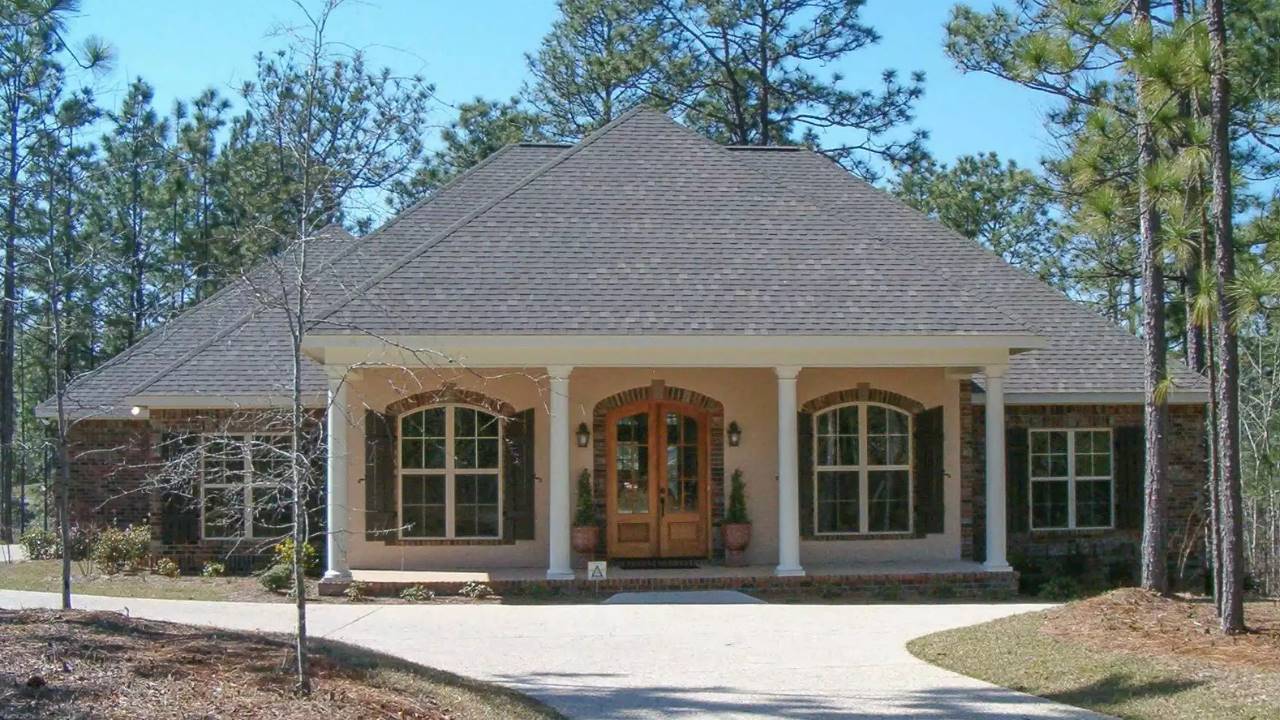

See All 7 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,800
BEDS
4
BATHS
2.5
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $1,127.10
For questions and help, live chat, email or call us at 877-895-5299

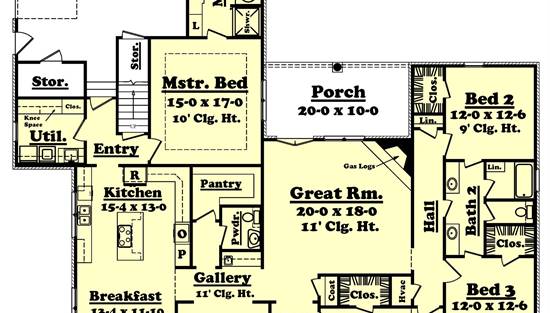

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11470:

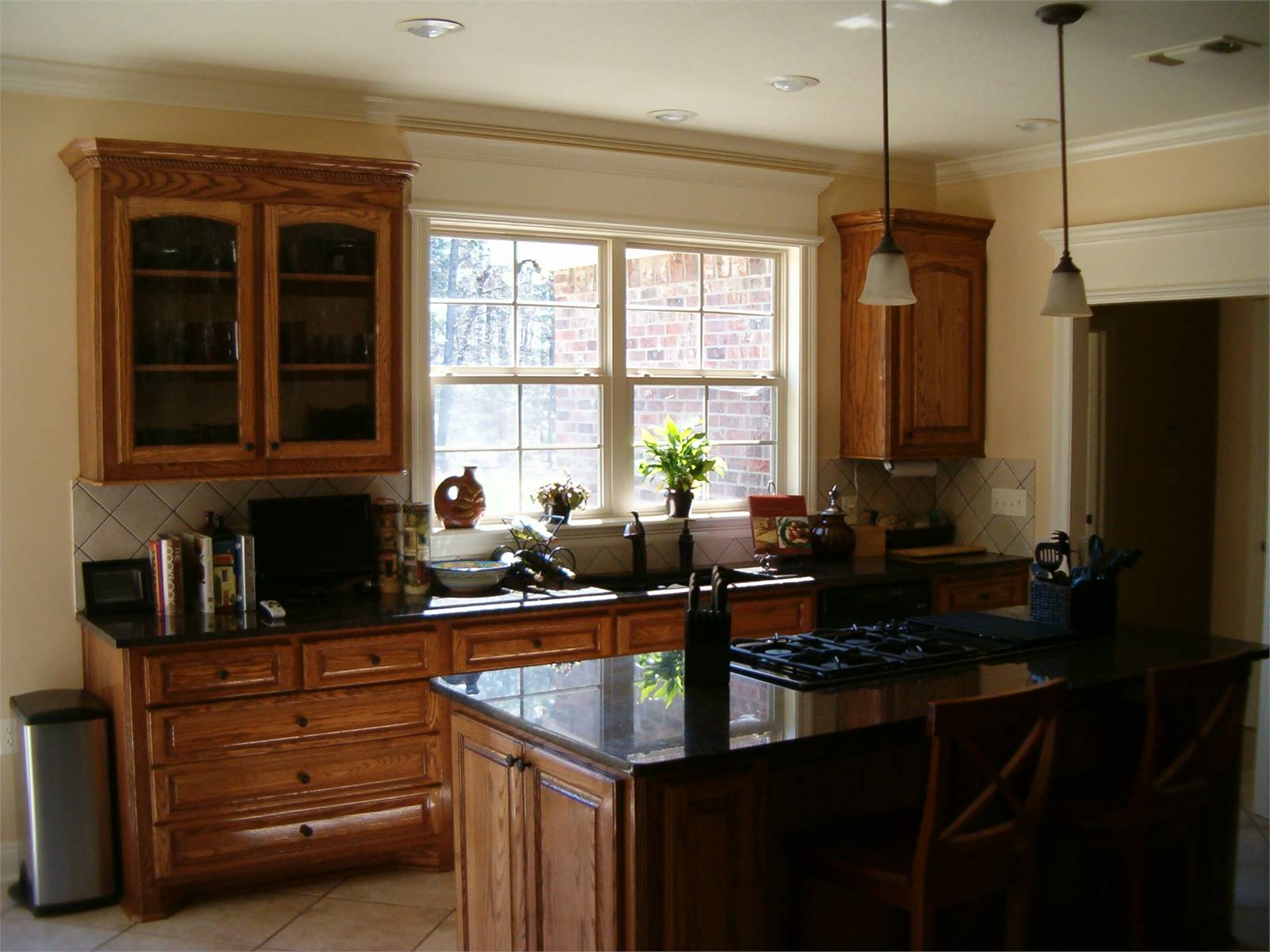

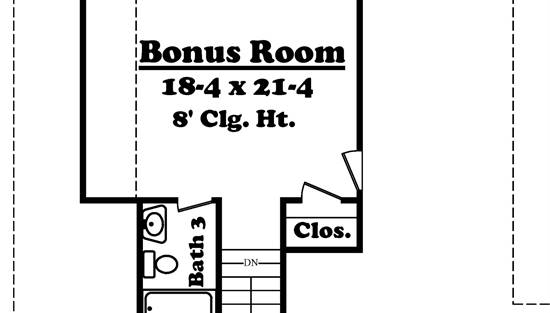

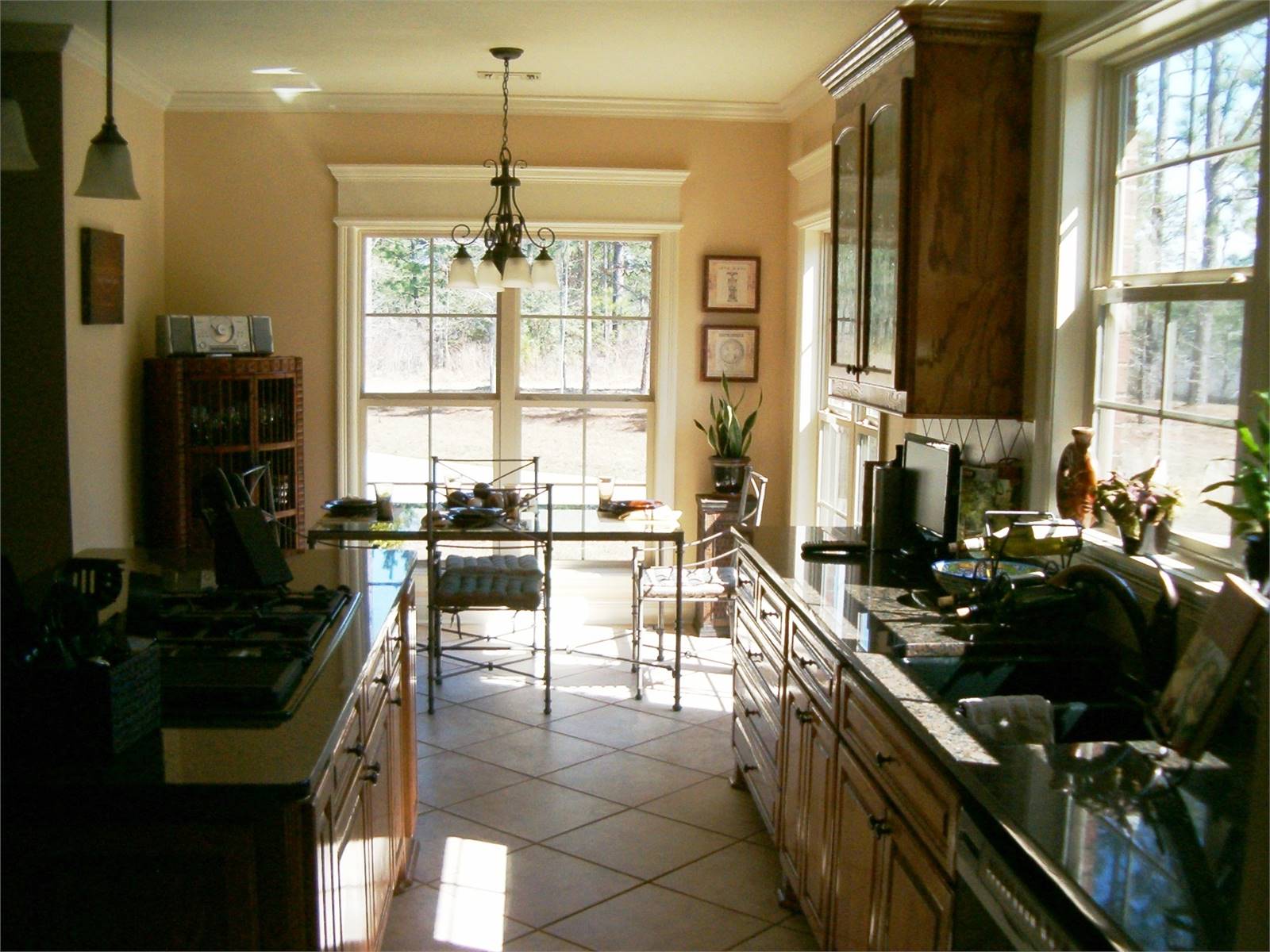

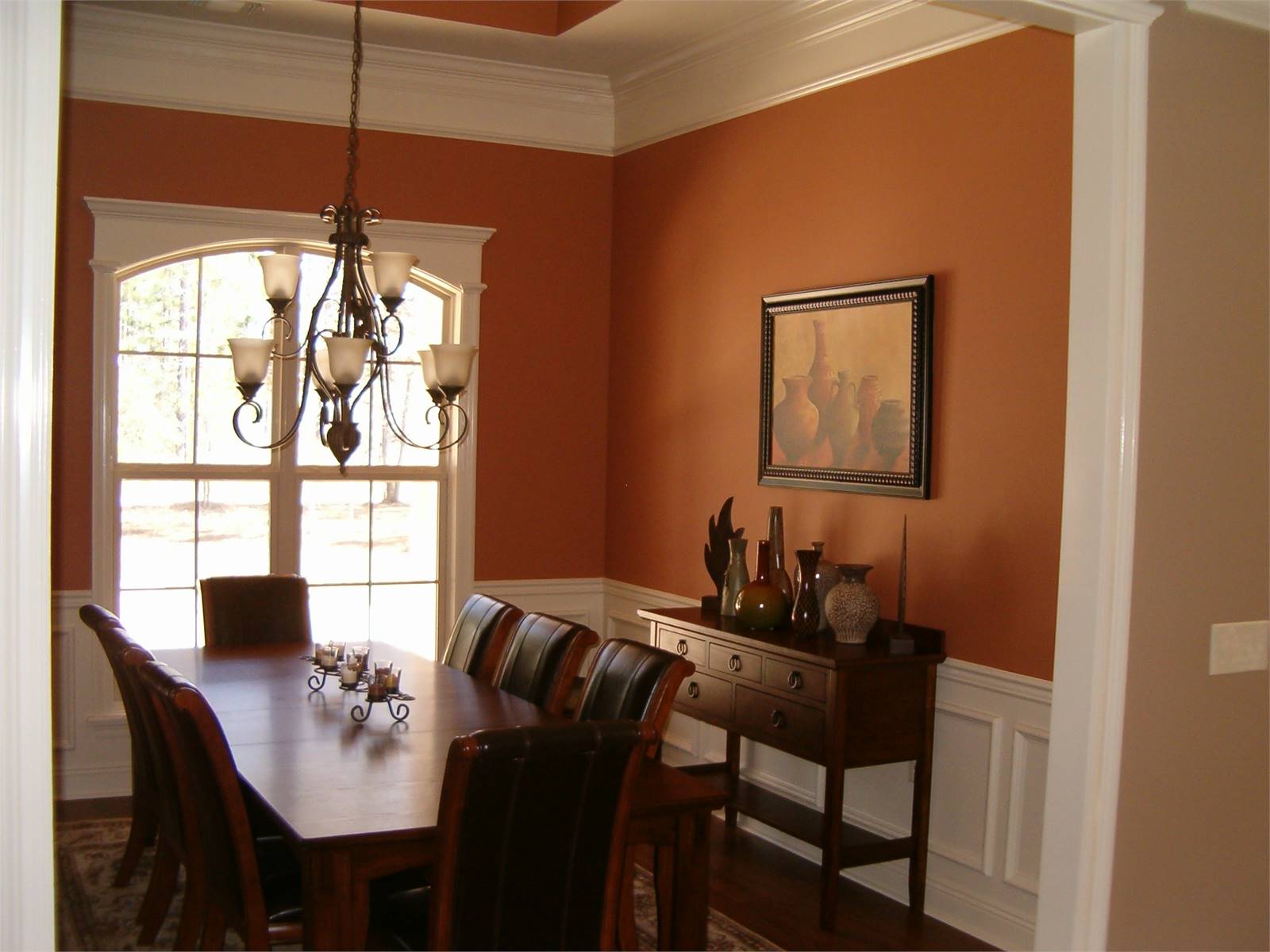

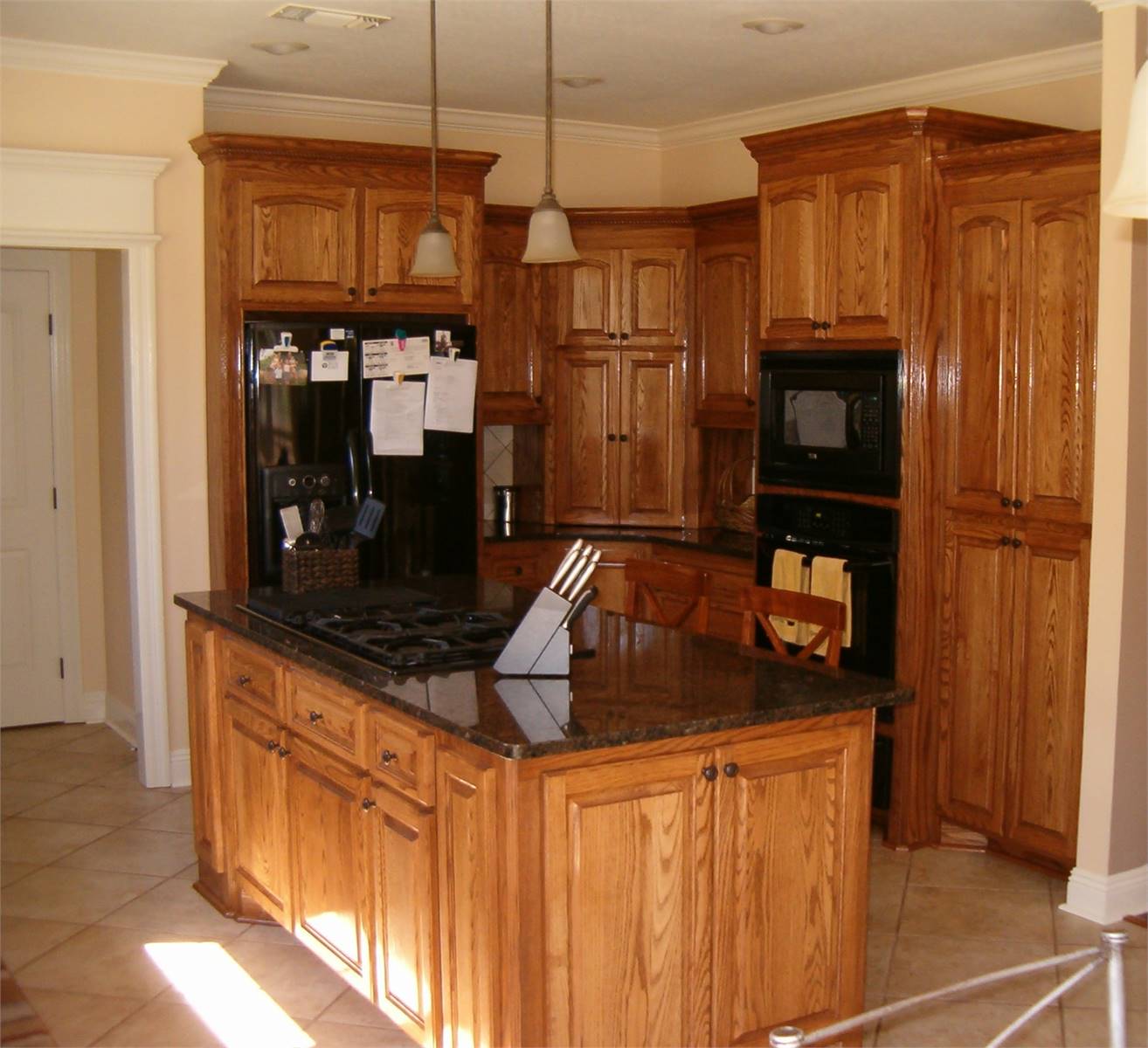

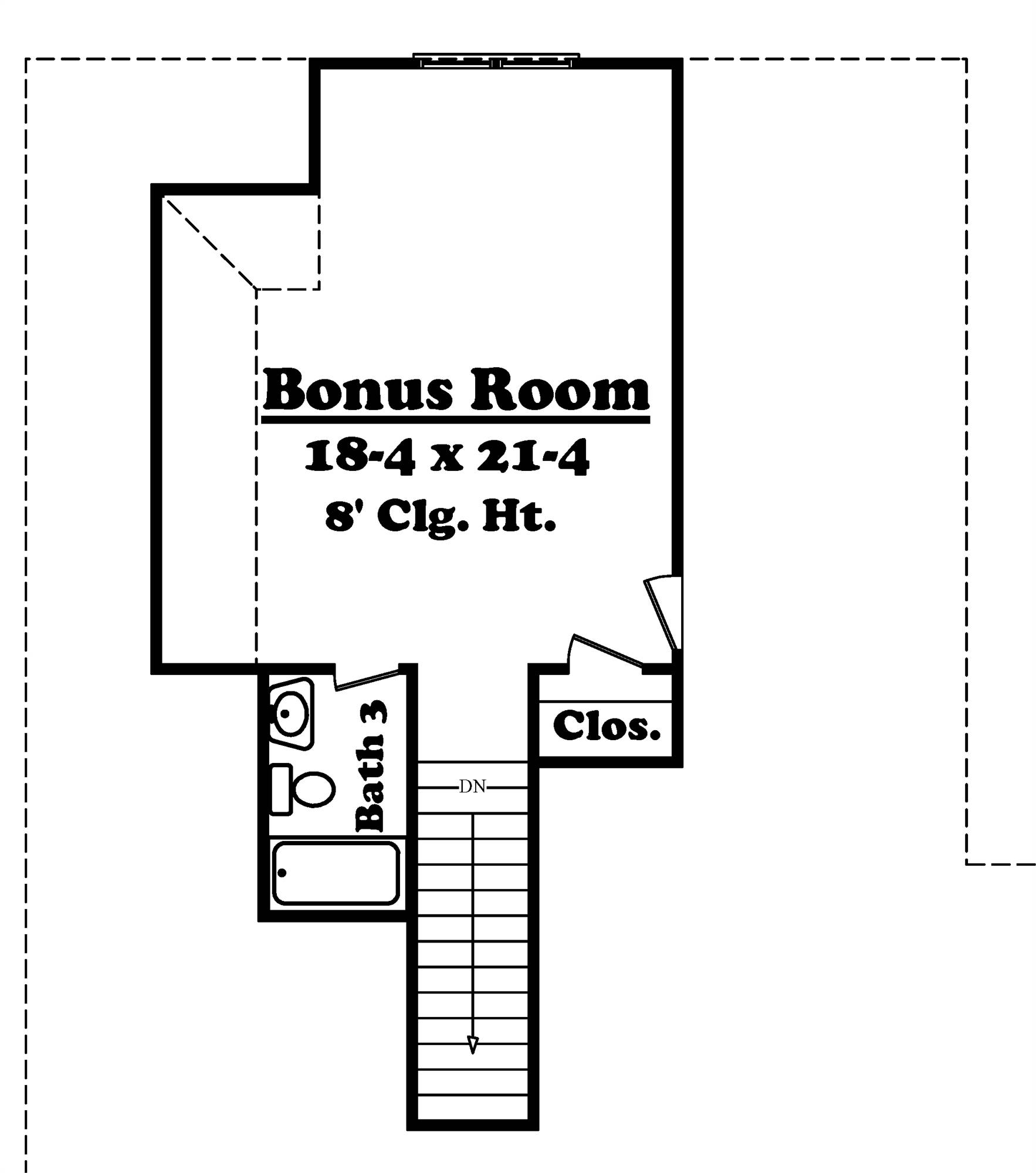

With 2,800 heated square feet, this comfortable family home provides 4 bedrooms in a split layout that balances privacy and togetherness. The great room anchors the open floor plan and connects smoothly to the dining area and the U-shaped kitchen, where a kitchen island, walk-in pantry, and breakfast nook create a natural place for gathering. The main floor primary suite features a spacious walk-in closet and a relaxing bath with a separate tub and shower. A home office, mud room, and first-floor laundry make daily routines easier while adding practical convenience. The rear side-entry garage keeps the front of the home uncluttered and offers easy access to interior spaces. A versatile bonus room upstairs expands the home’s possibilities for recreation or quiet projects. Warm porches and thoughtfully designed living areas make this plan a comforting place for family life to unfold.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,445
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,695
Digital plans plus 5 printed sets

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $2,145
Digital plans including unlimited build license

CAD + PDF Unlimited Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $2,545
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1445
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,800 Sq. Ft.
Main Level:
2,800 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
70' 8"
Width:
82' 8"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
644 Sq. Ft.
Garage:
82 Sq. Ft.
Storage:
459 Sq. Ft.
Porch:
259 Sq. Ft.
Front Porch:
200 Sq. Ft.
Rear Porch:
533 Sq. Ft.
Bonus Room:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
French Country
Ranch
Southern
Traditional
Collections
Kitchens
Louisiana Style
Primary Suites
Split Bedroom
Foundation

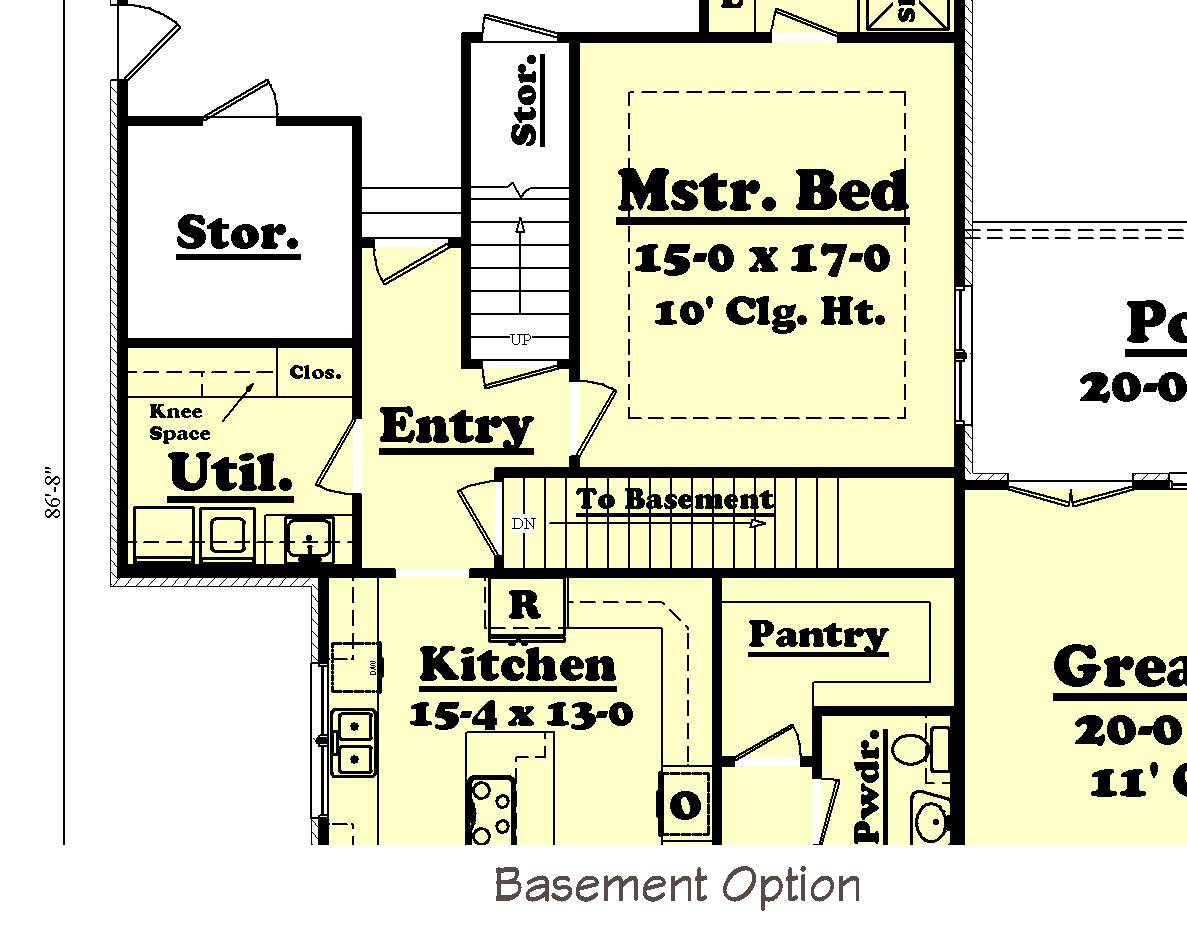

Basement
Crawl Space
Slab
Walkout Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Insulation (R)
House And Ceiling Heights
9
First Floor Ceiling:
26' 5"
Maximum House Height:
Key Features
Attached
Bonus Room
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Fireplace
Foyer
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Mud Room
Nook / Breakfast Area
Pantry
Separate Tub and Shower
Side-entry
Split Bedrooms
Storage Space
Suited for corner lot
U-Shaped
Walk-in Closet
Walk-in Pantry
