House Plan: DFD-11683

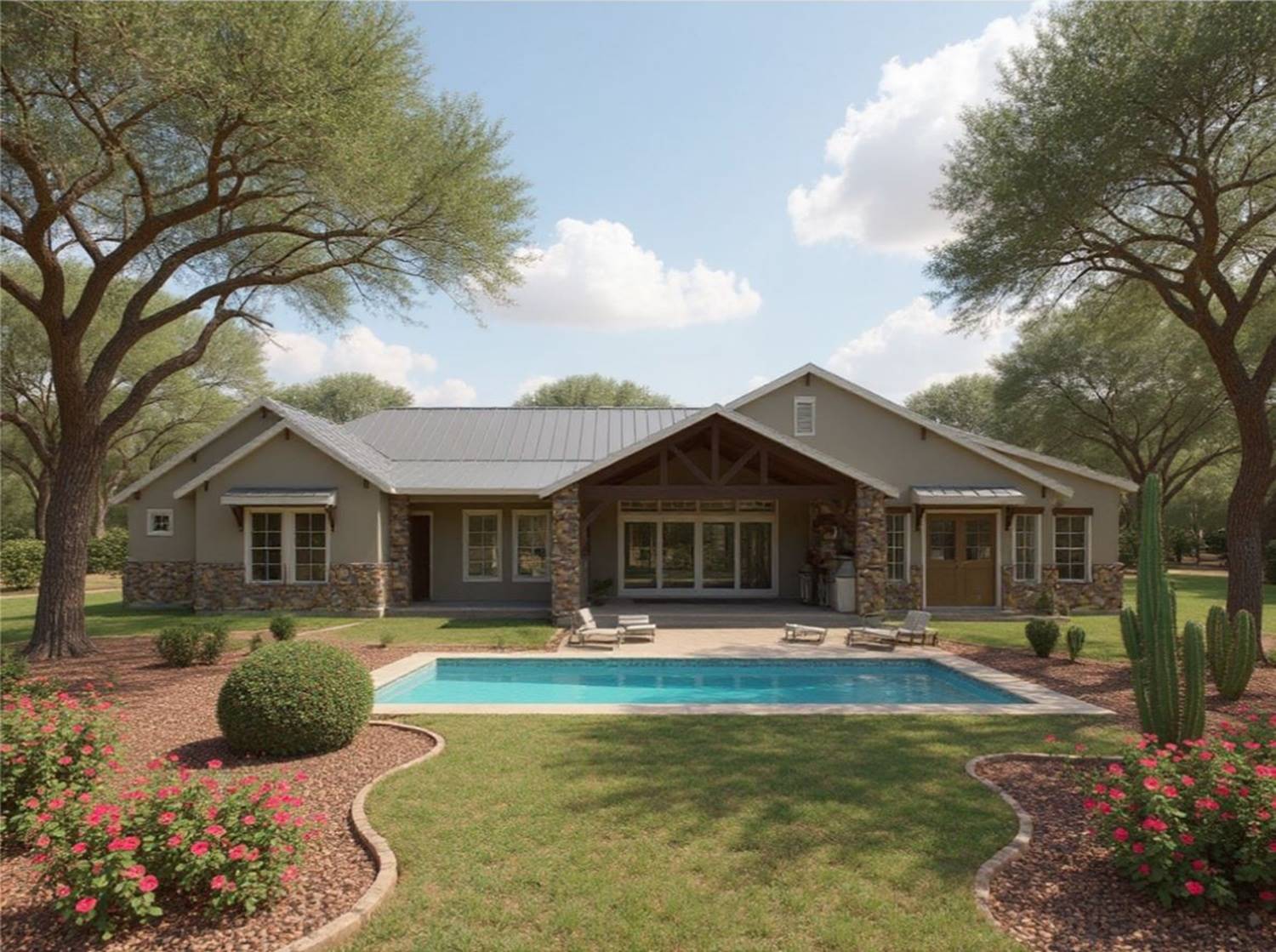

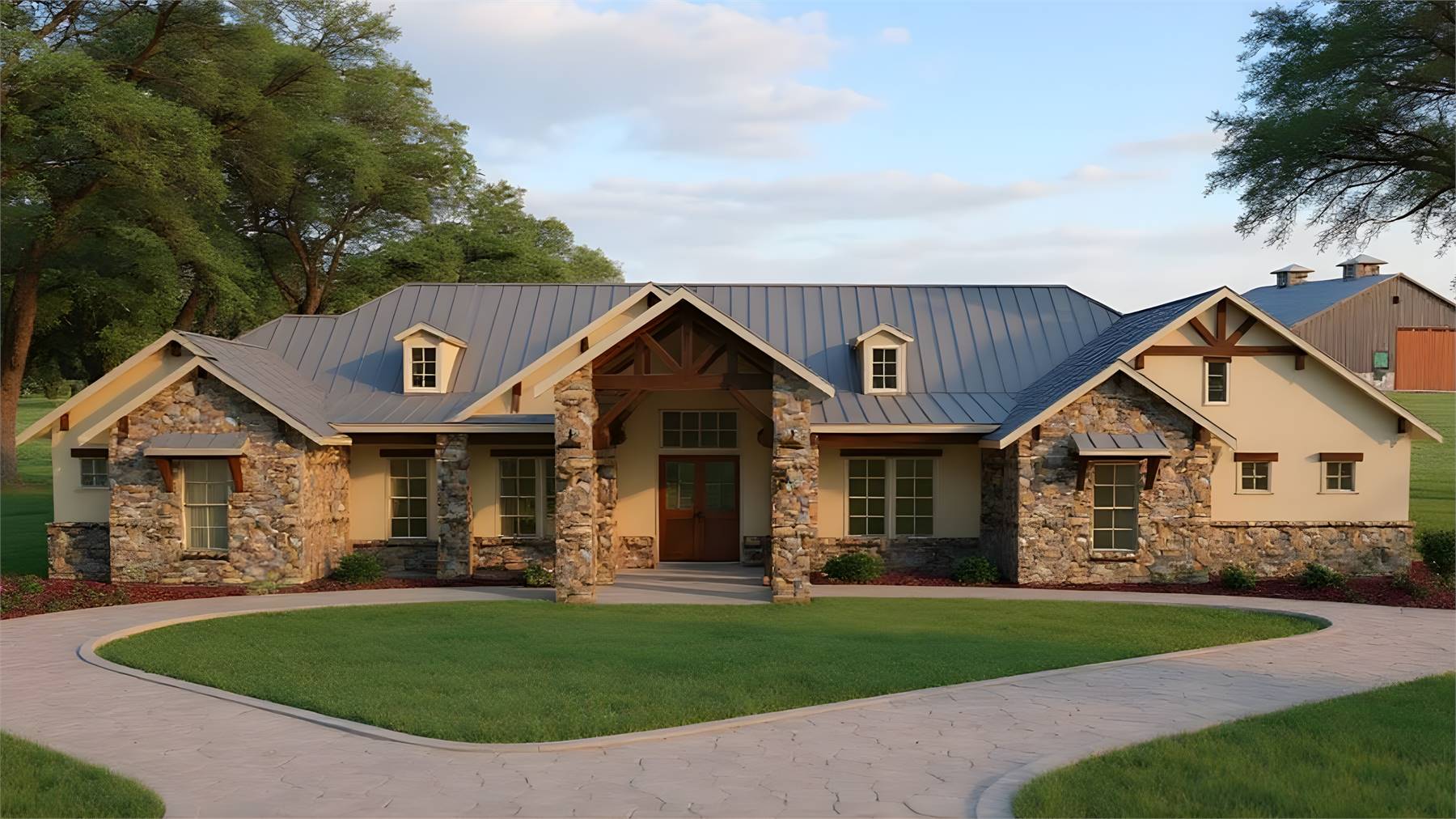

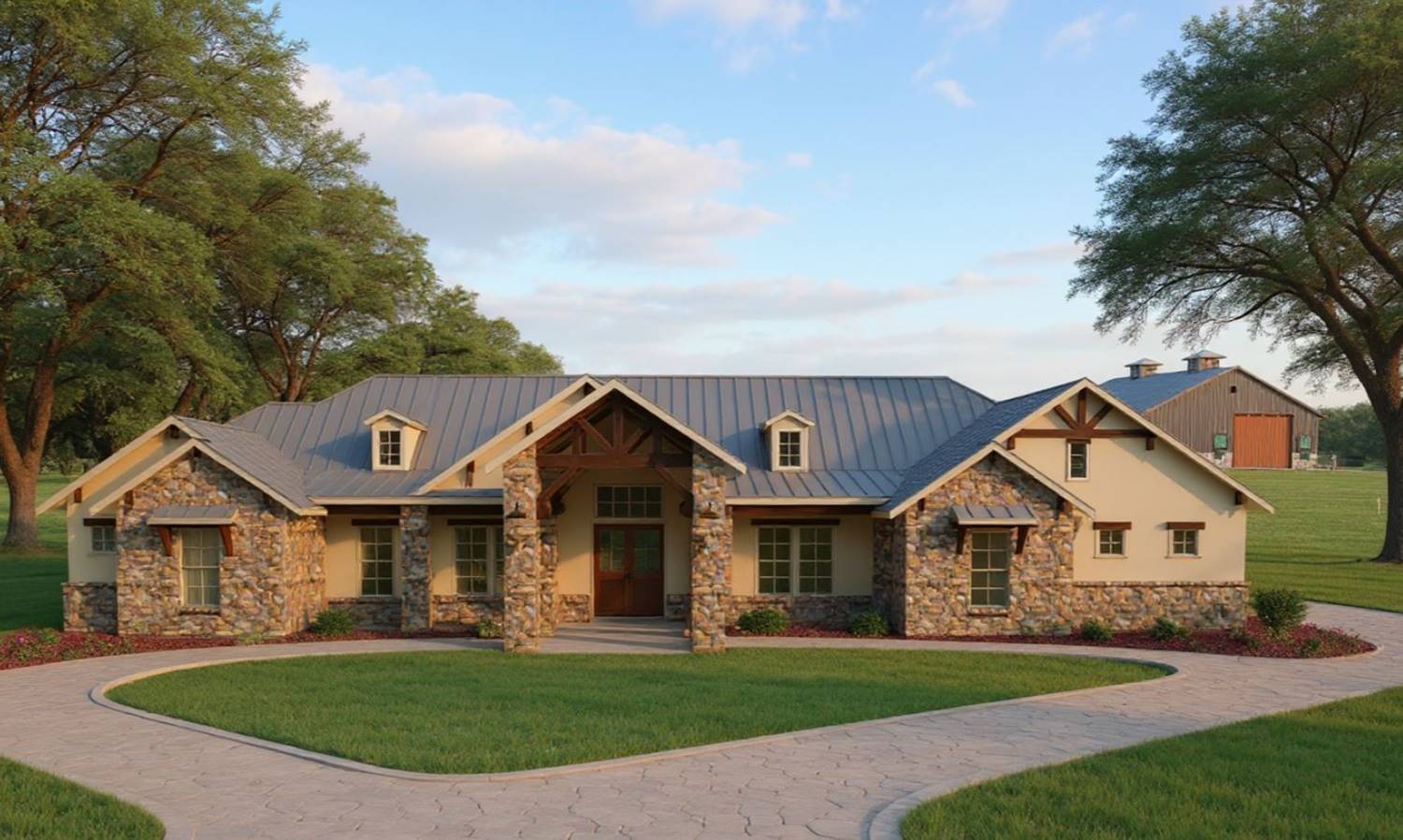

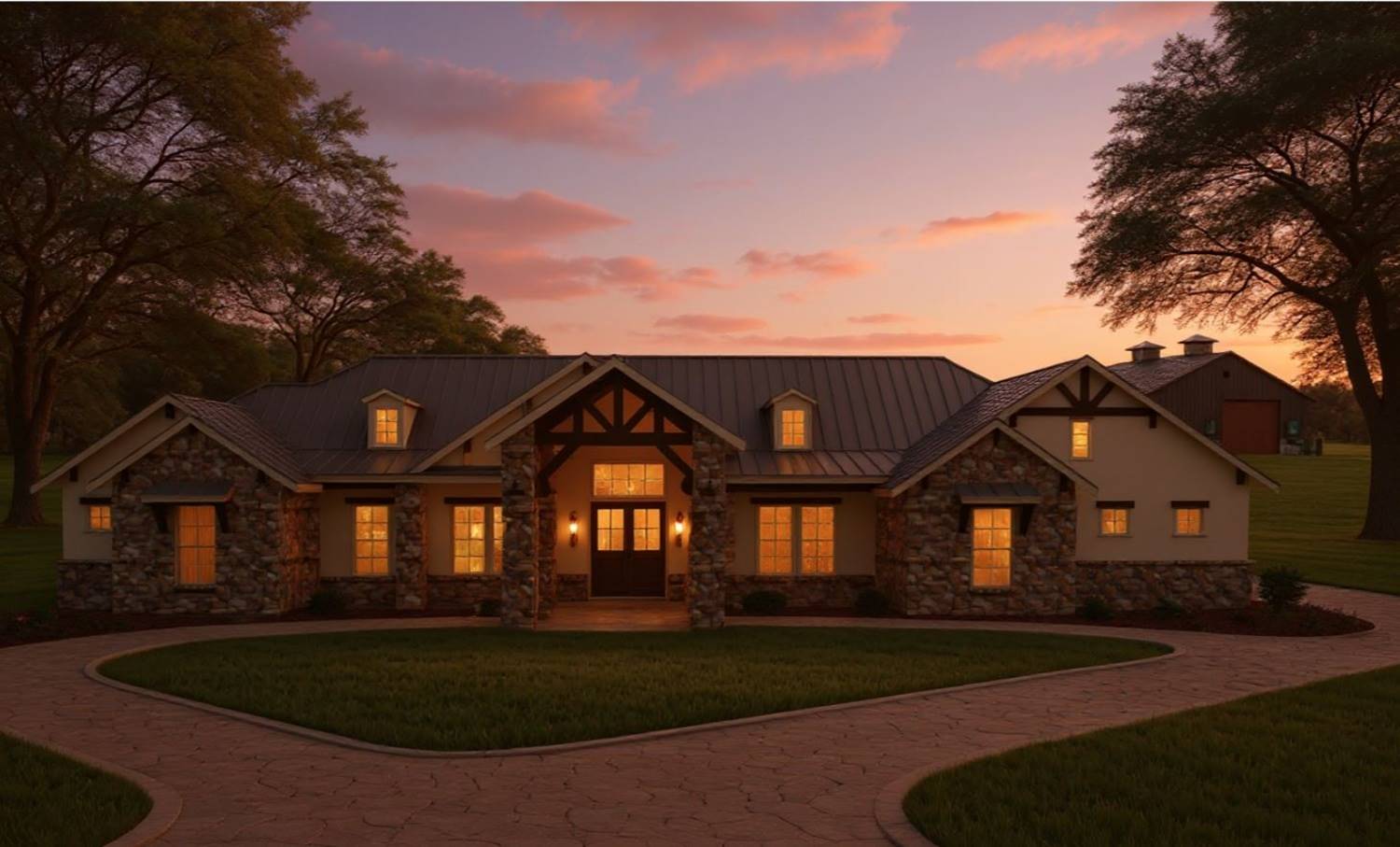

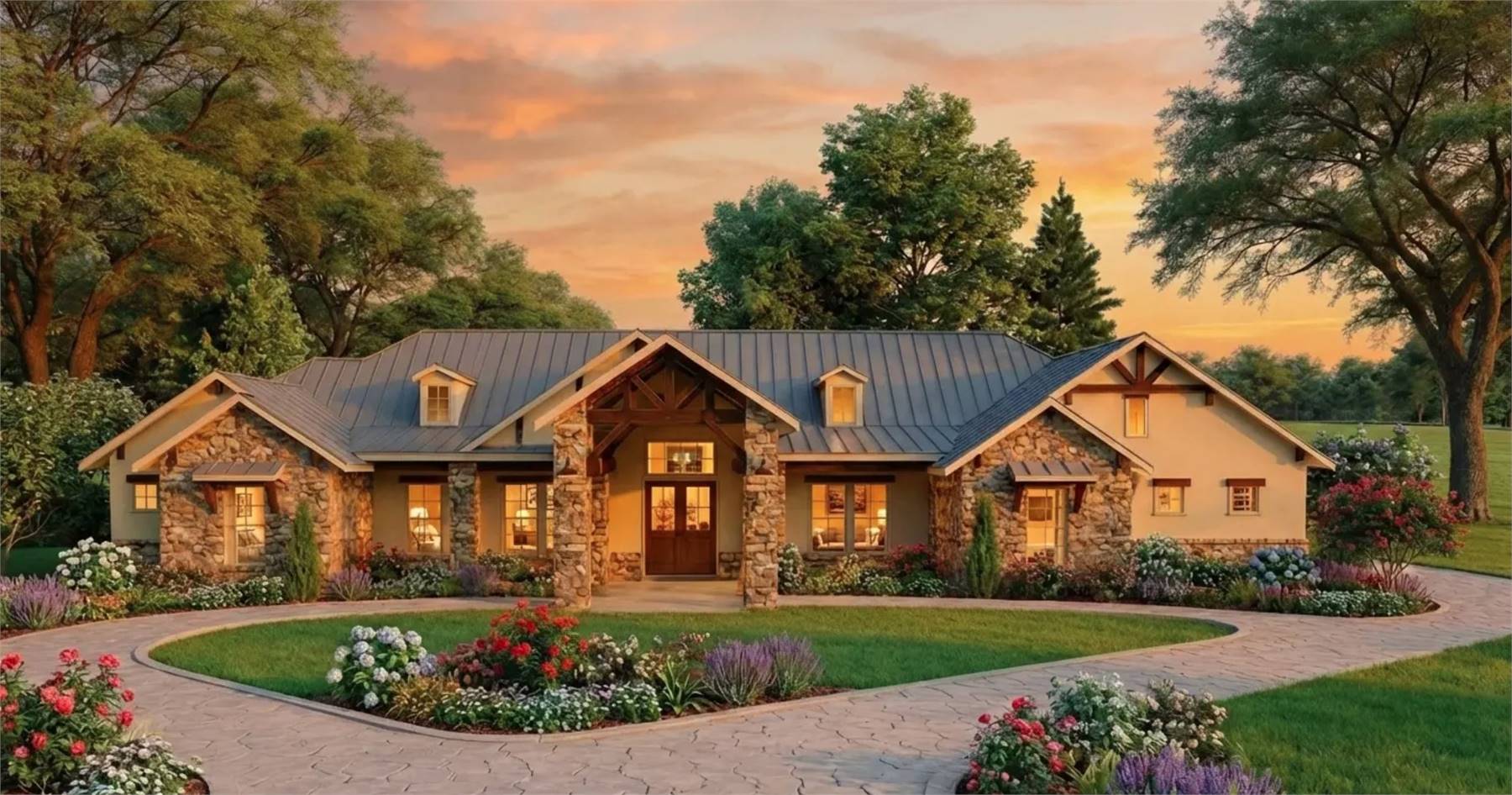

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
4,383
BEDS
4
BATHS
4.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $1,596.00
For questions and help, live chat, email or call us at 877-895-5299

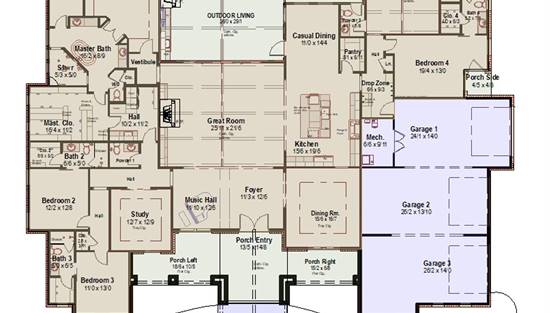

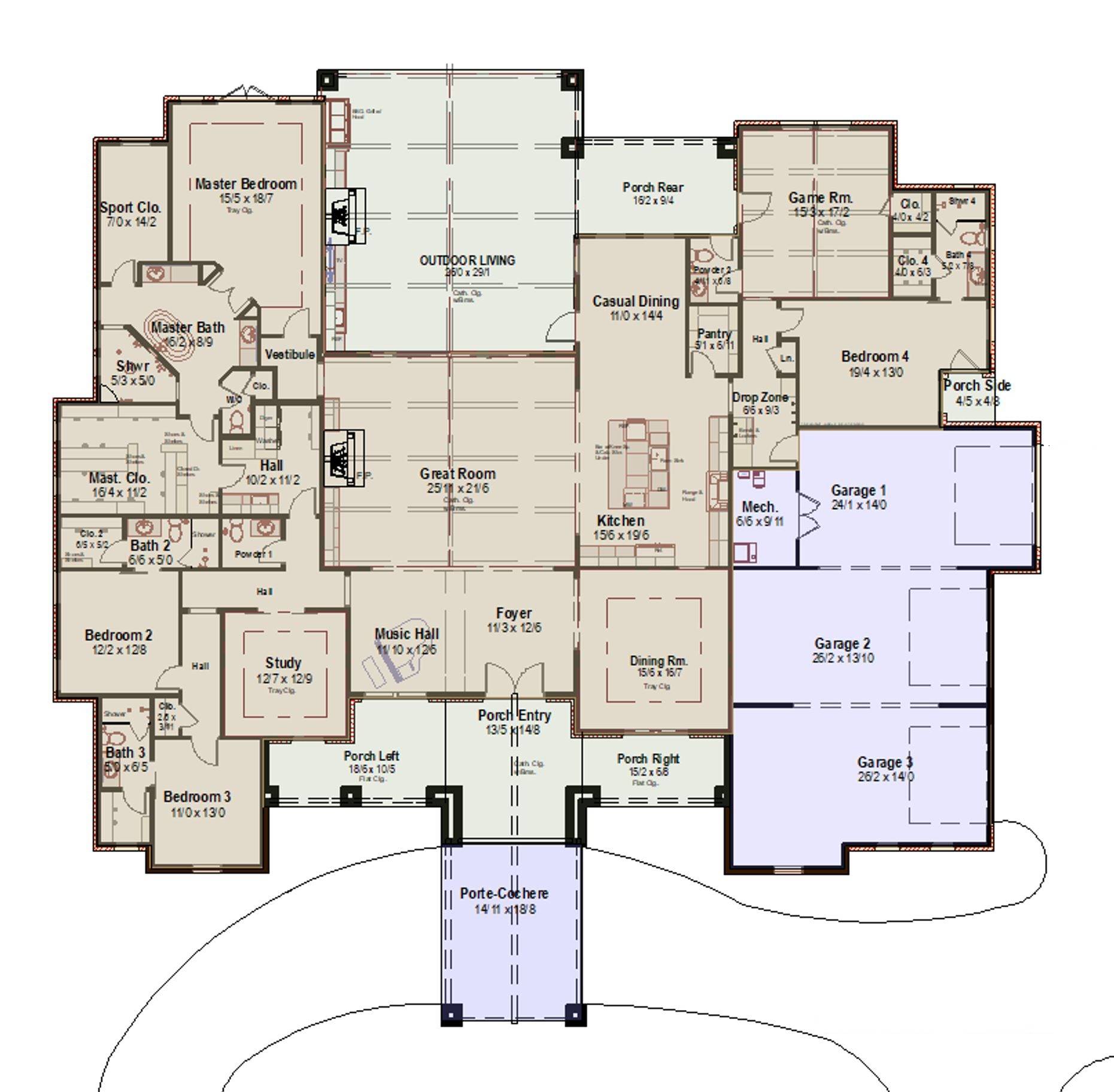

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11683:
If you're in the market for a luxurious Southwestern home and would love a one-story layout, give House Plan 11683 a try. This ranch boasts a sprawling floor plan of 4,383 square feet with four bedroom suites and two powder rooms among its other features. Open-concept living with an island kitchen and a cathedral vaulted great room that extends to the outdoor living area makes up the heart of the home. There's also a formal dining room, a music area by the foyer, a study, and a game room. The bedrooms include a luxurious five-piece primary suite and two three-piece suites in separate hallways on the same side of the house, where they share convenient access to the centrally located laundry room. The final bedroom on the opposite side of the house would make a great guest suite because it also has exterior access. A three-car side-entry garage rounds out the design, but don't miss the front porte cochere, either!
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $1,450
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,995
Most recommended package

CAD + PDF Single Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $3,500
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1995
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
4,383 Sq. Ft.
Main Level:
4,383 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
2
Half Baths:
General House Information
1
Number of Stories:
101' 11"
Width:
98' 9"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
1219 Sq. Ft.
Garage:
1438 Sq. Ft.
Porch:
503 Sq. Ft.
Front Porch:
935 Sq. Ft.
Rear Porch:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Country
Mediterranean
Ranch
Southwest
Collections
Kitchens
Luxury
Primary Suites
Mountain
Open Floor Plan
OtherCustom
Outdoor Living
Split Bedroom
Texas
Foundation
Crawl Space
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
4/12
Secondary:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
23' 2"
Maximum House Height:
Key Features
Attached
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Fireplace
Foyer
Great Room
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Outdoor Kitchen
Outdoor Living Space
Porte-cochere
Rec Room
Separate Tub and Shower
Side-entry
Split Bedrooms
Storage Space
Suited for corner lot
Suited for view lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
