House Plan: DFD-11770

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
4,423
BEDS
4
BATHS
2.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $1,596.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11770:

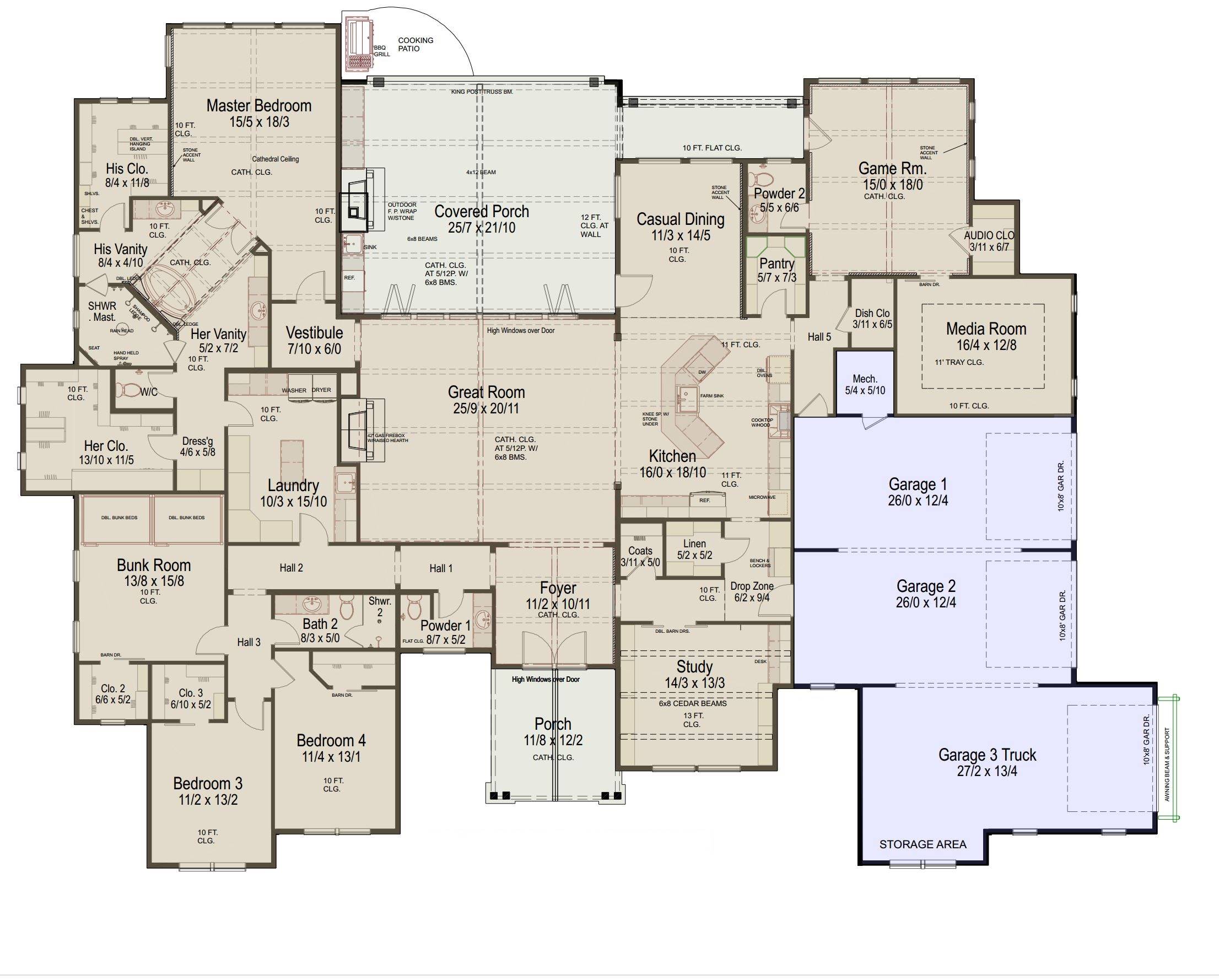

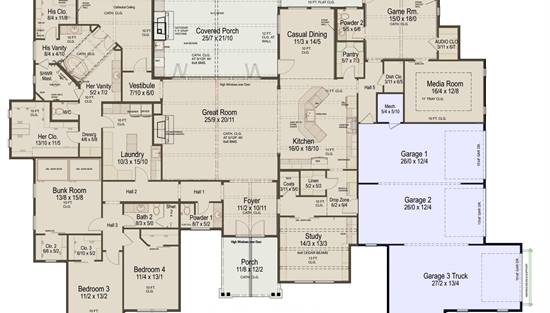

House Plan 11770 is here to impress anybody looking for a luxury one-story lake home! This sprawling design boasts 4,423 square feet with four bedrooms, two full bathrooms, and two half bathrooms in a thoughtful layout. The floor plan places all the bedrooms on one side, but they're split into separate hallways for privacy. The primary suite in back has an amazing five-piece bath, his and her walk-in closets, and access to the centrally located laundry room that comes out on the other side to the front hallway. Here, you'll find three bedrooms with a hall bath and a powder room. One of the bedrooms has built-in bunk beds to maximize sleeping quarters! The common areas in his home include a study off the foyer, game and media rooms in back, and the central great room with an island kitchen and foldaway patio doors that connect to the rear porch. If you want vaulted ceilings, this home won't disappoint--it has cathedral vaulted ceilings over the foyer, great room, rear porch, primary bedroom, and game room!
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $1,450
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,995
Most recommended package

CAD + PDF Single Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $3,500
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1995
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
4,423 Sq. Ft.
Main Level:
4,423 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
2
Half Baths:
General House Information
1
Number of Stories:
106' 9"
Width:
86' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
1127 Sq. Ft.
Garage:
826 Sq. Ft.
Porch:
150 Sq. Ft.
Front Porch:
676 Sq. Ft.
Rear Porch:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Country
Lake
Ranch
Southwest
Traditional
Collections
Kitchens
Luxury
Primary Suites
Mountain
Open Floor Plan
OtherCustom
Outdoor Living
Split Bedroom
Foundation
Basement
Crawl Space
Daylight Basement
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
7/12
Primary:
5/12
Secondary:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
27' 0"
Maximum House Height:
Key Features
Attached
Country Kitchen
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Fireplace
Foyer
Great Room
His and Hers Primary Closets
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
L-Shaped
Primary Bdrm Main Floor
Mud Room
Nook / Breakfast Area
Open Floor Plan
Outdoor Kitchen
Outdoor Living Space
Rec Room
Separate Tub and Shower
Side-entry
Split Bedrooms
Storage Space
Suited for corner lot
Suited for view lot
Vaulted Ceilings
Vaulted Foyer
Vaulted Great Room/Living
Walk-in Closet
Walk-in Pantry
