House Plan: DFD-11836

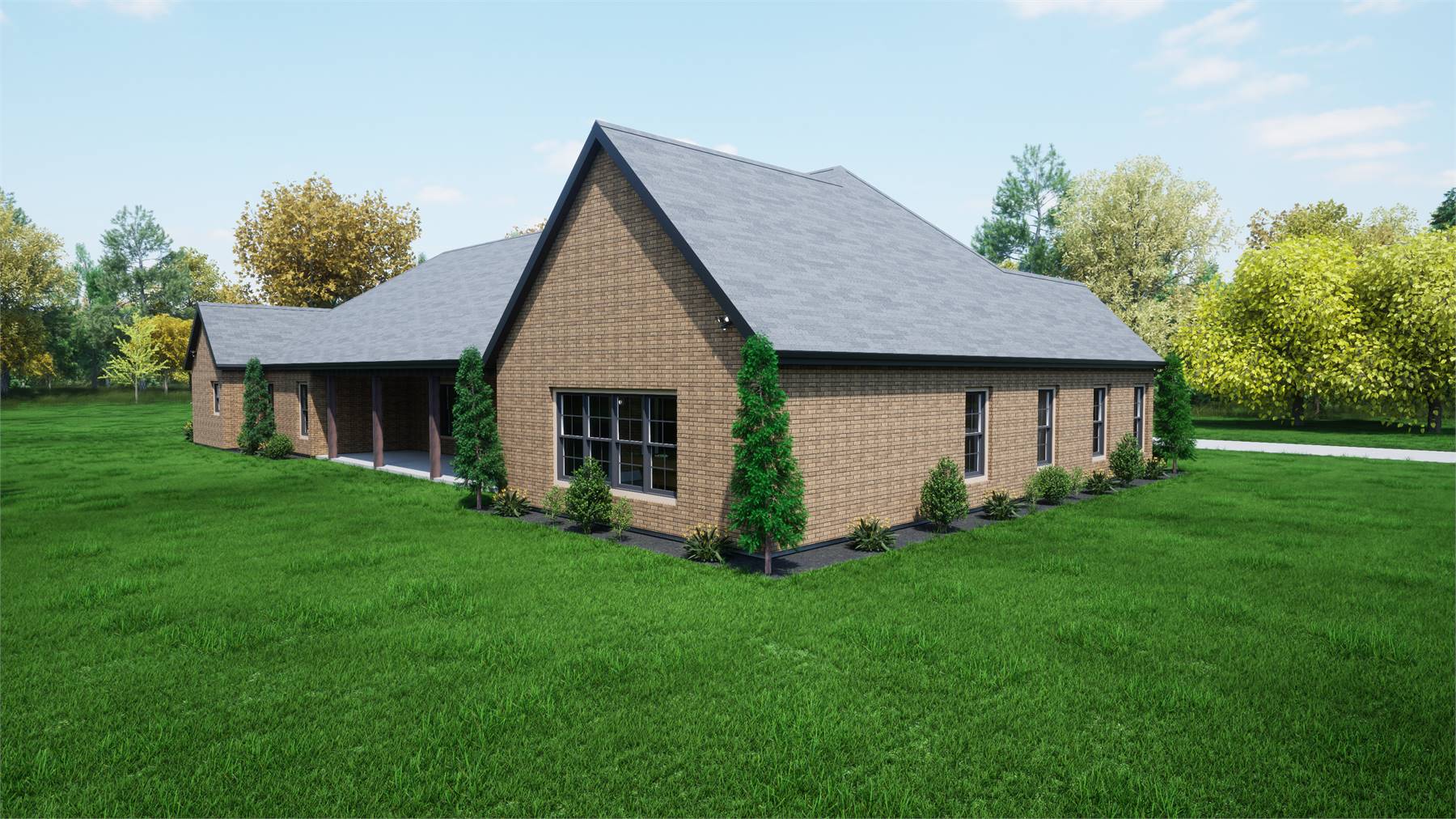

See All 17 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,786
BEDS
4
BATHS
4.5
STORIES
1.5
CARS
3
HOUSE PLANS SALE
START AT  $1,036.00
For questions and help, live chat, email or call us at 877-895-5299

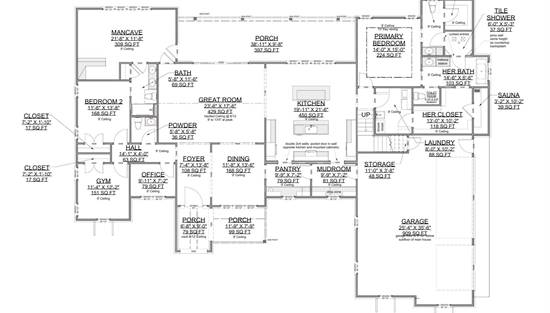

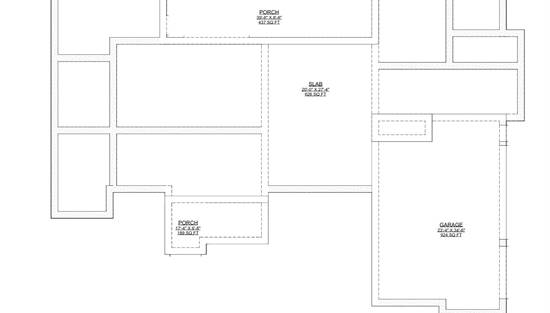

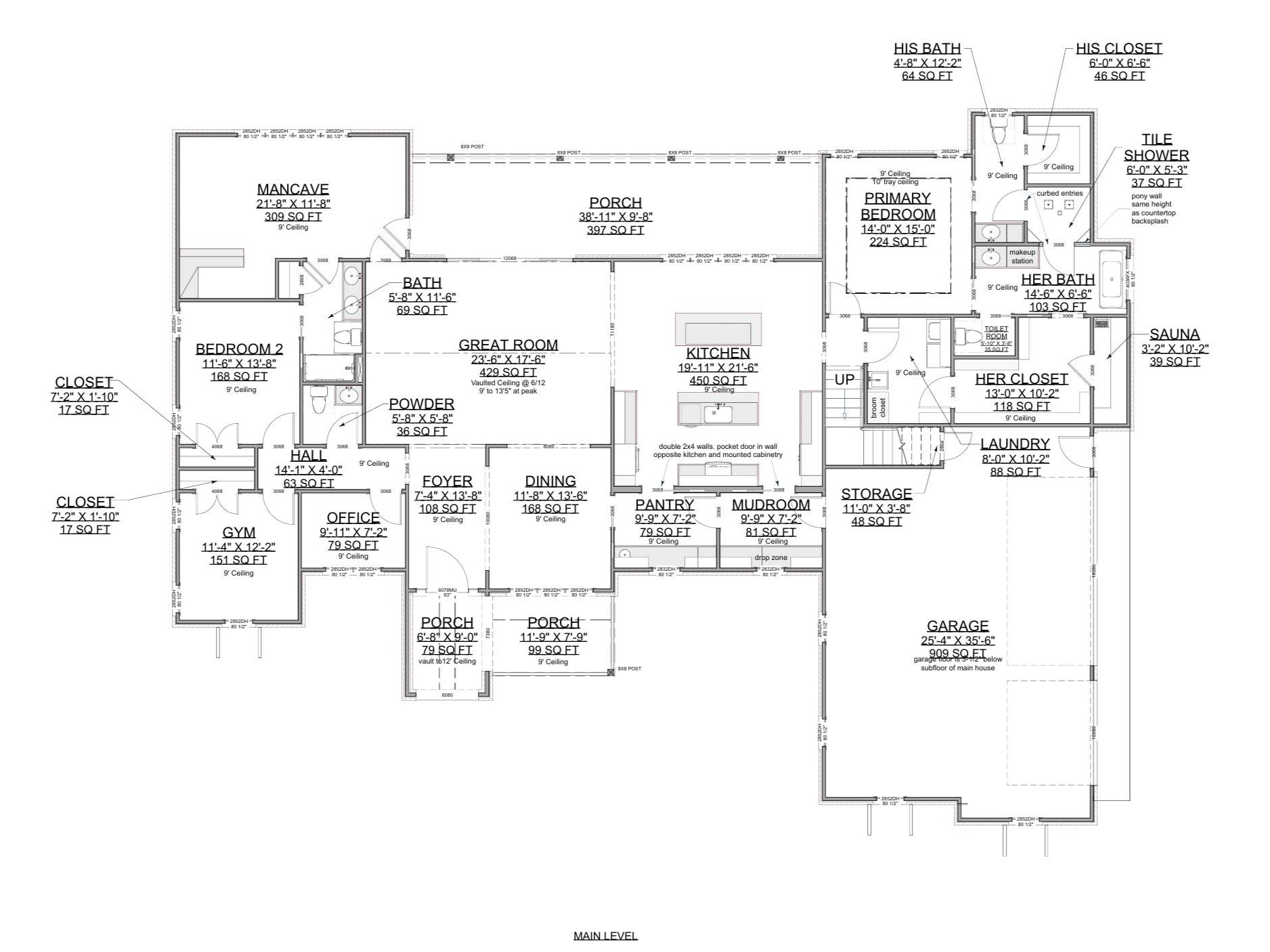

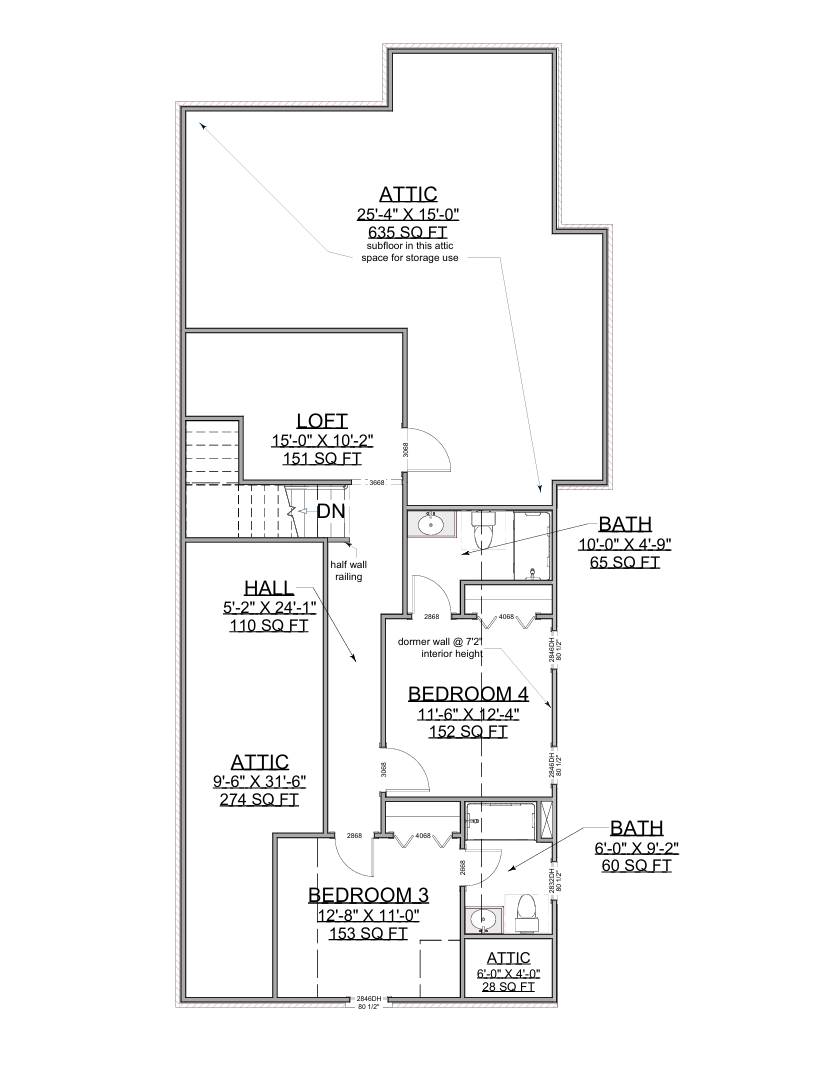

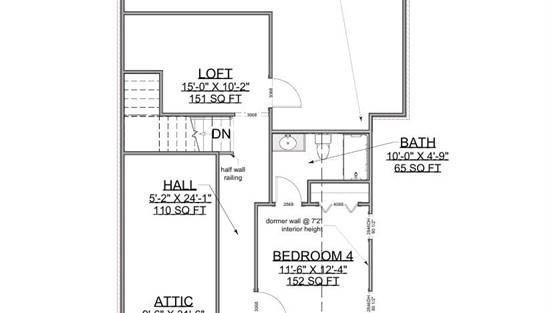

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 11836:

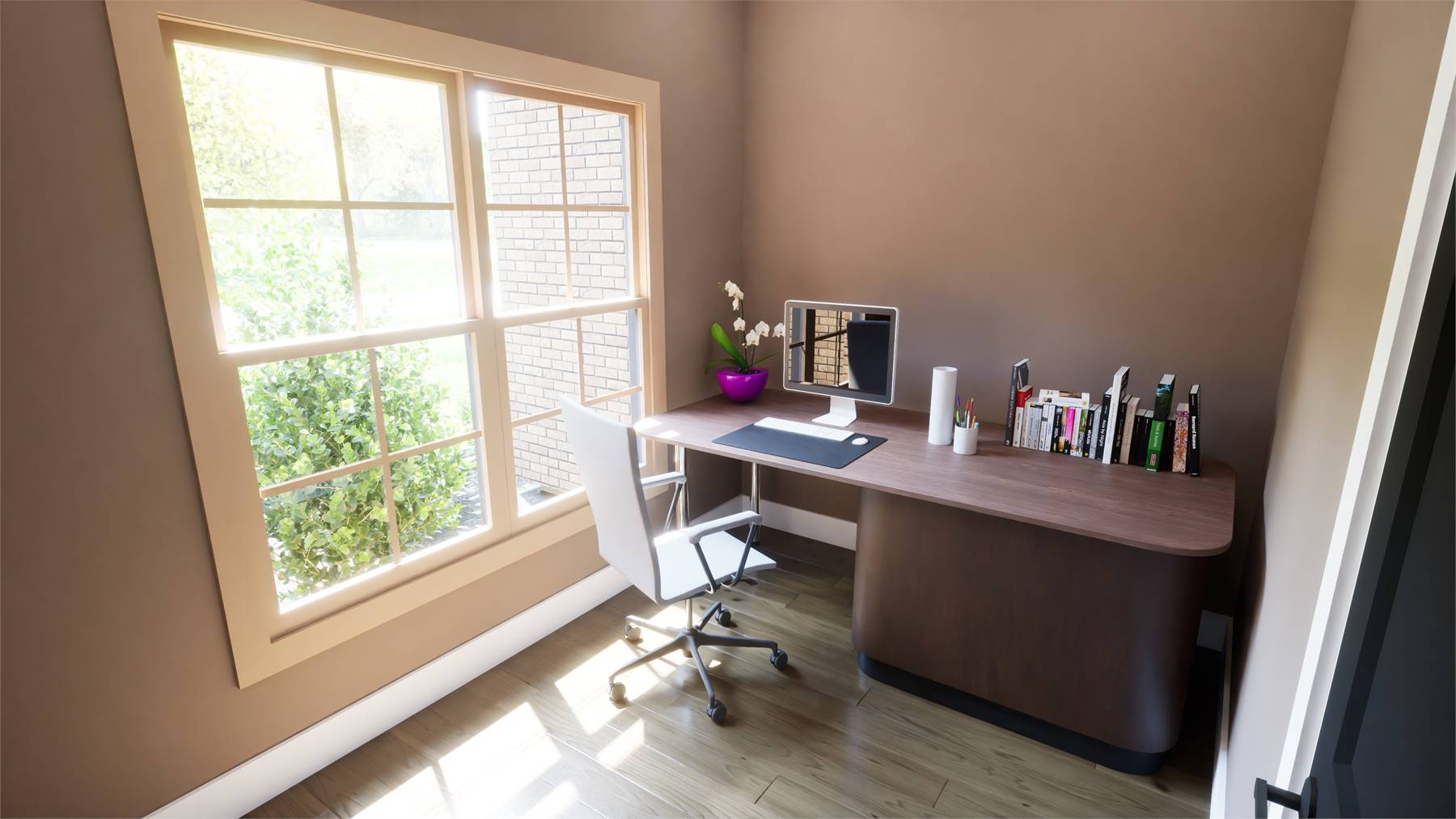

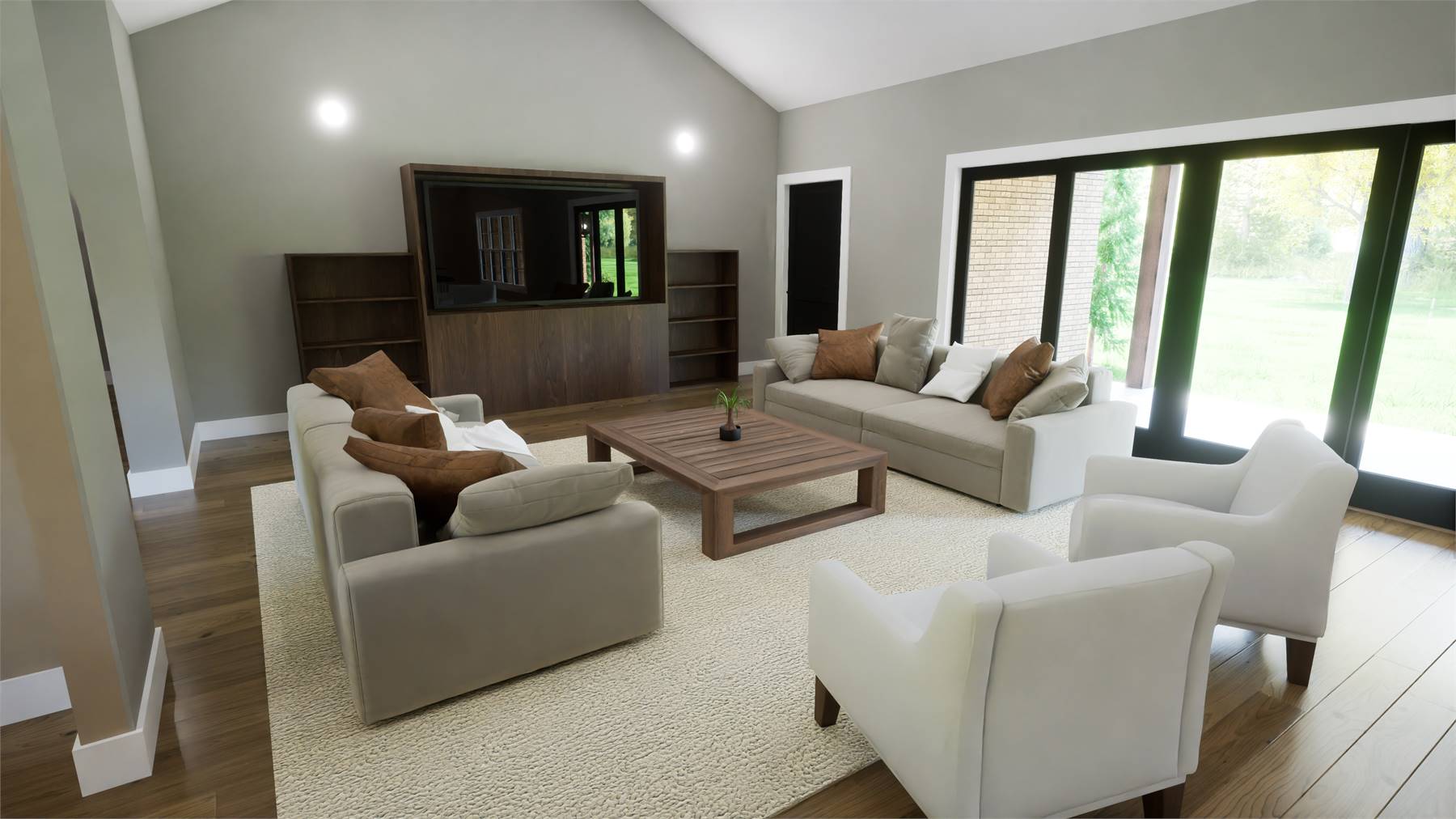

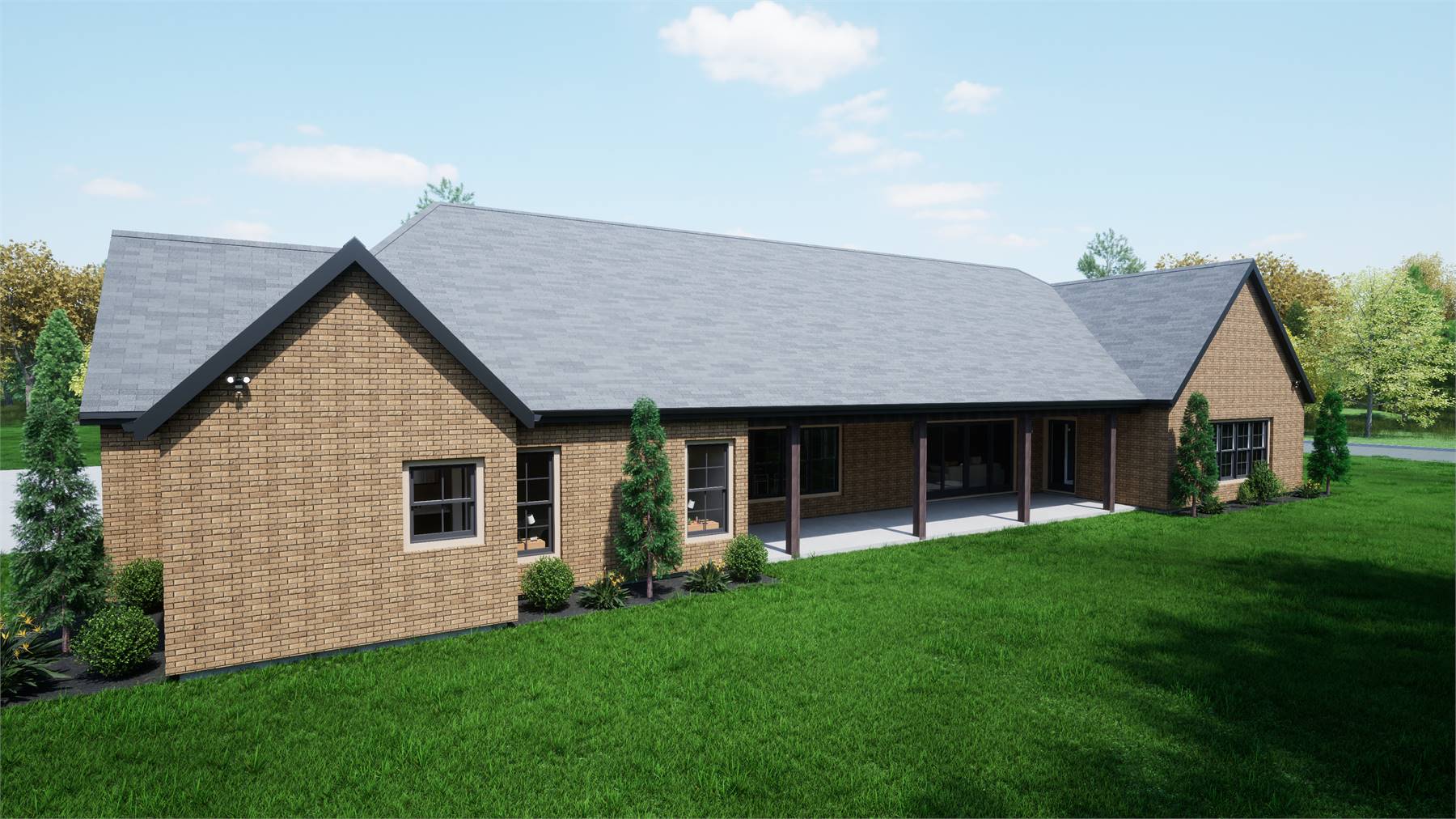

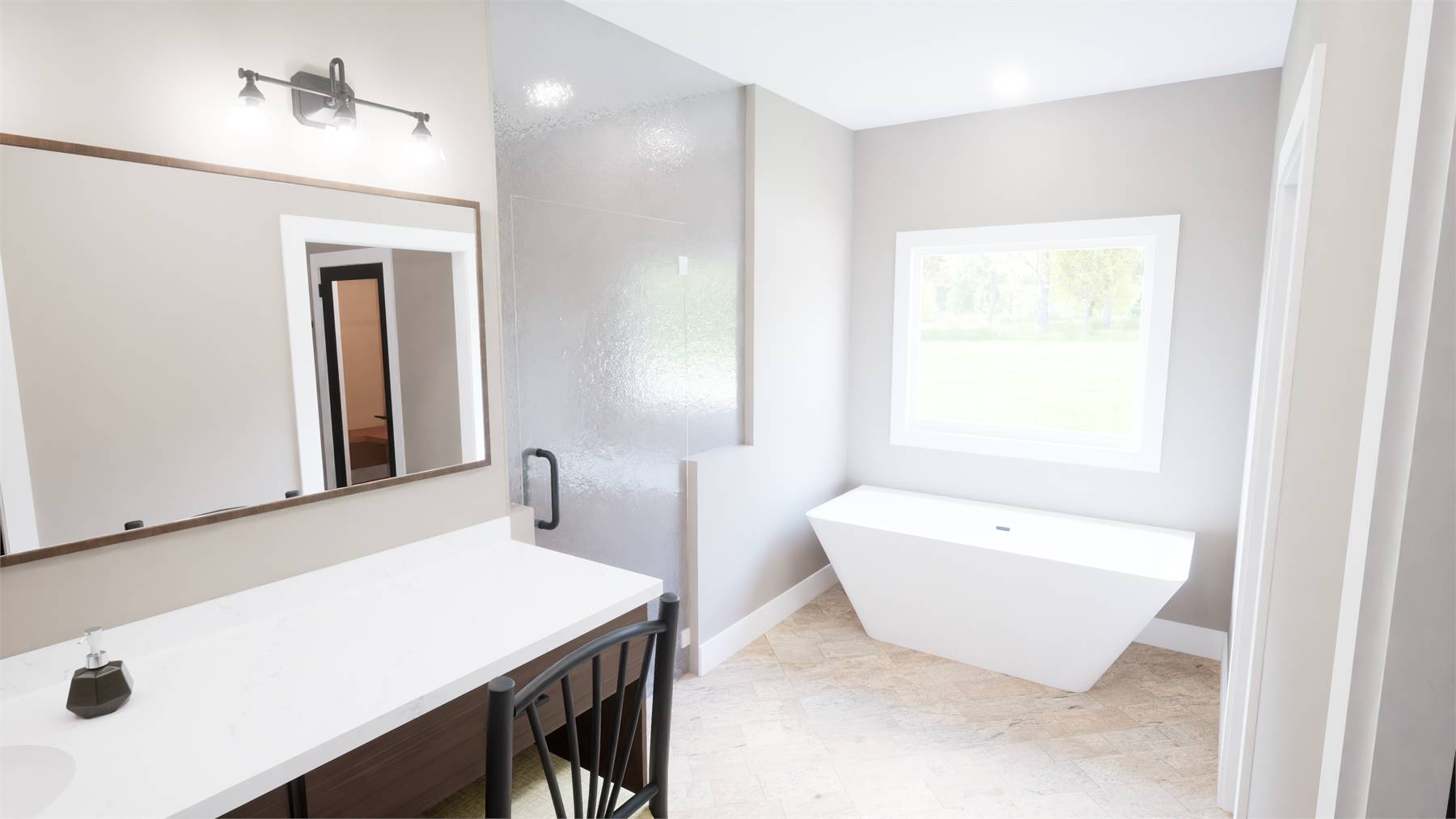

This charming 3,786 square foot plan blends comfort, storage, and open design into a layout that supports relaxed family living. The kitchen’s island, peninsula, and butler’s pantry provide functional cooking and prep space while connecting smoothly to the great room, where a vaulted ceiling adds a sense of volume and warmth. The main-floor primary suite features a spacious bath with double vanities and a walk-in closet, while the split-bedroom layout enhances privacy for both family and guests. A welcoming foyer leads into the heart of the home, and nearby spaces such as the exercise room, home office, and rec room offer versatility for work, play, and wellness. The covered front and rear porches, along with the back patio, give you multiple ways to enjoy the outdoors. With its comfortable flow and inviting spaces, this home offers a warm and easygoing setting that suits everyday life beautifully.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,295
Most recommended package

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $1,795
Digital plans including unlimited build license

CAD + PDF Unlimited Build


CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a multi-use building license, granting permission to construct the home an unlimited number of times, along with a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Unlimited Build $2,295
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1295
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,066 Sq. Ft.
Main Level:
720 Sq. Ft.
Upper Level:
3,786 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
1
Half Baths:
General House Information
1.5
Number of Stories:
91' 6"
Width:
68' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
909 Sq. Ft.
Garage:
575 Sq. Ft.
Porch:
178 Sq. Ft.
Front Porch:
397 Sq. Ft.
Rear Porch:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Country
Modern
Southern
Transitional
Collections
Kitchens
Luxury
Primary Suites
Split Bedroom

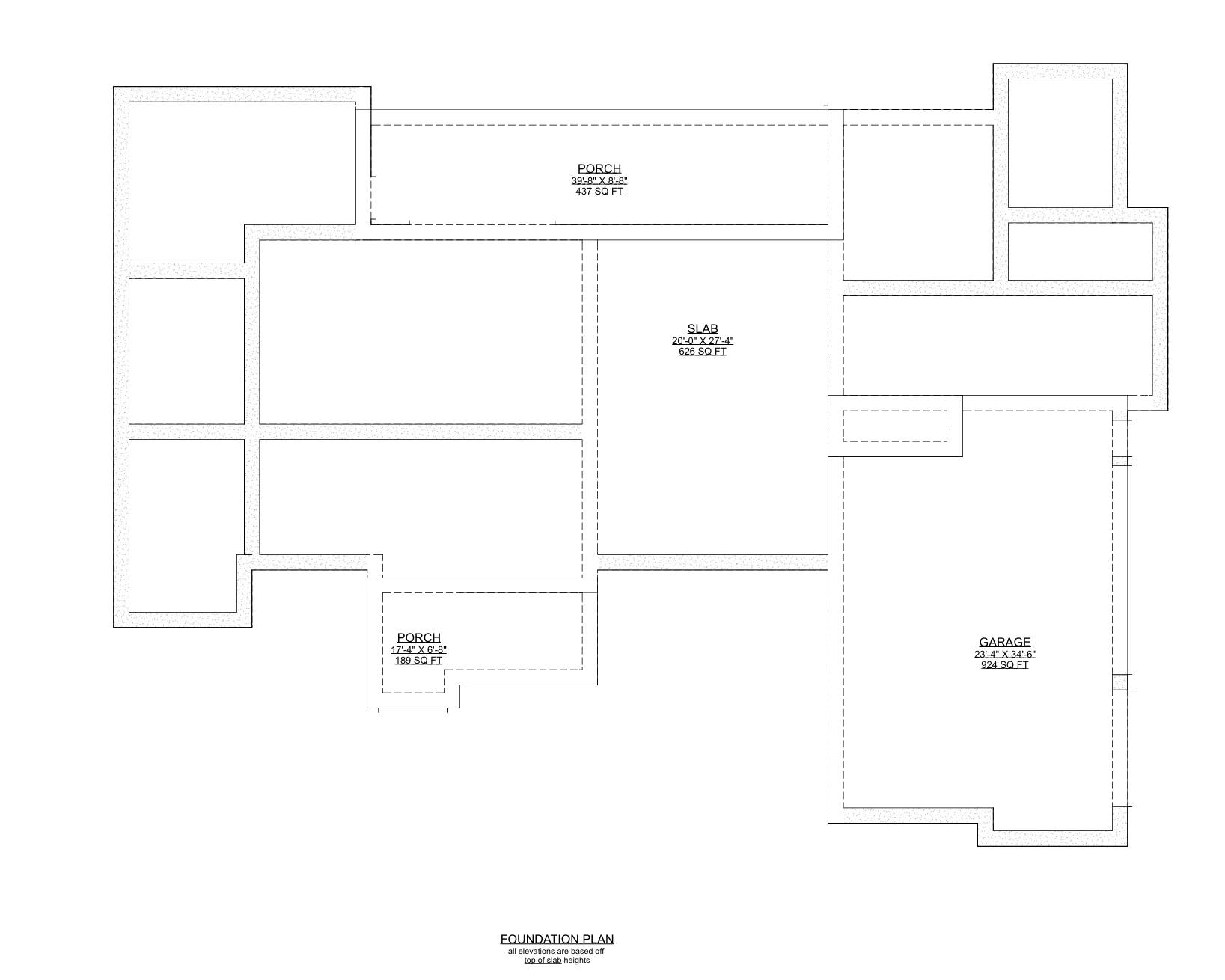

Foundation
Basement
Crawl Space
Daylight Basement
Monolithic Slab
Slab
Stem Wall Slab
Walkout Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
12/12
Secondary:
Insulation (R)
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
22' 0"
Maximum House Height:
Key Features
Attached
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Exercise Room
Foyer
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
L-Shaped
Primary Bdrm Main Floor
Mud Room
Peninsula / Eating Bar
Rec Room
Separate Tub and Shower
Side-entry
Split Bedrooms
Storage Space
Suited for corner lot
Vaulted Great Room/Living
Walk-in Closet
