House Plan: DFD-1740

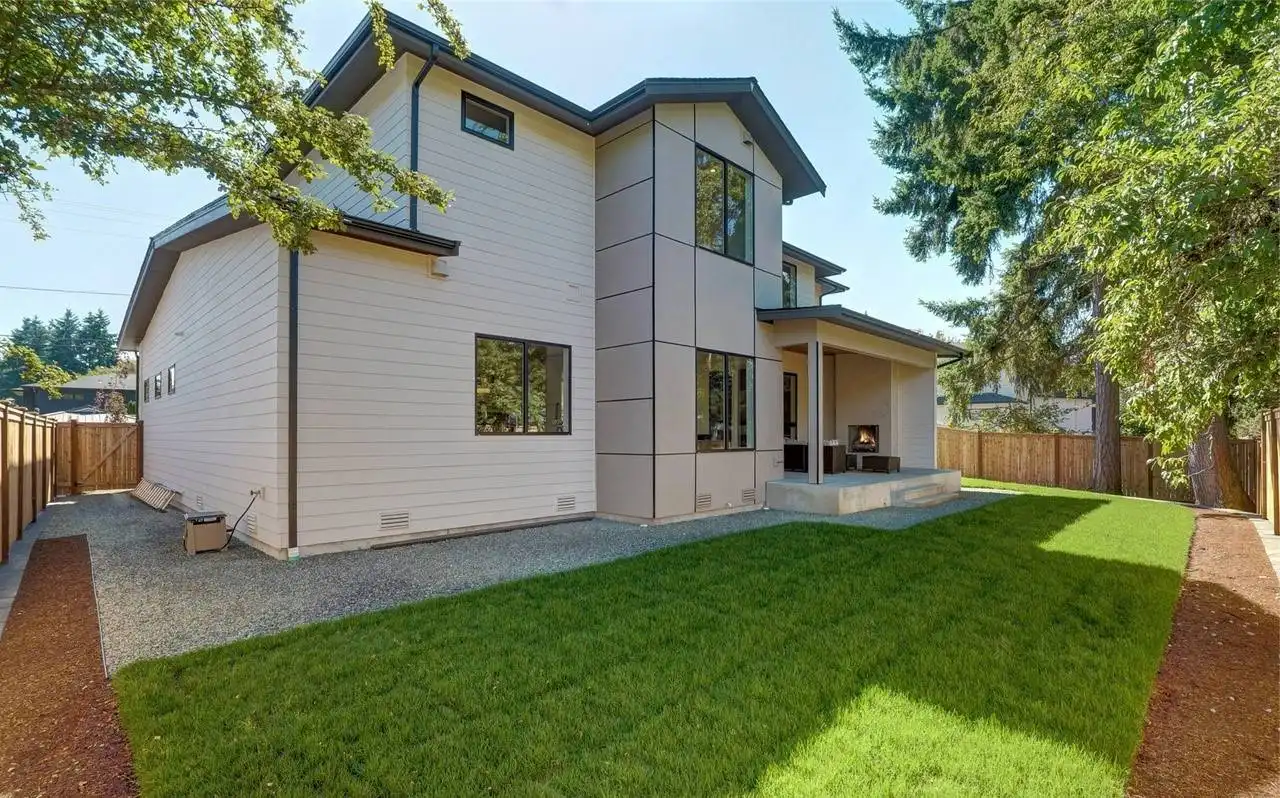

See All 31 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
4,054
BEDS
4
BATHS
4.5
STORIES
2
CARS
2
PLANS FROM $2,027
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 1740:

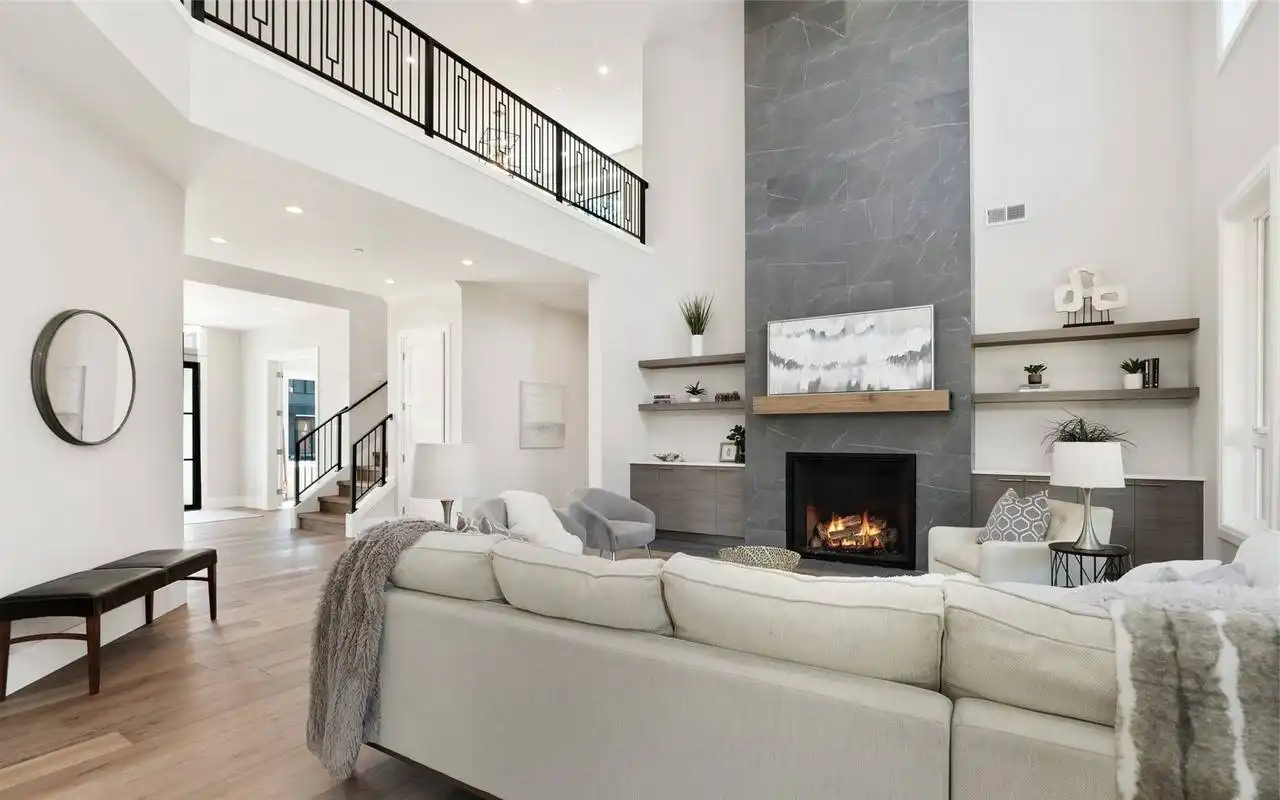

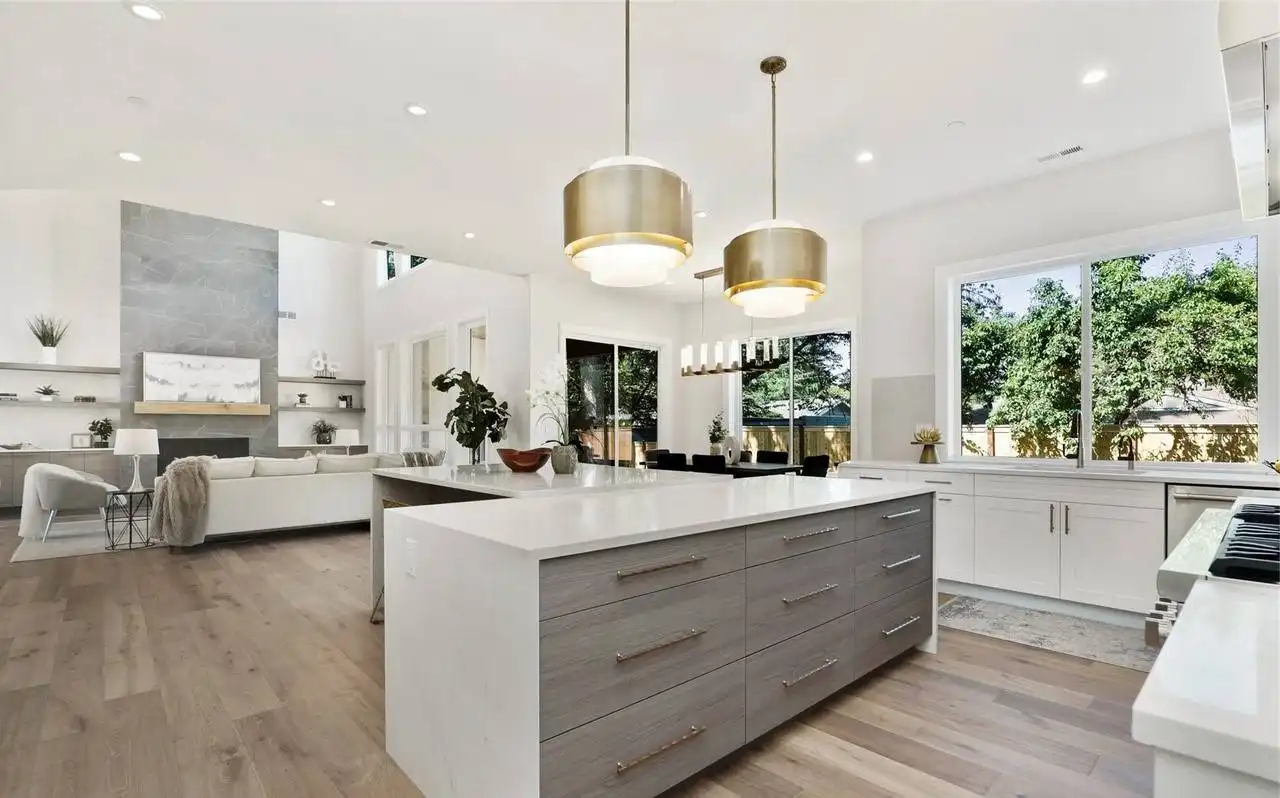

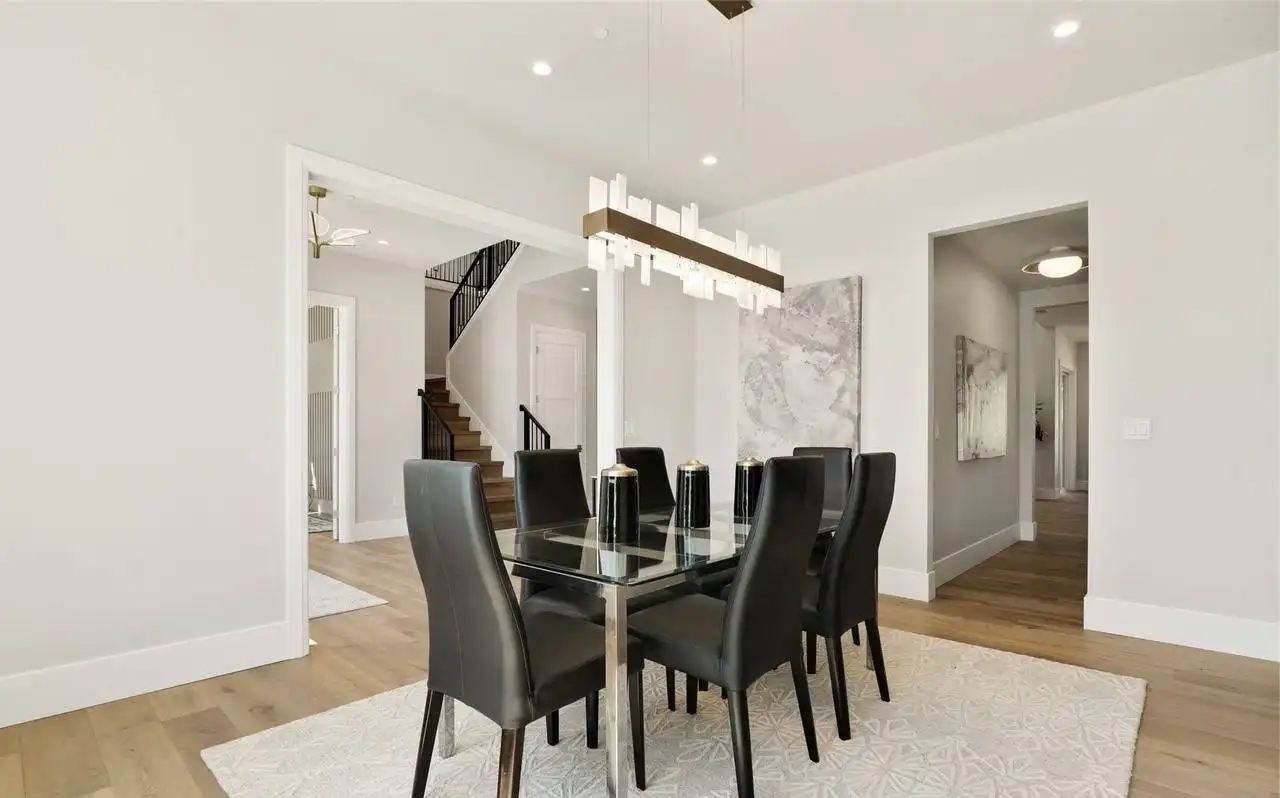

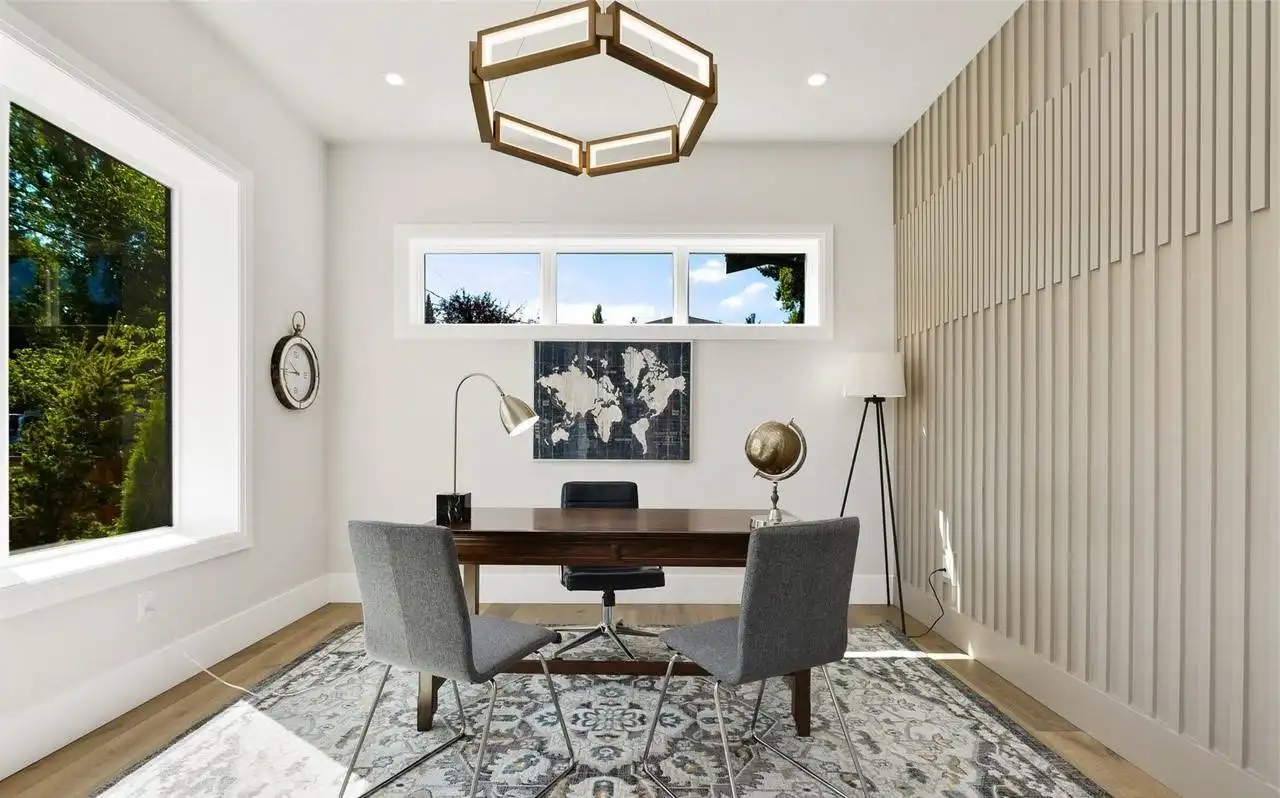

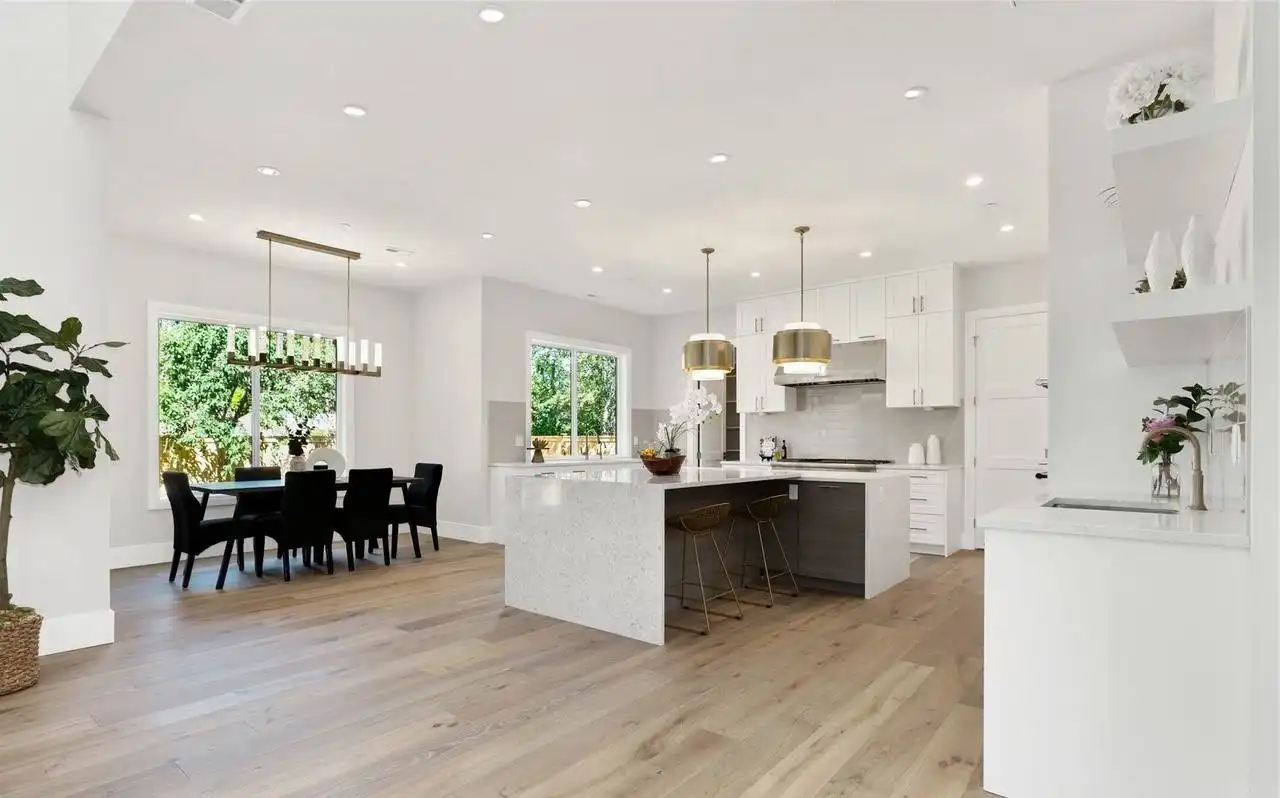

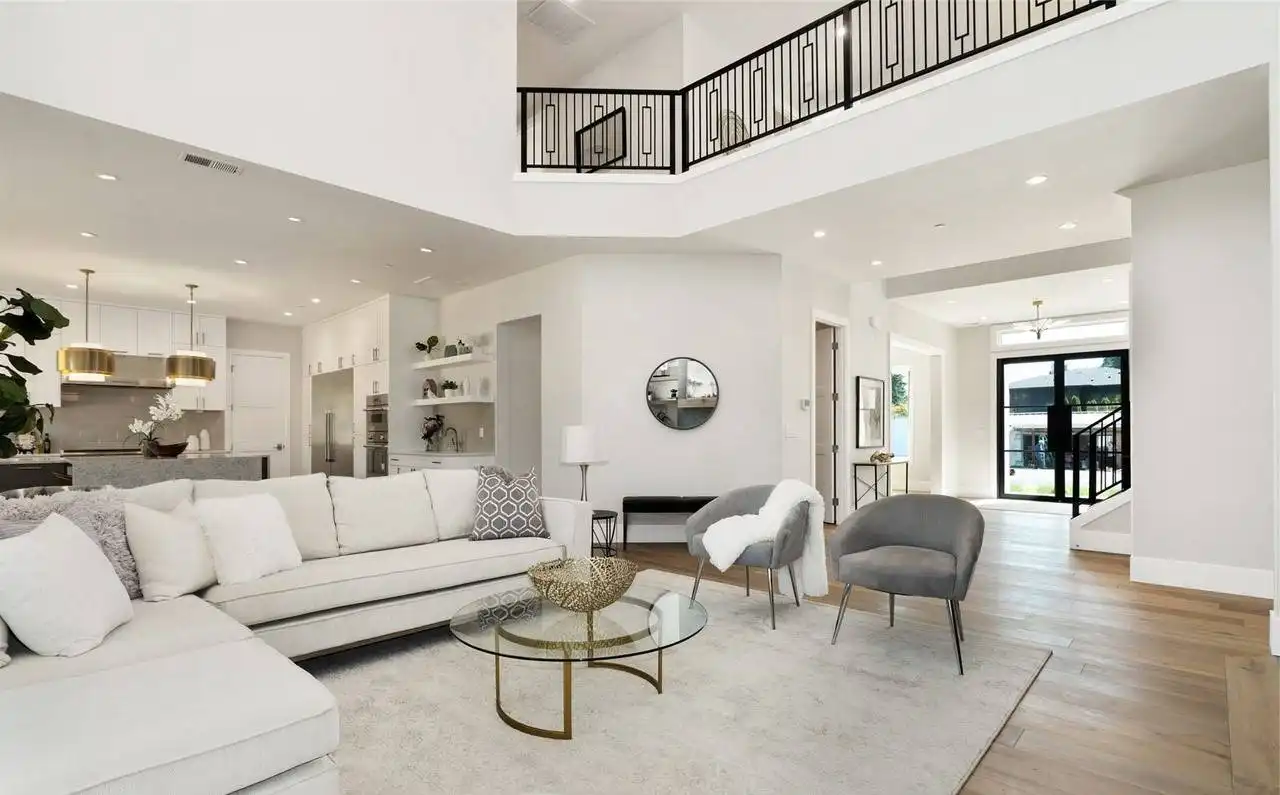

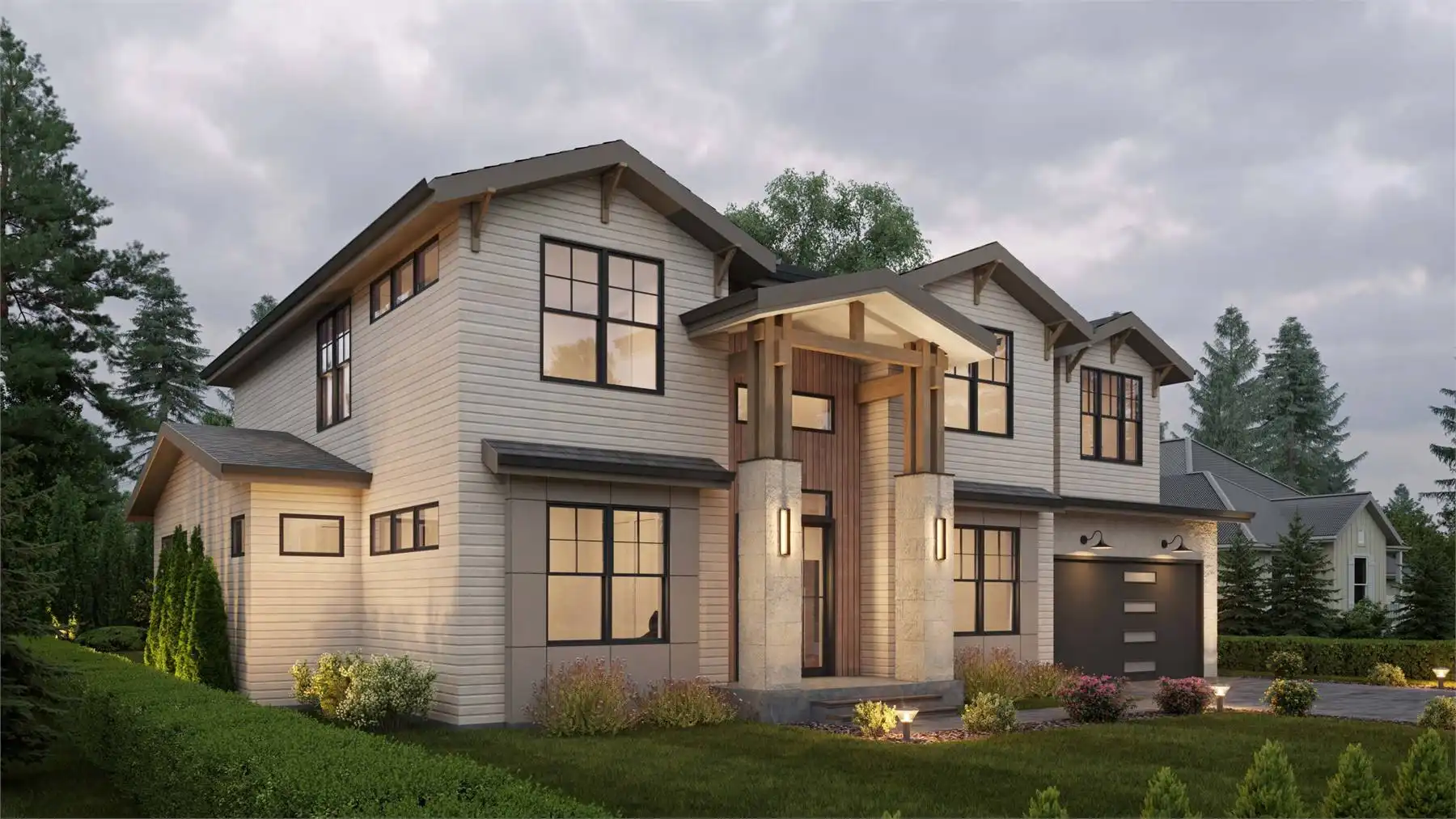

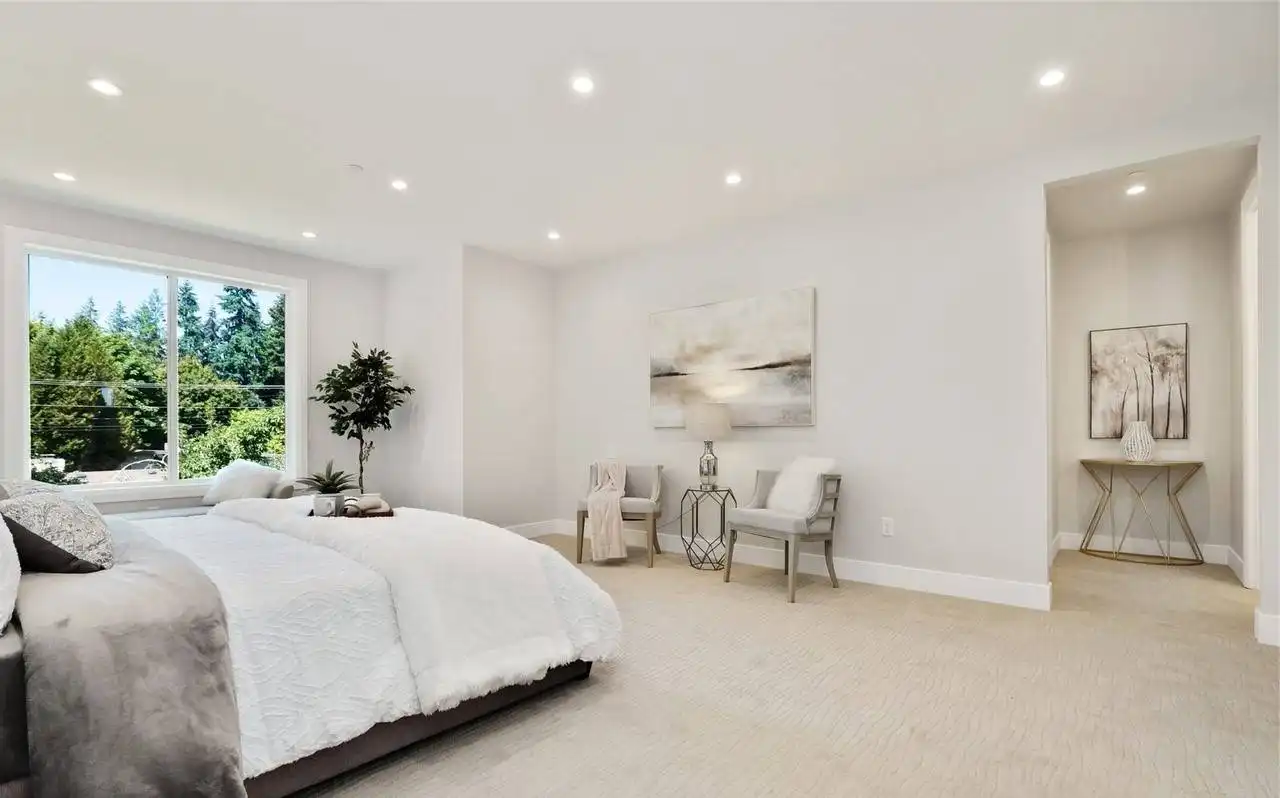

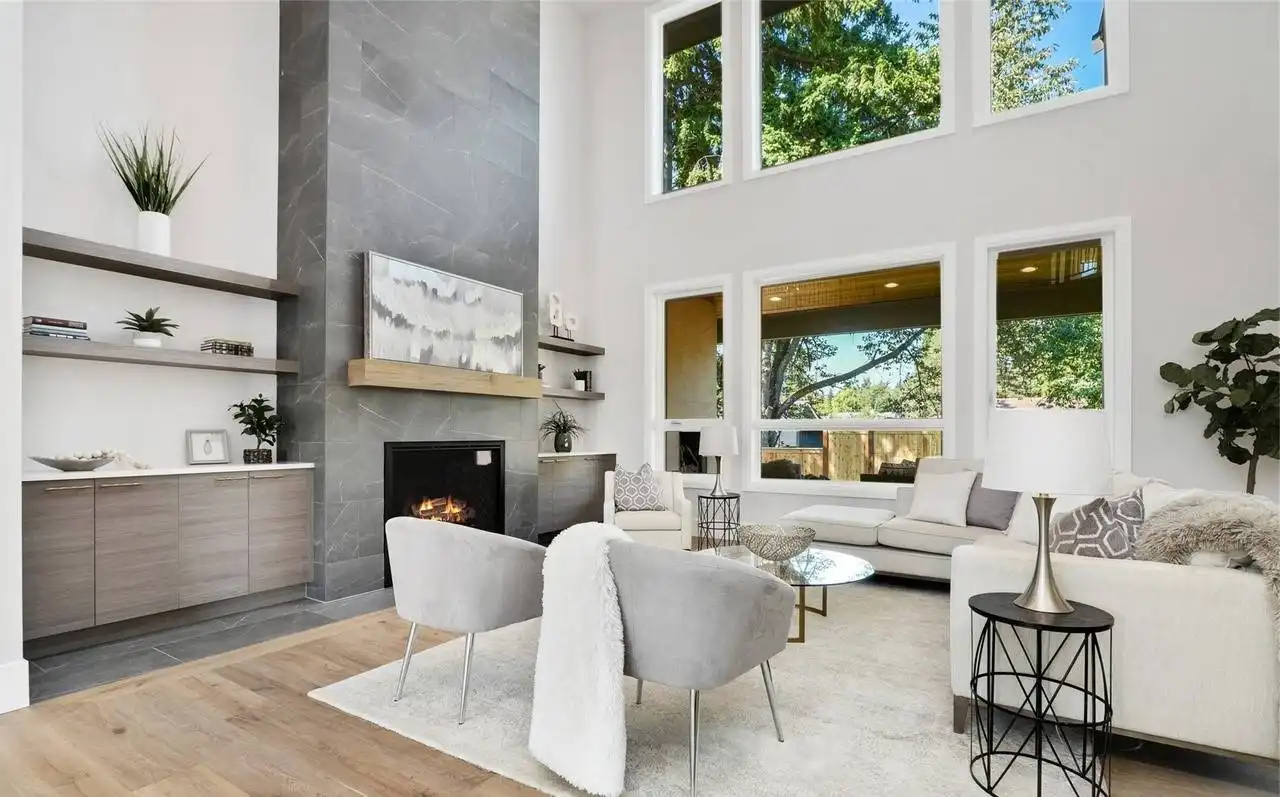

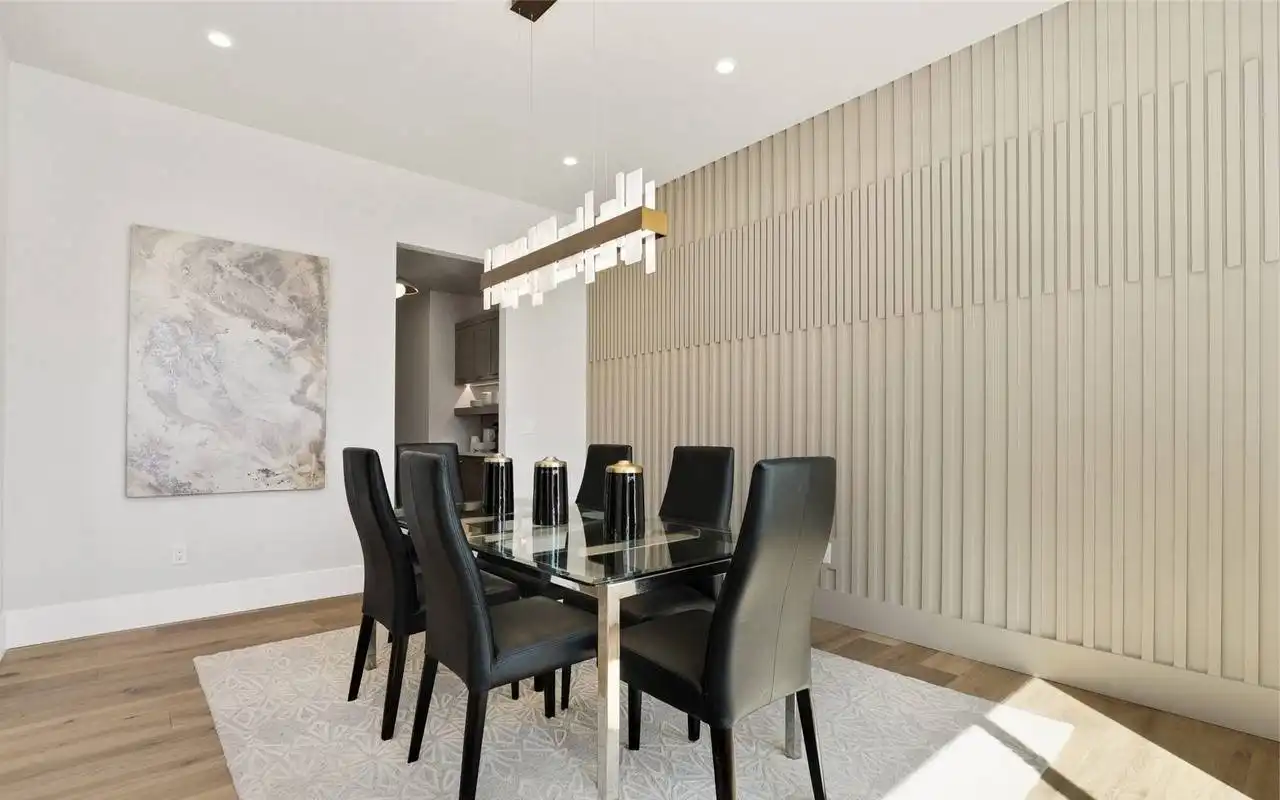

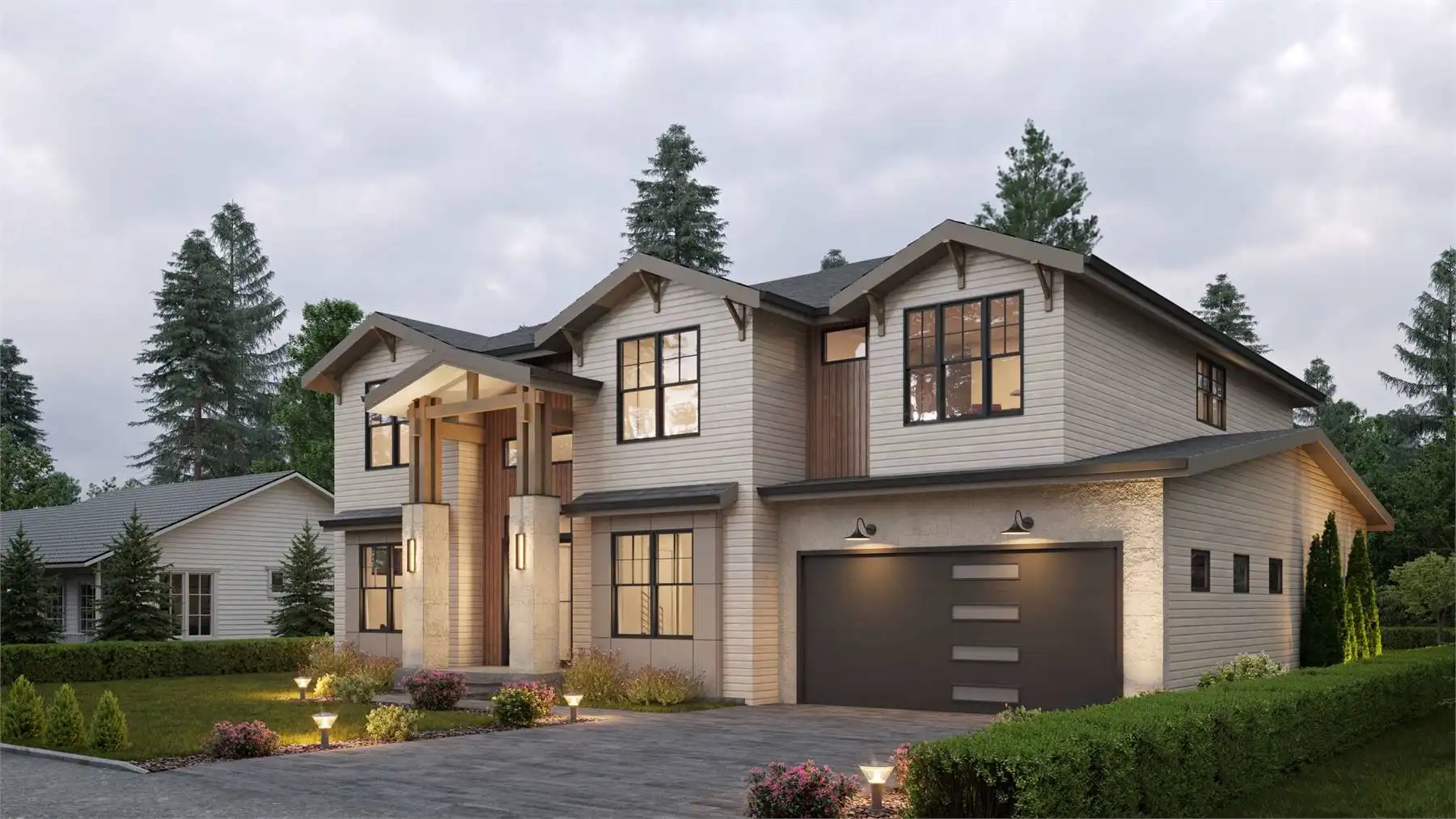

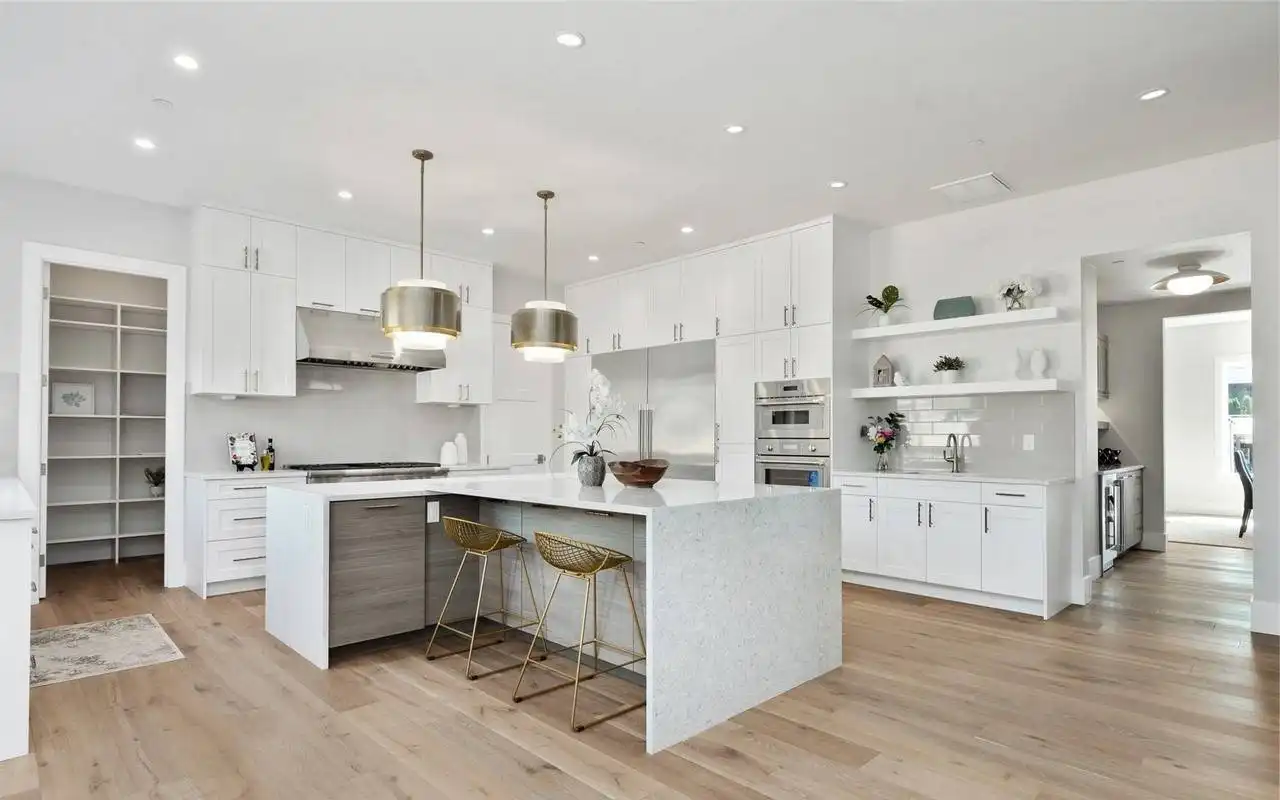

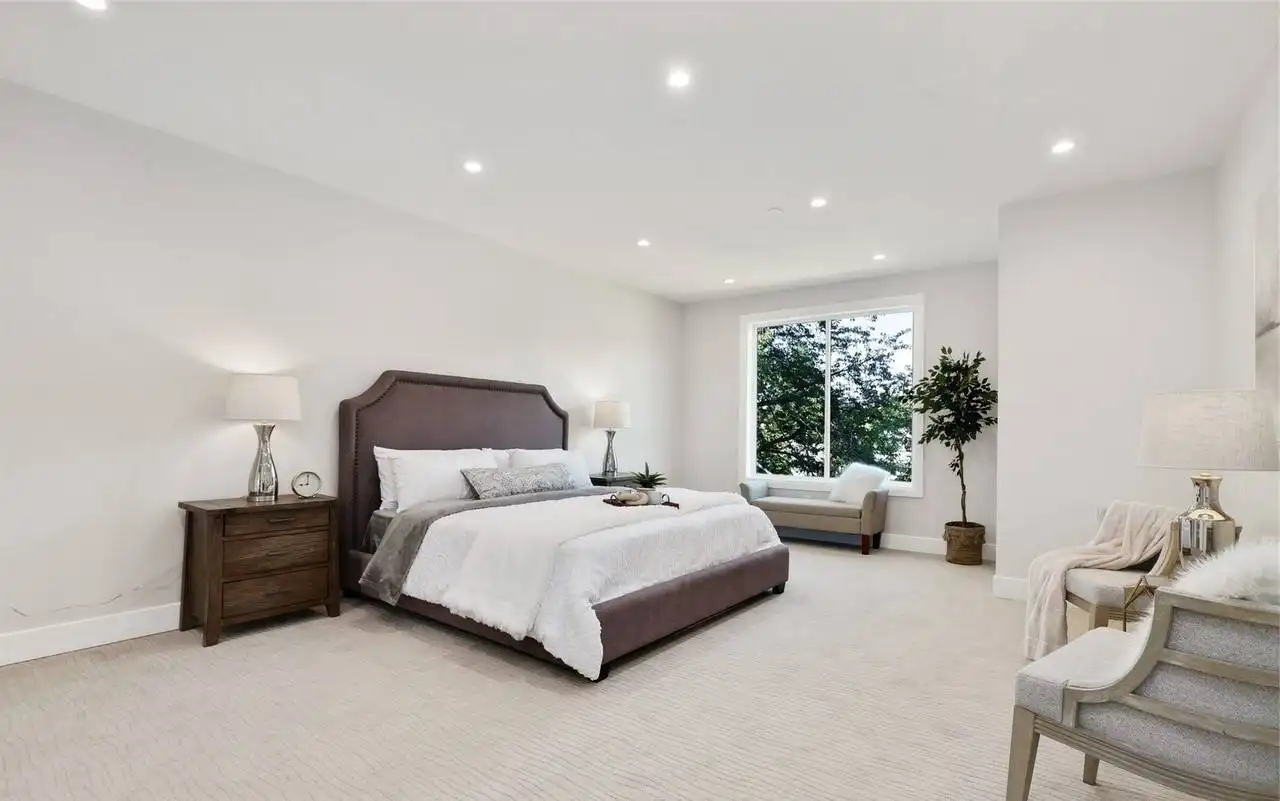

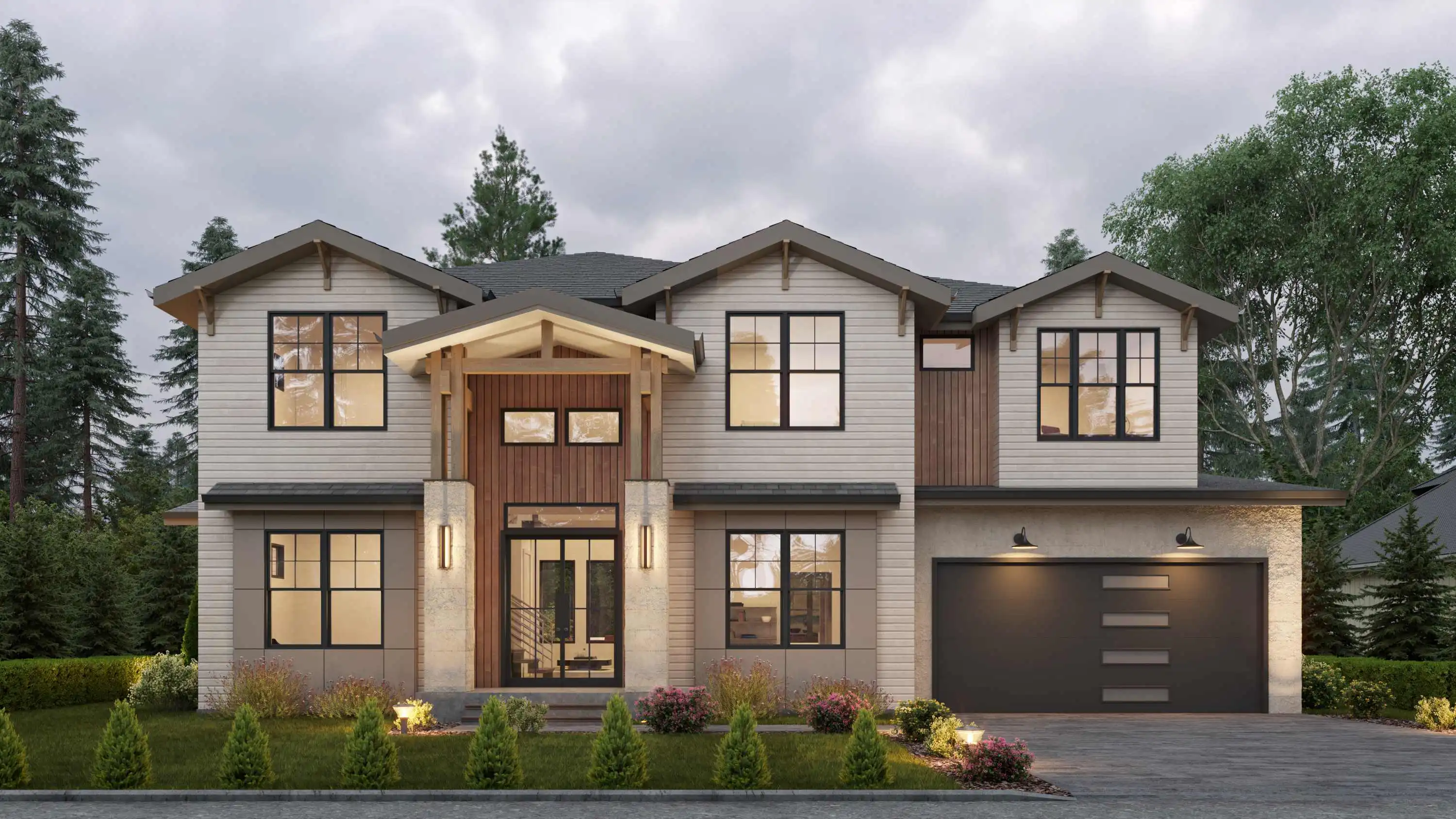

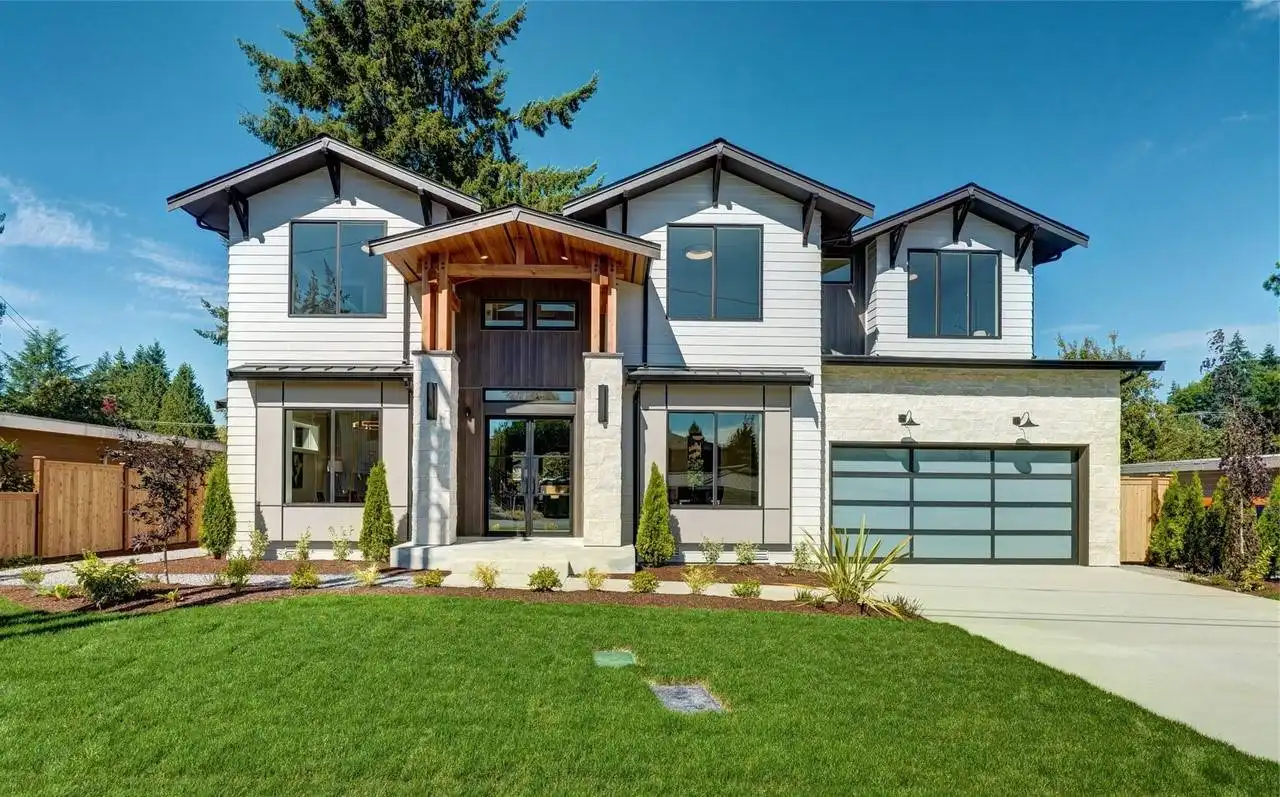

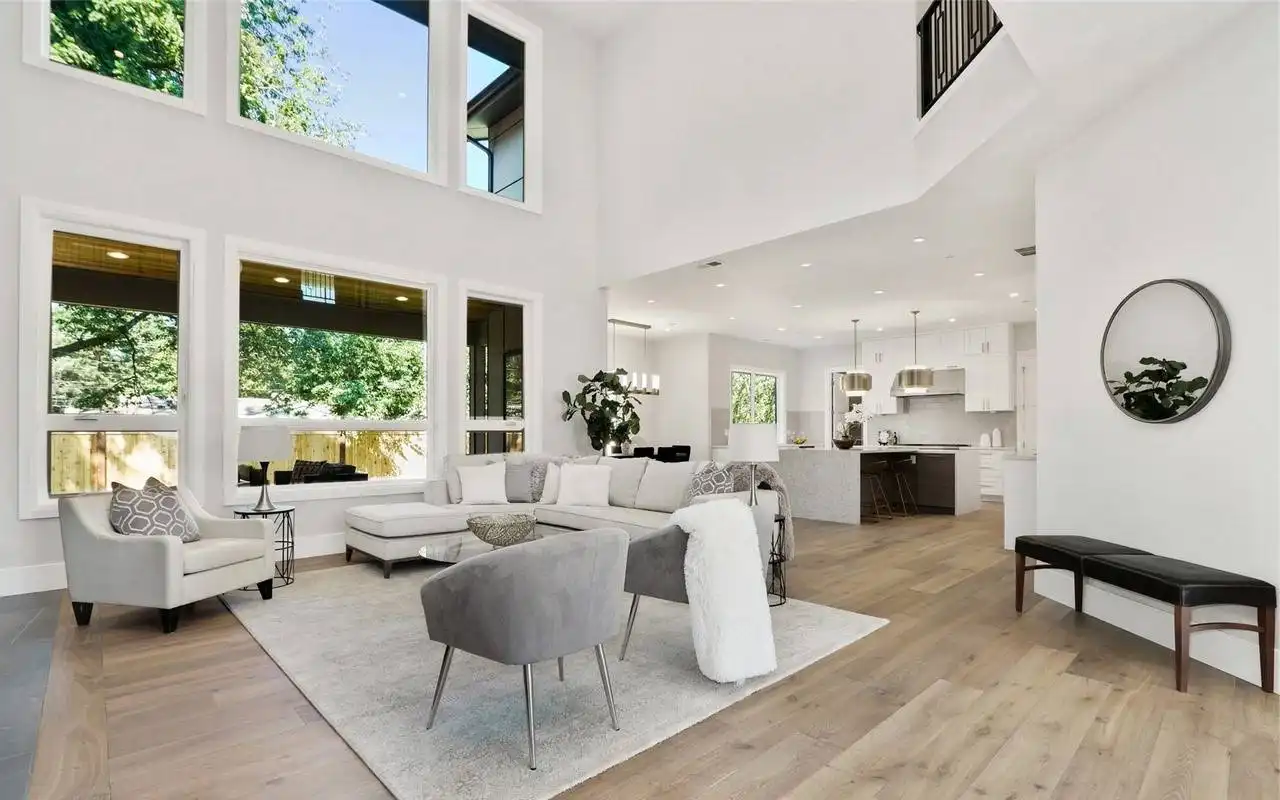

This stunning 4,054 square foot Craftsman-style home plan boasts a spacious open floor plan. The great room, spanning two stories, features a cozy fireplace, while the gourmet kitchen offers plenty of counter space, a large island with seating, and a cozy nook. Completing the main floor are a formal dining room, a home office, and a guest suite. Upstairs you'll find a luxurious master suite with a sitting area, two ensuite bedrooms, a bonus room, and a laundry room.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,027
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,327
Five printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $2,477
Eight printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,851
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2027
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,194 Sq. Ft.
Main Level:
1,860 Sq. Ft.
Upper Level:
4,054 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
61' 6"
Width:
53' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
508 Sq. Ft.
Garage:
71 Sq. Ft.
Porch:
257 Sq. Ft.
Deck:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Craftsman
Traditional
Transitional
Collections
Kitchens
Luxury
Primary Suites
Mountain
Open Floor Plan
Outdoor Living
Foundation
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
5/12
Primary:
2/12
Secondary:
Insulation (R)
21
Exterior Wall:
49
Ceiling:
38
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
30' 0"
Maximum House Height:
Key Features
Attached
Bonus Room

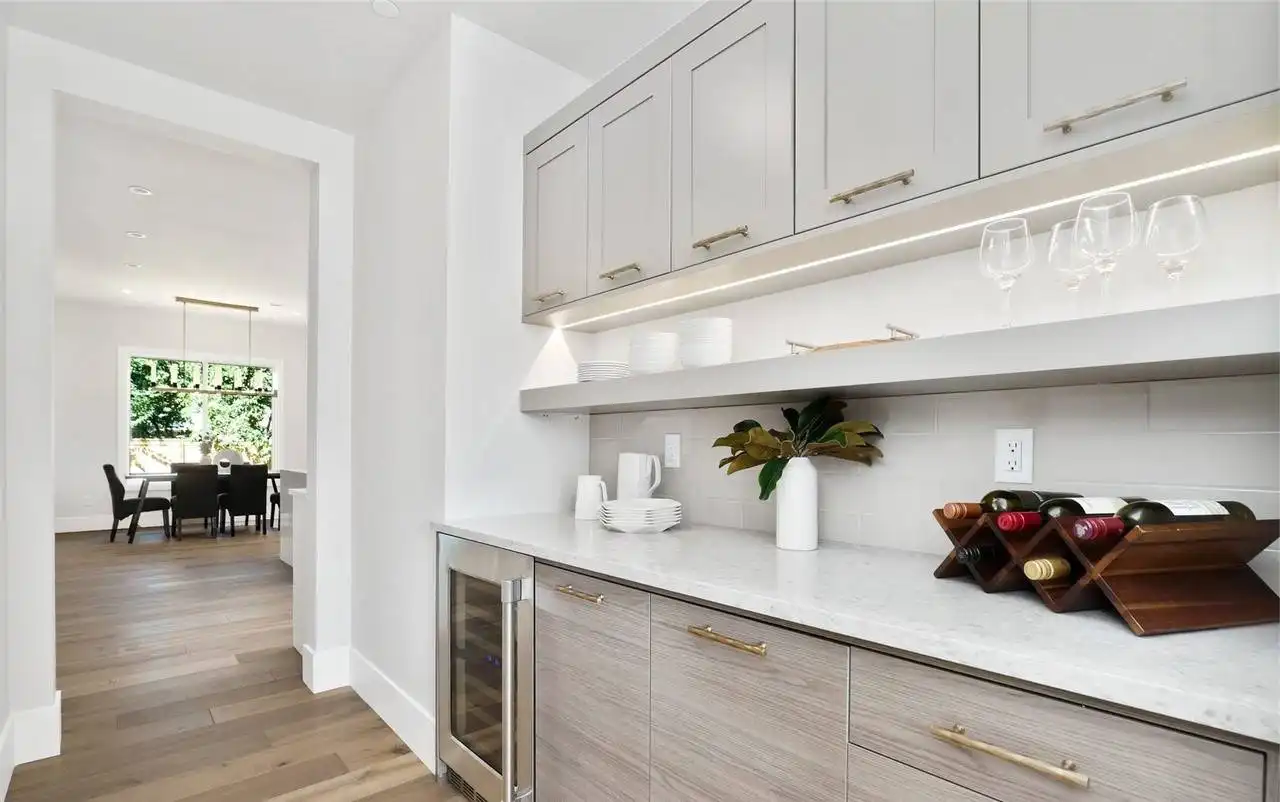

Butler's Pantry
Covered Front Porch

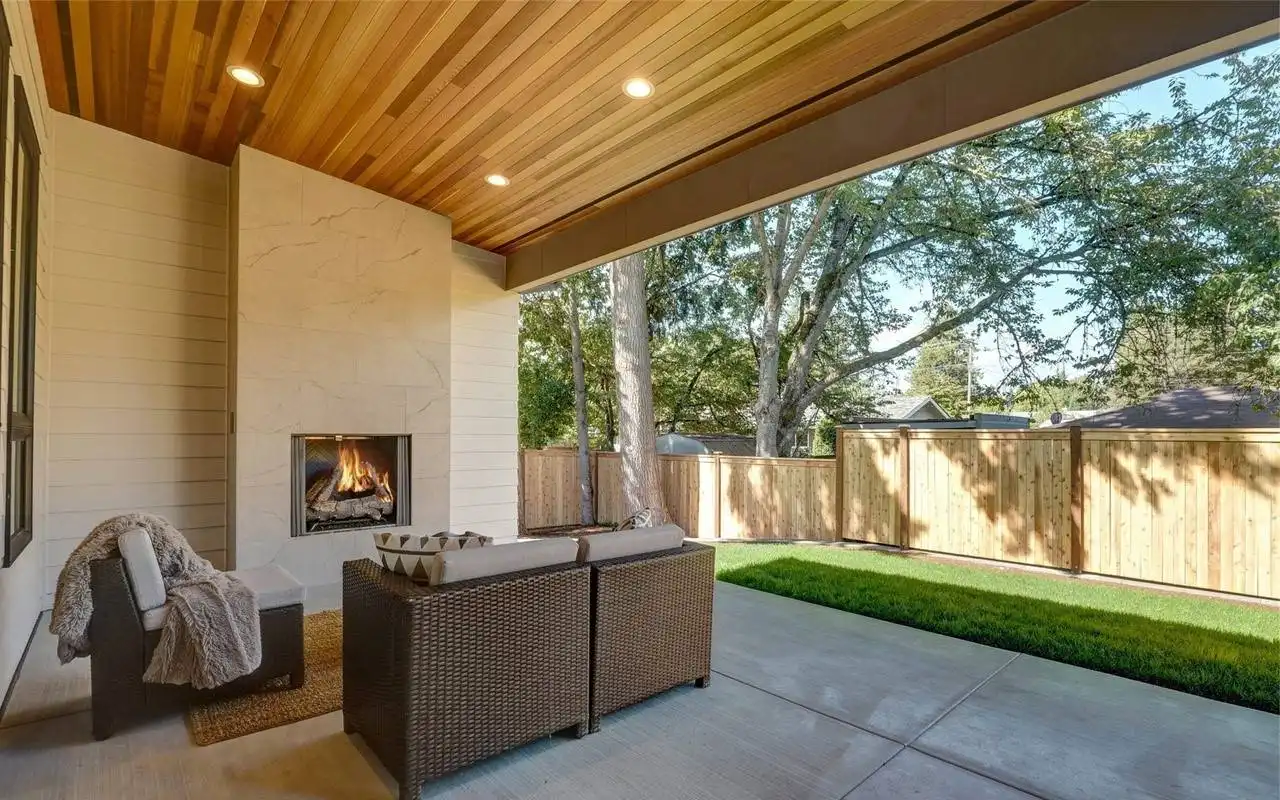

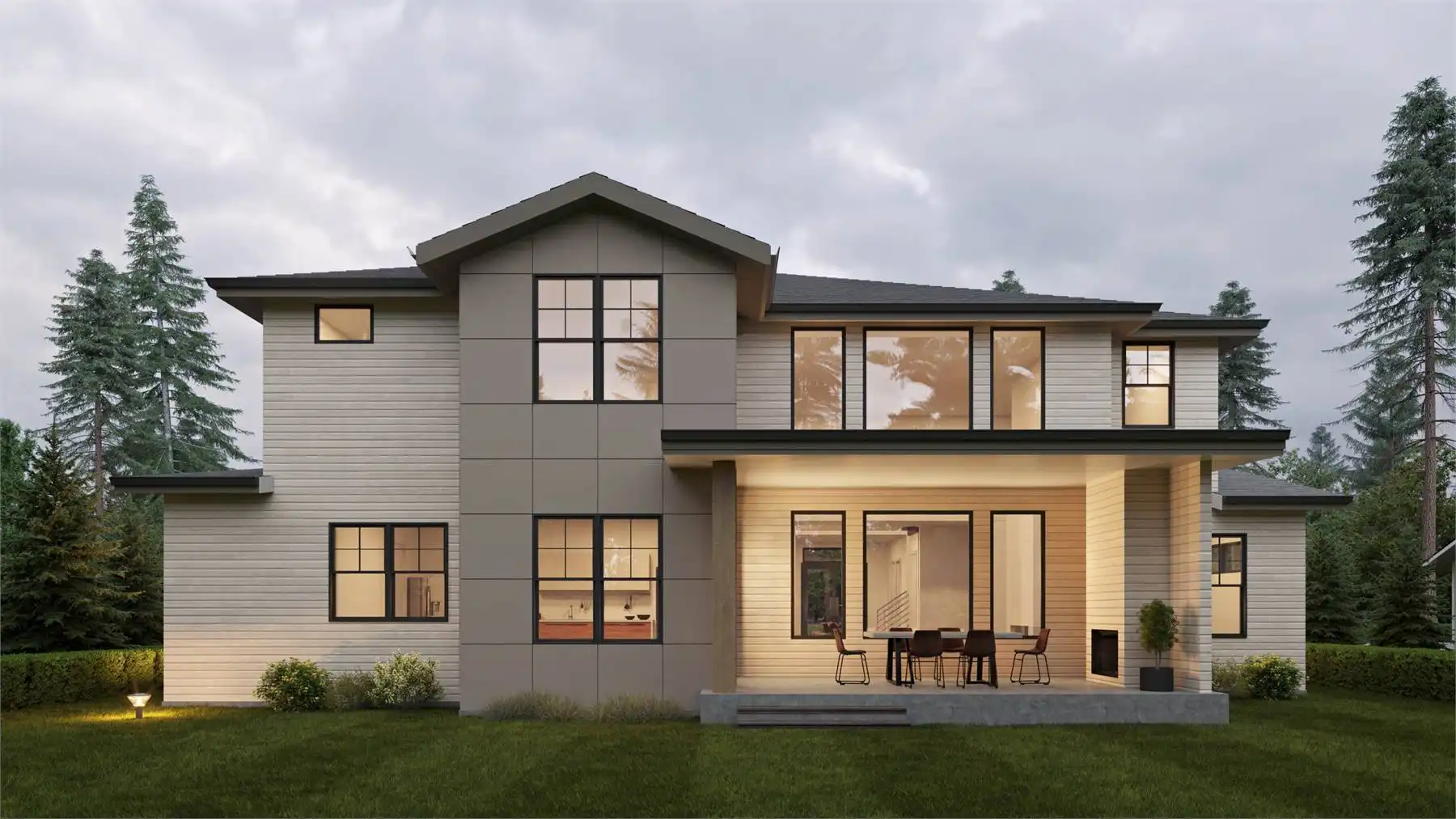

Covered Rear Porch
Dining Room

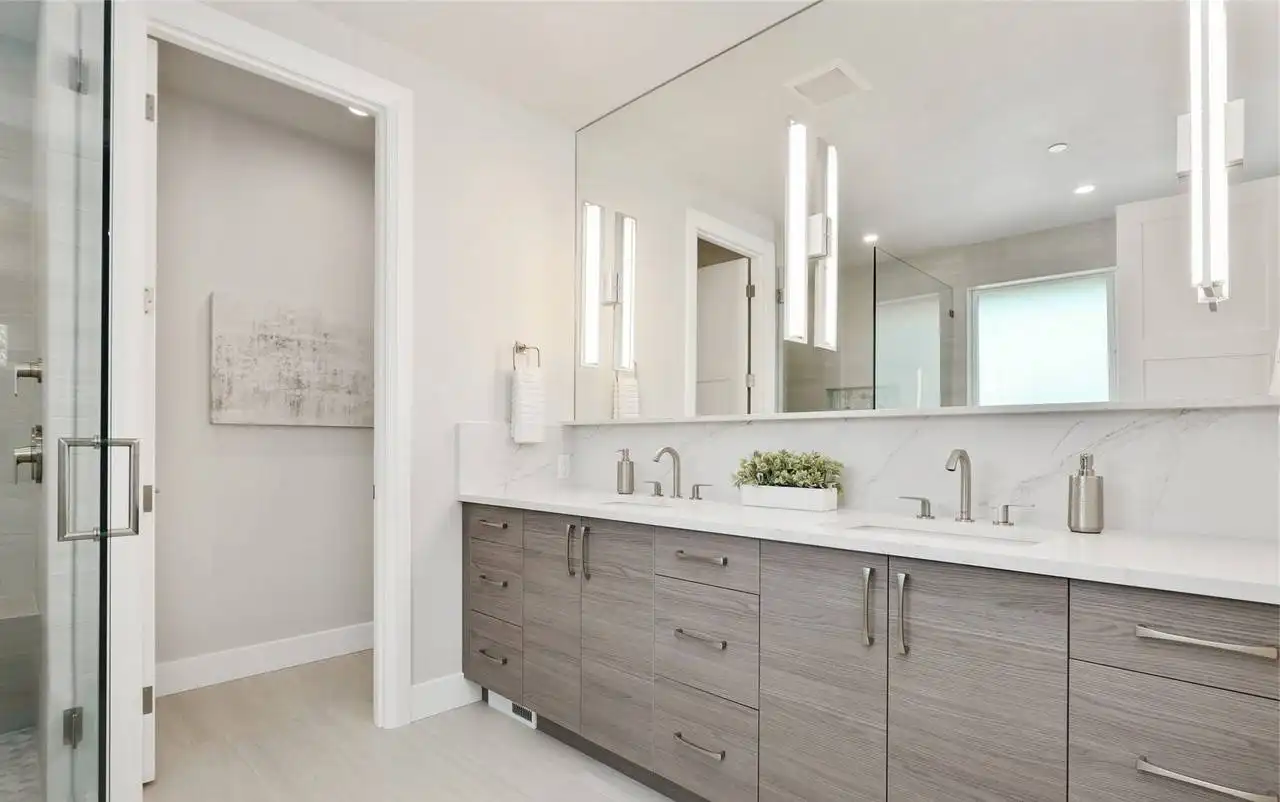

Double Vanity Sink
Family Room
Fireplace
Front-entry
Home Office
Kitchen Island

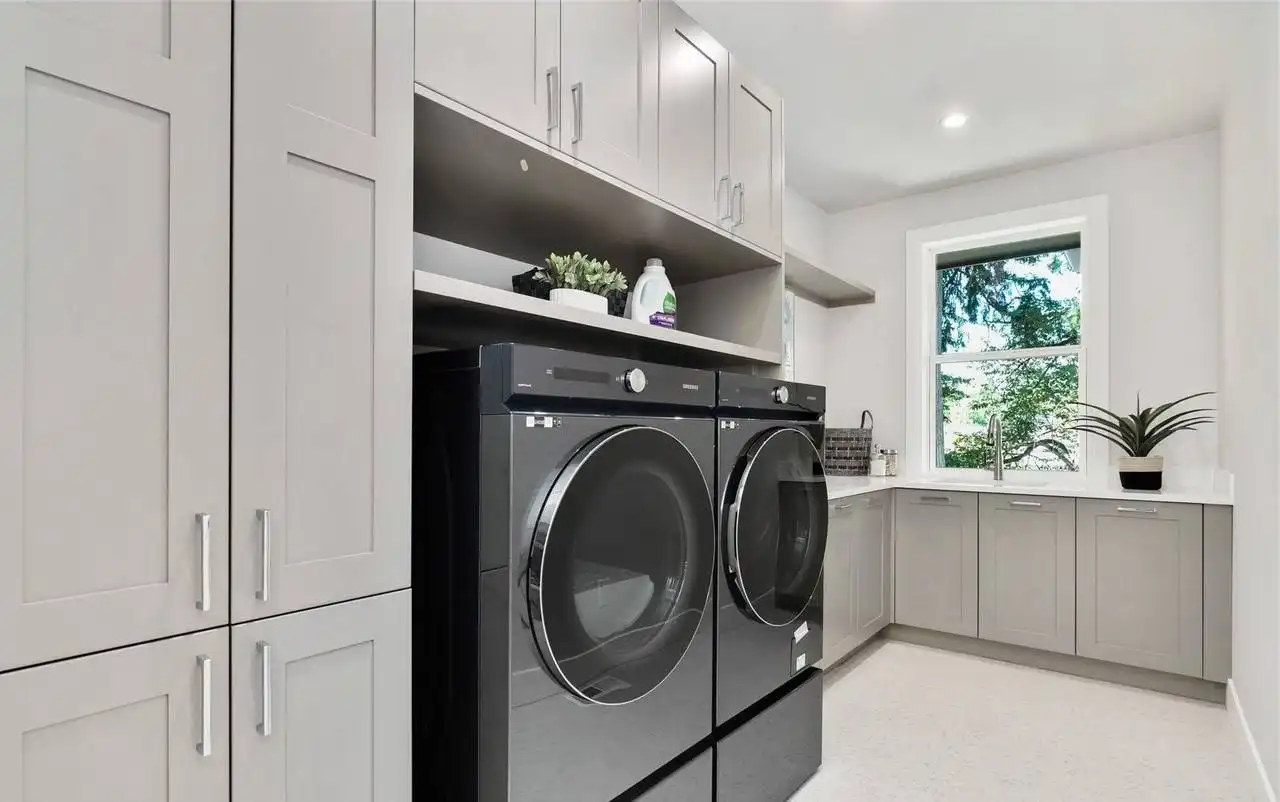

Laundry 2nd Fl

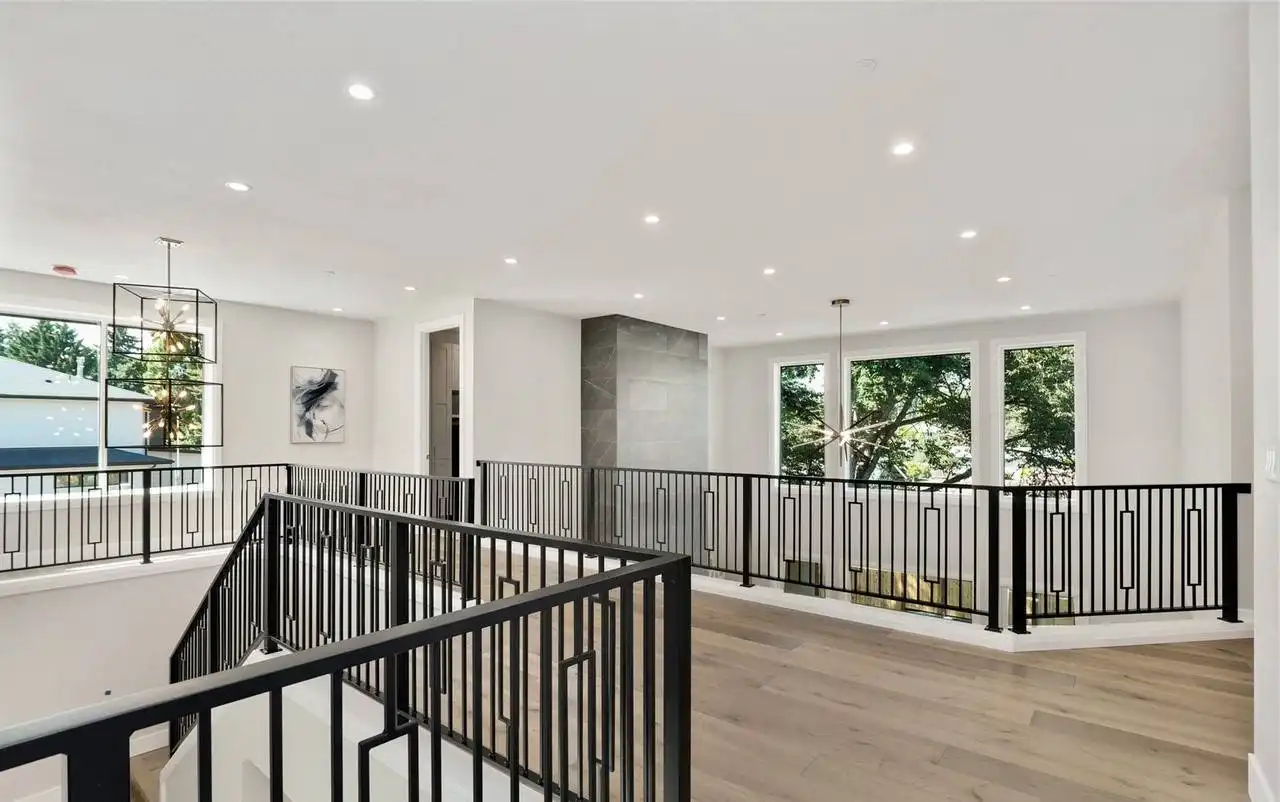

Loft / Balcony
Primary Bdrm Upstairs
Mud Room
Open Floor Plan

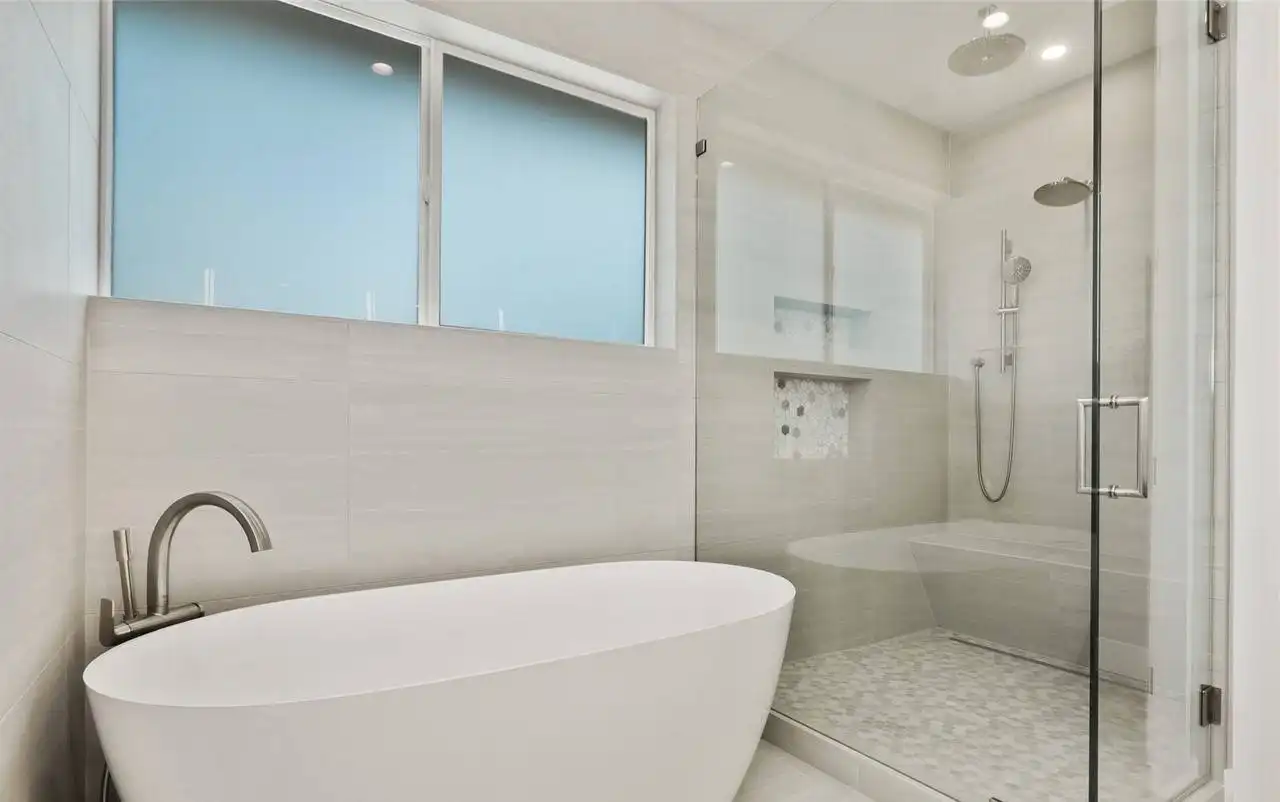

Separate Tub and Shower
Sitting Area
Split Bedrooms
Suited for view lot

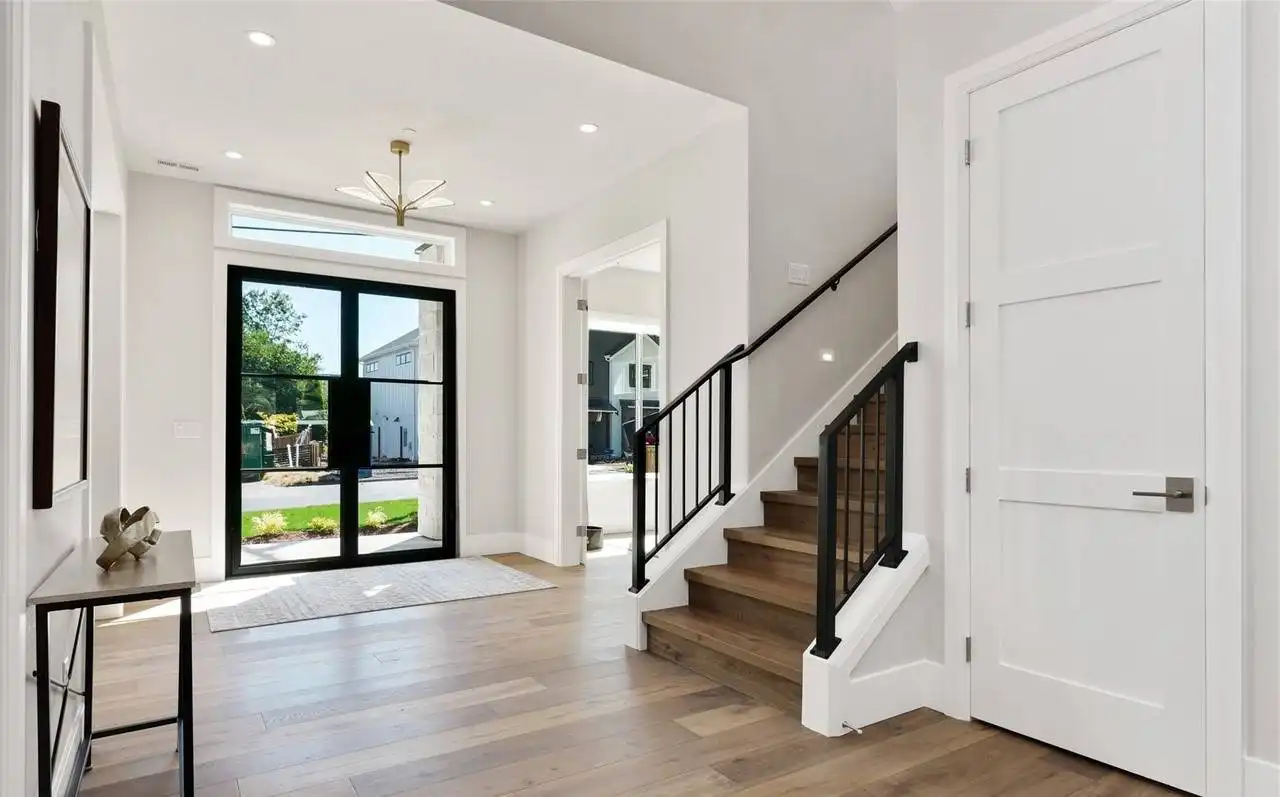

Vaulted Foyer
Vaulted Great Room/Living
Walk-in Closet
Walk-in Pantry
