Plan: 2842

Plan Specification
Total Square Footage: 2,577
Main Level: 1,142
Second Level: 1,435
Bedrooms: 4
Baths: 2 Half: 1
Garages: 2
Width/Depth: 38 ft / 55 ft
Foundation: Basement, Crawlspace, SlabBasement, Crawlspace, Slab
Pin It
© copyright by designer

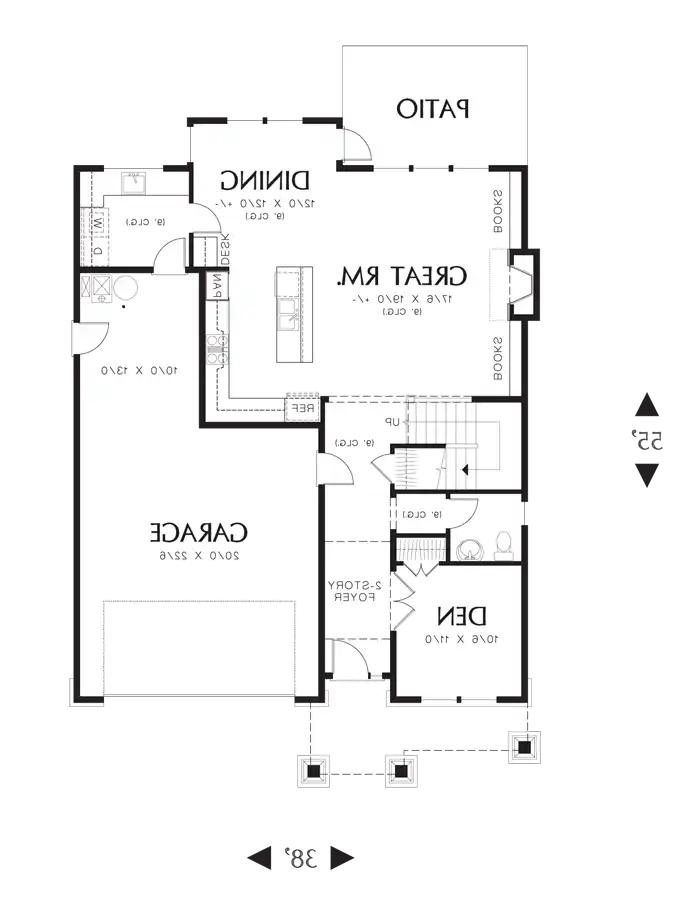

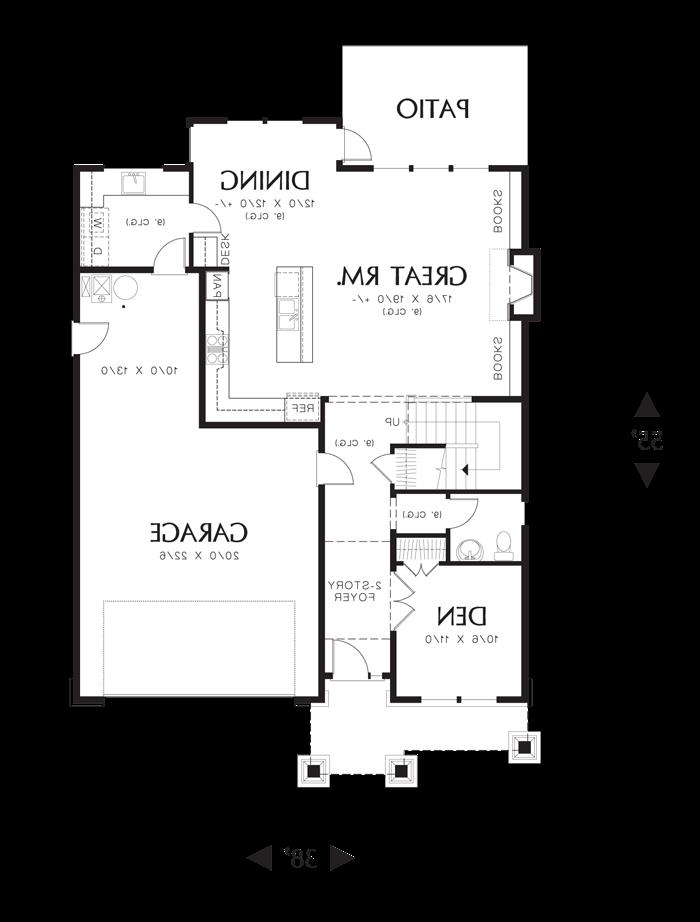

First Floor Plan:
First Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer

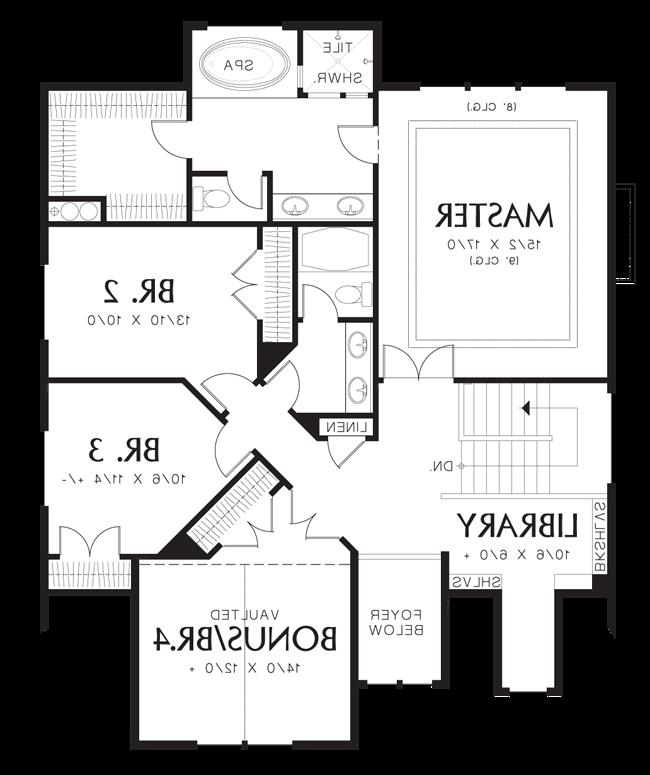

Upper Floor Plan:
Upper Floor Plan
Similar plans: 2305, 6230, 7029, 5153
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
IT’S THE HOME FOR THE HOLIDAYS SALE! SAVE $100 OFF YOUR PLAN TODAY! see details
House Plan Pricing
PDFs Now!™ $1,100.00
$1,150.00
$2,200.00
More details about our plan packages
Foundation Options
PDFs Now!™ available $0.00
PDFs Now!™ available $125.00
PDFs Now!™ available $275.00
Additional Plan Options
$175.00
PDFs Now!™ available $100.00
$20.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• 2 Story Volume
• Basement
• Bonus Room
• Country Kitchen
• Covered Front Porch
• Crawlspace
• Double Vanity Sink
• Fireplace
• Foyer
• Front Porch
• Great Room
• Home Office
• Kitchen Island
• Laundry 1st Fl
• Library/Media Rm
• Loft / Balcony
• Master Bdrm Upstairs
• Mud Room
• Open Floor Plan
• Oversized
• Separate Tub and Shower
• Slab
• Suited for narrow lot
• Tandem
• Vaulted Ceilings
• Walk-in Closet
• Workshop2 Story Volume
• Basement
• Bonus Room
• Country Kitchen
• Covered Front Porch
• Crawlspace
• Double Vanity Sink
• Fireplace
• Foyer
• Front Porch
• Great Room
• Home Office
• Kitchen Island
• Laundry 1st Fl
• Library/Media Rm
• Loft / Balcony
• Master Bdrm Upstairs
• Mud Room
• Open Floor Plan
• Oversized
• Separate Tub and Shower
• Slab
• Suited for narrow lot
• Tandem
• Vaulted Ceilings
• Walk-in Closet
• Workshop
Plan Details
General House Information
2
Number of Stories:
38' 0"
Width:
55' 0"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Exterior Style
Bungalow
Cottage
CraftsmanBungalow
Cottage
Craftsman
Facade
SidingSiding
Number of Rooms
4
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,142 Sq. Ft.
Main Level:
1,435 Sq. Ft.
Upper Level:
2,577 Sq. Ft.
Total:
Unfinished Square Footage
609 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawlspace
SlabBasement
Crawlspace
Slab
House And Ceiling Heights
9
First Floor Ceiling:
Varies
Second Floor Ceiling:
29' 0"
Maximum House Height:
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
10/12
Gable:
Roof Load
25
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
Number of Rooms
4
Bedrooms:
2
Full Baths:
1
Half Baths:
