House Plan: DFD-4700

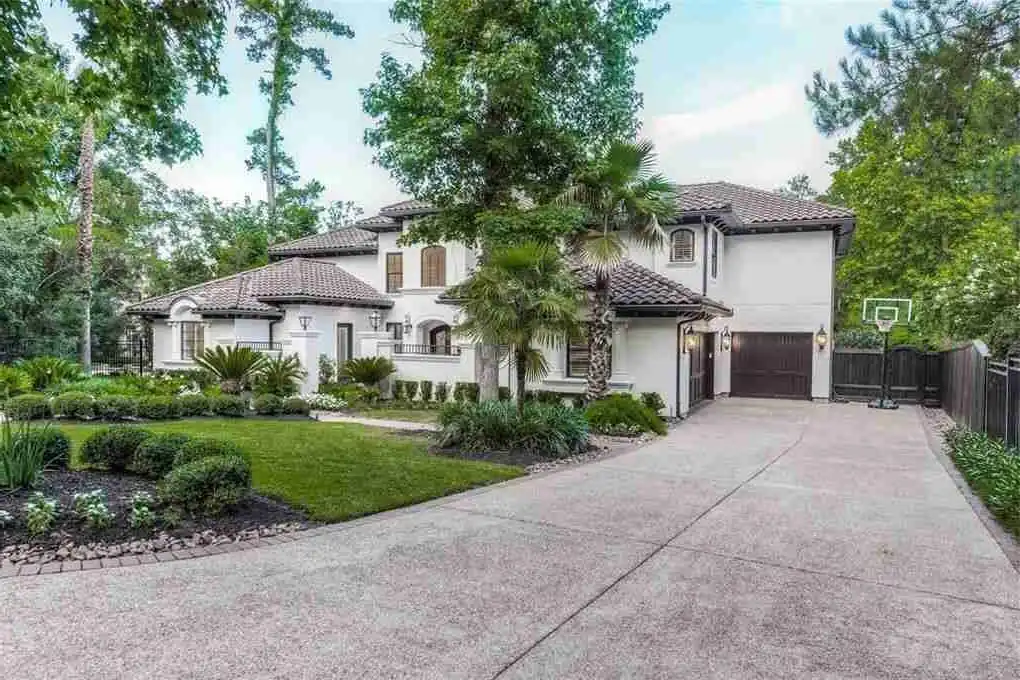

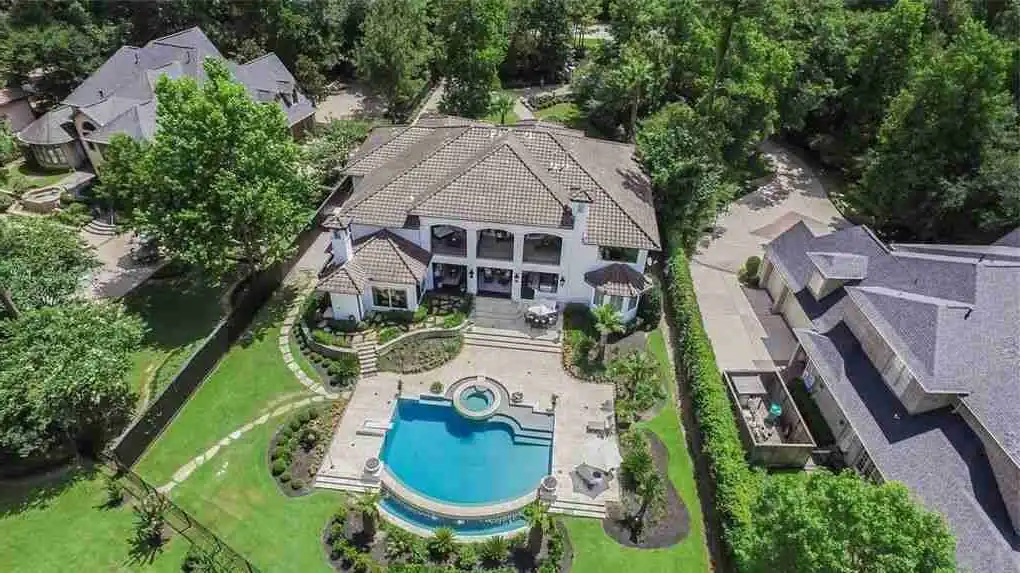

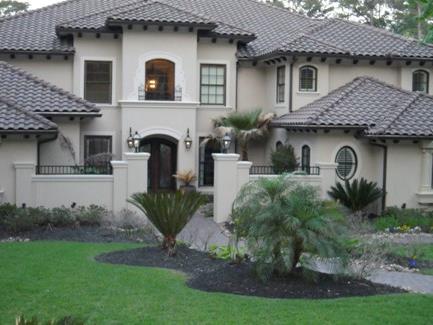

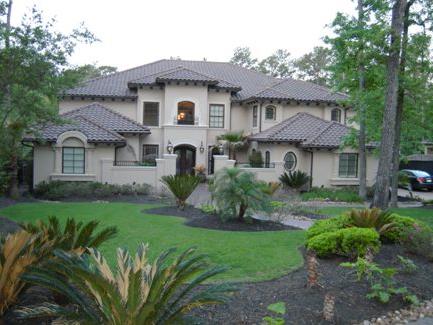

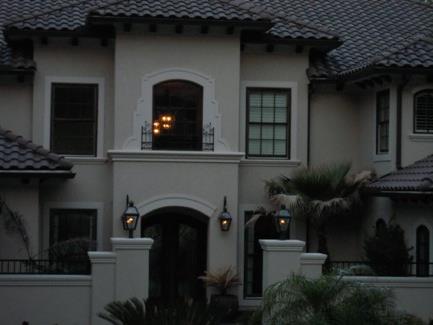

See All 48 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
6,612
BEDS
5
BATHS
5.5
STORIES
2
CARS
3
PLANS FROM $2,860
For questions and help, live chat, email or call us at 877-895-5299

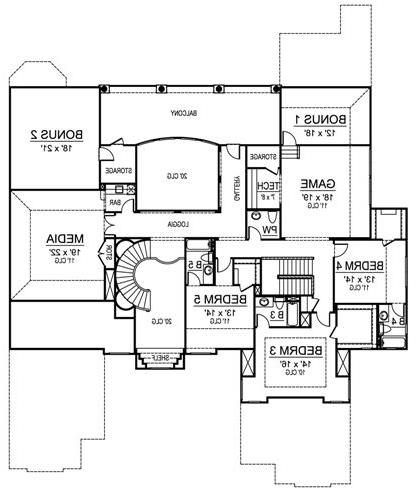

Floor Plans
Click to Zoom In on Floor Plan

About House Plan 4700:

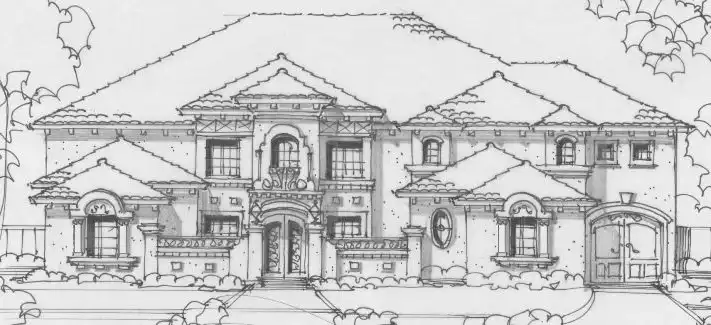

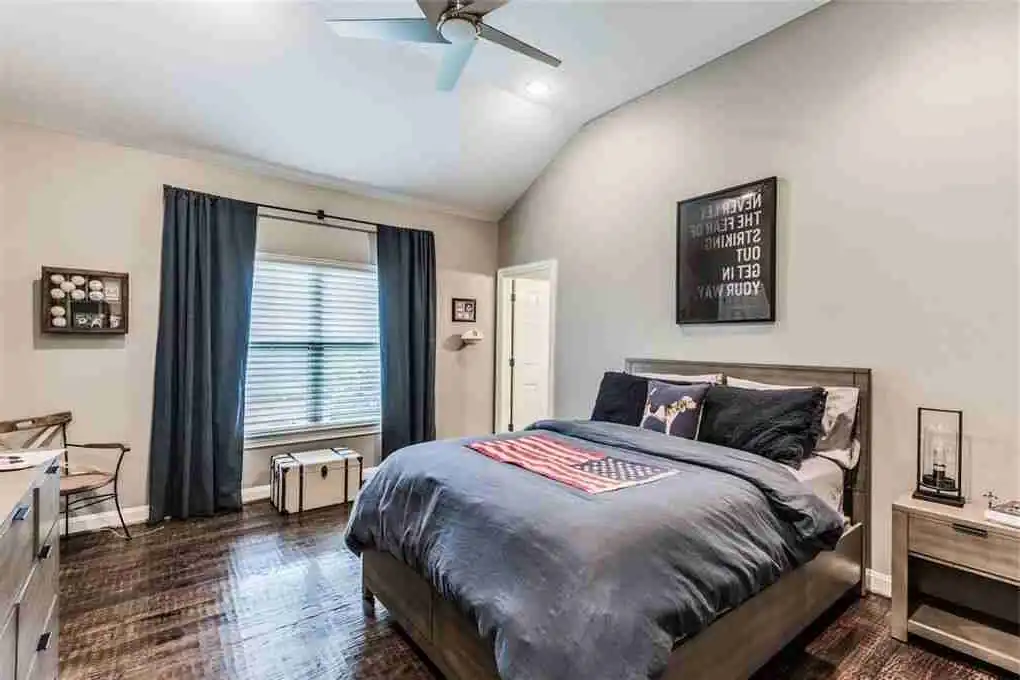

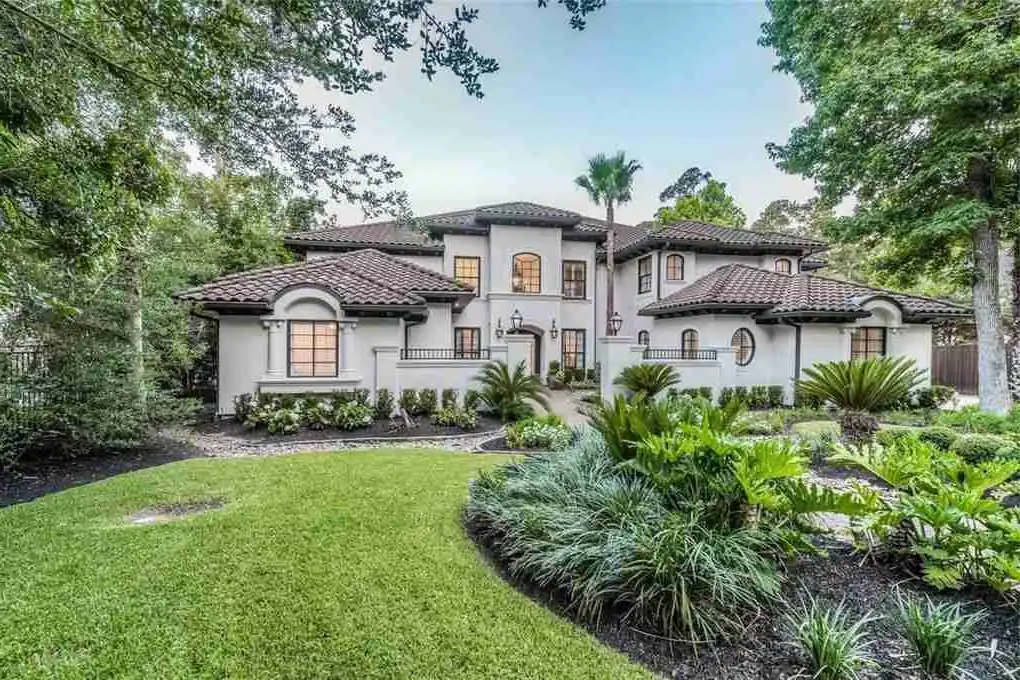

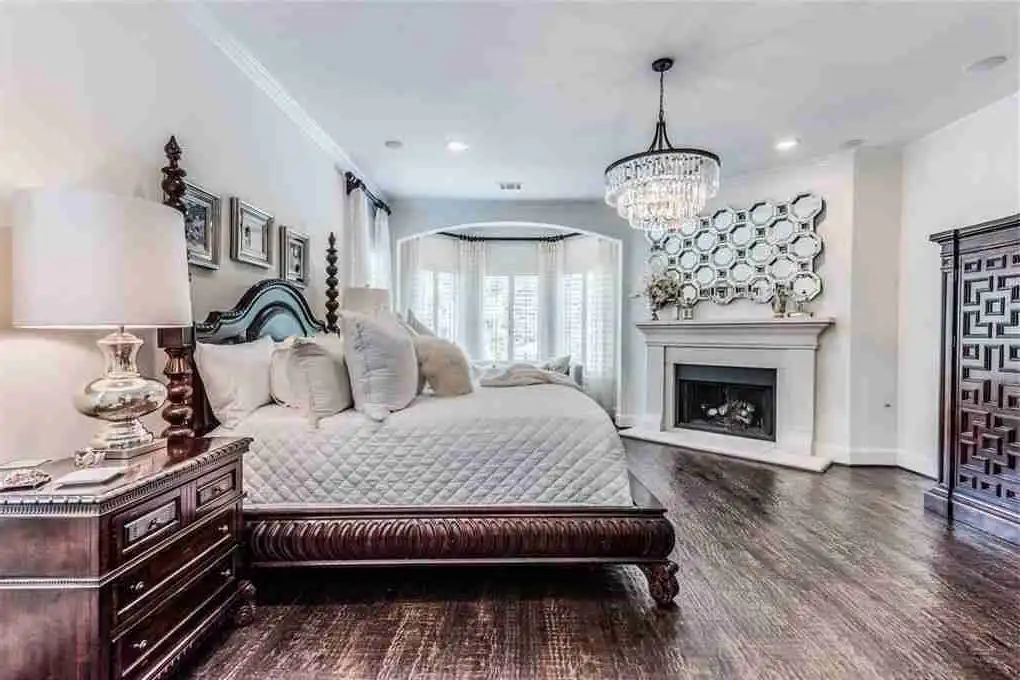

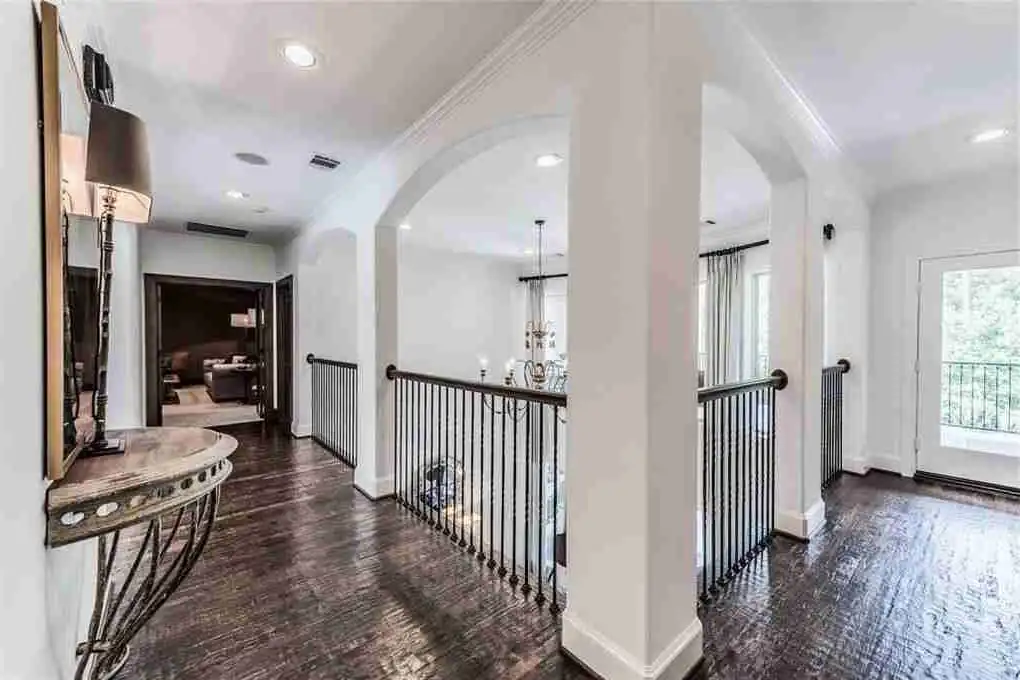

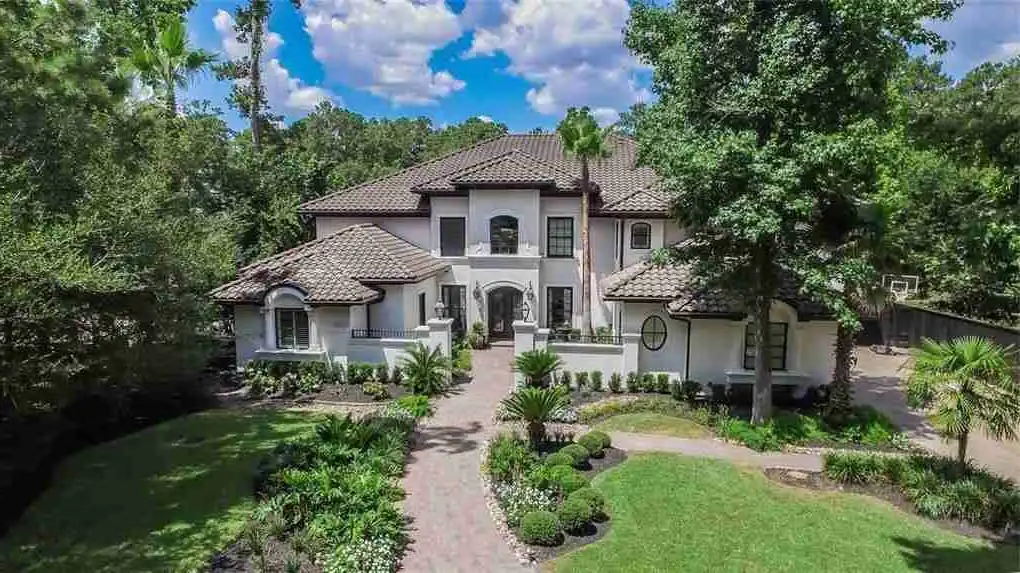

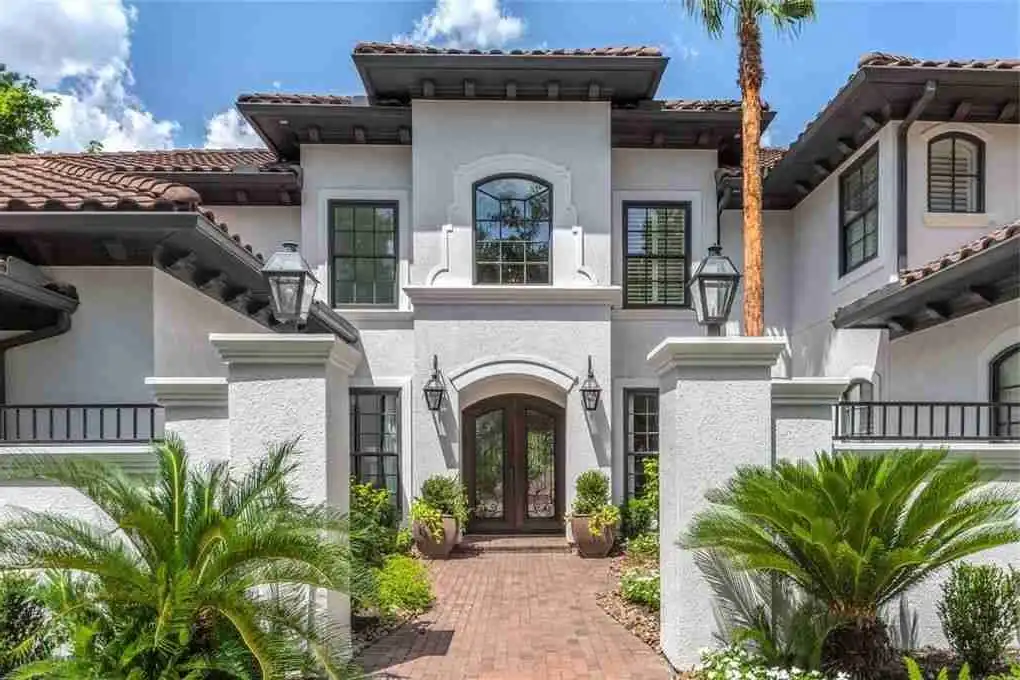

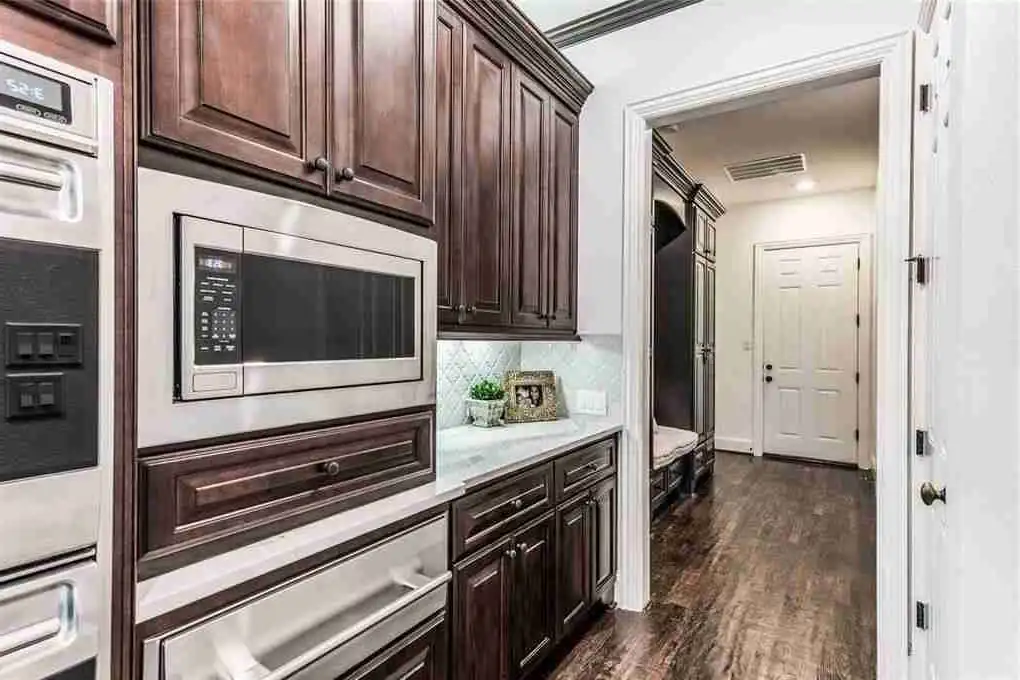

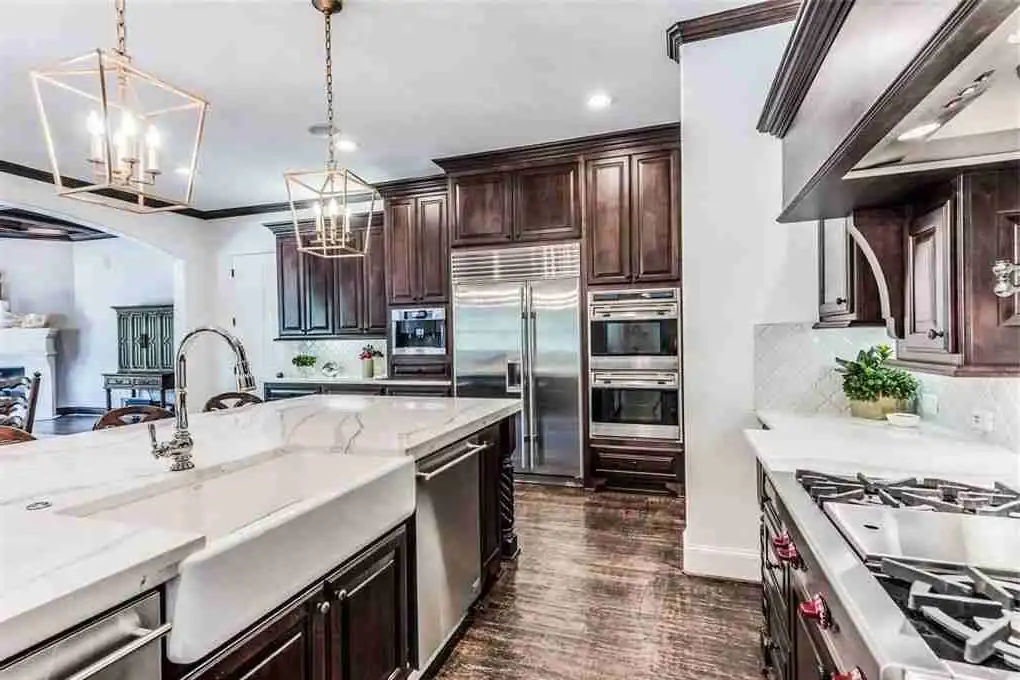

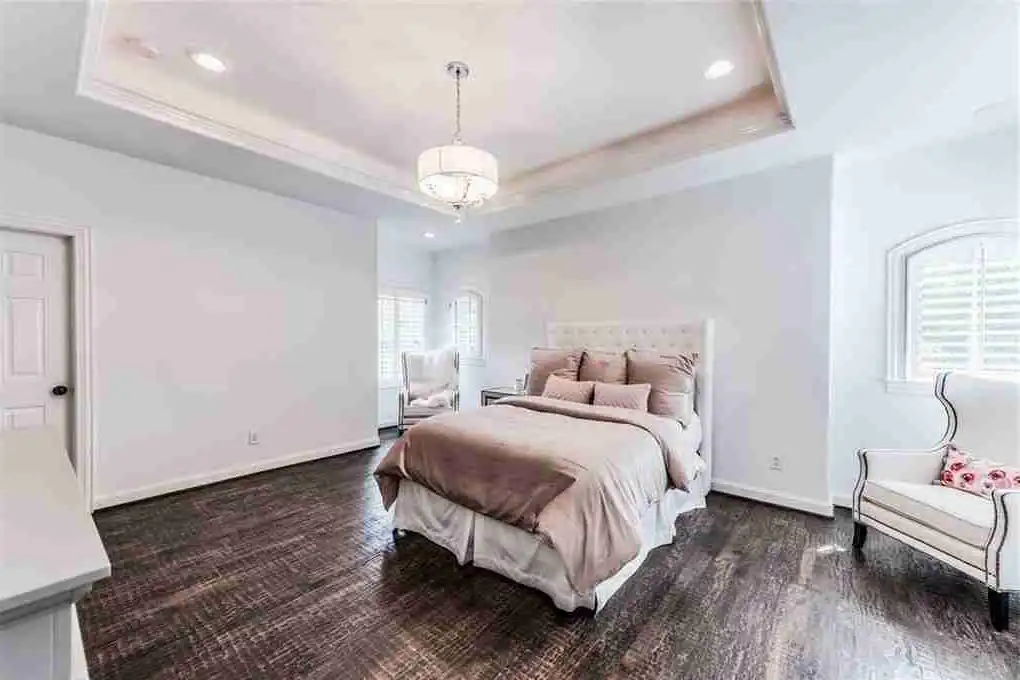

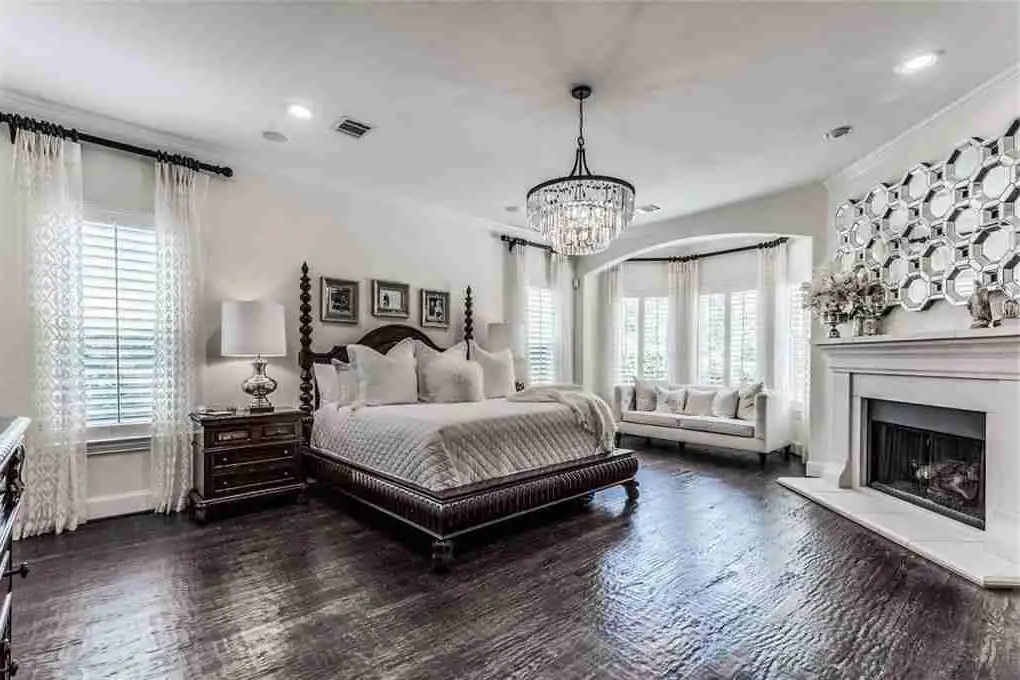

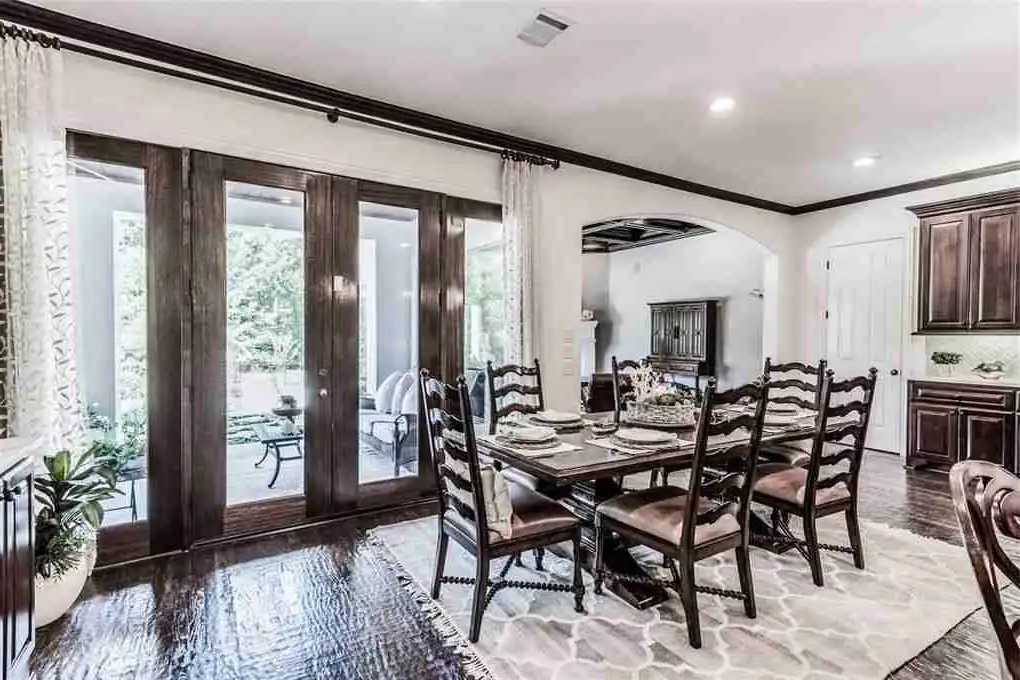

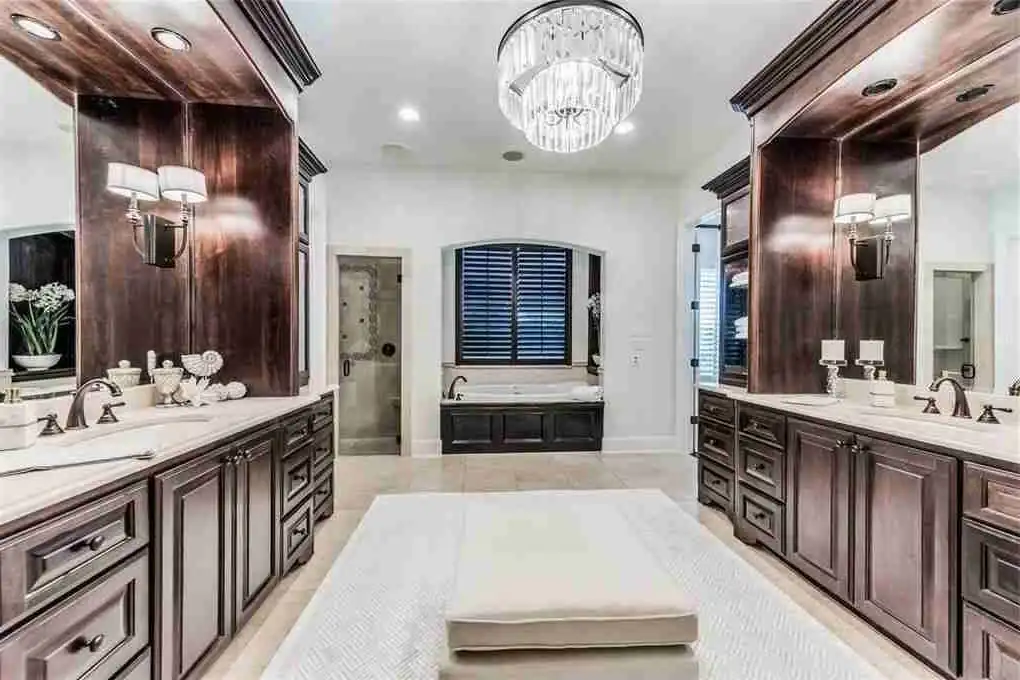

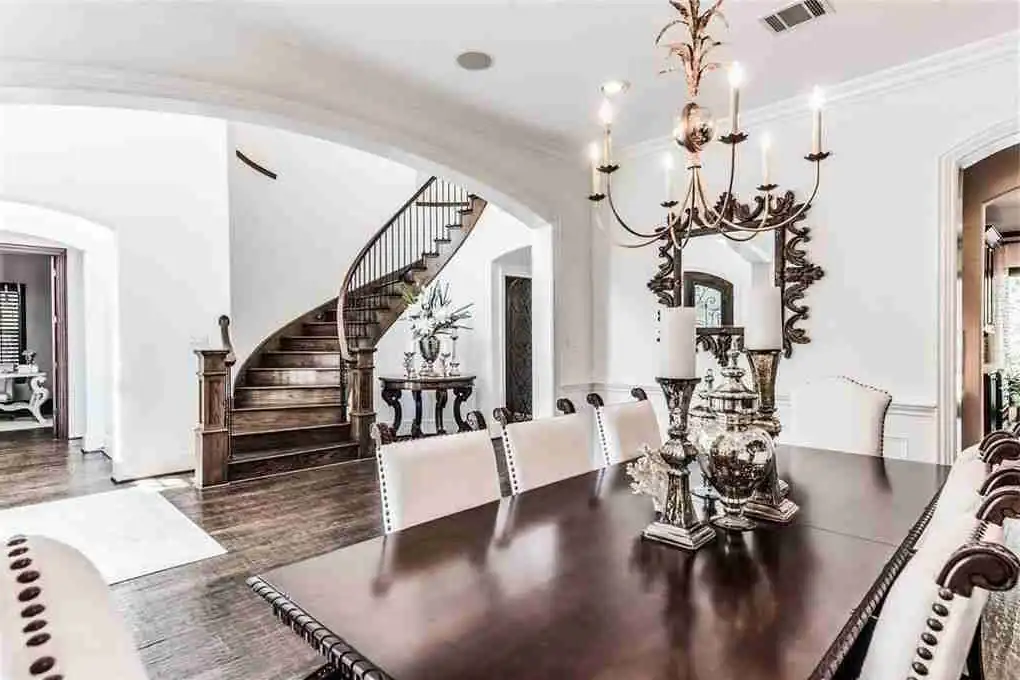

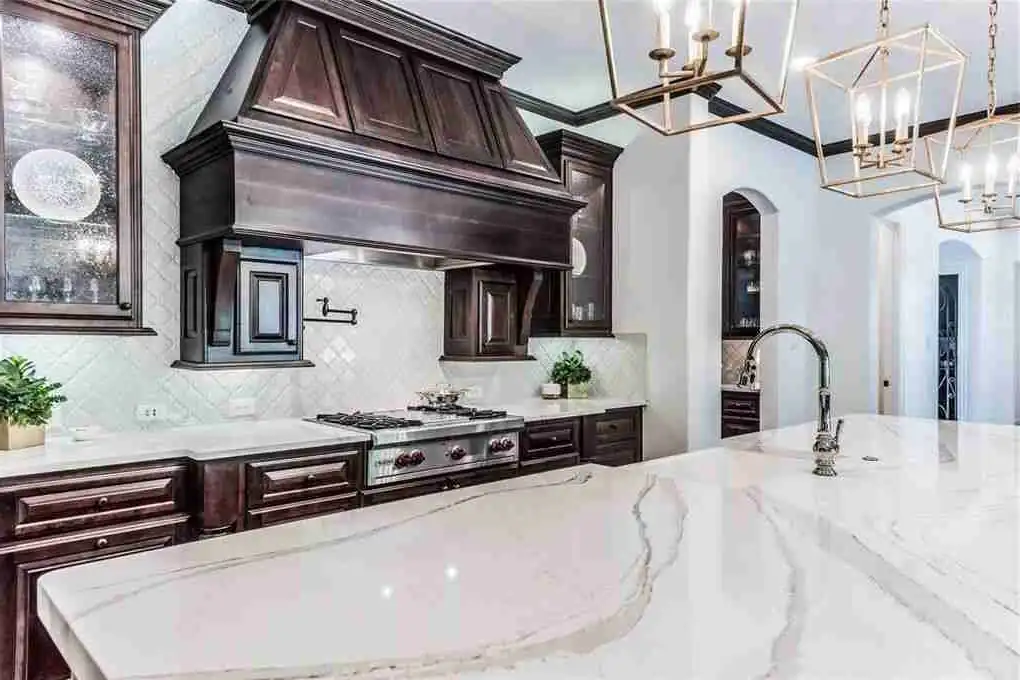

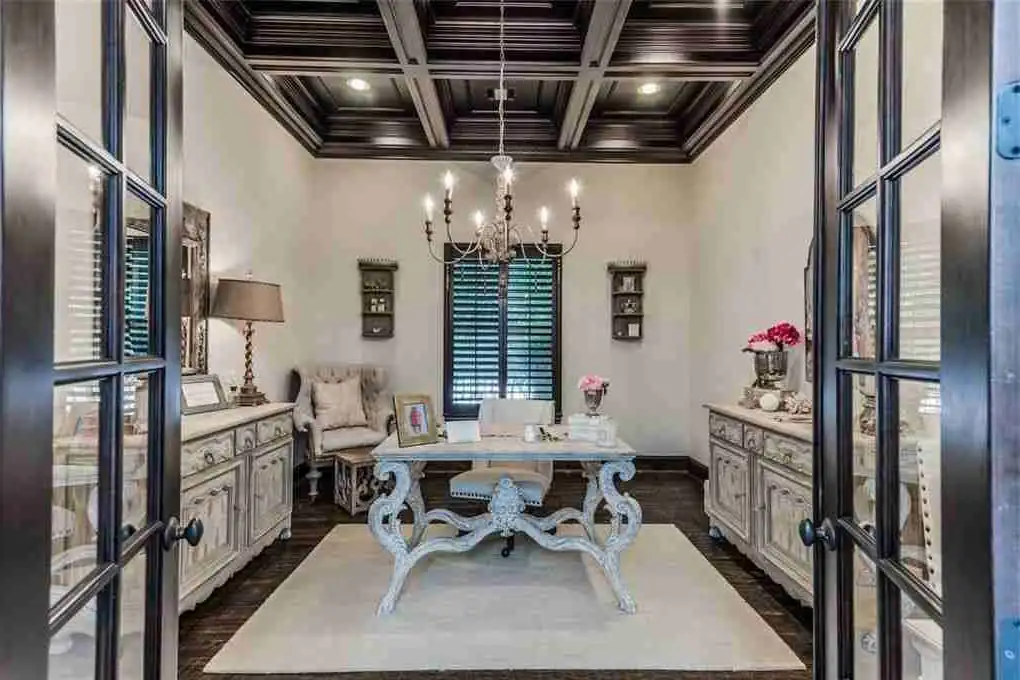

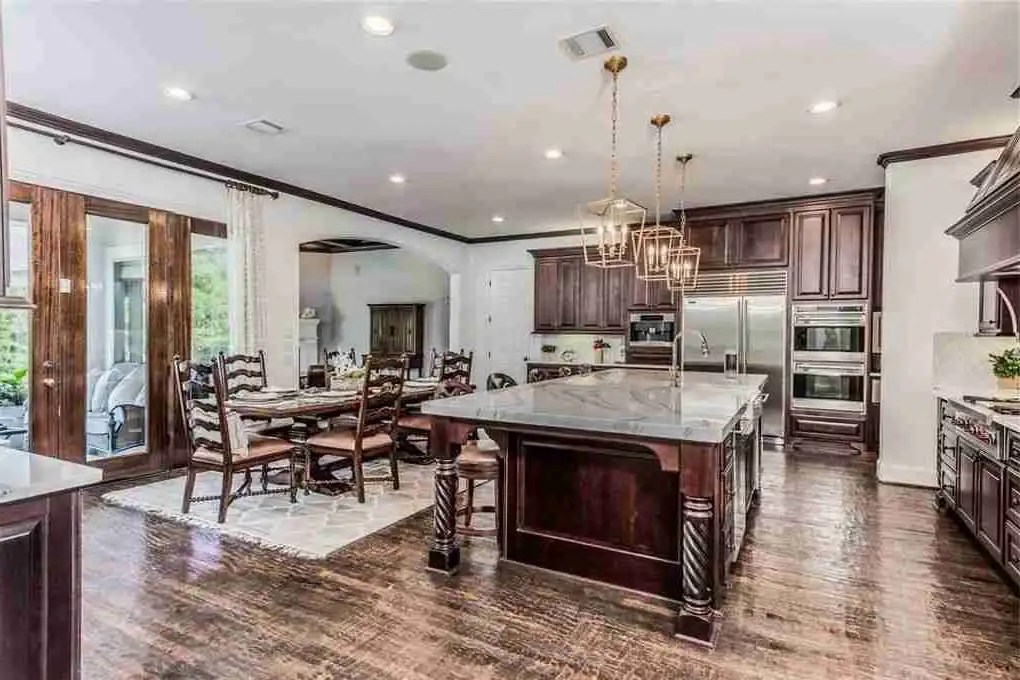

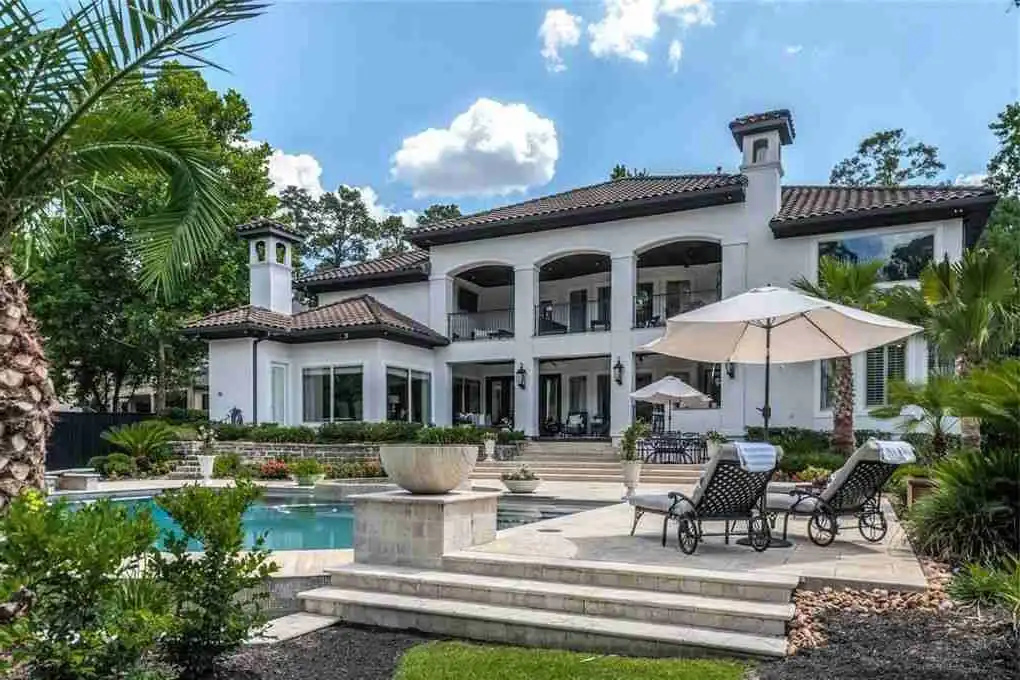

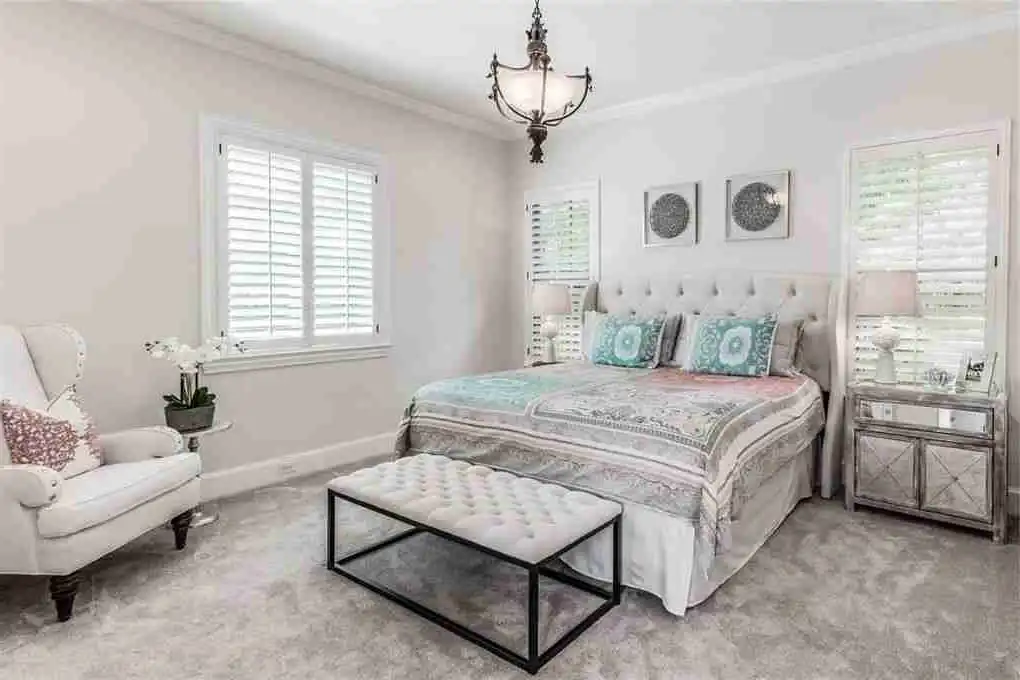

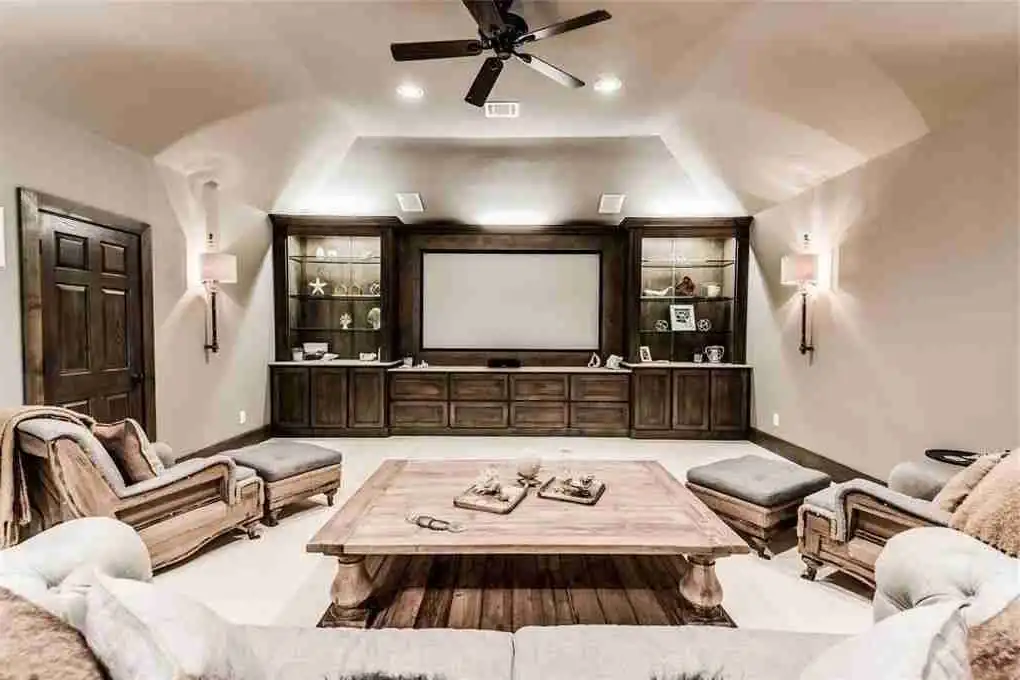

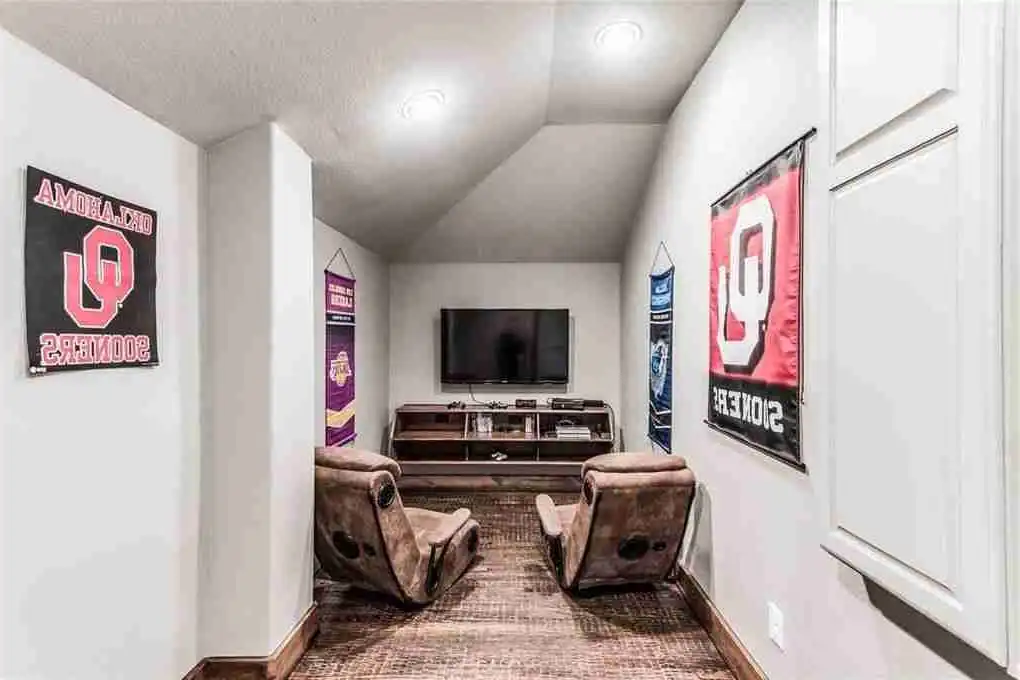

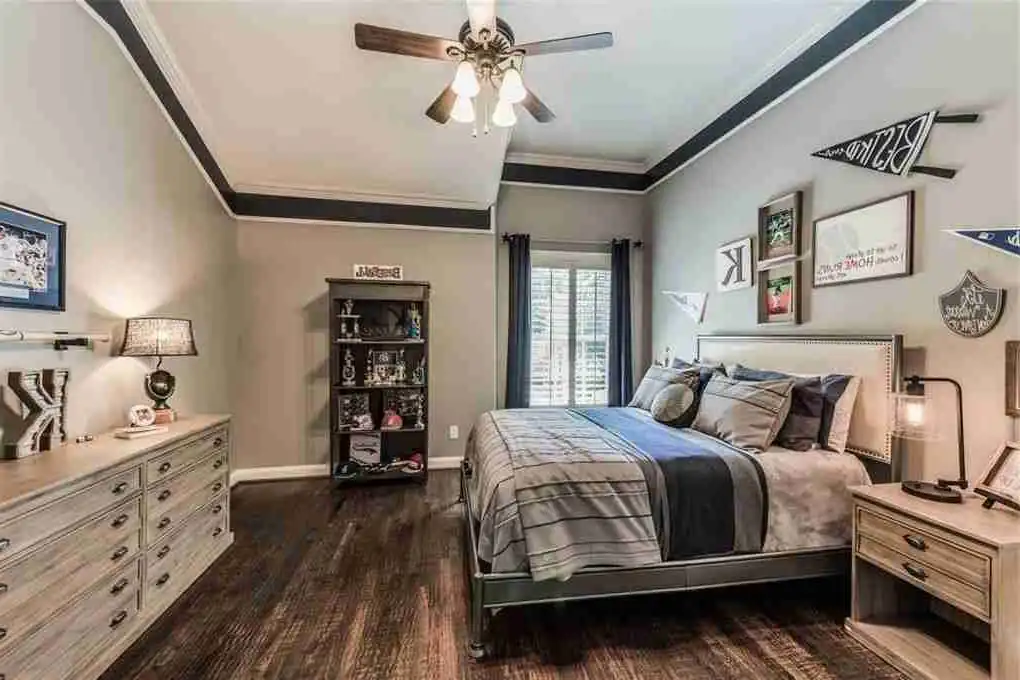

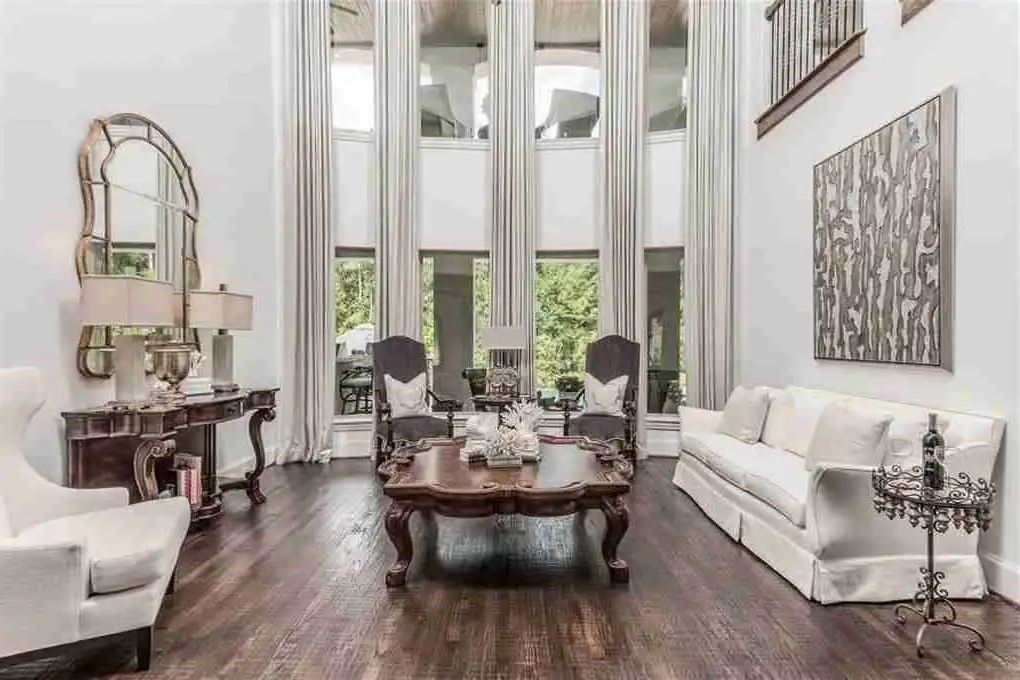

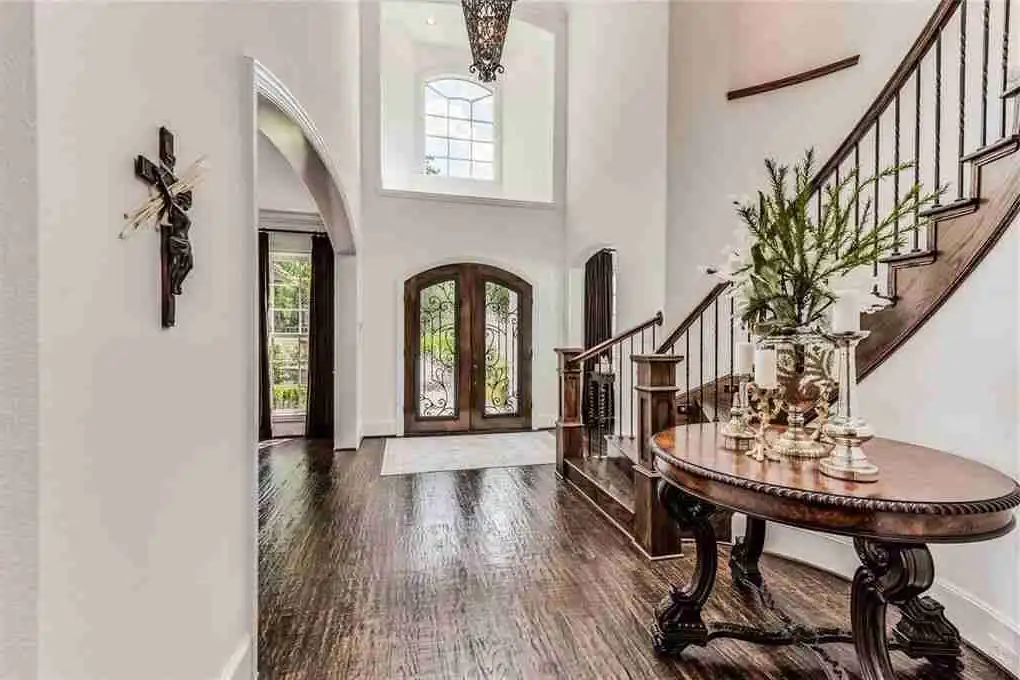

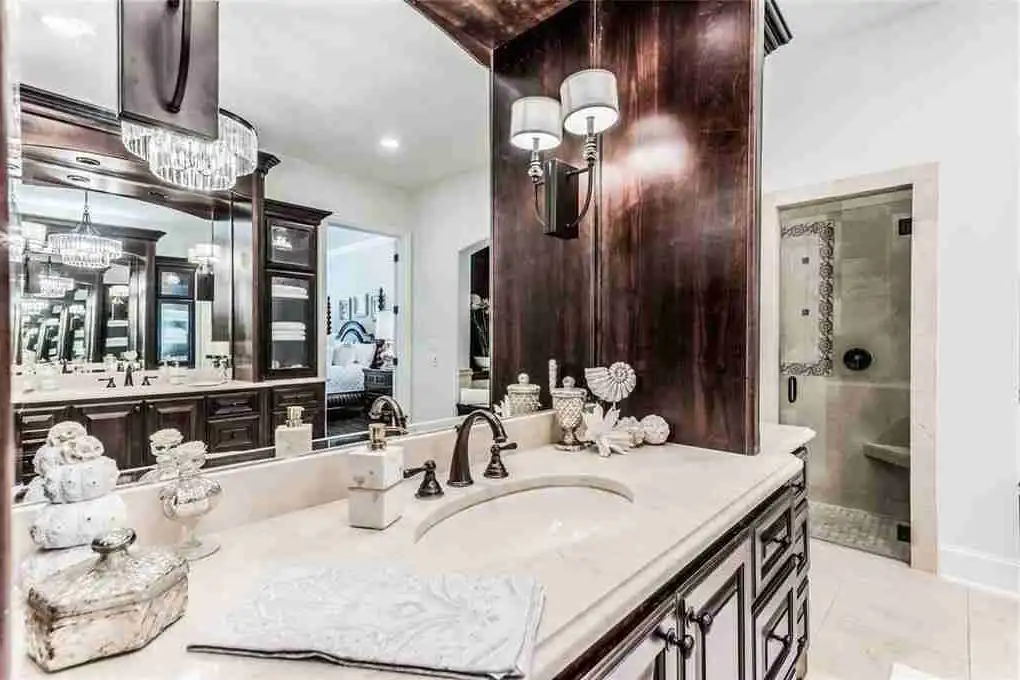

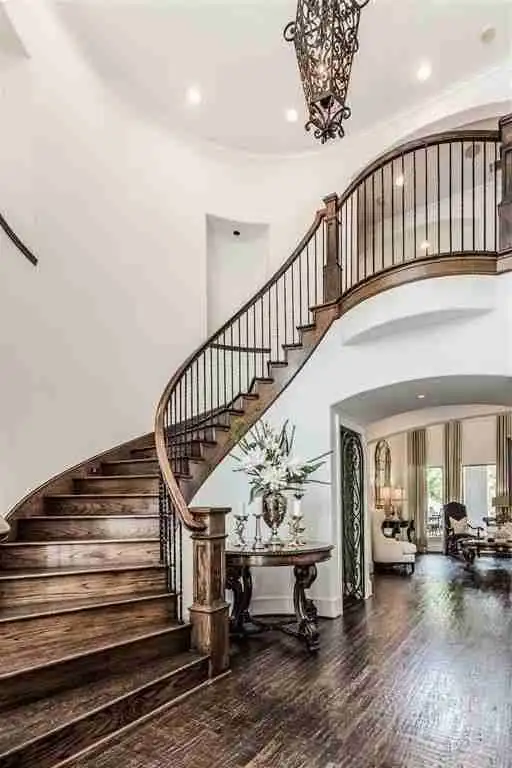

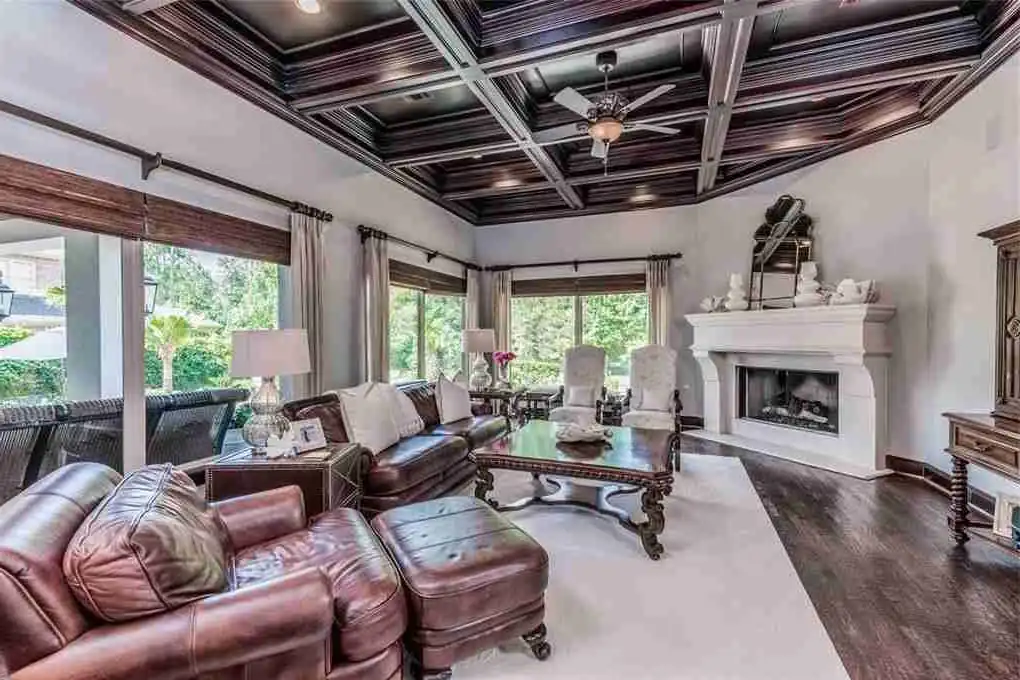

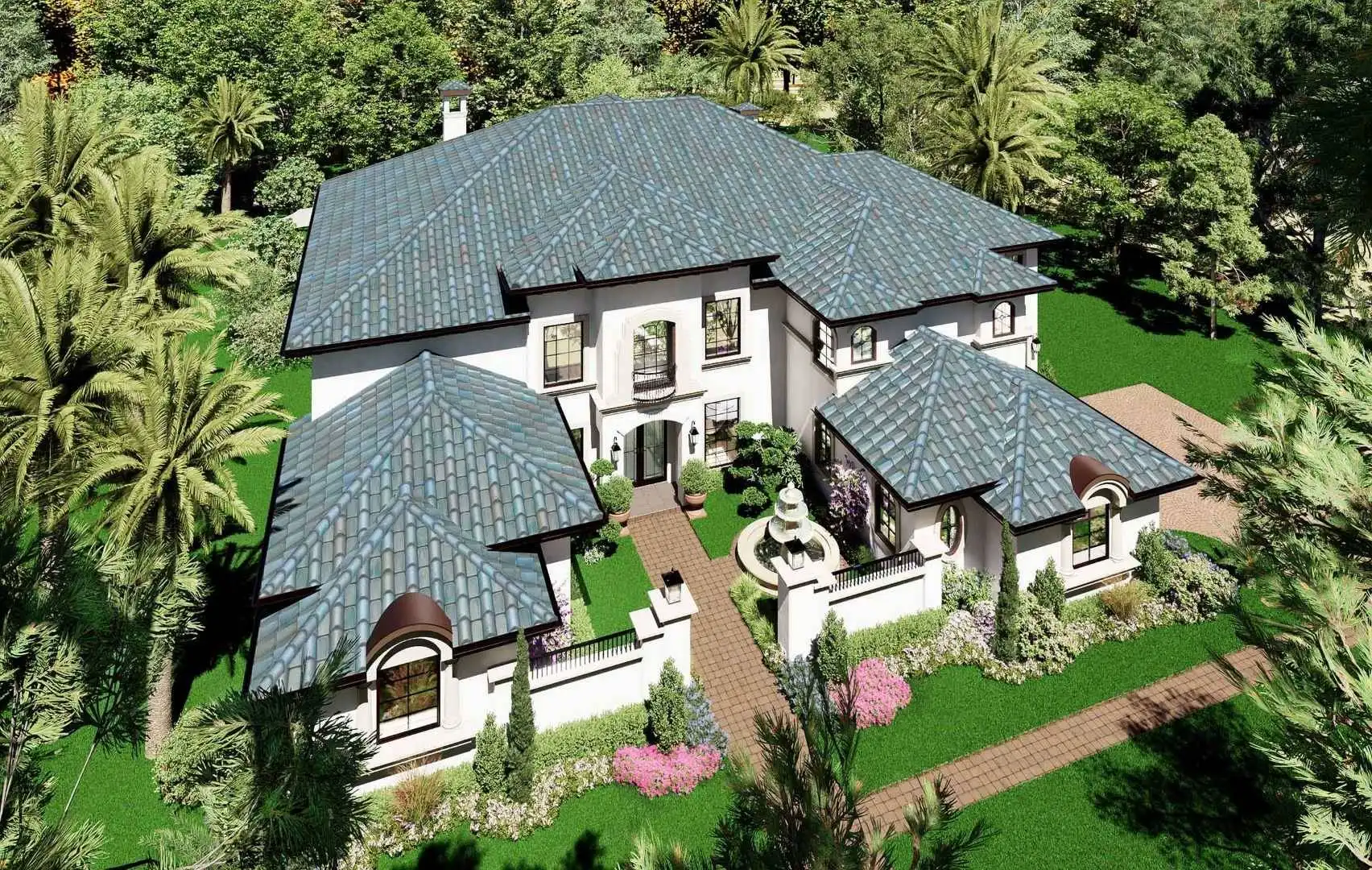

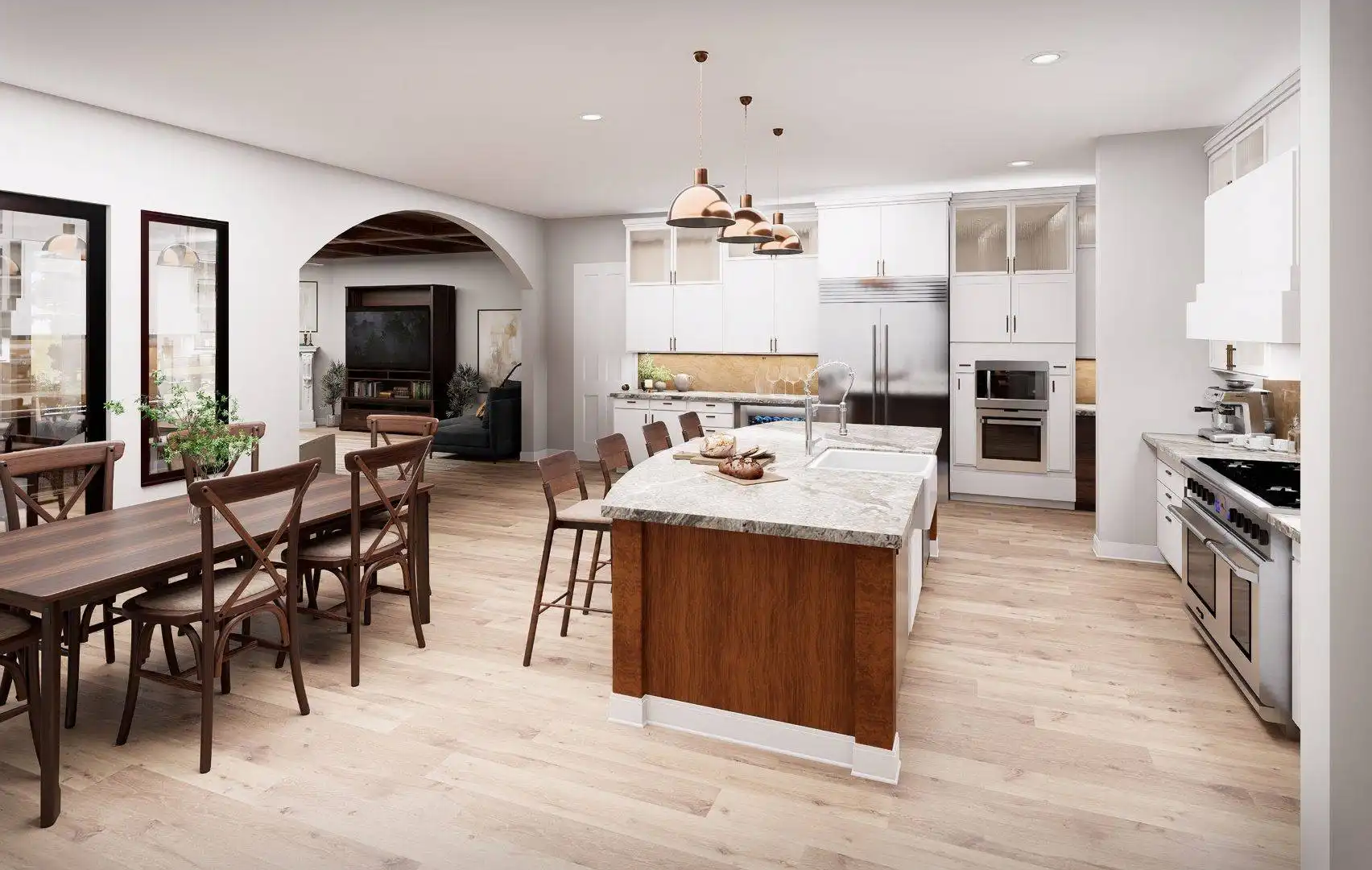

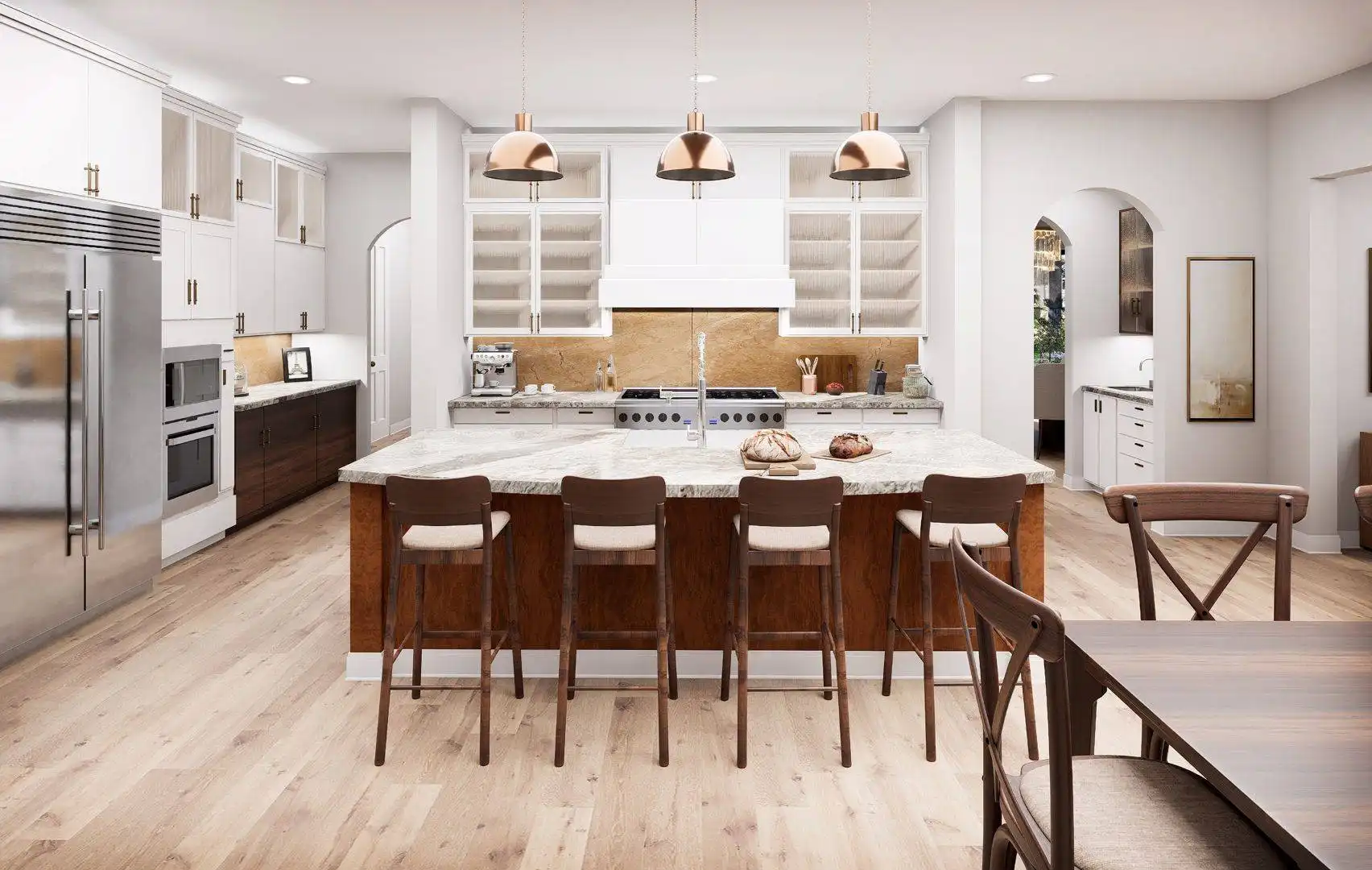

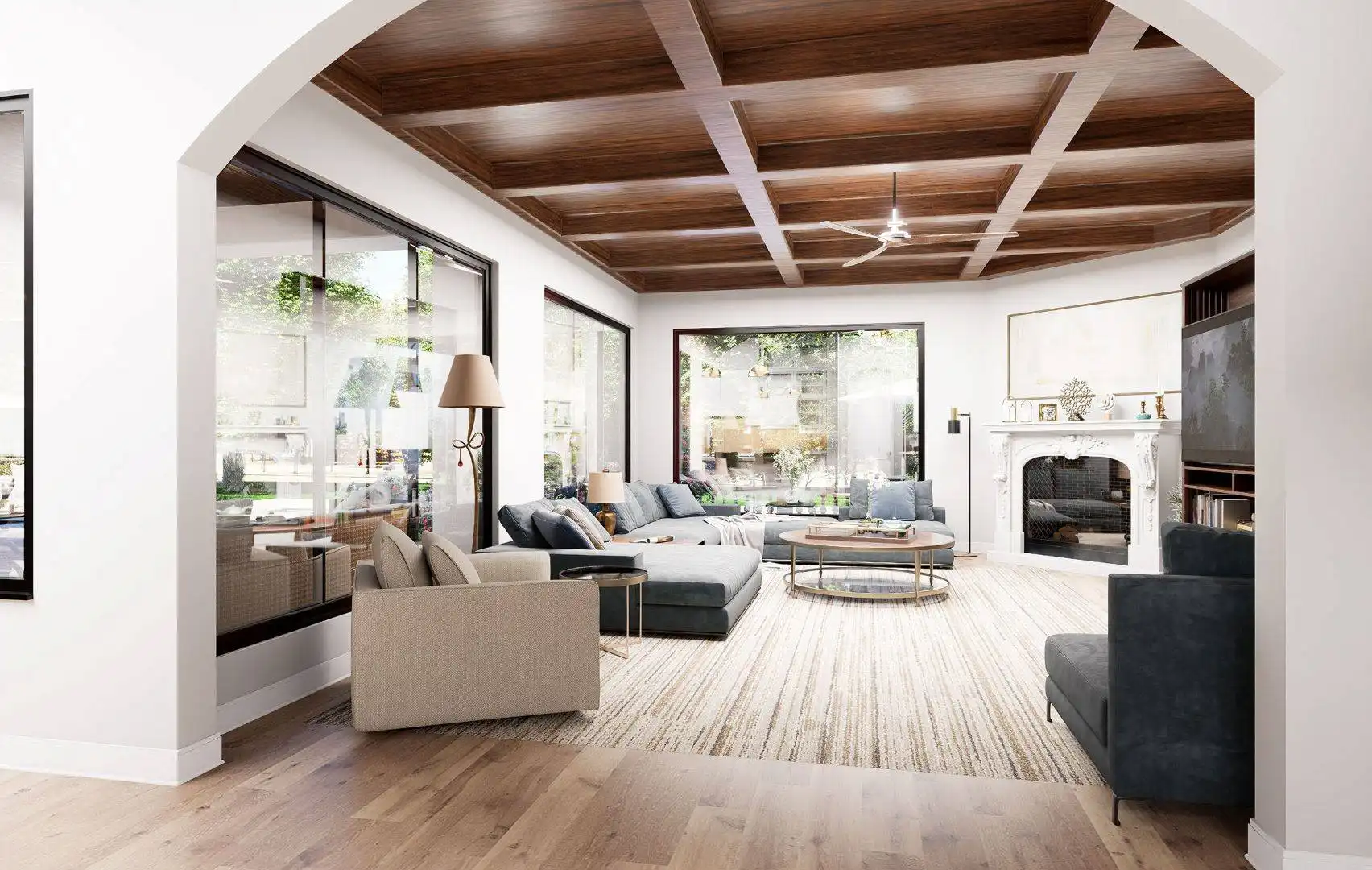

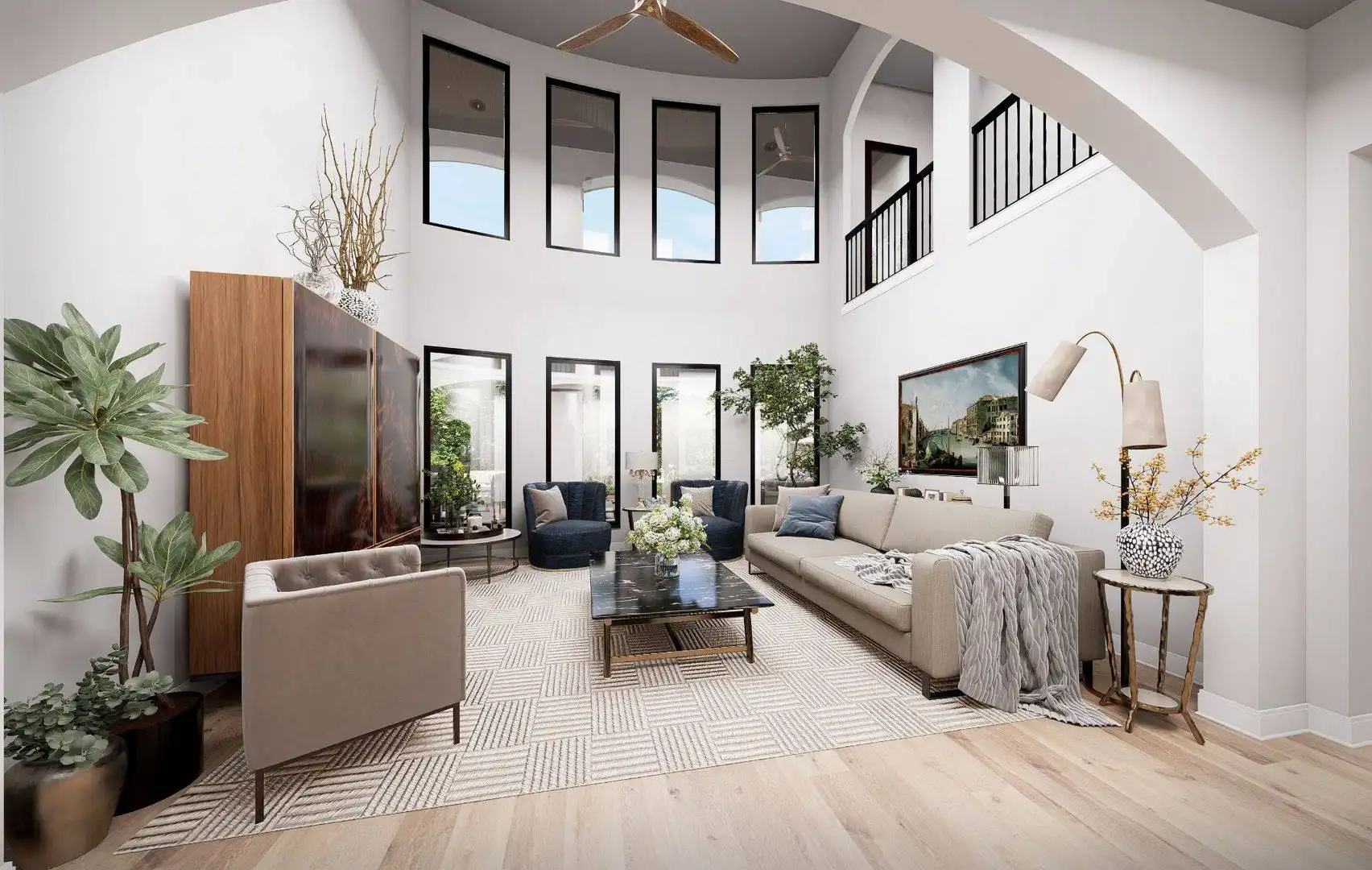

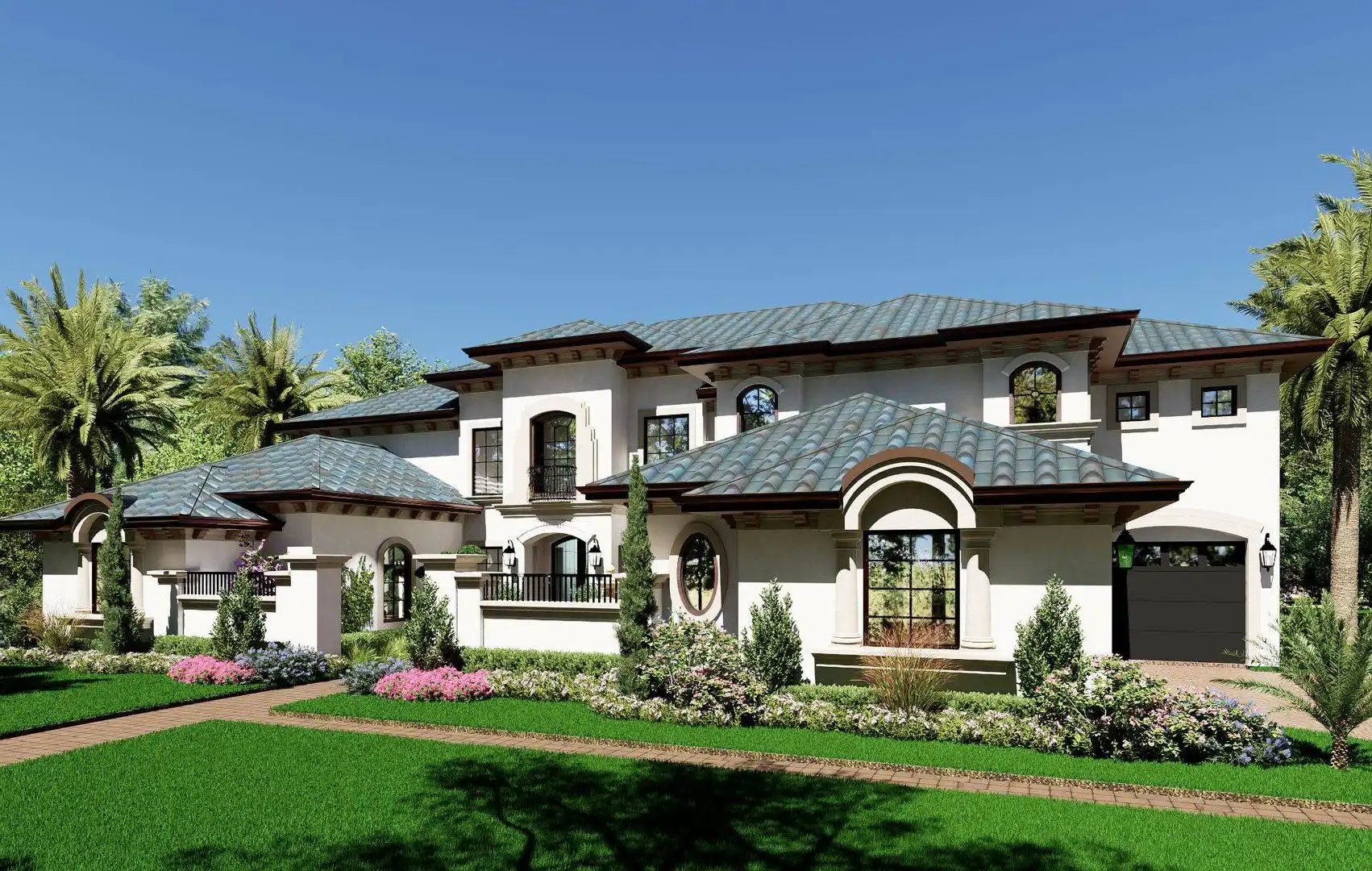

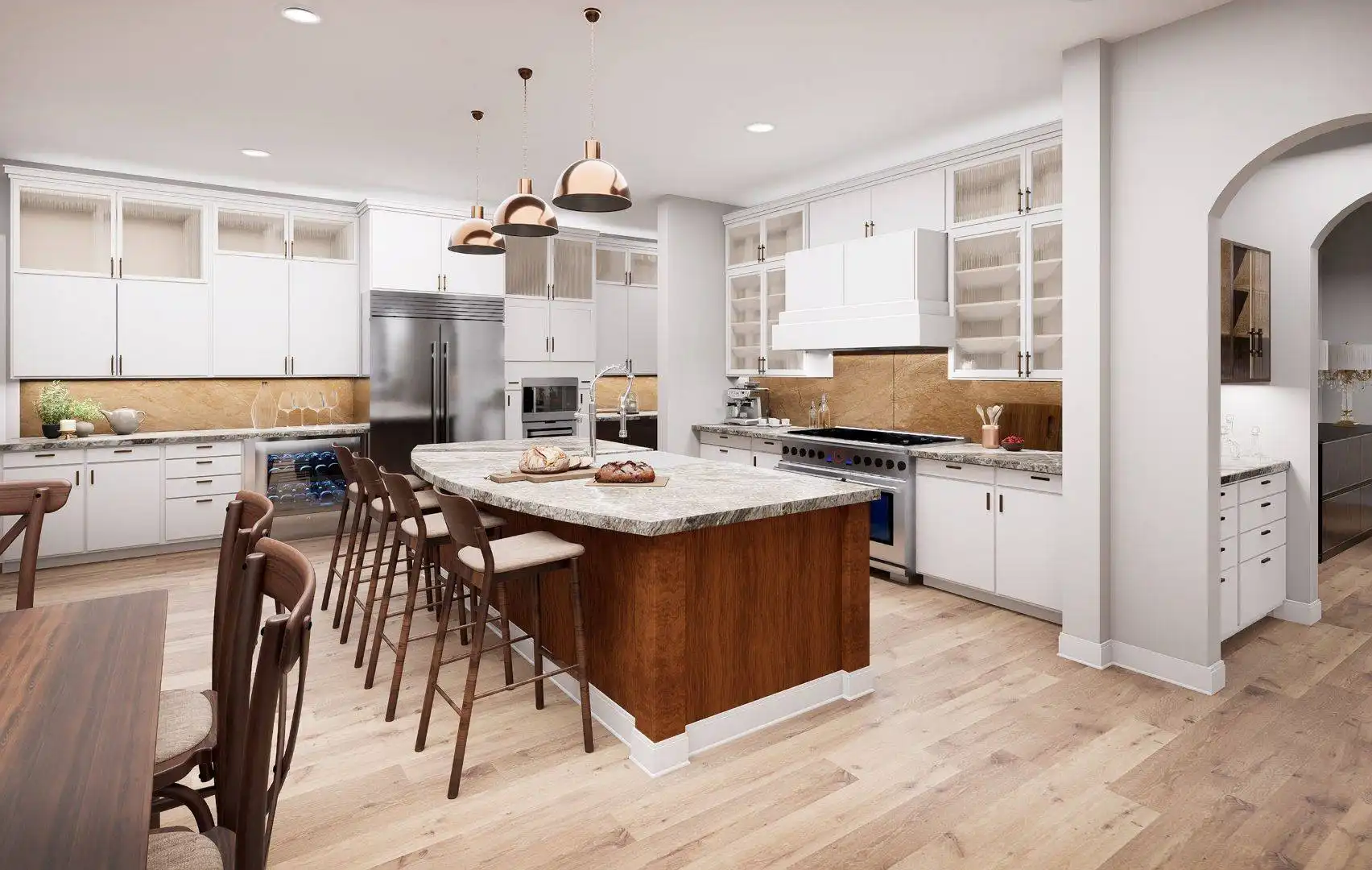

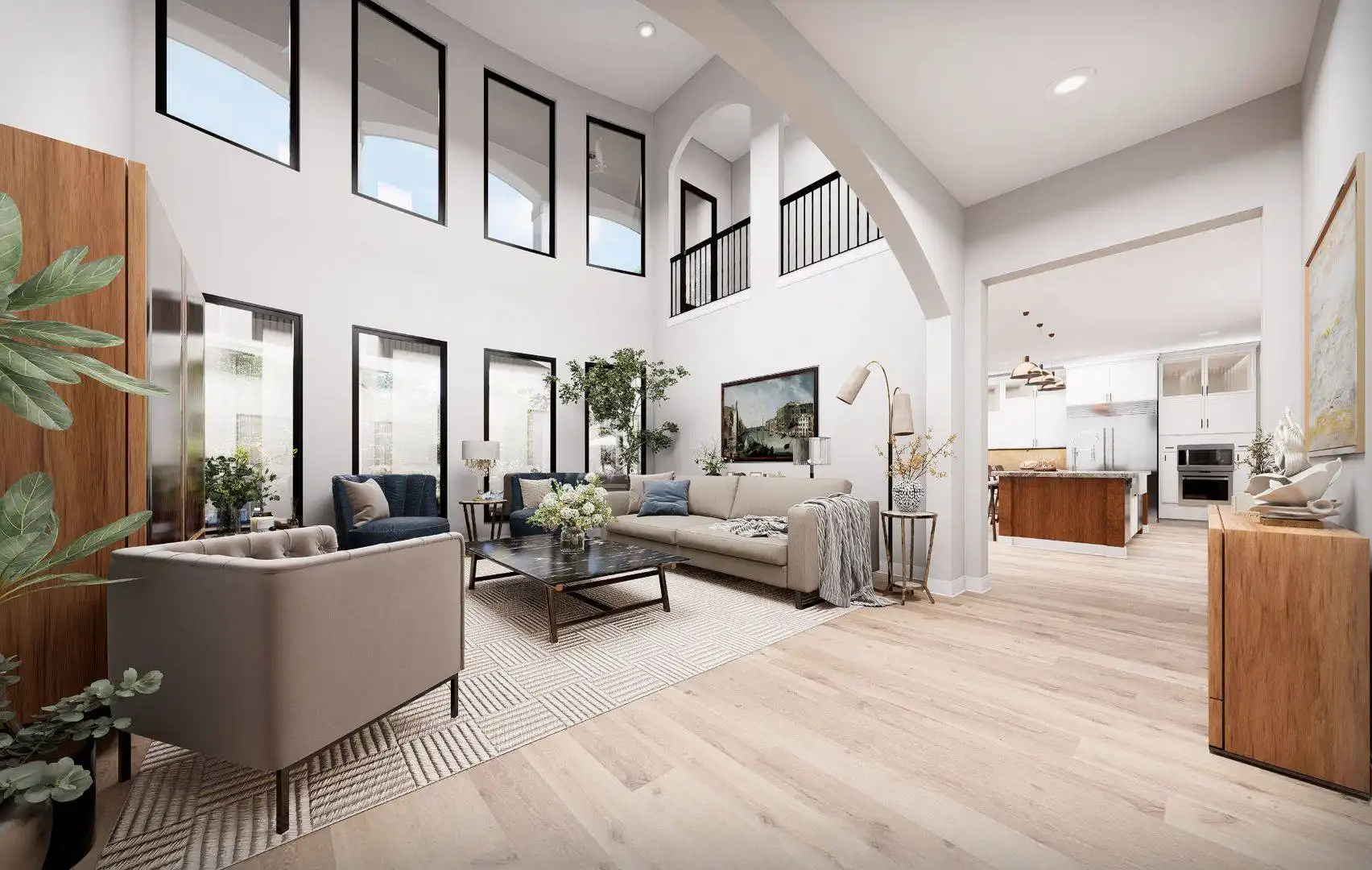

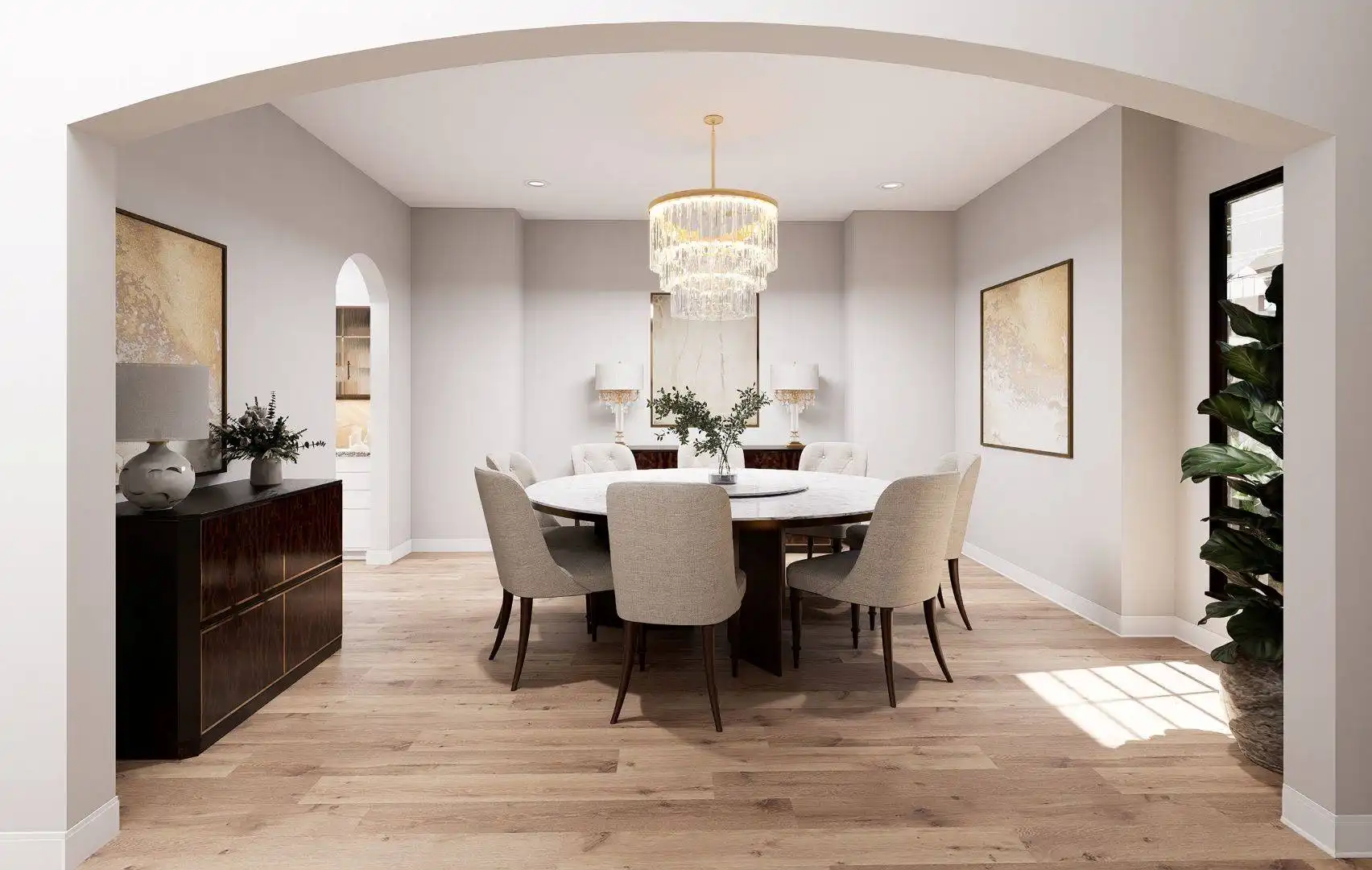

This Mediterranean style home design is a dream come true. Guests are welcomed into the dramatic foyer, centered between the formal dining room and a quiet study. The island kitchen serves both the dining room and the breakfast nook with style. Beyond a gallery lies the central living room. A corner fireplace enhances the sleeping chamber of the deluxe master suite. The private bath boasts endless amenities. In another corner of the home, a coffered ceiling presides over the spacious family room. On the upper floor, two bonus rooms give you extra space for hobbies, child's play, or whatever you wish. A game room and a media room allow you to entertain guests with class. Three sizable bedroom suites grant a measure of privacy to your children.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,965
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $3,145
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $4,455
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2965
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
4,100 Sq. Ft.
Main Level:
2,512 Sq. Ft.
Upper Level:
6,612 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
2
Half Baths:
General House Information
2
Number of Stories:
80' 11"
Width:
97' 5"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
938 Sq. Ft.
Garage:
37 Sq. Ft.
Porch:
412 Sq. Ft.
Deck:
433 Sq. Ft.
Patio:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Mediterranean
Collections
In-Law Suite
Luxury
Open Floor Plan
Outdoor Living
Pet Lovers
Split Bedroom
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
6
Primary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
35' 2"
Maximum House Height:
Key Features
2 Story Volume
Arches
Attached

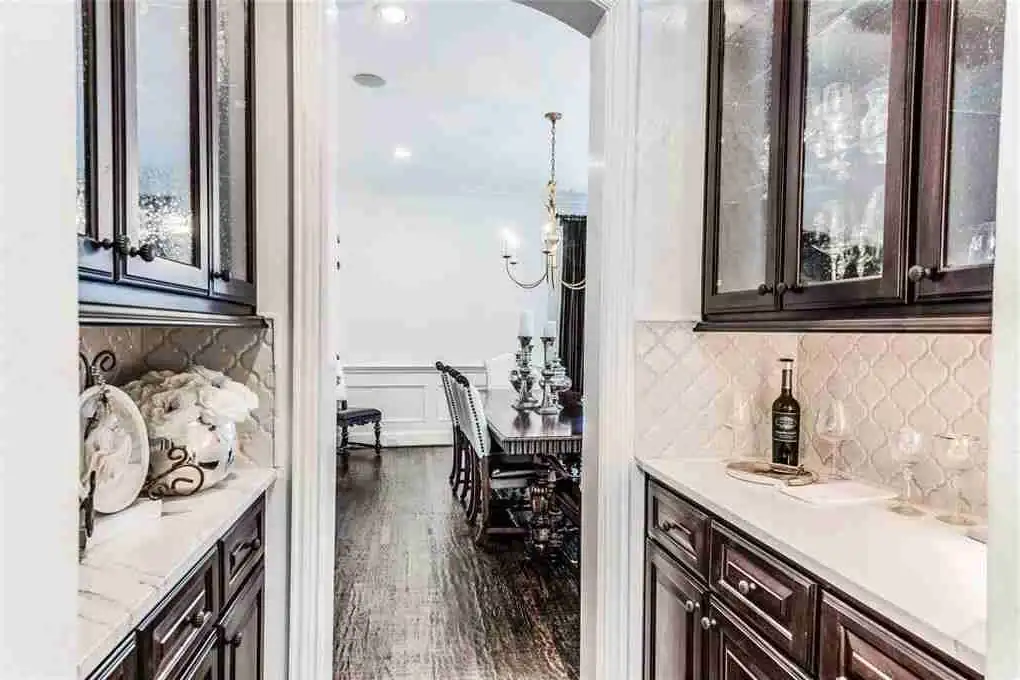

Butler's Pantry
Country Kitchen
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Front-entry
Guest Suite
Home Office
In-law Suite
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Primary Bdrm Main Floor
Nook / Breakfast Area
Rear Porch
Rec Room
Separate Tub and Shower
Side-entry
Sitting Area
Slab
Split Bedrooms
Storage Space
Suited for corner lot
Suited for view lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Wine Cellar
