House Plan: DFD-4701

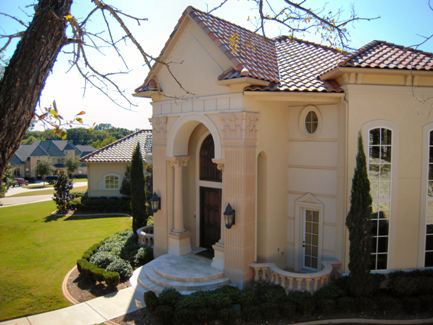

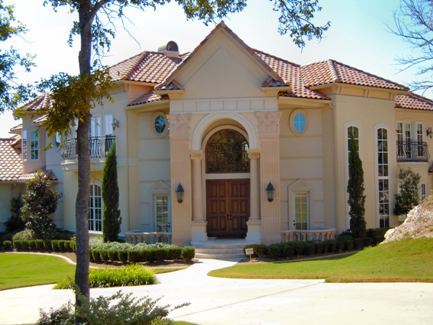

See All 51 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
5,907
BEDS
5
BATHS
5.5
STORIES
2
CARS
3
HOUSE PLANS SALE
START AT  $2,057.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 4701
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,420
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,620
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,630
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2420
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
4,404 Sq. Ft.
Main Level:
1,503 Sq. Ft.
Upper Level:
5,907 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
2
Half Baths:
General House Information
2
Number of Stories:
93' 6"
Width:
96' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
1161 Sq. Ft.
Garage:
63 Sq. Ft.
Porch:
212 Sq. Ft.
Deck:
285 Sq. Ft.
Patio:
GARAGE
Rear
Garage Location:
3
Garage Size:
Exterior Style
European
French Country
Mediterranean
Tuscan
Collections
In-Law Suite
Kitchens
Luxury
Master Suites
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
7
Primary:
12
Porch:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
11
First Floor Ceiling:
9
Second Floor Ceiling:
33' 7"
Maximum House Height:
Key Features
2 Story Volume
Arches
Butler's Pantry
Country Kitchen
Covered Front Porch
Covered Rear Porch
Deck
Dining Room
Double Vanity Sink
Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Great Room
Guest Suite
Home Office
In-law Suite
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rear-entry
Rec Room
Separate Tub and Shower
Side-entry
Sitting Area
Slab
Split Bedrooms
Suited for corner lot
Suited for sloping lot
Suited for view lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
