House Plan: DFD-5055

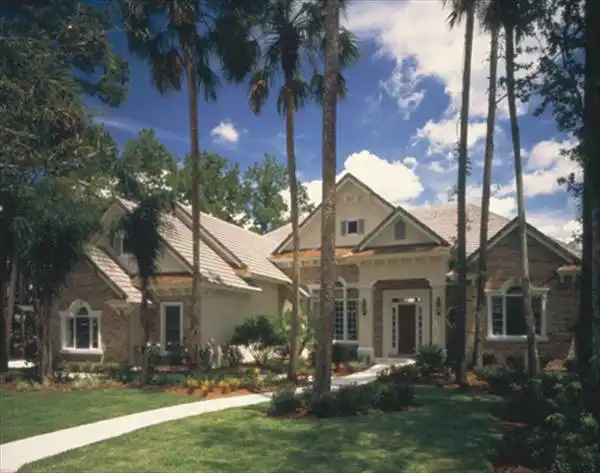

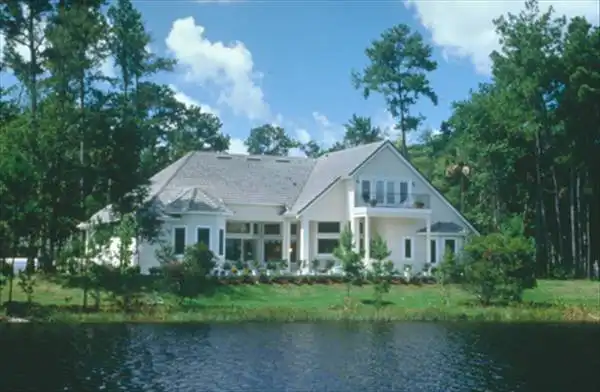

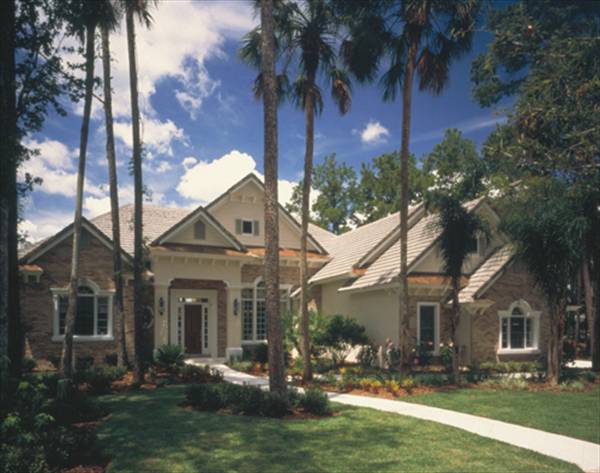

See All 12 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,723
BEDS
5
BATHS
5
STORIES
1
CARS
3
PLANS FROM $1,450
For questions and help, live chat, email or call us at 877-895-5299

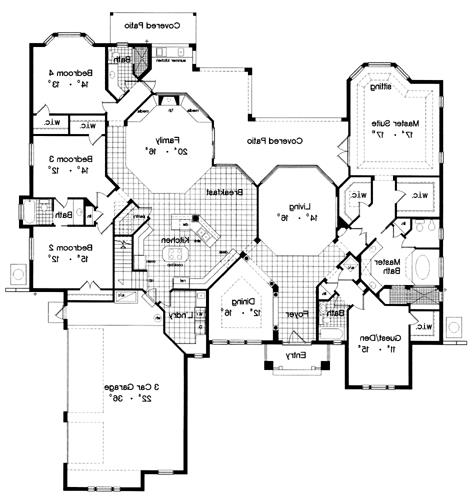

Floor Plans
Click to Zoom In on Floor Plan

House Plan 5055
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $800
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,450
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,650
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,800
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,900
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1450
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,723 Sq. Ft.
Main Level:
3,723 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
General House Information
1
Number of Stories:
82' 4"
Width:
89' 0"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Unfinished Square Footage
850 Sq. Ft.
Garage:
63 Sq. Ft.
Porch:
60 Sq. Ft.
Deck:
465 Sq. Ft.
Patio:
490 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
European
Modern
Traditional
Collections
Concrete
Florida
ICF
Kitchens
Luxury
Primary Suites
Old House Classics
Open Floor Plan
Outdoor Living
Split Bedroom
Texas
Foundation
*Slab (Standard)
Framing Information
Truss
Roof Framing:
8" Block
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
Insulation (R)
5
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
14
First Floor Ceiling:
8
Second Floor Ceiling:
30' 6"
Maximum House Height:
Facade
Brick
Shakes
Siding
Siding/Brick
Stucco
Key Features
5 Bedrooms
5 Full Baths
Arches
Attached
Bonus Room
Built - In Desk in Kitchen
Built - In Media with Fireplace
Built - In Niches
Built - In Seat Primary Shower
Built - In Vanity Primary Bath
Combination Kitchen / Family Room
Covered Patio Volume Ceiling
Covered Rear Porch
Deck
Decorative Interior Columns
Den / Guest
Dining Room
Double Vanity Sink
Family Room
Family Room - 14' Ceiling
Fireplace
Formal Dining Room - 14' Ceiling
Formal Living Room - 14' Ceiling
Formal LR
Foyer
Foyer Ceiling - 14' Ceiling
Grand Primary - Sitting Area
Great Room
Guest Suite
His and Hers Primary Closets
Home Office
Impressive Entry
Kitchen / Nook - 14' Ceiling
Kitchen Island
Large Laundry Room
Laundry 1st Fl
Library/Media Rm
Linen Closets
Primary Bdrm Main Floor
Primary Bedroom Tray Ceiling
Mud Room
Nook / Breakfast Area
Open Floor Plan
Optional - Bidet' - Primary Bath
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Side-entry
Slab
Split Bedrooms
Suited for view lot
Summer Kitchen
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
