House Plan: DFD-5087

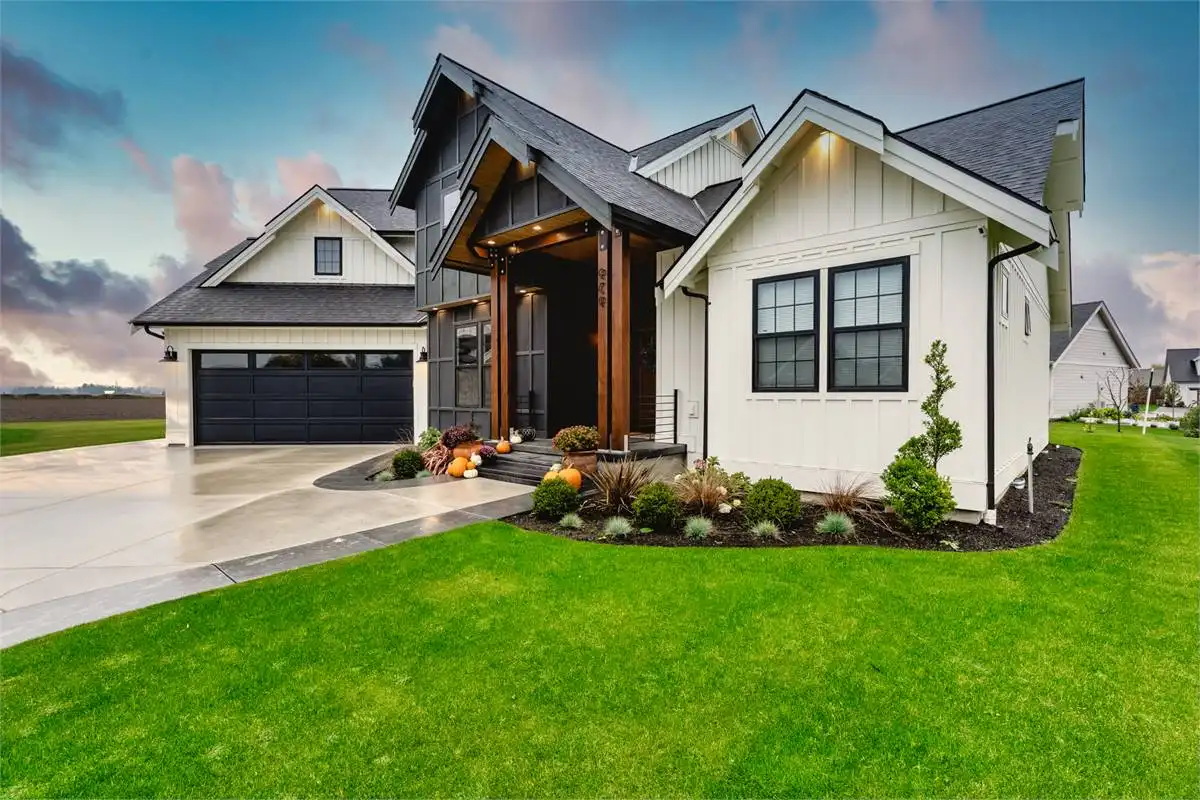

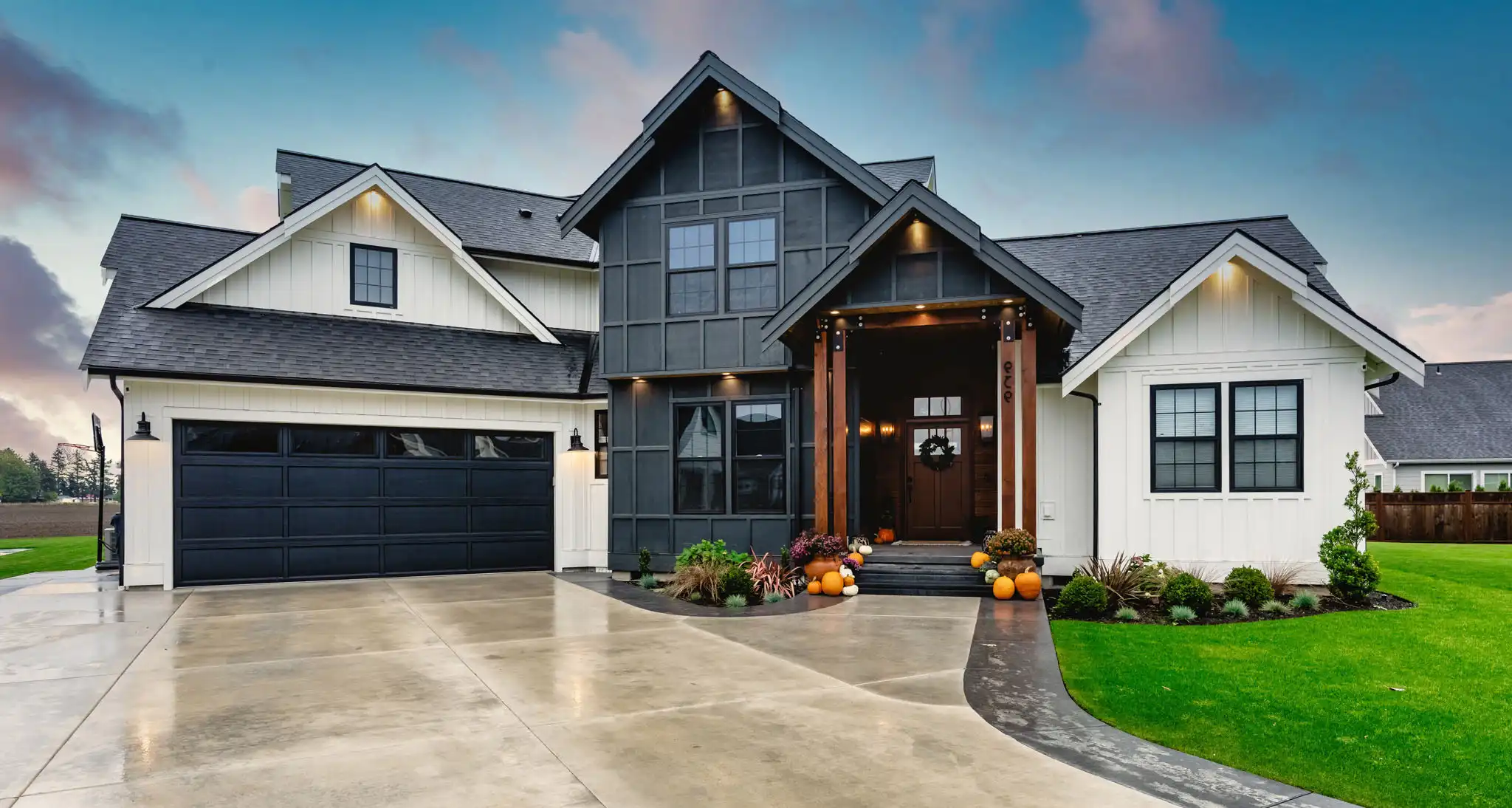

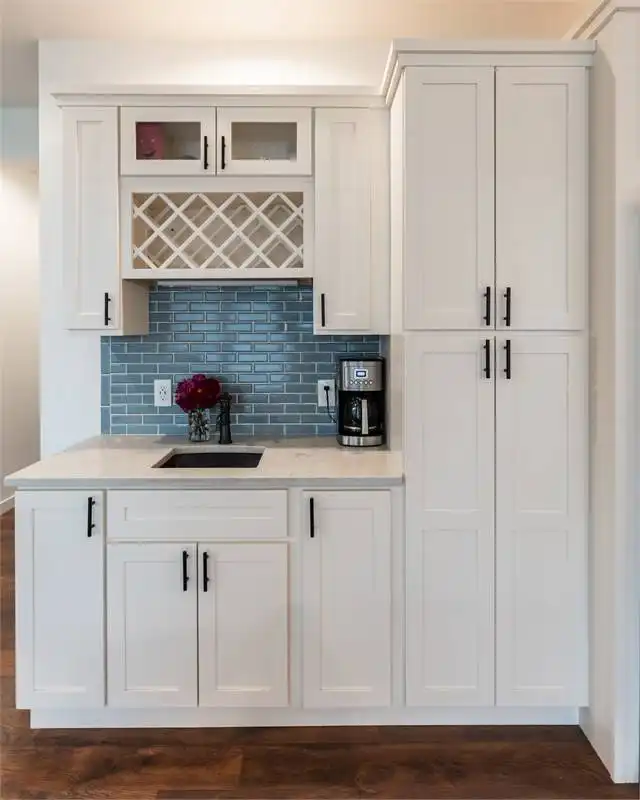

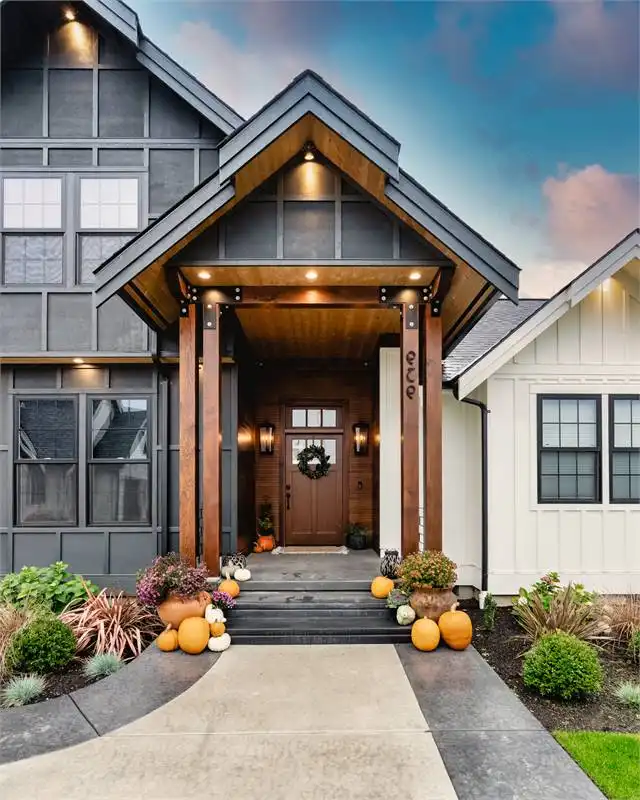

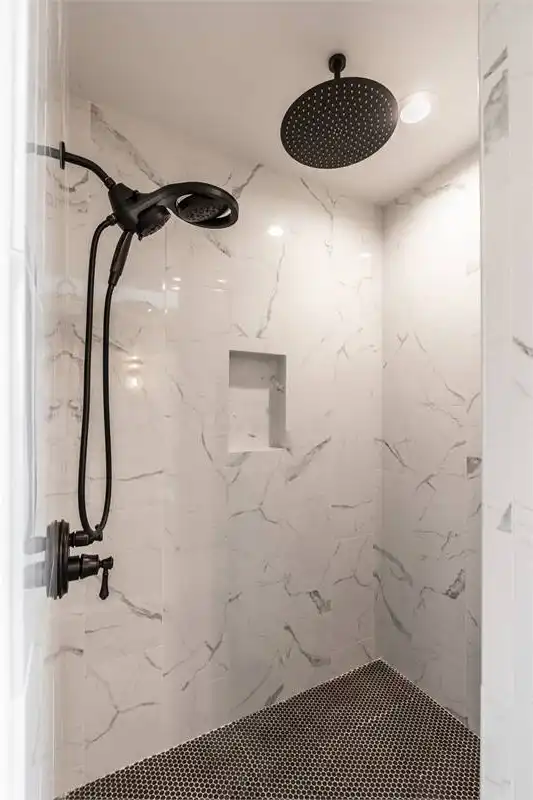

See All 19 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,827
BEDS
3
BATHS
3
STORIES
2
CARS
2
HOUSE PLANS SALE
START AT  $1,487.50
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 5087
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $875
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,750
Most recommended package

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $2,200
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,250
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1750
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,798 Sq. Ft.
Main Level:
1,029 Sq. Ft.
Upper Level:
2,827 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
General House Information
2
Number of Stories:
74' 5"
Width:
49' 2"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
632 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Craftsman
Lake
Modern Farmhouse
Transitional
Collections
Kitchens
Master Suites
Mountain
Open Floor Plan
Outdoor Living
Foundation
Crawl Space
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8/12
Primary:
10/12
Secondary:
Insulation (R)
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
29' 8"
Maximum House Height:
Key Features
Attached

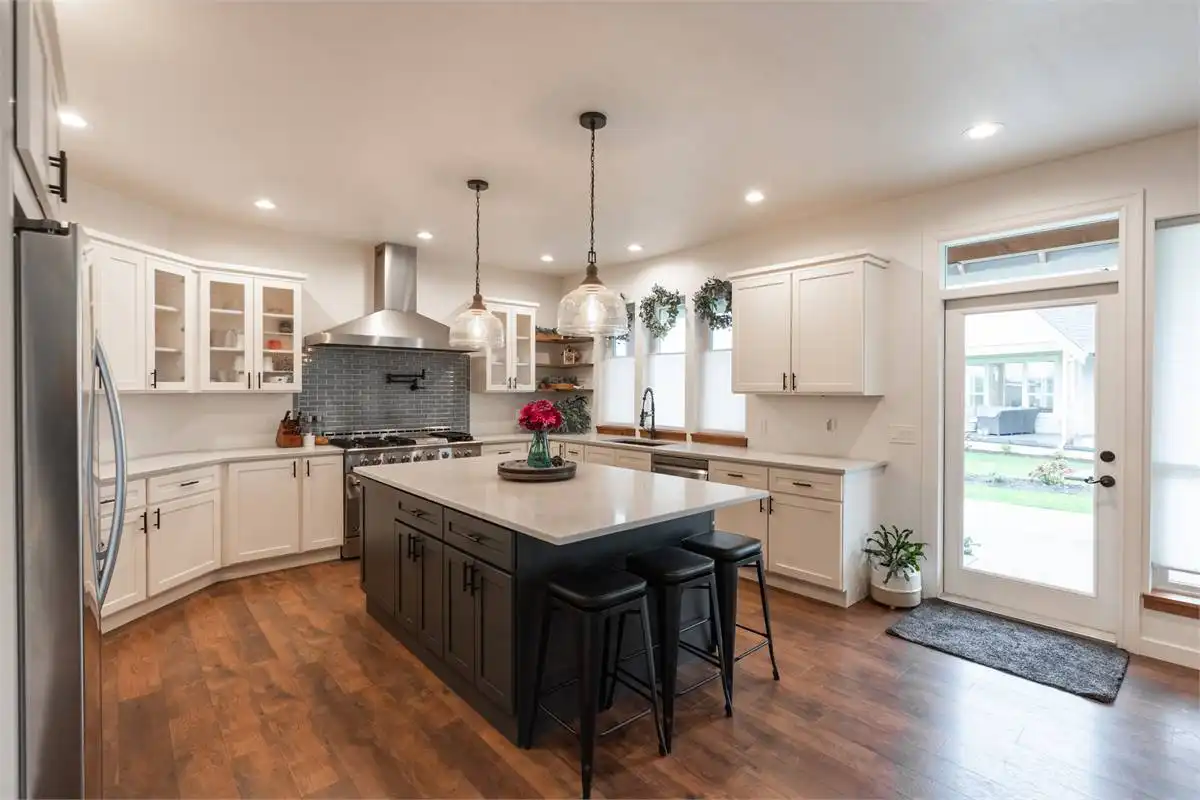

Country Kitchen

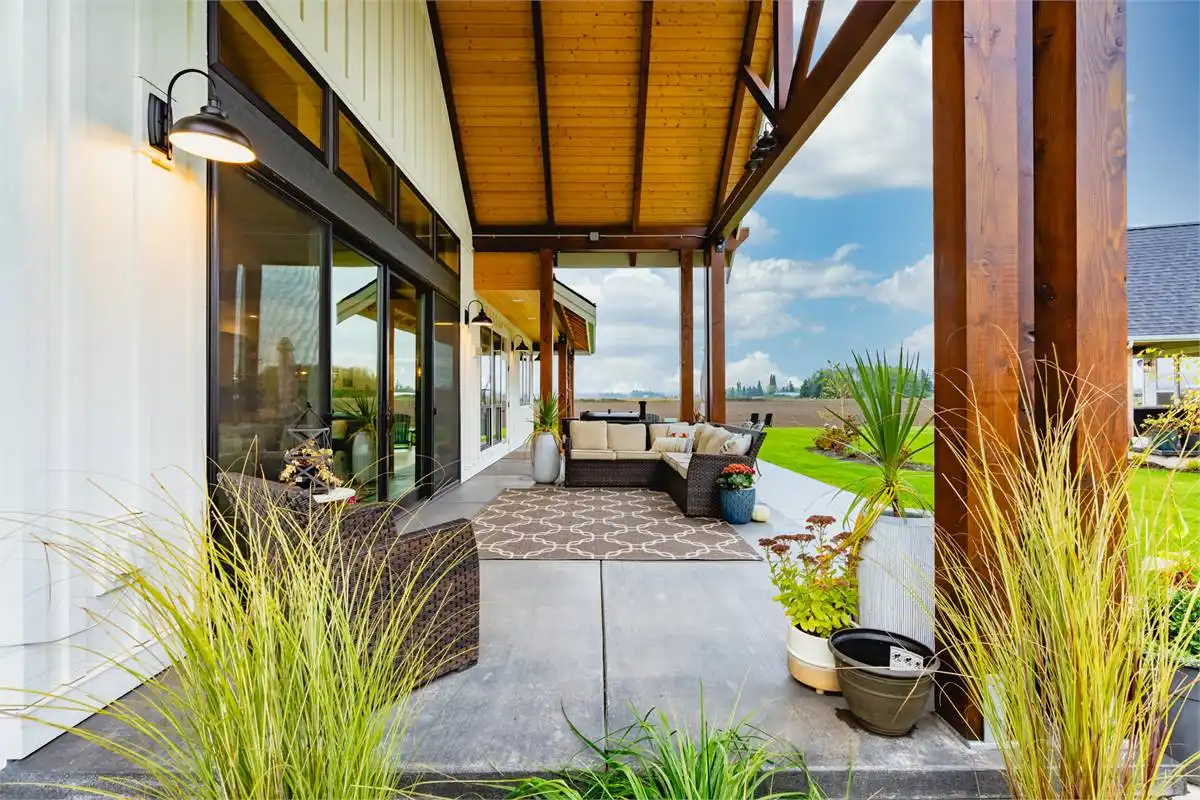

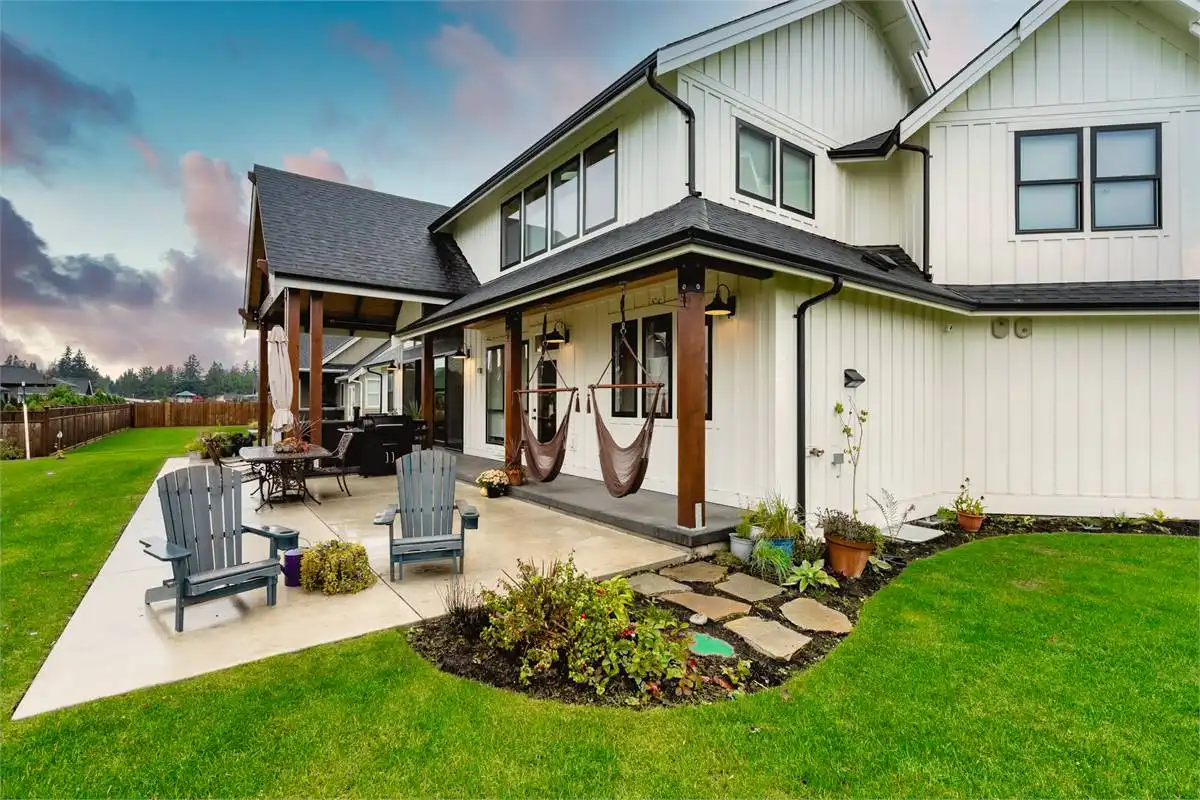

Covered Rear Porch

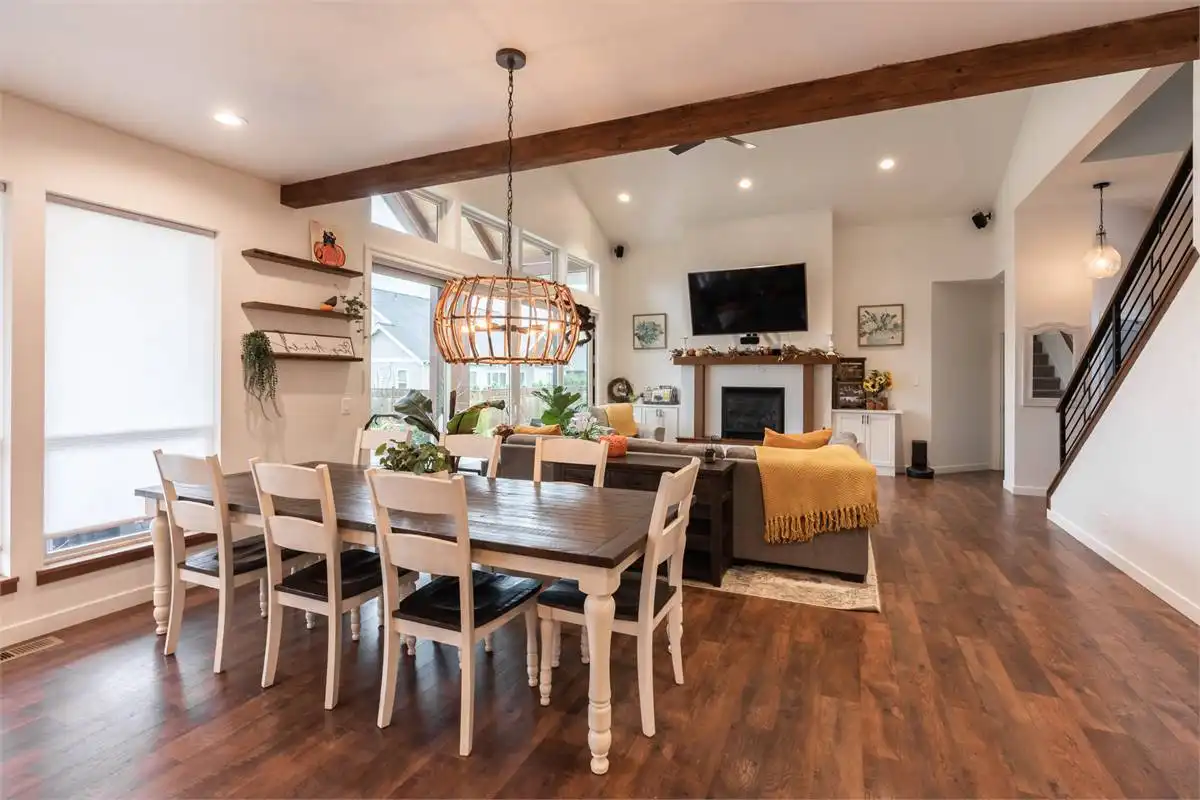

Dining Room
Double Vanity Sink

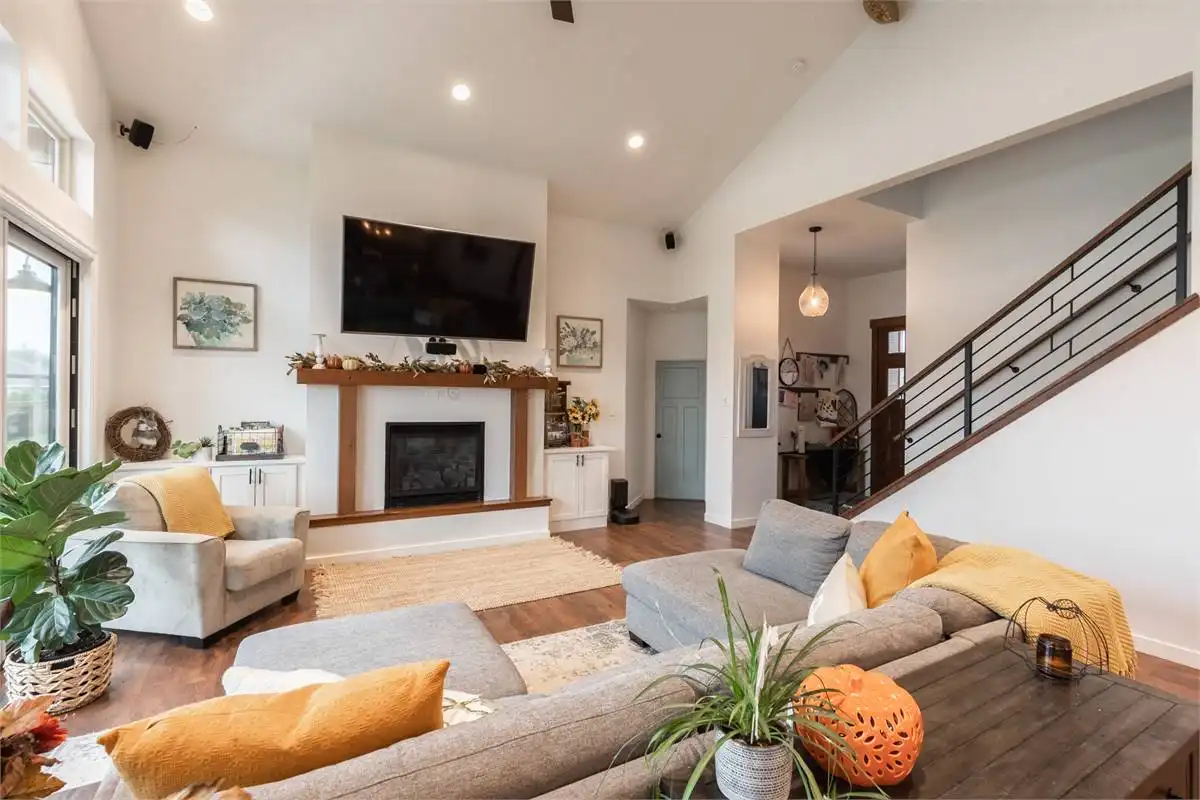

Family Room
Fireplace
Front Porch
Front-entry
His and Hers Master Closets

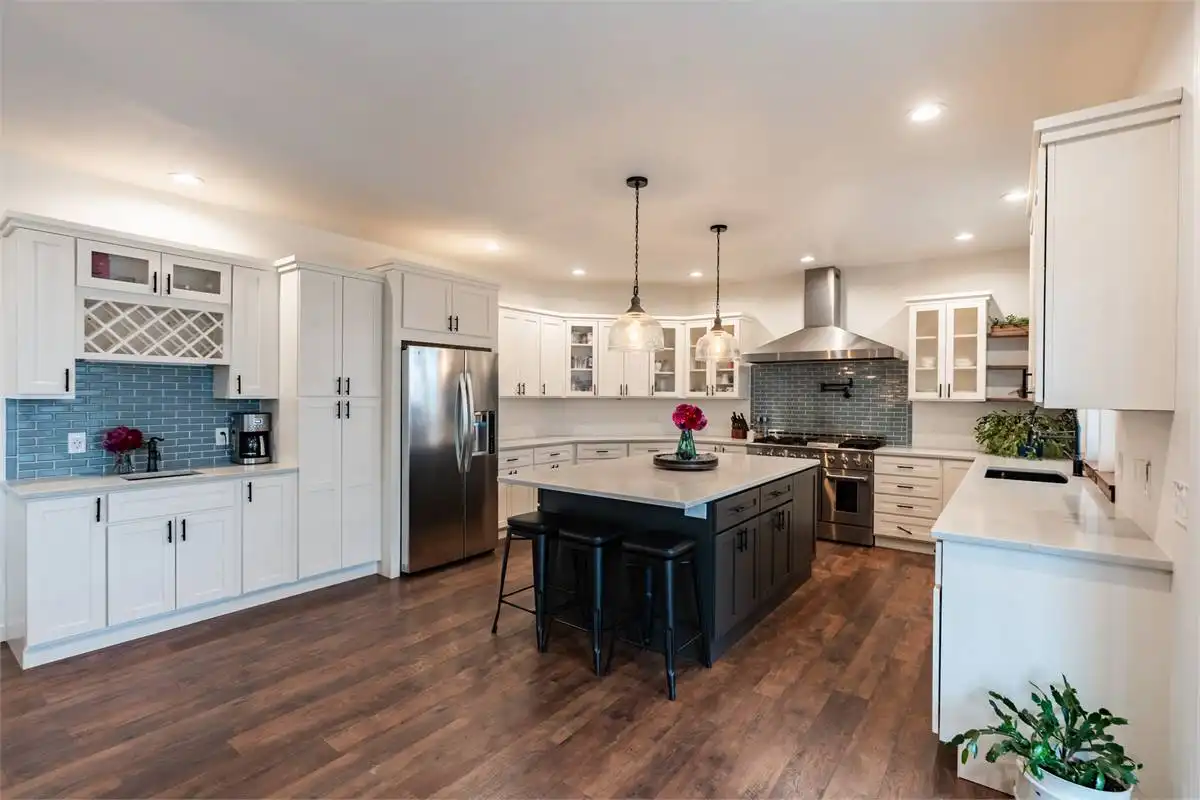

Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Mud Room
Open Floor Plan
Outdoor Living Space
Oversized
Peninsula / Eating Bar
Rec Room

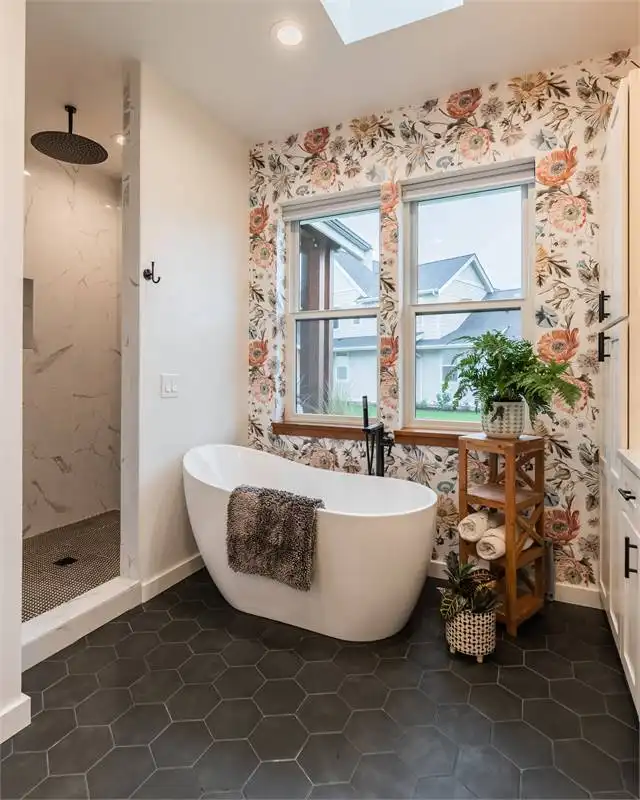

Separate Tub and Shower
Split Bedrooms
U-Shaped
Vaulted Ceilings
Walk-in Closet
