House Plan: DFD-5188

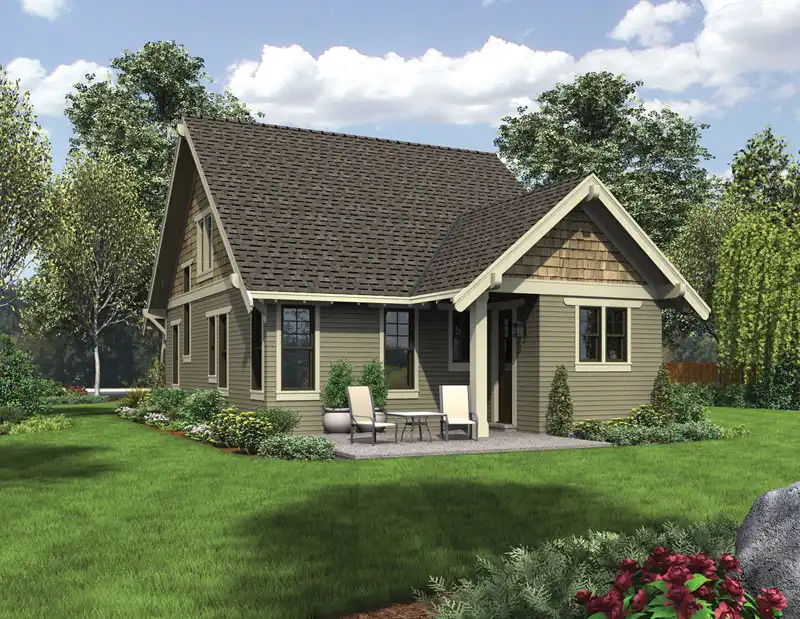

See All 3 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,777
BEDS
3
BATHS
2.5
STORIES
2
CARS
0
PLANS FROM $858
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5188:

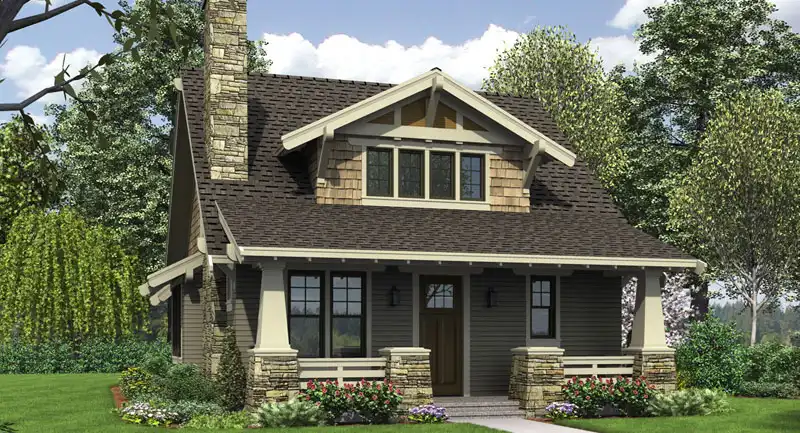

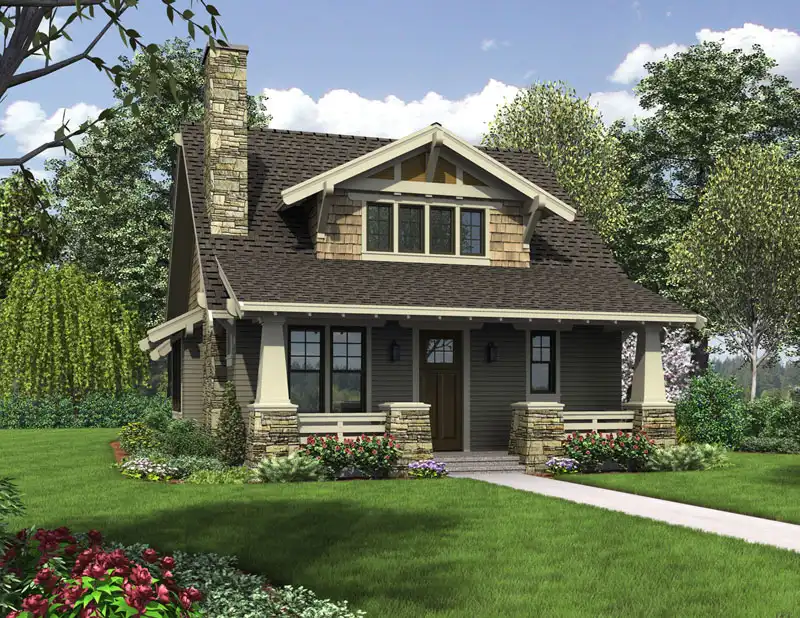

Tapered columns and stone accents lend a Craftsman air to this two-story house plan, with three bedrooms, 2. Read more >
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $858
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,208
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,383
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,433
Immediate Delivery!
Digital plans plus 5 printed sets

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use $2,416
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$0
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,150 Sq. Ft.
Main Level:
627 Sq. Ft.
Upper Level:
1,777 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
2
Number of Stories:
30' 0"
Width:
51' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
156 Sq. Ft.
Porch:
GARAGE
0
Garage Size:
Exterior Style
Bungalow
Cottage
Craftsman
Foundation
Basement
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
6/12
Dormer:
5/12
Porch:
Roof Load
25
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9'
First Floor Ceiling:
8'
Second Floor Ceiling:
26' 1"
Maximum House Height:

Important Facts Before Purchasing House Plans

Direct from the Designers™ House Plans has the highest design standards in the industry. Read more on how our house plan standards and guarantees show our commitment to our customers and vital information you should know before starting your home building project.

Read All Important Facts >
Key Features
Basement
Country Kitchen
Covered Front Porch
Crawlspace
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Loft / Balcony
Master Bdrm Main Floor
Mud Room
None
Open Floor Plan
Rear Porch
Slab
Split Bedrooms
Walk-in Closet
Walk-in Pantry
