House Plan: DFD-7005

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,758
BEDS
4
BATHS
2.5
STORIES
1.5
CARS
2
PLANS FROM $489
For questions and help, live chat, email or call us at 877-895-5299

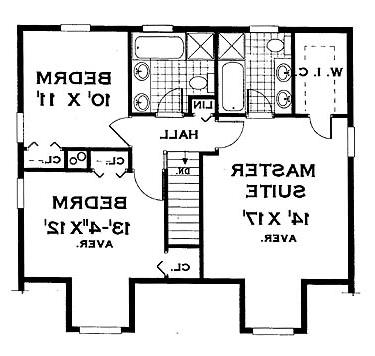

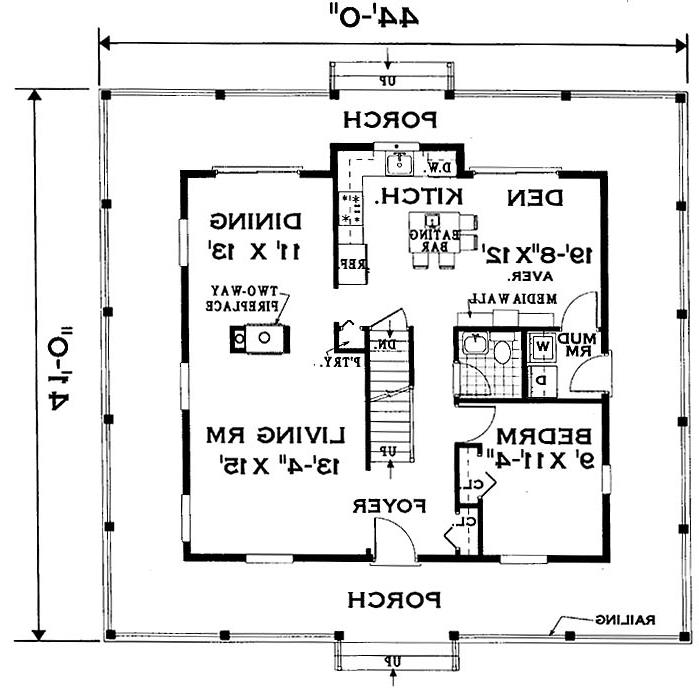

Floor Plans
Click to Zoom In on Floor Plan

House Plan 7005
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $520
Digital set of plans for bidding purposes only

4 Printed Sets


Four printed sets of construction drawings shipped and received in 3-5 business days

4 Printed Sets $575
Four printed sets of house plans

8 Printed Sets


Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $659
Eight printed sets of house plans

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $793
Immediate Delivery!
Most recommended package
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$575
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
948 Sq. Ft.
Main Level:
810 Sq. Ft.
Upper Level:
948 Sq. Ft.
Lower Level:
1,758 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1.5
Number of Stories:
44' 0"
Width:
41' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
484 Sq. Ft.
Garage:
GARAGE
2
Garage Size:
Exterior Style
Cape Cod
Cottage
Country
Farmhouse
Southern
Traditional
Collections
Old House Classics
Rectangular
Foundation
Basement
Crawlspace
Slab
Framing Information
Stick
Roof Framing:
2x4 or 2x6
Exterior Wall Framing:
Roof Pitch
10/12
Primary:
8/12
Secondary:
7/12
Gable:
4/12
Porch:
Roof Load
30
Live:
15
Dead:
90
Wind:
Insulation (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
8
Second Floor Ceiling:
26' 0"
Maximum House Height:
Key Features
Basement
Crawlspace
Detached
Front-entry
Slab
Wraparound Porch
