Plan: 7125

Plan Specification
Total Square Footage: 838
Second Level: 838
Bedrooms: 1
Baths: 1 Half: 0
Garages: 3
Width/Depth: 42 ft / 24 ft
Foundation: Slab Foundation
Pin It
© copyright by designer
Garage Level:
Garage Level
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer
Living Area Floorplan:
Living Area Floorplan
Similar plans: 7123, 7124
More plans by this designer/architect
ShareThis
Add to Favorites
Purchase Plans

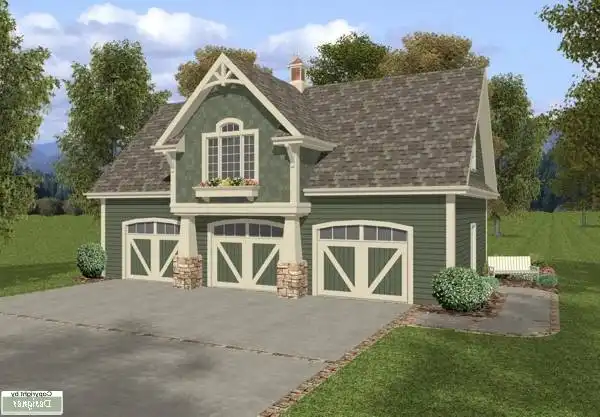

PLAN DESCRIPTION The Belmont Carriage House is a 3 car garage plan featuring 838 sq. ft. of living space above. The craftsman styling is highlighted by stacked stone accents. In the efficient living quarters are a spacious family room, an eat-in kitchen, a bedroom with a wide closet and a bathroom. Extra storage is found in a coat closet, linen closet and kitchen pantry. Laundry appliances are located beneath the stairs on the garage level. This plan would be an ideal temporary residence during construction of your primary home. Or, use it as an apartment for in-laws, a nanny, college students, etc.
Get Your House Plans In Minutes!
NEW PDFs Now!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
PDFs Now!™ $695.00
PDFs Now!™ $795.00
$845.00
$895.00
$945.00
$1,095.00
More details about our plan packages
Foundation Options
PDFs Now!™ available $0.00
Additional Plan Options
$175.00
$35.00
$100.00
$175.00
Best Price Guarantee, learn more

Live Chat  |  Email
Key Features
• Attached
• Family Room
• No Porch
• Slab
• Suited for narrow lot
Plan Details
General House Information
2
Number of Stories:
42' 0"
Width:
24' 0"
Depth:
Garage
Dwelling Number:
None
Bonus Access:
Exterior Style
Craftsman
Traditional
Number of Rooms
1
Bedrooms:
1
Full Baths:
Finished Square Footage
838 Sq. Ft.
Upper Level:
838 Sq. Ft.
Total:
Unfinished Square Footage
954 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
3
Garage Size:
Foundation
Slab Foundation
House And Ceiling Heights
8'-0"
First Floor Ceiling:
9'-0"
Second Floor Ceiling:
23' 9"
Maximum House Height:
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
12/12
Gable:
Roof Load
30 PSF
Live:
90 MPH
Wind:
Insulation (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
25
Floor:
Number of Rooms
1
Bedrooms:
1
Full Baths:
