House Plan: DFD-8023

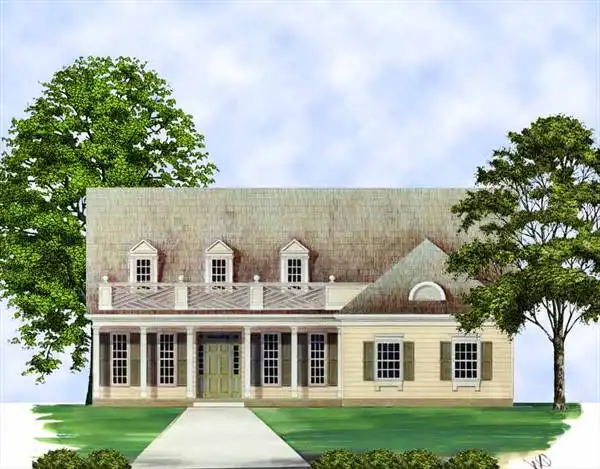

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,746
BEDS
3
BATHS
2.5
STORIES
1.5
CARS
2
HOUSE PLANS SALE
START AT  $1,100.75
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 8023
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,295
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,725
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,825
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,095
2D electronic editable computer files

CAD Unlimited Build


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $2,890
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1295
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,278 Sq. Ft.
Main Level:
468 Sq. Ft.
Upper Level:
1,746 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1.5
Number of Stories:
52' 0"
Width:
46' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
377 Sq. Ft.
Garage:
169 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Cape Cod
Country
Farmhouse
Traditional
Collections
Old House Classics
Foundation
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12/10
Primary:
Roof Load
40#
Live:
12#
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
24' 8"
Maximum House Height:
Key Features
2 Story Grand Salon
2 Story Great Room
Attached
Columns - Inside
Columns - Outside
Front Porch
Master Bdrm Main Floor
Optional Bonus Room
Slab
Vaulted Breakfast Room
Vaulted Ceilings in Master
Vaulted Grand Salon
Vaulted Great Room
