House Plan: DFD-9804

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
540
BEDS
1
BATHS
2
STORIES
2
CARS
2
PLANS FROM $1,250
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9804:

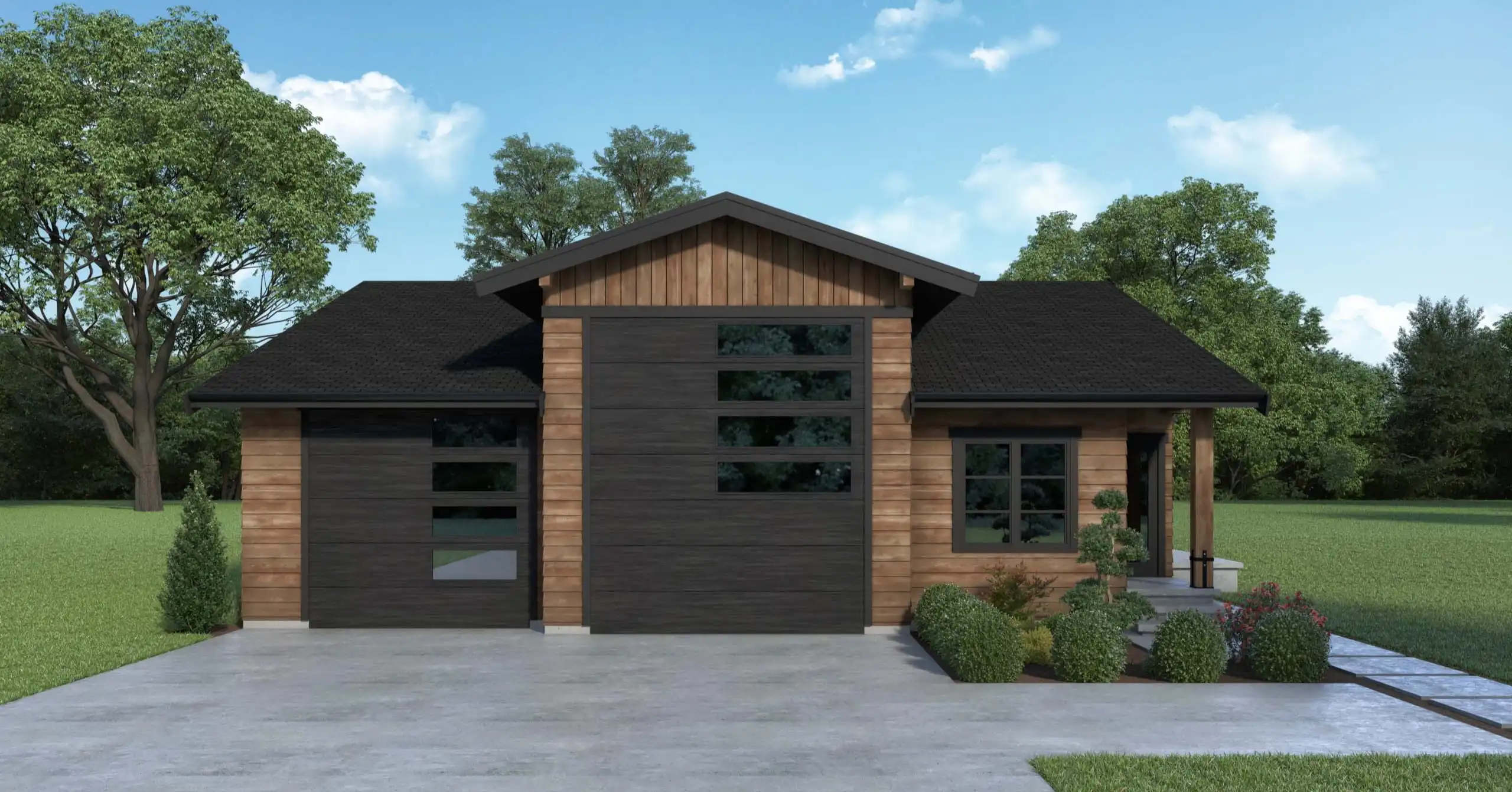

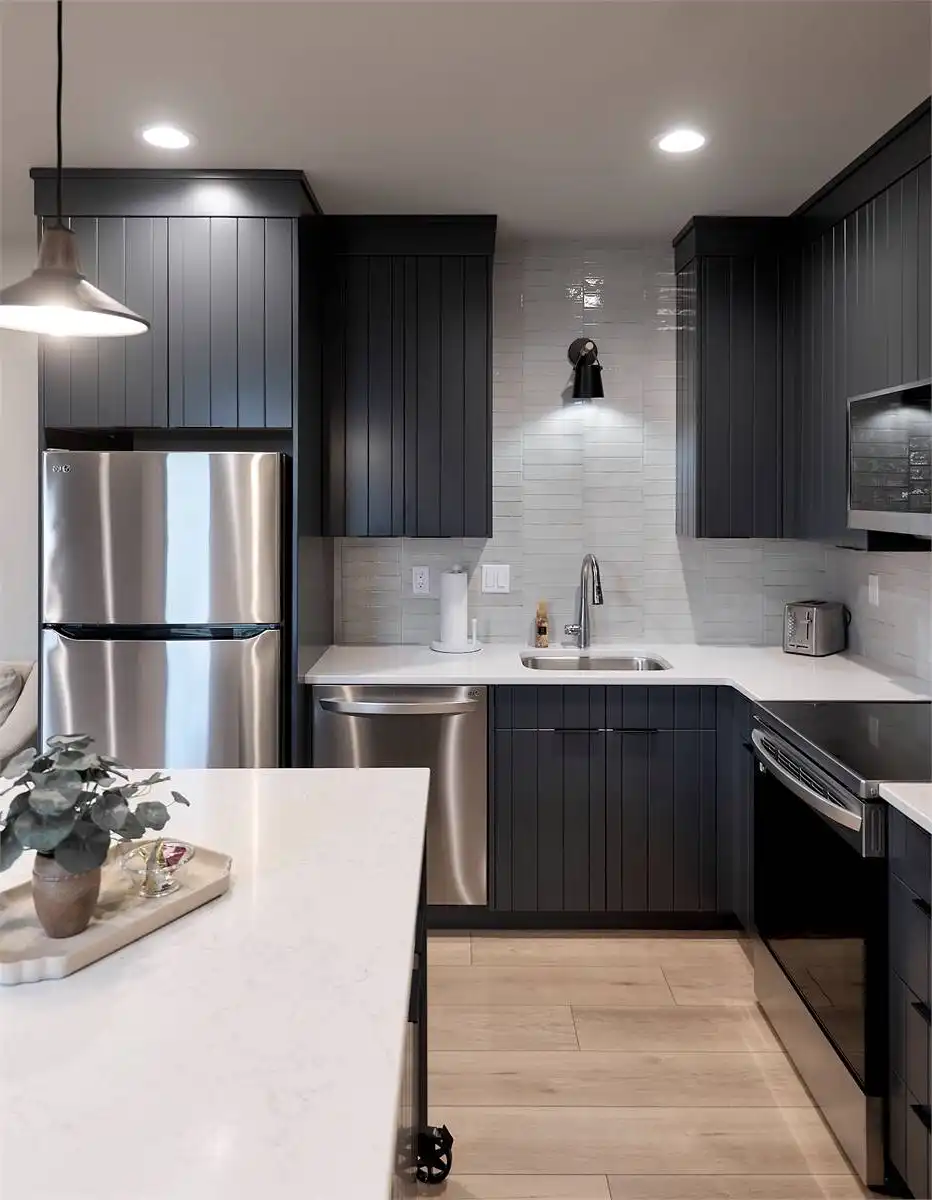

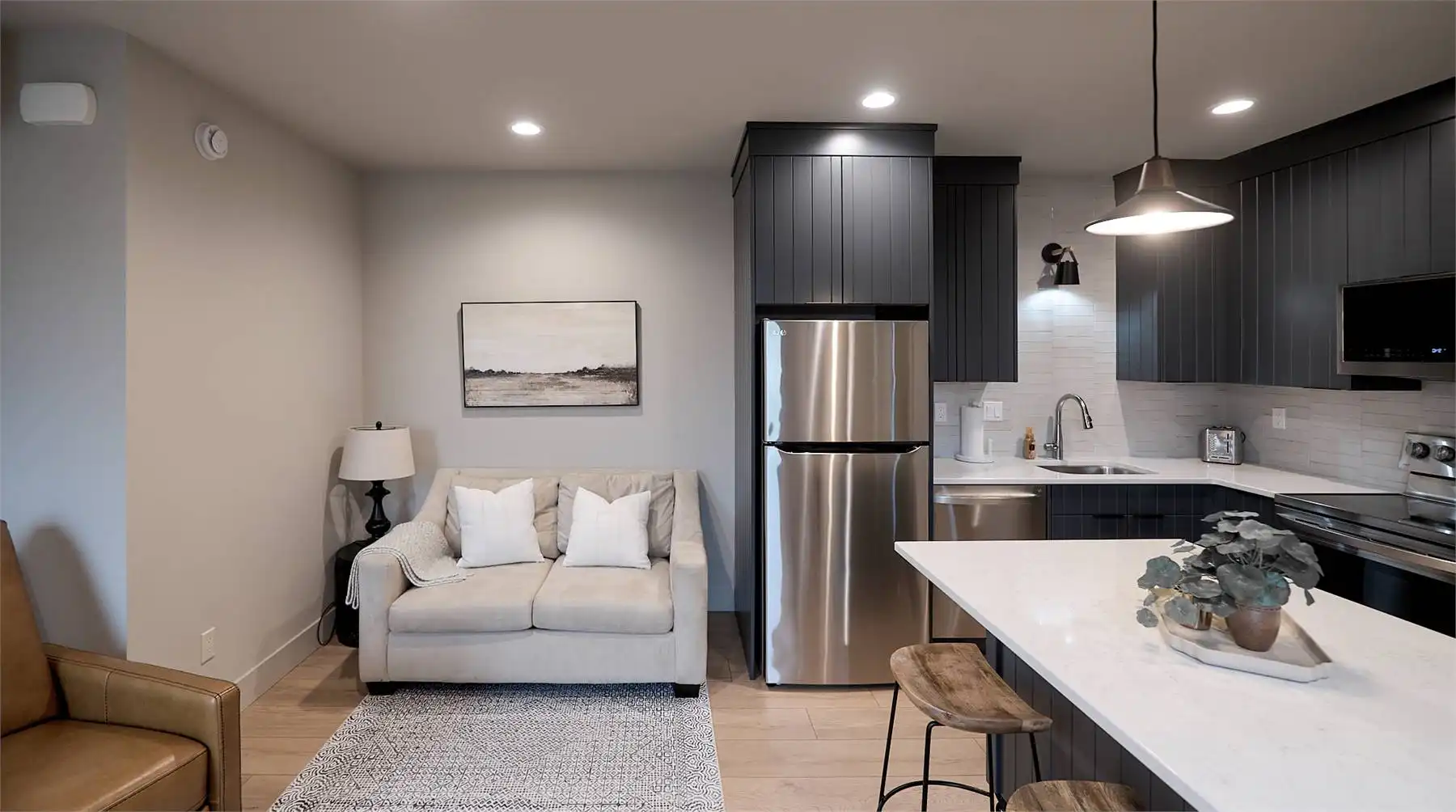

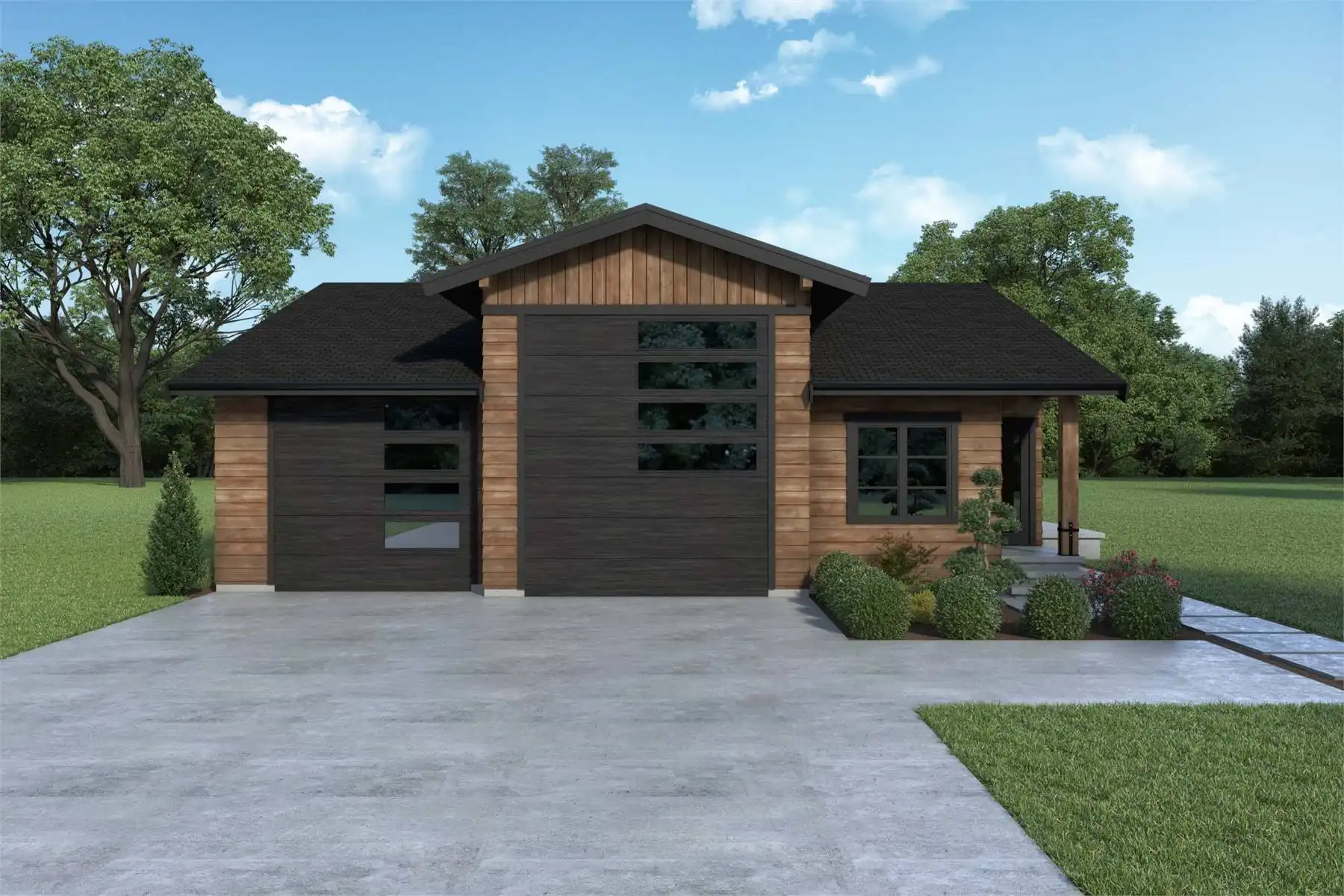

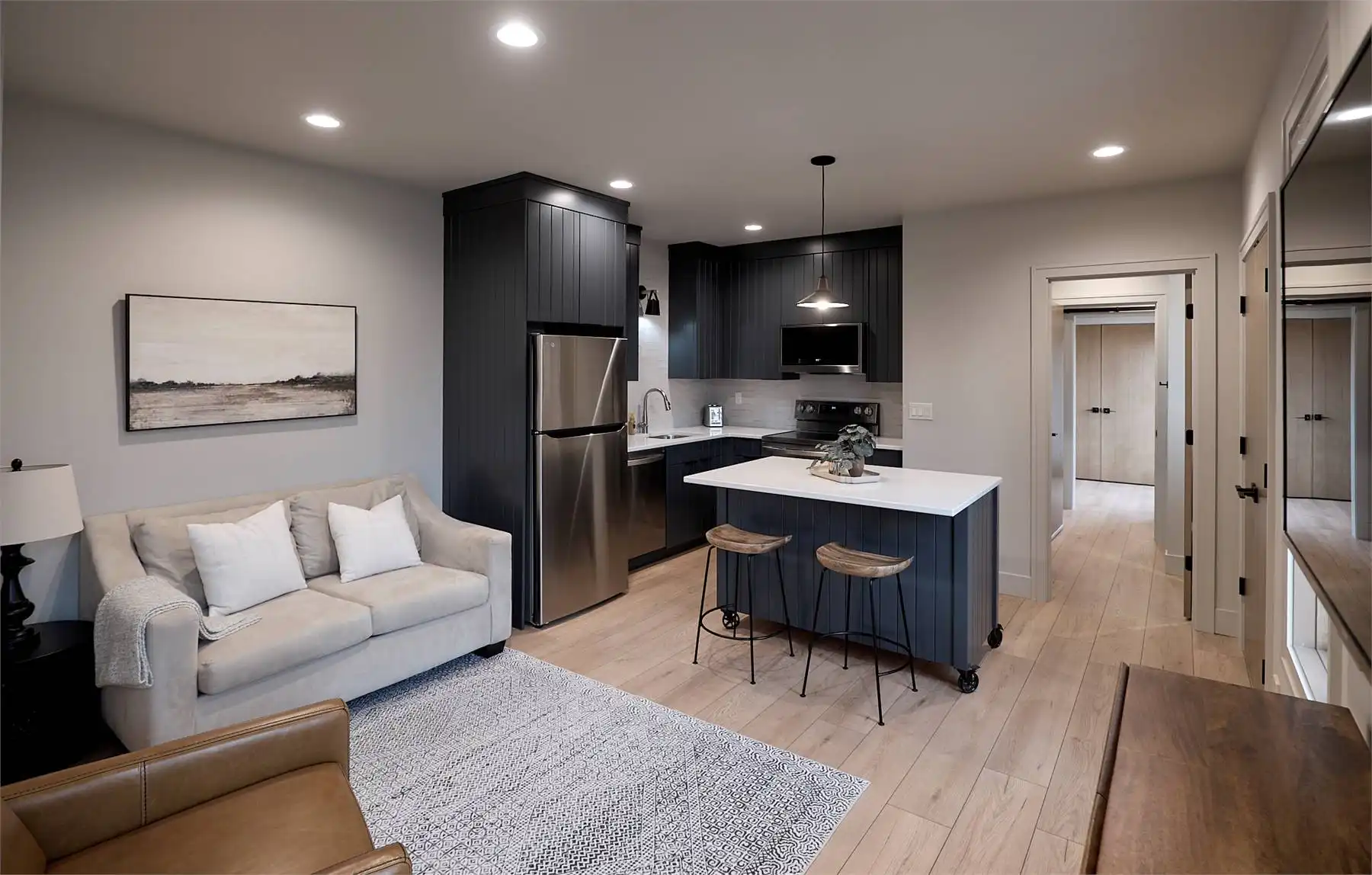

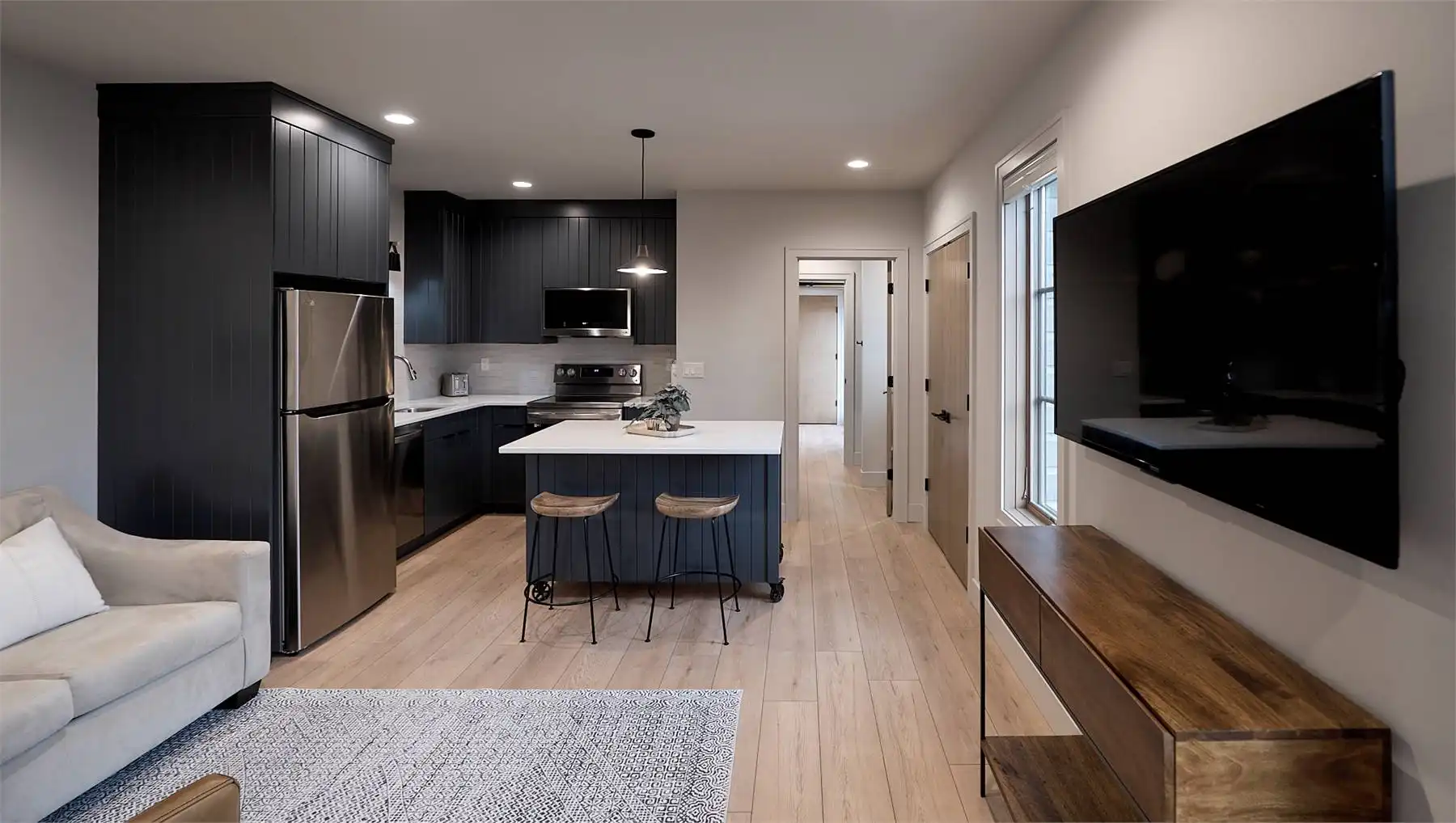

Welcome to our new 1 bedroom, 2 bath cottage with garden shed.  This cute cottage is a 540 sf all-in-one home which includes a combination kitchen/dining/living room with plenty of space to spread out. Read more >
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $625
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,250
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,400
Five printed sets of house plans

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use $1,900
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$0
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
540 Sq. Ft.
Main Level:
540 Sq. Ft.
Total:
Room Details
1
Bedrooms:
2
Full Baths:
General House Information
2
Number of Stories:
46' 0"
Width:
51' 6"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
1375 Sq. Ft.
Garage:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Country
Craftsman
Collections
Affordable
Budget
Builders
Empty Nester
Mountain
Foundation
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
4/12
Primary:
Insulation (R)
House And Ceiling Heights
9
First Floor Ceiling:
19' 3"
Maximum House Height:
Key Features
Attached
Covered Front Porch
Front Porch
Front-entry
L-Shaped
Master Bdrm Main Floor
Open Floor Plan
Outdoor Living Space
Oversized
RV Garage
Storage Space
Unfinished Space
Workshop
