House Plan: DFD-9828

Pin It
See All 9 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,783
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $1,428.00
For questions and help, live chat, email or call us at 877-895-5299
1st Floor
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9828:

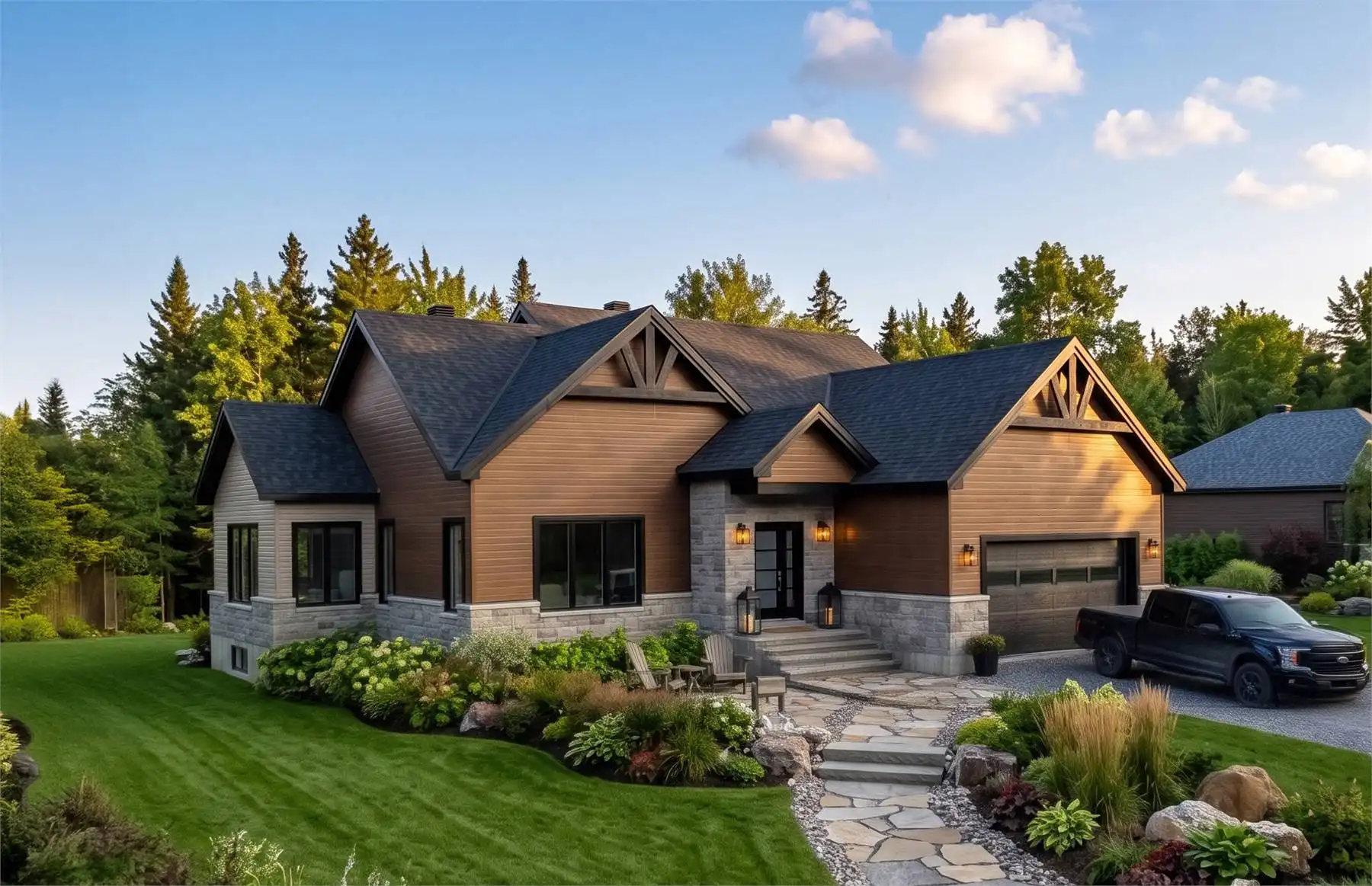

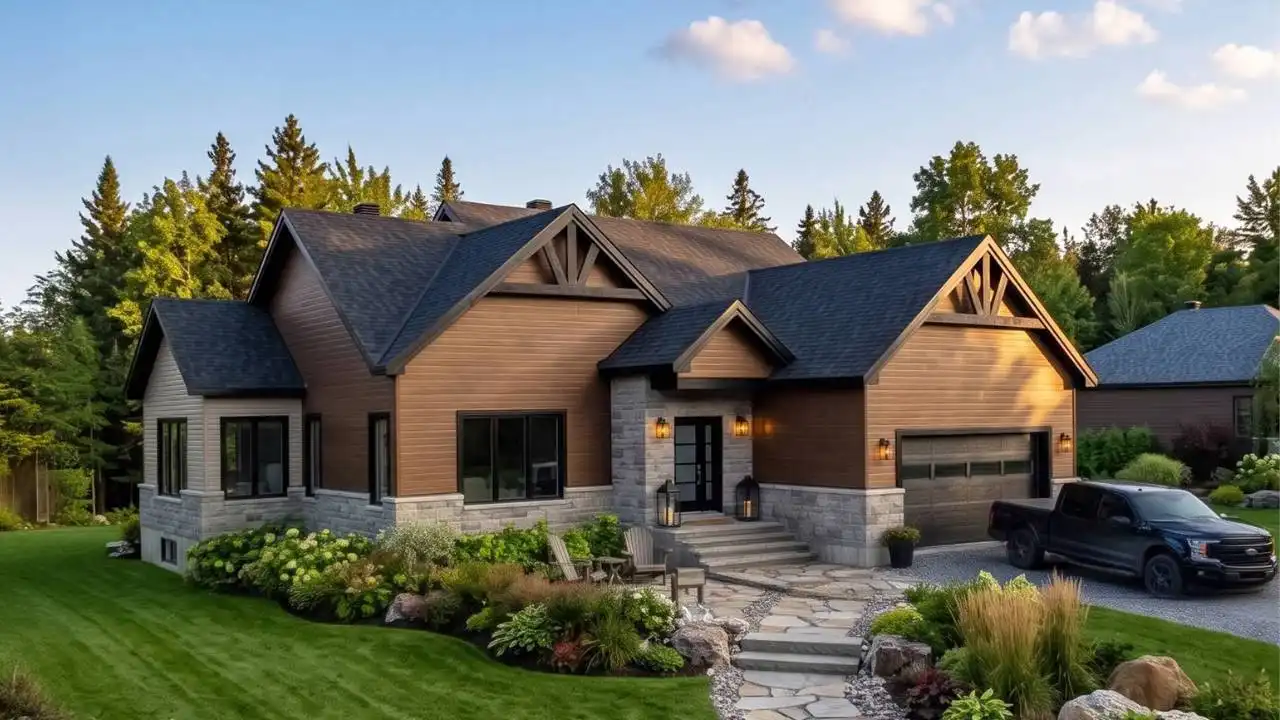

Check out House Plan 9828 if you need a lake house! This 1,783-square-foot ranch includes three bedrooms and two-and-a-half baths in a thoughtful layout. Enter through the airlock entry and you'll be ushered into the living area. A two-sided fireplace defines it from the island kitchen and dining area in back. The bedrooms are grouped in the side hallway and include a primary suite and two that share a Jack-and-Jill bath. The two-car front-entry garage rounds out this home!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,680
Most recommended package

3 Printed Sets + PDF

Includes 3 physical printed blueprint sets, shipped free via UPS within the U.S. Printed sets ship within 1 business day and are delivered within 3 – 5 business days. A complimentary PDF plan set is also emailed within 1 business day for easy sharing and local printing. These plans may be used to construct one home.

3 Printed Sets + PDF $1,820
3 Printed Sets + PDF

CAD + PDF Single Build

This plan package is created in AutoCAD and delivered in .DWG format. CAD files are intended for use by design professionals, structural engineers, and builders to update plans for local building codes or to make revisions based on specific needs, lot requirements, and budget considerations. A complimentary PDF copy is included with this package for reference. CAD packages are delivered within 1 to 2 business days.

This package also comes with a copyright release for making revisions and printing unlimited copies.

For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan page.

CAD + PDF Single Build $2,680
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1680
FREE SHIPPING
Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,783 Sq. Ft.
Main Level:
1,783 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
54' 0"
Width:
56' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
477 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Bungalow
Contemporary
Craftsman
Lake
Modern
Collections
Canada
Foundation
Crawlspace
Floating slab
Full Unfinished Basement (included)
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
10/12
Dormer:
Roof Load
55
Live:
20
Dead:
Insulation (R)
25
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
House And Ceiling Heights
8
First Floor Ceiling:
28' 9"
Maximum House Height:
Key Features
Attached
Basement
Covered Front Porch
Crawlspace
Deck
Double Vanity Sink
Family Room
Fireplace
Formal LR
Foyer
Front Porch
Front-entry
Great Room
His and Hers Primary Closets
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Open Floor Plan
Rear Porch
Sitting Area
Slab
Split Bedrooms
Storage Space
Suited for view lot
Unfinished Space
Walk-in Closet
