House Plan: 2432

Plan Specification
Total Square Footage: 1,580
Main Level: 1,580
Bedrooms: 3
Baths: 2 Half: 1
Garages: 2
Width/Depth: 50 ft / 48 ft
Foundation: Basement, Crawlspace, Slab
ENERGY STAR APPROVED
Pin It
View typical construction drawings by this designer >
© copyright by designer

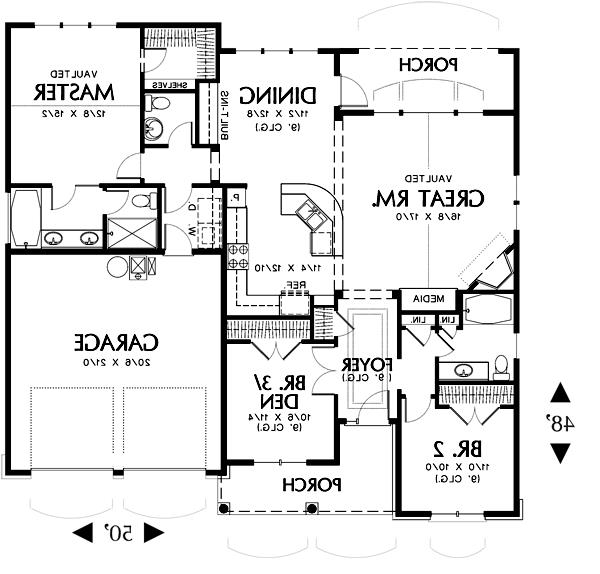

First Floor Plan:
First Floor Plan
Need to make changes?
Call for a free modification quote
877-895-5299 or LIVE CHAT NOW
or use this quote form
© copyright by designer

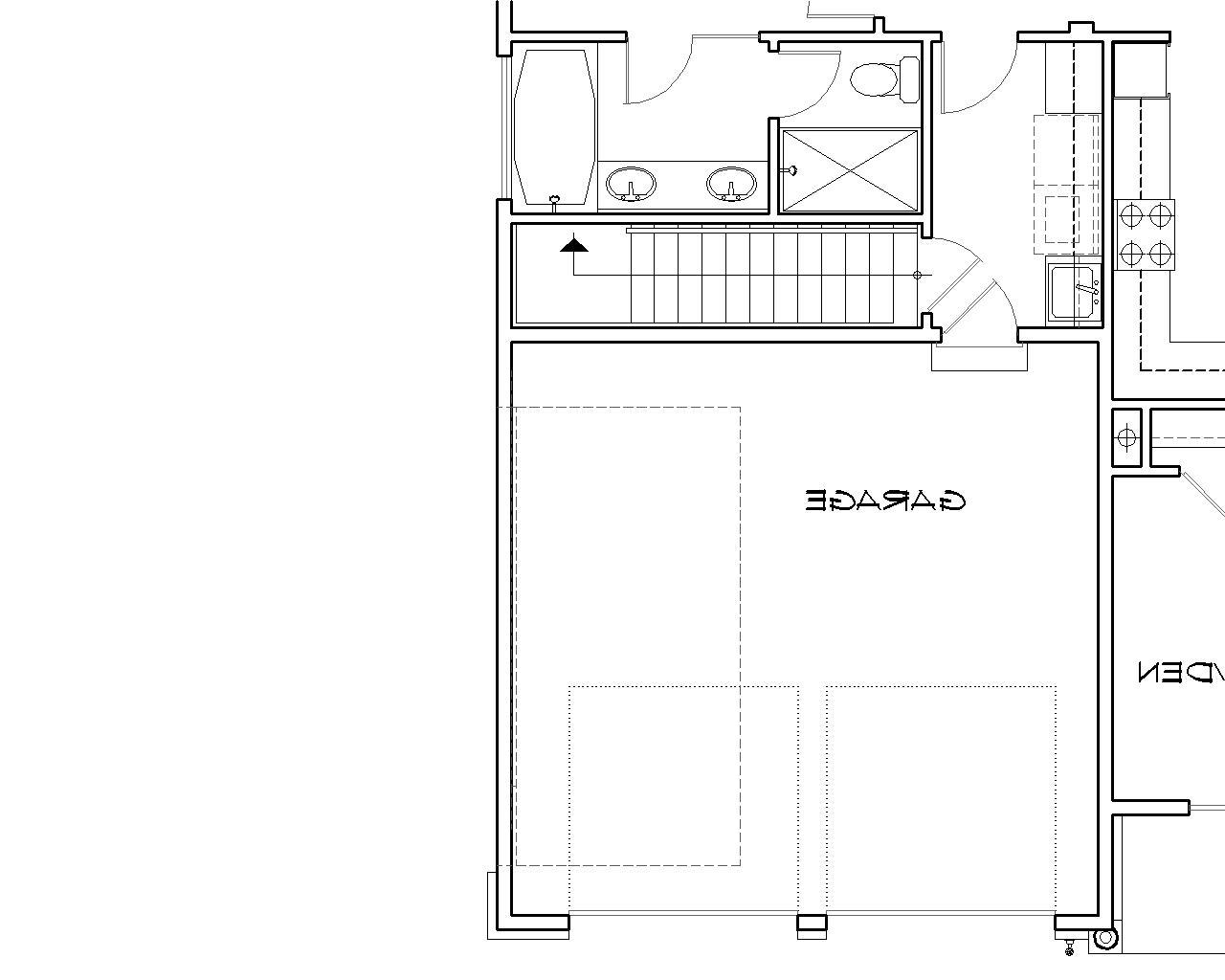

Basement Stair Location:
Basement Stair Location
Similar plans: 4323
More plans by this designer/architect
Add to Favorites
Purchase Plans
Get Your House Plans In Minutes!
NEW PDFs NOW!™ Plan packages available. Simply place your order, electronically sign the license agreement, and receive your PDFs within minutes in your inbox!
House Plan Pricing
$769.00
PDFs NOW!™ $1,119.00
$1,294.00
PDFs NOW!™ $1,344.00
$2,238.00
More details about our plan packages
Foundation Options
PDFs NOW!™ available $0.00
PDFs NOW!™ available $125.00
PDFs NOW!™ available $381.00
Additional Plan Options
$175.00
$45.00
PDFs NOW!™ available $175.00
Best Price Guarantee, learn more
Live Chat  |  Email
Key Features
• Attached
• Basement
• Country Kitchen
• Covered Front Porch
• Covered Rear Porch
• Crawlspace
• Den/bedroom on main
• Double Vanity Sink
• Fireplace
• Foyer
• Front Porch
• Front-entry
• Great Room
• Home Office
• Kitchen Island
• Laundry 1st Fl
• Master Bdrm Main Floor
• Open Floor Plan
• Peninsula / Eating Bar
• Rear Porch
• Slab
• Split Bedrooms
• Suited for narrow lot
• Suited for view lot
• Vaulted Ceilings
• Walk-in Closet
Plan Details
General House Information
1
Number of Stories:
50' 0"
Width:
48' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Exterior Style
Bungalow
Country
Ranch
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
Finished Square Footage
1,580 Sq. Ft.
Main Level:
1,580 Sq. Ft.
Total:
Unfinished Square Footage
452 Sq. Ft.
Garage:
60 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Foundation
Basement
Crawlspace
Slab
House And Ceiling Heights
Varies
First Floor Ceiling:
21' 8"
Maximum House Height:
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
10/12
Secondary:
Roof Load
25
Live:
15
Dead:
0
Wind:
Insulation (R)
21
Exterior Wall:
0
Interior Wall:
38
Ceiling:
30
Floor:
Number of Rooms
3
Bedrooms:
2
Full Baths:
1
Half Baths:
