House Plan: DFD-3401

Pin It

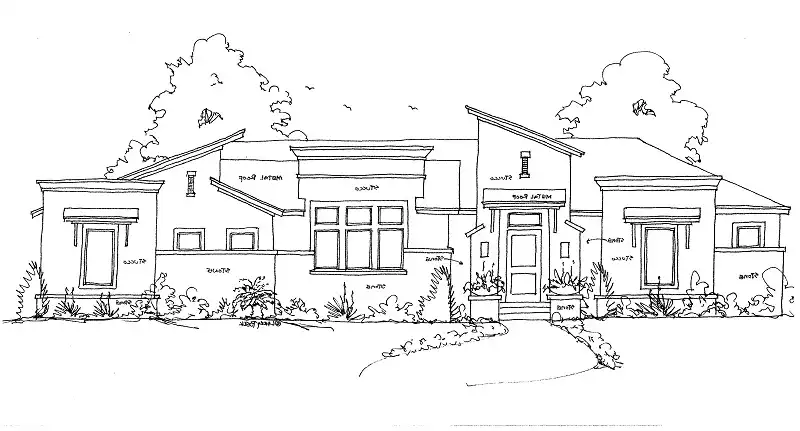

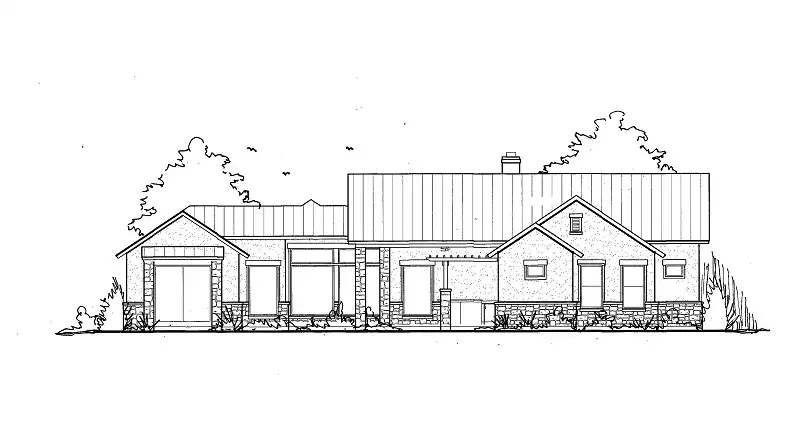

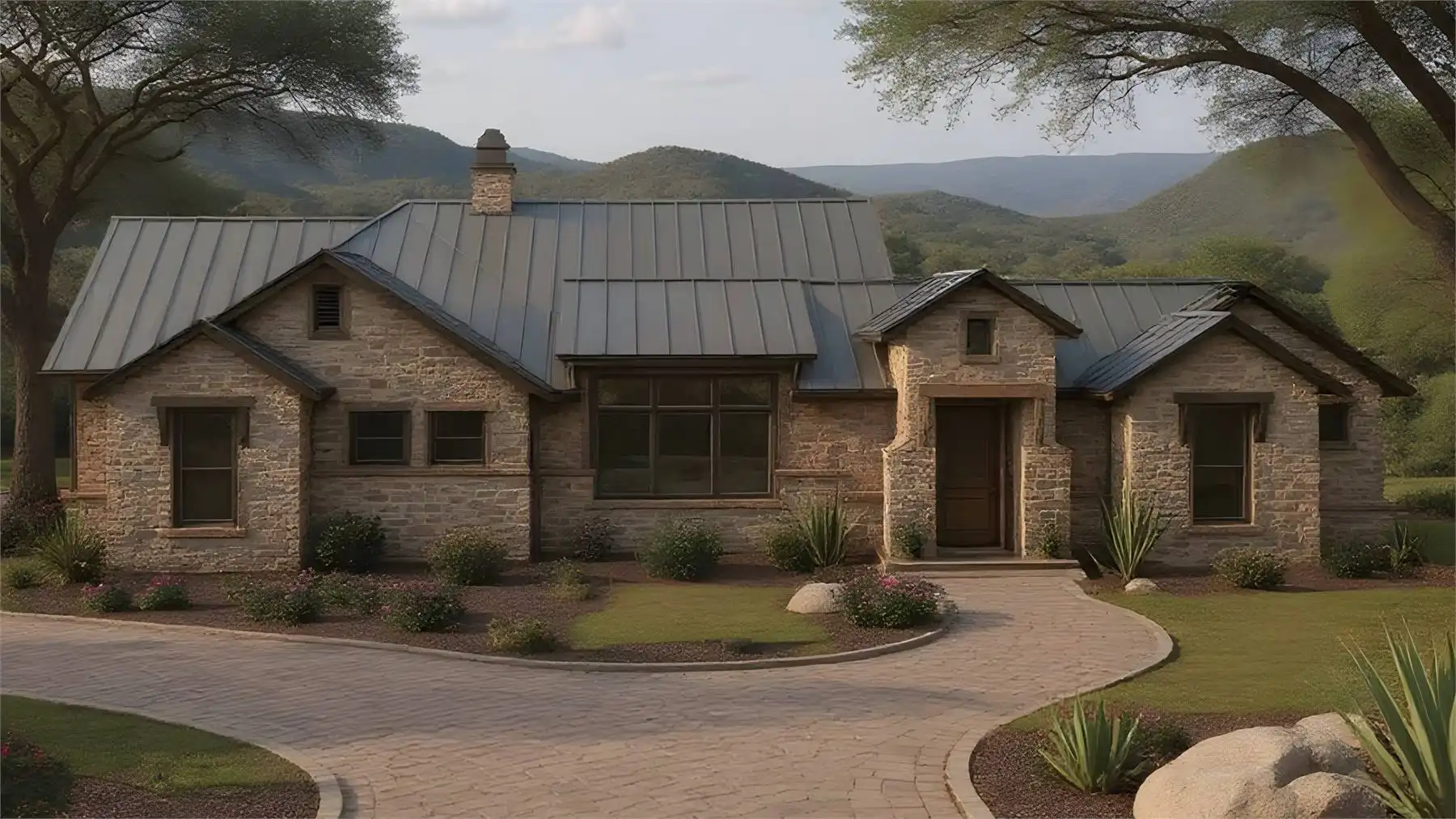

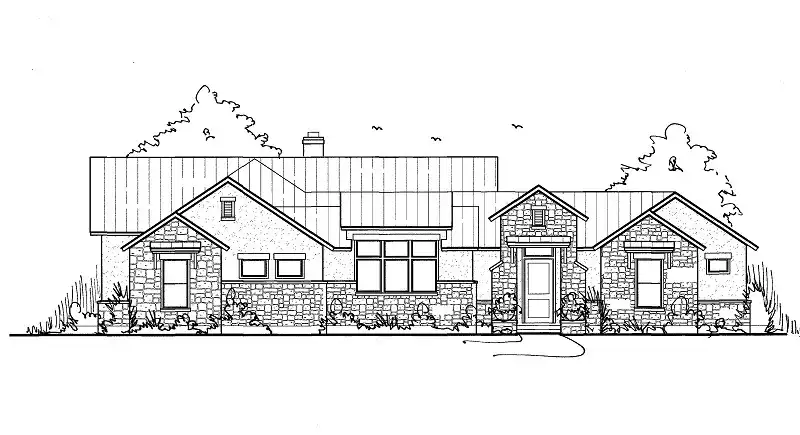

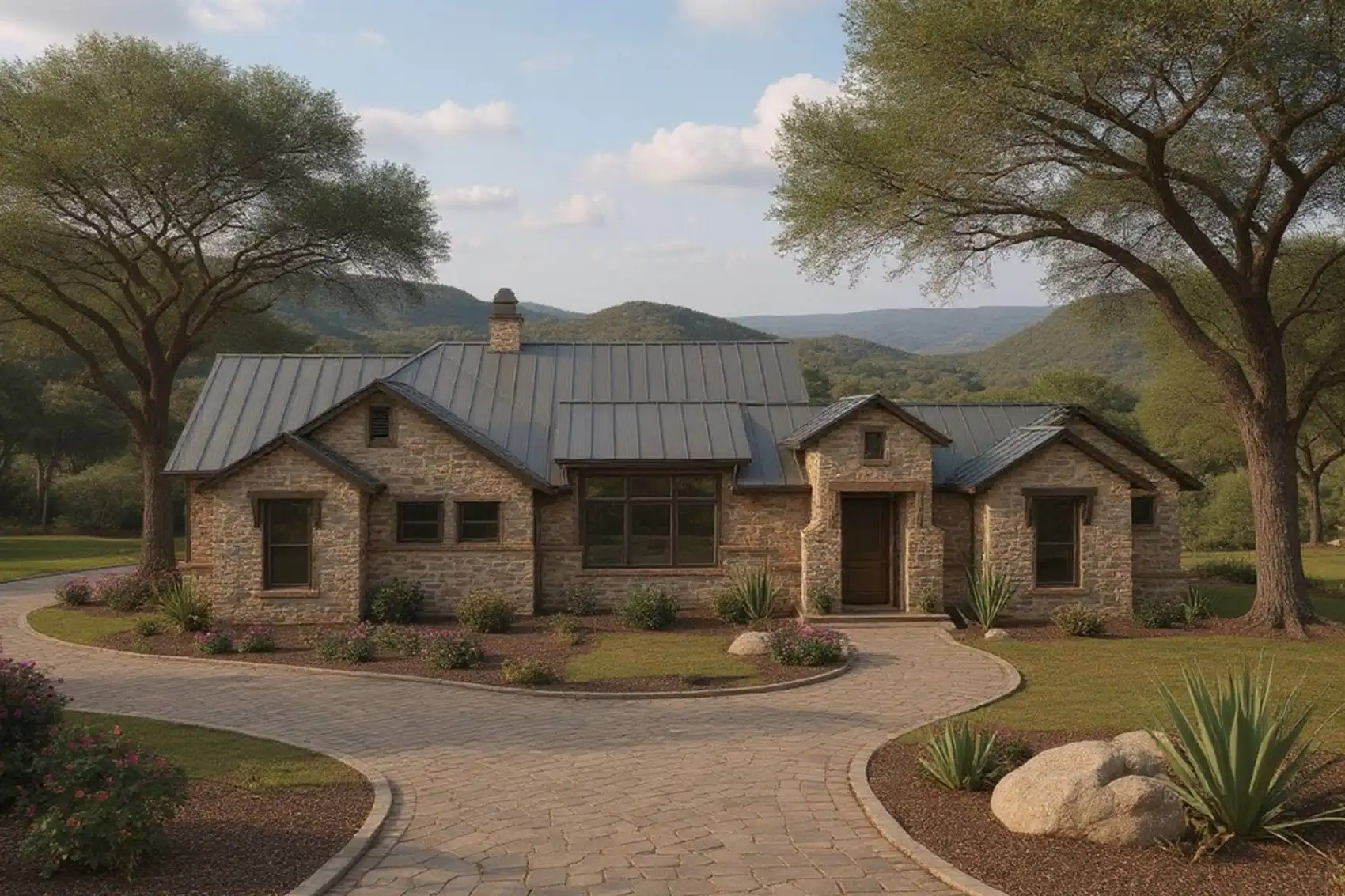

See All 5 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,268
BEDS
3
BATHS
3.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $1,400.00
For questions and help, live chat, email or call us at 877-895-5299

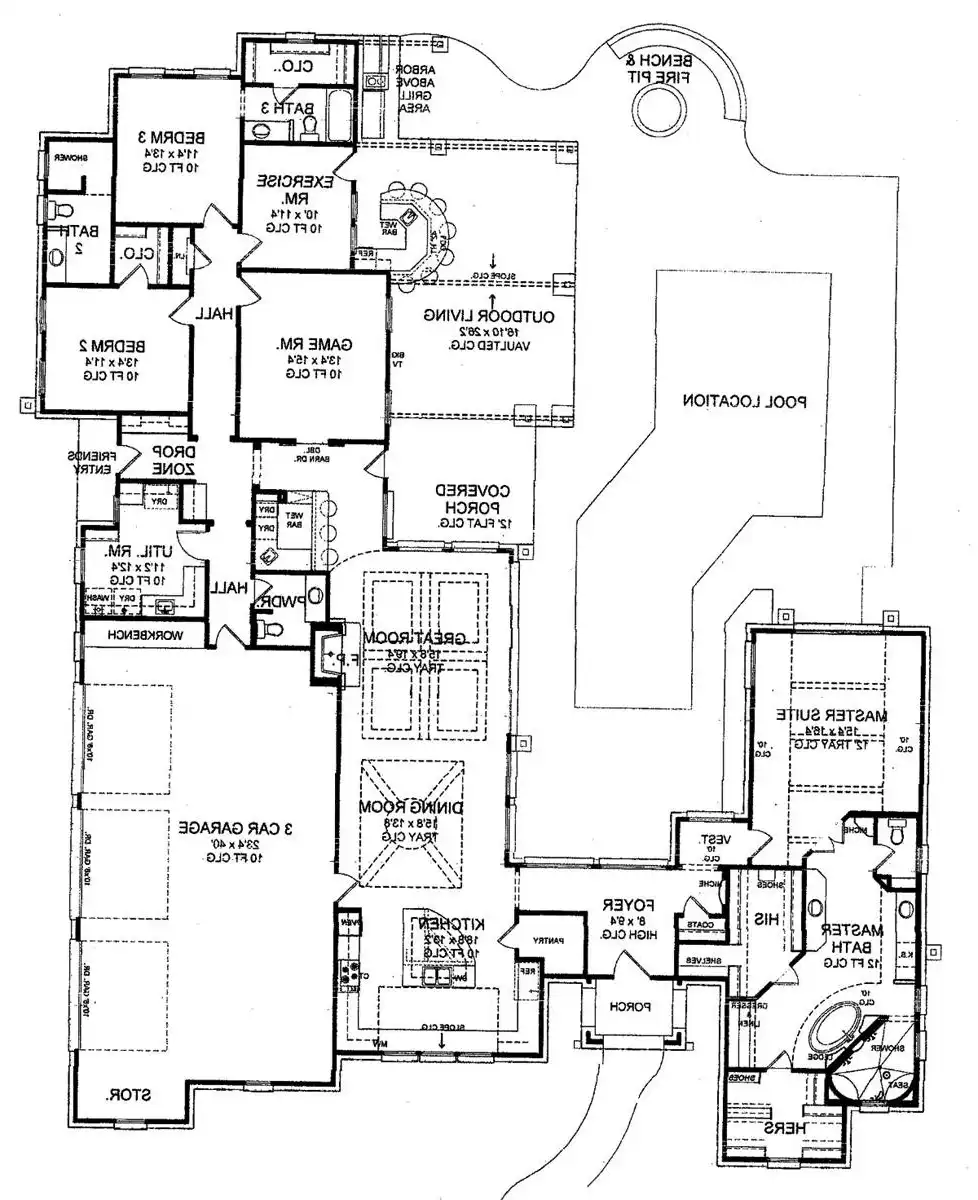

1st Floor
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 3401:
House Plan 3401 is a stunning Southwestern ranch with 3,268 square feet, three bedrooms, three-and-a-half baths, and so much more in a J-shaped layout that wraps around a courtyard. The amazing five-piece primacy suite has its privacy on one side of the foyer while the rest of the house spreads back on the other. The great room boasts a spacious U-shaped island kitchen and both the dining and living areas have dressy tray ceilings over them. Make sure not to miss the cozy fireplace or the wet bar! The outdoor living area continues back from the indoor spaces and includes a covered porch with another wet bar and an outdoor kitchen! Finally, the rear hallway off the great room is where you'll find the secondary bedroom suites, game and exercise rooms, and the mudroom, laundry room, and powder room by the three-car garage.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $1,250
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,750
Most recommended package

Multi-Use PDF

Two Builds Only
Multi-Use PDF $2,495
Two Builds Only

CAD + PDF Single Build

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

CAD + PDF Single Build $3,250
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal:
$1750
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
3,268 Sq. Ft.
Main Level:
3,268 Sq. Ft.
Total:
Room Details
3
Bedrooms:
3
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
82' 7"
Width:
103' 9"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
1045 Sq. Ft.
Garage:
789 Sq. Ft.
Porch:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Country
European
Mediterranean
Ranch
Southwest
Spanish
Tuscan
Collections
Kitchens
Luxury
Primary Suites
Mountain
Open Floor Plan
OtherCustom
Outdoor Living
Split Bedroom
Foundation
Basement
Crawl Space
Daylight Basement
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Insulation (R)
House And Ceiling Heights
10
First Floor Ceiling:
Key Features
Attached
Basement
Courtyard
Covered Front Porch
Covered Rear Porch
Crawlspace
Double Vanity Sink
Exercise Room
Fireplace
Foyer
Great Room
His and Hers Primary Closets
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Open Floor Plan
Outdoor Kitchen
Outdoor Living Space
Rec Room
Separate Tub and Shower
Side-entry
Slab
Split Bedrooms
Suited for corner lot
Suited for view lot
U-Shaped
Walk-in Closet
Walk-in Pantry
Wine Cellar
