House Plan: DFD-4127

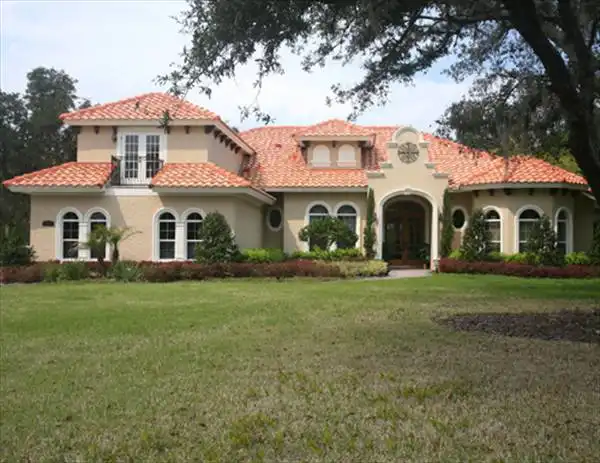

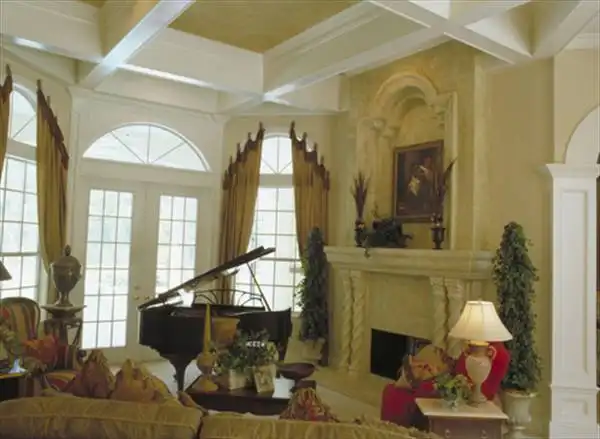

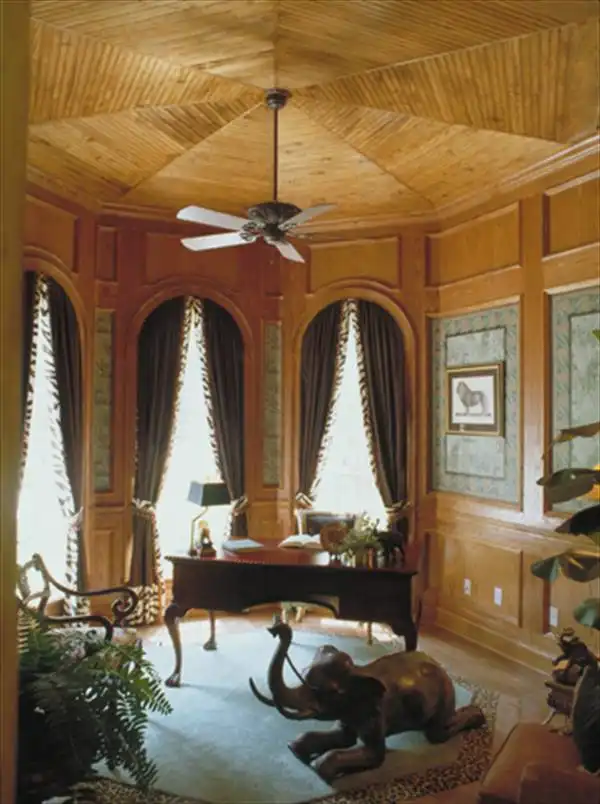

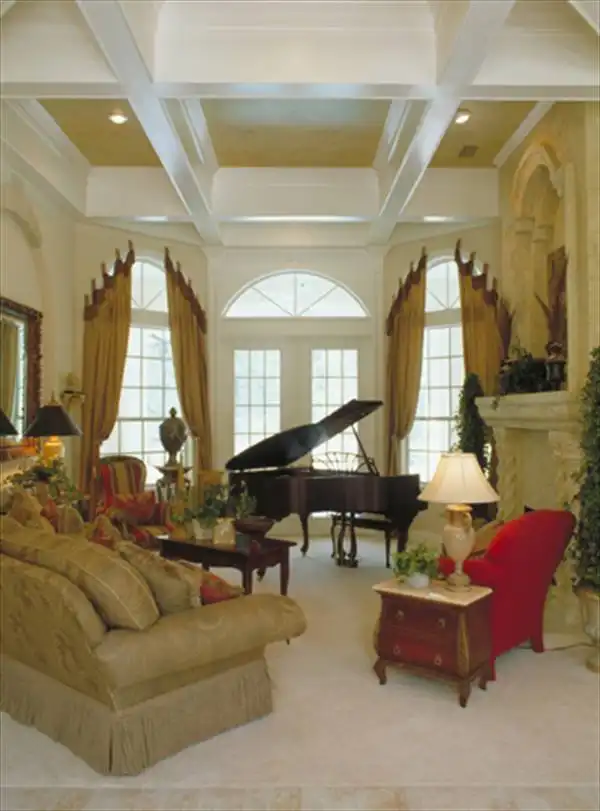

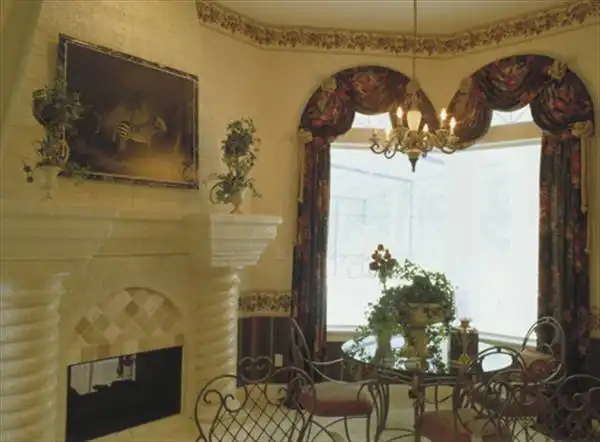

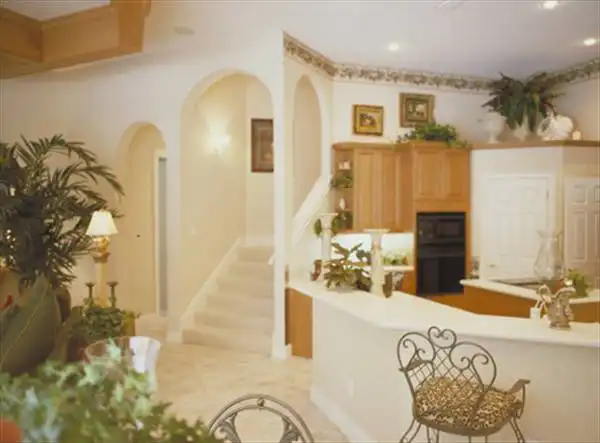

See All 15 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,424
BEDS
5
BATHS
4
STORIES
1
CARS
3
PLANS FROM $1,450
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

House Plan 4127
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $800
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,450
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,650
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,800
Immediate Delivery!
Digital plans plus 5 printed sets

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use $2,900
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$0
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,424 Sq. Ft.
Main Level:
3,424 Sq. Ft.
Total:
Room Details
5
Bedrooms:
4
Full Baths:
General House Information
1
Number of Stories:
82' 4"
Width:
83' 8"
Depth:
Single
Dwelling Number:
1st Floor
Bonus Access:
Unfinished Square Footage
814 Sq. Ft.
Garage:
82 Sq. Ft.
Porch:
455 Sq. Ft.
Patio:
507 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Contemporary
European
Mediterranean
Southwest
Spanish
Tuscan
Collections
Architects Choice
Concrete
Florida
ICF
Kitchens
Luxury
Master Suites
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
*Slab (Standard)
Framing Information
Truss
Roof Framing:
8" Block/Wood
Exterior Wall Framing:
Roof Pitch
6/12
Primary:
6:12
Dormer:
Insulation (R)
5
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
Varies
First Floor Ceiling:
8
Second Floor Ceiling:
23' 5"
Maximum House Height:
Facade
Stucco
Key Features
4 Baths
5 Bedrooms
Attached
Bonus Room
Covered Patio
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal Dining Room
Formal LR
Foyer
Great Room
His and Hers Master Closets
Home Office
Kitchen Island
Laundry 1st Fl
Master Bdrm Main Floor
Master Sitting Area
Master Suite
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Separate Tub and Shower
Side-entry
Sitting Area
Slab
Split Bedrooms
Storage Space
Suited for corner lot
Suited for view lot
Unfinished Space
Walk-in Closet
Walk-in Pantry
