House Plan: DFD-5173

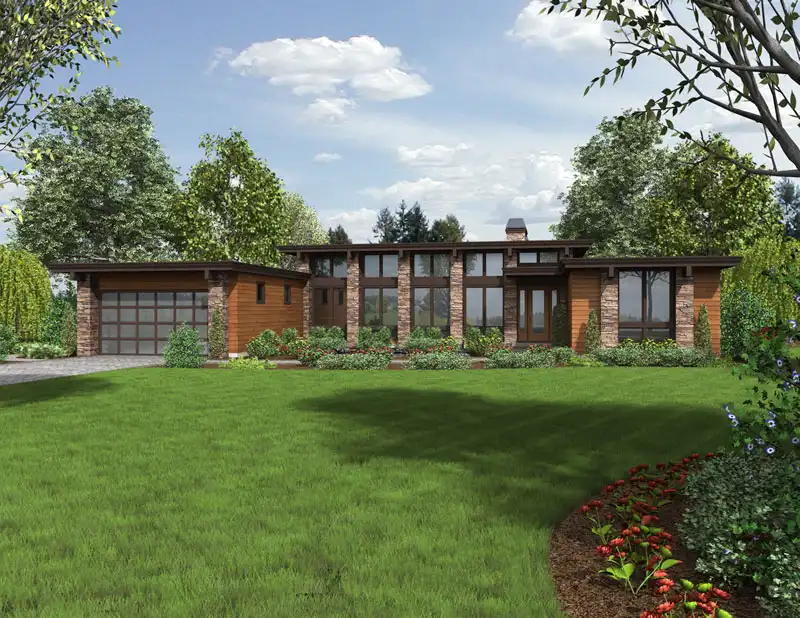

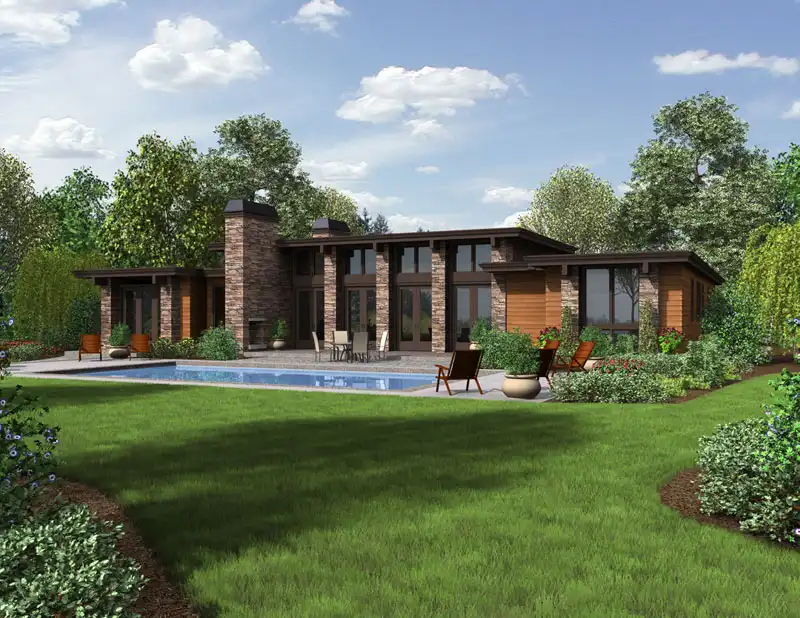

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
2,557
BEDS
4
BATHS
2.5
STORIES
1
CARS
2
PLANS FROM $1,718
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5173:
Horizontal lines give a contemporary feel to this four-bedroom house plan, with 2.5 baths and 2,557 square feet of living space. Relax with friends in the living/dining room of this home plan, where a fire crackles in the fireplace. French doors offer direct access to a rear patio. The island kitchen boasts a handy pantry. Retire to the posh master bedroom after a long day. Features include a walk-in closet and backyard access. Refresh your body in the garden spa tub or the separate shower. You'll appreciate the two-sink vanity, especially on busy mornings. Two secondary bedrooms share a Jack and Jill bath in this home design. Builders point out the corner office, which would make a nice media room or extra bedroom.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,718
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,918
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,968
Immediate Delivery!
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,436
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1718
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
2,557 Sq. Ft.
Main Level:
2,557 Sq. Ft.
Total:
Room Details
4
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
78' 0"
Width:
67' 6"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
484 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Contemporary
Mid-Century Modern
Modern
Ranch
Collections
Empty Nester
North Carolina
Old House Classics
Open Floor Plan
Outdoor Living
Split Bedroom
Texas
Vacation
Foundation
Basement
Crawlspace
Stem Wall Slab Foundation-Included
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
1/4"per ft
Primary:
Roof Load
25
Live:
15
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
Varies
First Floor Ceiling:
16' 8"
Maximum House Height:
Key Features
Attached
Basement
Country Kitchen
Crawlspace
Double Vanity Sink
Fireplace
Foyer
Front-entry
Great Room
Home Office
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Open Floor Plan
Separate Tub and Shower
Slab
Suited for view lot
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
