House Plan: DFD-5617

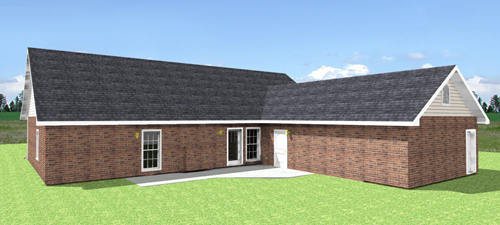

See All 7 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,856
BEDS
4
BATHS
3
STORIES
1
CARS
2
PLANS FROM $980
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 5617:

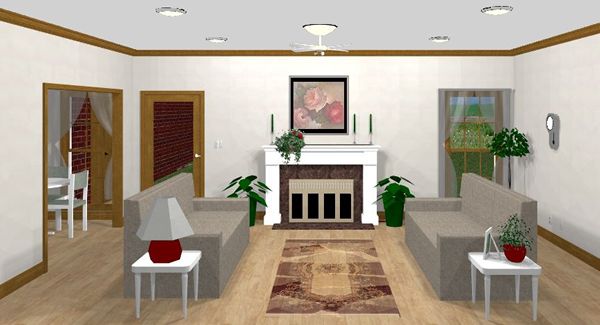

4 bedrooms or 3 bedrooms and a study.. the choice is up to you. Relax on the front porch or step inside to enjoy the Great Rooms gas fireplace. This home has a split plan perfect for a growing family.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $980
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,080
Five printed sets of house plans
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$980
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
1,856 Sq. Ft.
Main Level:
1,856 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
General House Information
1
Number of Stories:
58' 0"
Width:
68' 0"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
627 Sq. Ft.
Garage:
368 Sq. Ft.
Porch:
317 Sq. Ft.
Patio:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
Country
Southern
Traditional
Collections
Affordable
Builders
First Home
In-Law Suite
Mountain
Old House Classics
Open Floor Plan
PDFs Fast!
Rectangular
Split Bedroom
Vacation
Foundation
Crawl Space
Slab
Framing Information
Truss
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
8
Primary:
4
Secondary:
4
Porch:
Roof Load
30
Live:
10
Dead:
Insulation (R)
13
Exterior Wall:
0
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
22' 0"
Maximum House Height:
Key Features
Attached
Covered Front Porch
Covered Porch
Crawlspace
Dining Room
Double Vanity Sink
Family Room
Fireplace
Formal Dining Room
Foyer
French Doors
Front Porch
Great Room
Guest Suite
Home Office
Jack and Jill Bath
Kitchen Island
Large Bedrooms
Linen Closets
Primary Suite
Mud Room
Nook / Breakfast Area
Office or extra bedroom
Open Floor Plan
Peninsula / Eating Bar
Raised Snack Bar
Separate Tub and Shower
Side-entry
Slab
Split Bedrooms
Split Floor plan layout
Storage Space
Suited for corner lot
Walk-in Closet
Walk-in Pantry
